HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Chainsaw TCS33EDT

SKU: Tanaka TCS33EDT
€62.24
VAT included

Tanaka Spare Parts for Chainsaw TCS33EDT

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw TCS33EDT.
Tanaka Spare Parts for Chainsaw TCS33EDT
  • Tanaka Spare Parts for Chainsaw TCS33EDT
  • Tanaka Spare Parts for Chainsaw TCS33EDT
  • Tanaka Spare Parts for Chainsaw TCS33EDT
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Chainsaw TCS33EDT

SKU: Tanaka TCS33EDT Condition: New
€62.24
VAT included

Tanaka Spare Parts for Chainsaw TCS33EDT

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw TCS33EDT.
settings 119 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
119 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

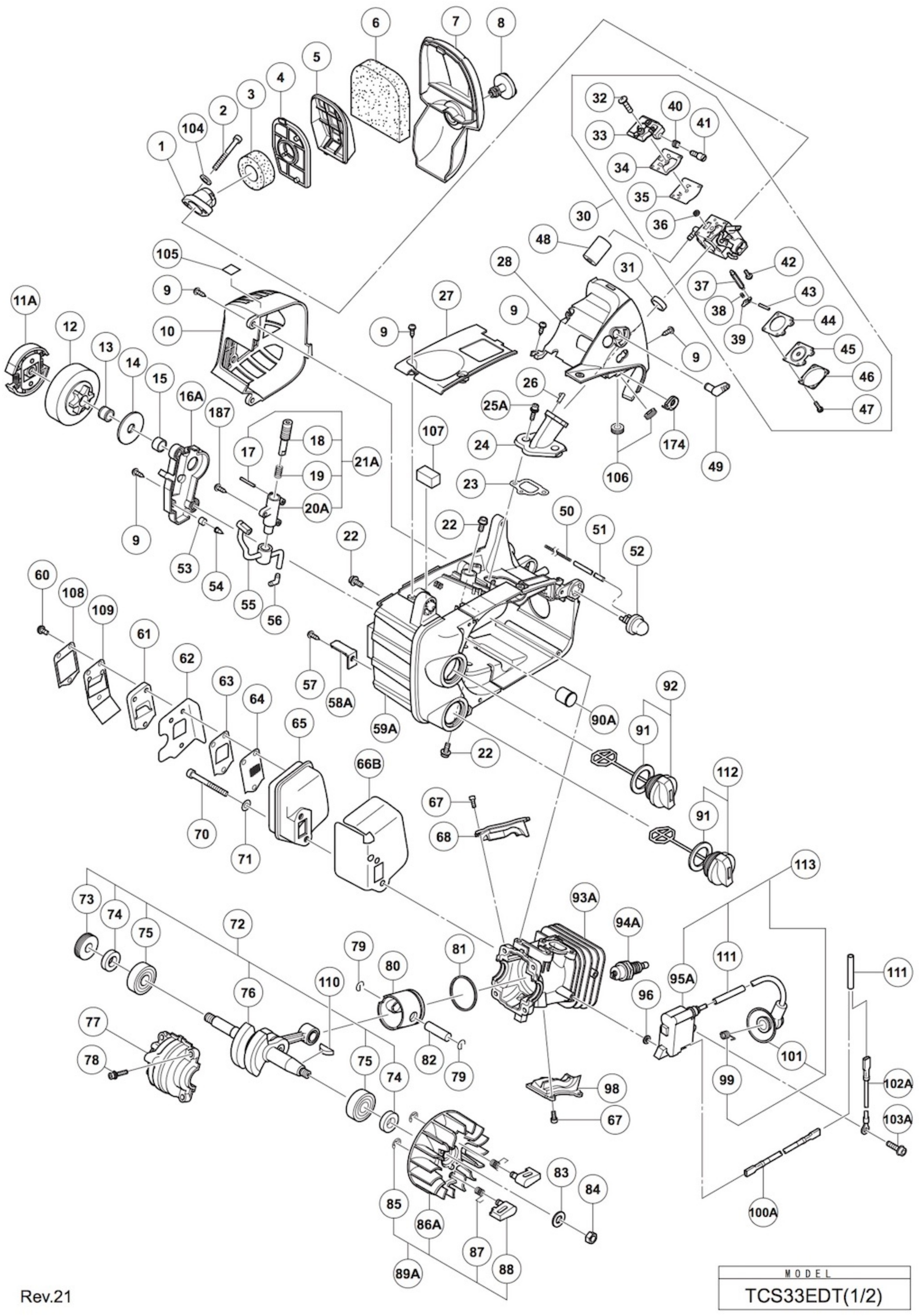

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6685225 AIR CLEANER BASE €2.38
3
 Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT 6696826 Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT €2.38
4
 Lower Cleaner Element for Chainsaw Tanaka TCS33EDT 6685230 Lower Cleaner Element for Chainsaw Tanaka TCS33EDT €6.04
5
 Upper Cleaner Element for Chainsaw Tanaka TCS33EDT 6685231 Upper Cleaner Element for Chainsaw Tanaka TCS33EDT €6.04
6
 Cleaner Sponge for Chainsaw Hitachi CS33EDT 6696825 Cleaner Sponge for Chainsaw Hitachi CS33EDT €2.38
7
 Air Filter Cover for Chainsaw Hitachi CS33EDT 6696785 Air Filter Cover for Chainsaw Hitachi CS33EDT €8.48
8
 Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT 6696786 Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT €2.38
10
 Muffler Cover for Chainsaw Hitachi CS33EDTP 6696821 Muffler Cover for Chainsaw Hitachi CS33EDTP €17.02
12
 Clutch Drum for Chainsaw Hitachi Tanaka CS33EDT 6698856 Clutch Drum for Chainsaw Hitachi Tanaka CS33EDT €36.54
13
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.92
14
 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB 6685414 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB €2.38
15
 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB 6685360 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB €7.26
17
 photo_cameraImage coming soon 6685356 NEEDLE ROLLER 2.5X19.8 €2.38
18
 Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT 6685354 Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT €12.14
19
 Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT 6685355 Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT €2.38
21A
 Oil Pump for Chainsaw Hitachi Tanaka CS33EDT 6699120 Oil Pump for Chainsaw Hitachi Tanaka CS33EDT €20.68
23
 photo_cameraImage coming soon 6698849 INTAKE PACKING €1.16
24
 Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT 6696794 Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT €8.48
26
 photo_cameraImage coming soon 6685203 PULSE GUIDE €2.38
27
 photo_cameraImage coming soon 6696812 ENGINE CASE COVER €6.04
28
 photo_cameraImage coming soon 6696792 CLEANER BODY €8.48
30
 Hitachi Chainsaw CS33EDT Carburetor Ass'y 6696795 Hitachi Chainsaw CS33EDT Carburetor Ass'y €115.84
31
 photo_cameraImage coming soon 6698857 INLET SPACER €2.38
32
 photo_cameraImage coming soon 6685210 SCREW €2.38
34
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.60
35
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.92
36
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
37
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
39
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
40
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.60
41
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.60
42
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.60
43
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
44
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
45
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
47
 photo_cameraImage coming soon 6685223 SET SCREW €2.38
49
 photo_cameraImage coming soon 6685206 CHOKE LEVER €2.38
52
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
53
 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685371 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €3.60
54
 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685370 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €4.82
55
 Oil Pipe for Chainsaw Tanaka TCS33EDT 6696811 Oil Pipe for Chainsaw Tanaka TCS33EDT €6.04
56
 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB 6685358 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB €2.38
57
 photo_cameraImage coming soon 6698456 FLANGED TAPPING SCREW D5X15 €2.38
59A
 photo_cameraImage coming soon 6696807 ENGINE CASE ASS'Y €71.92
61
 photo_cameraImage coming soon 6696816 EXHAUST PIPE €2.38
62
 photo_cameraImage coming soon 6696818 MUFFLER SPECIAL PACKING €2.38
63
 photo_cameraImage coming soon 6696817 GAUZE FIXING PLATE €2.38
64
 photo_cameraImage coming soon 6696815 MUFFLER GAUZE €2.38
65
 photo_cameraImage coming soon 6696814 MUFFLER €15.80
68
 photo_cameraImage coming soon 6696766 SCAVENGING COVER (B) €4.82
72
 photo_cameraImage coming soon 6698853 CRANK WORM ASS'Y €130.48
73
 photo_cameraImage coming soon 6685330 WORM €9.70
74
 photo_cameraImage coming soon 6685329 OIL SEAL €6.04
75
 photo_cameraImage coming soon 6685328 BALL BEARING €8.48
76
 photo_cameraImage coming soon 6696762 CRANK SHAFT €10.92
79
 photo_cameraImage coming soon 6685326 CIRCLIP €2.38
80
 photo_cameraImage coming soon 6698806 PISTON (M) €24.34
81
 Piston Ring for Chainsaw Hitachi Tanaka CS33EB 6685331 Piston Ring for Chainsaw Hitachi Tanaka CS33EB €10.92
82
 photo_cameraImage coming soon 6696764 PISTON PIN €2.38
83
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.16
85
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.38
87
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.38
88
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.38
89A
 photo_cameraImage coming soon 6600090 MAGNETO SUB ASS'Y €63.38
90A
 photo_cameraImage coming soon 6685351 INNER CAP €9.70
91
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €2.38 Not available for order
92
 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698854 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.04
95A
 Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT 6699999 Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT €63.38
96
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.38
98
 photo_cameraImage coming soon 6696765 SCAVENGING COVER (A) €4.82
102A
 photo_cameraImage coming soon 6696791 CORD (B) €2.38
103A
 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA 6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA €2.38
104
 photo_cameraImage coming soon 6685226 WASHER M5 (BLACK) €2.38
107
 photo_cameraImage coming soon 6698860 PROTECTION SHEET €2.38
110
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.16
112
 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698358 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.04
123
 photo_cameraImage coming soon 6696800 COLLAR 28.2 €3.60
124
 photo_cameraImage coming soon 6696775 DAMPER €2.38
125
 photo_cameraImage coming soon 6696774 REAR HANDLE (B) €9.70
126A
 photo_cameraImage coming soon 6685244 TRIGGER LOCKOUT €2.38
128
 Switch for Brushcutter Hitachi Tanaka CG24EASP 6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP €9.70
129
 photo_cameraImage coming soon 6698449 NUT M6 €2.38
130
 photo_cameraImage coming soon 6698691 THROTTLE LEVER SPRING €2.38
131
 photo_cameraImage coming soon 6685242 THROTTLE LEVER €2.38
132
 photo_cameraImage coming soon 6698409 SPRING HOLDER €4.82
133
 photo_cameraImage coming soon 6698859 DAMPER SET BOLT €2.38
134
 photo_cameraImage coming soon 6698428 ANTIVIBRATION SPRING €4.82
136
 Flange Nut M8 for Chainsaw Hitachi CS33EDT 6698581 Flange Nut M8 for Chainsaw Hitachi CS33EDT €2.38
137A
 photo_cameraImage coming soon 6696776 SIDE CASE (VERMILION) €20.68
138
 photo_cameraImage coming soon 6696782 BRAKE SUPPORT PLATE €8.48
139
 photo_cameraImage coming soon 6696783 BRAKE LEVER SPRING €2.38
140
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
141
 photo_cameraImage coming soon 6685140 BRAKE BAND - DISCONTINUED €28.00
142
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.38
143
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.38
144A
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €26.78
145
 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT 6696784 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT €9.70
150
 photo_cameraImage coming soon 6698715 FUEL PIPE €20.68
151
 photo_cameraImage coming soon 6696827 SPIKE SET €3.60
152
 photo_cameraImage coming soon 6698851 FUEL PIPE (FKM) L240 €20.68
154
 photo_cameraImage coming soon 6698852 FUEL PIPE (FKM) L260 €20.68
155
 photo_cameraImage coming soon 6696167 FUEL GROMMET €2.38
156
 photo_cameraImage coming soon 6696773 REAR HANDLE (A) €8.48
159
 photo_cameraImage coming soon 6698866 BRAKE HANDLE €12.14
163
 photo_cameraImage coming soon 6685311 CLIP €2.38
164
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.38
166
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.38
167
 photo_cameraImage coming soon 6696790 AIR DEFLECTOR €4.82
168B
 Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT 6699417 Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT €41.42 Not available for order
171
 photo_cameraImage coming soon 6698457 CORD INSULATION TUBE €2.38
172
 photo_cameraImage coming soon 6698865 SPRING COVER €2.38
173
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €2.38
179
 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT 6699478 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT €21.90
180
 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB 6699479 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB €8.48
181
 photo_cameraImage coming soon 6699484 REEL €4.82
185
 photo_cameraImage coming soon 6699473 STARTER HANDLE ASS'Y €6.04
186
 photo_cameraImage coming soon 6699490 FAN CASE €19.46
501
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.26
501
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.70
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

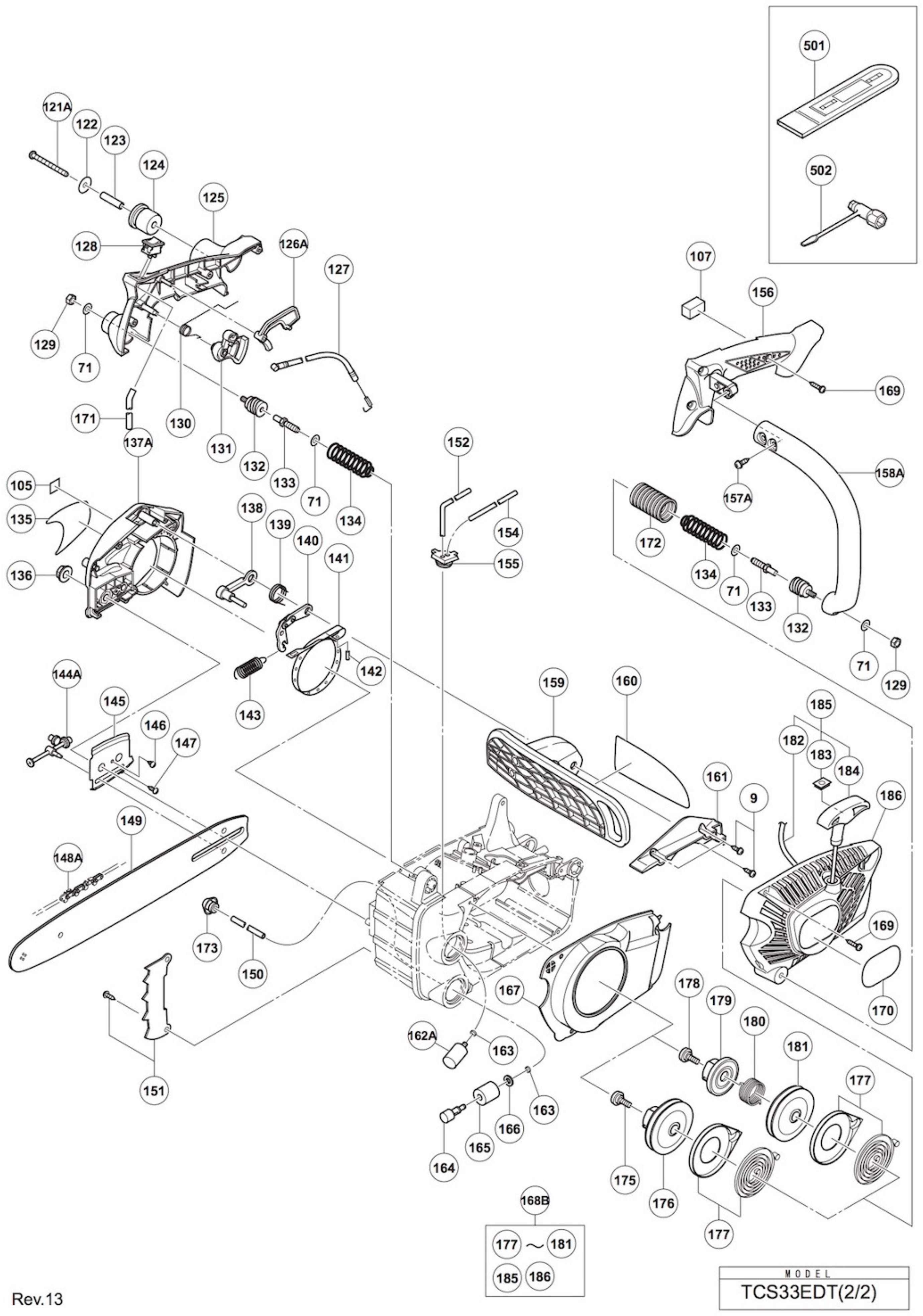

Esploso pagina 2
Pos. Item Price Buy
123
 photo_cameraImage coming soon 6696800 COLLAR 28.2 €3.60
124
 photo_cameraImage coming soon 6696775 DAMPER €2.38
125
 photo_cameraImage coming soon 6696774 REAR HANDLE (B) €9.70
126A
 photo_cameraImage coming soon 6685244 TRIGGER LOCKOUT €2.38
128
 Switch for Brushcutter Hitachi Tanaka CG24EASP 6696940 Switch for Brushcutter Hitachi Tanaka CG24EASP €9.70
129
 photo_cameraImage coming soon 6698449 NUT M6 €2.38
130
 photo_cameraImage coming soon 6698691 THROTTLE LEVER SPRING €2.38
131
 photo_cameraImage coming soon 6685242 THROTTLE LEVER €2.38
132
 photo_cameraImage coming soon 6698409 SPRING HOLDER €4.82
133
 photo_cameraImage coming soon 6698859 DAMPER SET BOLT €2.38
134
 photo_cameraImage coming soon 6698428 ANTIVIBRATION SPRING €4.82
136
 Flange Nut M8 for Chainsaw Hitachi CS33EDT 6698581 Flange Nut M8 for Chainsaw Hitachi CS33EDT €2.38
137A
 photo_cameraImage coming soon 6696776 SIDE CASE (VERMILION) €20.68
138
 photo_cameraImage coming soon 6696782 BRAKE SUPPORT PLATE €8.48
139
 photo_cameraImage coming soon 6696783 BRAKE LEVER SPRING €2.38
140
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
141
 photo_cameraImage coming soon 6685140 BRAKE BAND - DISCONTINUED €28.00
142
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.38
143
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.38
144A
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €26.78
145
 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT 6696784 Guide Plate for Chainsaw Hitachi Tanaka CS33EDT €9.70
150
 photo_cameraImage coming soon 6698715 FUEL PIPE €20.68
151
 photo_cameraImage coming soon 6696827 SPIKE SET €3.60
152
 photo_cameraImage coming soon 6698851 FUEL PIPE (FKM) L240 €20.68
154
 photo_cameraImage coming soon 6698852 FUEL PIPE (FKM) L260 €20.68
155
 photo_cameraImage coming soon 6696167 FUEL GROMMET €2.38
156
 photo_cameraImage coming soon 6696773 REAR HANDLE (A) €8.48
159
 photo_cameraImage coming soon 6698866 BRAKE HANDLE €12.14
163
 photo_cameraImage coming soon 6685311 CLIP €2.38
164
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.38
166
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.38
167
 photo_cameraImage coming soon 6696790 AIR DEFLECTOR €4.82
168B
 Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT 6699417 Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT €41.42 Not available for order
171
 photo_cameraImage coming soon 6698457 CORD INSULATION TUBE €2.38
172
 photo_cameraImage coming soon 6698865 SPRING COVER €2.38
173
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €2.38
179
 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT 6699478 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT €21.90
180
 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB 6699479 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB €8.48
181
 photo_cameraImage coming soon 6699484 REEL €4.82
185
 photo_cameraImage coming soon 6699473 STARTER HANDLE ASS'Y €6.04
186
 photo_cameraImage coming soon 6699490 FAN CASE €19.46
501
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.26
501
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Chainsaw TCS33EDT

Hitachi-HIKOKI Tanaka

 authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw TCS33EDT.

In the following table, look for the model of the Chainsaw and the respective parts of the code.
Tanaka TCS33EDT

Chainsaw TCS33EDT
# Part Num. Description
1 6685225 AIR CLEANER BASE
3 6696826 CLEANER SPONGE (B)
4 6685230 CLEANER ELEMENT A COMP.
5 6685231 CLEANER ELEMENT B COMP.
6 6696825 CLEANER SPONGE (A)
7 6696785 CLEANER COVER
8 6696786 CLEANER KNOB
10 6696821 MUFFLER COVER
11A 6600316 CLUTCH
12 6698856 CLUTCH HOUSING
13 6685361 NEEDLE BEARING (D)
14 6685414 CLUTCH WASHER
15 6685360 CRANK SHAFT COLLAR
17 6685356 NEEDLE ROLLER 2.5X19.8
18 6685354 PUMP GEAR
19 6685355 PUMP GEAR SPRING
21A 6699120 PUMP ASS'Y
23 6698849 INTAKE PACKING
24 6696794 INTAKE MANIFOLD
26 6685203 PULSE GUIDE
27 6696812 ENGINE CASE COVER
28 6696792 CLEANER BODY
30 6696795 CARBURETOR ASS'Y
31 6698857 INLET SPACER
32 6685210 SCREW
34 6685212 PUMP GASKET
35 6685213 PUMP DIAPHRAGM
36 6684700 INLET SCREEN
37 6685215 NEEDLE VALVE
39 6685217 CONTROL LEVER
40 6685297 IDLE ADJUST SPRING
41 6685298 IDLE ADJUST SCREW
42 6685218 HINGE PIN SET SCREW
43 6685219 HINGE PIN
44 6685220 DIAPHRAGM PACKING-METERING
45 6684690 METERING DIAPHRAGM
47 6685223 SET SCREW
49 6685206 CHOKE LEVER
52 6685139 PRIMING PUMP COMP.
53 6685371 AIR VENT SPONGE
54 6685370 AIR VENT VALVE (B)
55 6696811 OIL PIPE
56 6685358 PIPE JOINT
57 6698456 FLANGED TAPPING SCREW D5X15
59A 6696807 ENGINE CASE ASS'Y
61 6696816 EXHAUST PIPE
62 6696818 MUFFLER SPECIAL PACKING
63 6696817 GAUZE FIXING PLATE
64 6696815 MUFFLER GAUZE
65 6696814 MUFFLER
68 6696766 SCAVENGING COVER (B)
72 6698853 CRANK WORM ASS'Y
73 6685330 WORM
74 6685329 OIL SEAL
75 6685328 BALL BEARING
76 6696762 CRANK SHAFT
79 6685326 CIRCLIP
80 6698806 PISTON (M)
81 6685331 PISTON RING (XR1-1856)
82 6696764 PISTON PIN
83 6685103 BOLT WASHER M7
84 6685104 FLYWHEEL NUT
85 6685336 RETAINING RING D4
87 6685335 STARTER PAWL SPRING
88 6685334 STARTER PAWL
89A 6600090 MAGNETO SUB ASS'Y
90A 6685351 INNER CAP
91 6685179 TANK CAP PACKING
92 6698854 FUEL TANK CAP ASS'Y (VERMILION)
95A 6699999 IGNITION COIL
96 6698700 GLASS WASHER
98 6696765 SCAVENGING COVER (A)
102A 6696791 CORD (B)
103A 6696326 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
104 6685226 WASHER M5 (BLACK)
107 6698860 PROTECTION SHEET
110 6684899 WOODRUFF KEY 3X13X4.5
112 6698358 FUEL TANK CAP ASS'Y (BLACK)
123 6696800 COLLAR 28.2
124 6696775 DAMPER
125 6696774 REAR HANDLE (B)
126A 6685244 TRIGGER LOCKOUT
127 6696797 THROTTLE WIRE
128 6696940 STOP SWITCH
129 6698449 NUT M6
130 6698691 THROTTLE LEVER SPRING
131 6685242 THROTTLE LEVER
132 6698409 SPRING HOLDER
133 6698859 DAMPER SET BOLT
134 6698428 ANTIVIBRATION SPRING
136 6698581 FLANGE NUT M8
137A 6696776 SIDE CASE (VERMILION)
138 6696782 BRAKE SUPPORT PLATE
139 6696783 BRAKE LEVER SPRING
140 6685388 BRAKE LINK
141 6685140 BRAKE BAND - DISCONTINUED
142 6685391 NEEDLE ROLLER D3
143 6685389 BRAKE SPRING
144A 6698986 CHAIN PULLER
145 6696784 GUIDE PLATE (B)
150 6698715 FUEL PIPE
151 6696827 SPIKE SET
152 6698851 FUEL PIPE (FKM) L240
154 6698852 FUEL PIPE (FKM) L260
155 6696167 FUEL GROMMET
156 6696773 REAR HANDLE (A)
158A 6696798 FRONT HANDLE - DISCONTINUED
159 6698866 BRAKE HANDLE
163 6685311 CLIP
164 6685310 OIL FILTER BODY
166 6685407 BOLT WASHER D5
167 6696790 AIR DEFLECTOR
168B 6699417 RECOIL STARTER (S) (VERMILION)
171 6698457 CORD INSULATION TUBE
172 6698865 SPRING COVER
173 6685308 FUEL GROMMET (A)
176 6699483 REEL
177 6699480 SPIRAL SPRING CASE
178 6699476 SET SCREW
179 6699478 CAM PLATE - DISCONTINUED
180 6699479 DAMPER SPRING
181 6699484 REEL
185 6699473 STARTER HANDLE ASS'Y
186 6699490 FAN CASE
501 6685401 CHAIN COVER 12"
501 6685439 CHAIN COVER 14"
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka TCS33EDT
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka TCS33EDT

Diagram Tanaka TCS33EDT

Download (681.99KB)

You might also like

Oil Pump for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6699120
Oil Pump for Chainsaw Hitachi Tanaka CS33EDT
Oil Pump for Chainsaw Hitachi Tanaka CS33EDT Original spare part Hitachi Tanaka, Oil Pump for Chainsaws CS33EDT - CS33EDTP - Tanaka TCS33EDT. Part for the following products: - Chainsaw Hitachi CS33EDT -...
AVAILABLE €20.68
Details
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685334
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part...
Last items in stock €2.38
Details
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685335
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl Spring for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part for the following products:...
on 7/10 Business Days Approx. €2.38
Details
Clutch Housing for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6698856
Clutch Drum for Chainsaw Hitachi Tanaka CS33EDT
Clutch Drum for Chainsaw Hitachi Tanaka CS33EDT Original part for Chainsaw Hitachi HIKOKI Tanaka, clutch drum with pinion, for Chainsaw CS33EDT - TCS33TP. Part for the following products: - Chainsaw Hitachi  CS33EDT -...
Last items in stock €36.54
Details
Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6699999
Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT
Ignition Coil for Chainsaw Hitachi Tanaka CS33EDT Genuine parts Hitachi Koky Tanaka, Ignition Coil for Chainsaw CS33EDT. Parts for the following items : -  Chainsaw Hitachi CS33EDT - ...
Last items in stock €63.38
Details
Guide Plate for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696784
Guide Plate for Chainsaw Hitachi Tanaka CS33EDT
Guide Plate for Chainsaw Hitachi Tanaka CS33EDT Original spare part Hitachi Koky Tanaka, Guide plate for Pruning Chainsaw CS33EDT Part for the following products: - Chainsaw HITACHI CS33EA - Chainsaw HITACHI CS33ET -...
AVAILABLE €9.70
Details
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6698986
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Genuine parts Hitachi Koky Tanaka, Tension Adjustment Bolt Ass'y for Chainsaw Bar for Pruning CS33EB - CS33EDT - CS40EA. Part for the following products: - Chainsaw...
Last items in stock €26.78
Details
Cam Plate for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6699478
Cam Plate for Chainsaw Hitachi Tanaka CS33EDT
Cam Plate for Chainsaw Hitachi Tanaka CS33EDT Genuine spare part Hitachi Koky Tanaka, Cam Plate for Chainsaws CS33EDT - CS 33EB - CS 40EA Part for the following products: - PRUNING CHAIN SAW CS 33EDT - CHAIN SAW CS 33EB - CHAIN SAW...
Last items in stock €21.90
Details
Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685355
Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT
Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT Original replacement part Hitachi Koky Tanaka, Oil Pump Gear Spring for Chainsaws CS33EA-CS33EDT. Part for the following products: -  Chainsaw Hitachi CS33EB -  Chainsaw...
AVAILABLE €2.38
Details
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685371
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Original parts for Chainsaw Hitachi Koky Tanaka, Air Vent Sponge for Chain saws CS33EB - CS33EDT - CS40EA - CS51EAP. Parts for the following products: - CHAIN SAW FOR PRUNING...
AVAILABLE €3.60
Details
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685370
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Original parts for Chainsaw Hitachi Koky Tanaka, Air Vent Valve for Chain saws CS33EB - CS33EDT - CS40EA - CS51EAP. Parts for the following products: - CHAIN SAW FOR PRUNING...
Last items in stock €4.82
Details
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698358
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP Original part for Chainsaw Hitachi Koky Tanaka, Oil Tank Cap Ass'y for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP. Parts for the following products: - Motosega Hitachi...
Last items in stock €6.04
Details
Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696794
Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT
Intake Manifold for Chainsaw Hitachi Tanaka CS33EDT Original spare part for Chainsaw Hitachi Koky Tanaka, Carburator Intake Manifold for Pruning Chainsaw CS33EDT. Part for the following product: -  Pruning...
AVAILABLE €8.48
Details
Air Filter Cover for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696785
Air Filter Cover for Chainsaw Hitachi CS33EDT
Air Filter Cover for Chainsaw Hitachi CS33EDT Genuine spare parts Hitachi-HIKOKI Tanaka, Air Filter Cover for Chainsaw CS33EDT Part for the following products: - Chainsaw Hitachi CS33EDT - Chainsaw...
AVAILABLE €8.48
Details
Cleaner Sponge for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696825
Cleaner Sponge for Chainsaw Hitachi CS33EDT
Cleaner Sponge for Chainsaw Hitachi CS33EDT Genuine spare part Hitachi Koky Tanaka, Cleaner Sponge for Chainsaw CS33EDT - CS33EDTP - Tanaka TCS33EDT. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €2.38
Details
Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696786
Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT
Air Cleaner Cover Knob for Chainsaw Hitachi CS33EDT Genuine spare part Hitachi Koky Tanaka, Air Cleaner Cover Knob for Chainsaw CS33EDT. Part for the following products: - Chainsaw Hitachi CS33EDT -...
AVAILABLE €2.38
Details
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685414
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB
Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB Hitachi genuine parts, Clutch Washer for Chainsaws Hitachi CS33EDT - CS33EB. Parts for the following products: - Chainsaw CS33EDT - Chainsaw CS33EB  - Code : 6685414
AVAILABLE €2.38
Details
Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696826
Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT
Air Cleaner Sponge (B) for Chainsaw Hitachi Tanaka CS33EDT Original spare parts Hitachi Tanaka, Air Cleaner Sponge (B) for Chainsaws CS33EDT - CS33EDTP Part for the following products: - Chainsaw Hitachi CS33EDT...
Usually Ships in: 7/10 Business Days Approx. €2.38
Details
Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698854
Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP Original part Hitachi Koky Tanaka, Petrol Tank Cap Ass'y for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi CS33EB -...
AVAILABLE €6.04
Details
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685179
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT Original part Hitachi Koky Tanaka, Petrol - Oil Tank Cap Packing for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi...
Out-of-Stock €2.38
Details
Lower Cleaner Element for Chainsaw Tanaka TCS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685230
Lower Cleaner Element for Chainsaw Tanaka TCS33EDT
Lower Cleaner Element for Chainsaw Tanaka TCS33EDT Genuine spare part Tanaka, Lower Cleaner Element for Chainsaw TCS33EDT - Hitachi CS33EDT Part for the following products: - Chainsaw Tanaka TCS33EDT - Chainsaw Hitachi CS33EDT - Code:...
Last items in stock €6.04
Details
Upper Cleaner Element for Chainsaw Tanaka TCS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685231
Upper Cleaner Element for Chainsaw Tanaka TCS33EDT
Upper Cleaner Element for Chainsaw Tanaka TCS33EDT Genuine spare part Tanaka, Upper Cleaner Element for Chainsaw TCS33EDT Part for the following products: - Chainsaw Tanaka TCS33EDT - Chainsaw...
AVAILABLE €6.04
Details
Oil Pipe for Chainsaw Tanaka TCS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6696811
Oil Pipe for Chainsaw Tanaka TCS33EDT
Oil Pipe for Chainsaw Tanaka TCS33EDT Genuine spare part Tanaka, Oil Pipe for Chainsaws TCS33ED - TCS33EDT - Hitachi CS33EDT Part for the following products: - Chainsaw Tanaka TCS33ED - Chainsaw Tanaka...
Last items in stock €6.04
Details
Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685310
Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT
Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT Genuine spare part Hitachi Koky Tanaka, Oil Filter Body for Chainsaws CS33EDT - CS33EDTP - CS33EA - CS33EB - CS33ET...
AVAILABLE €2.38
Details
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685391
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA Original spare part Hitachi Koky Tanaka, Needle Roller mm 3 for Chainsaws CS33EDT - CS40EA - CS33EB - CS51EAP - Tanaka TCS-40EA - TCS 33ED. Part for the following products: -...
AVAILABLE €2.38
Details
Flange Nut M8 for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6698581
Flange Nut M8 for Chainsaw Hitachi CS33EDT
Flange Nut M8 for Chainsaw Hitachi CS33EDT Genuine replacement part Hitachi Koky Tanaka, Flange Nut M8 E 401266 for Chainsaws CS33EDT - CS33EDTP - CS51EAP. Part for the following products: - Chainsaw Hitachi CS33EDT - Chainsaw...
AVAILABLE €2.38
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.92
Details
Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6699417
Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT
Recoil Starter Ass'y for Chainsaw Hitachi CS33EDT Original replacement part Hitachi-HIKOKI Tanaka, Recoil Starter Ass'y for Chainsaws CS33EDT - CS33EDTP - Tanaka TCS33EDT. Part for the following...
Out-of-Stock €41.42
Details
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696326
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
Hex Socket HD Bolt (W/Flange) M4x18 for  Chainsaw  Tanaka TCS-40EA Original parts Hitachi Koky Tanaka, Hex Socket HD Bolt (W/Flange) M4x18 for Chainsaws TCS-40EA - TCS 33ED - TCS33EDT. Parts for the following products: -  Chainsaw...
on 7/10 Business Days Approx €2.38
Details
Muffler Cover for Chainsaw Hitachi CS33EDTP
HiKOKI Power Tools Italia S.p.a. SKU: 6696821
Muffler Cover for Chainsaw Hitachi CS33EDTP
Muffler Cover for Chainsaw Hitachi CS33EDTP Original spare part Hitachi HIKOKI, Muffler Cover for Pruning Chainsaw CS33EDTP. Parts for the following products: -  Chainsaw Hitachi CS33EDT...
Last items in stock €17.02
Details
Comments (0)
