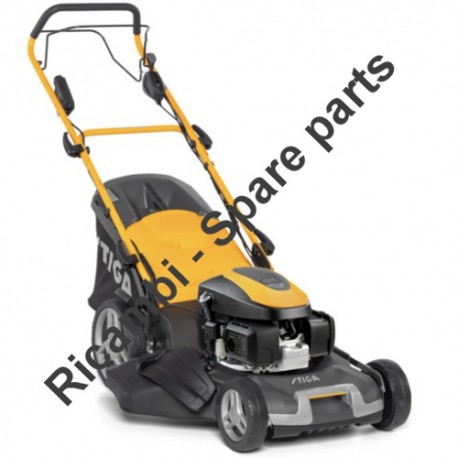

STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)

SKU: COMBI 55 SVEQ H 294557538/ST1
€34.19
VAT included

STIGA Spare Parts for Lawnmower COMBI 55 SVEQ H (2021)

STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1

COMBI 55 SVEQ H 294557538/ST1
STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
  • STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)
GGP Italy

STIGA Parts for Lawnmower COMBI 55 SVEQ H (2021)

SKU: COMBI 55 SVEQ H 294557538/ST1 Condition: New
€34.19
VAT included

STIGA Spare Parts for Lawnmower COMBI 55 SVEQ H (2021)

STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1

COMBI 55 SVEQ H 294557538/ST1
settings 168 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
163 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

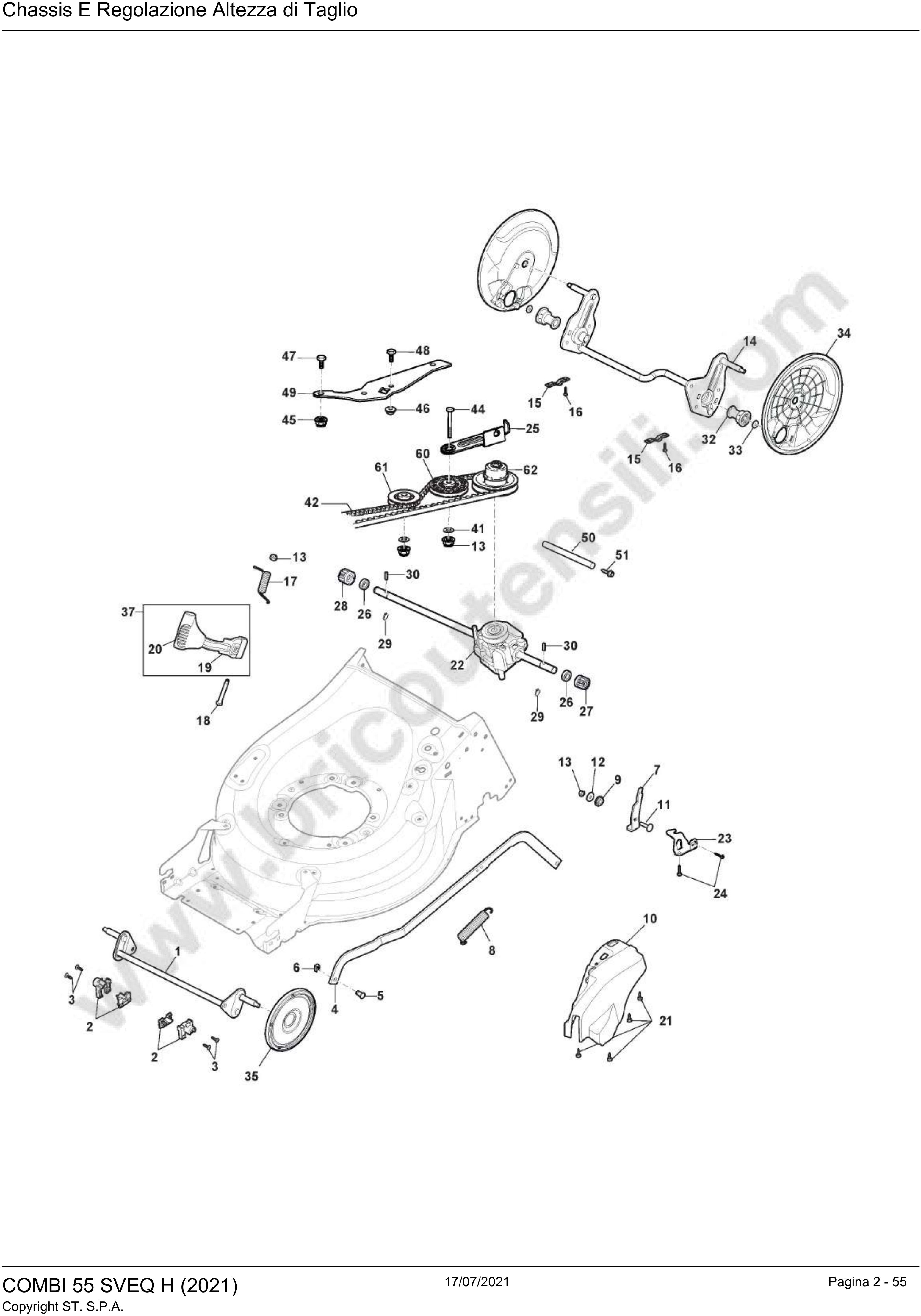

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381302915/0 Front Wheel Axle To S / N 20BA2WBH062001 €31.29
1
 photo_cameraImage coming soon 381302915/1 Front Wheel Axle From S / N 20BA2WBH062002 €30.87
2
 photo_cameraImage coming soon 322785305/1 Support From 01-September-2015 €2.74
3
 photo_cameraImage coming soon 112728697/0 Screw €1.63
4
 photo_cameraImage coming soon 322869693/1 Wheel Control Rod To S / N 20BA2WBH072227 €32.52
4
 photo_cameraImage coming soon 322869693/2 Wheel Control Rod From S / N 20BA2WBH072228 €32.57
5
 Alpina Rod Pin for BL 510 SHQ 122519823/0 Alpina Rod Pin for BL 510 SHQ €2.44
6
 photo_cameraImage coming soon 112000930/0 Benzing ring €1.62
6
 photo_cameraImage coming soon 112436051/0 Plate €1.78
7
 photo_cameraImage coming soon 322778475/0 HEIGHT ADJUST BRACKET €2.46
8
 photo_cameraImage coming soon 122450480/0 Spring €1.95
9
 photo_cameraImage coming soon 122517873/0 Busch €2.83
10
 photo_cameraImage coming soon 322055330/0 Cover €10.03
11
 photo_cameraImage coming soon 112815270/0 Screw €1.58
12
 photo_cameraImage coming soon 112523040/0 Washer €1.63
13
 photo_cameraImage coming soon 112154510/0 Nut €1.66
14
 photo_cameraImage coming soon 381302887/0 Rear Wheel Axle To S / N 20BA2WBH072227 €38.36
14
 photo_cameraImage coming soon 381302887/1 Rear Wheel Axle From S / N 20BA2WBH072228 €18.52
15
 photo_cameraImage coming soon 322545152/0 Plate €1.66
16
 photo_cameraImage coming soon 112728697/0 Screw €1.63
17
 photo_cameraImage coming soon 122446192/0 Spring €2.20
18
 Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
19
 photo_cameraImage coming soon 381003418/0 Lever, Height Adjustment €6.46
20
 photo_cameraImage coming soon 322394527/0 knob Black with STIGA Logo €4.58
21
 photo_cameraImage coming soon 112728699/0 Screw €1.66
22
 photo_cameraImage coming soon 181003125/0 Gear Box €211.32
23
 photo_cameraImage coming soon 322778477/0 Bracket To 31-August-2018 €4.43
23
 photo_cameraImage coming soon 322778477/1 Bracket From 01-September-2018 €4.39
24
 photo_cameraImage coming soon 112728704/1 Screw €1.54
26
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
27
 Left Pinion Gear for Self Propelled Lawnmover Alpina BL 510 SHQ 122570134/0 Left Pinion Gear for Self Propelled Lawnmover Alpina BL 510 SHQ €7.53
28
 photo_cameraImage coming soon 122570133/0 Right Pinion €8.09
29
 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
30
 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
32
 photo_cameraImage coming soon 322042063/1 Bushing €2.03
33
 photo_cameraImage coming soon 112521371/0 Washer €1.66
34
 photo_cameraImage coming soon 322600208/0 Wheel Protection €4.15
35
 photo_cameraImage coming soon 322600145/0 Protection, Wheel €1.91
37
 photo_cameraImage coming soon 381003459/0 Wheels Rear Adj. Lever To S / N 20BA2WBH073718 €13.31
41
 photo_cameraImage coming soon 112523050/0 Washer €2.05
42
 Trapezoidal Belt XPZ for Lawnmower Stiga 55 SVEQ H 135064379/0 Trapezoidal Belt XPZ for Lawnmower Stiga 55 SVEQ H €16.93
44
 photo_cameraImage coming soon 112674550/0 Screw €1.58
45
 photo_cameraImage coming soon 112154210/0 Nut €1.78
46
 photo_cameraImage coming soon 122671656/0 Washer €5.60
47
 photo_cameraImage coming soon 112792611/0 Screw €1.63
48
 photo_cameraImage coming soon 112689500/0 Screw €1.54
49
 photo_cameraImage coming soon 322806649/0 Bracket €6.39
50
 photo_cameraImage coming soon 322608567/0 Stiffening To S / N 19AA2WBH005321 €7.46
50
 photo_cameraImage coming soon 322608567/1 Stiffening From S / N 19AA2WBH005322 €7.46
51
 photo_cameraImage coming soon 112735120/0 Screw €1.54
60
 photo_cameraImage coming soon 122601914/0 Pulley €20.74
61
 photo_cameraImage coming soon 122601915/0 Pulley €21.87
62
 photo_cameraImage coming soon 122601932/0 Pin €39.71

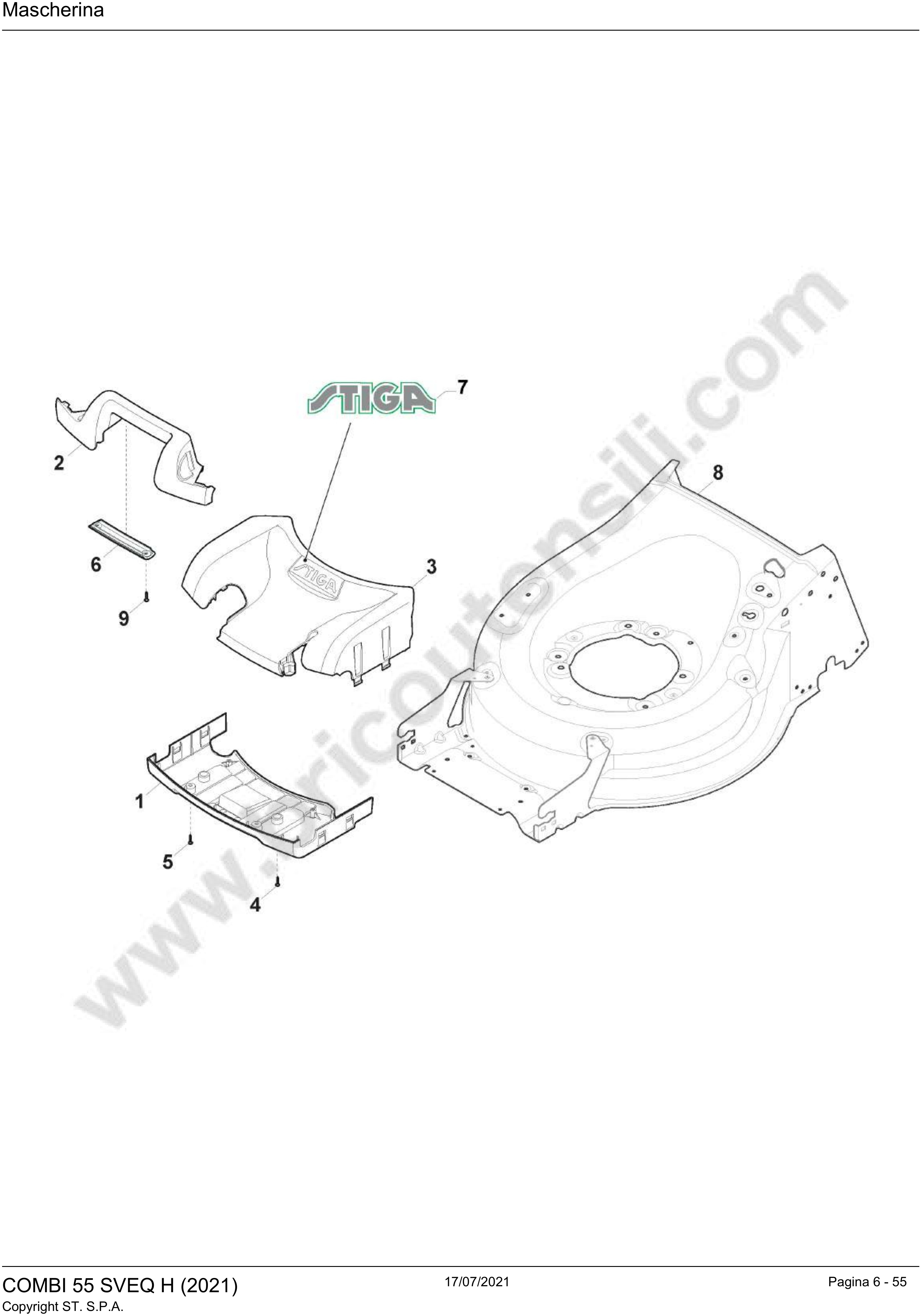

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322500113/0 FRONT DECK COVER €7.99
2
 photo_cameraImage coming soon 381393704/0 Handle €35.36
3
 photo_cameraImage coming soon 322226241/0 Front Mask Gray €19.06
4
 photo_cameraImage coming soon 112735654/0 Screw €1.36
5
 photo_cameraImage coming soon 112728697/0 Screw €1.63
6
 photo_cameraImage coming soon 322393756/0 Front Handle Grip €5.09
7
 photo_cameraImage coming soon 114367494/2 Label STIGA logo €9.39
8
 photo_cameraImage coming soon 381004837/0 Gray Deck Side Discharge To 31-August-2018 €195.63
8
 photo_cameraImage coming soon 381004856/0 STEEL DECK MP1 554-SD GREYSide Discharge   From 01-September-2018 €200.25
9
 photo_cameraImage coming soon 112728210/0 Screw €1.54
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

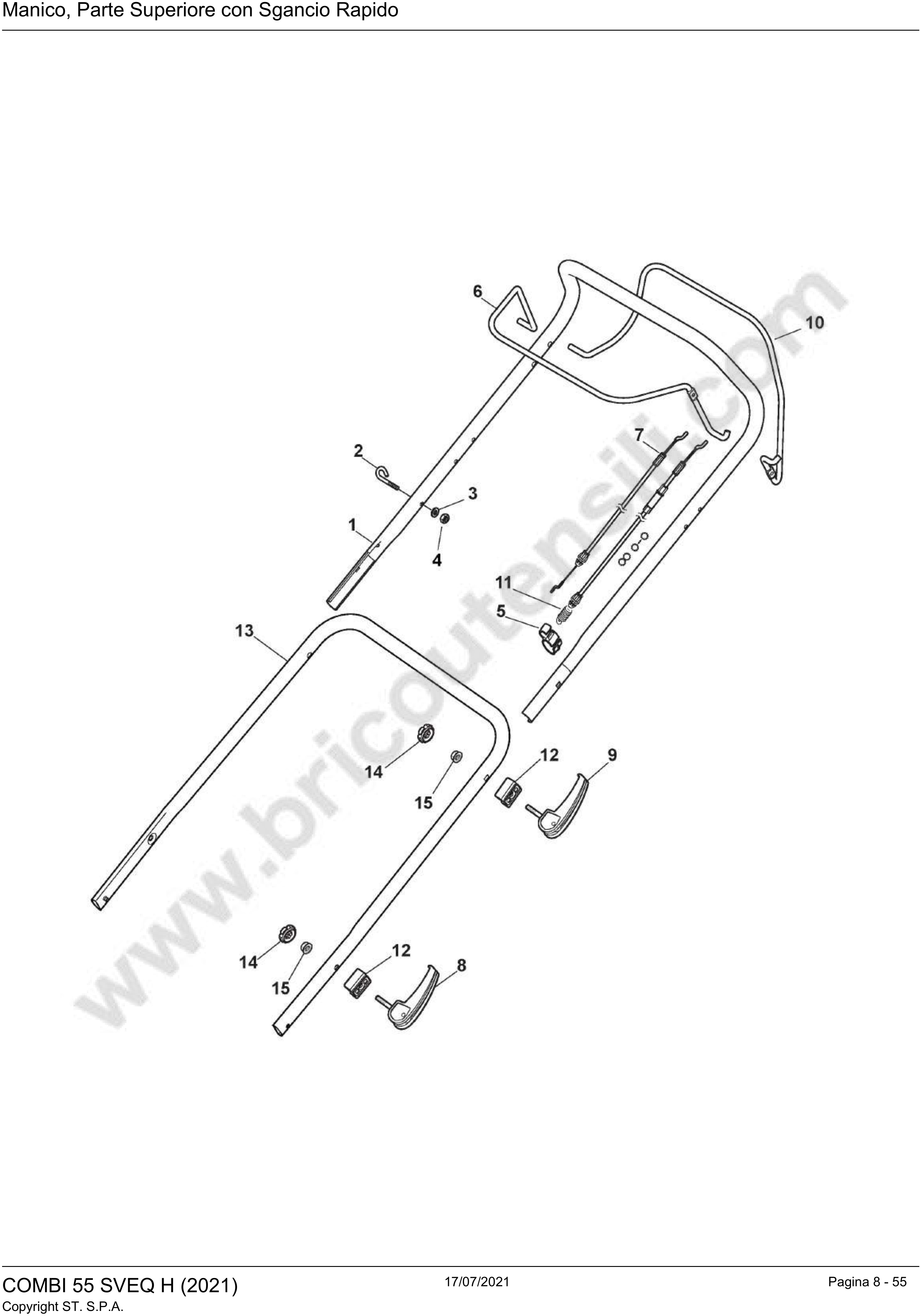

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007606/2 Handle, Yellow Upper Part with sponge handgrip €34.93
2
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
 photo_cameraImage coming soon 112521330/0 Washer €1.70
4
 photo_cameraImage coming soon 112154510/0 Nut €1.66
5
 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
 photo_cameraImage coming soon 181030106/0 ENGINE BRAKE CABLE €13.58
8
 photo_cameraImage coming soon 381003253/0 LOCKING HANDLE LEVER [BLACK] €5.85
8
 photo_cameraImage coming soon 381103359/1 Locking Handle Lever Black From 01-June-2020 €5.04
9
 photo_cameraImage coming soon 381103350/0 UPPER LOCK HANDLE LEVER [BLACK] €5.55
9
 photo_cameraImage coming soon 381103359/1 Locking Handle Lever Black From 01-June-2020 €5.04
10
 photo_cameraImage coming soon 181003364/0 Cable Rear Drive €15.08
11
 Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H 381030104/0 Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H €21.90
11
 photo_cameraImage coming soon 381030104/1 Clutch Cable From 01-June-2021 €19.24
12
 photo_cameraImage coming soon 322680016/0 HANDLE FIXING WASHER €2.11
13
 photo_cameraImage coming soon 381007600/1 Handle, Lower Part Yellow From 01-September-2018 €36.00
14
 photo_cameraImage coming soon 322399835/0 HANDLE KNOB €2.11
15
 photo_cameraImage coming soon 122131750/0 NUT M8 €2.01

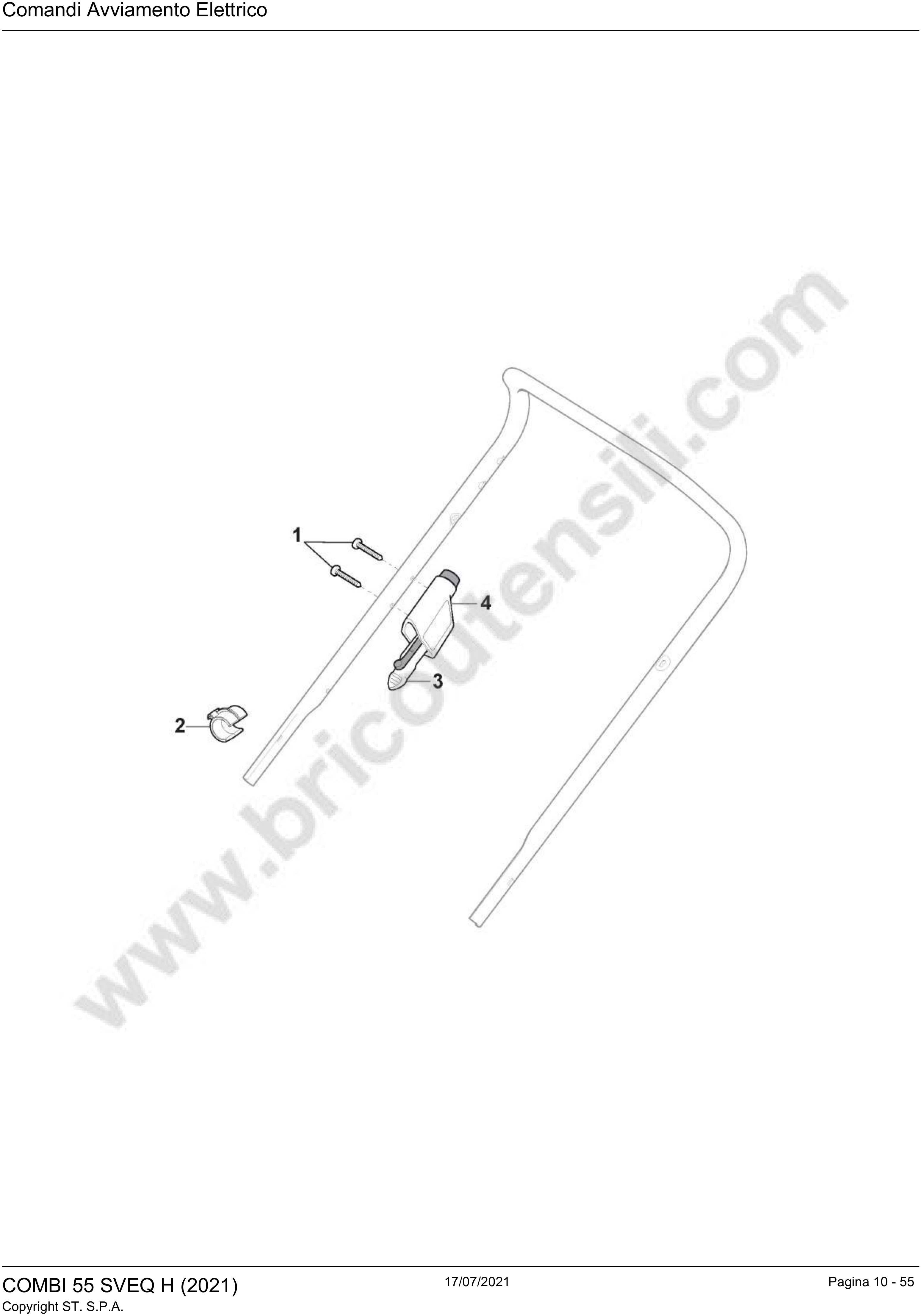

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112728702/0 Screw €1.58
2
 photo_cameraImage coming soon 133320022/0 Cable Clamp from 01-September-2016 €1.58
3
 photo_cameraImage coming soon 322076570/1 Key Security Battery €5.39
4
 photo_cameraImage coming soon 381600406/0 Ignition switch €81.45
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

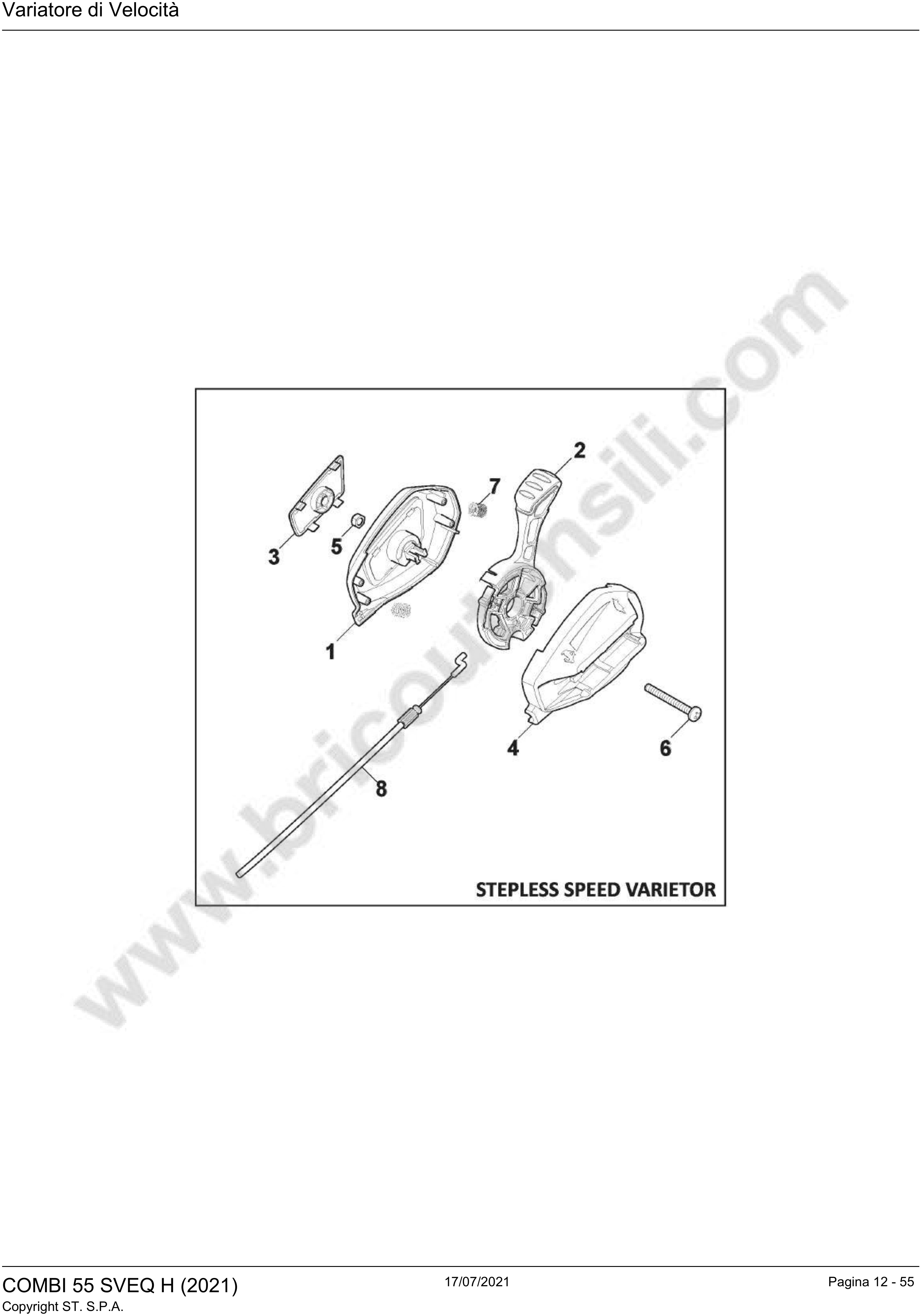

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322722817/0 External Protection €8.47
2
 Stiga 55 SVEQ H Variator Speed Lever 381007227/0 Stiga 55 SVEQ H Variator Speed Lever €6.55
3
 photo_cameraImage coming soon 322820086/0 Cap €2.74
4
 photo_cameraImage coming soon 322722816/0 Internal Protection €8.67
5
 photo_cameraImage coming soon 112154510/0 Nut €1.66
6
 photo_cameraImage coming soon 112727786/0 Screw €1.89
7
 photo_cameraImage coming soon 122450487/0 Spring €1.54
8
 photo_cameraImage coming soon 381030117/0 Variator cable €18.52

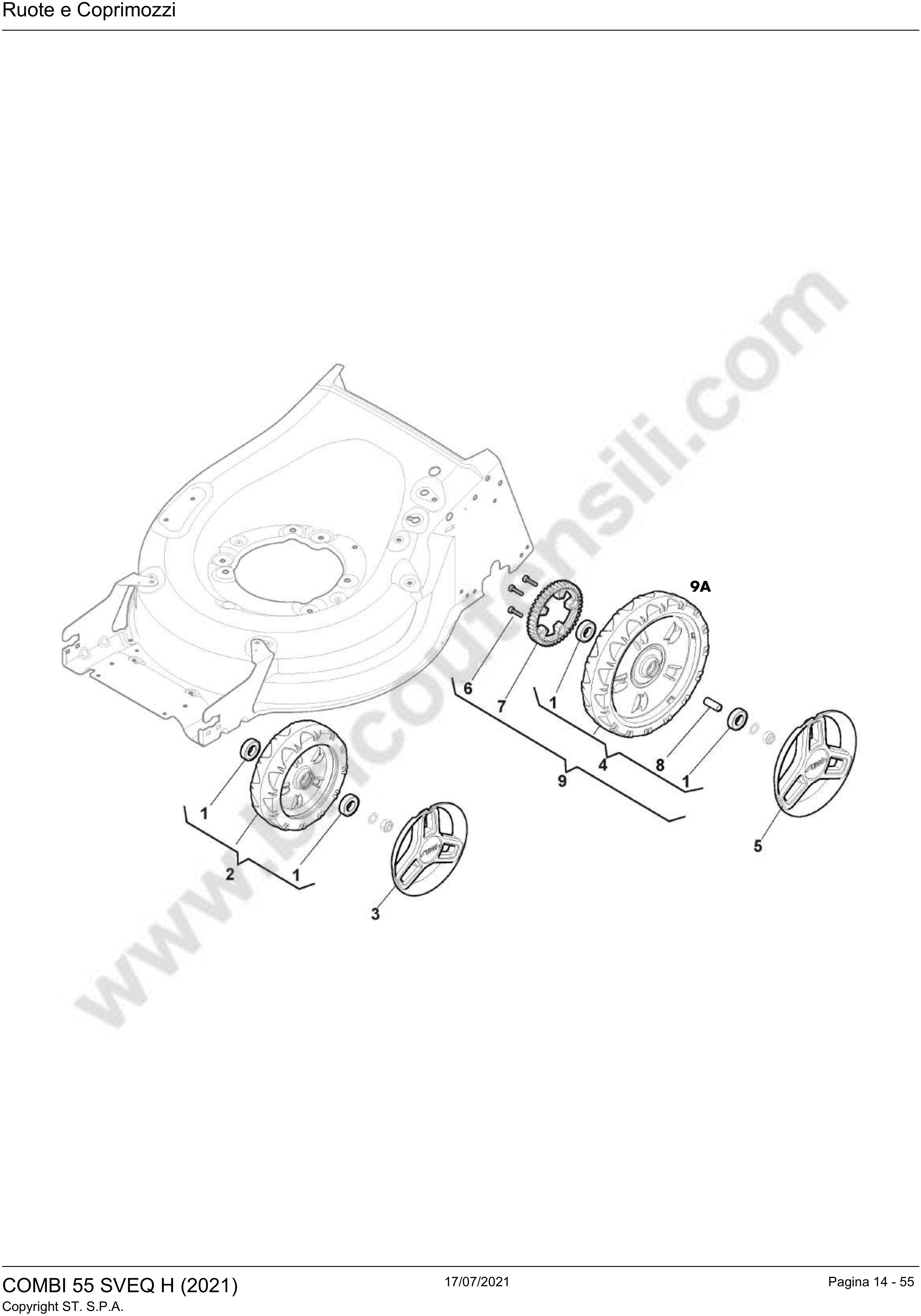

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
2
 photo_cameraImage coming soon 381007416/2 Wheel Ø 200 To S/N 19JA2WBH009252 €18.01
2
 photo_cameraImage coming soon 381007416/3 Wheel Ø 200 €17.50
3
 photo_cameraImage coming soon 322110744/0 Hub Cap Grey €3.32
4
 photo_cameraImage coming soon 381007417/3 WHEEL ASSEMBLY Ø 280 €31.79
5
 photo_cameraImage coming soon 322110746/0 STIGA HUB CAP D280 [GREY] €3.75
6
 Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65
8
 photo_cameraImage coming soon 122170845/0 WHEEL BEARING SPACER €2.28
9A
 Rear Wheel for Self Propelled Lawnmover Alpina BL 510 SHQ 381007472/0 Rear Wheel for Self Propelled Lawnmover Alpina BL 510 SHQ €37.13
9
 photo_cameraImage coming soon 381007472/2 Wheel €38.57
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

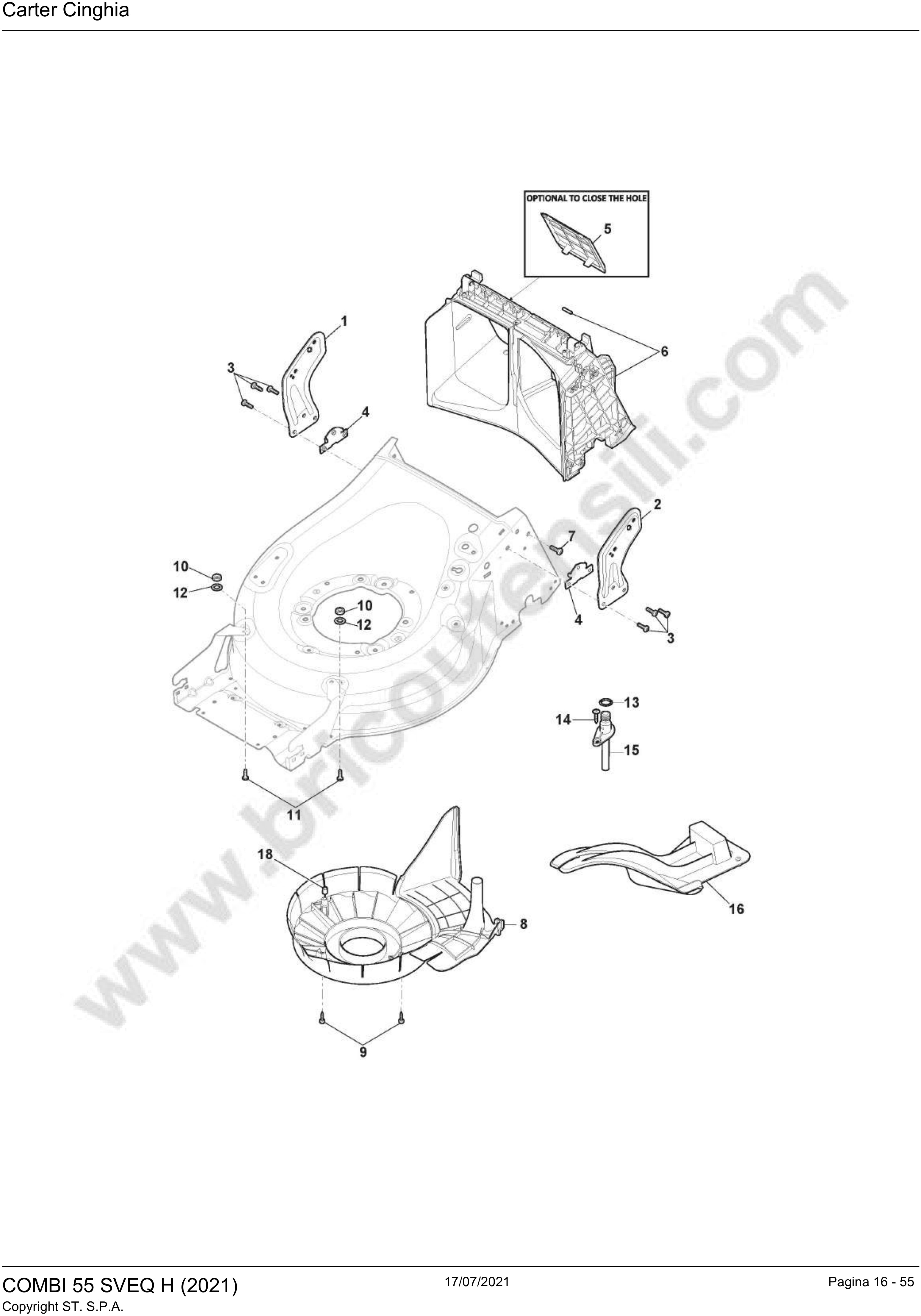

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381005235/1 R/H HANDLE SUPPORT MP1 [GREY] From 01-September-2017 To 31-August-2018 €7.02
1
 photo_cameraImage coming soon 381005235/2 R/H HANDLE SUPPORT MP1 [GREY] From 01-September-2018 €7.11
2
 photo_cameraImage coming soon 381005237/0 L/H HANDLE SUPPORT MP1 [GREY] To 31-August-2017 €7.02
2
 photo_cameraImage coming soon 381005237/1 L/H HANDLE SUPPORT MP1 [GREY] From 01-September-2017 To 31-August-2018 €7.02
2
 photo_cameraImage coming soon 381005237/2 L/H HANDLE SUPPORT MP1 [GREY] From 01-September-2018 €7.11
3
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
4
 photo_cameraImage coming soon 322545213/0 Plate €2.04
5
 photo_cameraImage coming soon 322600310/0 REAR DOOR (Not For Electric Start Models) €5.12
6
 photo_cameraImage coming soon 381102204/0 Rear conveyor assembly To S / N 19JA2WBH017664 €26.45
6
 photo_cameraImage coming soon 381102204/1 Rear conveyor ASSEMBLY From S / N 19JA2WBH017665 €26.30
7
 photo_cameraImage coming soon 112728699/0 Screw €1.66
8
 photo_cameraImage coming soon 322060271/0 PROTECTION Mulching To 31-August-2015 €10.32
8
 photo_cameraImage coming soon 322060271/1 PROTECTION Mulching From 01-September-2015 To 31-August-2018 €12.01
8
 Stiga Belt Protection Guard MP155 TSTR 322060271/2 Stiga Belt Protection Guard MP155 TSTR €11.91
9
 photo_cameraImage coming soon 112728530/0 Screw €1.60
9
 photo_cameraImage coming soon 112728531/0 Screw €1.54
9
 photo_cameraImage coming soon 112735645/0 Screw €1.85
10
 photo_cameraImage coming soon 112154510/0 Nut €1.66
11
 photo_cameraImage coming soon 112815205/0 SCREW €1.62
12
 photo_cameraImage coming soon 112521330/0 Washer €1.70
13
 photo_cameraImage coming soon 119035000/0 Ring Or €5.26
14
 photo_cameraImage coming soon 112728697/0 Screw €1.63
15
 photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
16
 photo_cameraImage coming soon 322140246/0 MULCHING PLUG [MP1 55] €13.05
18
 photo_cameraImage coming soon 122042073/0 BUSH From 01-September-2018 €1.58
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

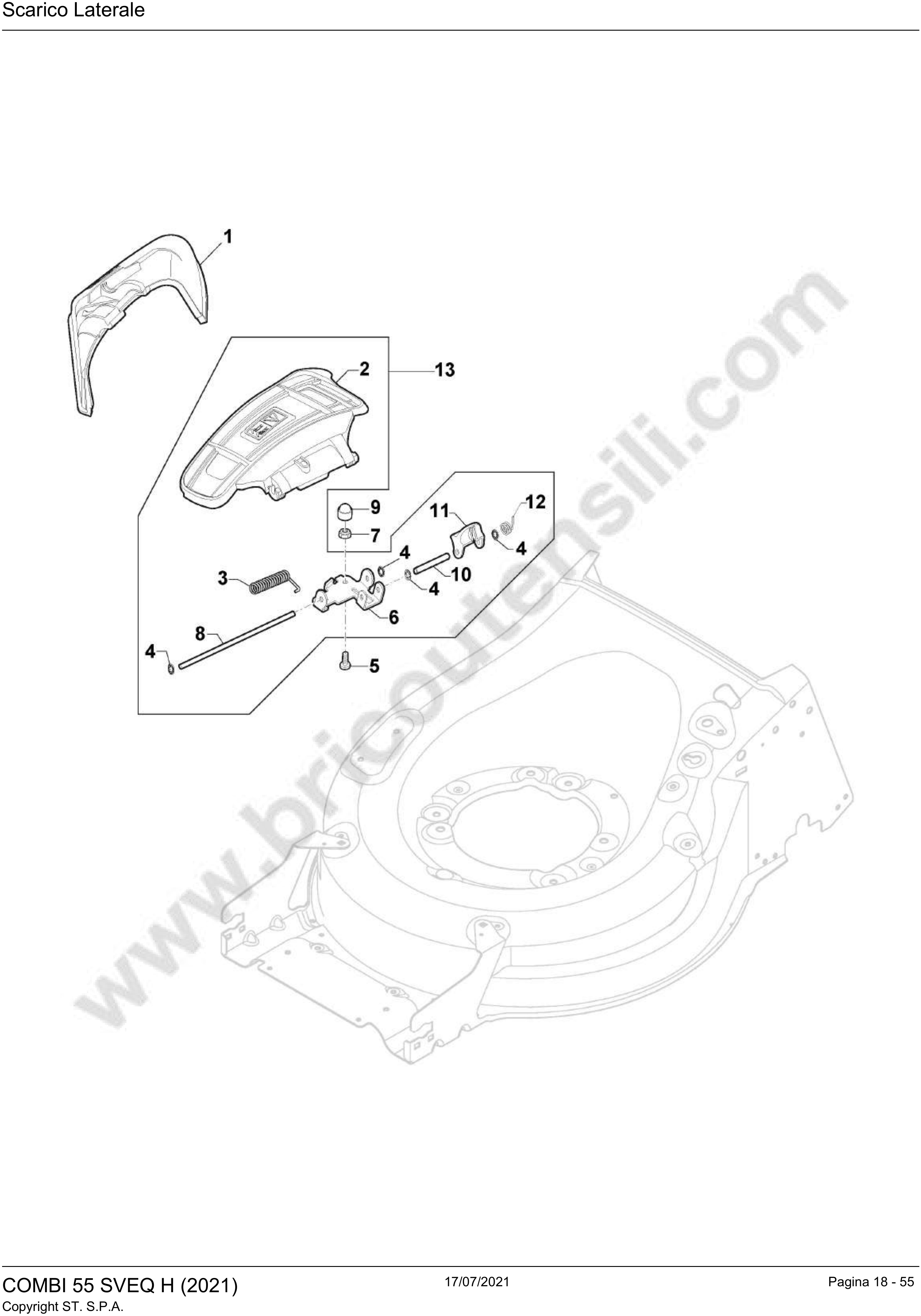

Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322108315/0 SIDE DISCHARGE FLAP [BLACK] €10.04
2
 photo_cameraImage coming soon 322600309/1 SIDE DISCHARGE GUARD MP1 50-55[BLACK] To 30-November-2018 €17.66
2
 photo_cameraImage coming soon 322600309/2 SIDE DISCHARGE GUARD MP1 50-55[BLACK] From 01-December-2018 €7.67
3
 photo_cameraImage coming soon 122450456/0 Spring €3.38
3
 photo_cameraImage coming soon 122450456/1 Spring €3.30
4
 photo_cameraImage coming soon 112604896/0 Crown Fixator €1.66
5
 photo_cameraImage coming soon 112727803/0 Screw €1.66
6
 photo_cameraImage coming soon 322806659/0 Pin €5.32
7
 photo_cameraImage coming soon 112154510/0 Nut €1.66
8
 photo_cameraImage coming soon 122517869/1 Pin €3.86
9
 photo_cameraImage coming soon 118203853/0 Hood €2.84
10
 photo_cameraImage coming soon 122517876/0 Pin €1.61
11
 photo_cameraImage coming soon 322783013/0 Safety €2.20
12
 photo_cameraImage coming soon 122450493/0 Spring €1.42
13
 photo_cameraImage coming soon 381008162/0 SIDE STONE GUARD ASS.Y MP1/MP2 BLACK To 31-December-2018 €17.66
13
 photo_cameraImage coming soon 381008162/1 SIDE STONE GUARD ASS.Y MP1/MP2 BLACK From 01-January-2019 €16.81
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

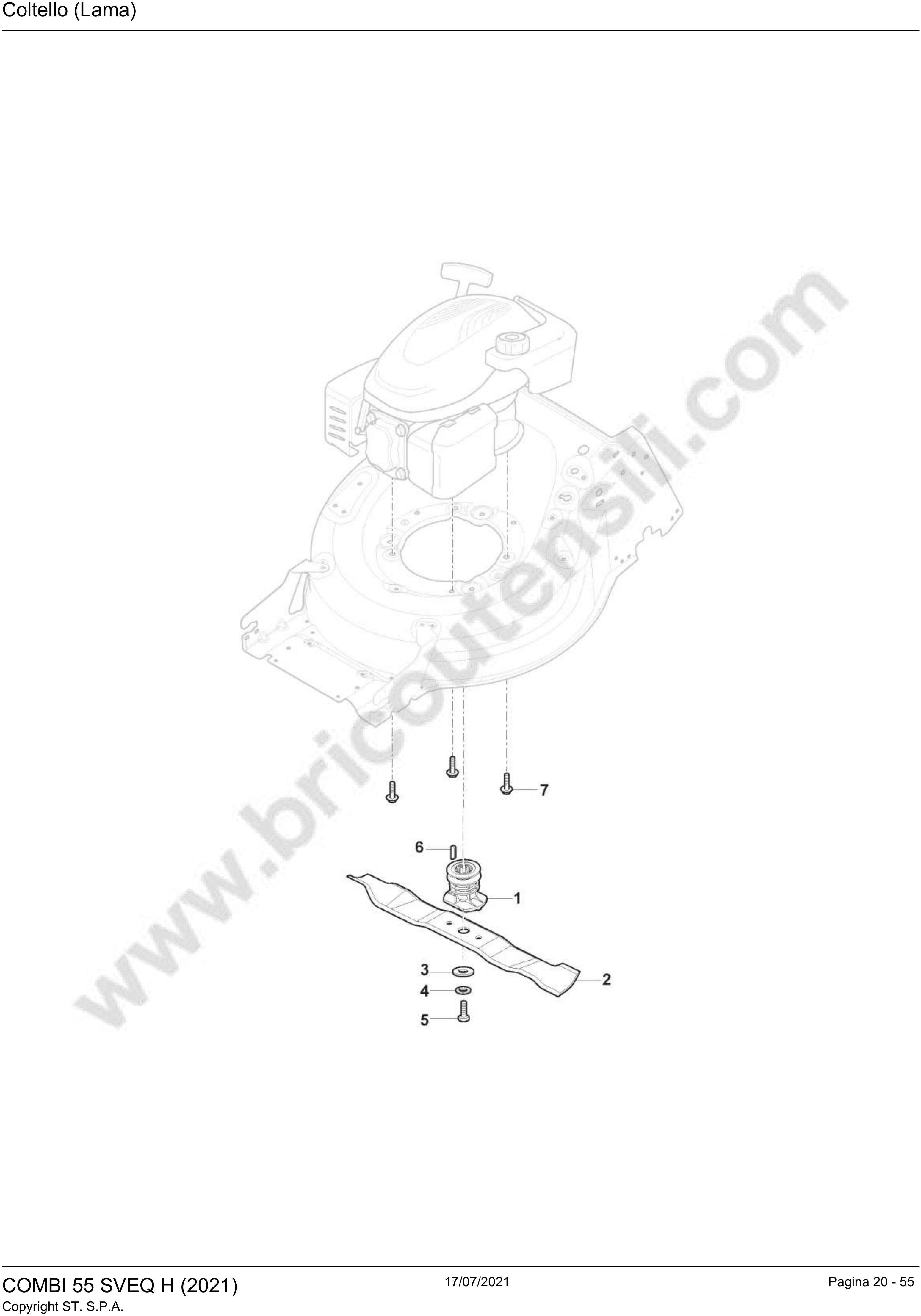

Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1111-9180-01 Blade Boss Stiga Packed into 122465608/3 €15.30
1
 photo_cameraImage coming soon 122465608/3 Hub With Pulley, Crankshaft Ø 25 From 01-January-2019 €9.38
2
 photo_cameraImage coming soon 181004464/0 MULCHING BLADE 55 MP1 €17.95
3
 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
4
 Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
5
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
6
 Blade Holder Shaft Woodruf for Lawnmower Alpina BL 510 SHQ 112139150/0 Blade Holder Shaft Woodruf for Lawnmower Alpina BL 510 SHQ €2.18
7
 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19

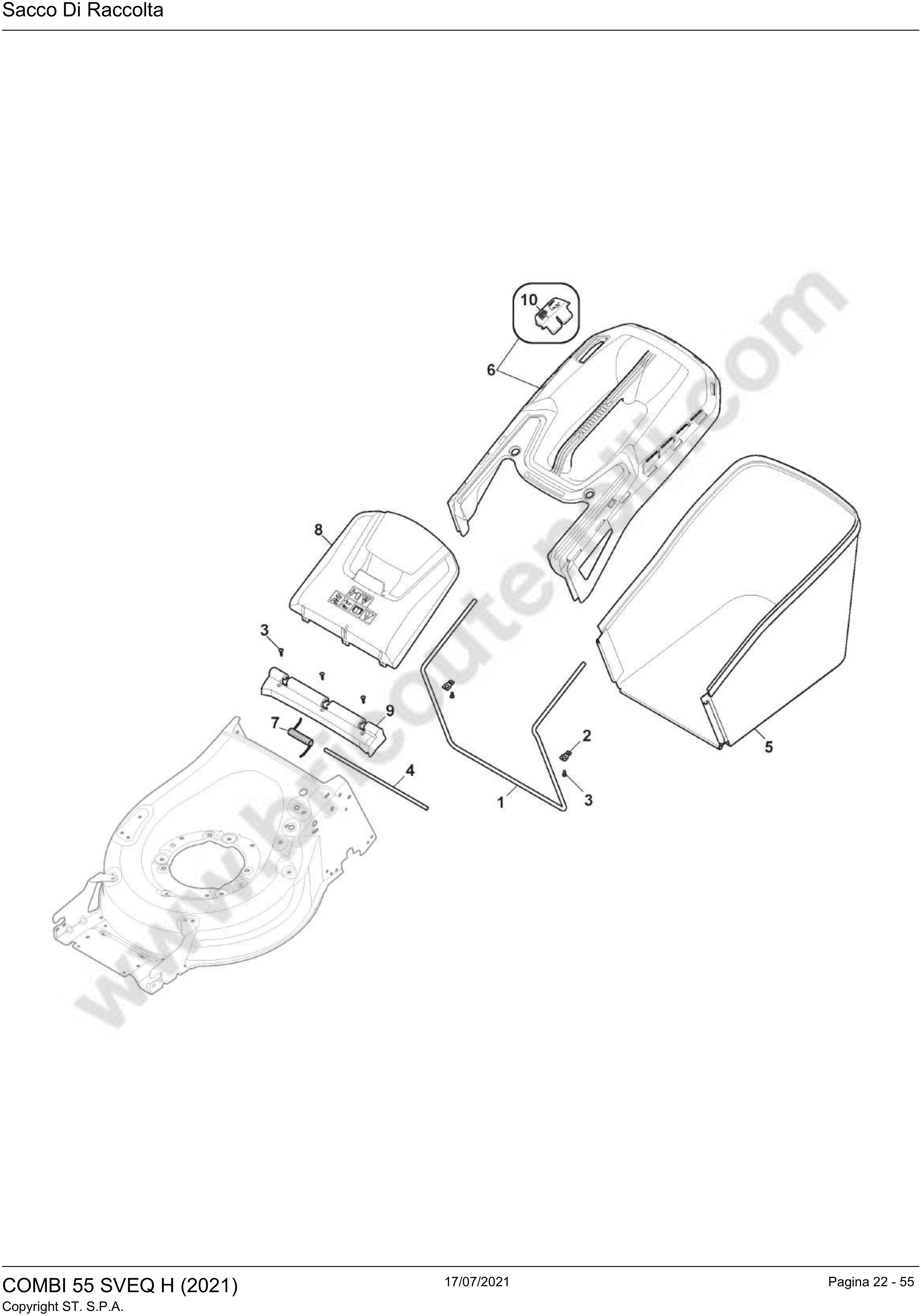

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
1
 photo_cameraImage coming soon 181006411/0 GRASSCATCHER FRAME To 31-August-2019 €11.88
1
 photo_cameraImage coming soon 181006411/1 GRASSCATCHER FRAME From 01-September-2019 €11.88
2
 photo_cameraImage coming soon 322557177/0 FIXING PLATE €1.58
3
 photo_cameraImage coming soon 112728697/0 Screw €1.63
4
 photo_cameraImage coming soon 122517884/0 DEFLECTOR ROD €5.09
5
 photo_cameraImage coming soon 181102383/0 GRASSBAG MP1 [BLACK] STIGA with STIGA Logo €39.07
6
 photo_cameraImage coming soon 381486052/0 GRASSCATCHER TOP-FULL INDICATOR [GREY] €23.89
7
 photo_cameraImage coming soon 122450479/0 DEFLECTOR SPRING €3.44
8
 photo_cameraImage coming soon 322600339/0 DEFLECTOR MP1 [YELLOW] NLA €13.87
9
 photo_cameraImage coming soon 322109584/0 DEFLECTOR SUPPORT MP1 [YELLOW] €3.46
10
 photo_cameraImage coming soon 322486424/0 GRASSCATCHER INDICATOR €2.09

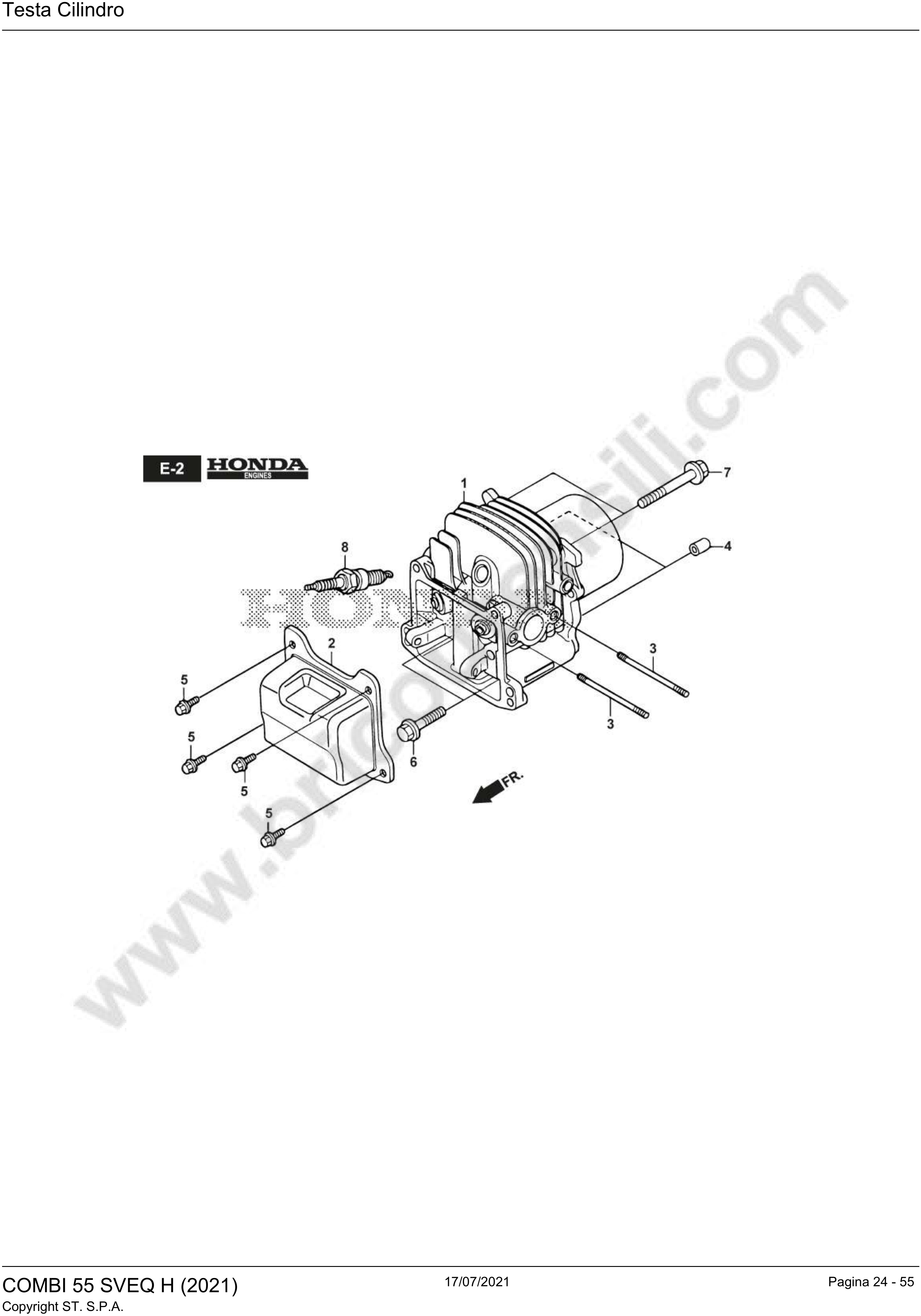

Page 11 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 11
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 12 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

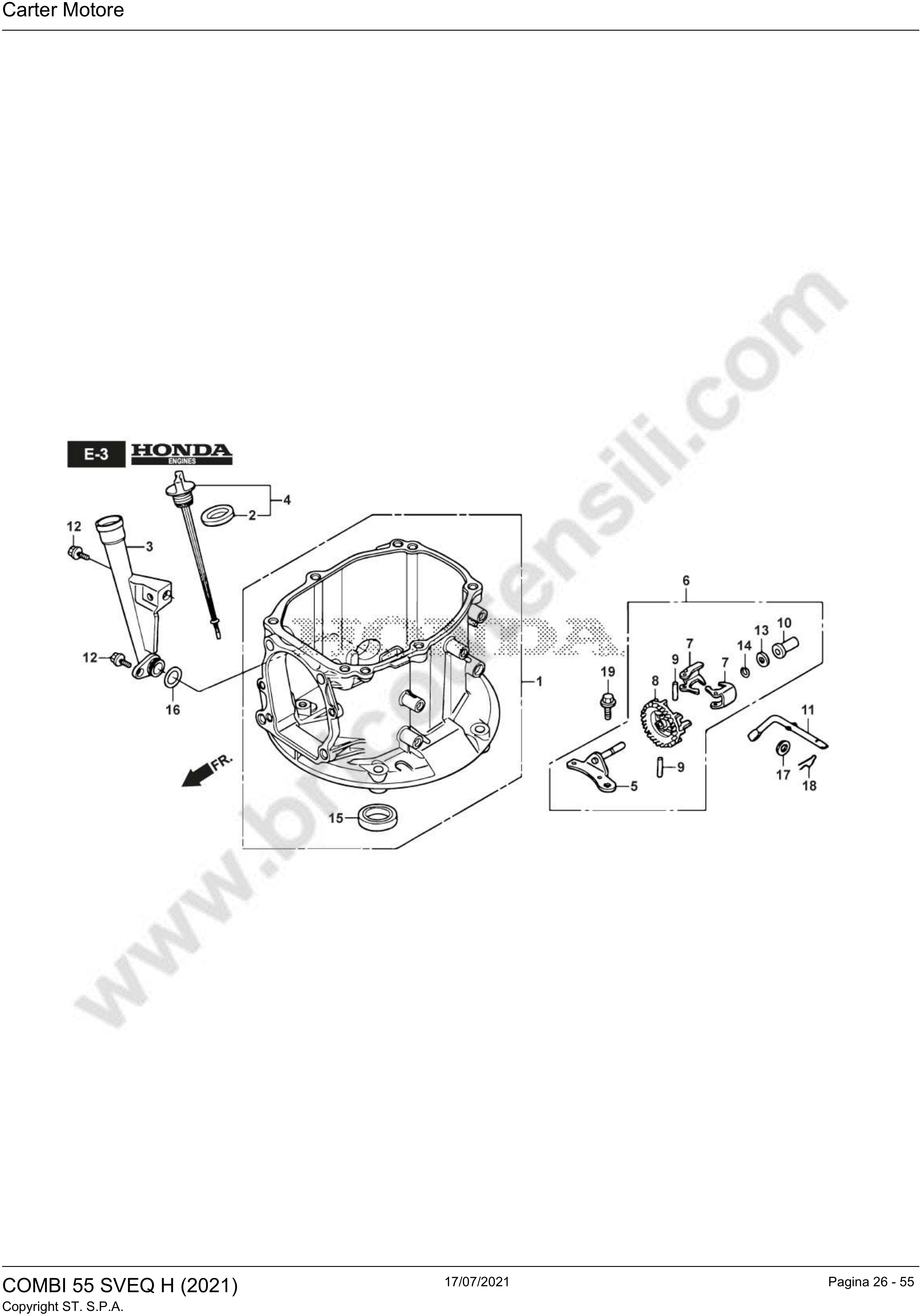

Esploso pagina 12
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

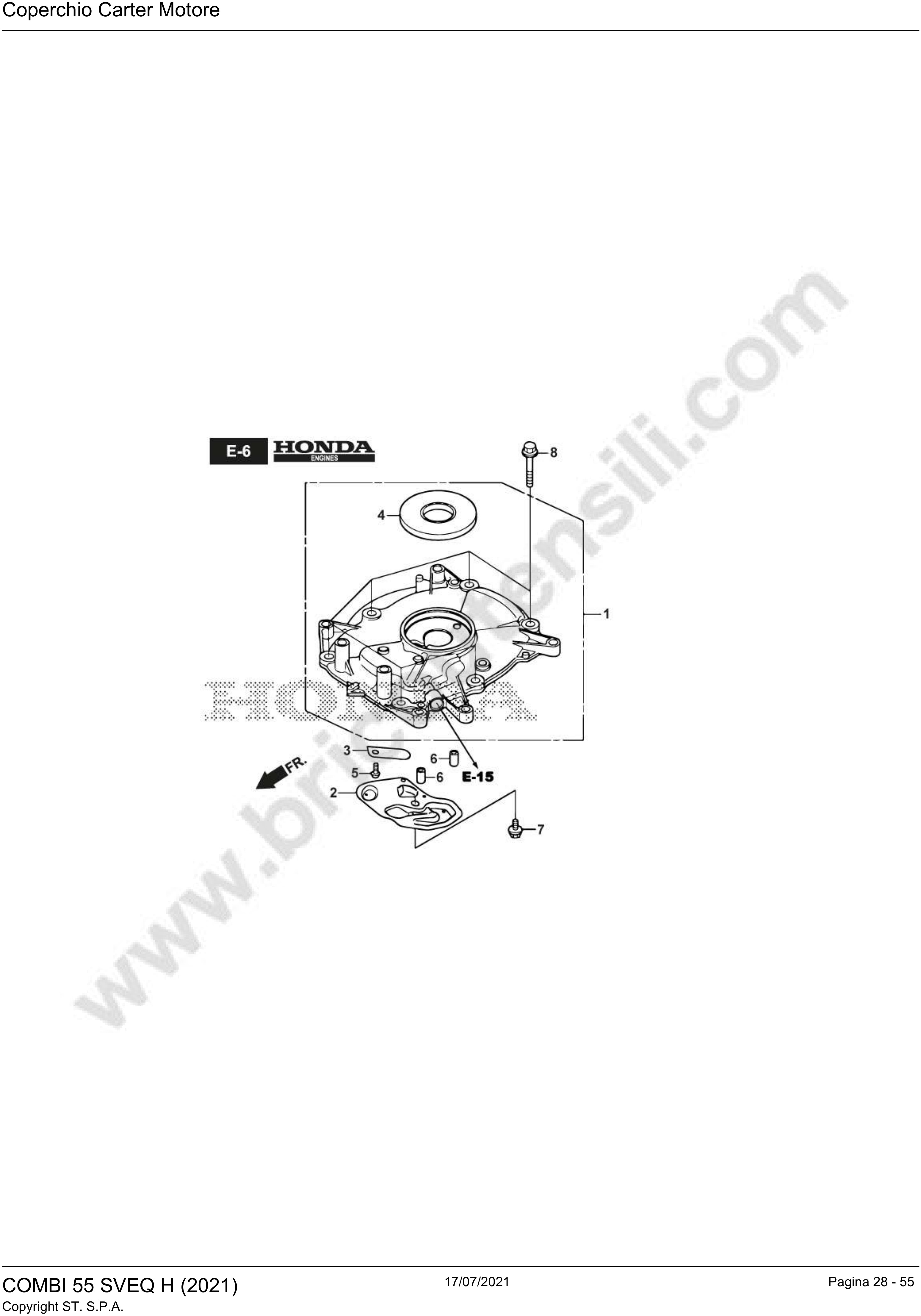

Page 13 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 13
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 14 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

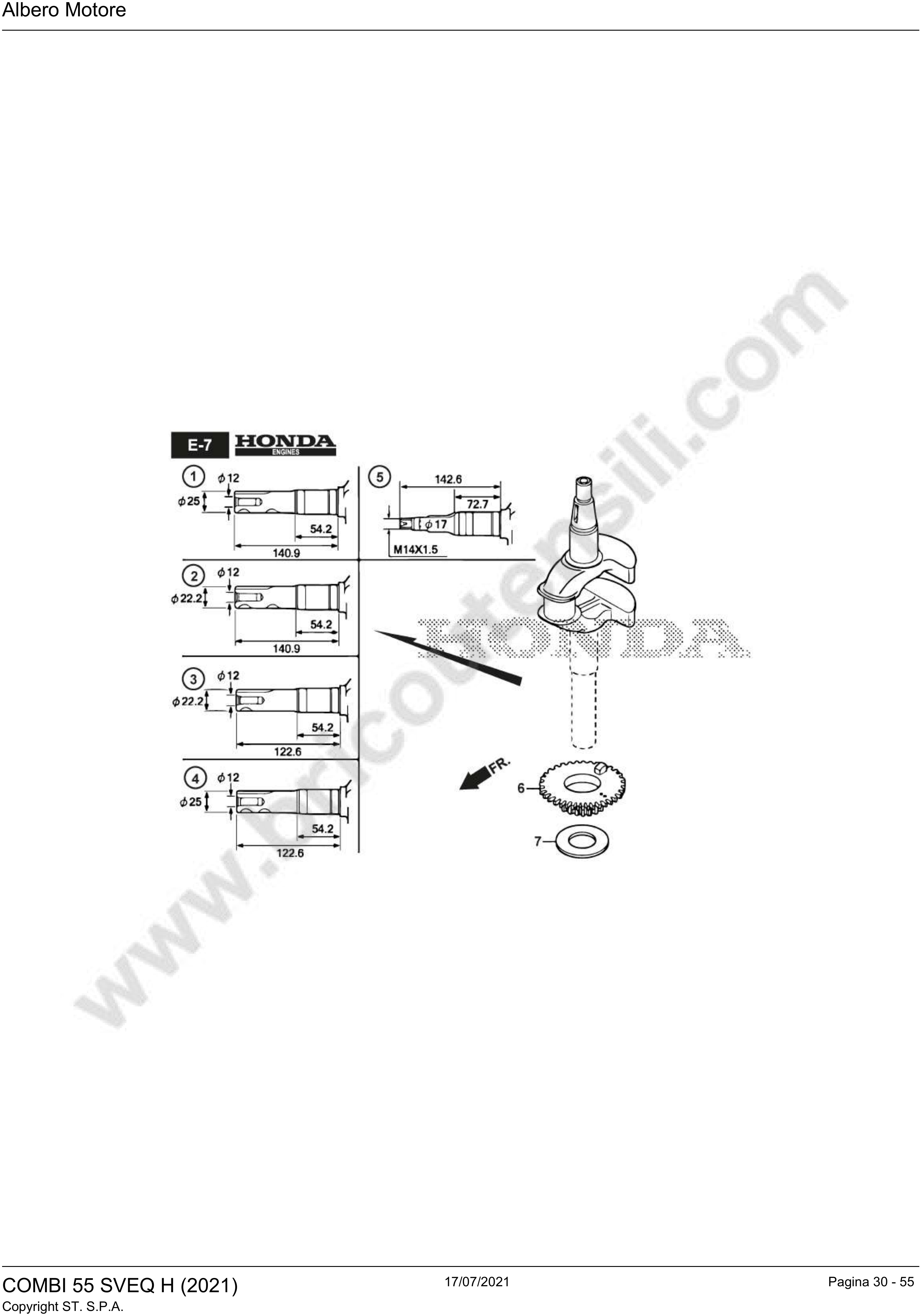

Esploso pagina 14
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 15 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

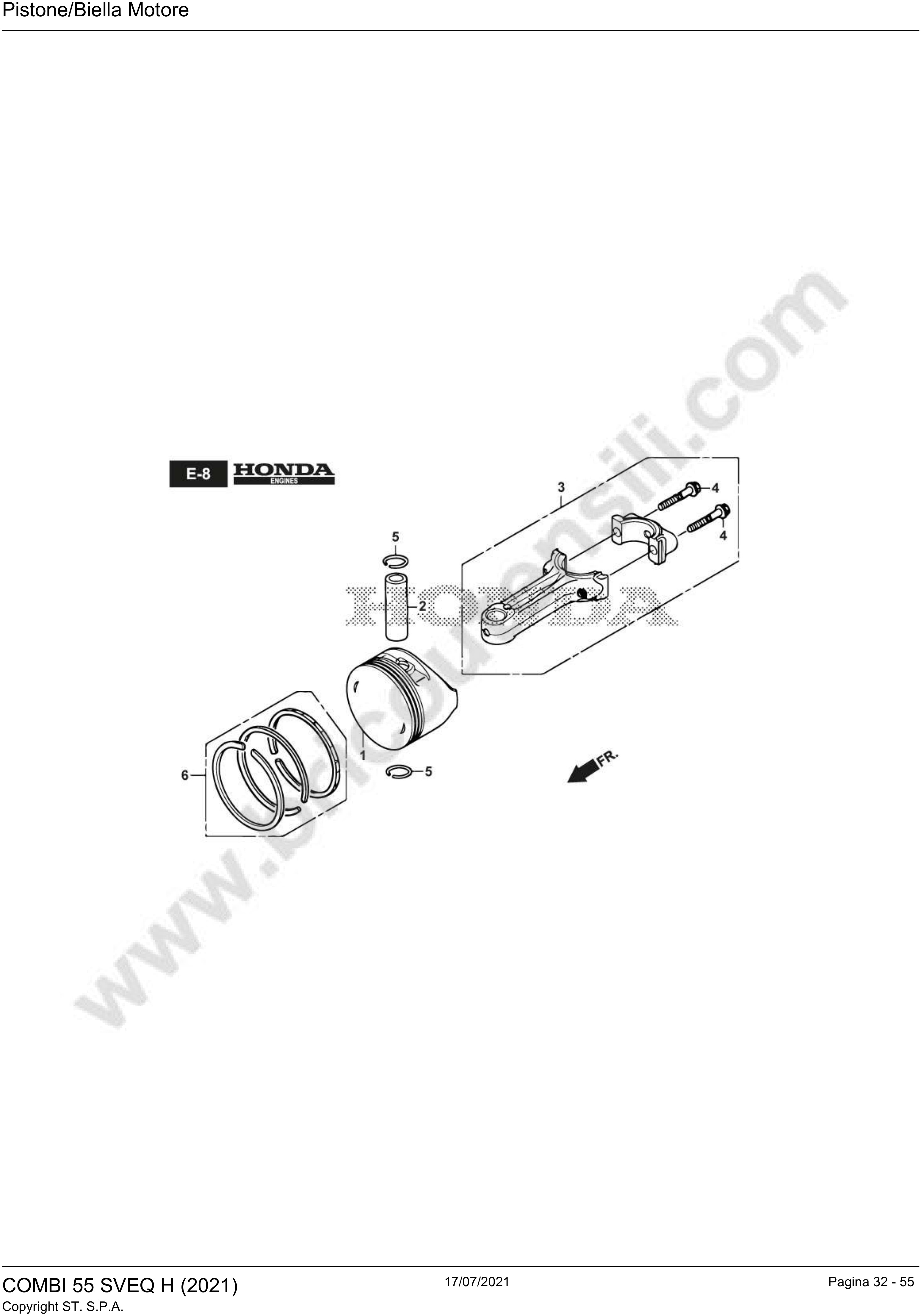

Esploso pagina 15
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 16 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

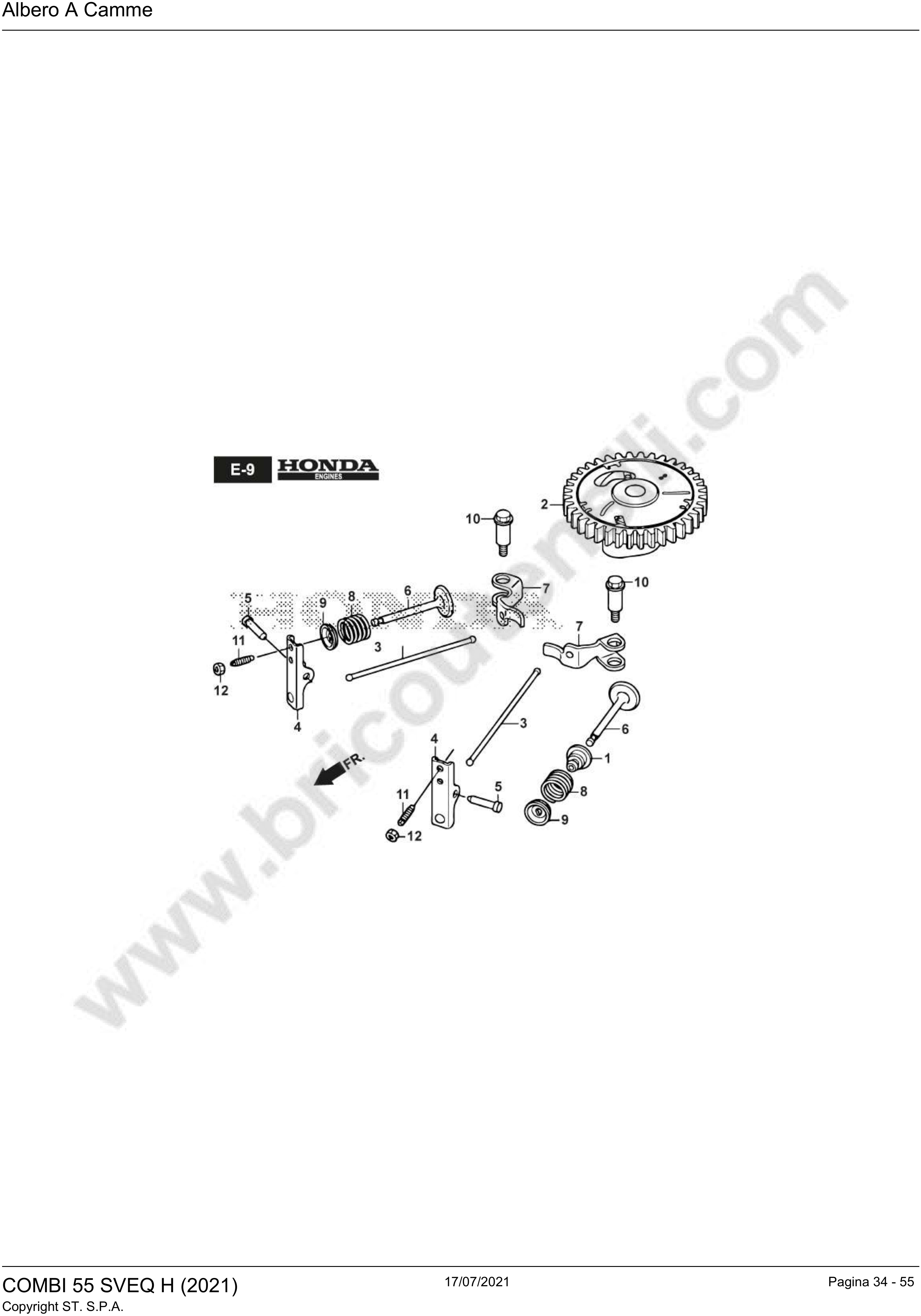

Esploso pagina 16
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 17 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

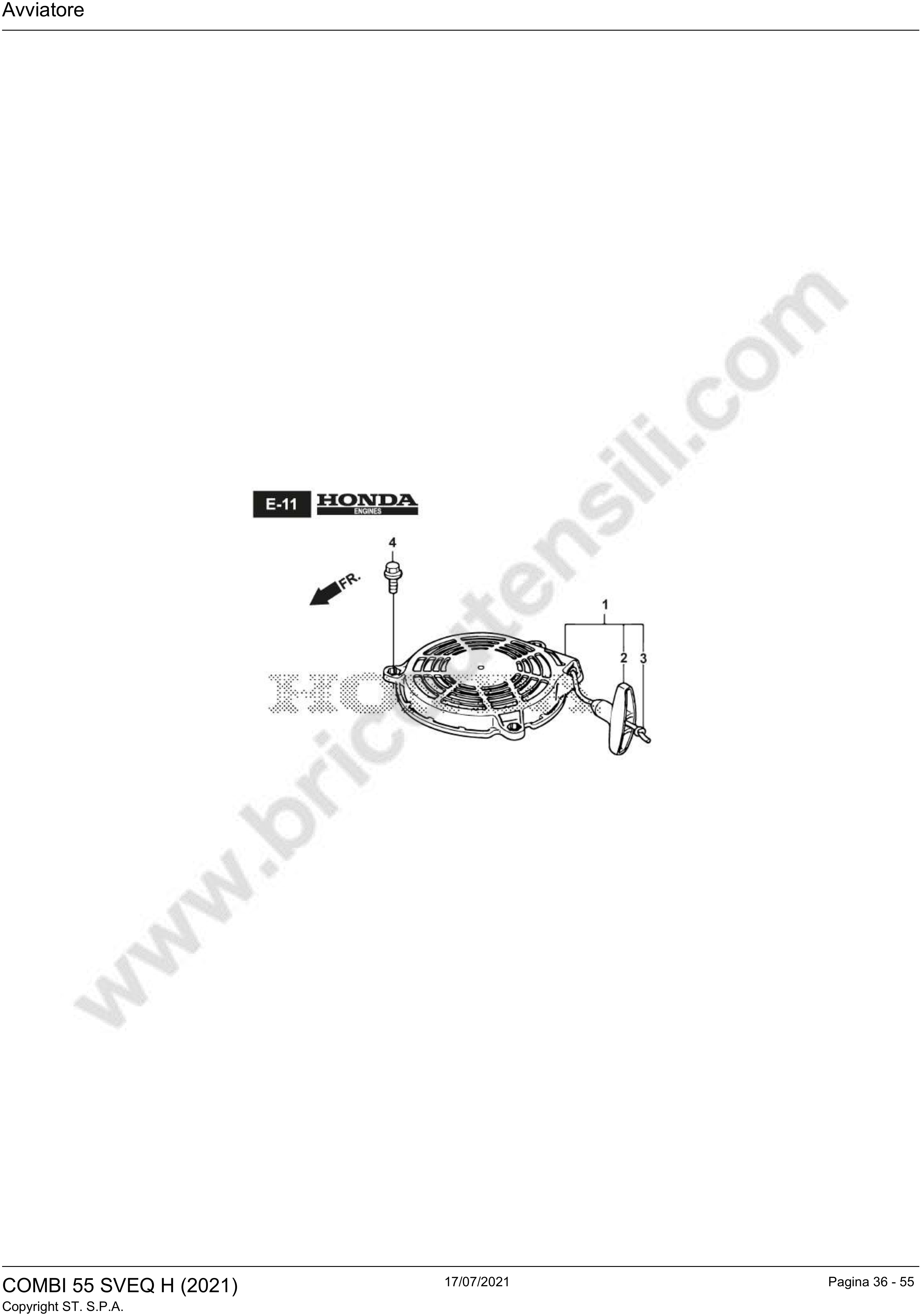

Esploso pagina 17
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 18 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

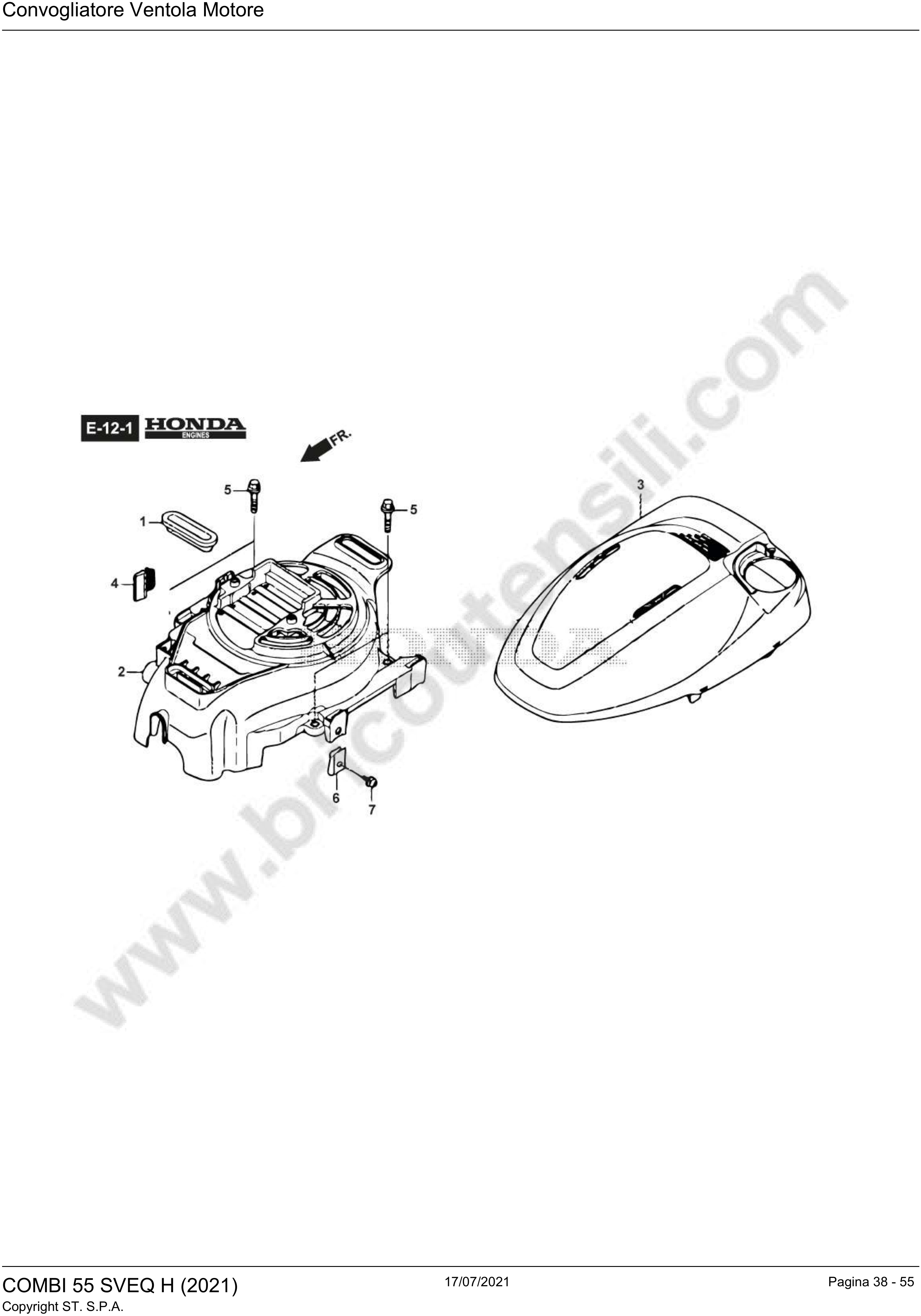

Esploso pagina 18
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

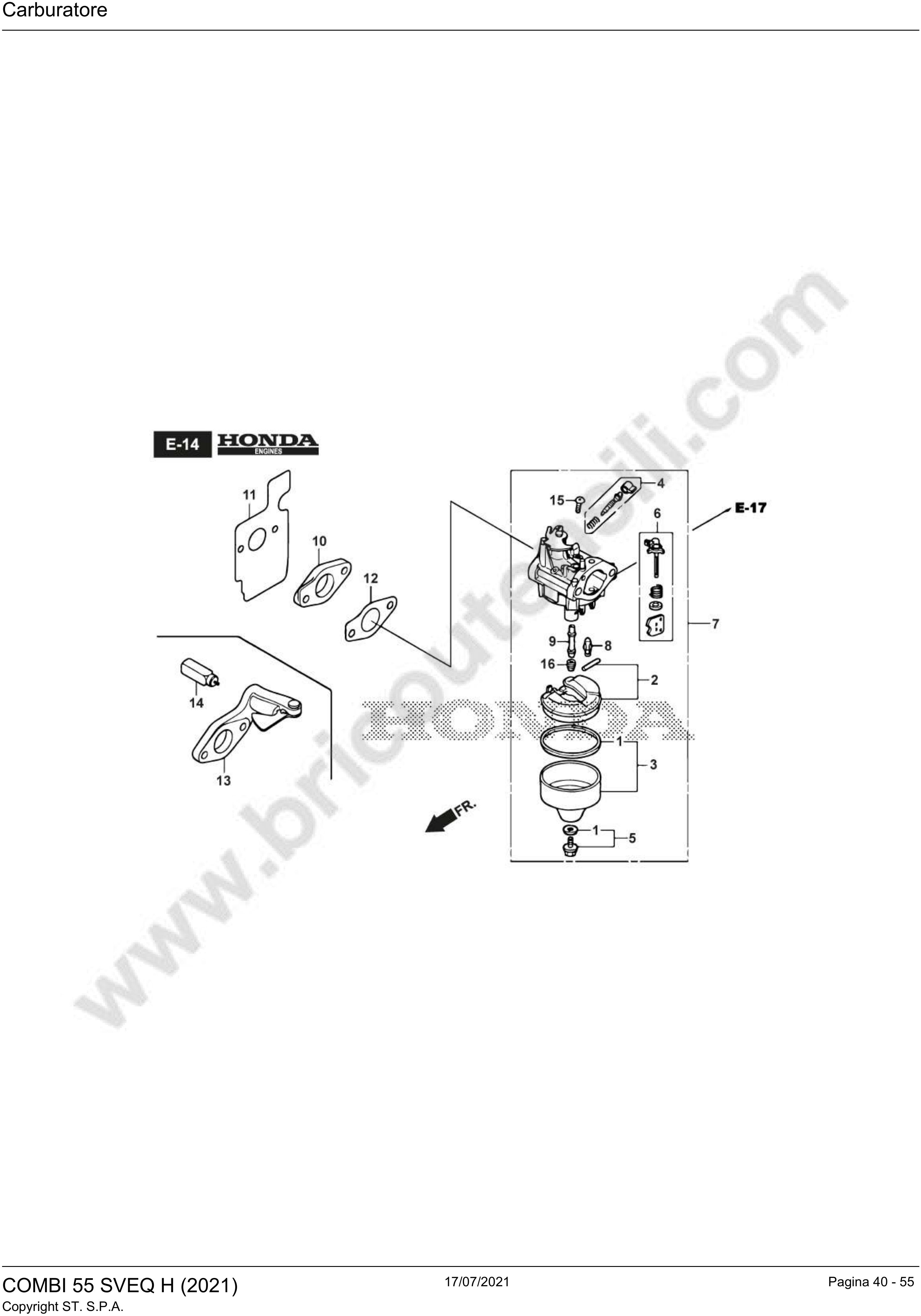

Page 19 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 19
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

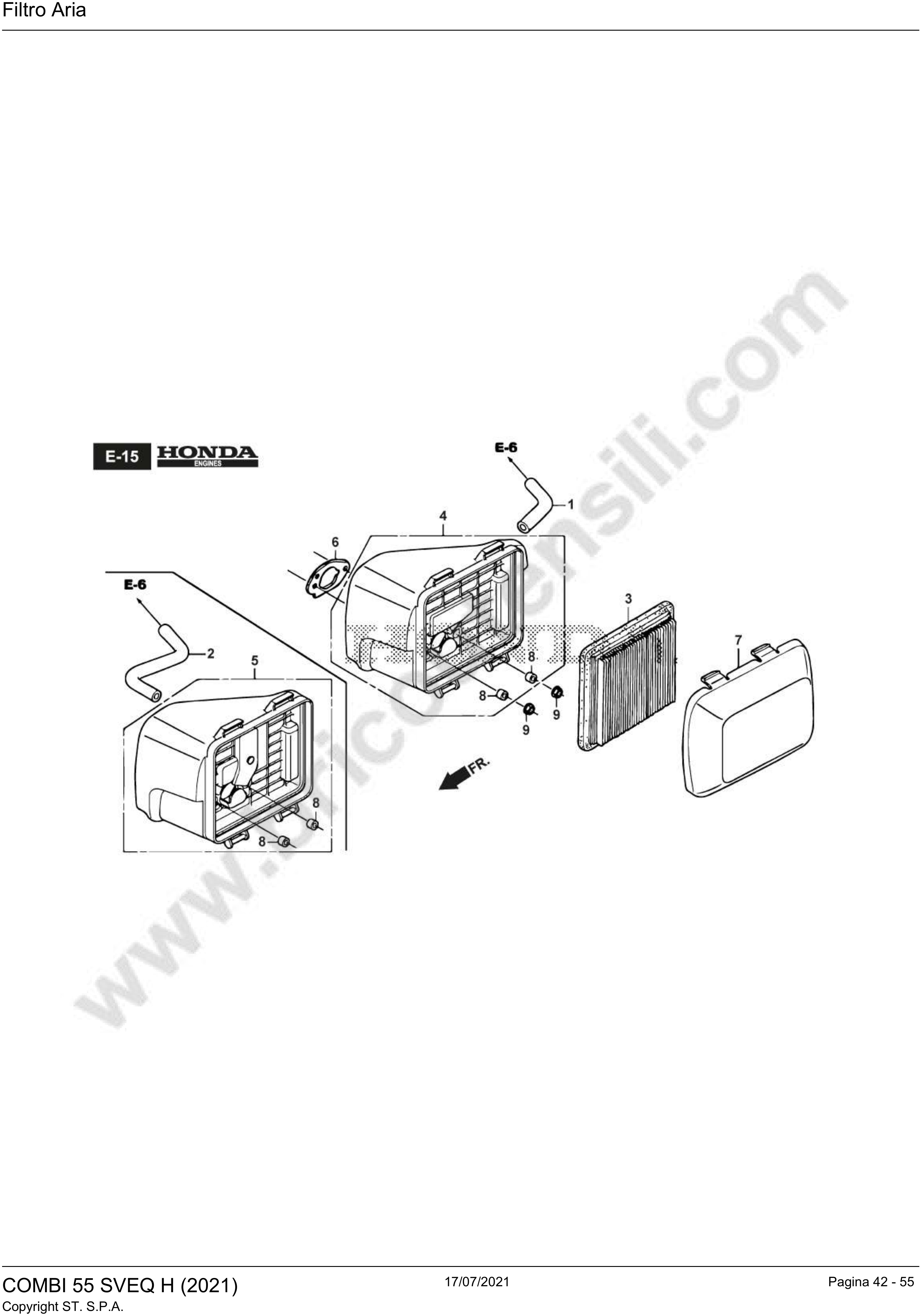

Page 20 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 20
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 21 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

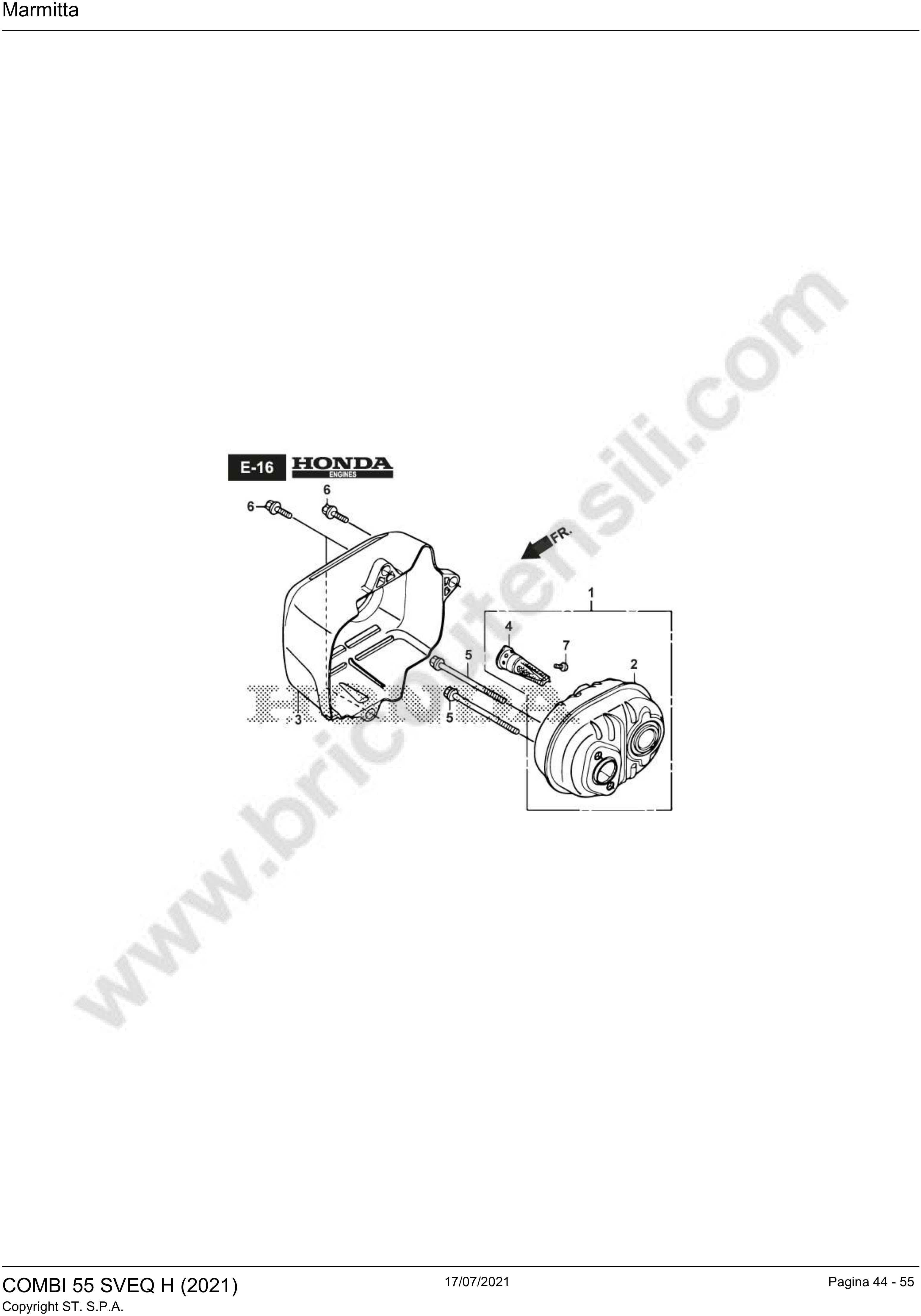

Esploso pagina 21
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 22 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

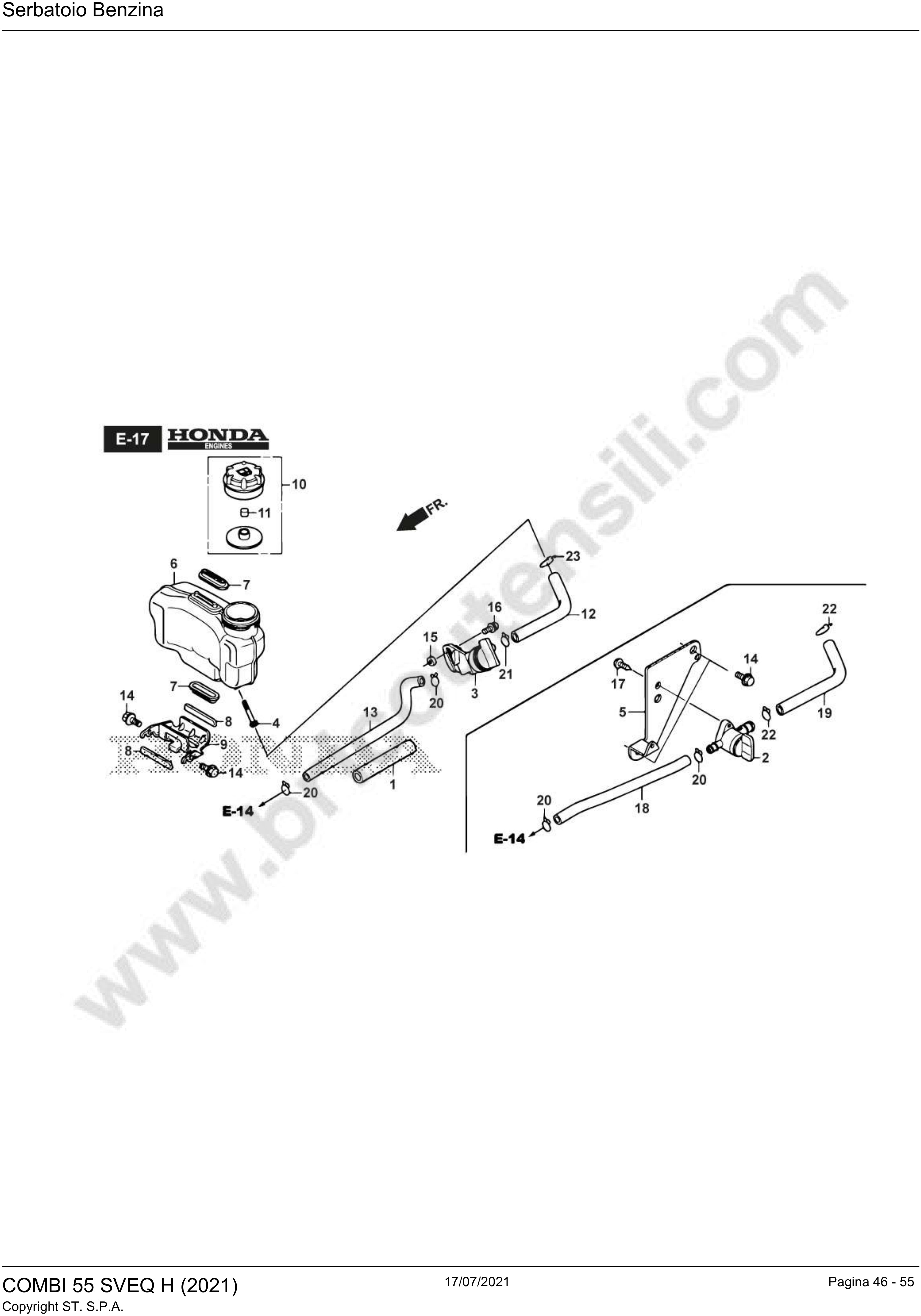

Esploso pagina 22
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 23 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

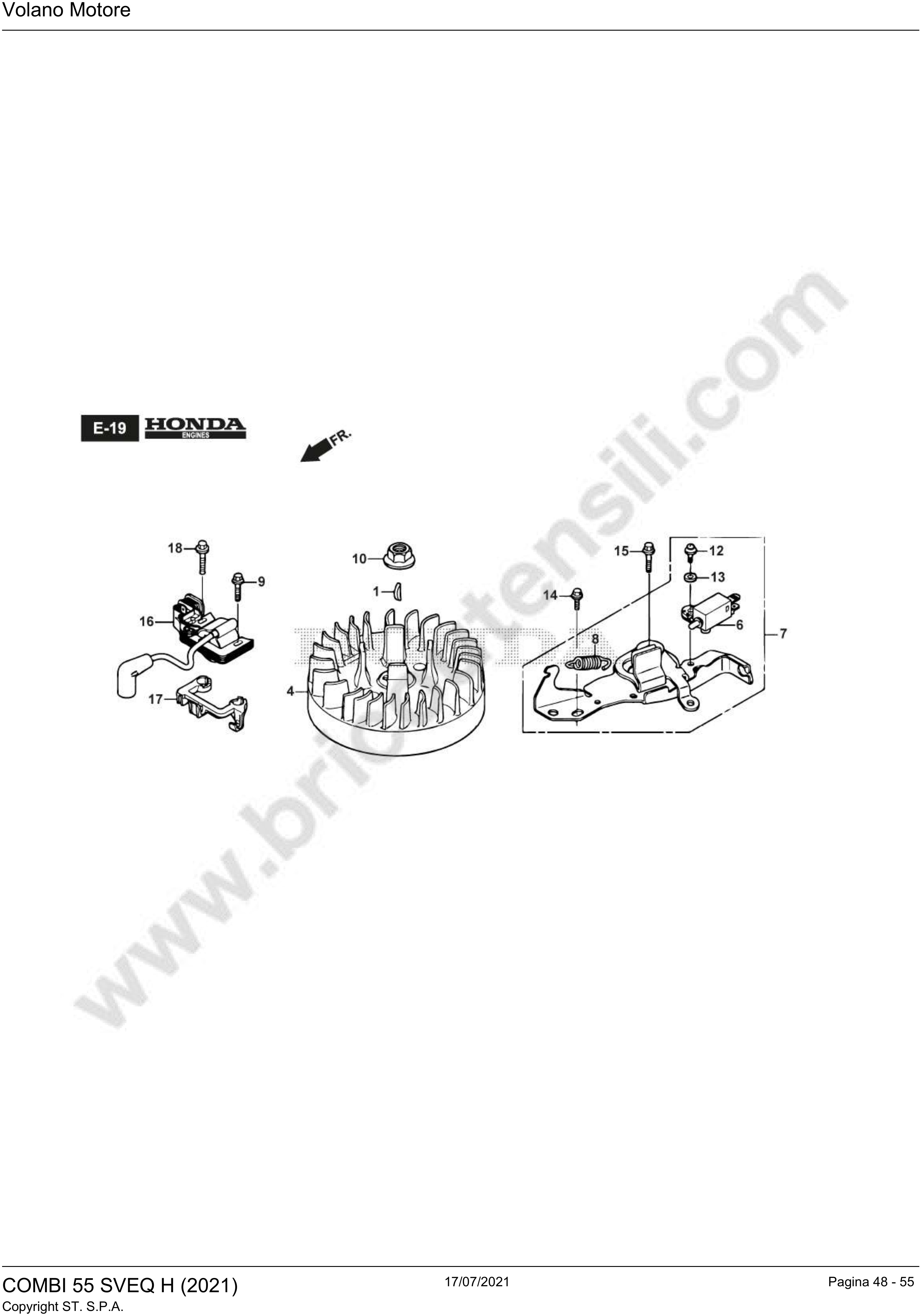

Esploso pagina 23
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

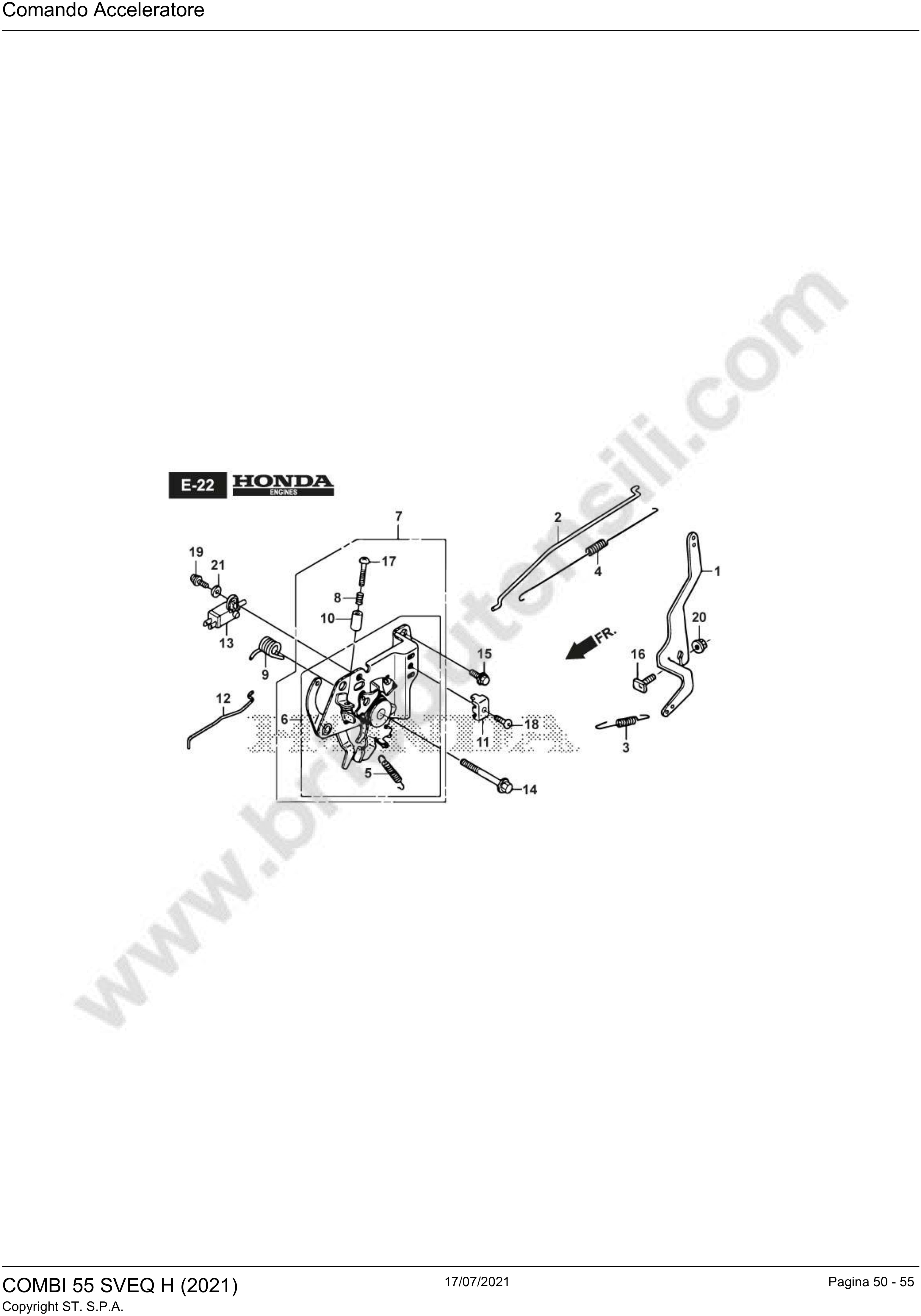

Page 24 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 24
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

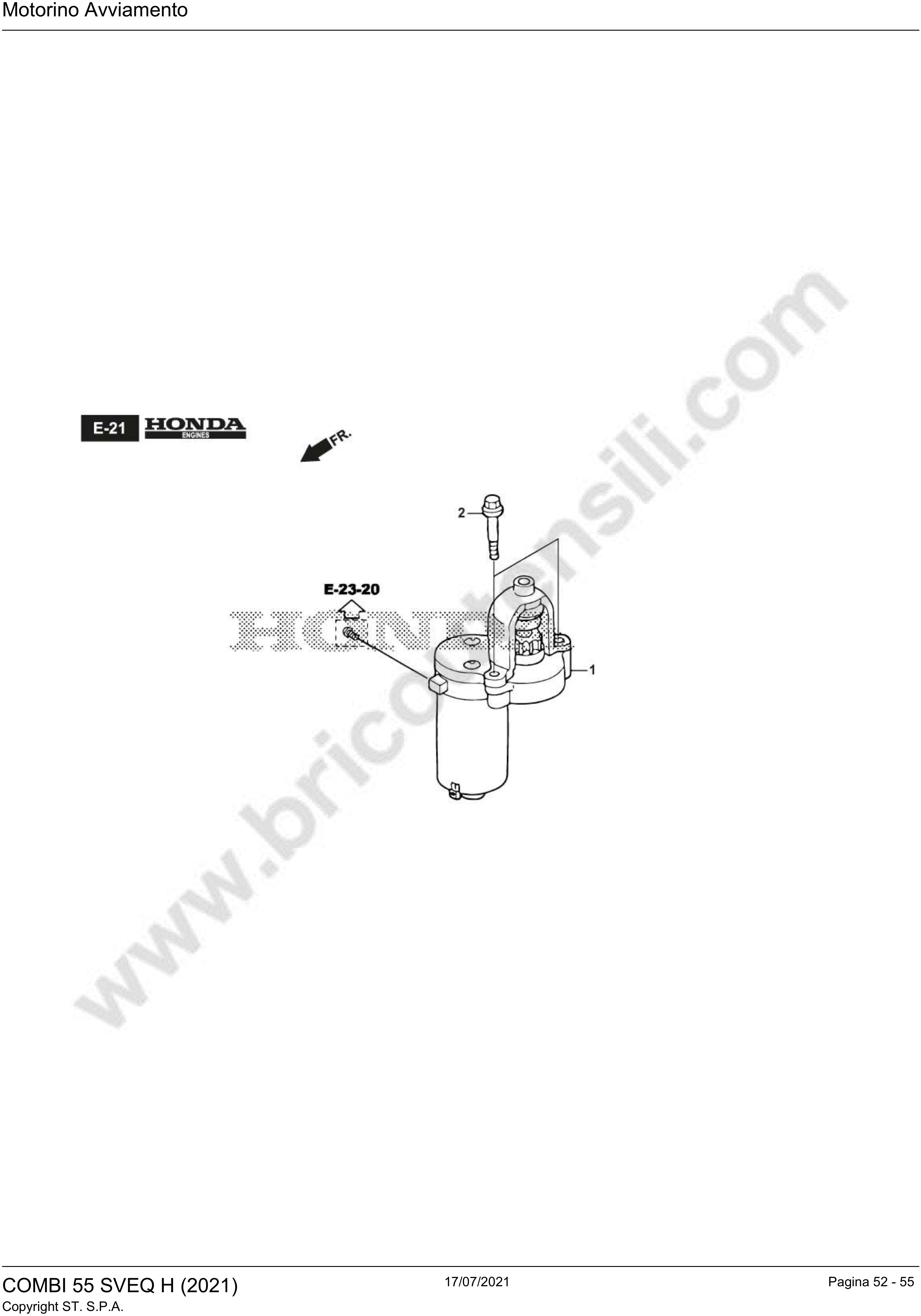

Page 25 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 25
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

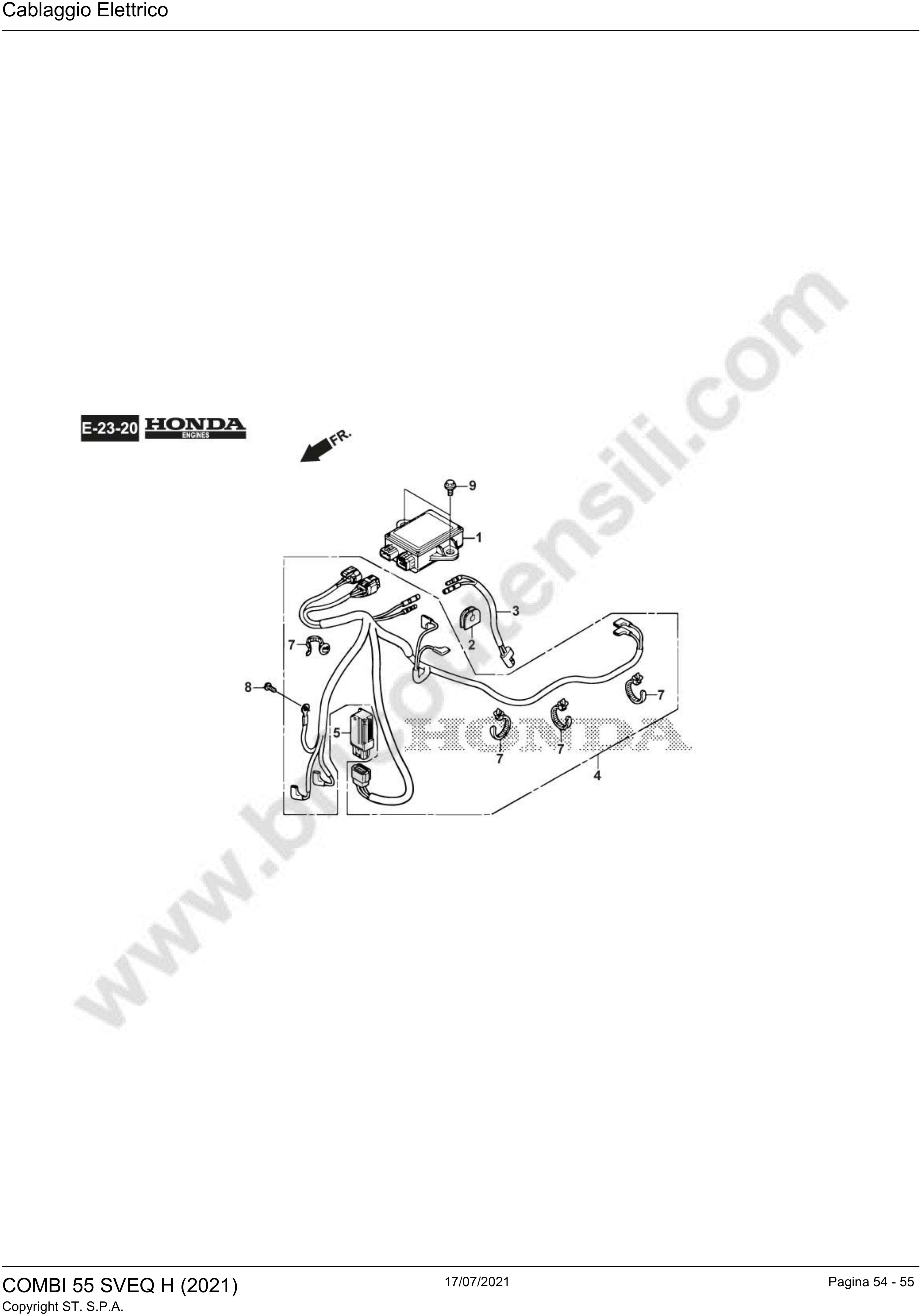

Page 26 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 26
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

STIGA Spare Parts for Lawnmower COMBI 55 SVEQ H (2021)

STIGA authorized service center

 and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
COMBI 55 SVEQ H 294557538/ST1

STIGA COMBI 55 SVEQ H (2021) 294557538/ST1
Deck And Height Adjusting Pag.1
# Part Num. Description
1 381302915/0 Front Wheel Axle To S / N 20BA2WBH062001
1 381302915/1 Front Wheel Axle From S / N 20BA2WBH062002
2 322785305/1 Support
3 112728697/0 Screw
4 322869693/1 Wheel Control Rod To S / N 20BA2WBH072227
4 322869693/2 Wheel Control Rod From S / N 20BA2WBH072228
5 122519823/0 Pin
6 112000930/0 Benzing Ring From 04-January-2021
6 112436051/0 Plate To 03-January-2021
7 322778475/0 Bracket
8 122450480/0 Spring
9 122517873/0 Pin
10 322055330/0 Cover
11 112815270/0 Screw
12 112523040/0 Washer
13 112154510/0 Nut
14 381302887/0 Rear Wheel Axle To S / N 20BA2WBH072227
14 381302887/1 Rear Wheel Axle From S / N 20BA2WBH072228
15 322545152/0 Plate
16 112728697/0 Screw
17 122446192/0 Spring
18 122534131/0 Pin
19 381003418/0 Lever, Height Adjustment
20 322394527/0 knob Black with STIGA Logo
21 112728699/0 Screw
22 181003125/0 Gear Box
23 322778477/0 Bracket To 31-August-2018
23 322778477/1 Bracket From 01-September-2018
24 112728704/1 Screw
25 322806647/0 Bracket - DISCONTINUED
26 119216035/0 Bearing
27 122570134/0 Left Pinion
28 122570133/0 Right Pinion
29 112608600/0 Seeger
30 122753000/0 Pin
32 322042063/1 Bushing
33 112521371/0 Washer
34 322600208/0 Protection, Wheel
35 322600145/0 Protection, Wheel
37 381003459/0 Wheels Rear Adj. Lever To S / N 20BA2WBH073718
37 381003459/1 Wheels Rear Adj. Lever
with STIGA Logo Black Knob From S / N 20BA2WBH073719 - DISCONTINUED
41 112523050/0 Washer
42 135064379/0 TRAPEZOIDAL BELT XPZ ISO4184 Lp=800
44 112674550/0 Screw
45 112154210/0 Nut
46 122671656/0 Washer
47 112792611/0 Screw
48 112689500/0 Screw
49 322806649/0 Bracket
50 322608567/0 Stiffening To S / N 19AA2WBH005321
50 322608567/1 Stiffening From S / N 19AA2WBH005322
51 112735120/0 Screw
60 122601914/0 Pulley
61 122601915/0 Pulley
62 122601932/0 Pulley
Mask Pag.2
1 322500113/0 Front Combi
2 381393704/0 Handle
3 322226241/0 Front Mask Gray
4 112735654/0 Screw
5 112728697/0 Screw
6 322393756/0 Front Handle Grip
7 114367494/2 label STIGA logo
8 381004837/0 Gray Deck Side Discharge To 31-August-2018
8 381004856/0 Gray Deck Side Discharge From 01-September-2018
9 112728210/0 Screw
Handle, Upper Part Pag.3
1 381007606/2 Handle, Yellow Upper Part with sponge handgrip
2 122430313/0 Guide Spring Not for models with ION battery
3 112521330/0 Washer Not for models with ION battery
4 112154510/0 Nut Not for models with ION battery
5 118390020/0 Cable clip
6 181003363/1 Lever, Engine Brake Black
7 181030106/0 Cable, Thread Engine Brake
8 381003253/0 Locking Handle Lever Black To 31-May-2020
8 381103359/1 Locking Handle Lever Black From 01-June-2020
9 381103350/0 Locking Handle Lever Black To 31-May-2020
9 381103359/1 Locking Handle Lever Black From 01-June-2020
10 181003364/0 Drive Control Lever Black
11 381030104/0 Clutch Cable To 31-May-2021
11 381030104/1 Clutch Cable From 01-June-2021
12 322680016/0 Handle Fixing Washer
13 381007600/0 Handle, Lower Part Yellow To 31-August-2018 - DISCONTINED
13 381007600/1 Handle, Lower Part Yellow From 01-September-2018
14 322399835/0 Black knob
15 122131750/0 Nut
Electric Start Controls Pag.4
1 112728702/0 Screw
2 133320022/0 Cable Clamp
3 322076570/1 Battery Safety Key
4 381600406/0 Ignition switch
Controls Pag.5
1 322722817/0 External Protection
2 381007227/0 Variator Speed Lever Assy
3 322820086/0 Cap
4 322722816/0 Internal Protection
5 112154510/0 Nut
6 112727786/0 Screw
7 122450487/0 Spring
8 381030117/0 Variator cable
Wheels and Hub Caps Pag.6
1 119216035/0 BEARING 6001 2RS (12 X 28 X 8)
2 381007416/2 Wheel Ø 200 To S/N 19JA2WBH009252
2 381007416/3 Wheel Ø 200 From S/N 19JA2WBH009253
3 322110744/0 HUB CAP D180/200 [GREY]
4 381007417/3 WHEEL ASSEMBLY Ø 280
5 322110746/0 STIGA HUB CAP D280 [GREY]
6 112728706/0 SELF-TAP SCREW PT TORX K40
7 322120115/0 PLASTIC DRIVE GEAR D=280
8 122170845/0 WHEEL BEARING SPACER
9 381007472/2 Wheel
9A 381007472/0 Wheel
Protection, Belt Pag.7
1 381005235/0 R/H HANDLE SUPPORT MP1 [GREY] To 31-August-2017 - DISCONTINUED
1 381005235/1 R/H HANDLE SUPPORT MP1 [GREY] From 01-September-2017 To 31-August-2018
1 381005235/2 R/H HANDLE SUPPORT MP1 [GREY] From 01-September-2018
2 381005237/0 L/H HANDLE SUPPORT MP1 [GREY] To 31-August-2017
2 381005237/1 L/H HANDLE SUPPORT MP1 [GREY] From 01-September-2017 To 31-August-2018
2 381005237/2 L/H HANDLE SUPPORT MP1 [GREY] From 01-September-2018
3 112727801/0 SCREW TCB TORX M6 x 20
4 322545213/0 FIXING PLATE
5 322600310/0 REAR DOOR Not for TR/E models
6 381102204/0 REAR BAFFLE ASSEMBLY To S/N 19JA2WBH017664
6 381102204/1 REAR BAFFLE ASSEMBLY From S/N 19JA2WBH017665
7 112728699/0 SELF-TAPPING SCREW K60 x 22
8 322060271/0 Carter Mulching To 31-August-2015
8 322060271/1 Carter Mulching From 01-September-2015 To 31-August-2018
8 322060271/2 Carter Mulching From 01-September-2018
9 112728530/0 SELF-TAP SCREW 4.8 x 25 To 31-August-2015
9 112728531/0 SELF-TAP SCREW 4.8 x 25 From 01-September-2015 To 31-August-2016
9 112735645/0 SCREW TCB TORX M4 x 20 From 01-September-2016
10 112154510/0 LOW SELF-LOCKING NUT (M6)
11 112815205/0 SCREW M6 x 12
12 112521330/0 WASHER M6 (6.4 x 12 x 1.6)
13 119035000/0 O RING 10.77 x 2.62
14 112728697/0 SELF-TAP SCREW PT TORX K50 x 16
15 322034002/0 WASHING CONNECTION
16 322140246/0 MULCHING PLUG [MP1 55]
18 122042073/0 BELT PROTECTION BUSHING MP1-MP2   From 01-September-2018
Ejection-Guard Pag.8
1 322108315/0 SIDE DISCHARGE FLAP [BLACK]
2 322600309/1 SIDE DISCHARGE GUARD MP1 50-55[BLACK] To 30-November-2018
2 322600309/2 SIDE DISCHARGE GUARD MP1 50-55[BLACK] From 01-December-2018
3 122450456/0 SPRING To 31-December-2018
3 122450456/1 SPRING From 01-January-2019
4 112604896/0 STARLOCK WASHER D=6
5 112727803/0 SCREW TCB TORX M6 x 14
6 322806659/0 FULCRUM BRACKET
7 112154510/0 LOW SELF-LOCKING NUT (M6)
8 122517869/1 DEFLECTOR ROD
9 118203853/0 BLACK NUT CAP M6
10 122517876/0 SAFETY PIN
11 322783013/0 SAFETY LOCK
12 122450493/0 SAFETY SPRING
13 381008162/0 SIDE STONE GUARD ASS.Y MP1/MP2 BLACK To 31-December-2018
13 381008162/1 SIDE STONE GUARD ASS.Y MP1/MP2 BLACK From 01-January-2019
Blade Pag.9
1 1111-9180-01 Blade Boss Stiga Packed into 122465608/3
1 122465608/3 BLADE BOSS D=25mm, Albero Motore Ø 25
2 181004464/0 MULCHING BLADE 55 MP1
3 122160400/0 SPRING WASHER 50 x 2 x 10.2
4 112523080/0 WASHER M10 11 x 30 x 2.5
5 112735698/0 HEX-HEAD SCREW 3/8" x 2"
6 112139150/0 WOODRUFF KEY D=25mm Albero Motore Ø 25
7 112735108/1 TELF-FORM SCREW 3/8" x 1¼" UNC
GRASSCATCHER Pag.10
1 181006411/0 GRASSCATCHER FRAME To 31-August-2019
1 181006411/1 GRASSCATCHER FRAME From 01-September-2019
2 322557177/0 FIXING PLATE
3 112728697/0 SELF-TAP SCREW PT TORX K50 x 16
4 122517884/0 DEFLECTOR ROD
5 181102383/0 GRASSBAG MP1 [BLACK] STIGA with STIGA Logo
6 381486052/0 GRASSCATCHER TOP-FULL INDICATOR [GREY]
7 122450479/0 DEFLECTOR SPRING
8 322600339/0 DEFLECTOR MP1 [YELLOW] NLA
9 322109584/0 DEFLECTOR SUPPORT MP1 [YELLOW]
10 322486424/0 GRASSCATCHER INDICATOR

Honda Engine GCVx 200cc
Cylinder Head Pag.11
1 118551725/0 Cilindro Honda: 12100-Z9L-405
2 118551642/0 Testa Cilindro Honda:
12311-Z9L-000
3 118552227/0 Prigioniero Honda:
90043-Z9L-000
4 Enquire Honda Spare Parts Honda: 94301-08140 - DOWEL PIN, 8X14
5 Enquire Honda Spare Parts Honda: 95701-0601408 - BOLT, FLANGE, 6X14
6 Enquire Honda Spare Parts Honda: 95701-0802508 - BOLT, FLANGE, 8X25
7 Enquire Honda Spare Parts Honda: 95701-0804008 - BOLT, FLANGE, 8X40
8 118552279/0 Candela Honda: 98079-55846
Engine Cranck Case Pag.12
1 118551712/0 Basamento Motore Honda: 11100-Z9L-415
2 Enquire Honda Spare Parts Honda: 15625-ZE6-000 - PACKING, OIL FILLER CAP
3 118551912/0 Tubo Astina Livello Olio Honda: 15631-Z9L-000
4 118551917/0 Astina Livello Olio Honda: 15650-Z9L-000
5 Enquire Honda Spare Parts Honda: 16508-ZM0-010 - SHAFT COMP., GOVERNOR HOLDER
6 118551971/0 Ass. Regolatore Honda: 16510-ZM0-010
7 Enquire Honda Spare Parts Honda: 16511-ZL8-000 - WEIGHT, GOVERNOR
8 Enquire Honda Spare Parts Honda: 16512-ZM0-000 - HOLDER, GOVERNOR WEIGHT
9 Enquire Honda Spare Parts Honda: 16513-ZE1-000 - PIN, GOVERNOR WEIGHT
10 118551973/0 Cursore Regolatore Honda: 16531-Z1T-000
11 118551977/0 Astina Regolatore
Motore		 Honda: 16541-Z9L-000
12 Enquire Honda Spare Parts Honda: 90013-ZL8-000 - BOLT, FLANGE, 6X14 (CT200)
13 Enquire Honda Spare Parts Honda: 90451-Z1T-000 - WASHER, THRUST, 6MM
14 118552244/0 Clip Honda: 90602-ZE1-000
15 118552254/0 Anello Di Tenuta,
28X41.25X6		 Honda: 91202-Z9L-003
16 118552262/0 Guarnizione Or,
19.1X2.2		 Honda: 91301-Z9L-000
17 118552273/0 Rondella Piana, 6Mm Honda: 94101-06800
18 Enquire Honda Spare Parts Honda: 94251-08000 - PIN, LOCK, 8MM
19 Enquire Honda Spare Parts Honda: 95701-0601408 - BOLT, FLANGE, 6X14
Cranck Case Cover Pag.13
1 118551717/0 Carter Sup. Motore Honda: 11300-Z9L-405
2 118551750/0 Coperchio Honda: 12356-Z9L-000
3 118551757/0 Valvola Honda: 12377-Z9L-000
4 118552249/0 Anello Di Tenuta,
25.4X62X6		 Honda: 91201-Z0Y-003
5 Enquire Honda Spare Parts Honda: 93500-050080A - SCREW, PAN, 5X8
6 Enquire Honda Spare Parts Honda: 94301-08140 - DOWEL PIN, 8X14
7 Enquire Honda Spare Parts Honda: 95701-0601408 - BOLT, FLANGE, 6X14
8 Enquire Honda Spare Parts Honda: 95701-0802508 - BOLT, FLANGE, 8X25
Cranck Shaft Pag.14
4 118551806/0 Albero Motore Honda: 13311-Z9L-840
6 118551817/0 Pignone Honda: 14311-Z9L-000
7 118552239/0 Rondella Honda: 90402-Z9L-000
Piston/Conrod Pag.15
1 118551776/0 Pistone Honda: 13101-Z9L-000
2 118551785/0 Spinotto Pistone Honda: 13111-ZE0-000
3 118551794/0 Ass. Biella Motore Honda: 13200-Z9L-000
4 Enquire Honda Spare Parts Honda: 90001-Z1L-000 - BOLT, CONNECTING ROD
5 118552241/0 Fermo Spinotto Honda: 90551-ZE0-000
6 118551766/0 Set Fasce Elastiche Honda: 13010-Z9L-003
Camshaft Pag.16
1 118551737/0 Guarnizione Valvola Honda: 12209-Z8B-003
2 118551812/0 Camma Honda: 14100-Z9L-000
3 118551829/0 Astina Alzavalvola Honda: 14410-Z9L-000
4 118551835/0 Bilanciere Honda: 14431-Z9L-000
5 118551845/0 Perno Honda: 14461-Z9L-000
6 118551852/0 Valvola Aspirazione Honda: 14711-Z9L-000
7 118551866/0 Alzavalvola Honda: 14731-Z9L-000
8 118551874/0 Molla Valvola Honda: 14751-ZL8-000
9 118551875/0 Fermo Valvola Honda: 14771-Z0J-000
10 118552217/0 Perno Honda: 90001-Z9L-000
11 118552222/0 Grano Regolazione Honda: 90012-ZCJ-000
12 118552231/0 Dado Regolazione
Valvola		 Honda: 90206-Z6L-000
Starter Pag.17
1 118551689/0 Assieme Avviatore Honda: 28400-Z9L-004
2 118552162/0 Maniglia Avviatore Honda: 28461-ZL8-003
3 Enquire Honda Spare Parts Honda: 28462-Z0L-V71 - ROPE, RECOIL STARTER (LONG TYPE)
4 Enquire Honda Spare Parts Honda: 95701-0601408 - BOLT, FLANGE, 6X14
Baffle Motor Fan Pag.18
1 118552056/0 Gommino Honda: 17532-Z9L-000
2 118552306/0 Cover Comp., Fan Honda: 19610-Z9R-900 - ENQUIRE
4 118552307/0 Cover, Usb Receptacle Honda: 37219-Z9R-900 - ENQUIRE
5 Enquire Honda Spare Parts Honda: 90018-ZE1-000 - BOLT, FLANGE, 6X23 (CT200)
Carburator Pag.19
1 Enquire Honda Spare Parts Honda: 16010-Z9L-811 - GASKET SET
2 118551931/0 Galleggiante Carburatore Honda: 16013-ZL1-003
3 118551934/0 Coppetta Carburatore Honda: 16015-Z9L-811
4 Enquire Honda Spare Parts Honda: 16016-ZG0-W00 - SCREW SET
5 118551937/0 Set Viteria Honda: 16028-ZK7-S91
6 Enquire Honda Spare Parts Honda: 16044-Z9L-811 - CHOKE SET
7 118551660/0 Assieme Carburatore Honda: 16100-Z9L-811
8 Enquire Honda Spare Parts Honda: 16155-ZM0-013 - VALVE, FLOAT
9 Enquire Honda Spare Parts Honda: 16166-Z9L-811 - NOZZLE, MAIN
11 118551948/0 Guarnizione, Paracalore Honda: 16212-Z9L-000
12 118551957/0 Guarnizione Carburatore Honda: 16221-Z9L-000
13 118552012/0 Assieme Controllo Choke Honda: 16600-Z9L-000
14 118552015/0 Ass. Termovavola Honda: 16620-Z9L-003
15 Enquire Honda Spare Parts Honda: 93500-050061H - SCREW, PAN, 5X6
16 Enquire Honda Spare Parts Honda: 99101-1240680 - JET, MAIN, #68
Air Cleaner Pag.20
1 118551923/0 Tubo Aspirazione Honda: 15721-Z9L-000
3 118551671/0 Filtro Aria Honda: 17211-Z8B-901
4 118552035/0 Base Filtro Aria Honda: 17220-Z9L-000
6 118552039/0 Guarnizione Filtro Aria Honda: 17228-Z9L-000
7 118551680/0 Coperchio Filtro Aria Honda: 17231-Z9L-000
8 Enquire Honda Spare Parts Honda: 17238-Z9L-300 - COLLAR, AIR CLEANER
8 Enquire Honda Spare Parts Honda: 17238-ZG9-M00 - COLLAR, AIR CLEANER
9 Enquire Honda Spare Parts Honda: 94050-06000 - NUT, FLANGE, 6MM
Muffler Pag.21
2 118552078/0 Ass. Silenziatore Honda: 18310-Z9L-000
3 118552081/0 Protezione Silenziatore Honda: 18320-Z9L-000
5 118552219/0 Bullone Silenziatore,
M6X79		 Honda: 90004-ZL8-000
6 Enquire Honda Spare Parts Honda: 90018-ZE1-000 - BOLT, FLANGE, 6X23 (CT200)
8 118552087/0 Guarnizione Silenziatore Honda: 18381-ZL8-305
Fuel Tank Pag.22
2 118552021/0 Rubinetto Benzina Honda: 16950-Z0Y-003
4 118552023/0 Filtro Benzina Honda: 16952-Z9R-000
5 Enquire Honda Spare Parts Honda: 16961-Z9L-000 - STAY, FUEL COCK
6 118552050/0 Serbatoio Benzina Honda: 17511-Z9L-800
7 118552056/0 Gommino Honda: 17532-Z9L-000
8 118552059/0 Gommino Honda: 17533-Z9L-000
9 118552063/0 Supporto Serbatoio Honda: 17561-Z9L-000
10 118551682/0 Ass. Tappo Serbatoio Honda: 17620-Z9L-800
11 Enquire Honda Spare Parts Honda: 17622-888-010 - SPONGE, FUEL CAP BREATHER
14 Enquire Honda Spare Parts Honda: 90014-952-000 - BOLT, FLANGE, 6X14 (CT200)
17 Enquire Honda Spare Parts Honda: 93913-25220 - SCREW, TAPPING, 5X12 (PO)
18 Enquire Honda Spare Parts Honda: 95001-4511040 - TUBE, FUEL,
4.5X110 (95001-45001-60M)
19 Enquire Honda Spare Parts Honda: 95001-7516040 - TUBE, FUEL,
7.3X160 (95001-75001-60M)
20 Enquire Honda Spare Parts Honda: 95002-02080 - CLIP, TUBE (B8)
22 Enquire Honda Spare Parts Honda: 95002-02120 - CLIP, TUBE (B12)
Flywheel Pag.23
1 118551807/0 Chiavetta Volano,
25X18		 Honda: 13331-Z8B-900
4 118552308/0 Flywheel Comp. Honda: 31110-Z9R-901 - ENQUIRE
6 Enquire Honda Spare Parts Honda: 35120-Z9L-811 - SWITCH ASSY., ENGINE STOP
7 118552309/0 Brake Assy. Honda: 75100-Z9L-810 - ENQUIRE
8 118552213/0 Molla, Leva Freno Honda: 75113-Z9L-020
9 Enquire Honda Spare Parts Honda: 90018-ZE1-000 - BOLT, FLANGE, 6X23 (CT200)
10 Enquire Honda Spare Parts Honda: 90213-Z9L-000 - NUT, FLANGE, 14MM
12 Enquire Honda Spare Parts Honda: 93892-0401200 - SCREW-WASHER, 4X12
13 Enquire Honda Spare Parts Honda: 94103-04000 - WASHER, PLAIN, 4MM
14 Enquire Honda Spare Parts Honda: 95701-0601408 - BOLT, FLANGE, 6X14
15 Enquire Honda Spare Parts Honda: 95701-0602208 - BOLT, FLANGE, 6X22
16 118552310/0 Coil Assy., Ignition Honda: 30500-Z9R-901
17 Enquire Honda Spare Parts Honda: 30520-Z9M-000 - CLIP, HIGH TENSION CORD
18 Enquire Honda Spare Parts Honda: 90015-883-000 - BOLT, FLANGE, 6X28 (CT200)
Throttle Control Pag.24
1 118551981/0 Leva Regolatore Honda: 16551-Z9L-000
2 118551987/0 Astina Regolatore Motore Honda: 16555-Z9L-000
3 118551996/0 Molla Regolatore Honda: 16561-Z9P-000
4 118552001/0 Molla Di Ritorno
Acceleratore		 Honda: 16562-Z9L-000
16 Enquire Honda Spare Parts Honda: 90015-ZE5-010 - BOLT, GOVERNOR ARM
20 Enquire Honda Spare Parts Honda: 94050-06000 - NUT, FLANGE, 6MM
Starter Motor Pag.25
1 118552311/0 Motor Assy., Starter Honda: 31200-Z9M-003 - ENQUIRE
2 Enquire Honda Spare Parts Honda: 90001-Z0L-820 - BOLT, SPECIAL, 6MM
3 Enquire Honda Spare Parts Honda: 90620-SB2-003 - BAND, WIRE HARNESS
Electrical wiring Pag.26
1 118552312/0 Battery Unit Honda: 31500-Z9R-901 - ENQUIRE
2 Enquire Honda Spare Parts Honda: 31512-ZG3-000 - GROMMET, CORD
3 118552313/0 Harness Assy.,
Sub Wire		 Honda: 32105-Z9R-900 - ENQUIRE
4 118552314/0 Harness Assy.,
Engine Wire
(Sel) (Zone)		 Honda: 32110-Z9R-900 - ENQUIRE
5 118552315/0 Lamp Assy., Indication Honda: 37210-Z9R-902 - ENQUIRE
7 Enquire Honda Spare Parts Honda: 91541-S0A-003 - CLIP, HARNESS BAND
(BLACK) (145MM)
8 Enquire Honda Spare Parts Honda: 93500-050080A - SCREW, PAN, 5X8
9 Enquire Honda Spare Parts Honda: 95701-0601408 - BOLT, FLANGE, 6X14
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
COMBI 55 SVEQ H 294557538/ST1
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram COMBI 55 SVEQ H (2021)

Diagram COMBI 55 SVEQ H (2021)

Download (1.12MB)

You might also like

Trapezoidal Belt XPZ for Lawnmower Stiga 55 SVEQ H
GGP Italy SKU: 135064379/0
Trapezoidal Belt XPZ for Lawnmower Stiga 55 SVEQ H
Trapezoidal Belt XPZ for Lawnmower Stiga 55 SVEQ H Original replacement part Stiga, Trapezoidal Belt XPZ ISO 4184 L for Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1 Part for the following...
on 7/10 Business Days Approx €16.93
Details
Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H
GGP Italy SKU: 381030104/0
Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H
Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H Original replacement part Stiga, Clutch Drive Cable for Lawnmower COMBI 55 SVEQ H - Mounfield S481 PD ES - HW531 PD Part for the...
Last items in stock €21.90
Details
Air Filter for Lawnmower Stiga 55 SVEQ H
GGP Italy SKU: 118551671/0
Air Filter for Lawnmower Stiga 55 SVEQ H
Air Filter for Lawnmower Stiga 55 SVEQ H Original replacement part Stiga, Air Filter (Wix Filters) for Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1 Part for the following products: -  Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1...
on 7/10 Business Days Approx €16.11
Details
Stiga Belt Protection Guard MP155 TSTR
GGP Italy SKU: 322060271/2
Stiga Belt Protection Guard MP155 TSTR
Stiga Belt Protection Guard MP155 TSTR Original replacement part Stiga, Mulching Belt Protection Guard MP155 TSTR for Lawn Tractor. Part for the following products: -  Self-Propelled Lawnmower STIGA...
Last items in stock €11.91
Details
Stiga 55 SVEQ H Variator Speed Lever
GGP Italy SKU: 381007227/0
Stiga 55 SVEQ H Variator Speed Lever
Stiga Lawnmower 55 SVEQ H Variator Speed Lever Original replacement part Stiga, Variator Speed Lever for Lawnmower COMBI 55 SVEQ H (2021) 294557538/ST1. Part for the following products: -  Lawnmower COMBI 55...
on 7/10 Business Days Approx €6.55
Details
Alpina Rod Pin for BL 510 SHQ
GGP Italy SKU: 122519823/0
Alpina Rod Pin for BL 510 SHQ
Alpina Rod Pin for Lawnmower BL 510 SHQ Original part Alpina, Wheel Control Rod Pin for Lawnmowers BL 510 SHQ - AL3 51 SBQ. Part for the following products: -  Lawnmower Alpina BL 510 SHQ - 295546934 -  Lawnmower Alpina...
Last items in stock €2.44
Details
Alpina AL3 46 SG Screw
GGP Italy SKU: 112728706/0
Alpina AL3 46 SG Screw
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
Details
Alpina AL3 46 B Pin
GGP Italy SKU: 122534131/0
Alpina AL3 46 B Pin
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Details
Comments (0)
