Stiga Spare Parts for Multi-Tool SMT 48 AE

Name: Stiga Spare Parts for Multi-Tool SMT 48 AE
Brand: GGP Italy
SKU: Stiga SMT 48 AE 277340108/ST1
Availability: InStock

SKU: Stiga SMT 48 AE 277340108/ST1

€1.56

VAT included

Stiga Spare Parts for Multi-Tool SMT 48 AE

Stiga original spare parts for to replace broken parts or to fix Battery Powered Multi-Tool - Pruner & Hedger SMT 48 AE (2019) 277340108/ST1.

Fix Your Battery Powered Multi-Tool SMT 48 AE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Stiga SMT 48 AE 277340108/ST1

52 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	118803228/0 Spring	€1.40
2	Image coming soon	118803442/0 Yellow button	€1.40
3	Image coming soon	118803461/0 Yellow button	€1.96
4	Image coming soon	118803304/0 Locking Tightening	€6.89
8	Image coming soon	118803268/0 Connector new code 118805009/0	€17.40
9	Image coming soon	118803313/0 Connector	€1.40
10	Image coming soon	118803437/0 Plug	€5.46
16	Image coming soon	112735645/0 Screw	€1.85
24	Image coming soon	118804162/0 Electrical circuit	€43.96
25	Image coming soon	118803335/0 Ring	€1.54
31	Image coming soon	2135130 Screw	€1.58
32	Image coming soon	118803431/0 terminal	€6.25
33	Image coming soon	118803309/0 Connector	€1.47
41	Image coming soon	118805009/0 Handle Joint Kit	€16.40
42	Image coming soon	118805010/0 Handle Tube Assembly	€72.26

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	118803456/0 Yellow knob	€3.25
2	Image coming soon	118803451/0 Chain cover	€3.39
5	Image coming soon	1519-9160-02 Chain 8 "-3/8" -0.050 "-33E Stiga Pack	€13.54
6	Image coming soon	118804540/0 Guide Bar 8 "-3/8"	€21.62
7	Image coming soon	323085000/0 Chain Cover	€25.35
10	Image coming soon	118803421/0 Oil cap	€1.40
11	Image coming soon	118803327/0 Washer	€1.40
12	Image coming soon	118803316/0 Oil Tank Assembly	€2.47
17	Image coming soon	112727810/0 Screw	€1.79
19	Image coming soon	112735651/0 Screw	€1.54
20	Image coming soon	118803357/0 Electrical circuit	€5.53
23	Image coming soon	112154510/0 Nut	€1.66
26	Image coming soon	118803431/0 terminal	€6.25
27	Image coming soon	118803309/0 Connector	€1.47
29	Image coming soon	118803246/0 Bearing	€1.82
30	Image coming soon	118804151/0 Cam	€3.39
34		112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ	€1.58
38	Image coming soon	118803249/0 Gear	€4.46
39	Image coming soon	118810453/0 Toothed Wheel	€3.51
40	Image coming soon	118803335/0 Ring	€1.54
42	Image coming soon	118803272/0 Bar Base Sheet	€2.61
43	Image coming soon	112728449/0 Screw	€1.54
44	Image coming soon	118804161/0 Tension screw	€1.40
45	Image coming soon	118803394/0 Screw	€1.40
46	Image coming soon	118803395/0 Tube	€11.54
47	Image coming soon	118804142/0 Circlip	€1.25
49	Image coming soon	112727793/0 Screw	€1.54
50	Image coming soon	123878021/0 Screw	€1.52
51	Image coming soon	118805009/0 Handle Joint Kit	€16.40
52	Image coming soon	118810849/0 Together Gears	€25.46
55	Image coming soon	118810694/0 Yellow Chain Cover Assembly	€6.08
57	Image coming soon	118803268/0 Connector new code 118805009/0	€17.40
58	Image coming soon	118803313/0 Connector	€1.40
60	Image coming soon	118803437/0 Plug	€5.46

Page 3 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	118803262/0 Insert	€1.40
2	Image coming soon	118803309/0 Connector	€1.47
3	Image coming soon	118803431/0 terminal	€6.25
4	Image coming soon	118803395/0 Tube	€11.54
5	Image coming soon	118803412/0 Right cover	€6.25
6	Image coming soon	118803408/0 Left cover	€6.25
7		118803390/0 Motor and Blades for Battery Powered Multi-Tool Stiga SMT 48 AE	€123.80	Not available for order
8	Image coming soon	118803363/0 Yellow Rotation Lever	€6.54
9	Image coming soon	118803315/0 Bar guard	€3.97
10	Image coming soon	118803414/0 Plug	€1.40
12	Image coming soon	112154510/0 Nut	€1.66
13	Image coming soon	112727793/0 Screw	€1.54

Page 4 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	270482518/S15 48V battery - 2.5Ah	€175.70
1	Image coming soon	270485018/S15 48V battery - 5Ah	€255.28
2	Image coming soon	270480128/S16 48V Rapid Battery Charger - EU plug	€124.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stiga Spare Parts for Multi-Tool SMT 48 AE

Fix Your Battery Powered Multi-Tool SMT 48 AE (2019) 277340108/ST1. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Brushcutter and the respective parts of the code.

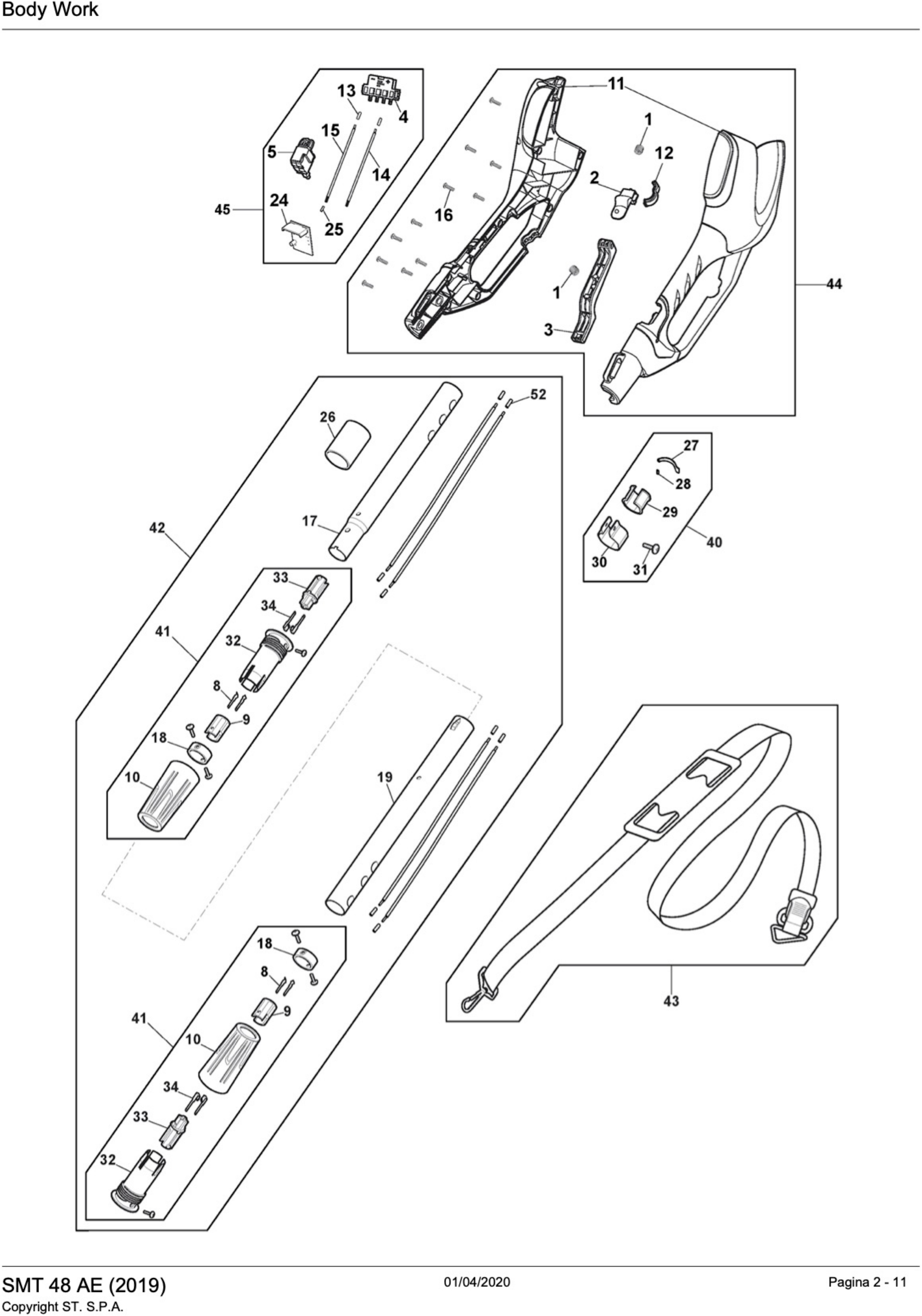

STIGA SMT 48 AE (2019) 277340108/ST1 - pag.1
#	Part Num.	Description
1	118803228/0	Spring
2	118803442/0	Yellow button
3	118803461/0	Yellow button
4	118803304/0	Locking Tightening
5	118803472/1	Micro switch
8	118803268/0	Connector new code 118805009/0
9	118803313/0	Connector
10	118803437/0	Plug
11	118803380/0	Handle assembly
12	118804173/0	Retaining plate - Gray
13	118804114/0	Heat shrinkable tube
14	118804143/0	Red thread
15	118804144/0	Black wire
16	112735645/0	Screw
17	118804166/0	Tube
18	118804150/0	Ring Stop Position
19	118804148/0	Tube
22	118804145/0	Straps components
23	118804165/0	Fast tripping connectors
24	118804162/0	Electrical circuit
25	118803335/0	Ring
26	118804175/0	Sponge
27	118804891/0	Clamping lever
28	118804892/0	Clamping Insert
29	118804156/0	Rubber mat
30	118804149/0	Shoulder strap tube locks
31	2135130	Screw
32	118803431/0	terminal
33	118803309/0	Connector
34	118803262/1	Terminal
40	118805007/0	Suspender attachment kit
41	118805009/0	Handle Joint Kit
42	118805010/0	Handle Tube Assembly
43	118810687/0	Harness Ass'y
44	118810859/0	Grip Parts Kit
45	118810856/0	PCB and Electronics assembly

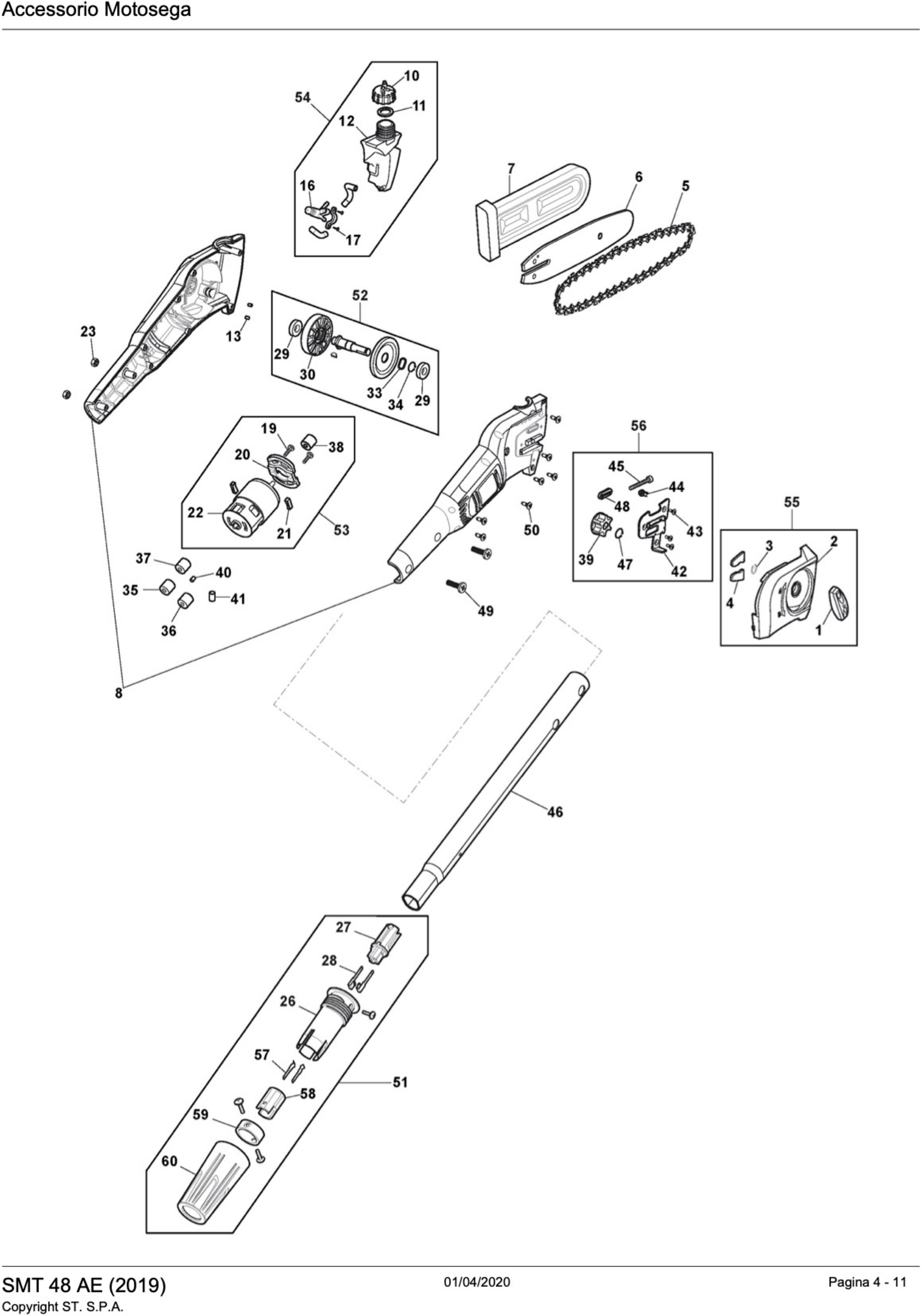

STIGA SMT 48 AE (2019) 277340108/ST1 - pag.2
1	118803456/0	Yellow knob
2	118803451/0	Chain cover
3	118804147/0	Washer
4	118804155/0	Steel Block
5	1519-9160-02	Chain 8 "-3/8" -0.050 "-33E Stiga Pack
6	118804540/0	Guide Bar 8 "-3/8"
7	323085000/0	Bar cover
8	118803378/0	Motor Case Ass'y
10	118803421/0	Oil cap
11	118803327/0	Washer
12	118803316/0	Oil Tank Assembly
13	118804154/0	Needle Bearing
16	118803375/0	Oil Pump Assembly
17	112727810/0	Screw
19	112735651/0	Screw
20	118803357/0	Electrical circuit
21	118804152/0	shock absorber
22	118803368/0	Motor 48V - DISCONTINUED
23	112154510/0	Nut
26	118803431/0	terminal
27	118803309/0	Connector
28	118803262/1	Terminal
29	118803246/0	Bearing
30	118804151/0	Cam
33	118804146/0	Waveform mat
34	112608600/0	Seeger
35	118804158/0	circular
36	118804157/0	Cylindrical magnetic ring
37	118804159/0	Common mode circular
38	118803249/0	Gear
39	118810453/0	Toothed Wheel
40	118803335/0	Ring
41	118850046/0	Ring magnet
42	118803272/0	Bar Base Sheet
43	112728449/0	Screw
44	118804161/0	Tension screw
45	118803394/0	Screw
46	118803395/0	Tube
47	118804142/0	Circlip
48	118804153/0	Washer
49	112727793/0	Screw
50	123878021/0	Screw
51	118805009/0	Handle Joint Kit
52	118810849/0	Together Gears
53	118810850/0	Motor assembly - DISCONTINUED
54	118805004/0	Oil tank assembly
55	118810694/0	Yellow Chain Cover Assembly
56	118805006/0	Chain tensioner kit
57	118803268/0	Connector new code 118805009/0
58	118803313/0	Connector
59	118804150/0	Ring Stop Position
60	118803437/0	Plug

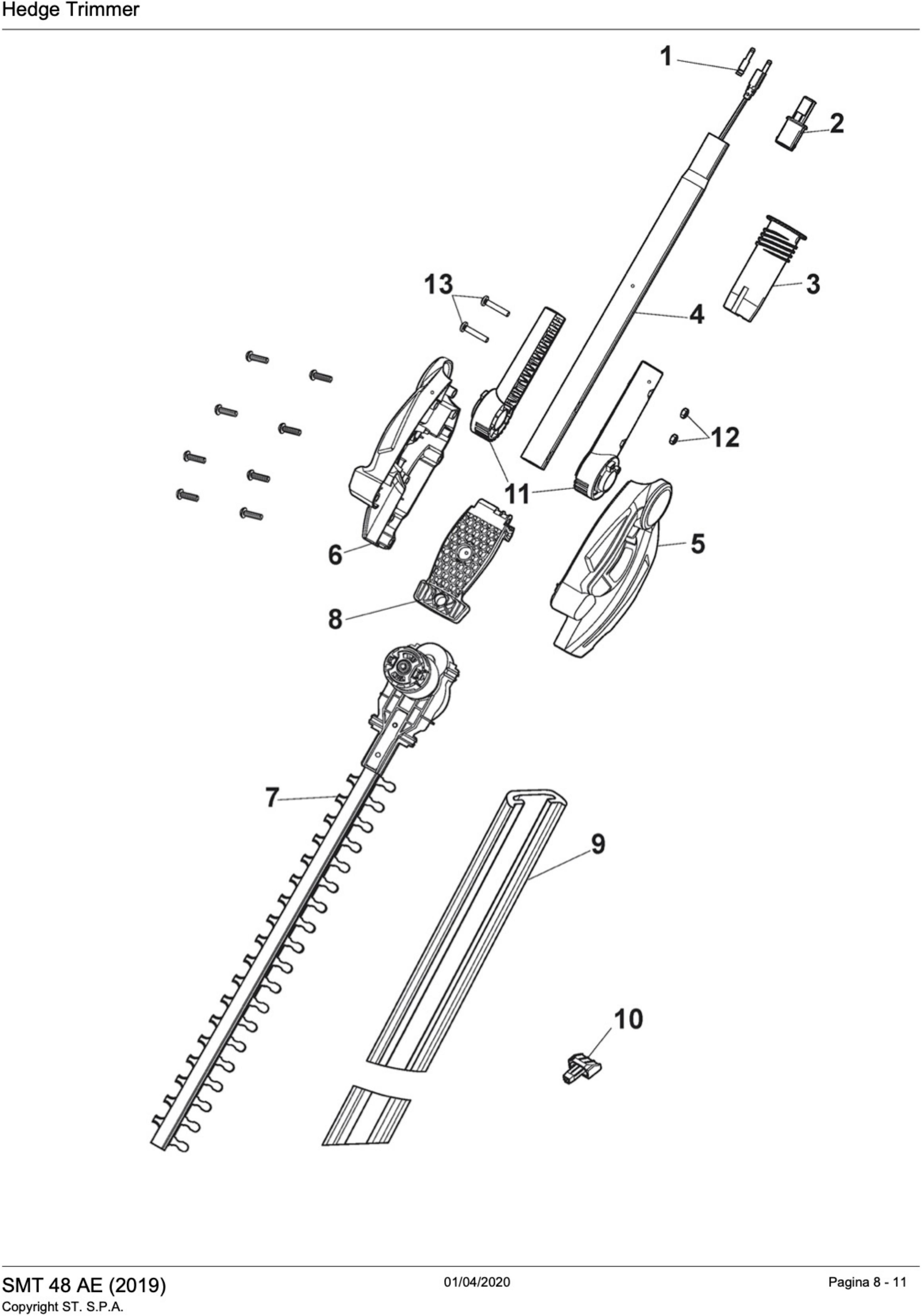

STIGA SMT 48 AE (2019) 277340108/ST1 - pag.3
1	118803262/0	Insert
2	118803309/0	Connector
3	118803431/0	terminal
4	118803395/0	Tube
5	118803412/0	Right cover
6	118803408/0	Left cover
7	118803390/0	Motor And Blade - DISCONTINUED
8	118803363/0	Yellow Rotation Lever
9	118803315/0	Bar guard
10	118803414/0	Plug
11	118804163/0	Gray connection assembly - DISCONTINUED
12	112154510/0	Nut
13	112727793/0	Screw

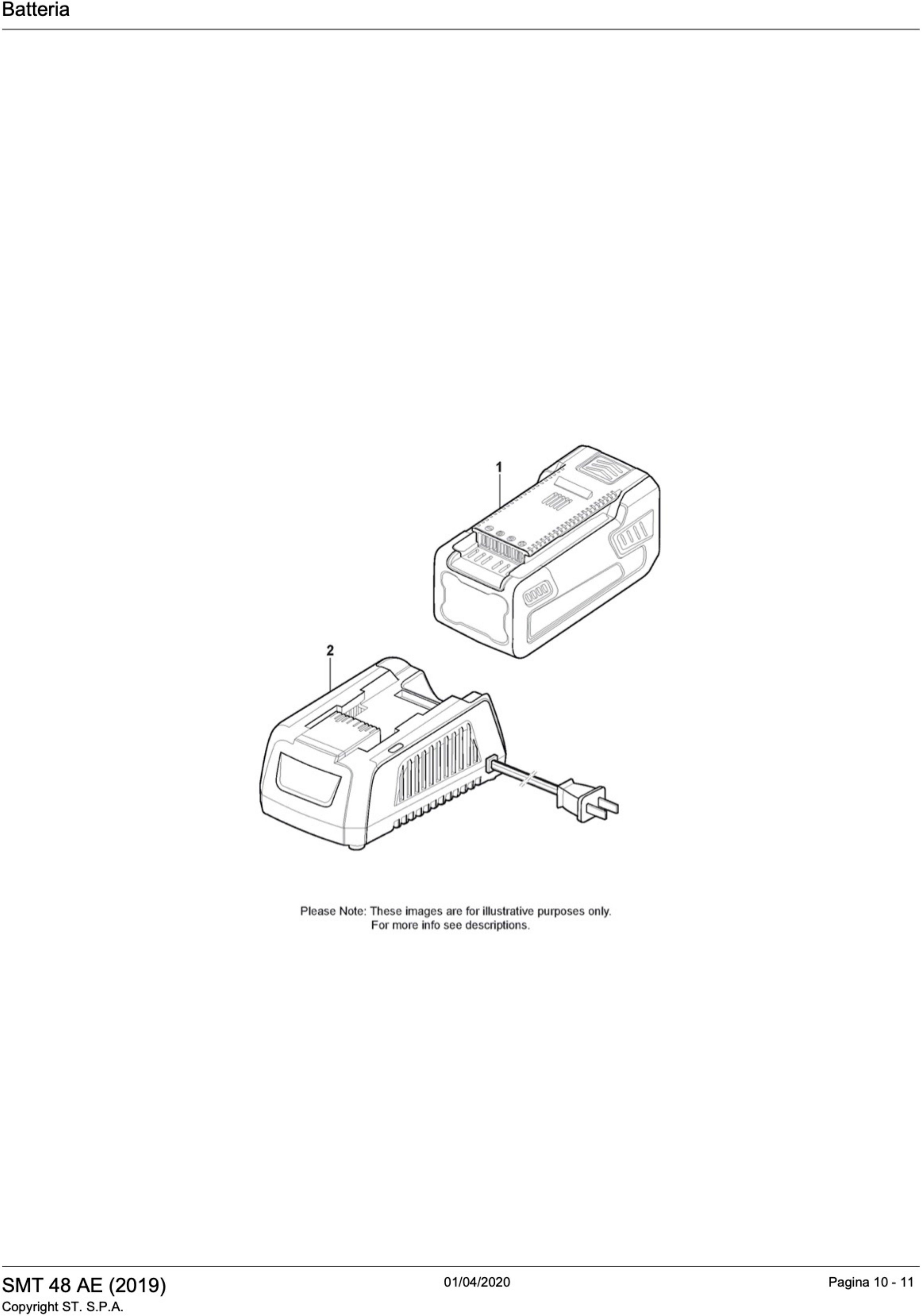

STIGA SMT 48 AE (2019) 277340108/ST1 - pag.4
1	270482518/S15	Battery 48V - 2.5Ah
1	270485018/S15	Battery 48V - 5Ah
2	270480028/S15	Battery charger 48V - EU plug
2	270480128/S16	Battery Fast Charger 48V - EU plug

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Stiga SMT 48 AE 277340108/ST1

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

Condition New

Download

Drawing Multi-Tool SMT 48 AE

Download (722.09KB)

GGP Italy SKU: 118803390/0

Motor and Blades for Battery Powered Multi-Tool Stiga SMT 48 AE

Motor and Blades for Battery Powered Multi-Tool Stiga SMT 48 AE Original replacement part Stiga, Motor and Blades Assembly for Battery Powered Multi-Tool - Pruner & Hedger SMT 48 AE (2019)...

Out-of-Stock €123.80
