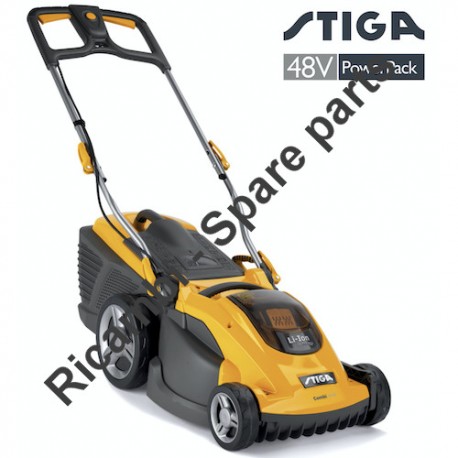

Stiga Parts for Ion Battery Lawnmower COMBI 40 AE

SKU: COMBI 40 AE - 294385068/S15-2015
€1.74
VAT included

Stiga Parts for Ion Battery Lawnmower COMBI 40 AE

Alpina-Stiga-Castor-Castelgarden-Mountfield authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Ion Battery Lawnmower COMBI 40 AE - 294385068.

COMBI 40 AE - 294385068/S15-2015
Stiga Parts for Ion Battery Lawnmower COMBI 40 AE
  • Stiga Parts for Ion Battery Lawnmower COMBI 40 AE
  • Stiga Parts for Ion Battery Lawnmower COMBI 40 AE
  • Stiga Parts for Ion Battery Lawnmower COMBI 40 AE
  • Stiga Parts for Ion Battery Lawnmower COMBI 40 AE
  • Stiga Parts for Ion Battery Lawnmower COMBI 40 AE
  • Stiga Parts for Ion Battery Lawnmower COMBI 40 AE

Stiga Parts for Ion Battery Lawnmower COMBI 40 AE

SKU: COMBI 40 AE - 294385068/S15-2015 Condition: New
€1.74
VAT included

Stiga Parts for Ion Battery Lawnmower COMBI 40 AE

Alpina-Stiga-Castor-Castelgarden-Mountfield authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Ion Battery Lawnmower COMBI 40 AE - 294385068.

COMBI 40 AE - 294385068/S15-2015
settings 98 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

91 spare parts

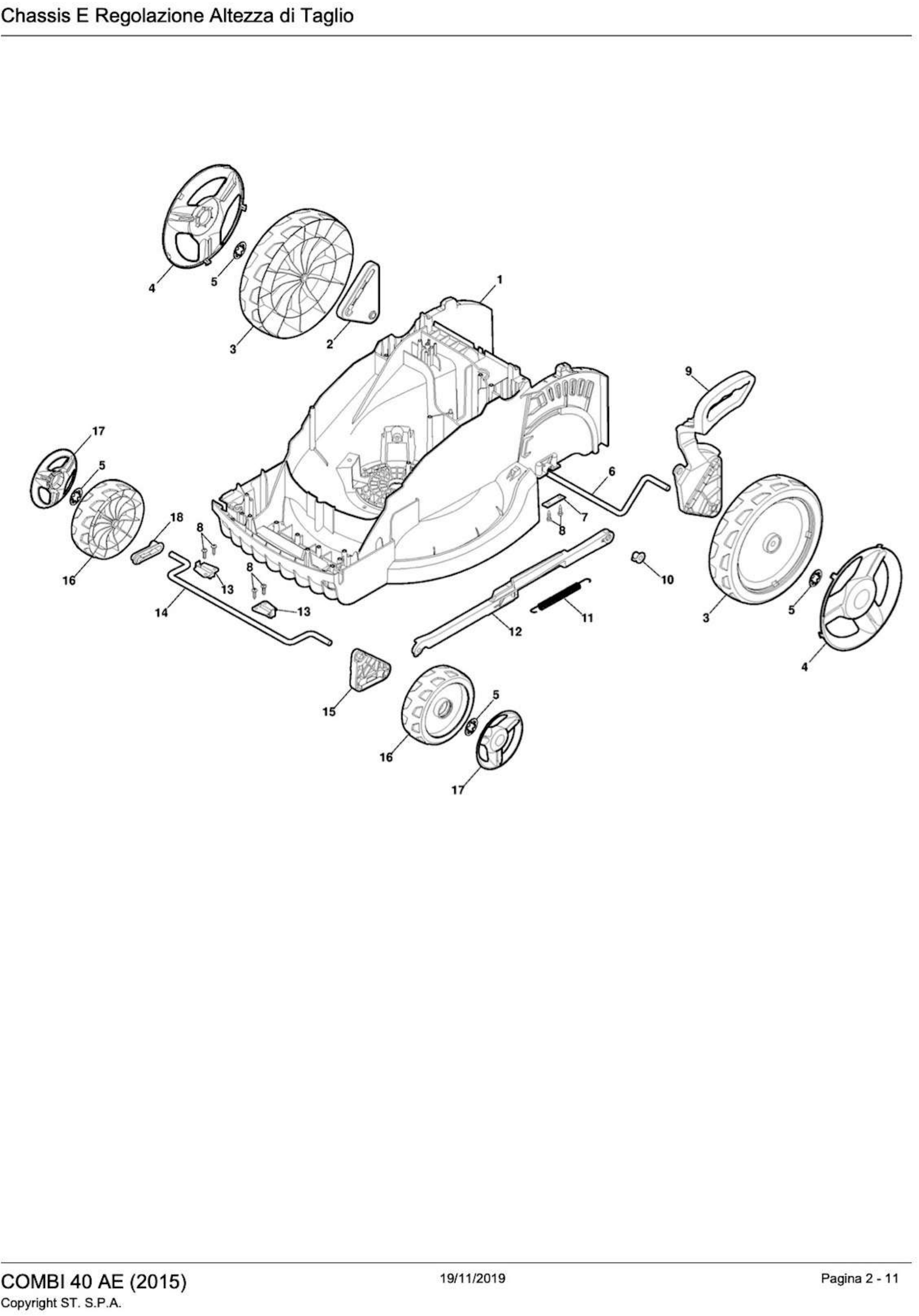

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322066783/0 Deck STIGA Grey €82.55
2
photo_cameraImage coming soon 322785387/0 Wheel Support €1.90
2
photo_cameraImage coming soon 322785450/0 Support, Wheel €1.99
3
photo_cameraImage coming soon 322686105/0 Wheel €8.33
4
photo_cameraImage coming soon 322110684/0 Hub Cap Grey €3.70
5
photo_cameraImage coming soon 112604903/0 Washer €1.54
6
photo_cameraImage coming soon 122033425/0 Rear Wheel Axle €8.44
7
photo_cameraImage coming soon 322545142/0 Plate €1.66
8
photo_cameraImage coming soon 112728714/0 Screw €1.37
9
photo_cameraImage coming soon 322785414/0 Height Adjustment Lever €13.69
9
photo_cameraImage coming soon 322785414/1 Lever, Height Adjustment From 01-September 2012 To 31-August 2017 €23.16
9
photo_cameraImage coming soon 322785414/2 Lever, Height Adjustment €13.35
10
Alpina Lawnmower AL1 34 E Pin 322524354/0 Alpina Lawnmower AL1 34 E Pin €1.59
11
photo_cameraImage coming soon 122446195/0 Spring €2.76
12
photo_cameraImage coming soon 322869680/0 Height Adjustment Control Rod €8.28
12
Alpina AL1 38 E Height Adjust Rod [Grey] 322869690/0 Alpina AL1 38 E Height Adjust Rod [Grey] €8.85
13
photo_cameraImage coming soon 322785415/0 Plate €1.37
14
photo_cameraImage coming soon 122033424/0 Rear Wheel Axle €8.44
15
photo_cameraImage coming soon 322785386/0 Support, Wheel to 31-August 2014 €3.17
15
photo_cameraImage coming soon 322785438/0 Support, Wheel from 01-September-2014 €2.97
16
photo_cameraImage coming soon 322686104/0 Wheel €5.33
17
photo_cameraImage coming soon 322110683/0 Hub Cap Grey €1.44
18
photo_cameraImage coming soon 322785385/0 Wheel Support €1.64
18
photo_cameraImage coming soon 322785449/0 Support, Wheel €1.58

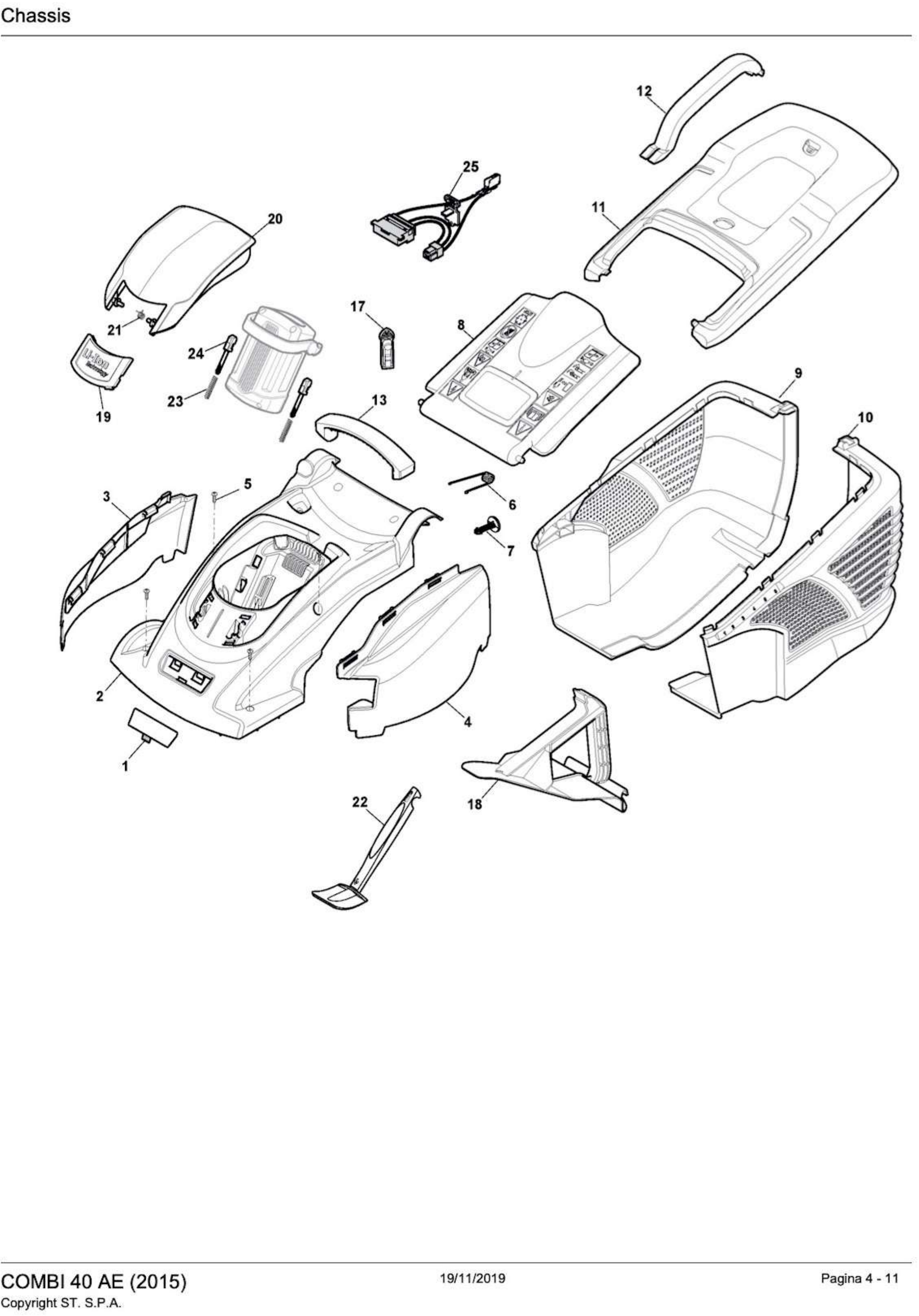

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322055252/0 Front Plate €1.74
2
photo_cameraImage coming soon 322055528/0 Yellow Hood €20.22
3
photo_cameraImage coming soon 322109565/0 Left Side Cover €6.17
4
photo_cameraImage coming soon 322109899/0 Right Side Cover €10.65
5
photo_cameraImage coming soon 112728714/0 Screw €1.37
6
photo_cameraImage coming soon 122450470/0 Spring €2.00
7
photo_cameraImage coming soon 322524356/0 Pin €1.66
8
photo_cameraImage coming soon 322600288/0 Stone Guard, Grey €14.78
9
photo_cameraImage coming soon 322486393/0 Grass-Box, Right Lower Part €22.31
10
photo_cameraImage coming soon 322486394/0 Grass-Box, Left Lower Part €21.56
11
photo_cameraImage coming soon 322486323/0 Bag, Upper Side €12.65
12
photo_cameraImage coming soon 322393718/0 Handle €3.58
13
photo_cameraImage coming soon 322393719/0 Handle €3.58
17
photo_cameraImage coming soon 322076570/1 Key Security Battery €5.39
18
photo_cameraImage coming soon 322140242/0 Mulching Plug €12.91
19
photo_cameraImage coming soon 322545222/0 Plate €10.01
20
photo_cameraImage coming soon 322055165/0 Cover €9.25
21
photo_cameraImage coming soon 122450473/0 Spring €1.87
22
photo_cameraImage coming soon 113300215/0 Scraper €5.66
23
photo_cameraImage coming soon 122450472/0 Spring €1.50
24
photo_cameraImage coming soon 322524355/0 Pin €1.56
25
photo_cameraImage coming soon 118210028/0 Security Key Kit €38.43

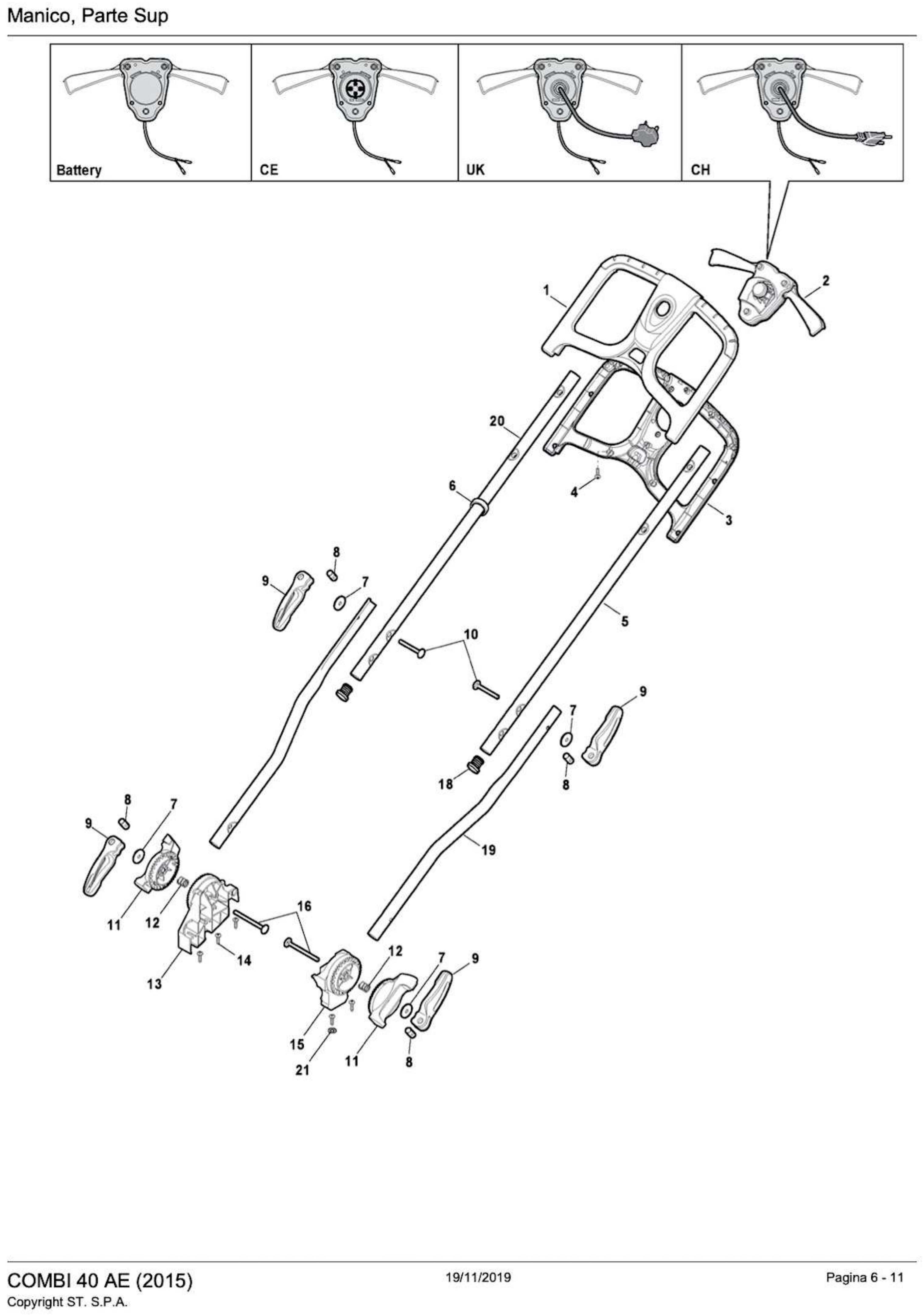

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322291032/0 Upper Half Handle €14.72
1
photo_cameraImage coming soon 322291070/0 Upper Half Handgrip Switch €18.14
2
photo_cameraImage coming soon 381600524/0 Motor protection €29.86
2
photo_cameraImage coming soon 381600524/1 Motor protection €29.86
2
photo_cameraImage coming soon 381600557/0 Motor protection €34.84
3
photo_cameraImage coming soon 322291033/0 Lower Half Handle €14.72
3
photo_cameraImage coming soon 322291035/0 Lower Half Handle €17.93
3
photo_cameraImage coming soon 322291071/0 Lower Half Handgrip Switch €17.82
4
photo_cameraImage coming soon 112728713/0 Screw €1.37
5
photo_cameraImage coming soon 381007514/1 Handle Lower Part €7.42
5
photo_cameraImage coming soon 381007515/0 Handle, Lower Side €7.92
6
photo_cameraImage coming soon 122192000/1 Clamp €1.62
7
photo_cameraImage coming soon 112523050/0 Washer €2.05
8
photo_cameraImage coming soon 122524352/0 Pin €3.41
9
photo_cameraImage coming soon 322319519/0 Fixing Lever Handle €2.37
9
photo_cameraImage coming soon 322319519/1 Fixing Lever Handle €2.06
10
photo_cameraImage coming soon 122943016/0 Screw €1.49
11
photo_cameraImage coming soon 322246100/0 Joint €3.32
11
photo_cameraImage coming soon 322246102/0 Handle Joint €3.57
12
photo_cameraImage coming soon 122430210/0 Bearing €1.52
13
photo_cameraImage coming soon 322745052/0 Right Joint €6.09
13
photo_cameraImage coming soon 322745055/0 Right Joint €6.67
14
photo_cameraImage coming soon 112728714/0 Screw €1.37
15
photo_cameraImage coming soon 322745051/0 Left Joint €6.09
15
photo_cameraImage coming soon 322745056/0 Left Joint €7.32
16
photo_cameraImage coming soon 122943017/0 Screw €1.38
18
photo_cameraImage coming soon 118566112/0 Polyethylene Push Road €1.62
19
photo_cameraImage coming soon 381007513/0 Handle Lower Part €7.36
20
photo_cameraImage coming soon 381007514/0 Handle, Lower Side right €6.97
20
photo_cameraImage coming soon 381007514/1 Handle Lower Part €7.42
21
photo_cameraImage coming soon 112521320/0 Washer €1.74

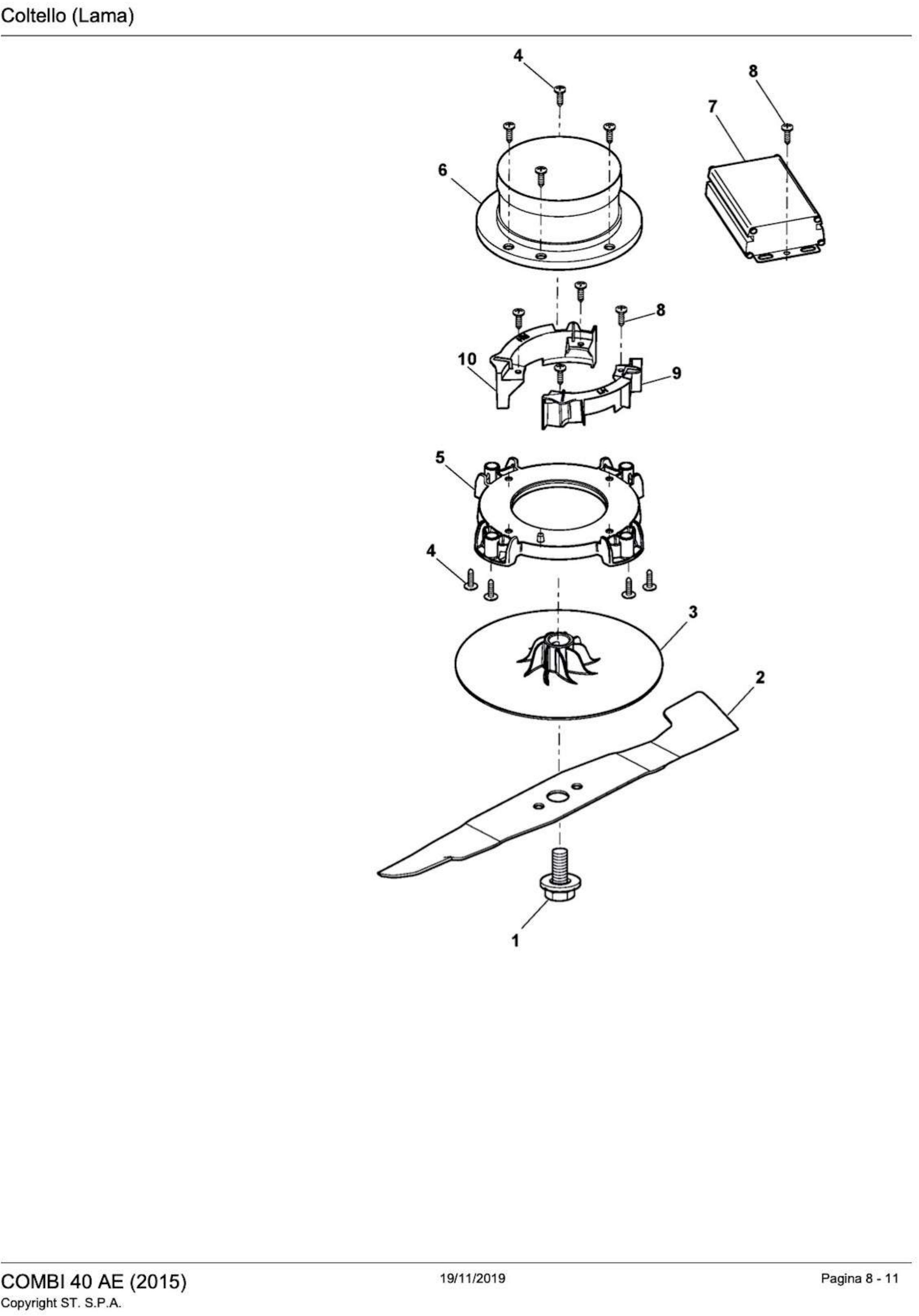

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E 381004352/1 Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E €3.90
2
photo_cameraImage coming soon 181004156/0 Finned blade €14.23
3
photo_cameraImage coming soon 322465644/0 Hub €5.15
3
photo_cameraImage coming soon 322465644/1 Blade Hub €6.65
4
photo_cameraImage coming soon 112728699/0 Screw €1.66
5
photo_cameraImage coming soon 322207227/0 Cable clip €9.19
7
photo_cameraImage coming soon 118206003/0 Controller €142.55
7
photo_cameraImage coming soon 118206008/0 Controller €142.55
8
photo_cameraImage coming soon 112728714/0 Screw €1.37
9
photo_cameraImage coming soon 322393686/0 Engine Flange Left Battery €1.62
10
photo_cameraImage coming soon 322393685/0 Motor Battery Flange Right €1.62

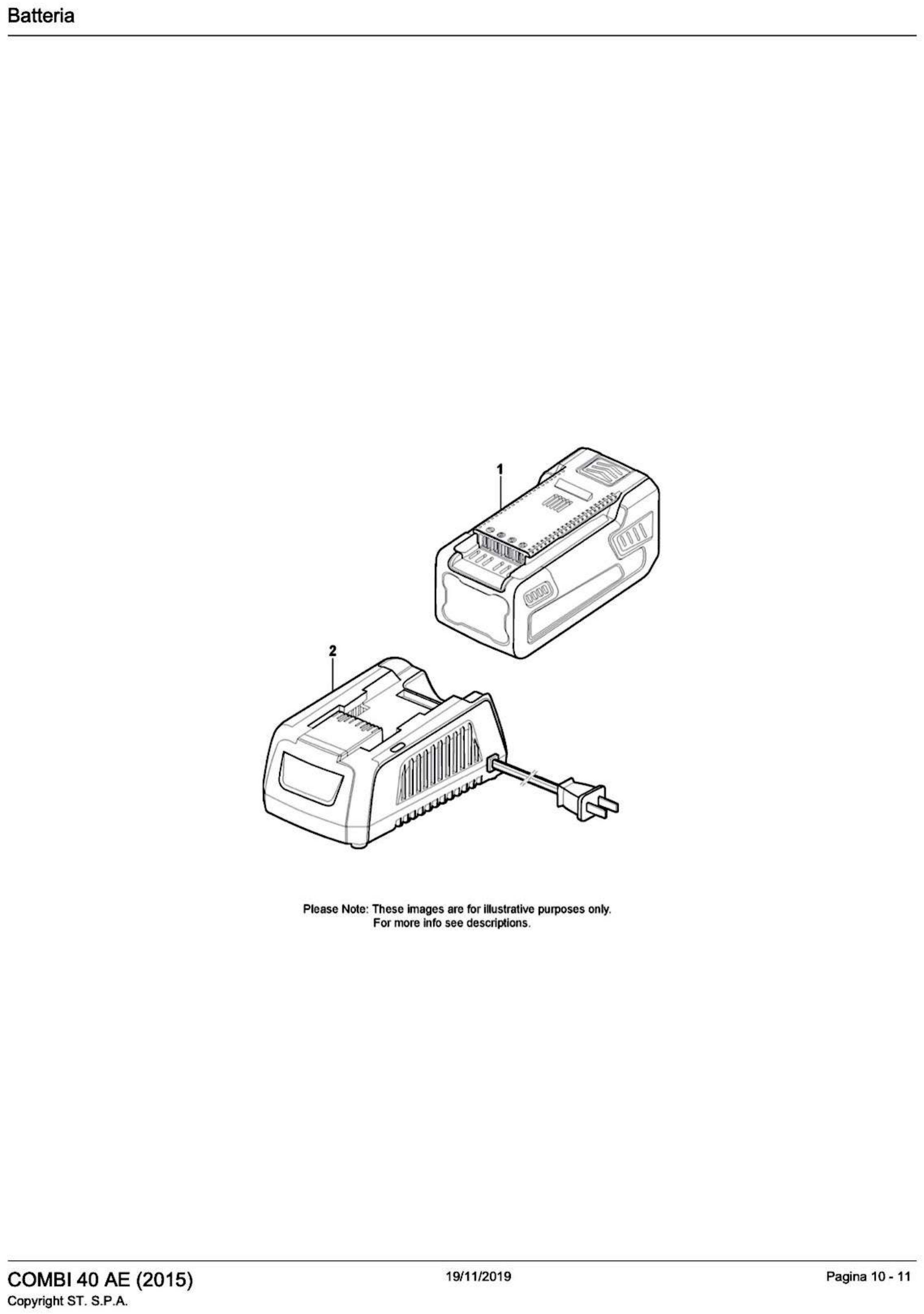

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 270482518/S15 48V battery - 2.5Ah €175.70
1
photo_cameraImage coming soon 270485018/S15 48V battery - 5Ah €255.28
2
photo_cameraImage coming soon 270480128/S16 48V Rapid Battery Charger - EU plug €124.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stiga Parts for Ion Battery Lawnmower COMBI 40 AE

Alpina-Stiga-Castor-Castelgarden-Mountfield authorized service center

 and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Ion Battery Lawnmower COMBI 40 AE - 294385068/S15-2015.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
COMBI 40 AE - 294385068/S15-2015

Battery Lawnmower COMBI 40 AE - 294385068/S15-2015
Chassis And Cutting Height Adjustment Pag.1
# Part Num. Description
1 322066783/0 Gray STIGA Chassis
2 322785387/0 Wheel Support
2 322785450/0 Wheel Support
3 322686105/0 Wheel
4 322110684/0 Gray hubcap
5 112604903/0 Washer
6 122033425/0 Rear Wheel Axle
7 322545142/0 Plate
8 112728714/0 Screw
9 322785414/0 Height Adjustment Lever
9 322785414/1 Height Adjustment Lever
9 322785414/2 Height Adjustment Lever
10 322524354/0 Pin
11 122446195/0 Spring
12 322869680/0 Height Adjustment Control Rod
12 322869690/0 Height Adjustment Control Rod from 01-September-2014
13 322785415/0 Plate
14 122033424/0 Rear Wheel Axle
15 322785386/0 Wheel Support
15 322785438/0 Wheel Support
16 322686104/0 Wheel
17 322110683/0 Gray hubcap
18 322785385/0 Wheel Support
18 322785449/0 Wheel Support
Chassis Pag.2
1 322055252/0 Front plate
2 322055528/0 Yellow Hood
3 322109565/0 Left Side Cover
4 322109899/0 Right side cover
5 112728714/0 Screw
6 122450470/0 Spring
7 322524356/0 Pin
8 322600288/0 Stoneguard Gray
9 322486393/0 Bag, Lower Side Right
10 322486394/0 Bag, Lower Side Left
11 322486323/0 Bag, Upper Side
12 322393718/0 Handle
13 322393719/0 Handle
17 322076570/1 Key Security Battery
18 322140242/0 Mulching cap
19 322545222/0 Plate
20 322055165/0 Cover
21 122450473/0 Spring
22 113300215/0 Scraper
23 122450472/0 Spring
24 322524355/0 Pin
25 118210028/0 Security Key Kit
Upper Half Handle Pag.3
1 322291032/0 Upper Half Handle
1 322291034/0 Upper Half Handle
1 322291034/1 Upper Half Handle
1 322291070/0 Upper Half Handle
2 381600524/0 Motor protection
2 381600524/1 Motor protection
2 381600557/0 Motor protection
3 322291033/0 Lower Half Handle
3 322291035/0 Lower Half Handle
3 322291071/0 Lower Half Handle
4 112728713/0 Screw
5 381007514/1 Handle, Upper Side
5 381007515/0 Handle, Lower Side
6 122192000/1 Clamp
7 112523050/0 Washer
8 122524352/0 Pin
9 322319519/0 Handle Fix Lever
9 322319519/1 Handle Fix Lever
10 122943016/0 Screw
11 322246100/0 Joint
11 322246102/0 Joint
12 122430210/0 Bearing
13 322745052/0 Right Joint
13 322745055/0 Right Joint
14 112728714/0 Screw
15 322745051/0 Left Joint
15 322745056/0 Left Joint
16 122943017/0 Screw
18 118566112/0 Polyethylene tip
19 381007513/0 Handle, Lower Side
20 381007514/0 Handle, Lower Side right
20 381007514/1 Handle, Upper Side
21 112521320/0 Washer
Blade Pag.4
1 381004352/1 Screw
2 181004156/0 Blade
2 181004162/0 Blade
3 322465644/0 Hub
3 322465644/1 Hub
4 112728699/0 Screw
5 322207227/0 Cable clip
6 118563516/0 Motor Battery
6 118563516/1 Motor Battery
6 118563516/2 Motor Battery
7 118206003/0 Controller
7 118206008/0 Controller
8 112728714/0 Screw
9 322393686/0 Engine Flange Left Battery
10 322393685/0 Motor Battery Flange Right
Battery Pag.5
1 270482518/S15 48V battery - 2.5Ah
1 270485018/S15 48V battery - 5Ah
2 270480028/S15 48V Battery Charger - EU plug
2 270480128/S16 48V Rapid Battery Charger - EU plug
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
COMBI 40 AE - 294385068/S15-2015
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Stiga COMBI 40 AE

Diagram Stiga COMBI 40 AE

Download (335.19KB)

You might also like

GGP Italy SKU: 381004352/1
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E Original replacement part Alpina, Blade Boss Hub Bolt for Electric Lawnmower AL1 38 E - AL1 42 E - AL3 46 E - FL 41 LE. Part for the following...
Last items in stock €3.90
GGP Italy SKU: 322869690/0
Alpina AL1 38 E Height Adjust Rod [Grey] Original replacement part Alpina, Height Adjust Rod [Grey] for Electric Lawnmower from 01-September-2014 AL1 38 E - AL1 42 E - AL3 46 E - FL 41 LE....
Last items in stock €8.85
GGP Italy SKU: 322524354/0
Alpina Lawnmower AL1 34 E Pin Genuine replacement part Alpina, Wheel adjustment rod fixing Pin for Electric Lawnmower AL1 38 E - BL 380 EP - BL 420 EP. Part for the following products: -  Lawnmower AL1...
Last items in stock €1.59
Comments (0)
