Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14

SKU: TURBO PRO 55 S4 B 292553028/S14
€481.58
VAT included

Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14

Stiga genuine spare parts or replacements parts for to repair Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14.
Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14
  • Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14

Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14

SKU: TURBO PRO 55 S4 B 292553028/S14 Condition: New
€481.58
VAT included

Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14

Stiga genuine spare parts or replacements parts for to repair Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14.
settings 122 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

117 spare parts

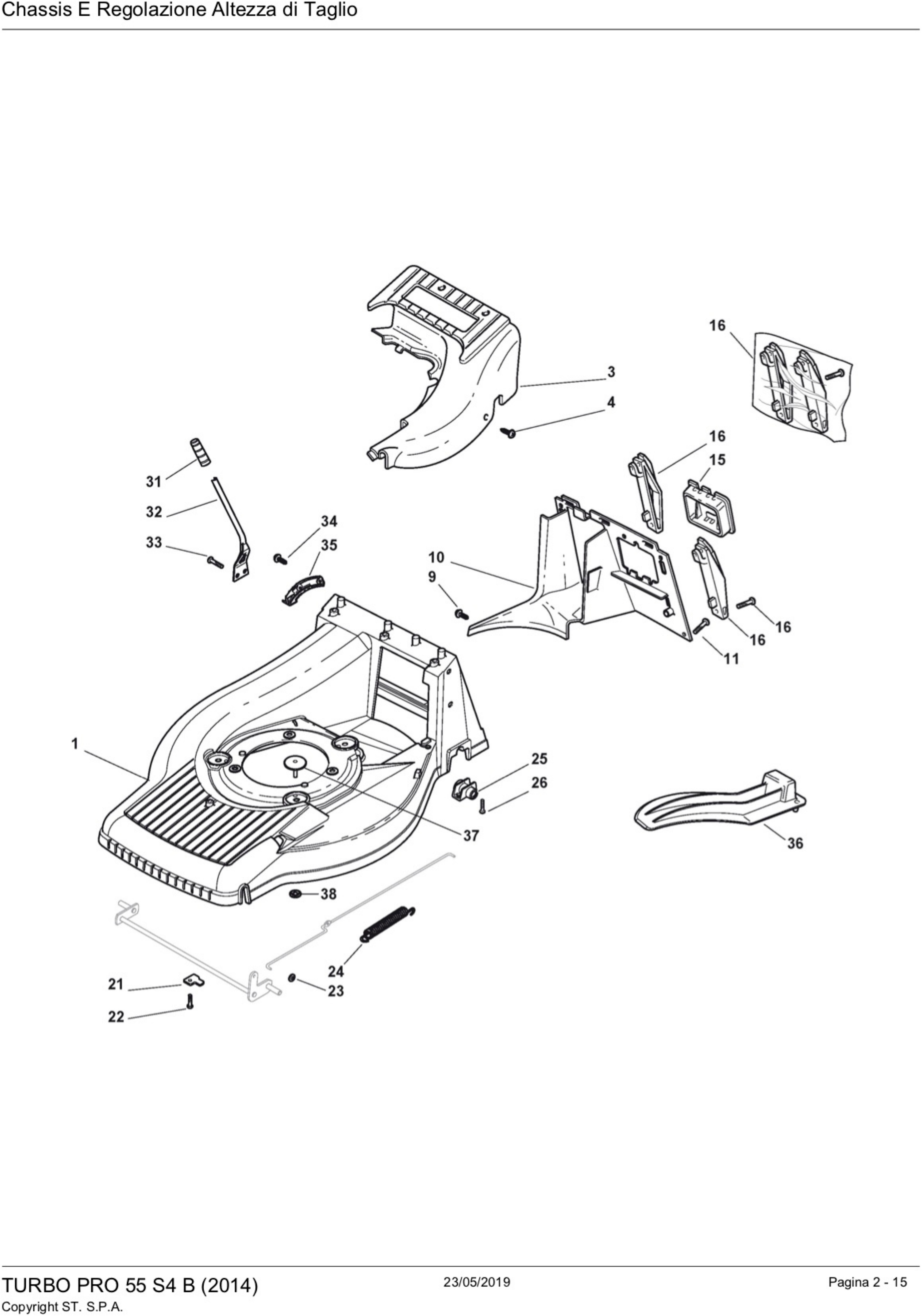

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381002660/0 Chassis Giallo To 31-August-2013 €453.94
1
photo_cameraImage coming soon 381004738/0 Deck Grey €460.75
3
photo_cameraImage coming soon 322060177/0 Protection, Grey €13.51
4
photo_cameraImage coming soon 112728300/0 Guida Cinghia €1.61
9
photo_cameraImage coming soon 112728300/0 Guida Cinghia €1.61
10
photo_cameraImage coming soon 322108277/0 Rear Conveyor Assy €27.91
11
photo_cameraImage coming soon 112735664/0 Screw €1.61
15
photo_cameraImage coming soon 322109531/0 Cover €2.58
16
photo_cameraImage coming soon 381008658/1 Outfit, Supports From 01-September-2006 €17.35
21
photo_cameraImage coming soon 322545160/0 Plate €2.76
22
photo_cameraImage coming soon 112735664/0 Screw €1.61
23
photo_cameraImage coming soon 112604898/0 Crown Fixator €1.62
24
photo_cameraImage coming soon 122446181/0 Spring €6.43
25
photo_cameraImage coming soon 322785153/0 Support, Gear Box €15.47
26
photo_cameraImage coming soon 112735664/0 Screw €1.61
31
photo_cameraImage coming soon 322399808/0 Knob €2.37
32
photo_cameraImage coming soon 322321515/0 Lever, Height Adjustment €4.52
33
photo_cameraImage coming soon 112735661/0 Screw €1.68
34
photo_cameraImage coming soon 112728300/0 Guida Cinghia €1.61
35
photo_cameraImage coming soon 322735563/0 Sector, Height Adjustment €14.87
36
photo_cameraImage coming soon 322140232/0 Deflector €38.96
37
photo_cameraImage coming soon 322820057/0 Cap Black €1.52
38
photo_cameraImage coming soon 112604899/0 Crown Fastener €1.62

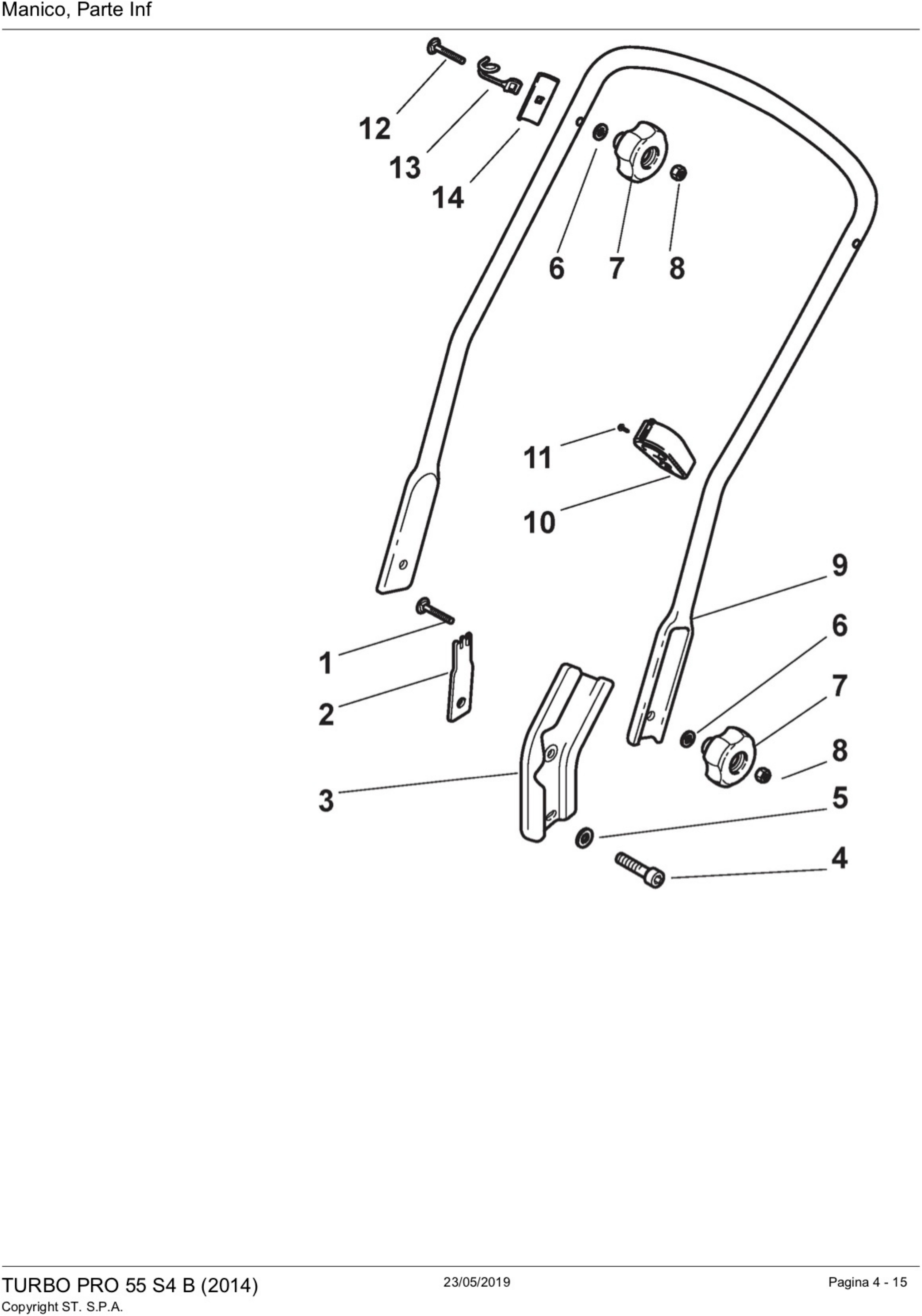

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112820655/0 Screw €1.61
2
photo_cameraImage coming soon 322551635/0 Plate For Handle €3.79
3
photo_cameraImage coming soon 322778405/0 Support €24.19
4
photo_cameraImage coming soon 112760515/0 Screw €1.61
5
photo_cameraImage coming soon 112521350/0 Washer €1.74
6
photo_cameraImage coming soon 112521350/0 Washer €1.74
7
photo_cameraImage coming soon 322399810/0 Knob €8.29
8
photo_cameraImage coming soon 112361005/0 Nut €4.26
9
photo_cameraImage coming soon 381006865/0 Handle, Lower Part €33.91
10
photo_cameraImage coming soon 322192001/0 Anchor Clamp €1.64
11
photo_cameraImage coming soon 112728691/0 Screw €1.64
12
photo_cameraImage coming soon 112820655/0 Screw €1.61
13
photo_cameraImage coming soon 122430311/0 Guide Spring €6.91
14
photo_cameraImage coming soon 322545137/0 Plate For Handle Fastening €1.64
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

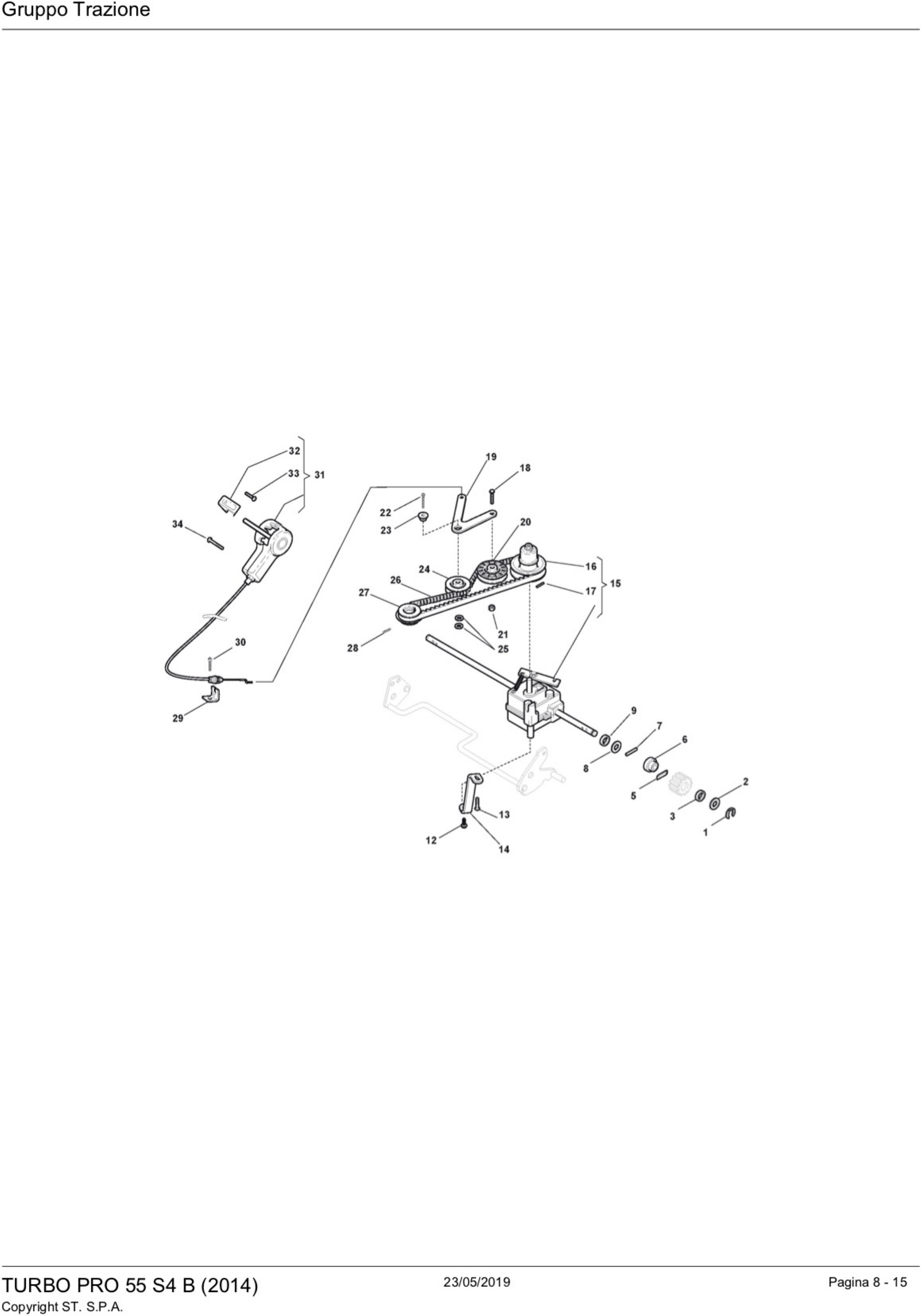

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112000957/0 Ring Benzing From 01-September-2006 €1.61
1
photo_cameraImage coming soon 122450063/0 Spring €1.66
2
photo_cameraImage coming soon 112520032/0 Washer €1.61
3
photo_cameraImage coming soon 322160520/0 Dust Cover €1.61
5
photo_cameraImage coming soon 122076645/0 Key €1.61
6
photo_cameraImage coming soon 322170630/1 Spacer From 01-September-2013 €4.84
7
photo_cameraImage coming soon 122753002/0 Pin €1.61
8
photo_cameraImage coming soon 112520032/0 Washer €1.61
9
photo_cameraImage coming soon 119035152/0 Or Ring €4.62
12
photo_cameraImage coming soon 112728300/0 Guida Cinghia €1.61
13
photo_cameraImage coming soon 112735664/0 Screw €1.61
14
photo_cameraImage coming soon 322778407/0 Support €11.11
15
photo_cameraImage coming soon 181003086/0 Gear Box €195.94
16
photo_cameraImage coming soon 122601916/0 Pulley €38.37
16
photo_cameraImage coming soon 122601932/0 Pin €39.71
17
photo_cameraImage coming soon 112645700/0 Elastic Pin €1.66
18
photo_cameraImage coming soon 112674550/0 Screw €1.58
19
photo_cameraImage coming soon 322320003/0 Driving Lever €13.80
20
photo_cameraImage coming soon 122601914/0 Pulley €20.74
21
photo_cameraImage coming soon 112154510/0 Nut €1.66
22
photo_cameraImage coming soon 112735669/0 Screw €1.52
23
photo_cameraImage coming soon 122671656/0 Washer €5.60
24
photo_cameraImage coming soon 122601915/0 Pulley €21.87
25
photo_cameraImage coming soon 112523040/0 Washer €1.63
26
photo_cameraImage coming soon 135064383/0 Belt €15.32
27
photo_cameraImage coming soon 122601917/0 Pulley, Crankshaft Ø 22.2 €20.61
28
photo_cameraImage coming soon 112714312/0 Dowel €1.61
29
photo_cameraImage coming soon 322806619/0 Support €4.35
30
photo_cameraImage coming soon 112735664/0 Screw €1.61
31
photo_cameraImage coming soon 381007098/0 Cable, Speed Drive Control €38.99
32
photo_cameraImage coming soon 322399809/0 Knob €1.52
33
photo_cameraImage coming soon 112728300/0 Guida Cinghia €1.61
34
photo_cameraImage coming soon 112728702/0 Screw €1.58

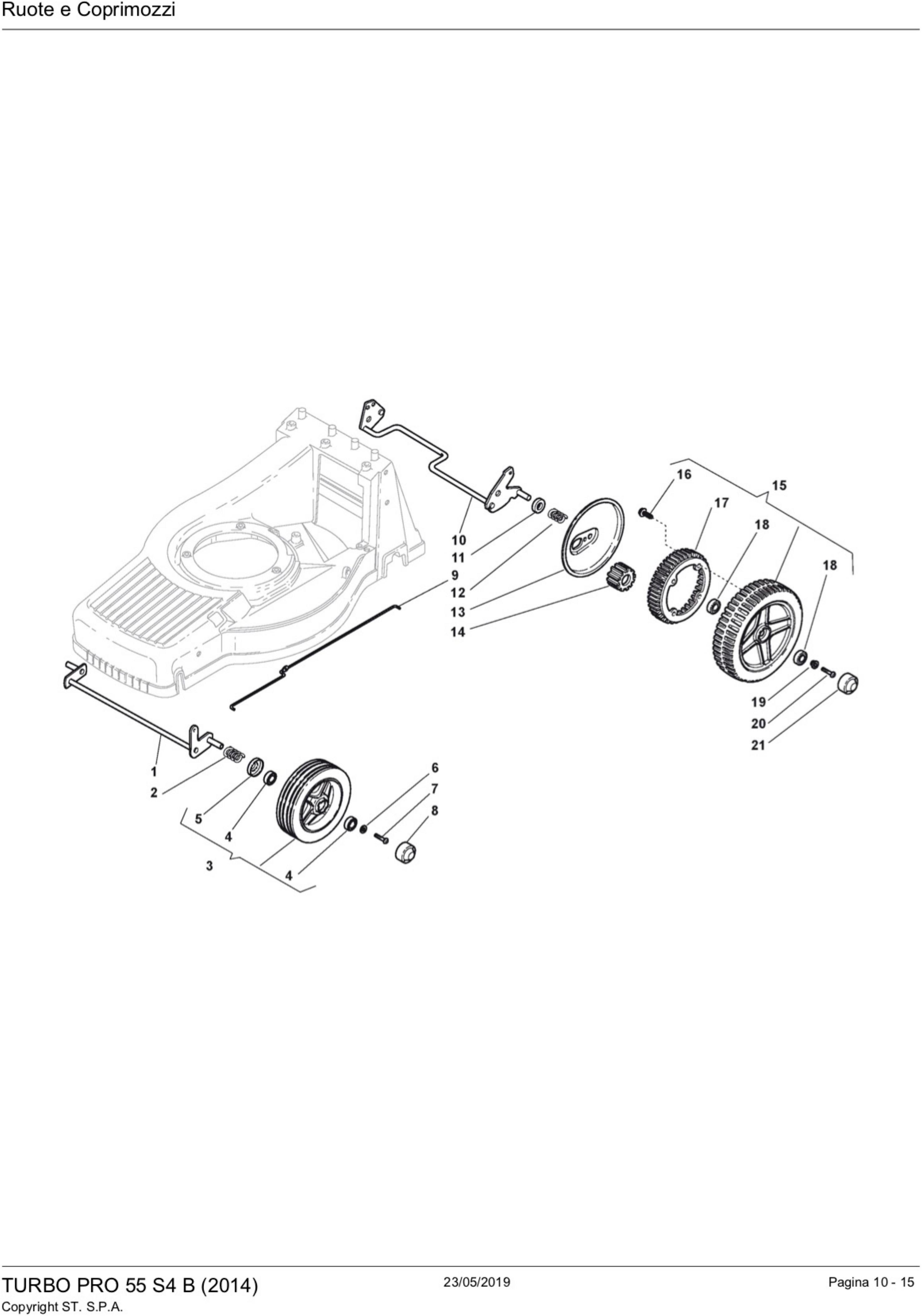

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381002829/0 Axle, Front Wheels €42.47
2
photo_cameraImage coming soon 122430210/0 Bearing €1.52
3
photo_cameraImage coming soon 381007364/0 Wheel Ø 190 €50.06
4
photo_cameraImage coming soon 119216039/0 Bearing €3.09
5
photo_cameraImage coming soon 322160522/0 Bearing €2.66
6
photo_cameraImage coming soon 112521460/0 Washer €1.61
7
photo_cameraImage coming soon 112735592/0 Screw €1.98
8
photo_cameraImage coming soon 322110379/0 Hub Cap €6.63
9
photo_cameraImage coming soon 122033324/0 Rod, Height Adjustment Control €7.41
10
photo_cameraImage coming soon 381002823/0 Axle, Rear Wheels €39.91
11
photo_cameraImage coming soon 122170810/0 Spacer €3.45
12
photo_cameraImage coming soon 122430215/0 Spring €3.11
13
photo_cameraImage coming soon 322600127/0 Protection, Wheel €9.05
14
photo_cameraImage coming soon 122570126/0 Pinion €14.09
15
photo_cameraImage coming soon 381007368/0 Wheel Ø 215 €95.18
16
photo_cameraImage coming soon 112728210/0 Screw €1.54
17
photo_cameraImage coming soon 322120108/0 Ring Gear €11.47
18
photo_cameraImage coming soon 119216038/0 Ball Bearing €17.17
19
photo_cameraImage coming soon 122671655/0 Washer €5.42
20
photo_cameraImage coming soon 112735592/0 Screw €1.98
21
photo_cameraImage coming soon 322110380/0 Hub Cap €2.73

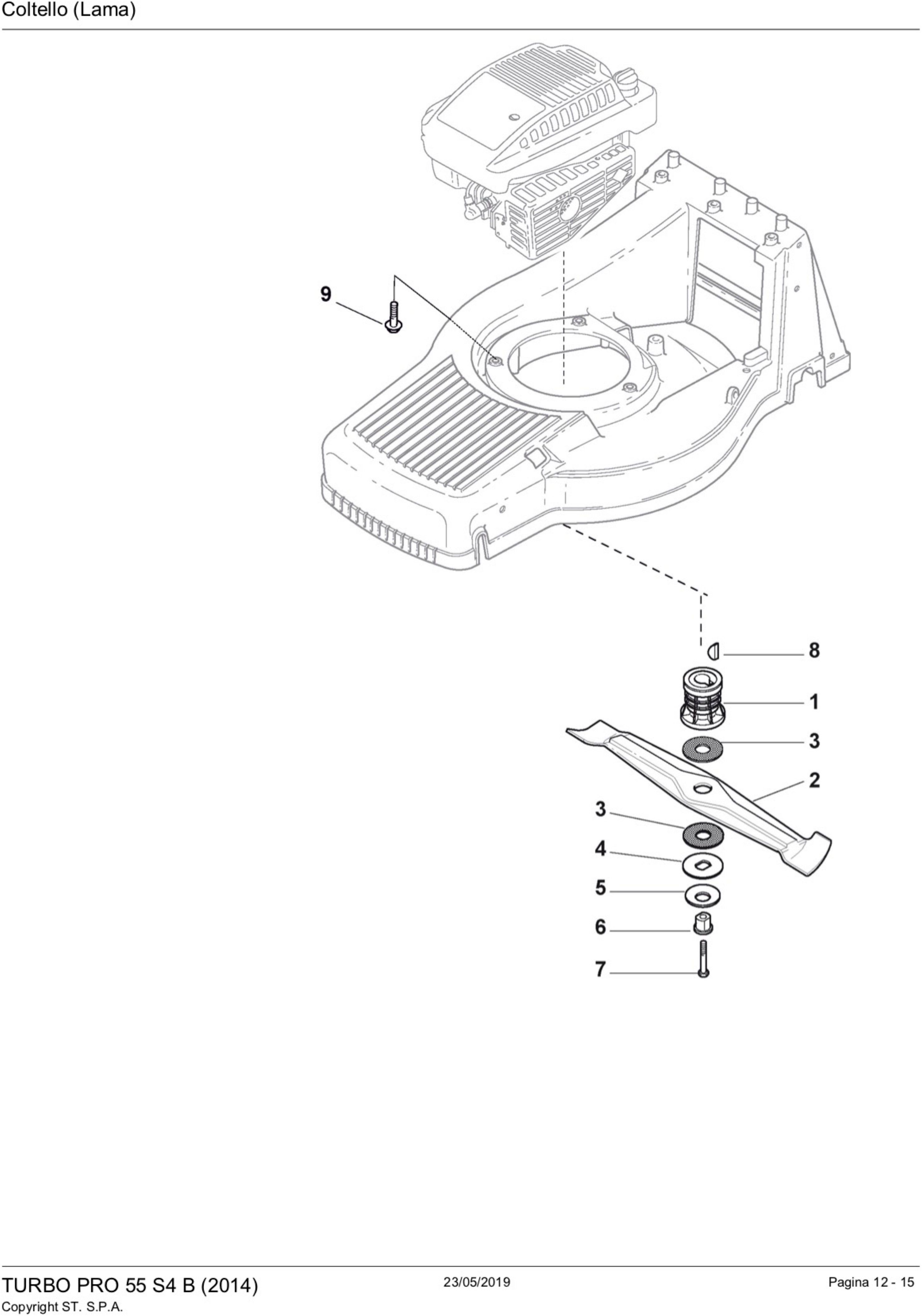

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
Wing Blade for Lawnmower Stiga TURBO PRO 55 S COMBI 181004134/0 Wing Blade for Lawnmower Stiga TURBO PRO 55 S COMBI €32.80
3
Blade Washer for Lawnmower Stiga TURBO PRO 55 S COMBI 322672111/0 Blade Washer for Lawnmower Stiga TURBO PRO 55 S COMBI €4.38
4
photo_cameraImage coming soon 322672105/0 Clutch Washer €3.52
5
photo_cameraImage coming soon 112508120/0 Washer €3.42
6
photo_cameraImage coming soon 122041940/0 Cupped Spring €6.32
7
photo_cameraImage coming soon 112736825/0 Clutch Bush €2.44
7
photo_cameraImage coming soon 112736850/0 Screw €2.41
9
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19

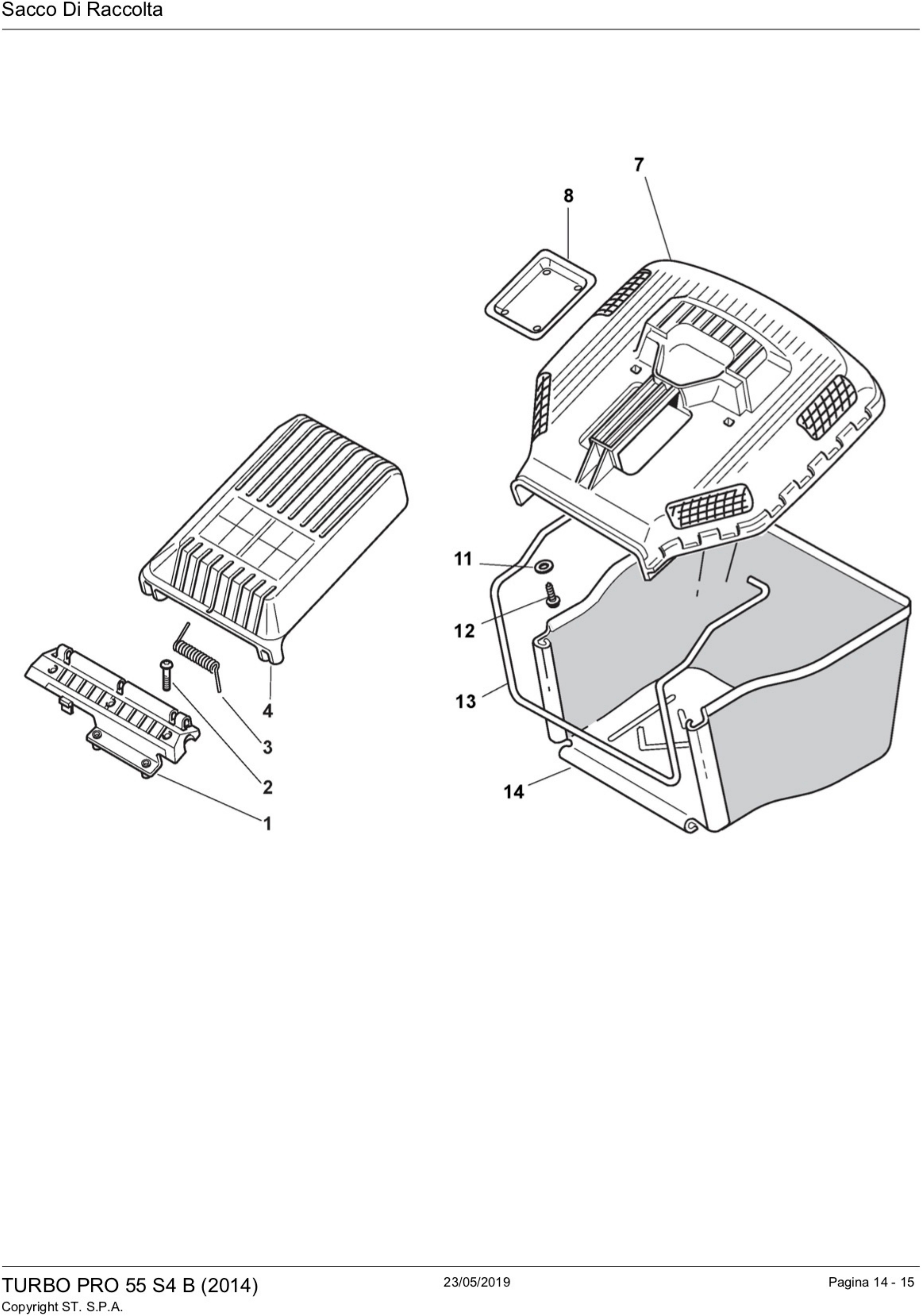

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 112735664/0 Screw €1.61
3
photo_cameraImage coming soon 122450430/0 Spring €4.93
7
photo_cameraImage coming soon 322486095/0 Grass-Box, Upper Part To 31-August-2013 €42.93
7
photo_cameraImage coming soon 322486359/0 Grass-Box Upper Part From 01-September-2013 €32.63
8
photo_cameraImage coming soon 322486098/0 Plate €5.53
11
photo_cameraImage coming soon 112521460/0 Washer €1.61
12
photo_cameraImage coming soon 112728300/0 Guida Cinghia €1.61
13
photo_cameraImage coming soon 122608528/0 Stiffening Lower €20.06
14
photo_cameraImage coming soon 181002235/0 Box, Fabric €49.55

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stiga Parts for Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14

Stiga genuine spare parts or replacements parts for to repair Lawnmower TURBO PRO 55 S4 B (2014) 292553028/S14.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
TURBO PRO 55 S4 B (2014) 292553028/S14

STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.1
# Part Num. Description
1 381002660/0 Chassis Giallo To 31-August-2013
1 381004738/0 Deck Grey
3 322060177/0 Protection, Grey
4 112728300/0 Screw
9 112728300/0 Screw
10 322108277/0 Rear Conveyor Assy
11 112735664/0 Screw
15 322109531/0 Cover
16 381008658/0 Outfit, Supports Supporti To 31-August-2006
16 381008658/1 Outfit, Supports From 01-September-2006
21 322545160/0 Plate
22 112735664/0 Screw
23 112604898/0 Crown Fastener
24 122446181/0 Spring
25 322785153/0 Support, Gear Box
26 112735664/0 Screw
31 322399808/0 Knob
32 322321515/0 Lever, Height Adjustment
33 112735661/0 Screw
34 112728300/0 Screw
35 322735563/0 Sector, Height Adjustment
36 322140232/0 Deflector
37 322820057/0 Cap Black
38 112604899/0 Crown Fastener
STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.2
1 112820655/0 Screw
2 322551635/0 Plate For Handle
3 322778405/0 Support
4 112760515/0 Screw
5 112521350/0 Washer
6 112521350/0 Washer
7 322399810/0 Knob
8 112361005/0 Nut
9 381006865/0 Handle, Lower Part
10 322192001/0 Anchor Clamp
11 112728691/0 Screw
12 112820655/0 Screw
13 122430311/0 Guide Spring
14 322545137/0 Plate For Handle Fastening
STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.3
1 381006866/0 Handle, Upper Part Grey
2 381003298/0 Lever, Engine Brake To 31-August-2004
2 381003298/1 Lever, Engine Brake From 01-September-2004 To 31-August-2010
2 381003330/0 Lever, Engine Brake From 01-September-2010
3 181030061/0 Cable, Thread Engine Brake Honda Engine / B&S 850;From 01-september-2010
4 381000697/0 Cable, Rear Drive
5 381003297/0 Driving Lever To 31-August-2004
5 381003297/1 Driving Lever 01-September-2004
6 112727783/0 Screw
7 322551640/0 Plate
8 112154510/0 Nut
STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.4
1 112000957/0 Ring Benzing From 01-September-2006
1 122450063/0 Snap Ring To 31-August-2006
2 112520032/0 Washer
3 322160520/0 Dust Cover
5 122076645/0 Key
6 322170630/0 Spacer To 31-August-2013
6 322170630/1 Spacer From 01-September-2013
7 122753002/0 Pin
8 112520032/0 Washer
9 119035152/0 Or Ring
12 112728300/0 Screw
13 112735664/0 Screw
14 322778407/0 Support
15 181003086/0 Gear Box
16 122601916/0 Pulley
16 122601932/0 Pin
17 112645700/0 Screw
18 112674550/0 Driving Lever
19 322320003/0 Driving Lever
20 122601914/0 Pulley
21 112154510/0 Nut
22 112735669/0 Screw
23 122671656/0 Washer
24 122601915/0 Pulley
25 112523040/0 Washer
26 135064383/0 Belt
27 122601917/0 Pulley, Crankshaft Ø 22.2
28 112714312/0 Dowel
29 322806619/0 Support
30 112735664/0 Screw
31 381007098/0 Cable, Speed Drive Control
32 322399809/0 Knob
33 112728300/0 Screw
34 112728702/0 Screw
STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.5
1 381002829/0 Axle, Front Wheels
2 122430210/0 Spring
3 381007364/0 Wheel Ø 190
4 119216039/0 Dust Cover
5 322160522/0 Bearing
6 112521460/0 Washer
7 112735592/0 Screw
8 322110379/0 Hub Cap
9 122033324/0 Rod, Height Adjustment Control
10 381002823/0 Axle, Rear Wheels
11 122170810/0 Spacer
12 122430215/0 Spring
13 322600127/0 Protection, Wheel
14 122570126/0 Pinion
15 381007368/0 Wheel Ø 215
16 112728210/0 Screw
17 322120108/0 Ring Gear
18 119216038/0 Bearing
19 122671655/0 Washer
20 112735592/0 Screw
21 322110380/0 Hub Cap
STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.6
2 181004134/0 Hub With Pulley, Crankshaft Ø 22.2
3 322672111/0 Blade Winged Washer
4 322672105/0 Clutch Washer
5 112508120/0 Washer
6 122041940/0 Cupped Spring
7 112736825/0 Clutch Bush
7 112736850/0 Screw
9 112735108/0 Feather, Crankshaft Ø 22.2
9 112735108/1 Screw
STIGA TURBO PRO 55 S4 B (2014) 292553028/S14 pag.7
2 112735664/0 Screw
3 122450430/0 Spring
7 322486095/0 Grass-Box, Upper Part To 31-August-2013
7 322486359/0 Grass-Box Upper Part From 01-September-2013
8 322486098/0 Plate
11 112521460/0 Washer
12 112728300/0 Screw
13 122608528/0 Stiffening Lower
14 181002235/0 Box, Fabric

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TURBO PRO 55 S4 B 292553028/S14
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing TURBO PRO 55 S4 B 2014

Drawing TURBO PRO 55 S4 B 2014

Download (1.09MB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 181004134/0
Wing Blade for Lawnmower Stiga TURBO PRO 55 S COMBI Original replacement part Stiga, Wing Blade for Lawnmowers TURBO PRO 55 S COMBI - TURBO PRO 55 S4 B. Part for the following products: - ...
Last items in stock €32.80
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
HiKOKI Power Tools Italia S.p.a. SKU: 322672111/0
Winged Blade Washer for Lawnmower Stiga TURBO PRO 55 S COMBI Original replacement part Stiga, Winged Blade Washer for Lawnmowers TURBO PRO 55 S COMBI - TURBO PRO 55 S4 B. Part for the following products: -  Lawnmower TURBO PRO 55 S...
on 7/10 Business Days Approx. €4.38
Comments (0)
