| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
5
|
|
3121071 Seal ring 5a | €4.49 | |
|
5
|
|
3121072 Seal ring 5b | €7.93 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
4252340 Carter Assy Yellow | €0.11 | Not available for order |
|
2
|
|
3784030 Starter Cord | €2.13 | |
|
3
|
|
3750067 Starter Handle | €2.29 | |
|
4
|
|
2123030 Screw | €1.37 | |
|
5
|
|
4611480 Starter Spring | €8.86 | |
|
6
|
|
3623590 Bushing | €1.30 | |
|
7
|
|
3723640 Disc | €4.01 | |
|
8
|
|
3750130 Petrol Tank for Brushcutters Valex Tucson 52LC | €26.41 | |
|
9
|
|
3750080 Starter Hook | €1.37 | Not available for order |
|
10
|
|
3750140 TANK HOSE | €11.21 | |
|
11
|
|
3657480 Retainer | €0.11 | Not available for order |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
2432050 Nut | €0.00 | Not available for order |
|
2
|
|
2312080 Flat washer | €0.00 | Not available for order |
|
3
|
|
3L4541210/1 Flywheel From 01-september-2005 | €43.60 | |
|
3
|
|
4541210 Flywheel To 31-august-2005 | €45.86 | |
|
4
|
|
3151010 Flywheel Key | €1.37 | |
|
5
|
|
3121071 Seal ring 5a | €4.49 | |
|
5
|
|
3121072 Seal ring 5b | €7.93 | |
|
6
|
|
3112030 Ball Bearing | €14.86 | |
|
7
|
|
3614480 Washer | €0.11 | Not available for order |
|
8
|
|
4251960/1 Crankshaft | €68.23 | |
|
9
|
|
3750311 Oil Pump Cover - DISCONTINUED | €0.11 | Not available for order |
|
10
|
|
3L4252200/1 Clutch Assy | €0.11 | Not available for order |
|
11
|
|
3114190 Roller Cage | €7.87 | |
|
12
|
|
4121208 Clutch Drum | €17.04 | |
|
13
|
|
3612620 Pinion Washer for Chainsaw Alpina P 365 | €1.41 | Not available for order |
|
14
|
|
112000955/0 Benzing Ring mm 8 for Lawnmower Alpina BL 380 E | €1.50 | |
|
15
|
|
3356050 Circlip for Chainsaw Alpina P 365 | €1.42 | |
|
18
|
|
3158260 Piston pin | €7.32 | |
|
19
|
|
3116100 Needle Bearing | €11.01 | |
|
20
|
|
2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J | €1.40 | |
|
21
|
|
2330020 Washer | €1.34 | |
|
22
|
|
3123220 Piston Ring Ø 39 | €5.00 | |
|
23
|
|
3L8541360/1 Piston Assy | €85.11 | |
|
24
|
|
3L8541370/1 Cylinder - Piston Assy | €143.56 | |
|
25
|
|
3210024 Spark Plug CJ7Y | €4.32 | |
|
26
|
|
3748880 Spark plug cap | €2.01 | |
|
27
|
|
3657050 Spark Plug Spring | €3.92 | |
|
28
|
|
3721530 Protection | €0.11 | Not available for order |
|
29
|
|
3210970 Stop Switch | €2.47 | |
|
32
|
|
3211380 Earth cable | €0.11 | Not available for order |
|
33
|
|
3L3211350/1 Electronic coil | €59.91 | |
|
34
|
|
3654480 Spring | €1.30 | |
|
35
|
|
2321150 Washer | €0.00 | Not available for order |
|
36
|
|
2123140 Screw | €0.00 | Not available for order |
|
37
|
|
2123020 Screw | €0.00 | Not available for order |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J | €1.57 | |
|
2
|
|
4122040 Muffler Assy | €36.28 | |
|
3
|
|
3724270 Muffler gasket | €3.91 | |
|
5
|
|
3786130 Tube | €7.90 | |
|
7
|
|
3743407 ChokeLever | €0.11 | Not available for order |
|
8
|
|
8744781 Intake Manifold Assy | €17.79 | |
|
9
|
|
2135210 Screw | €2.00 | |
|
10
|
|
3745650 Air Lever Grommet | €3.42 | |
|
11
|
|
123054003/2 Carburetor | €95.12 | |
|
12
|
|
3724160 Heath Block | €2.07 | |
|
13
|
|
4252480 Throttle Cable With Sheath | €0.11 | Not available for order |
|
14
|
|
3750180 Chainsaw Alpina P 365 Intake Manifold | €14.09 | Not available for order |
|
15
|
|
3724300 Cylinder Manifold Gasket for Chainsaw Alpina P 365 | €14.75 | |
|
16
|
|
3744740 Air Purge Pump | €13.51 | |
|
18
|
|
8724091 Diaphragm Gasket Set for Chainsaw Alpina A 3700-C 38 | €24.73 | |
|
19
|
|
8724300 Gaskets Set | €0.11 | Not available for order |
|
20
|
|
3721560 Cylinder gasket | €2.16 | |
|
21
|
|
3211690 Earth Cable | €0.00 | Not available for order |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
2
|
|
4252010 Oil Cap Ass.y | €7.63 | |
|
3
|
|
4252010 Oil Cap Ass.y | €7.63 | |
|
4
|
|
4252220 Oil Pump Ass'y for Chainsaw Alpina P 365 | €34.90 | |
|
5
|
|
3744790 Grommet - DISCONTINUED | €0.11 | Not available for order |
|
6
|
|
2123020 Screw | €0.00 | Not available for order |
|
7
|
|
3614810 Retainer | €1.30 | |
|
8
|
|
23900110/0 Guide Bar 14inch | €40.16 | |
|
9
|
|
2653470 Screw | €1.30 | |
|
10
|
|
123878001/0 Screw | €3.11 | |
|
11
|
|
3641970 Chain Tightener | €4.03 | |
|
12
|
|
3741360 Oil cap / Supply | €0.11 | Not available for order |
|
13
|
|
3614930 Insert | €1.82 | |
|
14
|
|
3L4353090/1 Oil Breath Tube Ass.y | €4.91 | |
|
15
|
|
323311002/0 Bar Plate | €4.86 | |
|
16
|
|
4113702 Chain 14inch | €38.11 | |
|
17
|
|
4252330 Clutch Housing Yellow Ass.y | €0.11 | Not available for order |
|
18
|
|
3786050 Fuel Line | €2.19 | |
|
19
|
|
4253290 Intake Filter Ass.y | €13.26 | |
|
20
|
|
2670270 Nut | €2.81 | |
|
21
|
|
323650100/0 Screw | €2.00 | |
|
22
|
|
4253680 Breather Valve Ass.y | €3.83 | |
|
23
|
|
2123060 Self-Thread Screw 4x10 for Chainsaw Alpina P 660 | €1.41 | |
|
24
|
|
4181297 Chain Cover | €3.78 | |
|
28
|
|
2123060 Self-Thread Screw 4x10 for Chainsaw Alpina P 660 | €1.41 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
3614740 Brake band | €7.34 | |
|
2
|
|
2312150 Washer | €1.52 | |
|
3
|
|
2123060 Self-Thread Screw 4x10 for Chainsaw Alpina P 660 | €1.41 | |
|
4
|
|
4252310 Chain Brake Lever | €16.11 | |
|
5
|
|
3180500 Needle | €0.00 | Not available for order |
|
6
|
|
3614780 Spring | €3.21 | |
|
8
|
|
2123100 Screw | €1.34 | |
|
9
|
|
3654420 Brake Spring | €1.76 | |
|
10
|
|
3614490 Brake sheet | €3.21 | |
|
11
|
|
3180510 Needle | €0.00 | Not available for order |
|
12
|
|
3614330 Bush - DISCONTINUED | €0.11 | Not available for order |
|
14
|
|
2123030 Screw | €1.37 | |
|
15
|
|
4252350 Cylinder Cover Yellow | €22.23 | |
|
16
|
|
4563267 Hand Guard W / Bushing | €26.20 | |
|
17
|
|
8781530 Air filter | €11.88 | |
|
19
|
|
3750227 Air Purge Pump Button Cap | €1.30 | |
|
20
|
|
3654430 Spring | €1.30 | |
|
21
|
|
3750217 Air Purge Pump | €1.30 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
4563147 Handle | €0.11 | Not available for order |
|
2
|
|
4563157 Handle Cover | €5.26 | |
|
3
|
|
3743587 Throttle Lever For Cable | €3.50 | |
|
4
|
|
1L3654440/1 Spring | €2.80 | |
|
5
|
|
3743597 Safety Lever | €1.72 | |
|
6
|
|
3654400 Spring | €5.81 | |
|
7
|
|
3614800 Washer | €1.92 | |
|
8
|
|
2123100 Screw | €1.34 | |
|
9
|
|
2123031 Screw | €0.00 | Not available for order |
|
10
|
|
2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J | €1.57 | |
|
11
|
|
2432040 Nut | €1.41 | |
|
12
|
|
2312090 Flat washer | €1.41 |
Shipping and delivery information will be available shortly.
We are STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Chainsaw SP 340 (2006) 15-4110-11.
In the following table, look for the model of the Chain Saw and the respective parts of the code.![]()

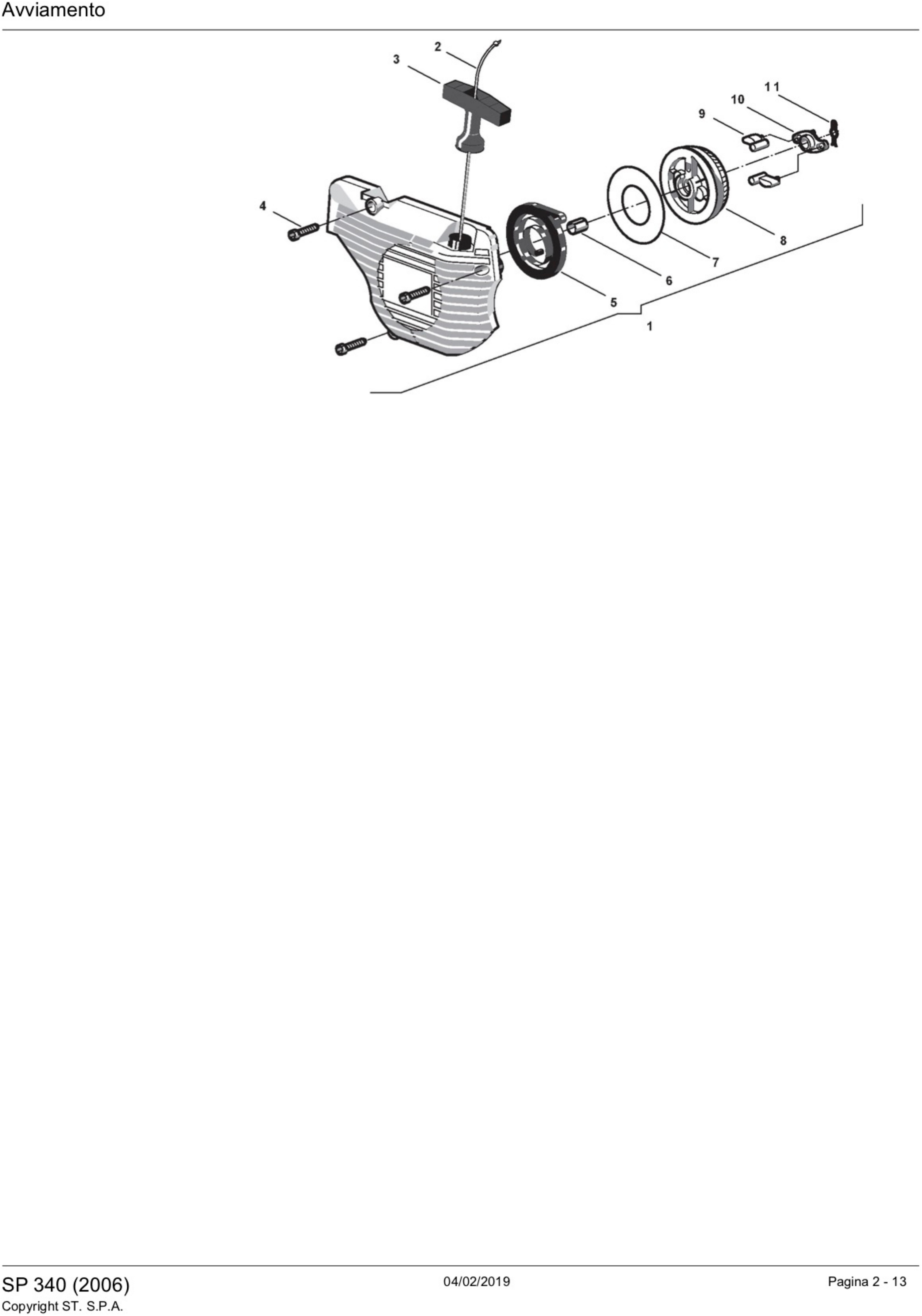

| STIGA SP 340 (2006) 15-4110-11 pag.1 | ||
| # | Part Num. | Description |
| 1 | 4252340 | Yellow Start Carter Assembly |
| 2 | 3784030 | Starter line |
| 3 | 3750067 | Starter handle |
| 4 | 2123030 | Screw |
| 5 | 4611480 | Starter Spring |
| 6 | 3623590 | Bushing |
| 7 | 3723640 | Disc For Spring StartTo |
| 8 | 3750130 | Starter Pulley |
| 9 | 3750080 | Starter hook |
| 10 | 3750140 | Starter Hook Guide |
| 11 | 3657480 | Retainer |

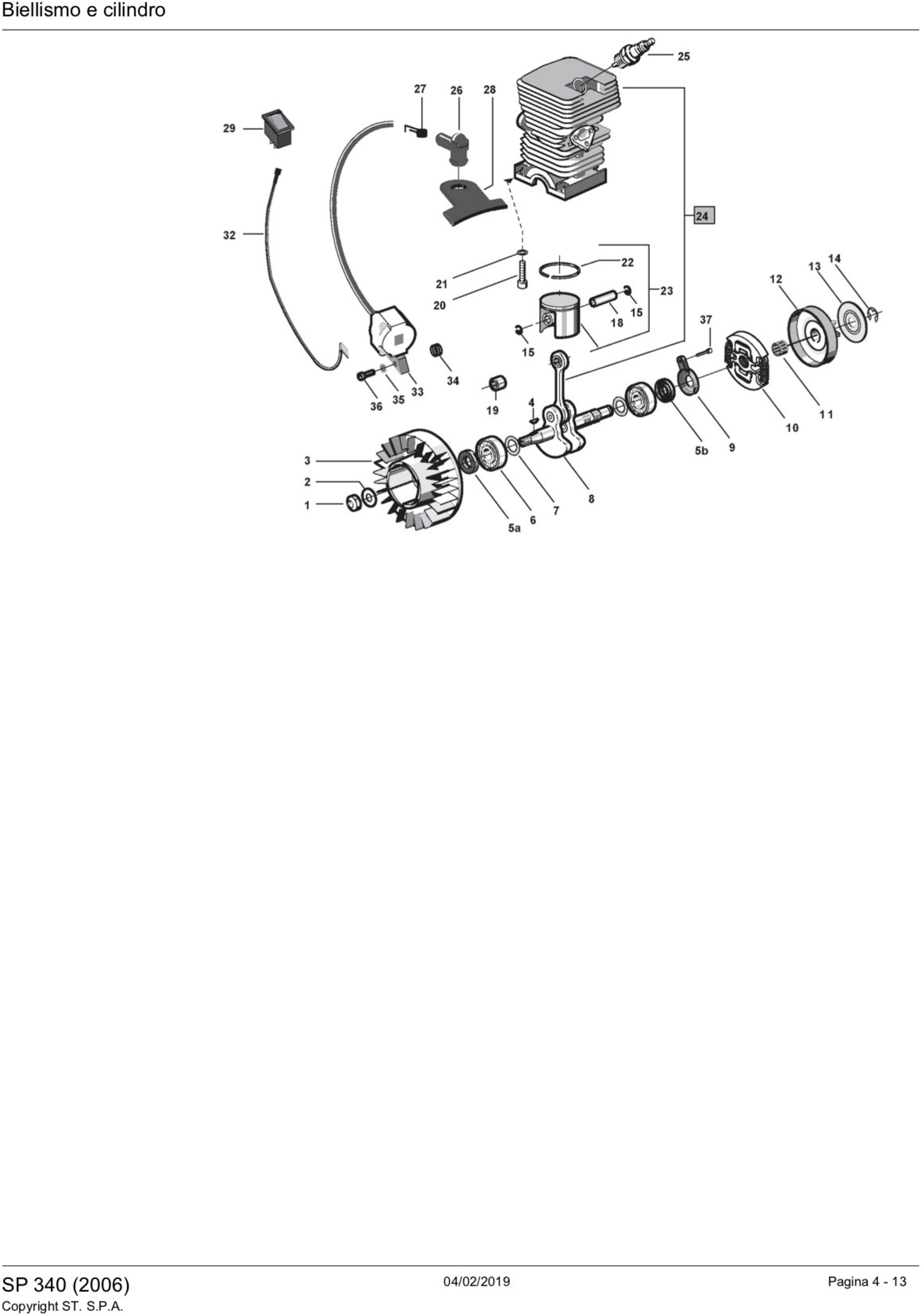

| STIGA SP 340 (2006) 15-4110-11 pag.2 | ||
| 1 | 2432050 | Nut |
| 2 | 2312080 | Washer |
| 3 | 3L4541210/1 | Flywheel Magnet From 01-september-2005 |
| 3 | 4541210 | Flywheel Magnet To 31-august-2005 |
| 4 | 3151010 | Flywheel Key |
| 5 | 3121071 | Seal ring 5a |
| 5 | 3121072 | Seal ring 5b |
| 6 | 3112030 | Ball bearing |
| 7 | 3614480 | Washer |
| 8 | 4251960/1 | Crankshaft |
| 9 | 3750311 | Oil Pump Cover - DISCONTINUED |
| 10 | 3L4252200/1 | Clutch assembly |
| 11 | 3114190 | Needle Bearing |
| 12 | 4121208 | Clutch Drum |
| 13 | 3612620 | Pinion Washer |
| 14 | 112000955/0 | Benzing ring |
| 15 | 3356050 | Circlip |
| 18 | 3158260 | Piston pin |
| 19 | 3116100 | Needle Bearing |
| 20 | 2135030 | Screw |
| 21 | 2330020 | Washer |
| 22 | 3123220 | Piston Ring Ø 39 |
| 23 | 3L8541360/1 | Piston assembly |
| 24 | 3L8541370/1 | Cylinder - Piston assembly |
| 25 | 3210024 | Spark Plug |
| 26 | 3748880 | Spark Plug Cap |
| 27 | 3657050 | Spark Plug Spring |
| 28 | 3721530 | Protection |
| 29 | 3210970 | Stop switch |
| 32 | 3211380 | Earth cable |
| 33 | 3L3211350/1 | Electronic coil |
| 34 | 3654480 | Spring |
| 35 | 2321150 | Washer |
| 36 | 2123140 | Screw |
| 37 | 2123020 | Screw |

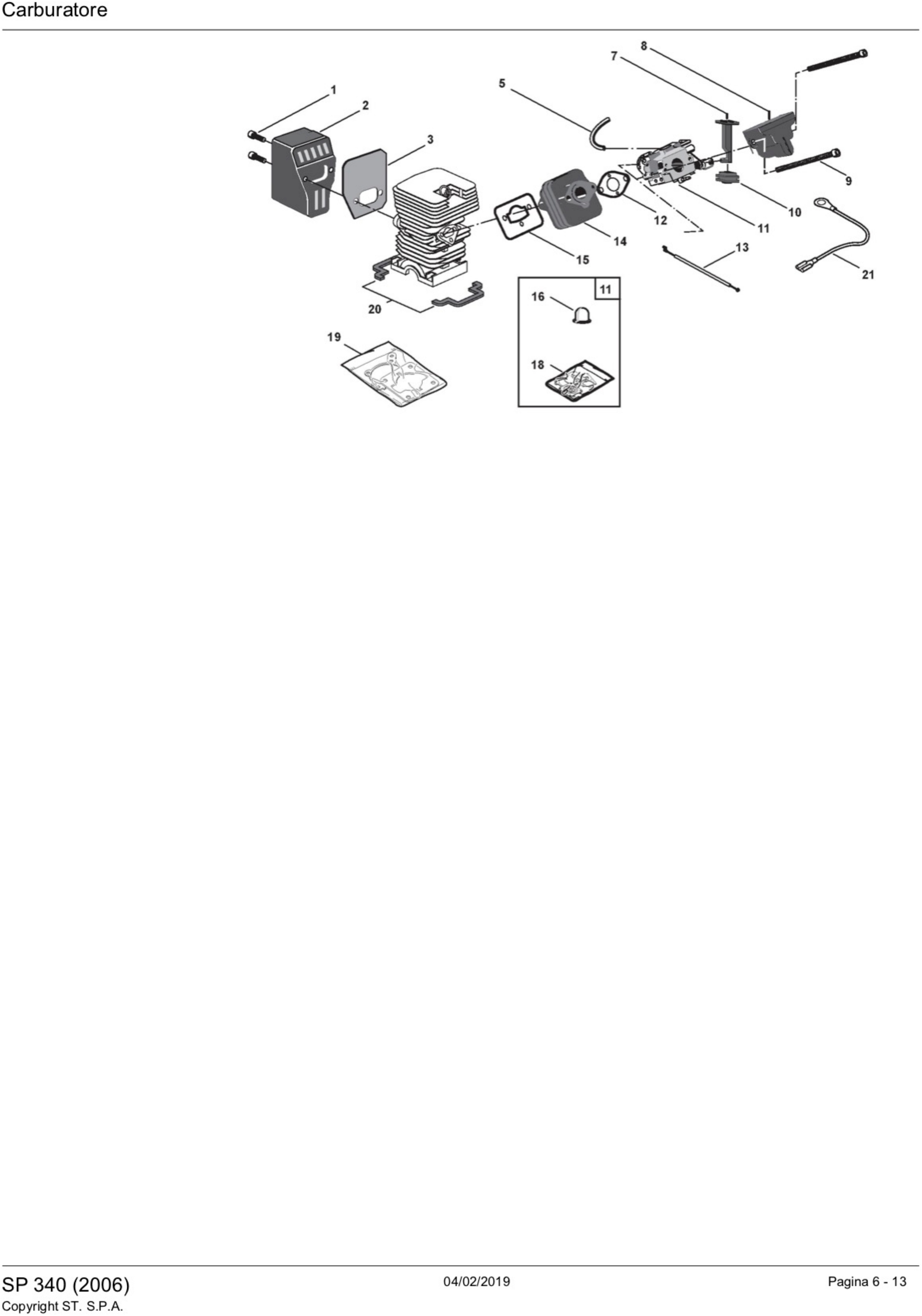

| STIGA SP 340 (2006) 15-4110-11 pag.3 | ||
| 1 | 2135040 | Screw |
| 2 | 4122040 | Muffler assembly |
| 3 | 3724270 | Muffler gasket |
| 5 | 3786130 | Tube |
| 7 | 3743407 | Choke Lever |
| 8 | 8744781 | Intake Manifold assembly |
| 9 | 2135210 | Screw |
| 10 | 3745650 | Air Lever Grommet |
| 11 | 123054003/2 | Carburetor |
| 12 | 3724160 | Intake Manifold Gasket |
| 13 | 4252480 | Throttle wire |
| 14 | 3750180 | Intake Manifold |
| 15 | 3724300 | Cylinder Intake Manifold Gasket |
| 16 | 3744740 | Primer |
| 18 | 8724091 | Membrane Kit - Carburetor Gaskets |
| 19 | 8724300 | Gaskets set |
| 20 | 3721560 | Cylinder gasket |
| 21 | 3211690 | Earth cable |

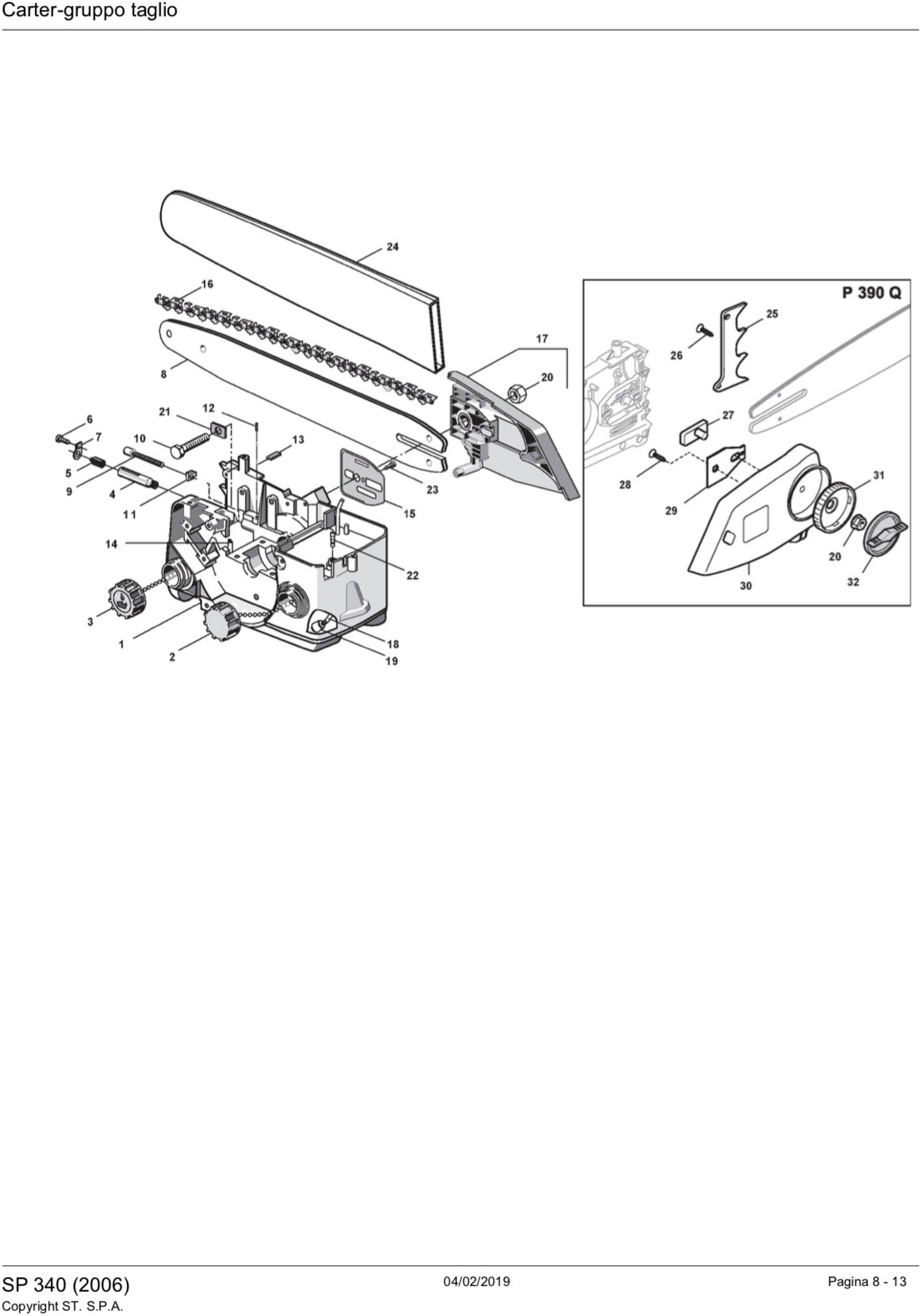

| STIGA SP 340 (2006) 15-4110-11 pag.4 | ||
| 2 | 4252010 | Oil Cap Assembly |
| 3 | 4252010 | Oil Cap Assembly |
| 4 | 4252220 | Oil Pump Assembly |
| 5 | 3744790 | grommet - DISCONTINUED |
| 6 | 2123020 | Screw |
| 7 | 3614810 | Plate |
| 8 | 23900110/0 | Guide Bar 14inch |
| 9 | 2653470 | Screw |
| 10 | 123878001/0 | Screw |
| 11 | 3641970 | Tightener block |
| 12 | 3741360 | Cap /Oil delivery |
| 13 | 3614930 | Insert |
| 14 | 3L4353090/1 | Oil Breath Pipe Assembly |
| 15 | 323311002/0 | Plate |
| 16 | 4113702 | chain 14inch |
| 17 | 4252330 | clutch carter assembly Yellow |
| 18 | 3786050 | Fuel Intake Tube |
| 19 | 4253290 | Fuel Intake Filter |
| 20 | 2670270 | Nut |
| 21 | 323650100/0 | Screw |
| 22 | 4253680 | Tank Breath Valve Assembly |
| 23 | 2123060 | Screw |
| 24 | 4181297 | cover Bar 14inch |
| 28 | 2123060 | Screw |

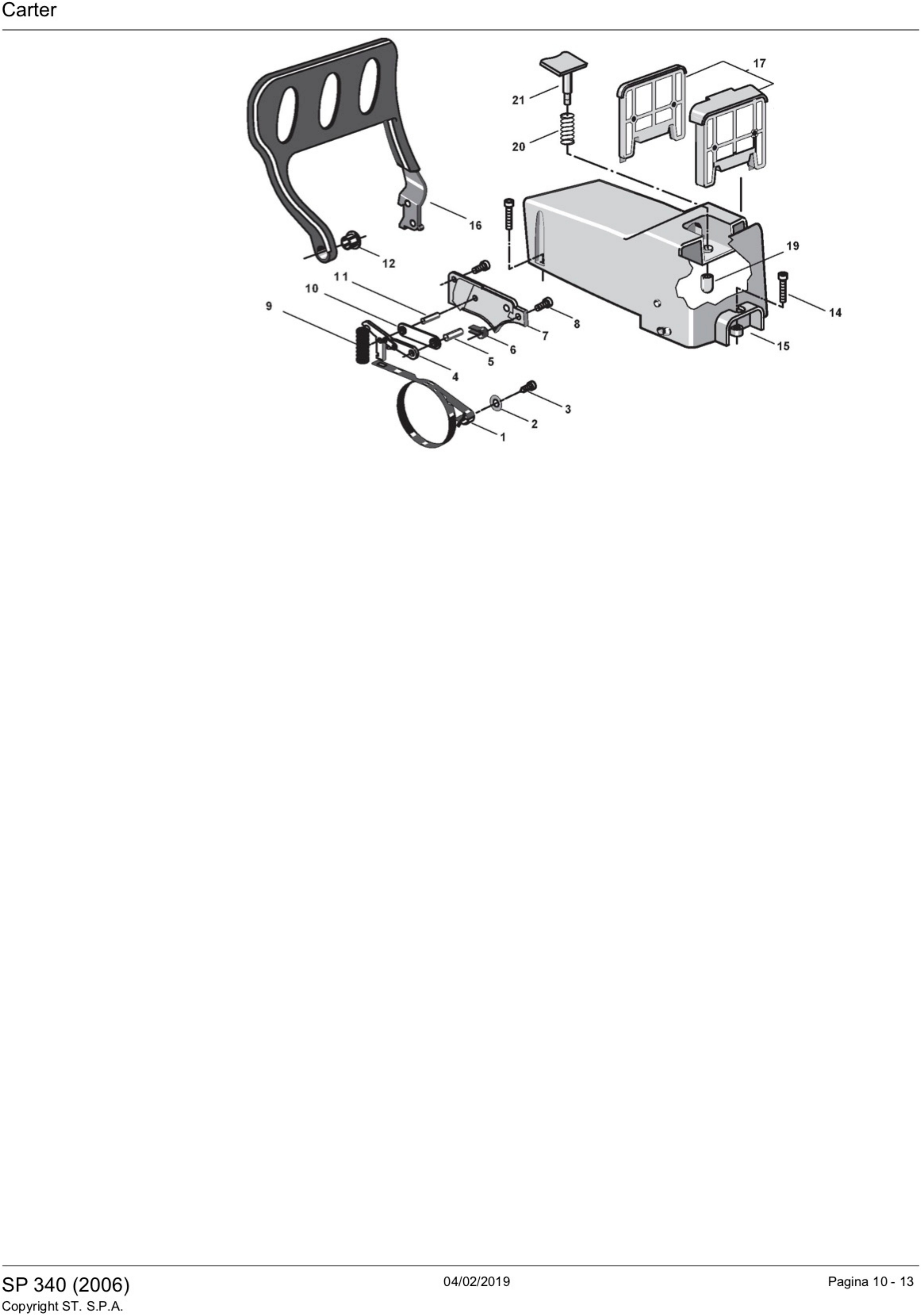

| STIGA SP 340 (2006) 15-4110-11 pag.5 | ||
| 1 | 3614740 | Brake band |
| 2 | 2312150 | Washer |
| 3 | 2123060 | Screw |
| 4 | 4252310 | Brake Link Lever |
| 5 | 3180500 | roll |
| 6 | 3614780 | Spring |
| 8 | 2123100 | Screw |
| 9 | 3654420 | Brake Spring |
| 10 | 3614490 | Brake sheet |
| 11 | 3180510 | roll |
| 12 | 3614330 | Bush - DISCONTINUED |
| 14 | 2123030 | Screw |
| 15 | 4252350 | Cylinder cover Yellow |
| 16 | 4563267 | Handle Guard w/ Insert |
| 17 | 8781530 | Air filter |
| 19 | 3750227 | Primer Button Cap |
| 20 | 3654430 | Spring |
| 21 | 3750217 | Primer |

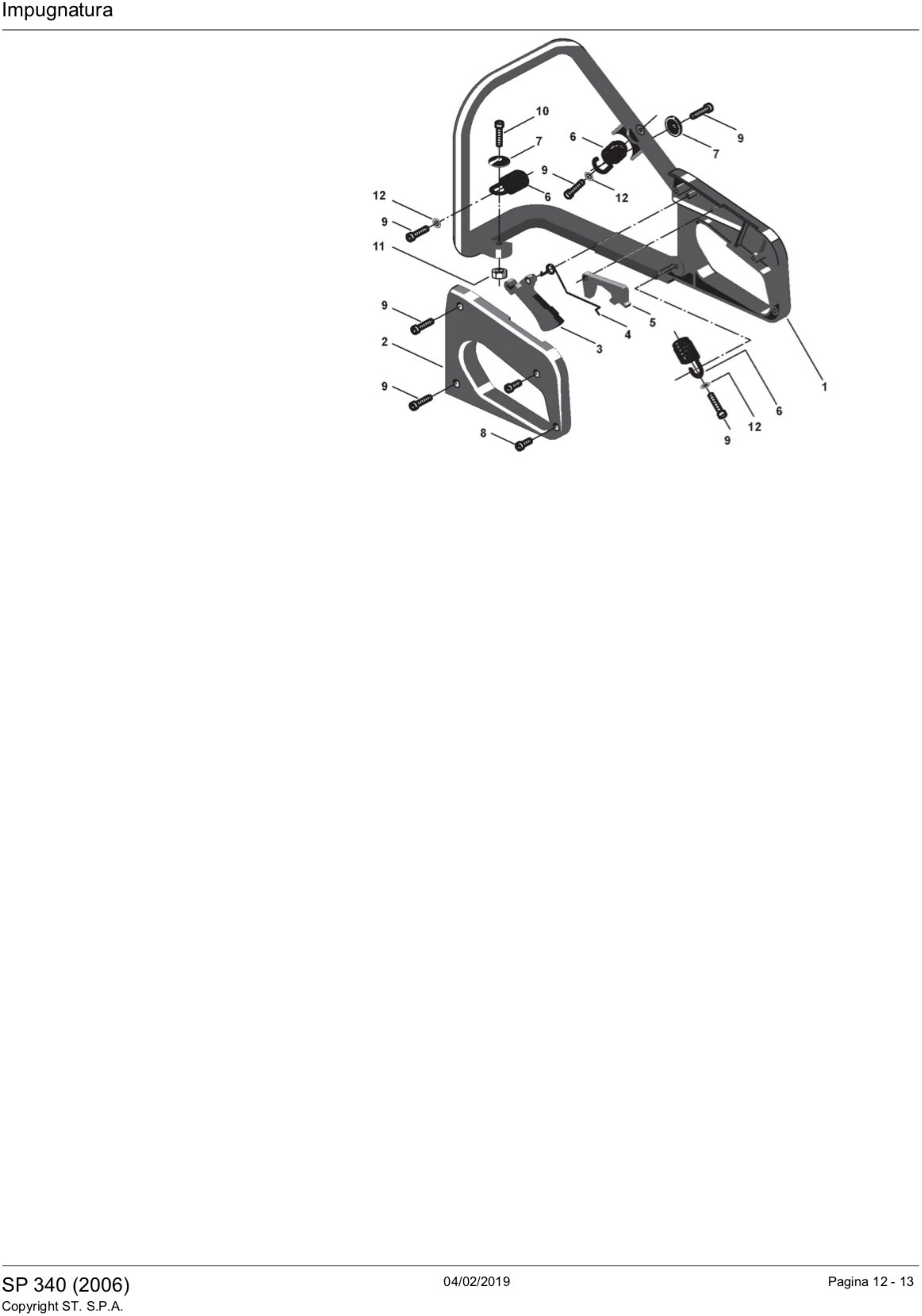

| STIGA SP 340 (2006) 15-4110-11 pag.6 | ||
| 1 | 4563147 | Handle - Handrail |
| 2 | 4563157 | Handle Cover |
| 3 | 3743587 | Throttle Lever For wire |
| 4 | 1L3654440/1 | Throttle and Safety Lever Spring 360-41 |
| 5 | 3743597 | Safety Lever |
| 6 | 3654400 | Spring |
| 7 | 3614800 | Washer |
| 8 | 2123100 | Screw |
| 9 | 2123031 | Screw |
| 10 | 2135040 | Screw |
| 11 | 2432040 | Nut |
| 12 | 2312090 | Washer |
