GGP Italy

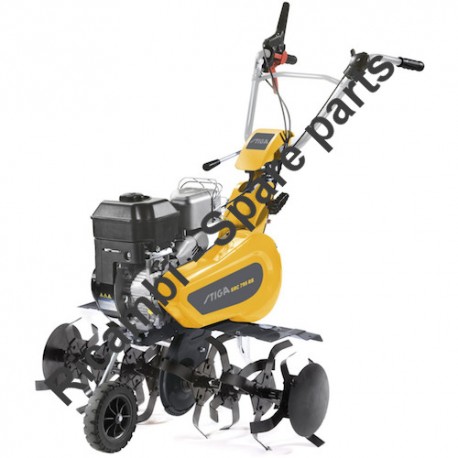

Stiga Spare Parts for Tiller SRC 795 RB

SKU: SRC 795 RB 212951122-14-2017
€1.68
VAT included

Stiga Spare Parts for Motorhoe SRC 795 RB

Stiga genuine replacement parts for to replace broken parts for to fix Motorhoe SRC 795 RB/212951122-14-2017.

SRC 795 RB 212951122-14-2017
Stiga Spare Parts for Tiller SRC 795 RB
  • Stiga Spare Parts for Tiller SRC 795 RB
  • Stiga Spare Parts for Tiller SRC 795 RB
  • Stiga Spare Parts for Tiller SRC 795 RB
GGP Italy

Stiga Spare Parts for Tiller SRC 795 RB

SKU: SRC 795 RB 212951122-14-2017 Condition: New
€1.68
VAT included

Stiga Spare Parts for Motorhoe SRC 795 RB

Stiga genuine replacement parts for to replace broken parts for to fix Motorhoe SRC 795 RB/212951122-14-2017.

SRC 795 RB 212951122-14-2017
settings 76 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

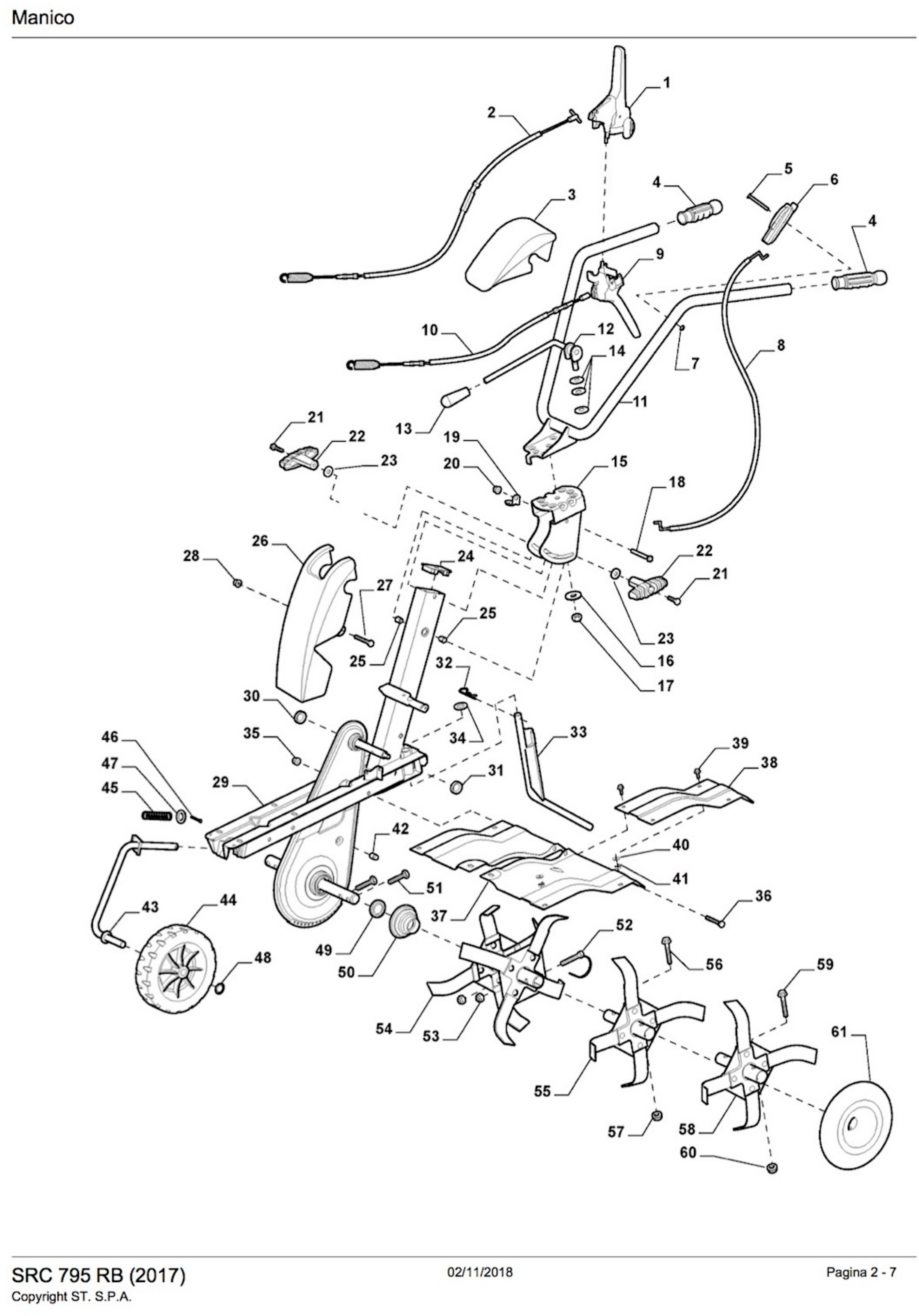

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118802984/0 Clutch Handle €35.40
2
 photo_cameraImage coming soon 118802982/0 Clutch Cable €38.02
3
 photo_cameraImage coming soon 118802977/0 Panel-Yellow €17.75
4
 photo_cameraImage coming soon 1483-2213-01 Handgrip €3.18
5
 photo_cameraImage coming soon 9948-0655-16 Screw €2.00
6
 photo_cameraImage coming soon 1483-2143-01 Accelerator €12.51
7
 photo_cameraImage coming soon 9747-0631-02 Nut €5.75
8
 photo_cameraImage coming soon 118802969/0 Throttle Cable €14.62
9
 photo_cameraImage coming soon 118802985/0 Clutch Lever-Reverse €35.40
10
 photo_cameraImage coming soon 118802983/0 Clutch Cable-Reverse €31.48
11
 photo_cameraImage coming soon 118802979/0 Handlebar Tube €80.23
12
 photo_cameraImage coming soon 1483-2044-01 Lever €23.67
13
 photo_cameraImage coming soon 1483-2279-01 Knob €4.60
16
 photo_cameraImage coming soon 9699-0121-02 Washer €1.94
17
 photo_cameraImage coming soon 9747-1231-02 Nut €2.00
18
 photo_cameraImage coming soon 9997-0865-12 Screw €1.81
20
 photo_cameraImage coming soon 112155000/0 Nut €1.66
21
 photo_cameraImage coming soon 9997-0830-16 Screw €1.55
22
 photo_cameraImage coming soon 118803004/0 Lever Knob €5.08
23
 photo_cameraImage coming soon 9699-0122-02 Washer €1.59
24
 photo_cameraImage coming soon 1483-2166-01 Cap €2.99
26
 photo_cameraImage coming soon 118802978/0 Panel-Yellow €25.07
28
 photo_cameraImage coming soon 9747-0531-02 Nut €1.55
29
 photo_cameraImage coming soon 118802974/0 Gear Housing-Grey €453.74
30
 photo_cameraImage coming soon 1483-2186-01 Cap €3.90
31
 photo_cameraImage coming soon 1483-2187-01 Oil Seal €5.36
32
 photo_cameraImage coming soon 9598-0002-02 Elastic Pin €1.55
33
 photo_cameraImage coming soon 118802986/0 Depth Skid €45.01
34
 photo_cameraImage coming soon 9699-0104-02 Washer €1.55
35
 photo_cameraImage coming soon 112155000/0 Nut €1.66
36
 photo_cameraImage coming soon 9997-0855-12 Screw €2.20
37
 photo_cameraImage coming soon 118802988/0 Guard Plate €79.19
38
 photo_cameraImage coming soon 118802989/0 Guard Plate €32.01
39
 photo_cameraImage coming soon 9959-0616-16 Screw €1.55
41
 photo_cameraImage coming soon 1134-3643-01 Nut €12.07
42
 photo_cameraImage coming soon 1483-2075-01 Cap €3.62
43
 photo_cameraImage coming soon 118802987/0 Support Wheel Brkt €31.17
44
 photo_cameraImage coming soon 118802972/0 Wheel €23.24
45
 photo_cameraImage coming soon 118802971/0 Spring €6.65
46
 photo_cameraImage coming soon 118803017/0 Split Pin €4.43
47
 photo_cameraImage coming soon 9699-0104-02 Washer €1.55
48
 photo_cameraImage coming soon 1483-2195-01 Washer €4.03
49
 photo_cameraImage coming soon 1483-2070-01 Oil Seal €7.71
50
 photo_cameraImage coming soon 118802992/0 Dust Guard €6.91
51
 photo_cameraImage coming soon 9997-1050-16 Screw €2.54
52
 photo_cameraImage coming soon 1483-2196-01 Pin €2.86
53
 photo_cameraImage coming soon 9747-1031-02 Lock Nut €1.92
54
 photo_cameraImage coming soon 1483-2023-01 Rotor Assy-Rh €74.62
54
 photo_cameraImage coming soon 1483-2024-01 Rotor Assy-Lh €74.62
55
 photo_cameraImage coming soon 1483-2169-01 Right Tine Assy €60.23
55
 photo_cameraImage coming soon 1483-2170-01 Left Tine Assy €61.55
56
 photo_cameraImage coming soon 9997-1050-16 Screw €2.54
57
 photo_cameraImage coming soon 9747-1031-02 Lock Nut €1.92
58
 photo_cameraImage coming soon 118802990/0 Right Tine Assy €55.58
58
 photo_cameraImage coming soon 118802991/0 Left Tine Assy €55.58
59
 photo_cameraImage coming soon 9997-1050-16 Screw €2.54
60
 photo_cameraImage coming soon 9747-1031-02 Lock Nut €1.92
61
 photo_cameraImage coming soon 1483-2022-01 Disc €35.17
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

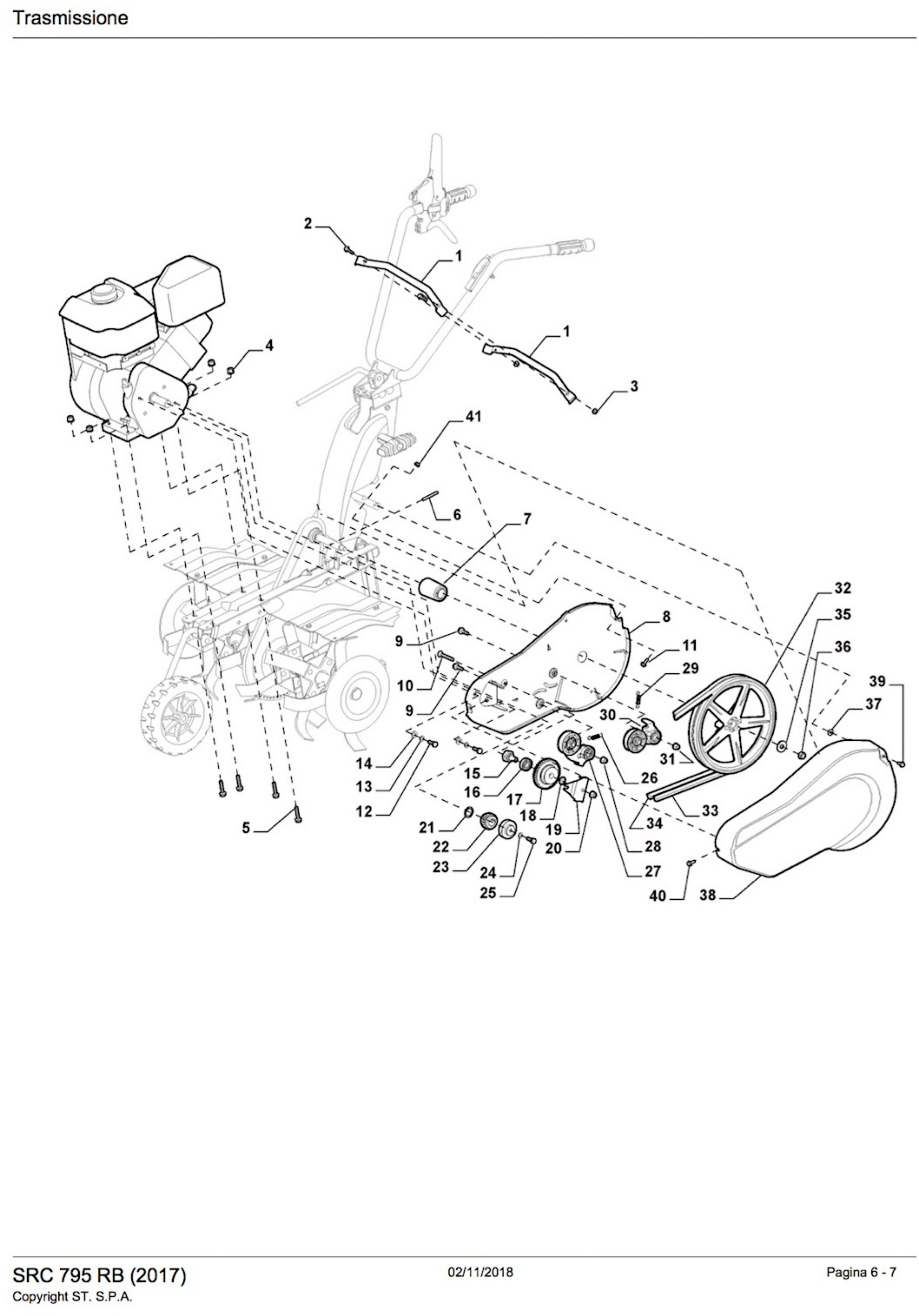

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118802981/0 Support €23.55
2
 photo_cameraImage coming soon 112791500/0 Screw €1.64
3
 photo_cameraImage coming soon 112154510/0 Nut €1.66
4
 photo_cameraImage coming soon 112155000/0 Nut €1.66
5
 photo_cameraImage coming soon 112691115/0 Screw €1.64
7
 photo_cameraImage coming soon 118802998/0 Guard €5.86
9
 photo_cameraImage coming soon 9959-0825-16 Screw €1.59
10
 photo_cameraImage coming soon 118803019/0 Screw €2.33
11
 photo_cameraImage coming soon 9959-0616-16 Screw €1.55
13
 photo_cameraImage coming soon 9699-0028-02 Washer €1.60
14
 photo_cameraImage coming soon 9699-0028-02 Washer €1.60
15
 photo_cameraImage coming soon 118802993/0 Shaft €30.05
17
 Gears Set for Tillers Stiga SRC 775 RB - SRC 795 RB 1483-2175-01 Gears Set for Tillers Stiga SRC 775 RB - SRC 795 RB €37.87
19
 photo_cameraImage coming soon 118802994/0 Mounting Plate €5.64
20
 photo_cameraImage coming soon 112155000/0 Nut €1.66
21
 photo_cameraImage coming soon 1483-2117-01 Spacer €1.69
22
 photo_cameraImage coming soon 1483-2176-01 Gear Kit Pos. 17+22 €33.77
23
 photo_cameraImage coming soon 118802973/0 Engine Pulley €26.30
24
 photo_cameraImage coming soon 9699-0028-02 Washer €1.60
25
 photo_cameraImage coming soon 1483-2283-01 Screw €2.00
26
 photo_cameraImage coming soon 1483-2207-01 Spring €3.88
27
 photo_cameraImage coming soon 118802996/0 Tension Arm €28.87
28
 photo_cameraImage coming soon 112155000/0 Nut €1.66
29
 photo_cameraImage coming soon 1483-2207-01 Spring €3.88
30
 photo_cameraImage coming soon 118802997/0 Tension Arm €27.56
31
 photo_cameraImage coming soon 112155000/0 Nut €1.66
32
 photo_cameraImage coming soon 118802995/0 Belt Pulley €49.78
33
 Belt X10-1128 Lp for Tiller Stiga SRC 775 RB 1483-2149-01 Belt X10-1128 Lp for Tiller Stiga SRC 775 RB €40.00
34
 Belt Z1038 LD for Tiller Stiga SRC 775 RB 118802965/0 Belt Z1038 LD for Tiller Stiga SRC 775 RB €16.92
35
 photo_cameraImage coming soon 9699-0105-02 Washer €1.55
36
 photo_cameraImage coming soon 9747-1031-02 Lock Nut €1.92
38
 photo_cameraImage coming soon 118802976/0 Belt Guard €45.86
39
 photo_cameraImage coming soon 9959-0616-16 Screw €1.55
40
 photo_cameraImage coming soon 112791400/0 Screw €1.62
41
 photo_cameraImage coming soon 9747-0631-02 Nut €5.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stiga Spare Parts for Motorhoe SRC 795 RB

Stiga genuine replacement parts for to replace broken parts for to fix Motorhoe SRC 795 RB/212951122-14-2017.

In the following table, look for the model of the Tiller and the respective parts of the code.
SRC 795 RB 212951122-14-2017
Motorhoe SRC 795 RB/212951122-14-2017
Handle Pag.1
Engine 4T B&S Series 950
# Part Num. Description
1 118802984/0 Clutch Handle
2 118802982/0 Clutch Cable
3 118802977/0 Panel-Yellow
4 1483-2213-01 Handgrip
5 9948-0655-16 Screw
6 1483-2143-01 Accelerator
7 9747-0631-02 Nut
8 118802969/0 Throttle Cable
9 118802985/0 Clutch Lever-Reverse
10 118802983/0 Clutch Cable-Reverse
11 118802979/0 Handlebar Tube
12 1483-2044-01 Lever
13 1483-2279-01 Knob
14 1483-2073-01 Washer
15 118802980/0 Handle Reinforcement
16 9699-0121-02 Washer
17 9747-1231-02 Nut
18 9997-0865-12 Screw
19 1483-2021-01 Support
20 112155000/0 Nut
21 9997-0830-16 Screw
22 118803004/0 Lever Knob
23 9699-0122-02 Washer
24 1483-2166-01 Cap
25 118803012/0 Nut
26 118802978/0 Panel-Yellow
27 112789350/0 Screw
28 9747-0531-02 Nut
29 118802974/0 Gear Housing-Grey
30 1483-2186-01 Cap
31 1483-2187-01 Oil Seal
32 9598-0002-02 Elastic Pin
33 118802986/0 Depth Skid
34 9699-0104-02 Washer
35 112155000/0 Nut
36 9997-0855-12 Screw
37 118802988/0 Guard Plate
38 118802989/0 Guard Plate
39 9959-0616-16 Screw
40 118803014/0 Washer
41 1134-3643-01 Nut
42 1483-2075-01 Cap
43 118802987/0 Support Wheel Brkt
44 118802972/0 Wheel
45 118802971/0 Spring
46 118803017/0 Split Pin
47 9699-0104-02 Washer
48 1483-2195-01 Washer
49 1483-2070-01 Oil Seal
50 118802992/0 Dust Guard
51 9997-1050-16 Screw
52 1483-2196-01 Pin
53 9747-1031-02 Nut
54 1483-2023-01 Rotor Assy-Rh
54 1483-2024-01 Rotor Assy-Lh
55 1483-2169-01 Right Tine Assy
55 1483-2170-01 Left Tine Assy
56 9997-1050-16 Screw
57 9747-1031-02 Nut
58 118802990/0 Right Tine Assy
58 118802991/0 Left Tine Assy
59 9997-1050-16 Screw
60 9747-1031-02 Nut
61 1483-2022-01 Disc
Trasmission Pag.2
1 118802981/0 Support
2 112791500/0 Screw
3 112154510/0 Nut
4 112155000/0 Nut
5 112691115/0 Screw
6 118803015/0 Pin
7 118802998/0 Guard
8 118802975/0 Transm.Plate
9 9959-0825-16 Screw
10 118803019/0 Screw
11 9959-0616-16 Screw
12 9987-5116-16 Screw
13 9699-0028-02 Washer
14 9699-0028-02 Washer
15 118802993/0 Shaft
16 9549-0001-00 Ball Bearing
17 1483-2175-01 Gear Kit Pos. 17+22
18 1483-2145-01 Spacer
19 118802994/0 Mounting Plate
20 112155000/0 Nut
21 1483-2117-01 Spacer
22 1483-2176-01 Gear Kit Pos. 17+22
23 118802973/0 Engine Pulley
24 9699-0028-02 Washer
25 1483-2283-01 Screw
26 1483-2207-01 Spring
27 118802996/0 Tension Arm
28 112155000/0 Nut
29 1483-2207-01 Spring
30 118802997/0 Tension Arm
31 112155000/0 Nut
32 118802995/0 Belt Pulley
33 1483-2149-01 Belt
34 118802965/0 Drive Belt
35 9699-0105-02 Washer
36 9747-1031-02 Nut
37 118803014/0 Washer
38 118802976/0 Belt Guard
39 9959-0616-16 Screw
40 112791400/0 Screw
41 9747-0631-02 Nut
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SRC 795 RB 212951122-14-2017
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Stiga SRC 795 RB

Diagram Stiga SRC 795 RB

Download (448.71KB)

You might also like

Gears Set for Tillers Stiga SRC 775 RB - SRC 795 RB
GGP Italy SKU: 1483-2175-01
Gears Set for Tillers Stiga SRC 775 RB - SRC 795 RB
Gears Set for Tillers Stiga SRC 775 RB - SRC 795 RB Original replacement part Stiga, Gears Set ( Toothed Wheels) for Tillers SRC 775 RB - SRC 795 RB. Part for the following products: - ...
Last items in stock €37.87
Details
Belt X10-1128 Lp for Tiller Stiga SRC 775 RB
GGP Italy SKU: 1483-2149-01
Belt X10-1128 Lp for Tiller Stiga SRC 775 RB
Belt X10-1128 Lp for Tiller Stiga SRC 775 RB Original replacement part Stiga, Belt Optibelt X10-1128 Lp for Motorhoes SRC 775 RB - SRC 795 RB - Silex 103 B. Part for the following products: -  Tiller SRC 775 RB/212751122-14-2017 -...
Last items in stock €40.00
Details
Belt Z1038 LD for Tiller Stiga SRC 775 RB
GGP Italy SKU: 118802965/0
Belt Z1038 LD for Tiller Stiga SRC 775 RB
Belt Z1038 LD for Tiller Stiga SRC 775 RB Original replacement part Stiga, Belt Optibelt Z1038 LD 10X1016 LI Z 40 for Tillers SRC 775 RB - SRC 795 RB. Part for the following products: -  Tiller SRC 775 RB/212751122-14-2017 -  Tiller...
Last items in stock €16.92
Details
Comments (0)
