Stiga Spare Parts for Electric Chain Saw SEV 2416 Q

SKU: SEV 2416 Q - 292816182-14-2017
€1.58
VAT included

Stiga Spare Parts for Electric Chain Saw SEV 2416 Q

We supply STIGA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chain Saw SEV 2416 Q/292816182-14-2017.

SEV 2416 Q - 292816182-14-2017
Stiga Spare Parts for Electric Chain Saw SEV 2416 Q
  • Stiga Spare Parts for Electric Chain Saw SEV 2416 Q
  • Stiga Spare Parts for Electric Chain Saw SEV 2416 Q - Diagram
GGP Italy

Stiga Spare Parts for Electric Chain Saw SEV 2416 Q

SKU: SEV 2416 Q - 292816182-14-2017 Condition: New
€1.58
VAT included

Stiga Spare Parts for Electric Chain Saw SEV 2416 Q

We supply STIGA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chain Saw SEV 2416 Q/292816182-14-2017.

SEV 2416 Q - 292816182-14-2017
settings 56 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
Machine Type: Electric Chainsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

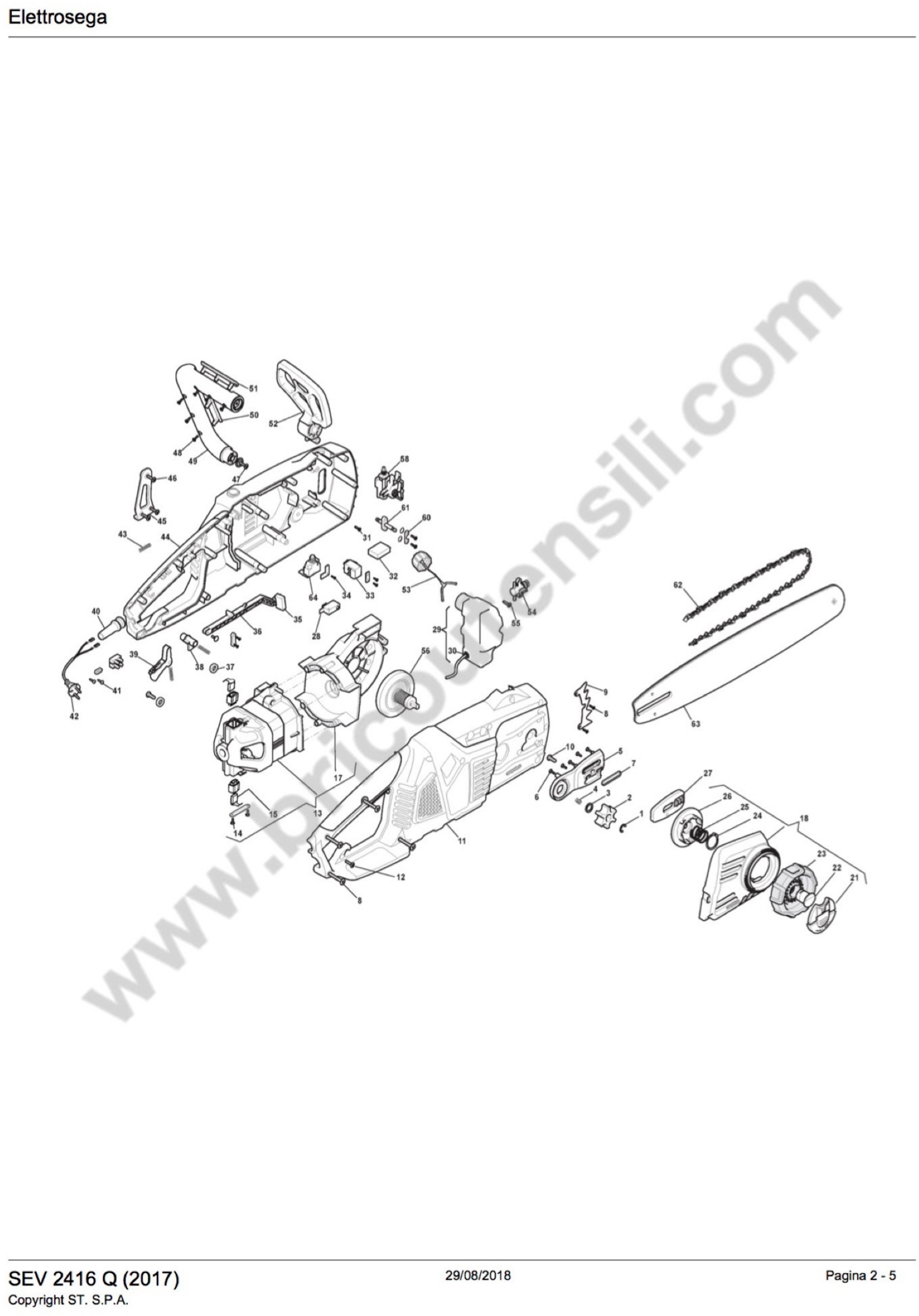

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118800466/0 Snap Ring €1.45
2
 photo_cameraImage coming soon 118800791/0 Pinion €2.18
3
 photo_cameraImage coming soon 118800806/0 Seal Ring €1.51
4
 Take-Up Spring for Electric Chainsaws Alpina C 1.8 E 118800819/0 Take-Up Spring for Electric Chainsaws Alpina C 1.8 E €1.75
5
 photo_cameraImage coming soon 118800823/0 Plate €3.72
6
 photo_cameraImage coming soon 118800849/0 Screw €0.00 Not available for order
7
 photo_cameraImage coming soon 118800809/0 Seal Ring €1.64
8
 Self Tapping Screw 4x12 for Electric Chainsaw Stiga SEV 2416 Q 118800473/0 Self Tapping Screw 4x12 for Electric Chainsaw Stiga SEV 2416 Q €1.42
9
 photo_cameraImage coming soon 118800795/0 Spike €0.00 Not available for order
10
 photo_cameraImage coming soon 118800803/0 Screw €0.00 Not available for order
11
 photo_cameraImage coming soon 118803041/0 Handle, Grey €0.11 Not available for order
12
 photo_cameraImage coming soon 118800475/0 Screw €0.00 Not available for order
13
 photo_cameraImage coming soon 118800834/0 Motor Assy €177.33
14
 photo_cameraImage coming soon 118800470/0 Screw €1.38
15
 Carbon Brush Set for Electric Chainsaw Stiga SEV 2416 Q 118800828/0 Carbon Brush Set for Electric Chainsaw Stiga SEV 2416 Q €13.16
17
 photo_cameraImage coming soon 118800793/0 Bar Plate €0.11 Not available for order
18
 photo_cameraImage coming soon 118803042/0 Bar Holder Assy Grey €0.11 Not available for order
21
 photo_cameraImage coming soon 118801057/0 Knob €0.11 Not available for order
22
 photo_cameraImage coming soon 118801058/0 Spring €0.11 Not available for order
23
 photo_cameraImage coming soon 118801059/0 Spring €12.60
24
 photo_cameraImage coming soon 118800847/0 Twise Wheel €0.00 Not available for order
25
 photo_cameraImage coming soon 118801060/0 Shove Bar €0.00 Not available for order
26
 photo_cameraImage coming soon 118801061/0 Twise Wheel €5.33
27
 photo_cameraImage coming soon 118802330/0 Chain Tensioner €8.71
28
 photo_cameraImage coming soon 118800784/0 Microswitch €2.81
29
 photo_cameraImage coming soon 118800835/0 Oil Tank €5.33
30
 photo_cameraImage coming soon 118800825/0 Grommet €1.51
31
 photo_cameraImage coming soon 118800474/0 Screw €0.00 Not available for order
32
 photo_cameraImage coming soon 118800829/0 Microswitch €15.24
33
 photo_cameraImage coming soon 118800781/0 Switch €4.56
34
 photo_cameraImage coming soon 118800477/0 Screw €3.75
35
 photo_cameraImage coming soon 118800831/0 Capacitor €2.18
36
 photo_cameraImage coming soon 118800785/0 Lever €2.18
37
 photo_cameraImage coming soon 118800790/0 Wheel €0.00 Not available for order
38
 photo_cameraImage coming soon 118800813/0 Button €1.35
39
 photo_cameraImage coming soon 118803043/0 Switch Lever,Yellow €0.11 Not available for order
40
 photo_cameraImage coming soon 118800817/0 Cord Protector €1.35
41
 Self Tapping Screw 4x12 for Electric Chainsaw Stiga SEV 2416 Q 118800473/0 Self Tapping Screw 4x12 for Electric Chainsaw Stiga SEV 2416 Q €1.42
42
 photo_cameraImage coming soon 118800832/0 Power Cord Assy,CE €5.33
42
 photo_cameraImage coming soon 118801468/0 Power Cord Assy,UK €30.36
43
 photo_cameraImage coming soon 118800822/0 Spring €0.00 Not available for order
44
 photo_cameraImage coming soon 118803044/0 Handle Assy, Grey €0.11 Not available for order
45
 photo_cameraImage coming soon 118800794/0 Link Block €2.18
46
 photo_cameraImage coming soon 118800475/0 Screw €0.00 Not available for order
47
 photo_cameraImage coming soon 118800475/0 Screw €0.00 Not available for order
48
 photo_cameraImage coming soon 118800471/0 Screw €0.00 Not available for order
49
 photo_cameraImage coming soon 118800769/0 Handle,Black €8.84
50
 photo_cameraImage coming soon 118800771/0 Handle Cover,Black €8.84
51
 photo_cameraImage coming soon 118800772/0 Handle Cover,Black €8.84
52
 photo_cameraImage coming soon 118801062/0 Hand Guard €6.86
53
 photo_cameraImage coming soon 118803045/0 Tank Cap, Yellow €0.11 Not available for order
54
 photo_cameraImage coming soon 118800845/0 Oil Pump €16.16
55
 photo_cameraImage coming soon 118800477/0 Screw €3.75
56
 photo_cameraImage coming soon 118800837/0 Gear Assy €35.03
58
 photo_cameraImage coming soon 118800838/0 Brake Level Groupware €8.40
60
 photo_cameraImage coming soon 118800797/0 Plate €0.00 Not available for order
61
 photo_cameraImage coming soon 118800810/0 Joint Chair Assy €1.55
62
 photo_cameraImage coming soon 4113706 Chain 16inch €22.60
63
 photo_cameraImage coming soon 123900368/0 Bar 16inch €58.51
64
 photo_cameraImage coming soon 118801467/0 Overloading protector €4.56

Shipping and delivery information will be available shortly.

Stiga Spare Parts for Electric Chain Saw SEV 2416 Q

We supply STIGA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chain Saw SEV 2416 Q/292816182-14-2017.

In the following table, look for the model of the Electric Chain Saw and the respective parts of the code.
SEV 2416 Q - 292816182-14-2017

Electric Chain Saw SEV 2416 Q/292816182-14-2017
# Part Num. Description
1 118800466/0 Snap Ring
2 118800791/0 Pinion
3 118800806/0 Seal Ring
4 118800819/0 Take-Up Spring
5 118800823/0 Plate
6 118800849/0 Screw
7 118800809/0 Seal Ring
8 118800473/0 Screw
9 118800795/0 Spike
10 118800803/0 Screw
11 118803041/0 Handle, Grey
12 118800475/0 Screw
13 118800834/0 Motor Assy
14 118800470/0 Screw
15 118800828/0 Carbon Brushe set
17 118800793/0 Bar Plate
18 118803042/0 Bar Holder Assy Grey
21 118801057/0 Knob
22 118801058/0 Spring
23 118801059/0 Spring
24 118800847/0 Twise Wheel
25 118801060/0 Shove Bar
26 118801061/0 Twise Wheel
27 118802330/0 Chain Tensioner
28 118800784/0 Microswitch
29 118800835/0 Oil Tank
30 118800825/0 Grommet
31 118800474/0 Screw
32 118800829/0 Microswitch
33 118800781/0 Switch
34 118800477/0 Screw
35 118800831/0 Capacitor
36 118800785/0 Lever
37 118800790/0 Wheel
38 118800813/0 Button
39 118803043/0 Switch Lever,Yellow
40 118800817/0 Cord Protector
41 118800473/0 Screw
42 118800832/0 Power Cord Assy,CE
42 118801468/0 Power Cord Assy,UK
43 118800822/0 Spring
44 118803044/0 Handle Assy, Grey
45 118800794/0 Link Block
46 118800475/0 Screw
47 118800475/0 Screw
48 118800471/0 Screw
49 118800769/0 Handle,Black
50 118800771/0 Handle Cover,Black
51 118800772/0 Handle Cover,Black
52 118801062/0 Hand Guard
53 118803045/0 Tank Cap, Yellow
54 118800845/0 Oil Pump
55 118800477/0 Screw
56 118800837/0 Gear Assy
58 118800838/0 Brake Level Groupware
60 118800797/0 Plate
61 118800810/0 Joint Chair Assy
62 4113706 Chain 16inch
63 123900368/0 Bar 16inch
64 118801467/0 Overloading protector
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SEV 2416 Q - 292816182-14-2017
10 Items

Data sheet

CHECK S/N ALPINA
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Electric Chainsaw

Specific References

New

Download

Diagram Stiga SEV 2416 Q

Diagram Stiga SEV 2416 Q

Download (182.83KB)
