Stiga Spare Parts for Engine Brushcutter SBC 232 (2017)

SKU: Stiga SBC232 287220002/16
€1.53
VAT included

Stiga Spare Parts for Engine Brushcutter SBC 232 (2017)

Stiga original spare parts for to replace broken parts or to fix Brushcutter SBC 232 287220002/16 - Season 2017.

Stiga SBC 232 287220002/16
Stiga Spare Parts for Engine Brushcutter SBC 232
  • Stiga Spare Parts for Engine Brushcutter SBC 232
  • Stiga Spare Parts for Engine Brushcutter SBC 232
  • Stiga Spare Parts for Engine Brushcutter SBC 232
GGP Italy

Stiga Spare Parts for Engine Brushcutter SBC 232 (2017)

SKU: Stiga SBC232 287220002/16 Condition: New
€1.53
VAT included

Stiga Spare Parts for Engine Brushcutter SBC 232 (2017)

Stiga original spare parts for to replace broken parts or to fix Brushcutter SBC 232 287220002/16 - Season 2017.

Stiga SBC 232 287220002/16
settings 107 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
Machine Type: Brushcutters
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
107 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

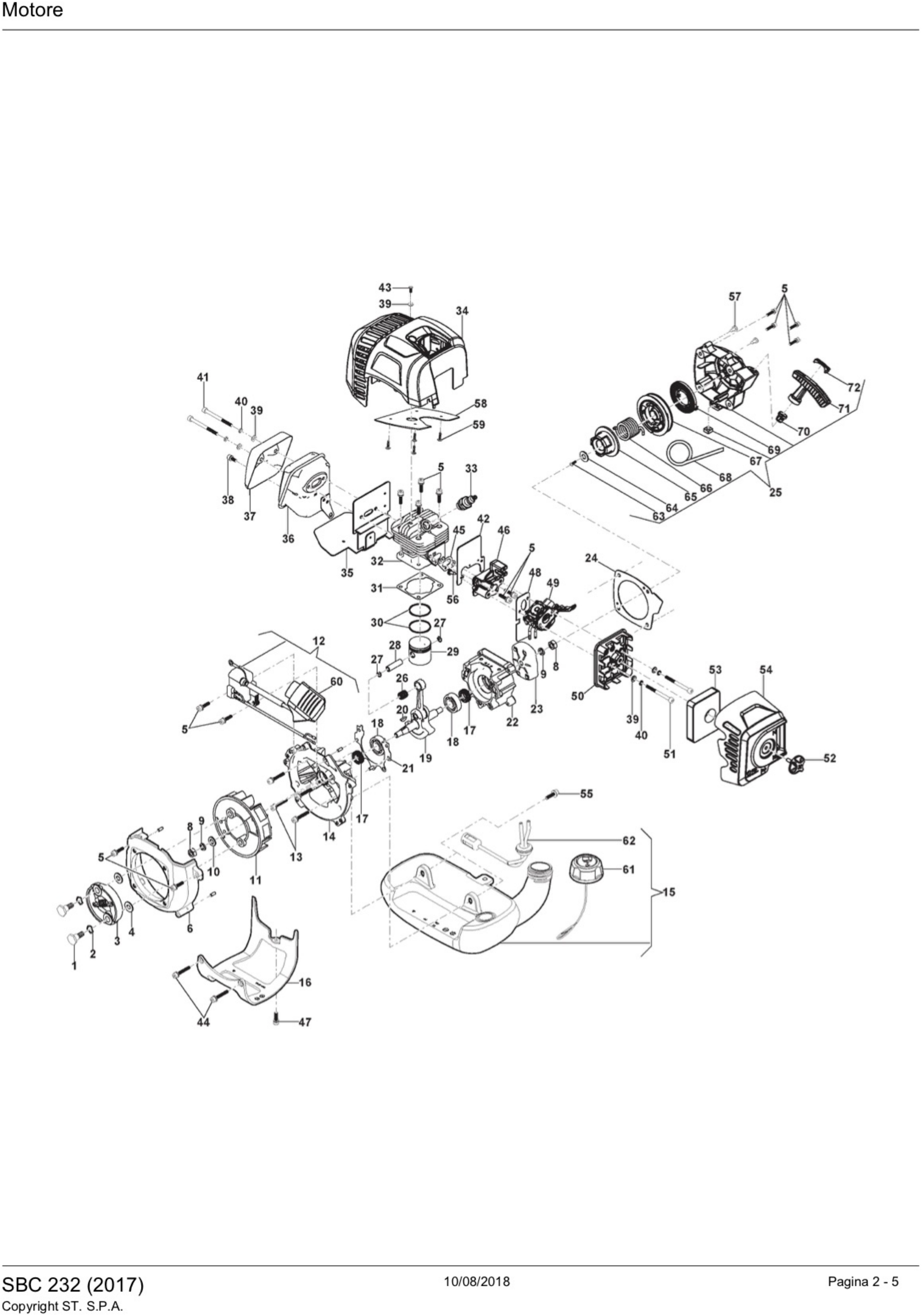

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118804038/0 Screw €1.58
2
 photo_cameraImage coming soon 118804045/0 Washer €1.54
3
 Clutch Ass'y for Brushcutters Alpina B 32 - B 42 - B 52 118804000/0 Clutch Ass'y for Brushcutters Alpina B 32 - B 42 - B 52 €11.00
4
 photo_cameraImage coming soon 118804046/0 Washer €1.36
5
 photo_cameraImage coming soon 112789008/0 Screw €1.92
8
 photo_cameraImage coming soon 112293200/0 Nut €1.74
9
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
10
 photo_cameraImage coming soon 112521350/0 Washer €1.74
11
 photo_cameraImage coming soon 118804012/0 Flywheel €21.93
12
 Ignition Coil Ass'y for Brushcutter Alpina B 32 118804011/0 Ignition Coil Ass'y for Brushcutter Alpina B 32 €35.45
13
 photo_cameraImage coming soon 2135130 Screw €1.58
14
 photo_cameraImage coming soon 118804024/0 Crankcase, Clutch Side €16.87
15
 Fuel Tank Assy for Brushcutter Stiga SBC 232 118804003/0 Fuel Tank Assy for Brushcutter Stiga SBC 232 €16.90
16
 photo_cameraImage coming soon 118803961/0 Support €8.94
17
 Seal Ring 12x22x7 for Brushcutter Alpina B 42 118801188/0 Seal Ring 12x22x7 for Brushcutter Alpina B 42 €2.13
18
 photo_cameraImage coming soon 3112030 Ball Bearing €14.86
19
 Crankshaft for Brushcutters Alpina B 32 - Stiga SBC 232 118803988/0 Crankshaft for Brushcutters Alpina B 32 - Stiga SBC 232 €41.67
20
 Flywheel Woodruf for Brushcutters Alpina B 26 J-TB 250 J-T 26 J 123072002/0 Flywheel Woodruf for Brushcutters Alpina B 26 J-TB 250 J-T 26 J €1.50
21
 photo_cameraImage coming soon 118804076/0 Crankcase Gasket €1.58
22
 photo_cameraImage coming soon 118804026/0 Crank Case, starter side €15.47
23
 Alpina Starter Cup for ABR32 118803996/0 Alpina Starter Cup for ABR32 €4.45
24
 photo_cameraImage coming soon 118804051/0 Gasket €2.02
25
 Alpina Starter for ABR 32 118803994/0 Alpina Starter for ABR 32 €23.33
26
 Needle Bearing for Brushcutter Alpina B 32 118803997/0 Needle Bearing for Brushcutter Alpina B 32 €3.78
27
 Circlip for Brushcutter Alpina B 32 - Stiga SBC 232 118804059/0 Circlip for Brushcutter Alpina B 32 - Stiga SBC 232 €1.37
28
 Piston Pin for Brushcutter Alpina B 32 - Stiga SBC 232 118804041/0 Piston Pin for Brushcutter Alpina B 32 - Stiga SBC 232 €2.29
29
 Piston for Brushcutter Alpina B 32 - Stiga SBC 232 118804031/0 Piston for Brushcutter Alpina B 32 - Stiga SBC 232 €8.50
30
 Piston Ring for Brushcutter Alpina B 32 - Stiga SBC 232 118804021/0 Piston Ring for Brushcutter Alpina B 32 - Stiga SBC 232 €2.91
31
 Cylinder Gasket for Brushcutter Alpina B 32 - Stiga SBC 232 118804077/0 Cylinder Gasket for Brushcutter Alpina B 32 - Stiga SBC 232 €2.14
32
 Cylinder for Brushcutter Alpina B 32 - Stiga SBC 232 118804030/0 Cylinder for Brushcutter Alpina B 32 - Stiga SBC 232 €43.20
33
 Spark Plug CJ7Y 3210024 Spark Plug CJ7Y €4.32
35
 photo_cameraImage coming soon 118804084/0 Muffler Gasket €6.58
36
 photo_cameraImage coming soon 118803991/0 Muffler €43.68
37
 photo_cameraImage coming soon 118804047/0 Muffler Guard €4.38
38
 photo_cameraImage coming soon 2135180 Screw €1.40
39
 photo_cameraImage coming soon 112521320/0 Washer €1.74
40
 photo_cameraImage coming soon 112581500/0 Grower €1.54
41
 photo_cameraImage coming soon 6981283 Outfit, Screws €1.74
42
 photo_cameraImage coming soon 118804053/0 Intake Manifold Gasket €2.31
43
 Screw 112727796/0 Screw €1.74
44
 Screw TX M5x40 for Brushcutter Alpina B 26 J 2135120 Screw TX M5x40 for Brushcutter Alpina B 26 J €1.57
45
 Cylinder Intake Manifold Gasket for Brushcutter Alpina B 32 - SBC 232 118804078/0 Cylinder Intake Manifold Gasket for Brushcutter Alpina B 32 - SBC 232 €1.60
46
 Alpina ABR32 Intake Manifold 118804067/0 Alpina ABR32 Intake Manifold €3.71
47
 photo_cameraImage coming soon 6981102 Outfit, Screws €2.65
48
 photo_cameraImage coming soon 118804082/0 Carburetor Gasket €1.74
49
 Carburetor for Brushcutter Stiga SBC 232 118804007/0 Carburetor for Brushcutter Stiga SBC 232 €48.80
50
 Air Cleaner Base for Brushcutters Alpina B 32 - B 42 118804063/0 Air Cleaner Base for Brushcutters Alpina B 32 - B 42 €1.50
51
 Carburator Torx Screw M5x55 Brushcutters Alpina 2135250 Carburator Torx Screw M5x55 Brushcutters Alpina €2.10
52
 Air Cleaner Cover Knob for Brushcutter Stiga SBC 252 F 118803174/0 Air Cleaner Cover Knob for Brushcutter Stiga SBC 252 F €3.01
53
 Air Filter Sponge for Brushcutters Alpina B 32 - B 42 118804074/0 Air Filter Sponge for Brushcutters Alpina B 32 - B 42 €2.13
54
 photo_cameraImage coming soon 118803968/0 Yellow filter cover €5.09
55
 photo_cameraImage coming soon 112760475/0 Screw €2.18
56
 photo_cameraImage coming soon 6981268 Screw €1.89
57
 photo_cameraImage coming soon 112727356/0 Screw €2.18
58
 photo_cameraImage coming soon 118804086/0 Air Guide €7.16
59
 photo_cameraImage coming soon 112727810/0 Screw €1.79
60
 Spark Plug Cap for Brushcutter Alpina B32 118803163/0 Spark Plug Cap for Brushcutter Alpina B32 €6.60
61
 Fuel Tank Cap for Brushcutters Alpina B 26 J-T 26 J 322735152/0 Fuel Tank Cap for Brushcutters Alpina B 26 J-T 26 J €3.84
62
 photo_cameraImage coming soon 118804006/0 Fuel Hose €6.63
63
 photo_cameraImage coming soon 112727790/0 Screw €1.74
64
 photo_cameraImage coming soon 112523020/0 Washer €1.74
65
 photo_cameraImage coming soon 118803975/0 Starter Cam €3.50
66
 photo_cameraImage coming soon 118804061/0 Starter Spring €3.30
67
 photo_cameraImage coming soon 118803976/0 Starter Pulley €7.99
68
 photo_cameraImage coming soon 118803181/0 Starter Cord €2.91
69
 Starter Spring for Brushcutters Alpina B 32 - B 42 118804060/0 Starter Spring for Brushcutters Alpina B 32 - B 42 €6.57
71
 photo_cameraImage coming soon 118803984/0 Starter Handle €2.16
72
 photo_cameraImage coming soon 118804069/0 Yellow Starter plate €1.51
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

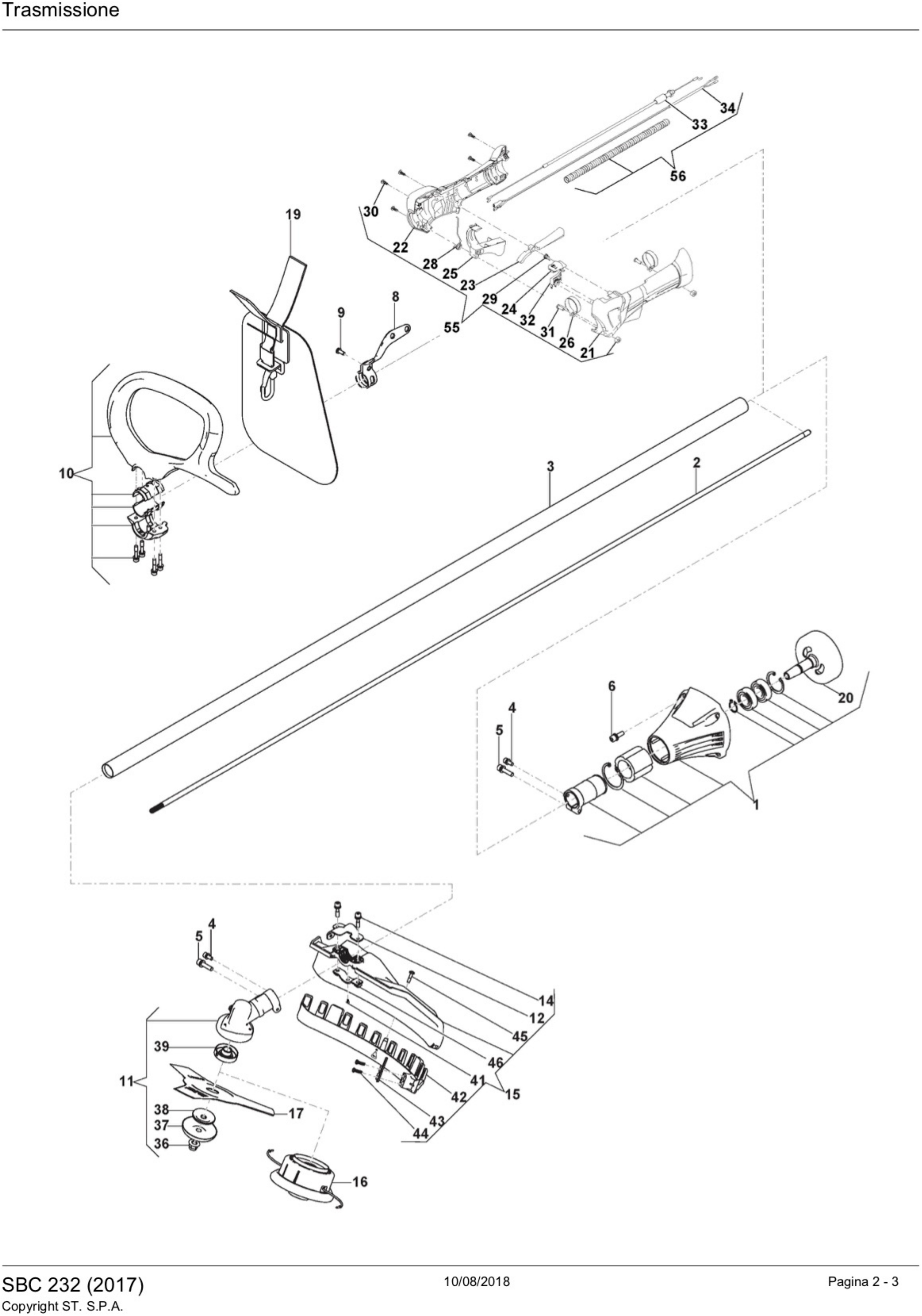

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118804001/0 Support Transmission Assy €43.30
2
 Drive Shaft for Brushcutters Alpina B 32 - 42 - 52 118804042/0 Drive Shaft for Brushcutters Alpina B 32 - 42 - 52 €16.33
3
 Transmission Pipe for Brushcutter Alpina B32 118803959/0 Transmission Pipe for Brushcutter Alpina B32 €23.00
4
 photo_cameraImage coming soon 6981145 Screw €1.74
5
 Screw TCCE M6X25 for Chainsaw - Brushcutters Alpina 2132180 Screw TCCE M6X25 for Chainsaw - Brushcutters Alpina €1.53
6
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
8
 Alpina ABR32 Harness Connector 118804057/0 Alpina ABR32 Harness Connector €4.77
9
 photo_cameraImage coming soon 2135180 Screw €1.40
10
 Front Handle Assy for Brushcutter Stiga SBC 232 118803955/0 Front Handle Assy for Brushcutter Stiga SBC 232 €23.96
11
 Gear Box for Brushcutter Alpina TB 250 J 118801184/0 Gear Box for Brushcutter Alpina TB 250 J €67.41
12
 Plastic Protection Guard Plate for Brushcutter Stiga SBC 232 118804054/0 Plastic Protection Guard Plate for Brushcutter Stiga SBC 232 €3.14
14
 Screw TCCE M6X25 for Chainsaw - Brushcutters Alpina 2132180 Screw TCCE M6X25 for Chainsaw - Brushcutters Alpina €1.53
15
 Safety Cover Assy for Brushcutter Stiga SBC 232 118803954/0 Safety Cover Assy for Brushcutter Stiga SBC 232 €27.00
16
 Hedges Nylon Head M10x1,25 F. for Brushcutters Alpina B 26 J-TB 250 J 118801124/0 Hedges Nylon Head M10x1,25 F. for Brushcutters Alpina B 26 J-TB 250 J €12.12
17
 Alpina ABR32 3 Teeth Disc 118801125/0 Alpina ABR32 3 Teeth Disc €10.12
19
 Alpina ABR32 Harness Ass'y 118804016/0 Alpina ABR32 Harness Ass'y €24.29
20
 Clutch Drum for Brushcutters Alpina B 32 - B 42 - B 52 118804037/0 Clutch Drum for Brushcutters Alpina B 32 - B 42 - B 52 €13.90
21
 photo_cameraImage coming soon 118803966/0 Yellow Left Handgrip €5.26
22
 photo_cameraImage coming soon 118803972/0 Yellow Right Handgrip €5.26
23
 photo_cameraImage coming soon 118803149/0 Switch €1.58
24
 photo_cameraImage coming soon 118803147/0 Switch €1.58
25
 photo_cameraImage coming soon 118803150/0 Throttle Lever, Yellow €3.36
26
 photo_cameraImage coming soon 118803146/0 Clamp €1.88
28
 photo_cameraImage coming soon 118803151/0 Spring €1.88
29
 photo_cameraImage coming soon 118803148/0 Spring €1.51
30
 photo_cameraImage coming soon 112727810/0 Screw €1.79
31
 photo_cameraImage coming soon 112726388/0 Screw €1.72
32
 photo_cameraImage coming soon 118804014/0 Switch €2.31
33
 photo_cameraImage coming soon 118803985/0 Throttle Cable €8.65
34
 photo_cameraImage coming soon 118803155/0 Stop Wire €1.64
36
 Self Locking Nut M10x1.25 Left Thread for Brushcutters Alpina 2452090 Self Locking Nut M10x1.25 Left Thread for Brushcutters Alpina €5.51
37
 Castelgarden Dust Cover for XB 250 J 118803206/0 Castelgarden Dust Cover for XB 250 J €3.71
38
 Lower Gear Box Washer for Brushcutter Alpina TB 250 J 118803205/0 Lower Gear Box Washer for Brushcutter Alpina TB 250 J €5.67
39
 Upper Gear Box Washer for Brushcutter Alpina TB 250 J 118803204/0 Upper Gear Box Washer for Brushcutter Alpina TB 250 J €5.97
41
 photo_cameraImage coming soon 112727815/0 Screw €1.66
42
 Safety Guard Lower Strip for Brushcutters Alpina TB 320 - TB 420 118803202/0 Safety Guard Lower Strip for Brushcutters Alpina TB 320 - TB 420 €6.50
43
 Line Cutter Blade for Brushcutters Alpina TB 320 - TB 420 118804056/0 Line Cutter Blade for Brushcutters Alpina TB 320 - TB 420 €2.13
44
 photo_cameraImage coming soon 6981149 Screw €2.02
45
 photo_cameraImage coming soon 112728531/0 Screw €1.54
46
 photo_cameraImage coming soon 118804058/0 Guard €5.51
55
 Throttle Handle Assy for Brushcutter Stiga SBC 232 118804956/0 Throttle Handle Assy for Brushcutter Stiga SBC 232 €26.50
56
 photo_cameraImage coming soon 118804957/0 Ass'y Cable €4.08

Shipping and delivery information will be available shortly.

Stiga Spare Parts for Engine Brushcutter SBC 232 (2017)

Stiga original spare parts for to replace broken parts or to fix Brushcutter SBC 232 287220002/16 - Season 2017.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Stiga SBC 232 287220002/16

SBC 232 287220002/16 - Season 2017 - Engine Pag.1
# Part Num. Description
1 118804038/0 Screw
2 118804045/0 Washer
3 118804000/0 Clutch
4 118804046/0 Washer
5 112789008/0 Screw
6 118804032/0 Flywheel cover
8 112293200/0 Nut
9 112369500/0 Elastic Washer
10 112521350/0 Washer
11 118804012/0 Flywheel
12 118804011/0 Electronic Ignition Coil Ass'y
13 2135130 Screw
14 118804024/0 Crankcase, Clutch Side
15 118804003/0 Fuel Tank Assy
16 118803961/0 Support
17 118801188/0 Seal ring
18 3112030 Ball bearing
19 118803988/0 Crankshaft
20 123072002/0 Flywheel key
21 118804076/0 Crankcase Gasket
22 118804026/0 Crank Case, starter side
23 118803996/0 Starter Cup
24 118804051/0 gasket
25 118803994/0 Starter Assy
26 118803997/0 Needle Bearing
27 118804059/0 Circlip
28 118804041/0 Piston pin
29 118804031/0 Piston
30 118804021/0 Piston Ring
31 118804077/0 Cylinder gasket
32 118804030/0 Cylinder
33 3210024 Spark Plug
34 118803969/0 Head Cover Yellow Cylinder
35 118804084/0 Muffler gasket
36 118803991/0 Muffle
37 118804047/0 Muffle Guard
38 2135180 Screw
39 112521320/0 Washer
40 112581500/0 Grower
41 6981283 Outfit, Screws
42 118804053/0 Intake Manifold Gasket
43 112727796/0 Screw
44 2135120 Screw
45 118804078/0 Gasket
46 118804067/0 Intake Manifold
47 6981102 Outfit, Screws
48 118804082/0 Carburetor Gasket
49 118804007/0 Carburetor
50 118804063/0 Air Cleaner Base
51 2135250 Screw
52 118803174/0 Knob Gray
53 118804074/0 Air filter
54 118803968/0 Yellow filter cover
55 112760475/0 Screw
56 6981268 Screw
57 112727356/0 Screw
58 118804086/0 Air Guide
59 112727810/0 Screw
60 118803163/0 Spark Plug cap
61 322735152/0 Oil cap
62 118804006/0 Fuel Hose
63 112727790/0 Screw
64 112523020/0 Washer
65 118803975/0 Starter Cam
66 118804061/0 Starter Spring
67 118803976/0 Starter Pulley
68 118803181/0 Starter cord
69 118804060/0 Spring
70 118804068/0 rope Guide
71 118803984/0 Starter Handle
72 118804069/0 Yellow Starter plate
SBC 232 287220002/16 - Season 2017 - Trasmission Pag.2
1 118804001/0 Support Transmission Assy
2 118804042/0 Drive shaft
3 118803959/0 Transmission Pipe
4 6981145 Screw
5 2132180 Screw
6 112727801/0 Screw
8 118804057/0 Harness support
9 2135180 Screw
10 118803955/0 Yellow Handgrip Front Assy
11 118801184/0 Gear case Assy
12 118804054/0 Plastic Protection Guard Plate
14 2132180 Screw
15 118803954/0 Safety cover Assy
16 118801124/0 2 Hedges Nylon head
17 118801125/0 3 Teeth Disk
19 118804016/0 Harness
20 118804037/0 Clutch Drum
21 118803966/0 Yellow Left Handgrip
22 118803972/0 Yellow Right Handgrip
23 118803149/0 Switch
24 118803147/0 Switch
25 118803150/0 ThrottleLever, Yellow
26 118803146/0 Clamp
28 118803151/0 Spring
29 118803148/0 Spring
30 112727810/0 Screw
31 112726388/0 Screw
32 118804014/0 Switch
33 118803985/0 Throttle cable
34 118803155/0 Stop Wire
36 2452090 Nut
37 118803206/0 Case Dust cover
38 118803205/0 Lower Ring Nut
39 118803204/0 Upper ring Nut
41 112727815/0 Screw
42 118803202/0 Support
43 118804056/0 Line Cutter Blade
44 6981149 Screw
45 112728531/0 Screw
46 118804058/0 Guard
55 118804956/0 Handgrip, Yellow Assy
56 118804957/0 Assembly Wire
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stiga SBC232 287220002/16
6 Items

Data sheet

Machine Type
Brushcutters
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Stiga SBC 232

Diagram Stiga SBC 232

Download (418.02KB)

You might also like

Gear Box for Brushcutter Alpina TB 250 J
GGP Italy SKU: 118801184/0
Gear Box for Brushcutter Alpina TB 250 J
Gear Box for Brushcutter Alpina TB 250 J Original parts Alpina, Gear Box for Brushcutters Alpina B 26 J/287120100-15-2017 - TB 250 J/286120100-13-2017 Part for the following products: -  Brushcutter B 26...
AVAILABLE €67.41
Details
Starter Spring for Brushcutters Alpina B 32 - B 42
GGP Italy SKU: 118804060/0
Starter Spring for Brushcutters Alpina B 32 - B 42
Starter Spring for Brushcutters Alpina B 32 - B 42 Original replacement part Alpina, Starter Spring for Brushcutters Alpina B 32 - B 42 - B 42 D - B 52 - B 52 D. Part for the following...
AVAILABLE €6.57
Details
Air Cleaner Base for Brushcutters Alpina B 32 - B 42
GGP Italy SKU: 118804063/0
Air Cleaner Base for Brushcutters Alpina B 32 - B 42
Air Cleaner Base for Brushcutters Alpina B 32 - B 42 Original replacement part Alpina, Air Cleaner Base for Brushcutters Alpina B 32 - B 42 - B 42 D - B 52 - B 52 D. Part for the...
on 7/10 Business Days Approx. €1.50
Details
Drive Shaft for Brushcutters Alpina B 32 - 42 - 52
HiKOKI Power Tools Italia S.p.a. SKU: 118804042/0
Drive Shaft for Brushcutters Alpina B 32 - 42 - 52
Drive Shaft for Brushcutters Alpina B 32 - 42 - 52 Genuine part Alpina, Drive Shaft for Brushcutters B 32 - B 42 - B 52 - Siga SBC 232 - SBC 242 - SBC 252. Part for the following products: -  Brushcutter B 32 287220000-16-2017 -...
AVAILABLE €16.33
Details
Fuel Tank Assy for Brushcutter Stiga SBC 232
HiKOKI Power Tools Italia S.p.a. SKU: 118804003/0
Fuel Tank Assy for Brushcutter Stiga SBC 232
Fuel Tank Assy for Brushcutter Stiga SBC 232 Original replacement part Stiga, Fuel Tank Assy for Brushcutters B 32 - B 32 - CB 132 - EP 320G - MB33D - SBC 232 - SBC 232D. Part for the following products: - Brushcutter Alpina B...
on 7/10 Business Days Approx €16.90
Details
Piston for Brushcutter Alpina B 32 - Stiga SBC 232
GGP Italy SKU: 118804031/0
Piston for Brushcutter Alpina B 32 - Stiga SBC 232
Piston for Brushcutter Alpina B 32 - Stiga SBC 232 Original replacement part Alpina, Piston for Brushcutter Alpina B 32 - Stiga SBC 232 - SBC 232 D. Part for the following products: -  Brushcutter Alpina B 32...
AVAILABLE €8.50
Details
Crankshaft for Brushcutters Alpina B 32 - Stiga SBC 232
GGP Italy SKU: 118803988/0
Crankshaft for Brushcutters Alpina B 32 - Stiga SBC 232
Crankshaft for Brushcutters Alpina B 32 - Stiga SBC 232 Original replacement part Alpina, Crankshaft Complete for Brushcutters Alpina B 32 - Stiga SBC 232 - SBC 232 D. Part for the following products: -  Brushcutter Alpina B...
Last items in stock €41.67
Details
Front Handle Assy for Brushcutter Stiga SBC 232
HiKOKI Power Tools Italia S.p.a. SKU: 118803955/0
Front Handle Assy for Brushcutter Stiga SBC 232
Front Handle Assy for Brushcutter Stiga SBC 232 Original replacement part Stiga, Front Handle Assy Yellow for Brushcutters SBC 232 - SBC 242 - SBC 252 - 252 F -...
Usually Ships in: 7/10 Business Days Approx. €23.96
Details
Throttle Handle Assy for Brushcutter Stiga SBC 232
HiKOKI Power Tools Italia S.p.a. SKU: 118804956/0
Throttle Handle Assy for Brushcutter Stiga SBC 232
Throttle Handle Assy for Brushcutter Stiga SBC 232 Original replacement part Stiga, Throttle Handle Assy Yellow for Brushcutters SBC 232 - SBC 242 - SBC 252 - 252 F...
AVAILABLE €26.50
Details
Air Filter Sponge for Brushcutters Alpina B 32 - B 42
GGP Italy SKU: 118804074/0
Air Filter Sponge for Brushcutters Alpina B 32 - B 42
Air Filter Sponge for Brushcutters Alpina B 32 - B 42 Original replacement part Alpina, Air Filter Sponge for Brushcutters Alpina B 32 - B 42 - B 42 D - B 52 - B 52 D. Part for the following products: - Brushcutter Alpina B...
AVAILABLE €2.13
Details
Plastic Protection Guard Plate for Brushcutter Stiga SBC 232
HiKOKI Power Tools Italia S.p.a. SKU: 118804054/0
Plastic Protection Guard Plate for Brushcutter Stiga SBC 232
Plastic Protection Guard Plate for Brushcutter Stiga SBC 232 Original replacement part Stiga, Plastic Protection Guard Plate for Brushcutters SBC 232 - SBC 242 - SBC 252 - SBC 252 F - B 32 -  B 42 - B 52 Part for the following...
AVAILABLE €3.14
Details
Safety Cover Assy for Brushcutter Stiga SBC 232
HiKOKI Power Tools Italia S.p.a. SKU: 118803954/0
Safety Cover Assy for Brushcutter Stiga SBC 232
Safety Cover Assy for Brushcutter Stiga SBC 232 Original replacement part Stiga, Safety Cover Assy for Brushcutters SBC 232 - SBC 242 - SBC 252 - SBC 252 F - B 32 -  B 42 - B 52 Part for the following products: -  Brushcutter SBC 232...
AVAILABLE €27.00
Details
Needle Bearing for Brushcutter Alpina B 32
GGP Italy SKU: 118803997/0
Needle Bearing for Brushcutter Alpina B 32
Needle Bearing for Brushcutter Alpina B 32 Original replacement part Alpina, Conrod Needle Bearing for Brushcutter Alpina B 32 - Stiga SBC 232 - SBC 232 D. Part for the following products: - ...
AVAILABLE €3.78
Details
Screw TX M5x40 for Brushcutter Alpina B 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 2135120
Screw TX M5x40 for Brushcutter Alpina B 26 J
Screw TX M5x40 for Brushcutter Alpina B 26 J Original parts Alpina, Screw TX M5x40 for Brushcutter Alpina B 26 J - T 26 J - BC 226 J - B32 - SBC 232 Part for the following products: -  Brushcutter Alpina B 26 J -  Brushcutter Alpina...
AVAILABLE €1.57
Details
Carburetor for Brushcutter Stiga SBC 232
HiKOKI Power Tools Italia S.p.a. SKU: 118804007/0
Carburetor for Brushcutter Stiga SBC 232
Carburetor for Brushcutter Stiga SBC 232 Original replacement part Stiga, Carburetor Ass'y for Brushcutters SBC 232 - Alpina B 32 Part for the following products: -  Brushcutter SBC 232...
Usually Ships in: 7/10 Business Days Approx. €48.80
Details
Seal Ring 12x22x7 for Brushcutter Alpina B 42
GGP Italy SKU: 118801188/0
Seal Ring 12x22x7 for Brushcutter Alpina B 42
Seal Ring 12x22x7  for Brushcutter Alpina B 42 Original replacement part Alpina, Seal Ring 12x22x7  for Brushcutters Alpina B 42 - B 42 D - Stiga SBC 242 - SBC 242 D - Castor CB...
on 7/10 Business Days Approx €2.13
Details
Transmission Tube for Brushcutter Alpina B32
HiKOKI Power Tools Italia S.p.a. SKU: 118803959/0
Transmission Pipe for Brushcutter Alpina B32
Transmission Pipe for Brushcutter Alpina B32 Original parts Alpina, Transmission Pipe D.26mm for Brushcutters Alpina B32 - B42 - B52 - STIGA SBC 232 - SBC 242 - SBC 252. Part for the following products: -  BRUSHCUTTER ALPINA B32 -...
Usually Ships in: 7/10 Business Days Approx. €23.00
Details
Spark Plug Cap for Brushcutter Alpina B32
HiKOKI Power Tools Italia S.p.a. SKU: 118803163/0
Spark Plug Cap for Brushcutter Alpina B32
Spark Plug Cap for Brushcutter Alpina B32 Original part Alpina, Spark Plug Cap for Brushcutters Alpina B32 - B42 - B52 - STIGA SBC 232 - SBC 242 - SBC 252. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €6.60
Details
Stiga Brushcutter Engines Ass'y
GGP Italy SKU: STIGA-Engines
Stiga Brushcutter Engines Ass'y
Stiga Brushcutter Engines Ass'y Original replacement part Stiga, Engines Assembly for Brushcutters STIGA - ALPINA - CATELGARDEN - MOUNTFIELD. Part for the following products: - 287100002/16    25,4 cc  ...
build View Spare Parts
Alpina ABR32 Harness Ass'y
GGP Italy SKU: 118804016/0
Alpina ABR32 Harness Ass'y
Alpina ABR32 Brushcutter Harness Assembly Original replacement part Alpina, Harness Assembly, Gray for Brushcutter ABR32. Part for the following products: - ALPINA ABR32 - 287220004/A20 - ALPINA B32 - 287220000 - STIGA SBC232...
AVAILABLE €24.29
Details
Alpina Starter for ABR 32
GGP Italy SKU: 118803994/0
Alpina Starter for ABR 32
Alpina Starter for Brushcutter ABR 32 Original part Alpina, Starter Assembly for Brushcutters ABR 32 - B 52 D - B 42. Part for the following products: -  Brushcutter Stiga SBC 252 F - 287422002/17-2019 -  Brushcutter...
AVAILABLE €23.33
Details
Alpina Starter Cup for ABR32
GGP Italy SKU: 118803996/0
Alpina Starter Cup for ABR32
Alpina Starter Cup for Brushcutter ABR32 Original part Alpina, Starter Cup for Brushcutters ABR32 - B52 - ABR52D. Part for the following products: -  Brushcutter Stiga SBC 252 F - 287422002/17-2019 -  Brushcutter Alpina...
AVAILABLE €4.45
Details
Castelgarden Dust Cover for XB 250 J
GGP Italy SKU: 118803206/0
Castelgarden Dust Cover for XB 250 J
Castelgarden Dust Cover for Brushcutter XB 250 J Original part Castelgarden, Gear Case Dust Cover for Brushcutters XB 250 J - SBC232. Part for the following products: -  Brushcutter Alpina B26J - 287120100-15-2017 - ...
AVAILABLE €3.71
Details
SBC 232 32.6CC Brushcutters Engine Ass'y
GGP Italy SKU: 287200002/16
SBC232 32.6CC Brushcutters Engine Ass'y
SBC 232 32.6CC Engine Ass'y for Brushcutters Original replacement part Alpina, Engine Ass'y 2 Stroke 32,6 cc 900W for Brushcutter. Part for the following products: - SBC232 2016 - SBC232 2017 - SBC232 2018 -...
AVAILABLE €101.74
Details
Comments (0)
No customer reviews for the moment.
