GGP Italy

Stiga Spare Parts for Lawnmower Collector 43

SKU: Collector 43/295431048/S14-2017
€36.08
VAT included

Stiga Spare Parts for Lawnmower Collector 43

STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Collector 43/295431048/S14-2017.

Collector 43/295431048/S14-2017
Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
  • Stiga Spare Parts for Lawnmower Collector 43
GGP Italy

Stiga Spare Parts for Lawnmower Collector 43

SKU: Collector 43/295431048/S14-2017 Condition: New
€36.08
VAT included

Stiga Spare Parts for Lawnmower Collector 43

STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Collector 43/295431048/S14-2017.

Collector 43/295431048/S14-2017
settings 157 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
153 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

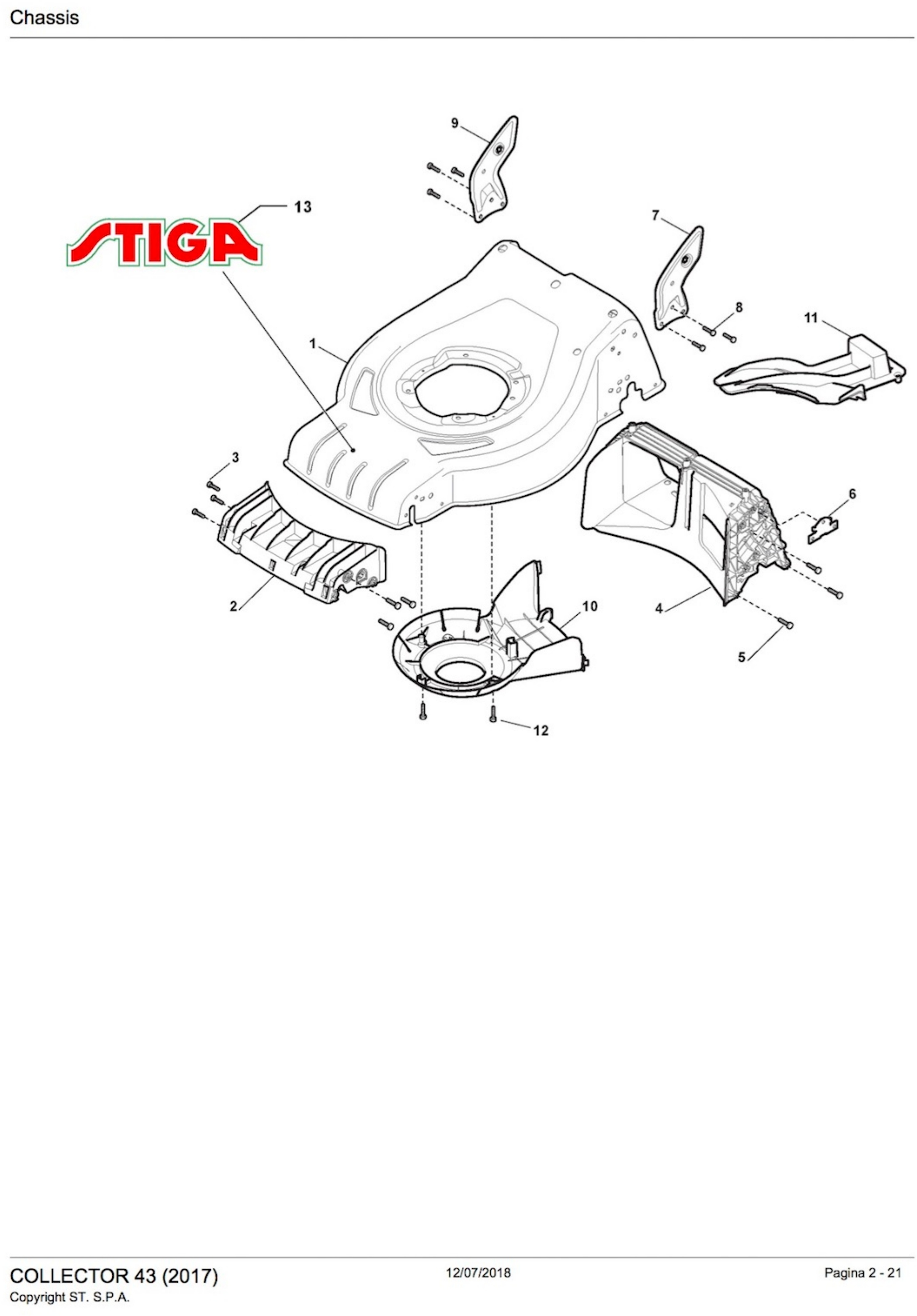

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004728/0 Grey Deck €97.59
2
 photo_cameraImage coming soon 322108300/1 Front Conveyor Assy €10.86
3
 photo_cameraImage coming soon 112728699/0 Screw €1.66
4
 photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
5
 photo_cameraImage coming soon 112728699/0 Screw €1.66
6
 photo_cameraImage coming soon 322545213/0 Plate €2.04
7
 photo_cameraImage coming soon 381005179/0 Left Bracket €10.51
8
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
 photo_cameraImage coming soon 381005177/0 Right Bracket €10.51
10
 photo_cameraImage coming soon 322060241/0 Belt Protection €7.28
11
 photo_cameraImage coming soon 322140240/0 Mulching Deflector €12.66
12
 photo_cameraImage coming soon 112728530/0 Screw €1.60
13
 photo_cameraImage coming soon 114367494/2 Label STIGA logo €9.39
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

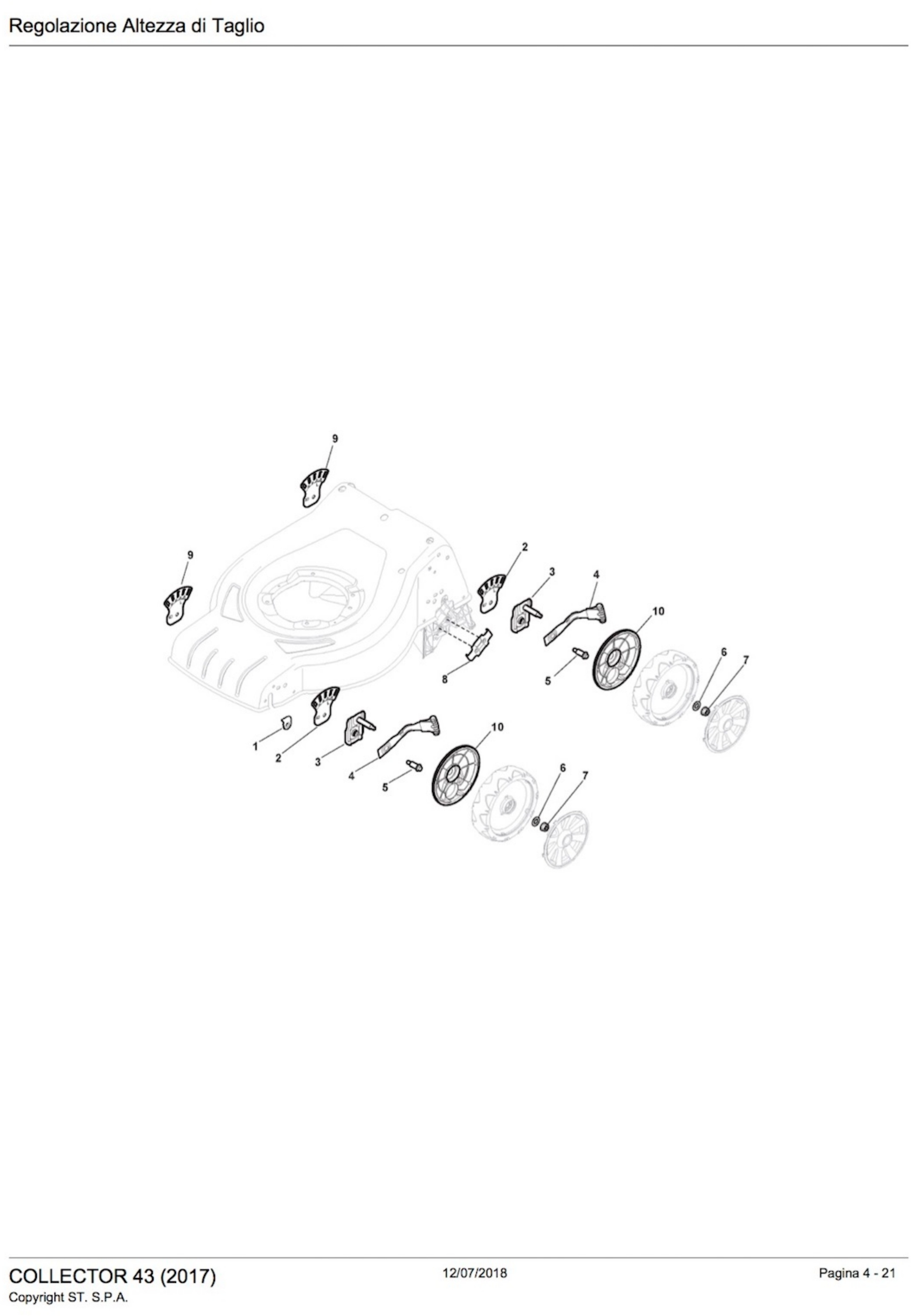

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322545189/0 Plate €1.65
2
 photo_cameraImage coming soon 322735597/0 Left Height Adjustment €2.20
2
 photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
3
 photo_cameraImage coming soon 381005141/0 Wheel Support €9.84
3
 photo_cameraImage coming soon 381005159/0 Wheel Support €12.01
4
 photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
 photo_cameraImage coming soon 122519811/0 Pin €1.65
6
 photo_cameraImage coming soon 112521350/0 Washer €1.74
7
 photo_cameraImage coming soon 112155000/0 Nut €1.66
8
 photo_cameraImage coming soon 322545211/0 Plate €2.43
9
 photo_cameraImage coming soon 322735595/0 Sector, Height Adjustment L. €2.81
9
 photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
10
 photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

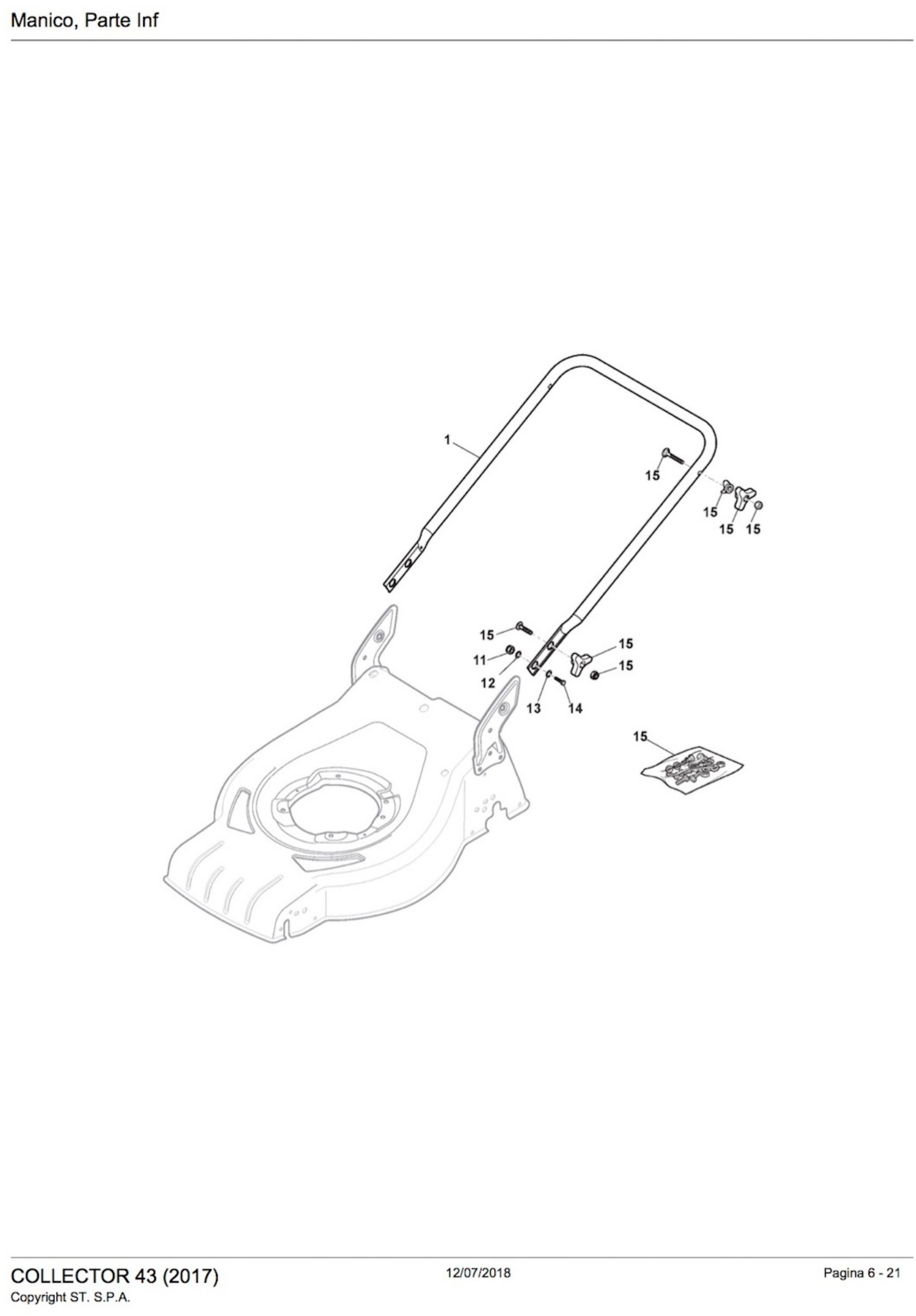

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007537/0 Handle, Lower Part Yellow €24.90
11
 photo_cameraImage coming soon 112155000/0 Nut €1.66
12
 photo_cameraImage coming soon 112521350/0 Washer €1.74
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
15
 photo_cameraImage coming soon 381008691/0 Outfit, Screws €8.86
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

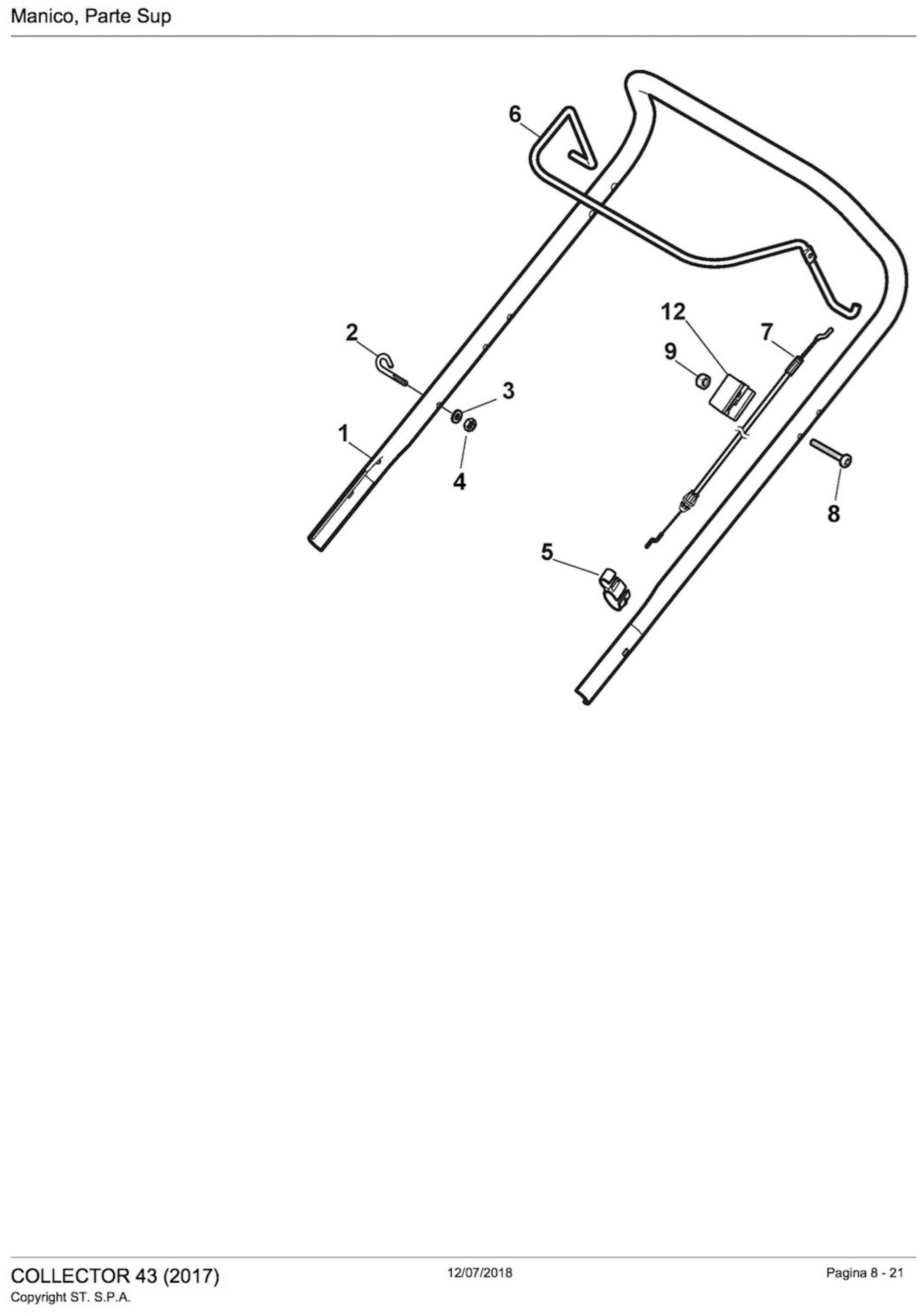

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006753/0 Handle, Upper Part Yellow €19.48
1
 photo_cameraImage coming soon 381006753/1 Handle, Upper Part Yellow €19.48
1
 photo_cameraImage coming soon 381006754/0 Handle, Upper Part Yellow €25.89
1
 photo_cameraImage coming soon 381006754/1 Handle, Upper Part Yellow €35.15
2
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
 photo_cameraImage coming soon 112521330/0 Washer €1.70
4
 photo_cameraImage coming soon 112154510/0 Nut €1.66
5
 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
 photo_cameraImage coming soon 181030056/0 Cable, Thread Engine Brake €13.77
8
 photo_cameraImage coming soon 112727783/0 Screw €1.83
9
 photo_cameraImage coming soon 112154510/0 Nut €1.66
12
 photo_cameraImage coming soon 322551640/0 Plate €7.99
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

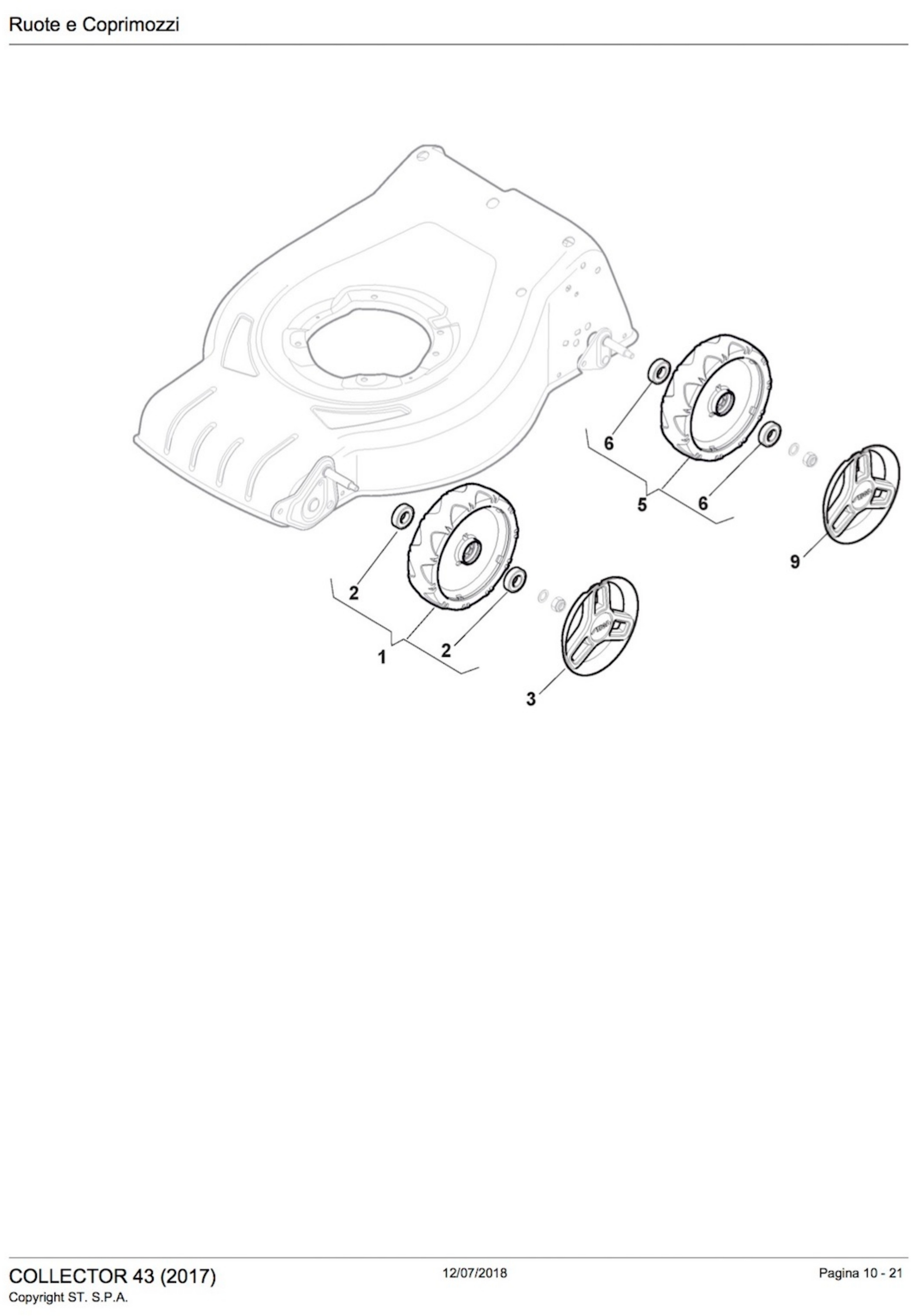

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007450/1 Wheel - Short Hub €18.68
1
 photo_cameraImage coming soon 381007455/1 Wheel - Long Hub €15.88
2
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
 photo_cameraImage coming soon 322110744/0 Hub Cap Grey €3.32
5
 photo_cameraImage coming soon 381007450/1 Wheel - Short Hub €18.68
5
 photo_cameraImage coming soon 381007455/1 Wheel - Long Hub €15.88
6
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
9
 photo_cameraImage coming soon 322110744/0 Hub Cap Grey €3.32
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

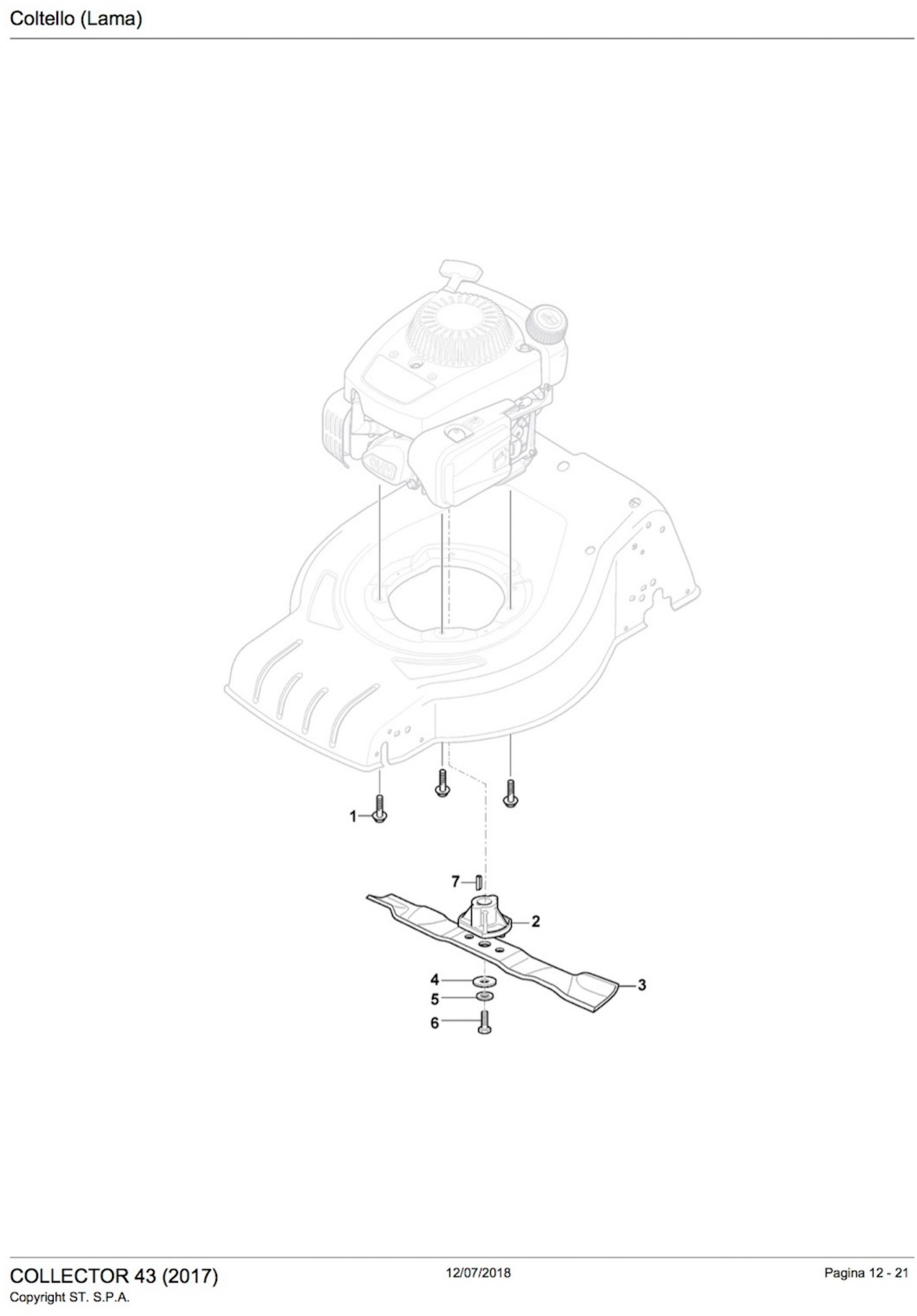

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112735109/2 Screw €2.13
2
 Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B 122463012/2 Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B €8.74
3
 photo_cameraImage coming soon 1111-9142-01 Mulching Blade €35.04
4
 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
5
 Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
6
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

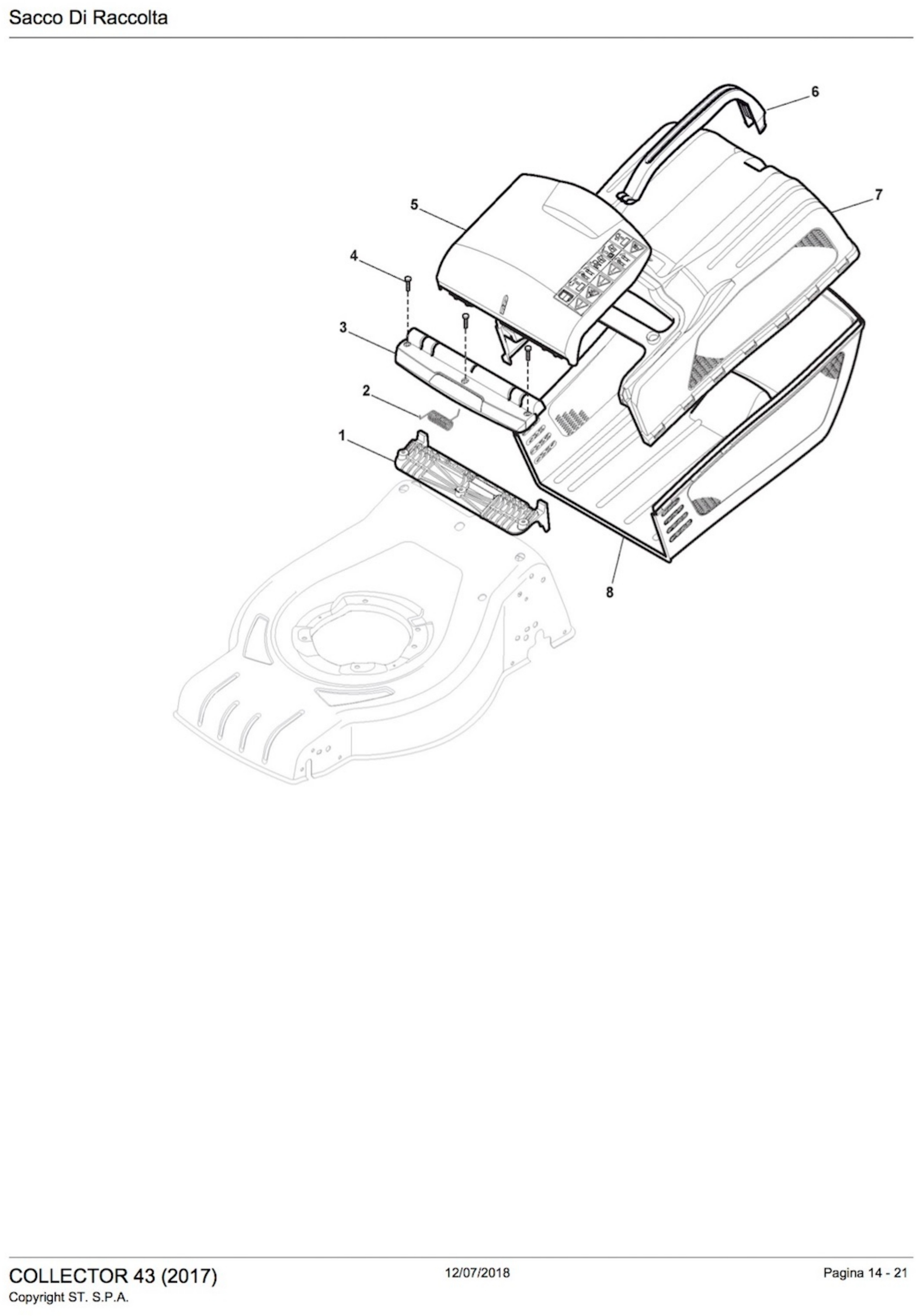

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 122450464/0 Spring €1.96
3
 photo_cameraImage coming soon 322109556/0 Stone Guard Supp. Cover Yellow €4.16
4
 photo_cameraImage coming soon 112728699/0 Screw €1.66
5
 photo_cameraImage coming soon 322600214/0 Stone-Guard, Yellow €12.91
5
 photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
6
 photo_cameraImage coming soon 322393716/0 Handle, Grey €5.37
7
 photo_cameraImage coming soon 322486387/0 Grassbox Upper Part, Grey €31.99
8
 photo_cameraImage coming soon 322486388/0 Grassbox Lower Part, Grey €30.77

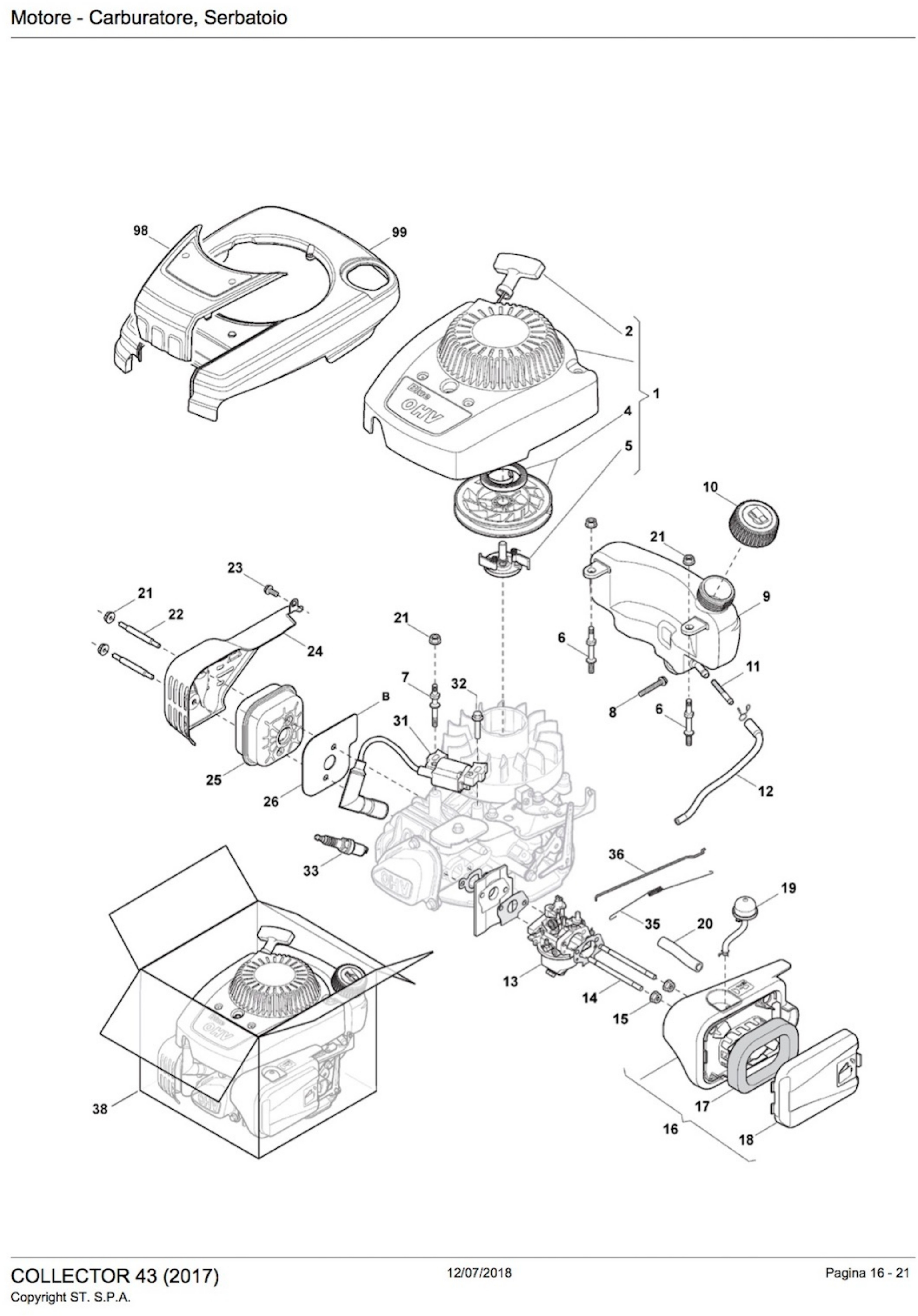

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 Recoil Starter Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550693/0 Recoil Starter Ass'y for Petrol Engine Alpina RS100 BLUE OHV €44.18
2
 photo_cameraImage coming soon 118550694/0 Starter Handle €3.58
4
 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV 118550695/0 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV €13.50
5
 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV 118550696/0 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV €7.46
6
 photo_cameraImage coming soon 118550713/0 Screw €5.37
7
 photo_cameraImage coming soon 118550714/0 Screw €2.96
8
 photo_cameraImage coming soon 112689515/0 Screw €1.65
9
 photo_cameraImage coming soon 118550712/0 Fuel Tank €16.88
10
 photo_cameraImage coming soon 118550711/0 Fuel Cap €4.74
11
 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G 118550715/0 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G €2.43
12
 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV 118550716/0 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV €4.51
13
 Carburator Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550697/0 Carburator Ass'y for Petrol Engine Alpina RS100 BLUE OHV €46.74
14
 photo_cameraImage coming soon 118550706/0 Screw €3.58
15
 photo_cameraImage coming soon 112292102/0 Nut €1.86
16
 Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550702/0 Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV €16.28 Not available for order
17
 photo_cameraImage coming soon 118550704/0 Air Filter €3.66
18
 photo_cameraImage coming soon 118550703/0 Air Cleaner Cover €7.45
19
 photo_cameraImage coming soon 118550698/0 Air Purge Pump €13.02
20
 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV 118550705/0 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV €2.63
21
 photo_cameraImage coming soon 112292102/0 Nut €1.86
22
 photo_cameraImage coming soon 118550710/0 Screw €3.58
23
 photo_cameraImage coming soon 112735699/0 Screw €1.65
24
 photo_cameraImage coming soon 118550709/0 Muffler Guard €20.36
25
 photo_cameraImage coming soon 118550708/0 Muffler €17.42
26
 photo_cameraImage coming soon 118550707/0 Muffler Gasket €2.96
31
 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G 118550719/0 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G €31.54
32
 photo_cameraImage coming soon 112792099/0 Screw €1.63
33
 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G 118550658/0 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G €8.89
35
 photo_cameraImage coming soon 118550720/0 Spring €1.65
36
 photo_cameraImage coming soon 118550721/0 Governor Link €1.73
38
 Four-Stroke Petrol Engine Alpina GGP RS100 118550732/0 Four-Stroke Petrol Engine Alpina GGP RS100 €215.27 €204.51 -5%
98
 photo_cameraImage coming soon 322055521/0 Grey Cover €10.54
99
 photo_cameraImage coming soon 322055518/0 Black Cover €15.99
99
 photo_cameraImage coming soon 381002079/0 Hood Black Assy (Pos. 98 + 99) additional parts not for all models €10.57
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

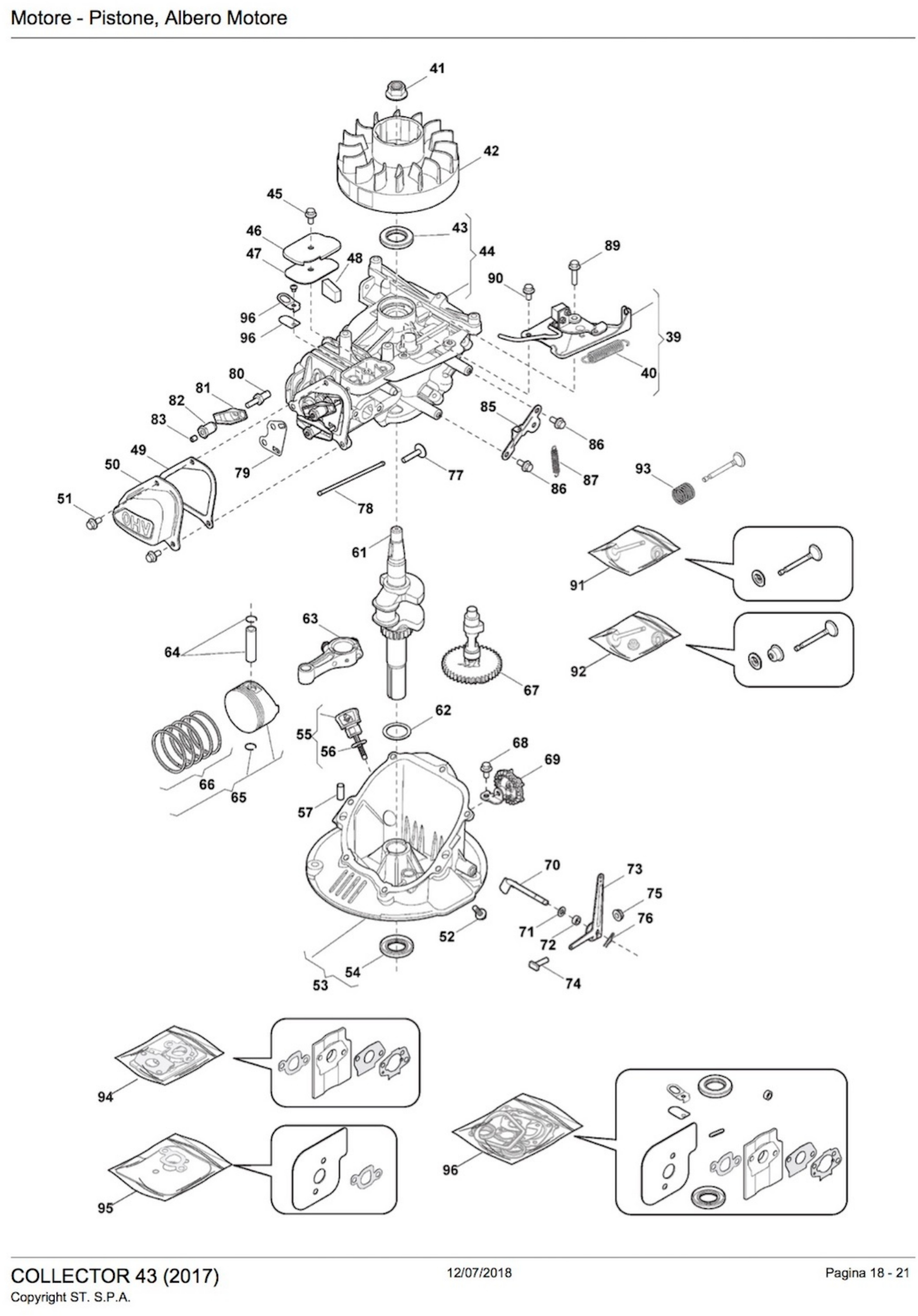

Esploso pagina 9
Pos. Item Price Buy
39
 photo_cameraImage coming soon 118550728/0 Brake assy €21.36
40
 photo_cameraImage coming soon 118550727/0 Spring €1.96
41
 photo_cameraImage coming soon 118550717/0 Nut €1.65
42
 photo_cameraImage coming soon 118550718/0 Flywheel Ass.Y €55.91
43
 photo_cameraImage coming soon 118550661/0 Oil Seal €3.58
44
 photo_cameraImage coming soon 118550729/0 Cylinder Head Assy €153.12
45
 photo_cameraImage coming soon 112735699/0 Screw €1.65
46
 photo_cameraImage coming soon 118550659/0 Cover €2.53
47
 photo_cameraImage coming soon 118550733/0 Gasket, Breath Groove €16.11
48
 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G 118550660/0 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G €3.35
49
 photo_cameraImage coming soon 118550680/0 Gasket €2.34
50
 photo_cameraImage coming soon 118550681/0 Cover Comp., Head €8.77
51
 photo_cameraImage coming soon 112735699/0 Screw €1.65
52
 photo_cameraImage coming soon 112791500/0 Screw €1.64
53
 photo_cameraImage coming soon 118550672/0 Crankase Cover Assy €64.56
54
 photo_cameraImage coming soon 118550668/0 Oil Seal €4.14
55
 photo_cameraImage coming soon 118550669/0 Tank Cap €2.28
56
 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV 118550670/0 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV €1.84
57
 photo_cameraImage coming soon 118550664/0 Pin €2.96
61
 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV 118550674/0 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV €75.58
62
 photo_cameraImage coming soon 118550673/0 Washer €1.65
63
 photo_cameraImage coming soon 118550675/0 Connecting Rod Assy €16.11
64
 photo_cameraImage coming soon 118550678/0 Circlip + Piston Pin €4.21
65
 photo_cameraImage coming soon 118550677/0 Piston Assy €37.67
66
 photo_cameraImage coming soon 118550679/0 Piston, Ring Set €12.40
67
 photo_cameraImage coming soon 118550682/0 Camshaft assy €18.50
68
 photo_cameraImage coming soon 112735699/0 Screw €1.65
69
 photo_cameraImage coming soon 118550662/0 Speed Governor Assy €7.83
70
 photo_cameraImage coming soon 118550665/0 Shaft, Governor Arm €3.51
72
 photo_cameraImage coming soon 118550671/0 Gasket €2.35
73
 photo_cameraImage coming soon 118550723/0 Support Governor €2.95
76
 photo_cameraImage coming soon 118550667/0 Cotter Pin €1.65
77
 photo_cameraImage coming soon 118550683/0 Valve Lifter €5.13
78
 photo_cameraImage coming soon 118550684/0 Push Rods €8.61
79
 photo_cameraImage coming soon 118550685/0 Plate €1.85
80
 photo_cameraImage coming soon 118550686/0 Screw €3.58
81
 photo_cameraImage coming soon 118550687/0 Valve Arm €4.51
82
 photo_cameraImage coming soon 118550688/0 Nut €4.05
83
 photo_cameraImage coming soon 118550689/0 Nut €1.65
85
 photo_cameraImage coming soon 118550724/0 Plate €2.26
86
 photo_cameraImage coming soon 112735699/0 Screw €1.65
87
 photo_cameraImage coming soon 118550725/0 Spring €1.73
89
 photo_cameraImage coming soon 112791500/0 Screw €1.64
90
 photo_cameraImage coming soon 112735699/0 Screw €1.65
91
 photo_cameraImage coming soon 118550692/0 Exhaust Valve Assy €19.04
92
 photo_cameraImage coming soon 118550691/0 Intake Valve Assy €21.01
93
 photo_cameraImage coming soon 118550690/0 Spring €3.66
94
 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV 118550699/0 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV €12.52
95
 photo_cameraImage coming soon 118550731/0 Cylinder Head Gasket Set €5.83
96
 photo_cameraImage coming soon 118550730/0 Engine Gasket Set €17.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stiga Spare Parts for Lawnmower Collector 43

STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower Collector 43/295431048/S14-2017.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Collector 43/295431048/S14-2017

Lawnmower Collector 43/295431048/S14-2017
Chassis Pag.1
# Part Num. Description
1 381004728/0 Grey Deck
2 322108300/1 Front Conveyor Assy
3 112728699/0 Screw
4 322108302/0 Rear Conveyor Assy
5 112728699/0 Screw
6 322545213/0 Plate
7 381005179/0 Left Bracket
8 112727801/0 Screw
9 381005177/0 Right Bracket
10 322060241/0 Belt Protection
11 322140240/0 Mulching Deflector
12 112728530/0 Screw
13 114367494/2 Label STIGA logo
Height Adjusting Pag.2
1 322545189/0 Plate
2 322735597/1 Sector, Height Adjustment
3 381005159/0 Wheel Support
4 381003354/0 Lever, Height Adjustment
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
8 322545211/0 Plate
9 322735595/1 Sector, Height Adjustment
10 322600247/0 Protection, Wheel
Handle, Lwer Part Pag.3
1 381007537/0 Handle, Lower Part Yellow
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic Washer
14 112760605/0 Screw
15 381008691/0 Outfit, Screws
Handle, Upper Part Pag.4
1 381006753/0 Handle, Upper Part Yellow
1 381006753/1 Handle, Upper Part Yellow
1 381006754/0 Handle, Upper Part Yellow
1 381006754/1 Handle, Upper Part Yellow
2 122430313/0 Guide Spring
3 112521330/0 Washer
4 112154510/0 Nut
5 118390020/0 Conduit Clip
6 181003363/0 Lever, Engine Brake Black
6 181003363/1 Lever, Engine Brake Black
7 181030056/0 Cable, Thread Engine Brake
8 112727783/0 Screw
9 112154510/0 Nut
12 322551640/0 Plate
Wheels and Hub Caps Pag.5
1 381007450/1 Wheel - Short Hub
1 381007455/1 Wheel - Long Hub
2 119216035/0 Bearing
3 322110744/0 Hub Cap Grey
5 381007450/1 Wheel - Short Hub
5 381007455/1 Wheel - Long Hub
6 119216035/0 Bearing
9 322110744/0 Hub Cap Grey
Blade Pag.6
1 112735109/2 Screw
2 122463012/2 Blade Boss Ø 22.2
3 1111-9142-01 Mulching Blade
4 122160400/0 Elastic Disc
5 112523080/0 Washer
5 112523080/0 Screw
6 112735698/0 Key
7 112139100/0 Woodruff key
Grass-Catcher Pag.7
1 322785331/0 Black Stone Guard Support
2 122450464/0 Spring
3 322109556/0 Stone Guard Supp. Cover Yellow
4 112728699/0 Screw
5 322600214/1 Stone Guard, Yellow
6 322393716/0 Handle, Grey
7 322486387/0 Grassbox Upper Part, Grey
8 322486388/0 Grassbox Lower Part, Grey
Engine - Piston, Crankshaft Pag.8
1 118550693/0 Starter Assy Cover
2 118550694/0 Starter Handle
4 118550695/0 Starter Pulley
5 118550696/0 Starter Pawl Set
6 118550713/0 Screw
7 118550714/0 Screw
8 112689515/0 Screw
9 118550712/0 Fuel Tank
10 118550711/0 Fuel Cap
11 118550715/0 Fuel Filter
12 118550716/0 Fuel Pipe
13 118550697/0 Carburetor
14 118550706/0 Screw
15 112292102/0 Nut
16 118550702/0 Air Cleaner Assy
17 118550704/0 Air Filter
18 118550703/0 Air Cleaner Cover
19 118550698/0 Air Purge Pump
20 118550705/0 Breather Fule Pipe
21 112292102/0 Nut
22 118550710/0 Nut
23 112735699/0 Screw
24 118550709/0 Screw
25 118550708/0 Muffler
26 118550707/0 Muffler Gasket
31 118550719/0 Electronic Coil
32 112792099/0 Screw
33 118550658/0 Spark Plug K7RTC
35 118550720/0 Spring
36 118550721/0 Controller rod
38 118550732/0 Engine Assembled
98 322055521/0 Grey Cover
99 322055518/0 Black Cover
Engine - Piston, Crankshaft Pag.9
39 118550728/0 Brake assy
40 118550727/0 Spring
41 118550717/0 Nut
42 118550718/0 Flywheel Ass.Y
43 118550661/0 Oil Seal
44 118550729/0 Cylinder Head Assy
45 112735699/0 Screw
46 118550659/0 Cover
47 118550733/0 Gasket, Breath Groove
48 118550660/0 Oil Filter
49 118550680/0 Gasket
50 118550681/0 Cover Comp., Head
51 112735699/0 Screw
52 112791500/0 Screw
53 118550672/0 Crankase Cover Assy
54 118550668/0 Oil Seal
55 118550669/0 Tank Cap
56 118550670/0 O-Ring
57 118550664/0 Pin
61 118550674/0 Crankshaft
62 118550673/0 Washer
63 118550675/0 Connecting Rod Assy
64 118550678/0 Circlip + Piston Pin
65 118550677/0 Piston Assy
66 118550679/0 Piston, Ring Set
67 118550682/0 Camshaft assy
68 112735699/0 Screw
69 118550662/0 Speed Governor Assy
70 118550665/0 Shaft, Governor Arm
71 118550666/0 Washer
72 118550671/0 Gasket
73 118550723/0 Support Governor
74 118550726/0 Screw
75 118550722/0 Nut
76 118550667/0 Cotter Pin
77 118550683/0 Valve Lifter
78 118550684/0 Push Rods
79 118550685/0 Plate
80 118550686/0 Screw
81 118550687/0 Valve Arm
82 118550688/0 Nut
83 118550689/0 Nut
85 118550724/0 Plate
86 112735699/0 Screw
87 118550725/0 Spring
89 112791500/0 Screw
90 112735699/0 Screw
91 118550692/0 Exhaust Valve Assy
92 118550691/0 Intake Valve Assy
93 118550690/0 Spring
94 118550699/0 Carburettor Gasket Set
95 118550731/0 Cylinder Head Gasket Set
96 118550730/0 Engine Gasket Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Collector 43/295431048/S14-2017
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Stiga Collector 43

Diagram Stiga Collector 43

Download (1.22MB)

You might also like

Alpina Spare Parts for Engine RS100 BLUE OHV
GGP Italy SKU: Alpina RS100 BLUE 118550732/0
Alpina Spare Parts for Engine RS100 BLUE OHV
Alpina Spare Parts for Engine RS100 BLUE OHV We have the original ALPINA Garden parts and tool repair help you need to get your tools running like new again. Fix Your Engine RS100 BLUE OHV 118550732/0_100003RS100 BLUE OHV - 2015 ....
build View Spare Parts
Four-Stroke Petrol Engine Alpina GGP RS 100 -5%
GGP Italy SKU: 118550732/0
Four-Stroke Petrol Engine Alpina GGP RS100
Four-Stroke Petrol Engine Alpina GGP RS100 Original Alpina Petrol Engine, High Performance Four-stroke petrol engine Alpina GGP RS100. Ricanbio for the following products: - Lawnmower BL 410/295441044 / A12-2017 - Lawnmower...
AVAILABLE €204.51 €215.27
Details
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
Details
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550705/0
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV- Petrol Tiller TI 36 G - Stiga SRC 36 G. Part for the following products: - Engine RSC...
in stock €2.63
Details
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G
GGP Italy SKU: 118550719/0
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G Original part Alpina, Electronic Ignition for Lawnmower BL 410 - AL3 46 G - Rotary Tiller TI 36 G - Engine RS100 BLUE OHV. Part for the following products: - Lawnmower BL 410 -...
Last items in stock €31.54
Details
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV
GGP Italy SKU: 118550674/0
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following products: -  Petrol Engine...
Last items in stock €75.58
Details
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550670/0
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine RSCT 100 OHV -  Petrol...
on 7/10 Business Days Approx €1.84
Details
Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV
GGP Italy SKU: 118550716/0
Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV
Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV Original spare part Alpina, Fuel Pipe Line for Engine Alpina RS100 BLUE OHV - Engine Alpina RSC 100 OHV - Engine Alpina RSCT 100 OHV - Tiller Alpina TI 36 G. Part for...
Usually Ships in: 7/10 Business Days Approx. €4.51
Details
Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G
GGP Italy SKU: 118550660/0
Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G
Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G Original replacement part Alpina at the best price, Oil filter for Lawnmower Alpina BL 410 - AL3 46 G - BL 460 S - Tiller Alpina TI 36 G - Engine Alpina RSCT 100 OHV. Part for...
Last items in stock €3.35
Details
Air Filter Ass'y for Petrol Engine Alpina RS100 BLUE OHV
GGP Italy SKU: 118550702/0
Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV
Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Air Cleaner Ass'y with Support for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €16.28
Details
Comments (0)
