Stiga Spare Parts for Brushcutter SBC 627 K

SKU: SBC627K - 288120002-14-2017
€2.43
VAT included

Stiga Spare Parts for Brushcutter SBC 627 K

Stiga original spare parts for to replace broken parts or to fix Brushcutter Powered Kawasaki SBC 627 K/288120002-14-2017.

Fix Your Brushcutter SBC 627 K. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Stiga Spare Parts for Brushcutter SBC 627 K
  • Stiga Spare Parts for Brushcutter SBC 627 K
  • Stiga Spare Parts for Brushcutter SBC 627 K
  • Stiga Spare Parts for Brushcutter SBC 627 K
  • Stiga Spare Parts for Brushcutter SBC 627 K
  • Stiga Spare Parts for Brushcutter SBC 627 K
GGP Italy

Stiga Spare Parts for Brushcutter SBC 627 K

SKU: SBC627K - 288120002-14-2017 Condition: New
€2.43
VAT included

Stiga Spare Parts for Brushcutter SBC 627 K

Stiga original spare parts for to replace broken parts or to fix Brushcutter Powered Kawasaki SBC 627 K/288120002-14-2017.

Fix Your Brushcutter SBC 627 K. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 112 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
112 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

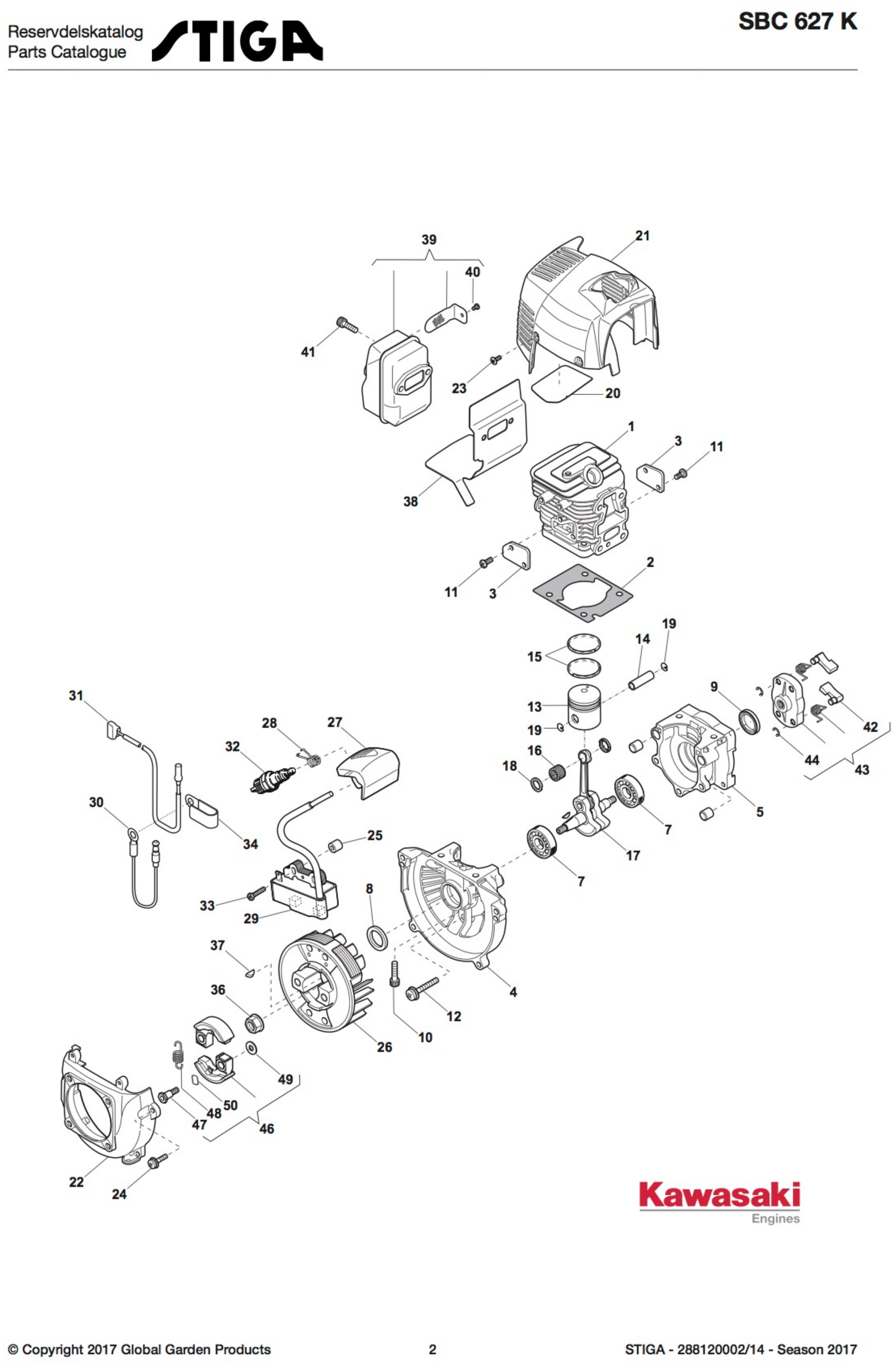

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118801961/0 Cylinder €156.24
2
 photo_cameraImage coming soon 118801773/0 Cylinder Gasket €3.42
3
 photo_cameraImage coming soon 118801814/0 Plate €1.60
4
 photo_cameraImage coming soon 118801820/0 Crankcase €67.10
5
 photo_cameraImage coming soon 118801981/0 Crankcase €60.53
7
 photo_cameraImage coming soon 119216039/0 Bearing €3.09
8
 Oil Seal 12x22x4,5 for Brushcutter Stiga SBC 627 K 118801920/0 Oil Seal 12x22x4,5 for Brushcutter Stiga SBC 627 K €4.36
9
 photo_cameraImage coming soon 118801993/0 Oil Seal €4.01
10
 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
11
 photo_cameraImage coming soon 123878020/0 Screw €1.42
12
 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
13
 photo_cameraImage coming soon 118801976/0 Piston €30.74
14
 photo_cameraImage coming soon 118801796/0 Piston Pin €9.84
15
 photo_cameraImage coming soon 118801801/0 Piston Ring €16.37
16
 photo_cameraImage coming soon 118801806/0 Bearing €10.56
17
 photo_cameraImage coming soon 118801885/0 Crankshaft €216.60
18
 photo_cameraImage coming soon 118801907/0 Spacer €4.30
19
 photo_cameraImage coming soon 118801911/0 Washer, Piston Pin €1.46
20
 photo_cameraImage coming soon 118801988/0 Pad €2.83
21
 photo_cameraImage coming soon 118802004/0 Yellow Cylinder Cover €38.67
22
 photo_cameraImage coming soon 118801895/0 Housing €66.20
23
 photo_cameraImage coming soon 123878020/0 Screw €1.42
24
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
25
 photo_cameraImage coming soon 118801830/0 Insulator €1.98
26
 photo_cameraImage coming soon 118801837/0 Flywheel €122.04
27
 photo_cameraImage coming soon 118801842/0 Spark Plug Cover €6.37
28
 photo_cameraImage coming soon 3657050 Spark Plug Spring €4.02
29
 photo_cameraImage coming soon 118801846/0 Electronic Coil €107.46
30
 photo_cameraImage coming soon 118801851/0 Earth Cable €2.22
31
 photo_cameraImage coming soon 118801986/0 Coil-Switch Cable €4.35
33
 photo_cameraImage coming soon 2132510 Screw €1.48
34
 photo_cameraImage coming soon 118801943/0 Clamp €1.74
37
 photo_cameraImage coming soon 3151010 Flywheel Key €1.37
38
 photo_cameraImage coming soon 118801774/0 Muffler Gasket €14.41
39
 photo_cameraImage coming soon 118801868/0 Muffler €63.92
41
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
42
 photo_cameraImage coming soon 118801812/0 Pawl €3.58
43
 photo_cameraImage coming soon 118801990/0 Starter Pulley €8.90
44
 photo_cameraImage coming soon 118801912/0 Snap Ring €1.32
46
 photo_cameraImage coming soon 118801810/0 Clutch Ass.Y €60.52
47
 photo_cameraImage coming soon 118801917/0 Pin €6.37
48
 photo_cameraImage coming soon 118801935/0 Spring €3.86
50
 photo_cameraImage coming soon 118802002/0 Washer €1.77
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

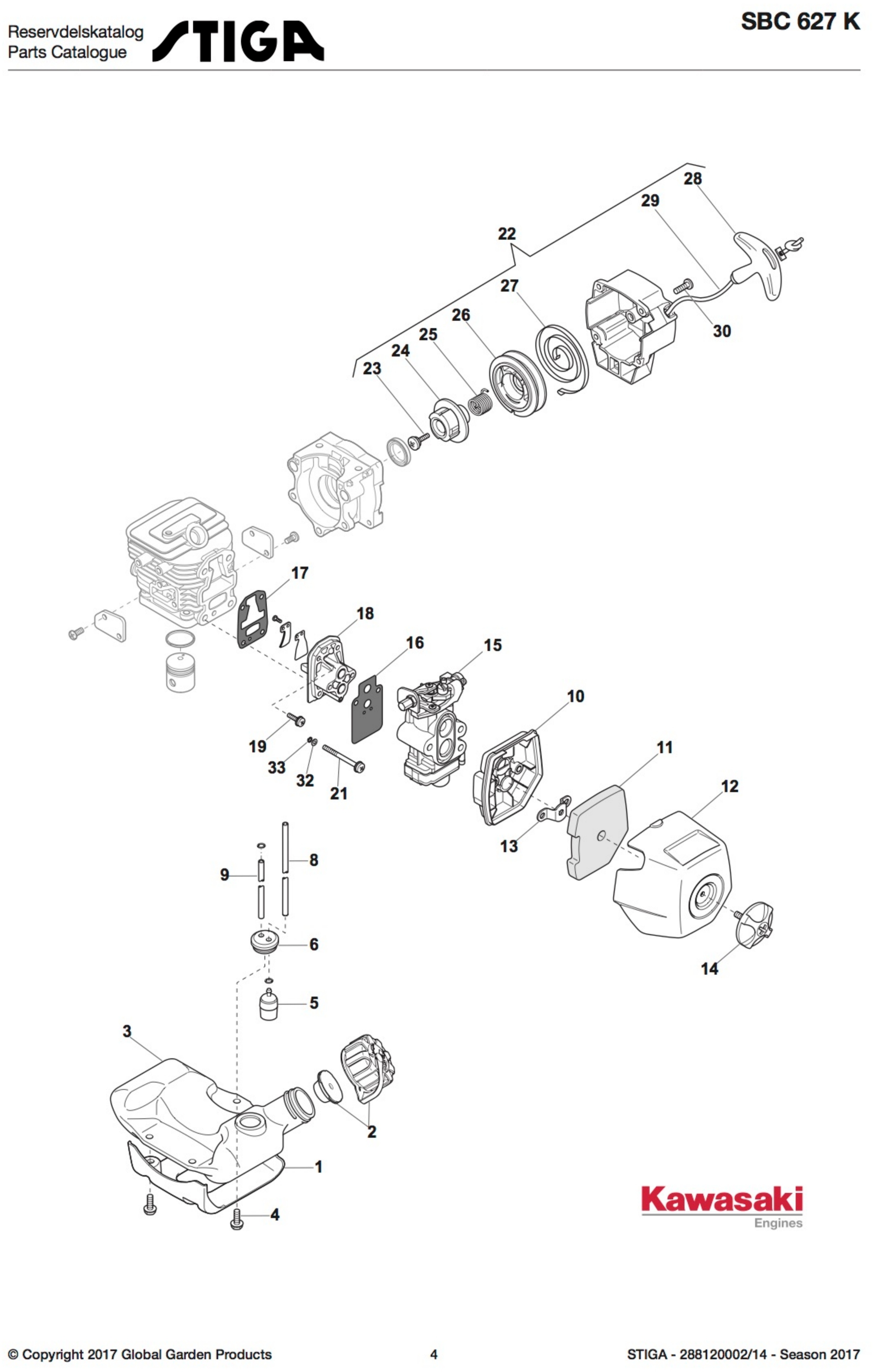

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118801855/0 Tank Support €6.37
2
 photo_cameraImage coming soon 118801957/0 Oil Cap €32.34
3
 photo_cameraImage coming soon 118801890/0 Fuel Tank €30.74
4
 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
5
 photo_cameraImage coming soon 183520004/0 Intake Filter €29.63
6
 photo_cameraImage coming soon 118801926/0 Grommet €3.95
8
 photo_cameraImage coming soon 118801952/0 Fuel Line €9.56
9
 photo_cameraImage coming soon 118801999/0 Tube €6.58
10
 photo_cameraImage coming soon 118801962/0 Air Cleaner Base €13.31
11
 photo_cameraImage coming soon 118801767/0 Air Filter €4.55
12
 photo_cameraImage coming soon 118801974/0 Yellow Filter Cover €10.97
13
 photo_cameraImage coming soon 118801834/0 Baffle €2.76
14
 photo_cameraImage coming soon 118801939/0 Screw €7.46
15
 photo_cameraImage coming soon 118801825/0 Carburetor €158.33
16
 photo_cameraImage coming soon 118801969/0 Carburetor Gasket €2.95
17
 photo_cameraImage coming soon 118801965/0 Cylinder Gasket €5.39
18
 photo_cameraImage coming soon 118801788/0 Breather Valve Ass.Y €60.35
19
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
21
 Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J 2122210 Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J €2.43
22
 photo_cameraImage coming soon 118801876/0 Starter Assy Black €56.47
23
 photo_cameraImage coming soon 118801944/0 Screw €2.03
24
 photo_cameraImage coming soon 118801864/0 Cam €24.03
25
 photo_cameraImage coming soon 118801996/0 Spring €7.50
26
 photo_cameraImage coming soon 118801900/0 Starter Pulley €10.69
27
 photo_cameraImage coming soon 118801929/0 Starter Spring €19.05
28
 photo_cameraImage coming soon 118801860/0 Starter Handle €8.95
29
 photo_cameraImage coming soon 118801904/0 Starter Rope €12.01
32
 photo_cameraImage coming soon 2312020 Washer €1.43
33
 photo_cameraImage coming soon 2330020 Washer €1.34
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

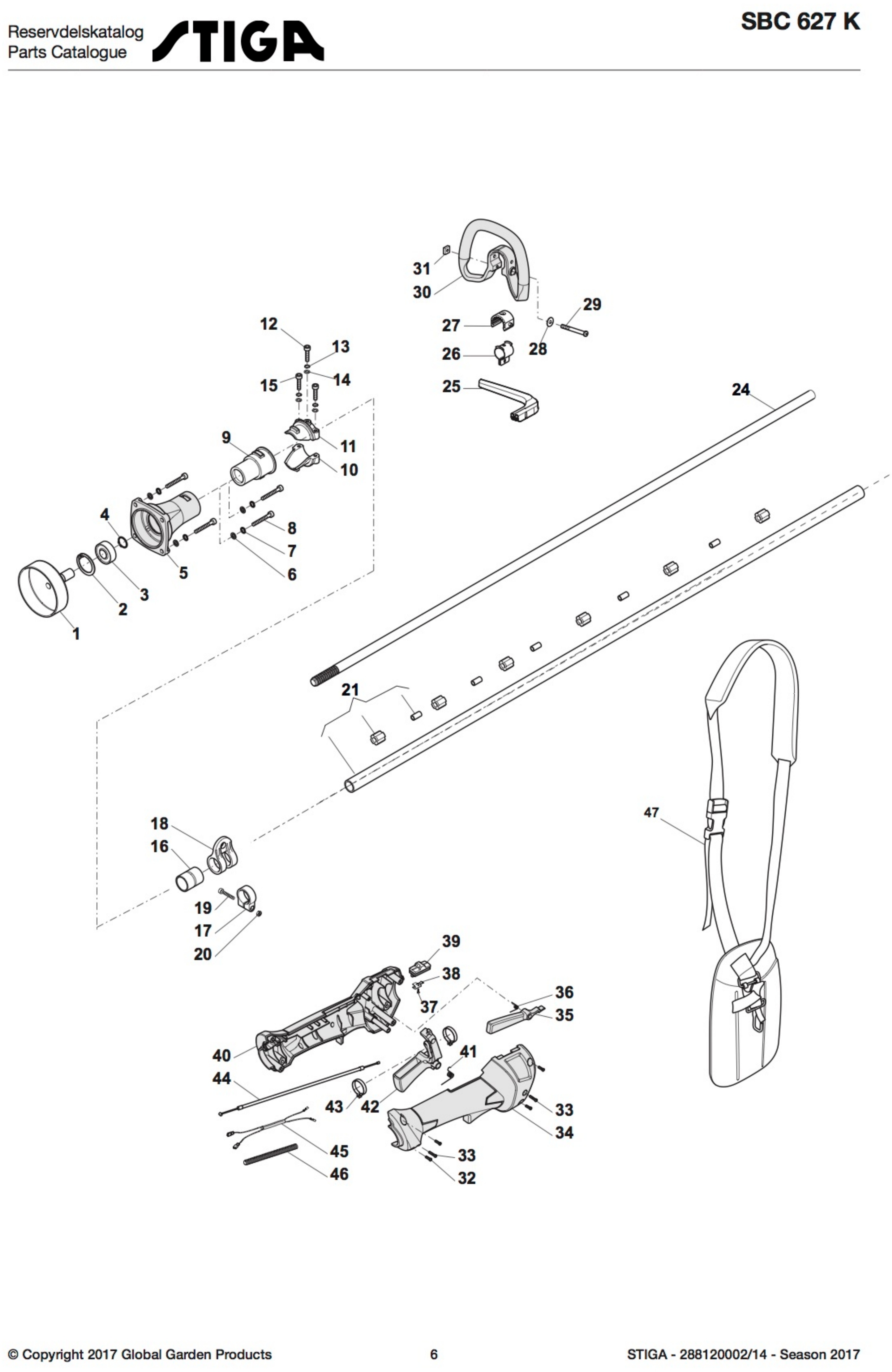

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118802459/0 Clutch Drum €10.27
2
 photo_cameraImage coming soon 112610800/0 Seeger €1.73
3
 photo_cameraImage coming soon 119216048/0 Bearing €17.88
4
 photo_cameraImage coming soon 112609200/0 Seeger €1.65
5
 photo_cameraImage coming soon 118802458/0 Output Block €16.86
6
 photo_cameraImage coming soon 112521330/0 Washer €1.70
7
 photo_cameraImage coming soon 112521330/0 Washer €1.70
8
 photo_cameraImage coming soon 112727791/0 Screw €2.11
9
 photo_cameraImage coming soon 118802582/0 Reduction €1.67
10
 photo_cameraImage coming soon 118802584/0 Lower Support €1.67
11
 photo_cameraImage coming soon 118802583/0 Upper support €1.67
12
 Screw 112727796/0 Screw €1.74
13
 photo_cameraImage coming soon 112521320/0 Washer €1.74
14
 photo_cameraImage coming soon 112521320/0 Washer €1.74
15
 photo_cameraImage coming soon 2132550 Screw €1.54
17
 photo_cameraImage coming soon 118802587/0 Harness Support €2.39
18
 photo_cameraImage coming soon 118802585/0 Harness Support €2.39
19
 photo_cameraImage coming soon 112727791/0 Screw €2.11
20
 photo_cameraImage coming soon 112291000/0 Nut €1.63
21
 photo_cameraImage coming soon 118802491/0 Transmission Tube Ass.Y €26.69
24
 photo_cameraImage coming soon 118802457/0 Transmission shaft €13.05
25
 photo_cameraImage coming soon 118802535/0 Protective front handle €2.39
26
 photo_cameraImage coming soon 118802539/0 Locking collar €2.39
27
 photo_cameraImage coming soon 118802537/0 Rubber sleeve €1.67
28
 photo_cameraImage coming soon 112521330/0 Washer €1.70
29
 photo_cameraImage coming soon 118802542/0 Screw €1.67
30
 photo_cameraImage coming soon 118802534/0 Front handle, Grey €20.15
31
 photo_cameraImage coming soon 112154320/0 Nut €1.68
32
 photo_cameraImage coming soon 123878020/0 Screw €1.42
33
 photo_cameraImage coming soon 112727794/0 Screw €1.65
34
 photo_cameraImage coming soon 118802471/0 Right Handgrip, Grey €13.60
36
 photo_cameraImage coming soon 118802562/0 Torsion spring €1.72
37
 photo_cameraImage coming soon 2123070 Screw €1.34
38
 photo_cameraImage coming soon 118802468/0 Flameout Reed €1.67
40
 photo_cameraImage coming soon 118802470/0 Left Handgrip, Grey €13.60
43
 photo_cameraImage coming soon 118802479/0 Fixing ring €1.63
44
 photo_cameraImage coming soon 118802476/0 Throttle Cable €4.35
47
 photo_cameraImage coming soon 118801327/0 Harness €13.22
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

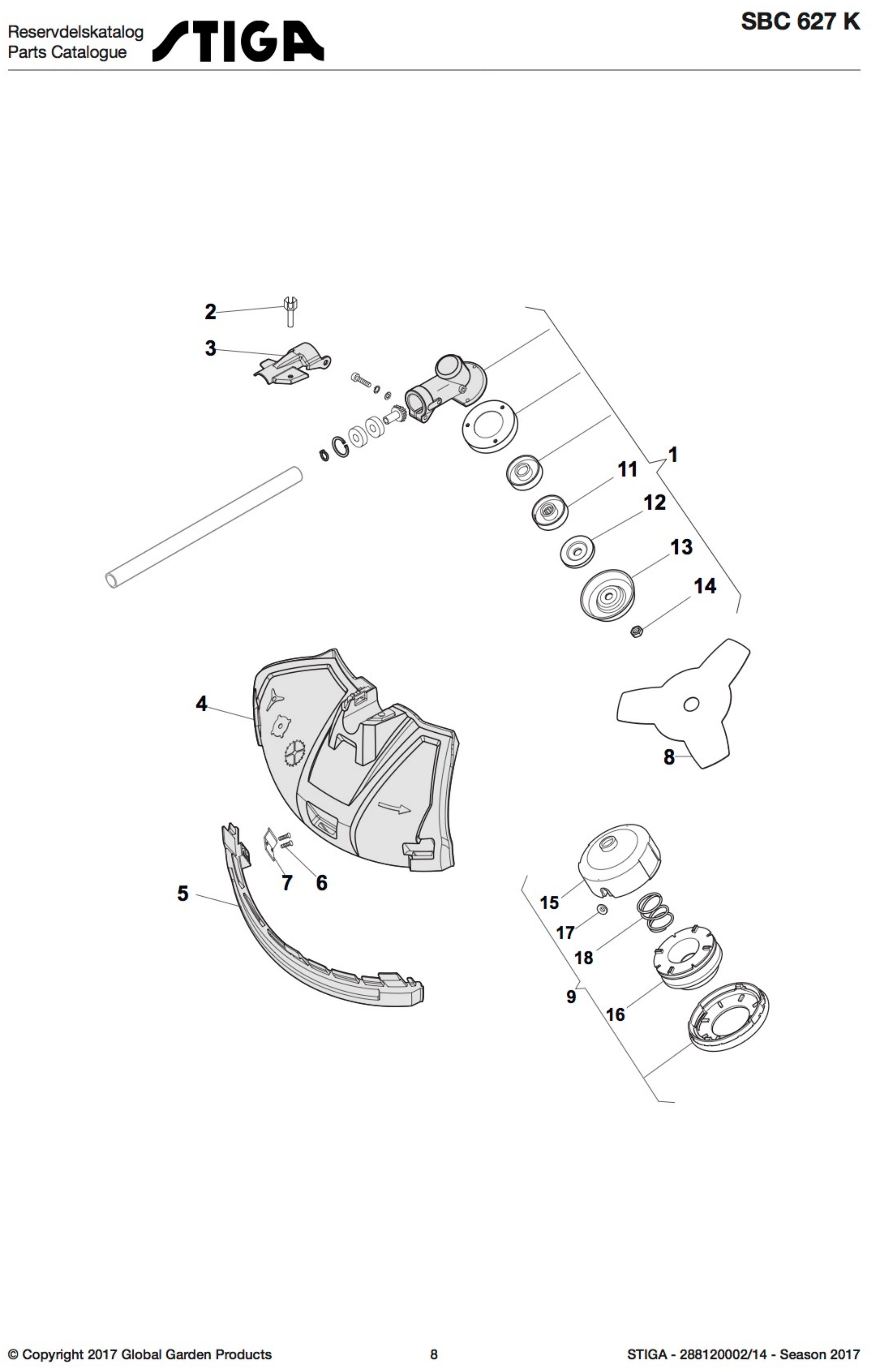

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118802460/0 Gear Case Assy €41.58
2
 photo_cameraImage coming soon 118802579/0 Screw €4.27
3
 photo_cameraImage coming soon 118802480/0 Plate €3.50
4
 photo_cameraImage coming soon 118802323/0 Safety Cover Assy €19.12
5
 photo_cameraImage coming soon 118802580/0 Safety cover Ass.Y €5.38
6
 Screw Tx M5x25 for Chainsaw Alpina AC 27 T 123878121/0 Screw Tx M5x25 for Chainsaw Alpina AC 27 T €1.70
7
 photo_cameraImage coming soon 118802578/0 Line Cutter Blade €3.05
11
 photo_cameraImage coming soon 118802464/0 Plate €3.69
12
 photo_cameraImage coming soon 118802465/0 Plate €3.57
13
 photo_cameraImage coming soon 118802466/0 Cover €5.76
14
 Self Locking Nut M10x1.25 Left Thread for Brushcutters Alpina 2452090 Self Locking Nut M10x1.25 Left Thread for Brushcutters Alpina €5.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stiga Spare Parts for Brushcutter SBC 627 K

Fix Your Brushcutter Powered Kawasaki SBC 627 K/288120002-14-2017. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Brushcutter and the respective parts of the code.

Brushcutter SBC 627 K/288120002-14-2017 Engine Pag.1
# Part Num. Description
1 118801961/0 Cylinder
2 118801773/0 Cylinder Gasket
3 118801814/0 Plate
4 118801820/0 Crankcase
5 118801981/0 Crankcase
7 119216039/0 Bearing
8 118801920/0 Oil Seal
9 118801994/0 Seal Ring
10 2135030 Screw
11 123878020/0 Screw
12 2135050 Screw
13 118801976/0 Piston
14 118801796/0 Piston Pin
15 118801801/0 Piston Ring
16 118801806/0 Bearing
17 118801885/0 Crankshaft
18 118801907/0 Spacer
19 118801911/0 Washer, Piston Pin
20 118801988/0 Pad
21 118802004/0 Yellow Cylinder Cover
22 118801895/0 Housing
23 123878020/0 Screw
24 2135040 Screw
25 118801830/0 Insulator
26 118801837/0 Flywheel
27 118801842/0 Spark Plug Cover
28 3657050 Spark Plug Spring
29 118801846/0 Electronic Coil
30 118801851/0 Earth Cable
31 118801986/0 Coil-Switch Cable
33 2132510 Screw
34 118801943/0 Clamp
36 2432050 Nut
37 3151010 Flywheel Key
38 118801774/0 Muffler Gasket
39 118801868/0 Muffler
40 118801906/0 Screw
41 2135040 Screw
42 118801812/0 Pawl
43 118801990/0 Starter Pulley
44 118801912/0 Snap Ring
46 118801810/0 Clutch Ass.Y
47 118801917/0 Pin
48 118801935/0 Spring
49 2312080 Flat washer
50 118802002/0 Washer
Brushcutter SBC 627 K/288120002-14-2017 Engine Pag.2
1 118801855/0 Tank Support
2 118801957/0 Oil Cap
3 118801890/0 Fuel Tank
4 2135030 Screw
5 183520004/0 Intake Filter
6 118801926/0 Grommet
8 118801952/0 Fuel Line
9 118801999/0 Tube
10 118801962/0 Air Cleaner Base
11 118801767/0 Air Filter
12 118801974/0 Yellow Filter Cover
13 118801834/0 Baffle
14 118801939/0 Screw
15 118801825/0 Carburetor
16 118801969/0 Carburetor Gasket
17 118801965/0 Cylinder Gasket
18 118801788/0 Breather Valve Ass.Y
19 2135040 Screw
21 2135260 Screw
22 118801876/0 Starter Assy Black
23 118801944/0 Screw
24 118801864/0 Cam
25 118801996/0 Spring
26 118801900/0 Starter Pulley
27 118801929/0 Starter Spring
28 118801860/0 Starter Handle
29 118801904/0 Starter Rope
30 2132470 Screw
32 2312020 Washer
33 2330020 Washer
Brushcutter SBC 627 K/288120002-14-2017 Trasmission Pag.3
1 118802459/0 Clutch Drum
2 112610800/0 Seeger
3 119216048/0 Bearing
4 112609200/0 Seeger
5 118802458/0 Output Block
6 112521330/0 Washer
7 112521330/0 Washer
8 112727791/0 Screw
9 118802582/0 Reduction
10 118802584/0 Lower Support
11 118802583/0 Upper support
12 112727796/0 Screw
13 112521320/0 Washer
14 112521320/0 Washer
15 2132550 Screw
17 118802587/0 Harness Support
18 118802585/0 Harness Support
19 112727791/0 Screw
20 112291000/0 Nut
21 118802491/0 Transmission Tube Ass.Y
24 118802457/0 Transmission shaft
25 118802535/0 Protective front handle
26 118802539/0 Locking collar
27 118802537/0 Rubber sleeve
28 112521330/0 Washer
29 118802542/0 Screw
30 118802534/0 Front handle, Grey
31 112154320/0 Nut
32 123878020/0 Screw
33 112727794/0 Screw
34 118802471/0 Right Handgrip, Grey
35 118802472/0 Trigger control, Yellow
36 118802562/0 Torsion spring
37 2123070 Screw
38 118802468/0 Flameout Reed
39 118802469/0 Flameout switch, Red
40 118802470/0 Left Handgrip, Grey
41 118802474/0 Spring
42 118802473/0 Trigger Lever, Yellow
43 118802479/0 Fixing ring
44 118802476/0 Throttle Cable
47 118801327/0 Harness
Brushcutter SBC 627 K/288120002-14-2017 Gear Case Pag.4
1 118802460/0 Gear Case Assy
2 118802579/0 Screw
3 118802480/0 Plate
4 118802323/0 Safety Cover Assy
5 118802580/0 Safety cover Ass.Y
6 123878121/0 Screw
7 118802578/0 Line Cutter Blade
11 118802464/0 Plate
12 118802465/0 Plate
13 118802466/0 Cover
14 2452090 Nut
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stiga websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stiga brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SBC627K - 288120002-14-2017
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Stiga SBC 627 K

Diagram Stiga SBC 627 K

Download (793.35KB)

You might also like

Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J
GGP Italy SKU: 2122210
Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J
Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J Original replacement part Alpina, Muffler Screw M5x62 for Brushcutters Alpina B 26 J - T 26 J - Stiga SBC 226 J/287120102-2017. Part for the following products: - Brushcutter...
AVAILABLE €2.43
Details
Screw Tx M5x25 for Chainsaw Alpina AC 27 T
GGP Italy SKU: 123878121/0
Screw Tx M5x25 for Chainsaw Alpina AC 27 T
Screw Tx M5x25 for Chainsaw Alpina AC 27 T Original replacement part Alpina, Screw Tx M5x25 for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31  - Stiga SPR 276. Part for the...
AVAILABLE €1.70
Details
Oil Seal 12x22x4,5 for Brushcutter Stiga SBC 627 K
GGP Italy SKU: 118801920/0
Oil Seal 12x22x4,5 for Brushcutter Stiga SBC 627 K
Oil Seal 12x22x4,5 for Brushcutter Stiga SBC 627 K Original replacement part Stiga, Oil Seal 12x22x4,5 for Brushcutter SBC 627 K - Hedge Trimmers SHT 660 K - SHT 675 K. Part For the following products: -  Brushcutter SBC 627...
on 7/10 Business Days Approx. €4.36
Details
Comments (0)
