Stayer Spare Parts for Angle Grinders 781R-800R

We have the original Spares STAYER for Angle Grinder SAB781R-800R the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB781R-800R. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Stayer Spare Parts for Angle Grinders 781R-800R
  • Stayer Spare Parts for Angle Grinders 781R-800R
  • Stayer Spare Parts for Angle Grinders SAB781R - Drawing
  • Stayer Spare Parts for Angle Grinders SAB800R - Drawing
Stayer

Stayer Spare Parts for Angle Grinders 781R-800R

SKU: SAB781R-800R Condition: New
€5.60
VAT included

Stayer Spare Parts for Angle Grinders 781R-800R

We have the original Spares STAYER for Angle Grinder SAB781R-800R the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB781R-800R. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 55 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

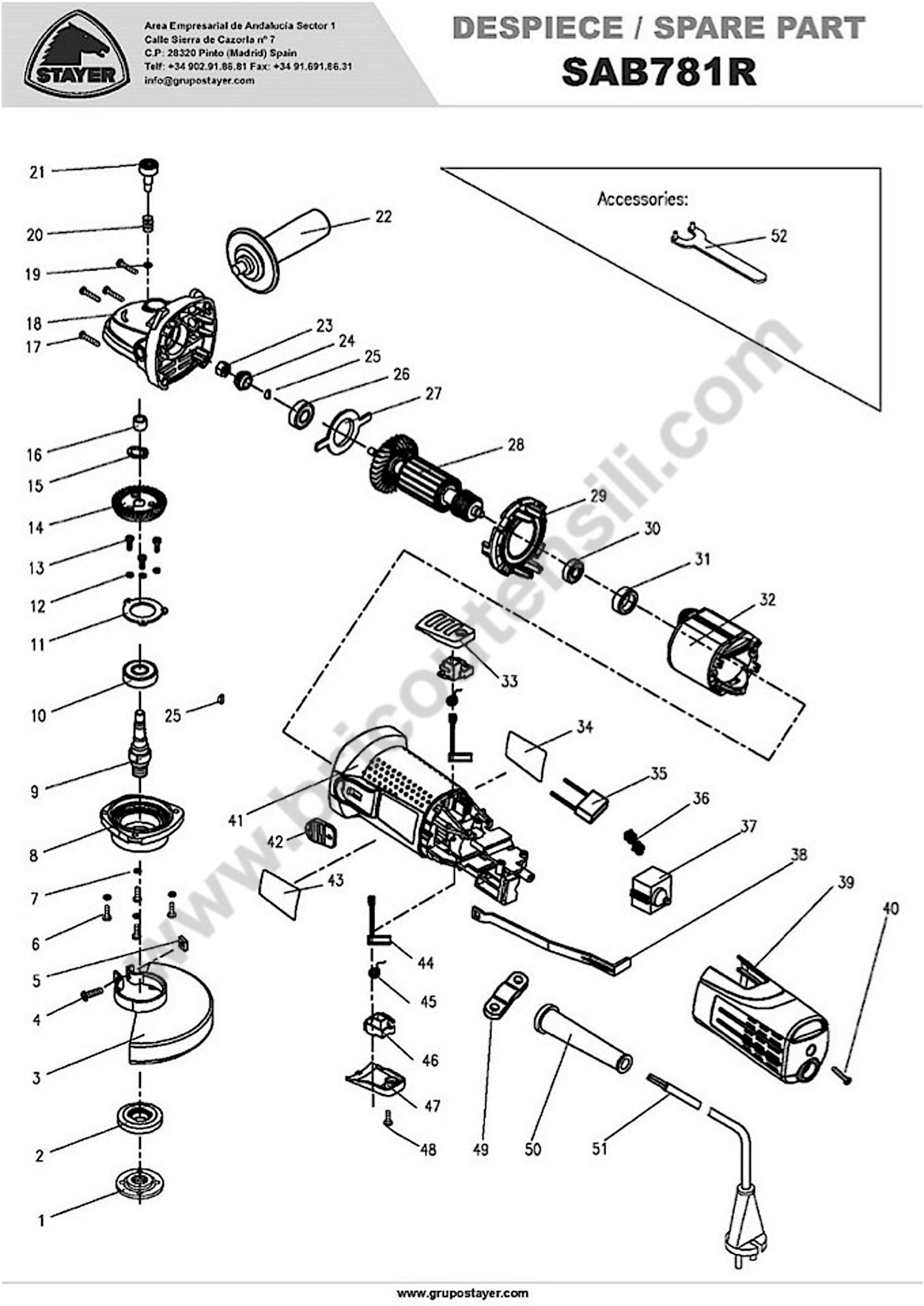

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5019179 OUTER FLANGE €3.53
3
 photo_cameraImage coming soon 5019181 INNER FLANGE GUIDE €3.53
4
 photo_cameraImage coming soon 5019182 PROTECT GUARD €5.53
5
 photo_cameraImage coming soon 5019183 SCREW €0.00 Not available for order
6
 photo_cameraImage coming soon 5019184 SPINDLE €5.53
7
 photo_cameraImage coming soon 5019185 COTTER €1.52
8
 photo_cameraImage coming soon 5019186 DUST COVER €1.93
9
 photo_cameraImage coming soon 5019187 SCREW €0.00 Not available for order
10
 photo_cameraImage coming soon 5019188 SPRING WASHER €0.00 Not available for order
11
 photo_cameraImage coming soon 5019189 FLAT WASHER €0.00 Not available for order
12
 photo_cameraImage coming soon 5019190 CROWN COVER €3.02
13
 photo_cameraImage coming soon 5019191 BOARD €0.00 Not available for order
14
 photo_cameraImage coming soon 5019192 BEARING 6201 2RS €5.53
15
 photo_cameraImage coming soon 5019193 CIRCLIP 32 €0.00 Not available for order
16+27
 photo_cameraImage coming soon 5019194 WHEEL GEAR + PINION €17.02
17
 photo_cameraImage coming soon 5019195 CIRCLIP 32 €0.00 Not available for order
18
 photo_cameraImage coming soon 5019196 BEARING 696-2Z €5.53
19
 photo_cameraImage coming soon 5019197 STOP ANTIVIBRATION €0.00 Not available for order
20
 photo_cameraImage coming soon 5019198 SIDE HANDLE €7.03
21
 photo_cameraImage coming soon 5019199 TAPPING SCREW €0.00 Not available for order
22
 photo_cameraImage coming soon 5019200 SPINDLE LOCK €1.52
23
 photo_cameraImage coming soon 5019201 LOCK SPRING €0.00 Not available for order
24
 photo_cameraImage coming soon 5019202 CIRCLIP 32 €0.00 Not available for order
25
 photo_cameraImage coming soon 5019203 GEAR BOX €14.02
26
 photo_cameraImage coming soon 5019204 FIXING FLANGE SCREW €0.00 Not available for order
28
 photo_cameraImage coming soon 5019206 BEARING 6000-2RZ €7.03
29
 photo_cameraImage coming soon 5019207 BOARD €0.00 Not available for order
30
 photo_cameraImage coming soon 5019208 COVER €2.02
31
 photo_cameraImage coming soon 5019209 ARMATURE €21.92
31
 photo_cameraImage coming soon 5019242 ARMATURE (110V) €24.92
32
 photo_cameraImage coming soon 5019210 ANTIDUST RING €0.00 Not available for order
33
 photo_cameraImage coming soon 5019211 BEARING 607-2Z €5.53
34
 photo_cameraImage coming soon 5019212 BEARING SLEEVE €1.52
35
 photo_cameraImage coming soon 5019213 WIND GUARD €1.93
36
 photo_cameraImage coming soon 5019214 CABLE PROTECTOR €1.52
38
 photo_cameraImage coming soon 5019216 CLAMP €0.00 Not available for order
39
 photo_cameraImage coming soon 5019217 TAPPING SCREW €0.00 Not available for order
40
 photo_cameraImage coming soon 5019218 ELECTRIC RING €0.00 Not available for order
41
 photo_cameraImage coming soon 5019219 CARBON BRUSH HOLDER €5.53
42
 photo_cameraImage coming soon 5019220 TAPPING SCREW €0.00 Not available for order
43
 Carbon Brushes for Angle Grinder Stayer SAB 800 5019221 Carbon Brushes for Angle Grinder Stayer SAB 800 €11.63
44
 photo_cameraImage coming soon 5019222 INSULATE PLATE €0.00 Not available for order
46
 photo_cameraImage coming soon 5019224 STATOR €14.92
46
 photo_cameraImage coming soon 5019243 STATOR (110V) €17.02
47
 photo_cameraImage coming soon 5019225 FIXING BLOCK €0.00 Not available for order
48
 photo_cameraImage coming soon 5019226 TAPPING SCREW €0.00 Not available for order
49
 photo_cameraImage coming soon 5019227 HOUSING €8.92
50
 photo_cameraImage coming soon 5019228 SWITCH BLOCK €0.00 Not available for order
51
 photo_cameraImage coming soon 5019229 SWITCH CONNECT POLE €0.00 Not available for order
53
 photo_cameraImage coming soon 5019231 CAPACITOR €2.02
54
 photo_cameraImage coming soon 5019232 SWITCH €7.03
55
 photo_cameraImage coming soon 5019233 INDUCTANCE €1.52
57
 photo_cameraImage coming soon 5019235 REAR COVER €5.53
58
 photo_cameraImage coming soon 5019236 TAPPING SCREW €0.00 Not available for order
59
 photo_cameraImage coming soon 5019237 KEY LUGS €2.02
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

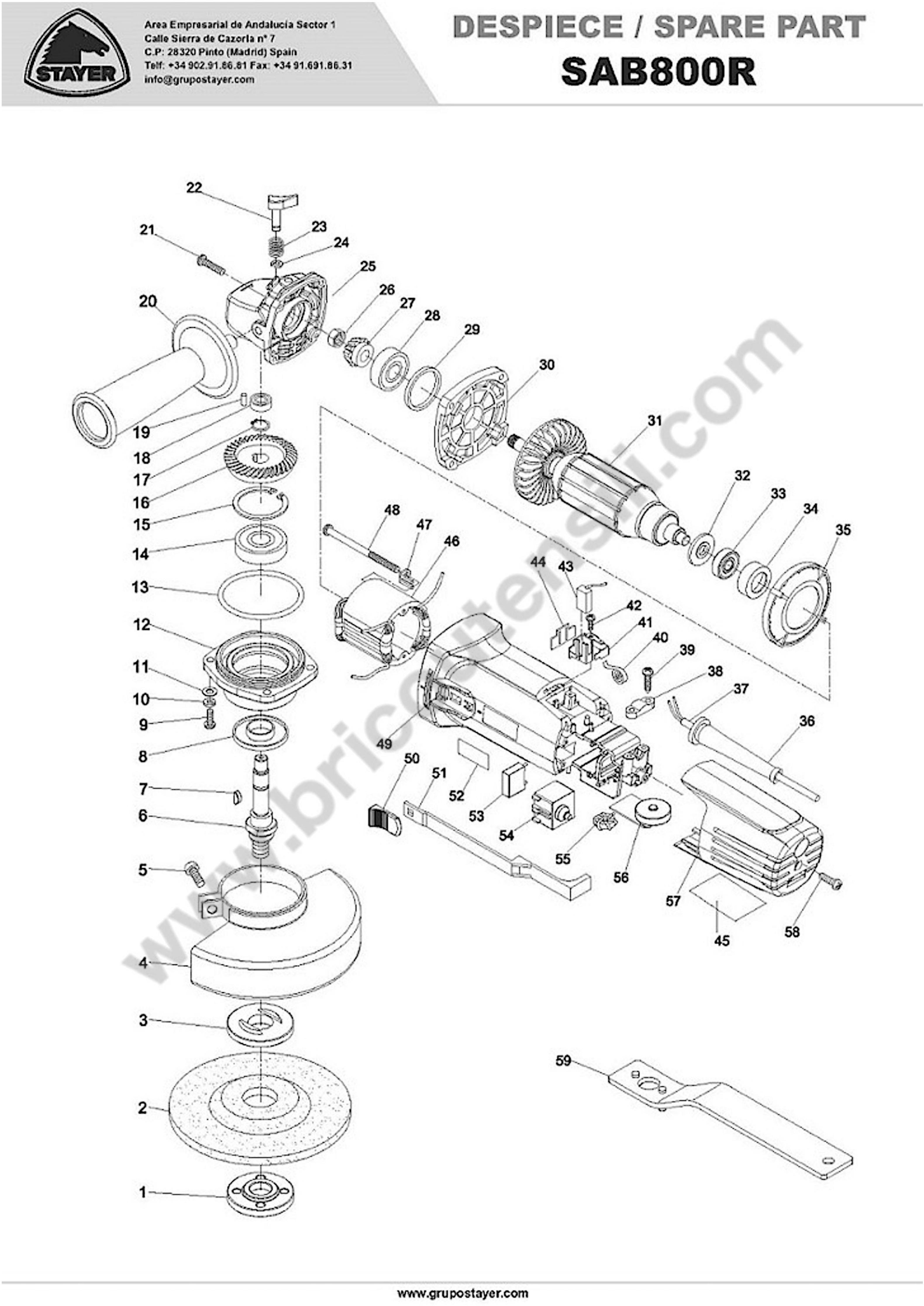

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
53
 photo_cameraImage coming soon 5019231 CAPACITOR €2.02
54
 photo_cameraImage coming soon 5019232 SWITCH €7.03
55
 photo_cameraImage coming soon 5019233 INDUCTANCE €1.52
57
 photo_cameraImage coming soon 5019235 REAR COVER €5.53
58
 photo_cameraImage coming soon 5019236 TAPPING SCREW €0.00 Not available for order
59
 photo_cameraImage coming soon 5019237 KEY LUGS €2.02

Shipping and delivery information will be available shortly.

Stayer Spare Parts for Angle Grinders 781R-800R

We have the original Spares STAYER for Angle Grinder SAB781R-800R the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

ANGLE GRINDER SAB 781R - 800R
# Part Num. Description
1 5019179 OUTER FLANGE
3 5019181 INNER FLANGE GUIDE
4 5019182 PROTECT GUARD
5 5019183 SCREW
6 5019184 SPINDLE
7 5019185 COTTER
8 5019186 DUST COVER
9 5019187 SCREW
10 5019188 SPRING WASHER
11 5019189 FLAT WASHER
12 5019190 CROWN COVER
13 5019191 BOARD
14 5019192 BEARING 6201 2RS
15 5019193 CIRCLIP 32
16+27 5019194 WHEEL GEAR + PINION
17 5019195 CIRCLIP 32
18 5019196 BEARING 696-2Z
19 5019197 STOP ANTIVIBRATION
20 5019198 SIDE HANDLE
21 5019199 TAPPING SCREW
22 5019200 SPINDLE LOCK
23 5019201 LOCK SPRING
24 5019202 CIRCLIP 32
25 5019203 GEAR BOX
26 5019204 FIXING FLANGE SCREW
28 5019206 BEARING 6000-2RZ
29 5019207 BOARD
30 5019208 COVER
31 5019209 ARMATURE
32 5019210 ANTIDUST RING
33 5019211 BEARING 607-2Z
34 5019212 BEARING SLEEVE
35 5019213 WIND GUARD
36 5019214 CABLE PROTECTOR
38 5019216 CLAMP
39 5019217 TAPPING SCREW
40 5019218 ELECTRIC RING
41 5019219 CARBON BRUSH HOLDER
42 5019220 TAPPING SCREW
43 5019221 CARBON BRUSHES
44 5019222 INSULATE PLATE
46 5019224 STATOR
47 5019225 FIXING BLOCK
48 5019226 TAPPING SCREW
49 5019227 HOUSING
50 5019228 SWITCH BLOCK
51 5019229 SWITCH CONNECT POLE
53 5019231 CAPACITOR
54 5019232 SWITCH
55 5019233 INDUCTANCE
57 5019235 REAR COVER
58 5019236 TAPPING SCREW
59 5019237 KEY LUGS
31 5019242 ARMATURE (110V)
46 5019243 STATOR (110V)
