Stayer Spare Parts for Drill TH610A

SKU: Stayer TH610A
€31.95
VAT included

Stayer Spare Parts for Drill TH610A

We are STAYER authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Drill TH610A.
Stayer Spare Parts for Drill TH610A
  • On sale!
  • Stayer Spare Parts for Drill TH610A
  • Stayer Spare Parts for Drill TH610A
Stayer

Stayer Spare Parts for Drill TH610A

SKU: Stayer TH610A Condition: New
€31.95
VAT included

Stayer Spare Parts for Drill TH610A

We are STAYER authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Drill TH610A.
settings 32 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: ONLY FOR ITEMS MADE IN SPAIN
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
32 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

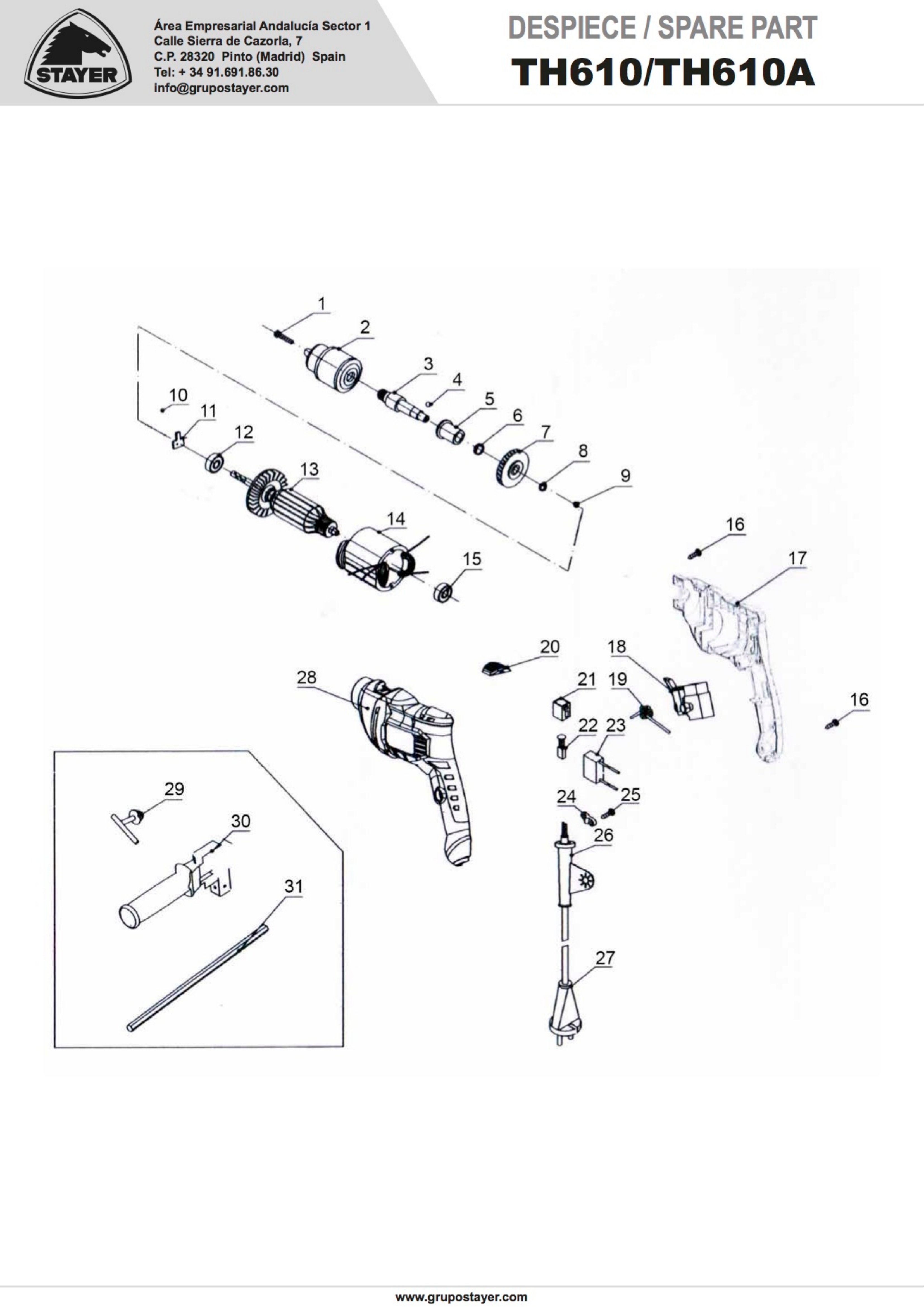

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 8159.190 SCREW M5X14 €0.00 Not available for order
2
 photo_cameraImage coming soon 12.37 CHUCK €26.54
3
 photo_cameraImage coming soon 8159.192 OUTPUT SPINDLE €3.70
4
 photo_cameraImage coming soon 8159.193 STEEL BALL Ø3 €0.00 Not available for order
5
 photo_cameraImage coming soon 8159.194 STEEL SLEEVE €4.44
6
 photo_cameraImage coming soon 8159.195 SPRING €0.00 Not available for order
7
 photo_cameraImage coming soon 8159.196 GEAR €0.00 Not available for order
8
 photo_cameraImage coming soon 8159.197 STEEL CIRCLIP €4.65
9
 photo_cameraImage coming soon 8159.198 STEEL BALL Ø5 €0.00 Not available for order
10
 photo_cameraImage coming soon 8159.199 IMPACT BLOCK €2.20
11
 photo_cameraImage coming soon 8159.200 STEEL SHEET €29.81
12
 photo_cameraImage coming soon 8159.201 BEARING 608 €14.89
13
 photo_cameraImage coming soon 8159.202 ROTOR €2.20
13
 photo_cameraImage coming soon 8159.221 ROTOR (110-120 V) €32.79
14
 photo_cameraImage coming soon 8159.203 STATOR €0.00 Not available for order
14
 photo_cameraImage coming soon 8159.220 STATOR (110-120 V) €32.79
15
 photo_cameraImage coming soon 8159.204 BEARING 626 €14.89
16
 photo_cameraImage coming soon 8159.205 SCREW ST4X14 €9.66
17
 photo_cameraImage coming soon 8159.206 HOUSING I €0.00 Not available for order
18
 photo_cameraImage coming soon 8159.207 SWITCH €12.92
19
 photo_cameraImage coming soon 8159.208 INDUCTOR €1.45
20
 photo_cameraImage coming soon 8159.209 BUTTON €2.95
21
 photo_cameraImage coming soon 8159.210 CARBON BRUSH HOLDER €5.20
22
 photo_cameraImage coming soon 8159.211 CARBON BRUSH €6.53
23
 photo_cameraImage coming soon 8159.212 CAPACITOR €0.00 Not available for order
24
 photo_cameraImage coming soon 8159.213 CORD CLAMPING PLATE €0.00 Not available for order
25
 photo_cameraImage coming soon 8159.214 SCREW ST4X14 €14.89
26
 photo_cameraImage coming soon 8159.215 CORD SHIELD €4.89
28
 photo_cameraImage coming soon 8159.216 HOUSING II €0.00 Not available for order
29
 photo_cameraImage coming soon 8159.217 CHUCK KEY €15.60
30
 photo_cameraImage coming soon 8159.218 SIDE HANDLE €32.79
31
 photo_cameraImage coming soon 8159.219 DEPTH STOP €0.00 Not available for order

Shipping and delivery information will be available shortly.

Stayer Spare Parts for Drill TH610A

We are STAYER authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Drill TH610A.

In the following table, look for the model of the Drill and the respective parts of the code.
Stayer TH610A

Drill TH610A
# Part Num. Description
1 8159.190 SCREW M5X14
2 12.508 KEYLESS CHUCK
2 12.37 CHUCK
3 8159.192 OUTPUT SPINDLE
4 8159.193 STEEL BALL Ø3
5 8159.194 STEEL SLEEVE
6 8159.195 SPRING
7 8159.196 GEAR
8 8159.197 STEEL CIRCLIP
9 8159.198 STEEL BALL Ø5
10 8159.199 IMPACT BLOCK
11 8159.200 STEEL SHEET
12 8159.201 BEARING 608
13 8159.202 ROTOR
14 8159.203 STATOR
15 8159.204 BEARING 626
16 8159.205 SCREW ST4X14
17 8159.206 HOUSING I
18 8159.207 SWITCH
19 8159.208 INDUCTOR
20 8159.209 BUTTON
21 8159.210 CARBON BRUSH HOLDER
22 8159.211 CARBON BRUSH
23 8159.212 CAPACITOR
24 8159.213 CORD CLAMPING PLATE
25 8159.214 SCREW ST4X14
26 8159.215 CORD SHIELD
27 POWER CORD & PLUG
28 8159.216 HOUSING II
29 8159.217 CHUCK KEY
30 8159.218 SIDE HANDLE
31 8159.219 DEPTH STOP
14 8159.220 STATOR (110-120 V)
13 8159.221 ROTOR (110-120 V)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer TH610A
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
MORE INFO:
ONLY FOR ITEMS MADE IN SPAIN
Machine Type
Drill

Specific References

New

Download

Diagram Stayer TH610A

Diagram Stayer TH610A

Download (200.63KB)

You might also like

Percussion Drill Stayer TH 610 A
Stayer SKU: Stayer TH610A
Percussion Drill Stayer TH 610 A
Percussion Drill Stayer TH610A Percussion Drill Stayer TH 610 A Green Line Technical data - Power: 610 Watt - Self-locking chuck 13 mm - Electronic and Reversible
