Stayer Spare Parts for Angle Grinder FH680

SKU: Stayer FH680
€0.87
VAT included

Stayer Spare Parts for Angle Grinder FH680

Stayer Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Angle Grinder FH680.
Stayer Spare Parts for Angle Grinder FH680
  • On sale!
  • Stayer Spare Parts for Angle Grinder FH680
  • Stayer Spare Parts for Angle Grinder FH680

Stayer Spare Parts for Angle Grinder FH680

SKU: Stayer FH680 Condition: New
€0.87
VAT included

Stayer Spare Parts for Angle Grinder FH680

Stayer Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Angle Grinder FH680.
settings 1 spare part
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

1 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
52
Power Cord Armor for Angle Grinder Stayer FH680 8144.53 Power Cord Armor for Angle Grinder Stayer FH680 €2.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Spare Parts for Angle Grinder FH680

Stayer Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Angle Grinder FH680.

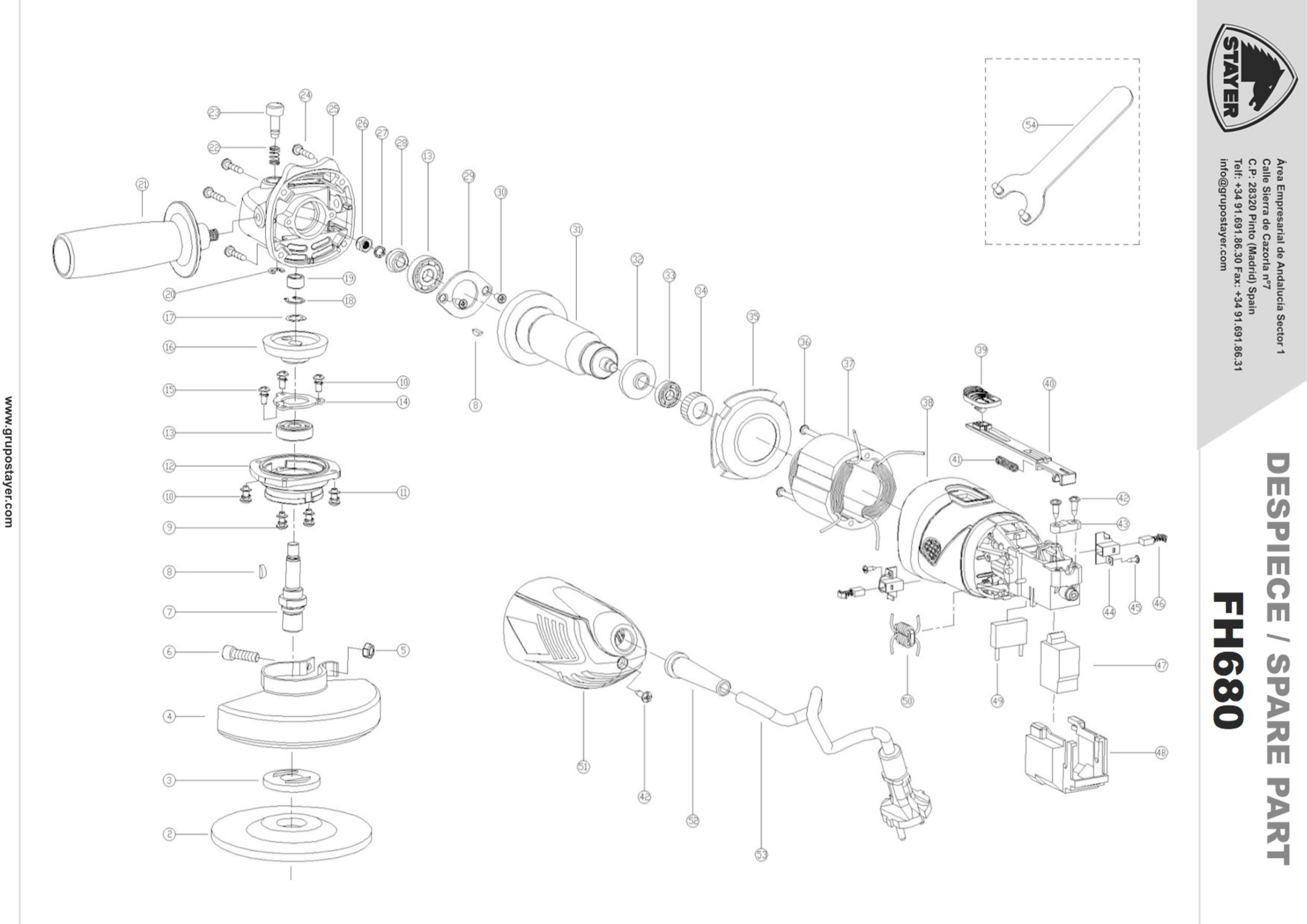

In the following table, look for the model of the Angle Grinder and the respective parts of the code.


Angle Grinder FH680

1 8144.3 PRESSING PLATE-1
2 GRINDING WHEEL
3 8144.4 PRESSING PLATE-2
4 8144.5 GRINDING WHEEL COVER
5 8144.6 NUT
6 8144.7 BOLT-1
7 8144.8 OUTPUT SHAFT
8 8144.9 WOODRUFF KEY
9 8144.10 BOLT-2
10 8144.11 SPRING WASHER-1
11 8144.12 FLAT WASHER
12 8144.13 FRONT CAP
13 8144.14 BEARING
14 8144.15 BEARING COVER
15 8144.16 BOLT-3
16 8144.17 GEAR-1
17 8144.18 UNDEE WASHER
18 8144.19 RETAINER RING-1
19 8144.20 COPPER BUSH
20 8144.21 RETAINER RING-2
21 8144.22 SIDE HANDLE
22 8144.23 SPRING
23 8144.24 SELF-LOCK BUTTON
24 8144.25 BOLT-4
25 8144.26 GEAR BOX
26 8144.27 NUT-2
27 8144.28 SPRING WASHER-2
28 8144.29 GEAR-2
29 8144.30 BEARING COVER-2
30 8144.31 BOLT-5
31 8144.32 ROTOR
32 8144.33 INSULATION COVER
33 8144.34 BEARING-2
34 8144.35 BEARING BUSH
35 8144.36 FAN GUIDE
36 8144.37 BOLT-6
37 8144.38 STATOR
38 8144.39 HOUSING
39 8144.40 SWITCH PUSH
40 8144.41 SWITCH PUSH ROD
41 8144.42 SPRING-2
42 8144.43 BOLT-7
43 8144.44 CABLE PLATE
44 8144.45 BURSH HOLDER
45 8144.46 BOLT-8
46 8144.47 CARBON BRUSH
47 8144.48 SWITCH
48 8144.49 INSULATE COVER
49 8144.50 CAPACITOR
50 8144.51 INDUCTANCE
51 8144.52 BACK COVER
52 8144.53 CABLE PROTECTOR
53 INPUT CABLE WITH PLUG
54 8144.54 SPANNER
31 8144.101 ROTOR (110-120V)
37 8144.102 STATOR (110-120V)
46 8144.103 CARBON BRUSH (110-120 V)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer FH680
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Stayer FH680


Diagram Stayer FH680


Download (239.73KB)
