Stayer

Stayer Spare Parts for Planner PH82

SKU: Stayer PH82
€15.05
VAT included

Stayer Spare Parts for Planner PH82

Stayer Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Planner PH82.
Stayer Spare Parts for Planner PH82
  • Stayer Spare Parts for Planner PH82
  • Stayer Spare Parts for Planner PH82
Stayer

Stayer Spare Parts for Planner PH82

SKU: Stayer PH82 Condition: New
€15.05
VAT included

Stayer Spare Parts for Planner PH82

Stayer Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Planner PH82.
settings 75 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
75 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

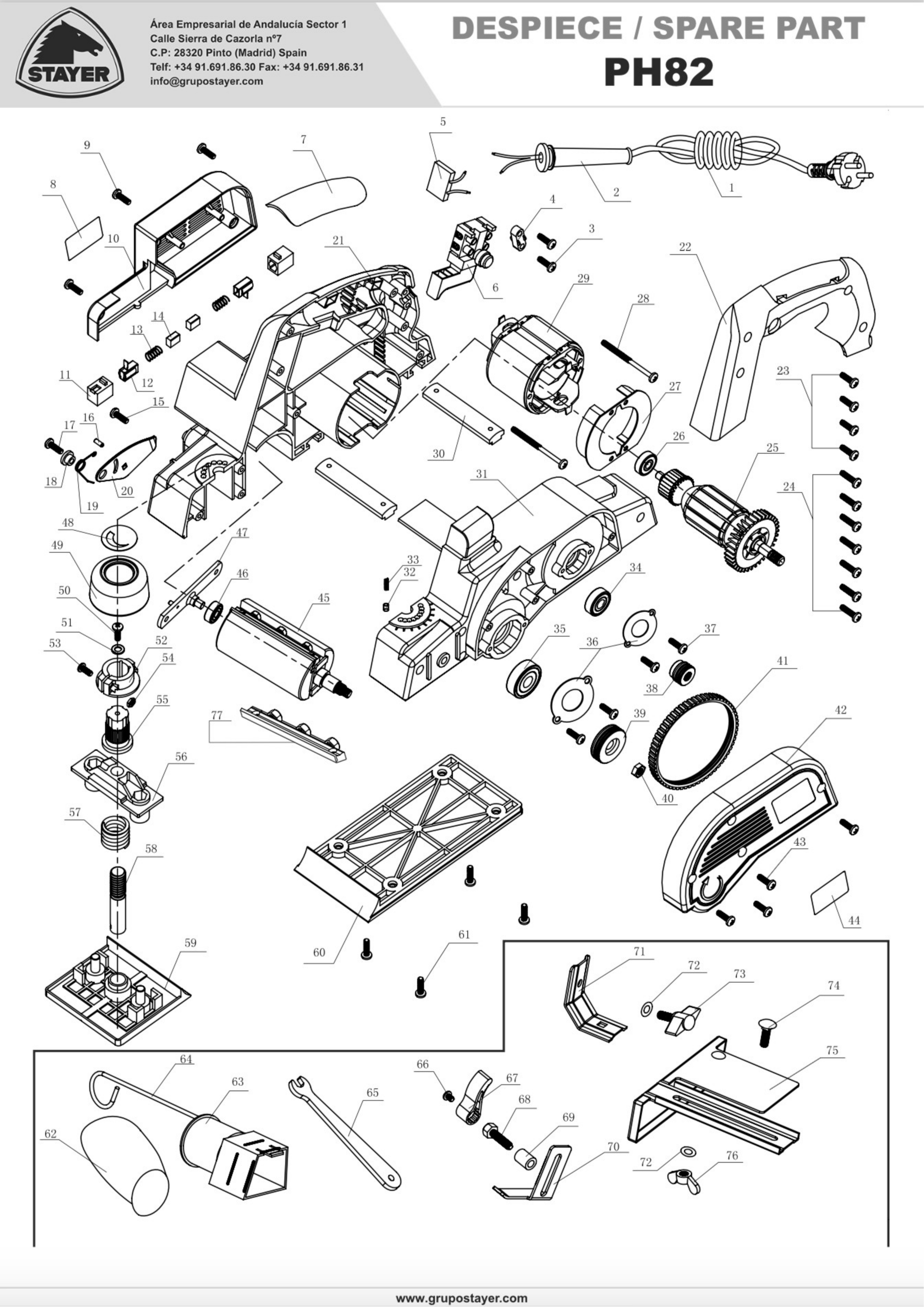

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 50072 PROTECTING COVER €2.76
2
 photo_cameraImage coming soon 500573 CABLE ARMOR €0.00 Not available for order
3
 photo_cameraImage coming soon 500574 SCREW €0.00 Not available for order
4
 photo_cameraImage coming soon 500575 CABLE CLAMP €0.00 Not available for order
5
 photo_cameraImage coming soon 500576 CAPACITOR €0.00 Not available for order
6
 photo_cameraImage coming soon 500577 SWITCH €4.39
7
 photo_cameraImage coming soon 500578 UPPER COVER €3.28
9
 photo_cameraImage coming soon 500579 SCREW €0.00 Not available for order
10
 photo_cameraImage coming soon 500580 LATERAL COVER €1.33
11
 photo_cameraImage coming soon 500581 CARBON BRUSH HOLDER CAP €1.29
12
 photo_cameraImage coming soon 500582 BRUSH HOLDER €2.52
14
 photo_cameraImage coming soon 500583 CARBON BRUSH €3.94
15
 photo_cameraImage coming soon 500584 SCREW €0.00 Not available for order
16
 photo_cameraImage coming soon 500585 ADJUSTING PIN €0.00 Not available for order
17
 photo_cameraImage coming soon 500586 SCREW €0.00 Not available for order
18
 photo_cameraImage coming soon 500587 RING €0.00 Not available for order
19
 photo_cameraImage coming soon 500588 SPRING €0.00 Not available for order
20
 photo_cameraImage coming soon 500589 PLETINE €1.88
21
 photo_cameraImage coming soon 500590 MOTOR HOUSING €11.71
22
 photo_cameraImage coming soon 500591 HANDLE €2.35
23
 photo_cameraImage coming soon 500592 SCREW €0.00 Not available for order
24
 photo_cameraImage coming soon 500593 SCREW €0.00 Not available for order
25
 Armature 230V for Planer Stayer PH82 500594 Armature 230V for Planer Stayer PH82 €40.65
26
 photo_cameraImage coming soon 500595 BEARING €3.45
27
 photo_cameraImage coming soon 500596 AIR FAN €0.00 Not available for order
28
 photo_cameraImage coming soon 500597 SCREW €0.00 Not available for order
29
 photo_cameraImage coming soon 500598 STATOR €11.12
30
 photo_cameraImage coming soon 500599 SUPPORT €0.00 Not available for order
31
 photo_cameraImage coming soon 5005100 LEFT BODY HOUSING €10.33
32
 photo_cameraImage coming soon 5005101 ADJUSTING PIN €0.00 Not available for order
33
 photo_cameraImage coming soon 5005102 SPRING €0.00 Not available for order
34
 photo_cameraImage coming soon 5005103 BEARING €3.50
35
 photo_cameraImage coming soon 5005104 BEARING €3.57
36
 photo_cameraImage coming soon 5005105 WASHER €0.00 Not available for order
37
 photo_cameraImage coming soon 5005106 SCREW €0.00 Not available for order
38
 photo_cameraImage coming soon 5005107 PULLEY €3.52
39
 photo_cameraImage coming soon 5005108 PULLEY €2.59
40
 photo_cameraImage coming soon 5005109 NUT €0.00 Not available for order
41
 Belt for Electric Planer Stayer PH82 5005110 Belt for Electric Planer Stayer PH82 €9.26
42
 photo_cameraImage coming soon 5005111 COVER €2.52
43
 photo_cameraImage coming soon 5005112 SCREW €0.00 Not available for order
45
 photo_cameraImage coming soon 5005113 ADJUSTING PIECE, ROLLER €30.73
46
 photo_cameraImage coming soon 5005114 BEARING 606ZZ €3.50
47
 photo_cameraImage coming soon 5005115 SUPPORT €3.33
48
 photo_cameraImage coming soon 5005116 BUSH €2.10
49
 photo_cameraImage coming soon 5005117 SUPPORT €2.40
50
 photo_cameraImage coming soon 5005118 SCREW €0.00 Not available for order
51
 photo_cameraImage coming soon 5005119 WASHER €0.00 Not available for order
52
 photo_cameraImage coming soon 5005120 RING €2.90
53
 photo_cameraImage coming soon 5005121 SCREW €0.00 Not available for order
54
 photo_cameraImage coming soon 5005122 NUT €0.00 Not available for order
55
 photo_cameraImage coming soon 5005123 REGULATION €2.71
56
 photo_cameraImage coming soon 5005124 SUPPORT €2.03
57
 photo_cameraImage coming soon 5005125 SPRING €2.02
58
 photo_cameraImage coming soon 5005126 CYLINDER €7.61
59
 photo_cameraImage coming soon 5005127 ANTIVIBRATION Ø40X30 MF M8X25 65SH €4.69
60
 photo_cameraImage coming soon 5005128 PLATE €7.03
61
 photo_cameraImage coming soon 5005129 SCREW €0.00 Not available for order
62
 photo_cameraImage coming soon 5005130 BAG €2.35
63
 photo_cameraImage coming soon 5005131 SUPPORT €2.03
64
 photo_cameraImage coming soon 5005132 WIRE €0.00 Not available for order
65
 photo_cameraImage coming soon 5005133 KEY €2.52
66
 photo_cameraImage coming soon 5005134 SCREW €0.00 Not available for order
67
 photo_cameraImage coming soon 5005135 KNOB €0.00 Not available for order
68
 photo_cameraImage coming soon 5005136 SCREW €0.00 Not available for order
69
 photo_cameraImage coming soon 5005137 DISTANZIALE €1.36
70
 photo_cameraImage coming soon 5005138 SQUARE €0.00 Not available for order
71
 photo_cameraImage coming soon 5005139 FIX €1.48
72
 photo_cameraImage coming soon 5005140 RING €0.00 Not available for order
73
 photo_cameraImage coming soon 5005141 SCREW €0.00 Not available for order
74
 photo_cameraImage coming soon 5005142 SCREW €0.00 Not available for order
75
 photo_cameraImage coming soon 5005143 SUPPORT €4.69
76
 photo_cameraImage coming soon 5005144 NUT €0.00 Not available for order
77
 Blade Holder Set for Electric Planer Stayer PH82 500571 Blade Holder Set for Electric Planer Stayer PH82 €23.44
500
 Knives Set for Electric Planer Stayer PH82 PH82-C. Knives Set for Electric Planer Stayer PH82 €16.71

Shipping and delivery information will be available shortly.

Stayer Spare Parts for Planner PH82

Stayer Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Planner PH82.

In the following table, look for the model of the Planner and the respective parts of the code.
Stayer PH82

Planner Stayer PH82
# Part Num. Description
1 500572 CAVO
2 500573 CABLE ARMOR
3 500574 SCREW
4 500575 CABLE CLAMP
5 500576 CAPACITOR
6 500577 SWITCH
7 500578 UPPER COVER
9 500579 SCREW
10 500580 LATERAL COVER
11 500581 CARBON BRUSH HOLDER CAP
12 500582 BRUSH HOLDER
14 500583 CARBON BRUSH
15 500584 SCREW
16 500585 PIN
17 500586 SCREW
18 500587 RING
19 500588 SPRING
20 500589 PLETINE
21 500590 MOTOR HOUSING
22 500591 HANDLE
23 500592 SCREW
24 500593 SCREW
25 500594 ARMATURE
26 500595 BEARING
27 500596 AIR FAN
28 500597 SCREW
29 500598 STATOR
30 500599 SUPPORT
31 5005100 LEFT BODY HOUSING
32 5005101 PIN
33 5005102 SPRING
34 5005103 BEARING
35 5005104 BEARING
36 5005105 WASHER
37 5005106 SCREW
38 5005107 PULLEY
39 5005108 PULLEY
40 5005109 NUT
41 5005110 BELT
42 5005111 COVER
43 5005112 SCREW
45 5005113 ROLLER SET
46 5005114 BEARING 606ZZ
47 5005115 SUPPORT
48 5005116 CAP
49 5005117 SUPPORT
50 5005118 SCREW
51 5005119 WASHER
52 5005120 RING
53 5005121 SCREW
54 5005122 NUT
55 5005123 REGULATION
56 5005124 SUPPORT
57 5005125 SPRING
58 5005126 CYLINDER
59 5005127 BASE
60 5005128 PLATE
61 5005129 SCREW
62 5005130 BAG
63 5005131 SUPPORT
64 5005132 WIRE
65 5005133 KEY
66 5005134 SCREW
67 5005135 KNOB
68 5005136 SCREW
69 5005137 SPACER
70 5005138 SQUARE
71 5005139 FIX
72 5005140 RING
73 5005141 SCREW
74 5005142 SCREW
75 5005143 SUPPORT
76 5005144 NUT
77 500571 HOLDER BLADE SET
500 PH82-C. KNVIVES SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer PH82
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Stayer PH82

Diagram Stayer PH82

Download (437.45KB)
