Stayer

Stayer Spare Parts for Angle Grinder FH230

SKU: Stayer FH230
€7.84
VAT included

Stayer Spare Parts for Angle Grinder FH230

We are Stayer original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for  Angle Grinder FH230.
Stayer Spare Parts for Angle Grinder FH230
  • Stayer Spare Parts for Angle Grinder FH230
  • Stayer Spare Parts for Angle Grinder FH230
Stayer

Stayer Spare Parts for Angle Grinder FH230

SKU: Stayer FH230 Condition: New
€7.84
VAT included

Stayer Spare Parts for Angle Grinder FH230

We are Stayer original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for  Angle Grinder FH230.
settings 48 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: ONLY FOR ITEMS MADE IN SPAIN
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

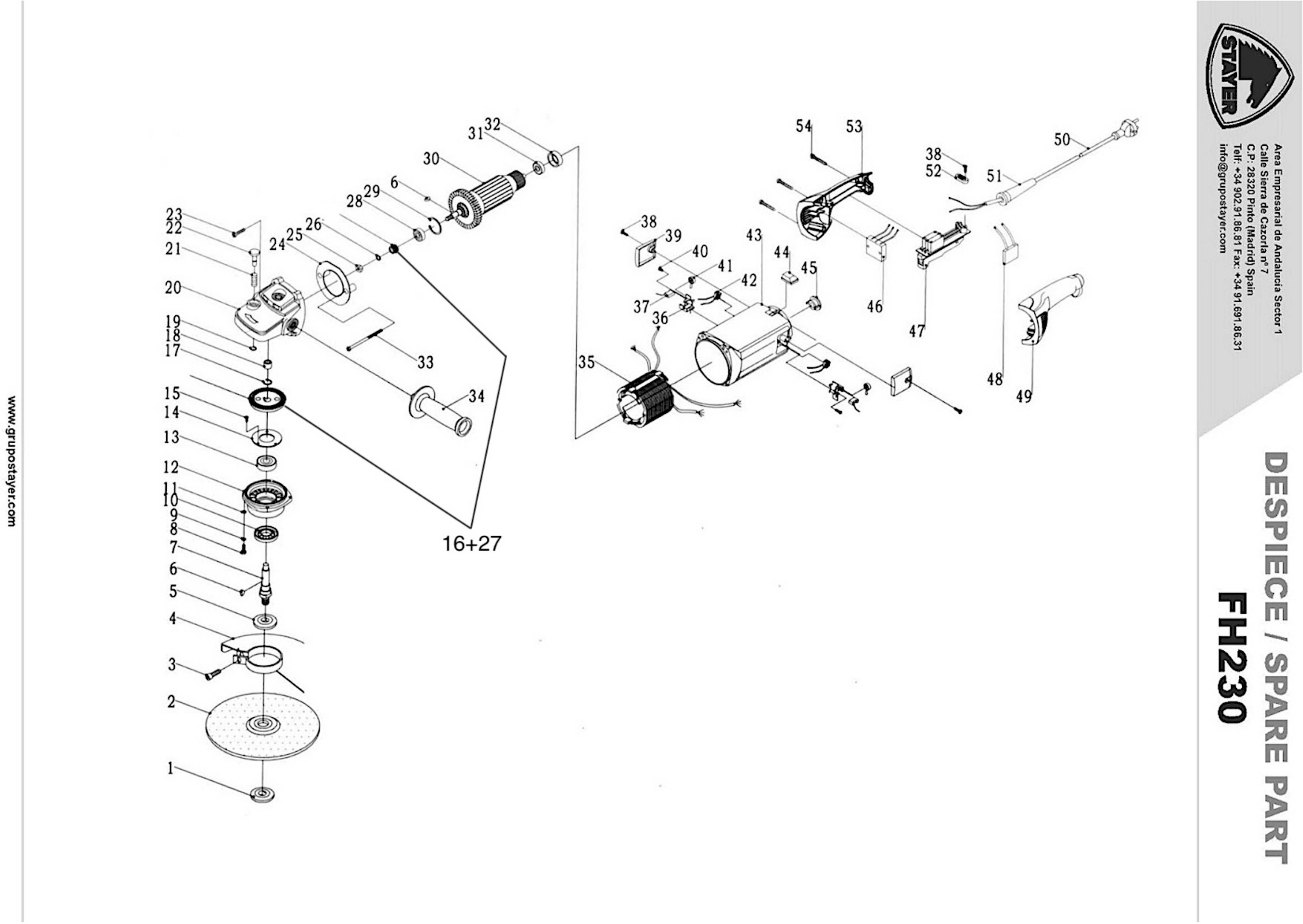

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Upper Flange for Angle Grinders Stayer SA21-180-21-230-FH230 41071 Upper Flange for Angle Grinders Stayer SA21-180-21-230-FH230 €8.25
3
 photo_cameraImage coming soon 41073 SCREW €0.00 Not available for order
4
 Stayer SA21-180 Disc Guard 41074 Stayer SA21-180 Disc Guard €15.88
5
 photo_cameraImage coming soon 41072 GUIDE FLANGE €7.62
6
 photo_cameraImage coming soon 41077 HALF ROUND PIN €0.00 Not available for order
7
 photo_cameraImage coming soon 41076 OUTPUT SPINDLE €12.31
8
 photo_cameraImage coming soon 41078 SCREW €0.00 Not available for order
9
 photo_cameraImage coming soon 41079 SPRING DIVIDER €0.00 Not available for order
10
 photo_cameraImage coming soon 4107107 DUST COVER €3.09
11
 photo_cameraImage coming soon 41079 SPRING DIVIDER €0.00 Not available for order
12
 Head Gasket for Motor Pump CM 25 410710 Head Gasket for Motor Pump CM 25 €3.51 Not available for order
13
 photo_cameraImage coming soon 410711 BEARING 6203 €5.44
14
 photo_cameraImage coming soon 410712 BEARING PRESSING PLATE €2.94
15
 photo_cameraImage coming soon 410714 SCREW €0.00 Not available for order
16+27
 Crown Gear and Pinion for Stayer Angle Grinder SA21-180/21-230 4107124 Crown Gear and Pinion for Stayer Angle Grinder SA21-180/21-230 €38.63
17
 photo_cameraImage coming soon 410719 CIRCLIP €0.00 Not available for order
18
 photo_cameraImage coming soon 410716 OILNESS BEARING €5.44
19
 photo_cameraImage coming soon 410719 CIRCLIP €0.00 Not available for order
20
 photo_cameraImage coming soon 410722 FRONT HOUSING €24.74
21
 photo_cameraImage coming soon 410720 SELF-LOCKING SPRING €0.00 Not available for order
22
 photo_cameraImage coming soon 410721 SELF-LOCKING PIN €0.00 Not available for order
23
 photo_cameraImage coming soon 410718 TAPPING SCREW €0.00 Not available for order
24
 photo_cameraImage coming soon 410727 DEFLECTOR €3.09
25
 photo_cameraImage coming soon 410723 NUT €0.00 Not available for order
26
 photo_cameraImage coming soon 410724 SPRING €0.00 Not available for order
28
 photo_cameraImage coming soon 410726 BEARING 6201 €5.44
29
 photo_cameraImage coming soon 4107108 CIRCLIP €0.00 Not available for order
30
 photo_cameraImage coming soon 4205700 ARMATURE €74.50
31
 Ball Bearing 629 ZZ for Angle Grinders Stayer SA21-180/21-230 410729 Ball Bearing 629 ZZ for Angle Grinders Stayer SA21-180/21-230 €8.77
32
 Ball Bearing Rubber Bushing for Angle Grinders Stayer SA21-180/21-230 410730 Ball Bearing Rubber Bushing for Angle Grinders Stayer SA21-180/21-230 €3.05
33
 photo_cameraImage coming soon 410731 SCREW €0.00 Not available for order
34
 photo_cameraImage coming soon 410717 AUXILIARY HANDLE €7.78
35
 photo_cameraImage coming soon 4205705 STATOR €35.60
36
 photo_cameraImage coming soon 410745 CARBON BRUSH HOLDER €10.91
37
 Carbon Brushes for Angle Grinder Stayer SA SAB-21-180/230 410746 Carbon Brushes for Angle Grinder Stayer SA SAB-21-180/230 €16.69
38
 photo_cameraImage coming soon 410744 TAPPING SCREW €0.00 Not available for order
39
 photo_cameraImage coming soon 410743 BRUSH HOLDER COVER €3.09
40
 photo_cameraImage coming soon 4107109 TAPPING SCREW €0.00 Not available for order
41
 photo_cameraImage coming soon 410747 ROLL SPRING €1.38
42
 photo_cameraImage coming soon 4107110 INDUCTANCE €2.57
43
 photo_cameraImage coming soon 410737 HOUSING €20.27
44
 photo_cameraImage coming soon 4107111 RUBBER €2.31
45
 photo_cameraImage coming soon 4107112 CENTRATOR €1.53
47
 Switch Without Lock for Angle Grinder Stayer SA 21/180-SA21/230 410740 Switch Without Lock for Angle Grinder Stayer SA 21/180-SA21/230 €25.13
48
 Capacitor for Angle Grinder Stayer SA 21/180-SA21/230 410753 Capacitor for Angle Grinder Stayer SA 21/180-SA21/230 €8.25
49
 photo_cameraImage coming soon 410749 LEFT HANDLE €9.17
51
 photo_cameraImage coming soon 410750 ARMOR €1.53
52
 photo_cameraImage coming soon 410742 CLAMP €0.00 Not available for order
53
 photo_cameraImage coming soon 410739 RIGHT HANDLE €8.56
54
 photo_cameraImage coming soon 410738 SCREW €0.00 Not available for order

Shipping and delivery information will be available shortly.

Stayer Spare Parts for Angle Grinder FH230

We are Stayer original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for  Angle Grinder FH230.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Stayer FH230

Angle Grinder Stayer FH230
# Part Num. Description
1 41071 OUTER FLANGE
3 41073 SCREW
4 41074 DISC GUARD
5 41072 INNER FLANGE
6 41077 HALF ROUND PIN
7 41076 OUTPUT SPINDLE
8 41078 SCREW
9 41079 SPRING DIVIDER
10 4107107 OIL SEALING RING
11 41079 WASHER
12 410710 FRONT COVER
13 410711 BEARING 6203
14 410712 BEARING PRESSING PLATE
15 410714 SCREW
16 GEAR
16+27 4107124 GEAR + PINON GEAR
17 410719 RETAINING RING
18 410716 OILNESS BEARING
19 410719 CIRCLIP
20 410722 FRONT HOUSING
21 410720 SELF-LOCKING SPRING
22 410721 SELF-LOCKING PIN
23 410718 TAPPING SCREW
24 410727 FAN GUIDE
25 410723 NUT
26 410724 SPRING DIVIDER
27 PINION
28 410726 BEARING 6201
29 4107108 RETAINING RING
30 4205700 ARMATURE
31 410729 BEARING 629
32 410730 BEARING SLEEVE 629
33 410731 SCREW
34 410717 AUXILIARY HANDLE
35 4205705 STATOR
36 410745 CARBON BRUSH HOLDER
37 410746 CARBON BRUSH SET
38 410744 TAPPING SCREW
39 410743 BRUSH HOLDER COVER
40 4107109 TAPPING SCREW
41 410747 ROLL SPRING
42 4107110 INDUCTANCE
43 410737 HOUSING
44 4107111 RUBBER WASHER
45 4107112 CABLE CLAMP BOARD
47 410740 SWITCH
48 410753 CAPACITOR
49 410749 LEFT HANDLE
51 410750 CABLE ARMOR
52 410742 CLAMP
53 410739 RIGHT HANDLE
54 410738 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer FH230
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Grinder
MORE INFO:
ONLY FOR ITEMS MADE IN SPAIN

Specific References

New

Download

Diagram Stayer FH230

Diagram Stayer FH230

Download (218.36KB)
