Stayer Spare Parts for Mitre Saw SC250W
Fix Your
Mitre Saw SC250W. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

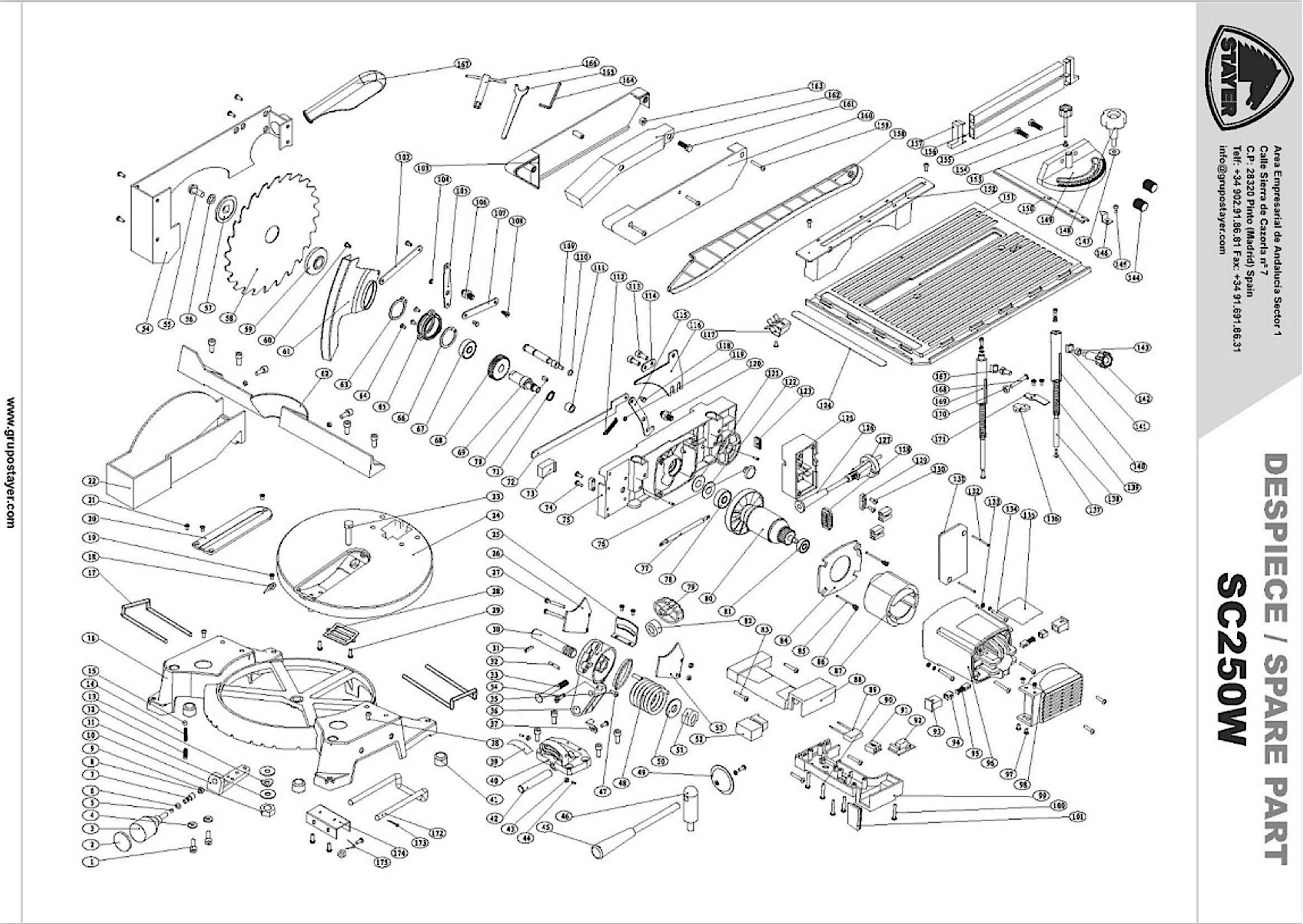

In the following table, look for the model of the Mitre Saw
and the respective parts of the code.
| Mitre Saw Stayer SC250W |
| # |
Part Num. |
Description |
| 1 |
5009436 |
SCREW |
| 2 |
5009437 |
LOCK HANDLE COVER |
| 3 |
5009438 |
KNOB |
| 4 |
5009439 |
SPRING WASHER |
| 5 |
5009440 |
STEEL BALL |
| 6 |
5009441 |
O-RING |
| 7 |
5009442 |
LOCK HANDLE CONNECT |
| 8 |
5009443 |
WASHER |
| 9 |
5009444 |
SCREW |
| 10 |
5009445 |
STEEL SET |
| 11 |
5009446 |
WASHER |
| 12 |
5009447 |
SCREW |
| 13 |
5009448 |
WAVE WASHER |
| 14 |
5009449 |
SPRING |
| 15 |
5009450 |
STEEL BALL |
| 16 |
5009451 |
BASE |
| 17 |
5009452 |
EXTENSION SUPPORT |
| 18 |
5009453 |
ROUND BASE POINTER |
| 19 |
5009454 |
SCREW |
| 20 |
5009455 |
ROUND BASE LINING PLATE |
| 21 |
5009456 |
SCREW |
| 22 |
5009457 |
BLADE PROTECTER |
| 23 |
5009458 |
SCREW |
| 24 |
5009459 |
ROUND BASE |
| 25 |
5009460 |
CLAMPING BOARD |
| 26 |
5009461 |
LEFT FIXED PROTECTER |
| 27 |
5009462 |
SCREW |
| 28 |
5009463 |
ROUND BASE COVER BOARD |
| 29 |
5009464 |
SCREW |
| 30 |
5009465 |
JOINT SHAFT |
| 31 |
5009466 |
SPRING |
| 32 |
5009467 |
PUSHER |
| 33 |
5009468 |
SCREW |
| 34 |
5009469 |
SCREW |
| 35 |
5009470 |
SCREW |
| 36 |
5009471 |
BAR HOLDER |
| 37 |
5009472 |
POINTER |
| 38 |
5009473 |
SCREW |
| 39 |
5009474 |
LABEL |
| 40 |
5009475 |
SUPPORT |
| 41 |
5009476 |
RUBBER FEET |
| 42 |
5009477 |
SUPPORT PUSHER AXIS |
| 43 |
5009478 |
SCREW |
| 44 |
5009479 |
SCREW |
| 45 |
5009480 |
CLAMPING HANDWHEEL |
| 46 |
5009481 |
CLAMPING HOLDER |
| 47 |
5009482 |
WASHER |
| 48 |
5009483 |
SPRING |
| 49 |
5009484 |
CLAMPING PAN |
| 50 |
5009485 |
WASHER |
| 51 |
5009486 |
SCREW |
| 52 |
5009487 |
SWITCH |
| 53 |
5009488 |
RIGHT FIXED PROTECTED |
| 54 |
5009489 |
FRAME COVER |
| 55 |
5009490 |
SCREW LEFT THREAD M8x20 |
| 56 |
5009491 |
CLAMPING BOARD WASHER |
| 57 |
5009492 |
OUTER FLANGE |
| 58 |
- |
BLADE |
| 59 |
5009493 |
INNER FLANGE |
| 60 |
5009494 |
COVER RIVET |
| 61 |
5009495 |
TRANSPARENT GUARD |
| 62 |
5009496 |
LOCATION BOARD |
| 63 |
5009497 |
CIRCLIP |
| 64 |
5009498 |
SCREW |
| 65 |
5009499 |
BEARING HOUSE |
| 66 |
5009500 |
COLLAR |
| 67 |
5009501 |
BALL BEARING 6203 |
| 68 |
5009502 |
GEAR |
| 69 |
5009503 |
PRINCIPLE AXIS |
| 70 |
5009504 |
WASHER |
| 71 |
5009505 |
ELASTIC COLLAR |
| 72 |
5009506 |
PUSH BAR |
| 73 |
5009507 |
LOCK KNOB |
| 74 |
5009508 |
SCREW |
| 75 |
5009509 |
FRAME |
| 76 |
5009510 |
PUSHER |
| 77 |
5009511 |
TWO CORE WIRE |
| 78 |
5009512 |
BALL BEARING 6201 |
| 79 |
5009513 |
CLAMPING HANDWHEEL |
| 80 |
5009514 |
ARMATURE |
| 81 |
5009515 |
BALL BEARING 629 |
| 82 |
5009516 |
TIGHTED WASHER |
| 83 |
5009517 |
SCREW |
| 84 |
5009518 |
WINDING GUARD RING |
| 85 |
5009519 |
SCREW |
| 86 |
5009520 |
SPRING WASHER |
| 87 |
5009521 |
STATOR - FIELD |
| 88 |
5009522 |
UPPER HANDLE |
| 89 |
5009523 |
CAPACITANCE |
| 90 |
5009524 |
SCREW |
| 91 |
5009525 |
CONNECTION POLE |
| 92 |
5009526 |
ELECTRONIC BOARD |
| 93 |
5009527 |
BRUSH HOLDER |
| 94 |
5009528 |
COPPER SET |
| 95 |
5009529 |
CARBON BRUSH |
| 96 |
5009530 |
MOTOR HOUSING |
| 97 |
5009531 |
SCREW |
| 98 |
5009532 |
HOUSING COVER |
| 99 |
5009533 |
LOWER HANDLE |
| 100 |
5009534 |
SCREW |
| 101 |
5009535 |
SWITCH COVER BOARD |
| 102 |
5009536 |
UPPER CONNECT BAR |
| 103 |
5009537 |
LEFT TABLE PROTECTER |
| 104 |
5009538 |
WASHER |
| 105 |
5009539 |
MIDDLE CONNECT BAR |
| 106 |
5009540 |
SCREW |
| 107 |
5009541 |
LOWER CONNECT BAR |
| 108 |
5009542 |
SCREW |
| 109 |
5009543 |
PUSHER |
| 110 |
5009544 |
RING |
| 111 |
5009545 |
BEARING HK0910 |
| 112 |
5009546 |
SPRING |
| 113 |
5009547 |
SCREW |
| 114 |
5009548 |
WASHER |
| 115 |
5009549 |
POTHOOK |
| 116 |
5009550 |
BLADE FELLOW |
| 117 |
5009551 |
PUSH BAR SET |
| 118 |
5009552 |
RIVET - NO LONGER AVAILABLE |
| 119 |
5009553 |
WASHER |
| 120 |
5009554 |
PUSH BAR BOLT |
| 121 |
5009555 |
WASHER |
| 122 |
5009556 |
WASHER |
| 123 |
5009557 |
RUBBER DUST PROTECTER |
| 124 |
5009558 |
LABEL SCALE |
| 125 |
5009559 |
LOWER CONNECT BOX |
| 126 |
5009560 |
CABLE ARMOR |
| 127 |
5009561 |
CABLE & PLUG |
| 128 |
5009562 |
INDUCTOR |
| 129 |
5009563 |
CABLE LOCATED SET |
| 130 |
5009564 |
SCREW |
| 131 |
5009565 |
UPPER CJUNCTION BOX |
| 132 |
5009566 |
SCREW |
| 133 |
5009567 |
WASHER |
| 134 |
5009568 |
SCREW |
| 135 |
|
LABEL |
| 136 |
5009569 |
SPANNER SET |
| 137 |
5009570 |
SCREW |
| 138 |
5009571 |
GUIDE SPRING BAR |
| 139 |
5009572 |
GUIDER SPRING |
| 140 |
5009573 |
TABLE GUIDER |
| 141 |
5009574 |
GUIDER CLAMPING PLATE |
| 142 |
5009575 |
GUIDER CLAMPING HANDWHEEL |
| 143 |
5009576 |
SCREW |
144-150
153-157 |
5009577 |
SET GONIOMETRO |
| 151 |
5009578 |
TOP TABLE |
| 152 |
5009579 |
TABLE LINING PLATE |
| 158 |
5009580 |
PUSH BAR |
| 159 |
5009581 |
SCREW |
| 160 |
5009582 |
RIGHT TABLE PROTECTER |
| 161 |
5009583 |
SCREW |
| 162 |
5009584 |
TABLE CONNECT BAR |
| 163 |
5009585 |
SCREW |
| 164 |
5009586 |
SPANNER |
| 165 |
5009587 |
FLAT BLADE SPANNER |
| 166 |
5009588 |
SLEEVE BLADE SPANNER |
| 167 |
5009589 |
SCREW |
| 168 |
5009590 |
SPANNER |
| 169 |
5009591 |
TABLE GUIDER |
| 170 |
5009592 |
SCREW |
| 171 |
5009593 |
SPANNER |
| 172 |
5009594 |
BACK EXTENSION SUPPORT |
| 173 |
5009595 |
SCREW |
| 174 |
5009596 |
BACK EXTENSION SUPPORT BOARD |
| 175 |
5009597 |
EXTENSION FEET SPRING |
| 177 |
5009730 |
DUST BAG |
| 65-71 |
5009692 |
SPINDLE SET |
25-27-30
31-33-37
39-40-42
44-53-79
82 |
5009693 |
SUPPORTING ASSEMBLY |
103-162
160-159 |
5009694 |
SET UPPER CARTER |
| 72-73-115 |
6009695 |
SET LEVER |
| 136-171 |
5009696 |
SET ELEVATION GUIDE |
61-102-105
107 |
5009699 |
SET CARTER |
