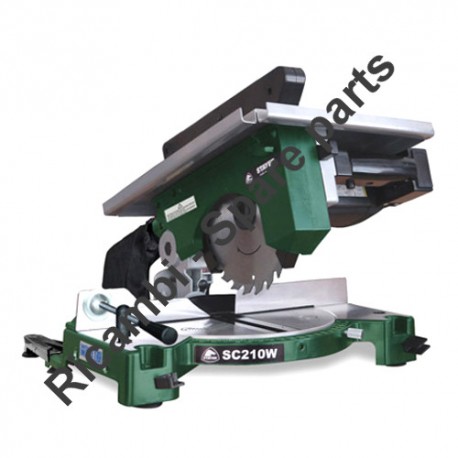

Stayer Spare Parts for Mitre Saw SC210W

SKU: Stayer SC210W
€3.18
VAT included

Stayer Spare Parts for Mitre Saw SC210W

We have the original Spares STAYER for Mitre Saw SC210W the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Mitre Saw SC210W. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Stayer Spare Parts for Mitre Saw  SC210W
  • Stayer Spare Parts for Mitre Saw  SC210W
  • Stayer Spare Parts for Mitre Saw  SC210W

Stayer Spare Parts for Mitre Saw SC210W

SKU: Stayer SC210W Condition: New
€3.18
VAT included

Stayer Spare Parts for Mitre Saw SC210W

We have the original Spares STAYER for Mitre Saw SC210W the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Mitre Saw SC210W. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 65 spare parts

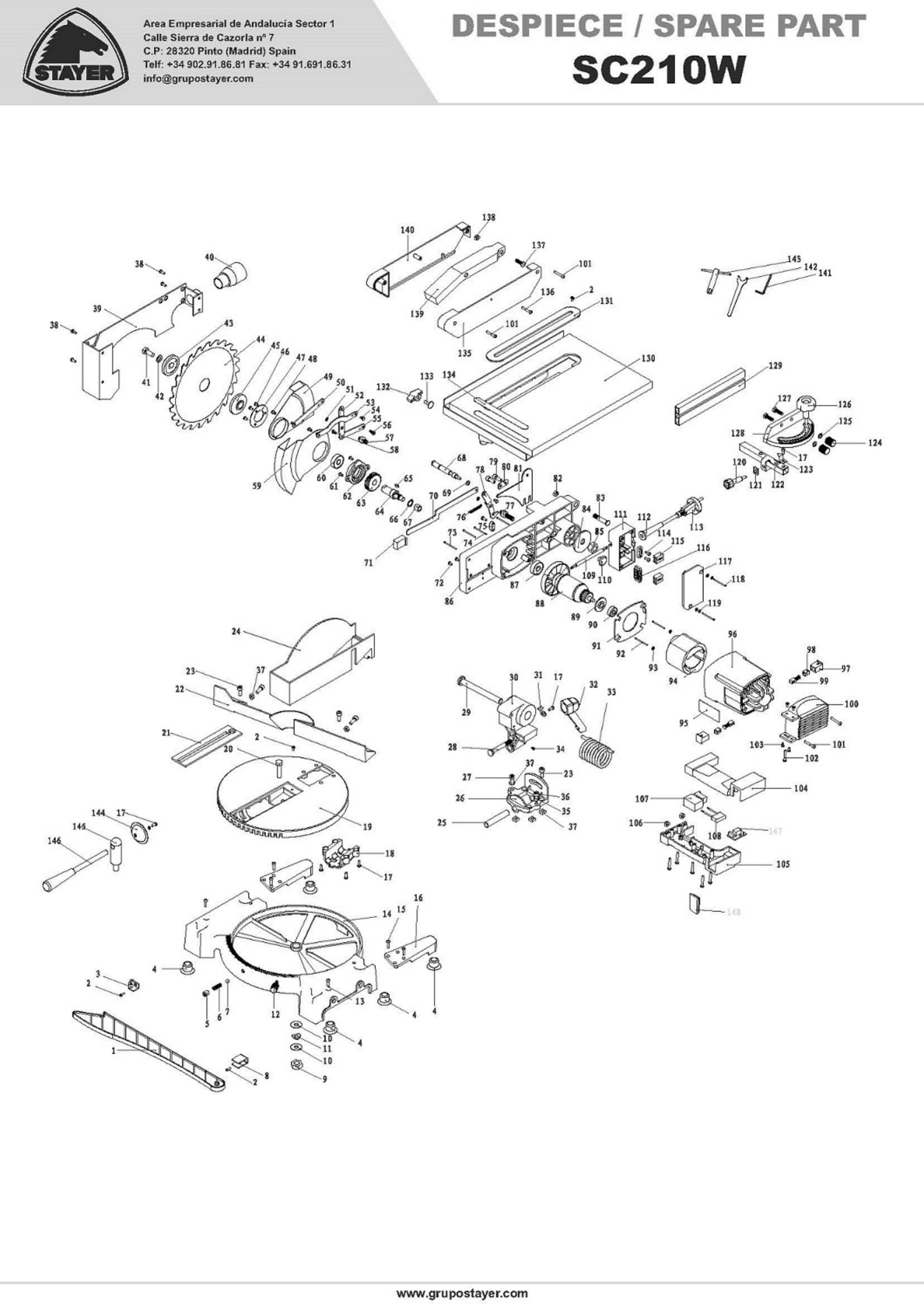

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5009277 PUSH BAR €2.51
4
photo_cameraImage coming soon 5009280 RUBBER FEET €1.88
12
photo_cameraImage coming soon 5009288 TIGHTED BOLT €1.88
14
photo_cameraImage coming soon 5009290 ANTIVIBRATION Ø40X30 MF M8X25 65SH €46.57
16
photo_cameraImage coming soon 5009292 EXTENTIONAL FEET €1.88
18
photo_cameraImage coming soon 5009294 ROUND BASE LINING PLATE €1.88
19
photo_cameraImage coming soon 5009295 ROUND BASE €37.64
22
Fence for Wood Mire saw Stayer SC210W 5009298 Fence for Wood Mire saw Stayer SC210W €33.59
24
photo_cameraImage coming soon 5009300 BLADE PROTECTOR €6.29
25
photo_cameraImage coming soon 5009301 SHORT AXES €3.77
26
photo_cameraImage coming soon 5009302 SUPPORTER €6.29
28
photo_cameraImage coming soon 5009304 TIGHTED SCREW €1.88
30
photo_cameraImage coming soon 5009306 BAR HOLDER €17.62
32
Arm Lock Knob for Wood Mire saw Stayer SC210W 5009308 Arm Lock Knob for Wood Mire saw Stayer SC210W €2.51
33
photo_cameraImage coming soon 5009309 SPRING €2.51
39
photo_cameraImage coming soon 5009315 FRAME PROTECTER €3.77
43
photo_cameraImage coming soon 5009319 UPPER CLAMPING PLATE €2.51
45
photo_cameraImage coming soon 5009321 BOTTOM CLAMPING €1.88
47
photo_cameraImage coming soon 5009323 TRANSPARENT GUARD BAFFLE €1.88
49
photo_cameraImage coming soon 5009325 FRONT TRANSPARENT GUARD €8.81
49-55+58
photo_cameraImage coming soon 5009435 Housing SET €16.36
50
photo_cameraImage coming soon 5009326 UPPER CONNECT BAR €3.77
59
photo_cameraImage coming soon 5009335 BACK TRANSPARANT GUARD €6.29
60
photo_cameraImage coming soon 5009336 BEARING 60022RS €3.77
62
photo_cameraImage coming soon 5009338 BEARING HOUSE €1.88
63
Disc Spindle Gear for Wood Mire saw Stayer SC210W 5009339 Disc Spindle Gear for Wood Mire saw Stayer SC210W €18.24
64
photo_cameraImage coming soon 5009340 PRINCIPAL AXIS €2.51
67
photo_cameraImage coming soon 5009343 NEEDLE BEARING HK0910 €1.88
68
photo_cameraImage coming soon 5009344 PUSHER €1.88
70
photo_cameraImage coming soon 5009346 PUSH HANDLE €1.88
76
photo_cameraImage coming soon 5009352 PULL SPRING €7.55
78
photo_cameraImage coming soon 5009354 PUSH CLAW €6.29
81
photo_cameraImage coming soon 5009357 BLADE FELLOW €1.88
86
photo_cameraImage coming soon 5009362 FRAME €31.34
87
photo_cameraImage coming soon 5009363 BEARING 6200 €6.29
88
Armature for Mitre Saw Stayer SC210W 5009364 Armature for Mitre Saw Stayer SC210W €58.89
90
photo_cameraImage coming soon 5009366 BEARING 608 €2.51
94
Stator for Mitre Saw Stayer SC210W 5009370 Stator for Mitre Saw Stayer SC210W €58.89
96
photo_cameraImage coming soon 5009372 HOUSING €11.33
97
photo_cameraImage coming soon 5009373 BRUSH HOLDER €3.77
98
photo_cameraImage coming soon 5009374 CUPPER SET €3.77
99
Carbon Brushes for Mitre Saw Stayer SC210W 5009375 Carbon Brushes for Mitre Saw Stayer SC210W €16.69
100
photo_cameraImage coming soon 5009376 HOUSING COVER €1.88
104
photo_cameraImage coming soon 5009380 UPPER HANDLE €2.51
105
photo_cameraImage coming soon 5009381 LOWER HANDLE €2.51
107
Switch for Mitre Saws Stayer SC210W 5009383 Switch for Mitre Saws Stayer SC210W €23.44
108
photo_cameraImage coming soon 5009384 CAPACITANCE €1.88
109
photo_cameraImage coming soon 5009385 CABLE €3.77
110
photo_cameraImage coming soon 5009386 PUSHER HANDLE €1.88
111
photo_cameraImage coming soon 5009387 JUNCTION BOX €1.88
112
photo_cameraImage coming soon 5009388 CABLE SLEEVE €1.88
115
photo_cameraImage coming soon 5009391 CONNECTION POLE €1.88
116
photo_cameraImage coming soon 5009392 SQUARE SHAPED INDUCTOR €1.88
117
photo_cameraImage coming soon 5009393 JUNCTION BOX COVER €3.77
120
Goniometer Complete for Mitre Saw Stayer SC210W 5009396 Goniometer Complete for Mitre Saw Stayer SC210W €40.06
130
photo_cameraImage coming soon 5009397 TOP TABLE €28.95
135
photo_cameraImage coming soon 5009402 TOP COVER DCHA €2.51
135-140
photo_cameraImage coming soon 5009434 UPPER CARTER SET €7.55
139
photo_cameraImage coming soon 5009406 CENTRAL TOP COVER €1.25
140
photo_cameraImage coming soon 5009407 TOP COVER IZDA €2.51
142
photo_cameraImage coming soon 5009409 SLEEVE BLADE SPANNER €1.88
143
photo_cameraImage coming soon 5009410 TUBE KEY €1.88
144-146
photo_cameraImage coming soon 5009411 VICE €17.62
147
Electronic Board for Mitre Saws Stayer SC210W 5009412 Electronic Board for Mitre Saws Stayer SC210W €33.57
148
photo_cameraImage coming soon 5009731 SWITCH COVER €1.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Spare Parts for Mitre Saw SC210W

We have the original Spares STAYER for Mitre Saw SC210W the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Mitre Saw SC210W. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
Mitre Saw SC210W

   Mitre Saw Stayer SC210W
# Part Num. Description
1 5009277 PUSH BAR
2 5009278 SCREW M4X8
3 5009279 LEFT PUSH BAR HOLDER
4 5009280 RUBBER FEET
5 5009281 SCREW M10X6
6 5009282 LOCATED SPRING
7 5009283 STEEL BALL Φ8
8 5009284 RIGHT PUSH BAR HOLDER
9 5009285 SCREW M8
10 5009286 FLAT WASHER Φ8
11 5009287 WAVE WASHER Φ8
12 5009288 TIGHTED BOLT
13 5009289 SCREW M5X14
14 5009290 BASE
15 5009291 SCREW M4X12
16 5009292 EXTENTIONAL FEET
17 5009293 SCREW M4X8
18 5009294 ROUND BASE LINING PLATE
19 5009295 ROUND BASE
20 5009296 SREW M8X35
21 5009297 LINING PLATE
22 5009298 LOCATION RULER
23 5009299 SCREW M6X22
24 5009300 BLADE PROTECTOR
25 5009301 SHORT AXES
26 5009302 SUPPORTER
27 5009303 SCREW M6X18
28 5009304 TIGHTED SCREW
29 5009305 CONNECTION SCREW
30 5009306 BAR HOLDER
31 5009307 INCLINED CUTTING POINTER
32 5009308 TIGHTED SPANNER
33 5009309 SPRING
34 5009310 SCREW M5X10
35 5009311 SCREW M6X14
36 5009312 SCREW M6
37 5009313 SQUARE SCREW M6
38 5009314 SCREW M5X10
39 5009315 FRAME PROTECTER
40 5009316 DUST TIE-IN
41 5009317 SCREW M8X18
42 5009318 CLAMPING WASHER
43 5009319 UPPER CLAMPING PLATE
45 5009321 BOTTOM CLAMPING
46 5009322 SCREW M4X10
47 5009323 TRANSPARENT GUARD BAFFLE
48 5009324 COVER RIVET
49 5009325 FRONT TRANSPARENT GUARD
50 5009326 UPPER CONNECT BAR
51 5009327 HATCH WASHER Φ5
52 5009328 MIDDLE CONNECT BAR
53 5009329 UPPER CONNECT BAR
54 5009330 SCREW
55 5009331 BOTTOM CONNECT BAR
56 5009332 UPPER CONNECT BAR BOLT
57 5009333 MIDDLE CONNECT BAR BOLT
58 5009334 RELAX & LOCK RIVET
59 5009335 BACK TRANSPARANT GUARD
60 5009336 BEARING 60022RS
61 5009337 SCREW M4X12
62 5009338 BEARING HOUSE
63 5009339 GEAR
64 5009340 PRINCIPAL AXIS
65 5009341 FLAT WASHER 4X4X10
66 5009342 ELASTIC COLLAR Φ12
67 5009343 NEEDLE BEARING HK0910
68 5009344 PUSHER
69 5009345 O SEAL RING
70 5009346 PUSH HANDLE
71 5009347 RELAX & LOCK KNOB
72 5009348 SCREW M5X12
73 5009349 SCREW ST4X50
74 5009350 SCREW ST4X45
75 5009351 WIRE BOARD
76 5009352 PULL SPRING
77 5009353 PUSH CLAW BOLT
78 5009354 PUSH CLAW
79 5009355 SCREW M5X12
80 5009356 BLADE FELLOW WASHER
81 5009357 BLADE FELLOW
82 5009358 SCREW M8
83 5009359 TABLE CONNECT AXIS
84 5009360 FRAME PRESS BOARD
85 5009361 SCREW M12
86 5009362 FRAME
87 5009363 BEARING 6200
88 5009364 ARMATURE
89 5009365 DUST PROTECTER
90 5009366 BEARING 608
91 5009367 WINDING GUARD RING
92 5009368 SCREW ST4X58
93 5009369 FLAT WASHER Φ4
94 5009370 STATOR
96 5009372 HOUSING
97 5009373 BRUSH HOLDER
98 5009374 CUPPER SET
99 5009375 CARBON BRUSH
100 5009376 HOUSING COVER
101 5009377 SCREW ST4X20
102 5009378 SCREW ST4X35
103 5009379 SCREW ST4X12
104 5009380 UPPER HANDLE
105 5009381 LOWER HANDLE
106 5009382 SREW M5
107 5009383 SWITCH
108 5009384 CAPACITANCE
109 5009385 CABLE
110 5009386 PUSHER HANDLE
111 5009387 JUNCTION BOX
112 5009388 CABLE SLEEVE
113 5009389 CABLE PLUG
114 5009390 SCREW ST4X16
115 5009391 CONNECTION POLE
116 5009392 SQUARE SHAPED INDUCTOR
117 5009393 JUNCTION BOX COVER
118 5009394 SCREW M4X45
119 5009395 SPRING WASHER
120 5009396 GONIOMETER + GUIDE
130 5009397 TOP TABLE
131 5009398 GUIDE BLADE
132 5009399 KNOB
133 5009400 BOLT KNOB
134 5009401 SCALE LABEL
135 5009402 TOP COVER DCHA
136 5009403 SCREW
137 5009404 SCREW M5
138 5009405 SCREW
139 5009406 CENTRAL TOP COVER
140 5009407 TOP COVER IZDA
141 5009408 EX KEY
142 5009409 SLEEVE BLADE SPANNER
143 5009410 TUBE KEY
144-146 5009411 VICE
147 5009412 ELECTRONIC BOARD
148 5009731 SWITCH COVER
135-140 5009434 UPPER CARTER SET
49-55+58 5009435 CARTER SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer SC210W
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Stayer SC210W

Diagram Stayer SC210W

Download (288.72KB)
