Stayer Spare Parts for Mitre Saw SC311W
Stayer Genuine spare parts or replacement parts for to repair Mitre Saw SC311W.
The Stayer production includes, professional machines, Wood Mitre Saws, Aluminum Mitre Saws, Band Saw, Circular Saws, Cyclone Vacuums.
In the following table, look for the model of the Mitre Saw and the respective parts of the code.

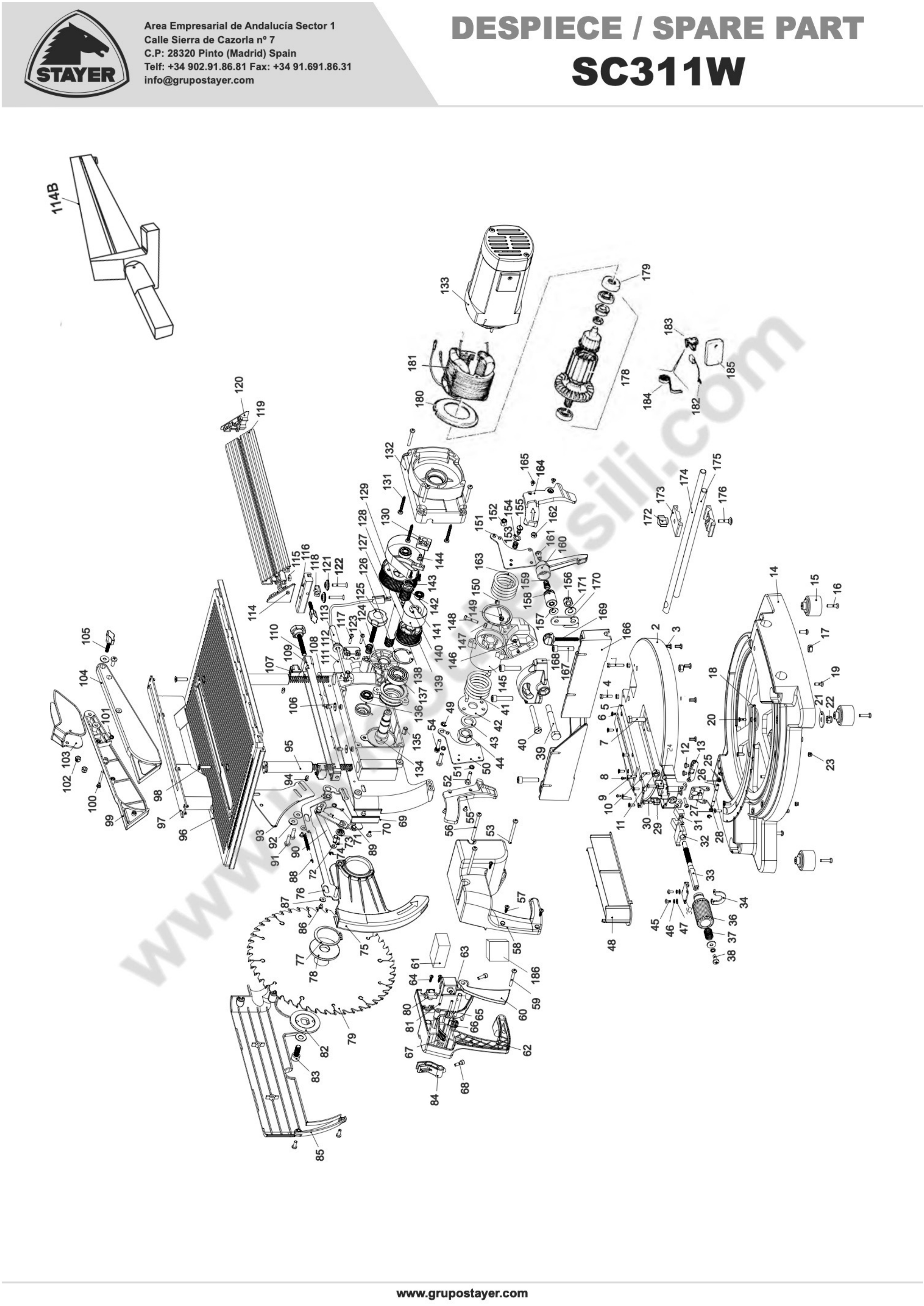

| MITRE SAW SC311W |
| # |
Part Num. |
Description |
| 1 |
50121 |
SCREW |
| 2 |
50122 |
ALUMINUN BASE |
| 3 |
50123 |
SCREW |
| 4 |
50124 |
SCREW |
| 5 |
50125 |
PVC PLATE BASE |
| 6 |
50126 |
SCREW |
| 7 |
50127 |
SCREW |
| 8 |
50128 |
PLETINE SCREW |
| 9 |
50129 |
POINTER |
| 10 |
501210 |
PIN |
| 11 |
501211 |
LOCK NUT |
| 12 |
501212 |
SCREW |
| 13 |
501213 |
PLETINE |
| 14 |
501214 |
DOWN TABLE |
| 15 |
501215 |
RUBBER FEET |
| 16 |
501216 |
SCREW |
| 17 |
501217 |
NUT |
| 18 |
501218 |
SCALE |
| 19 |
501219 |
SCREW |
| 20 |
501220 |
SCALE SCREW |
| 21 |
501221 |
WASHER |
| 22 |
501222 |
NUT |
| 23 |
501223 |
NUT |
| 24 |
501224 |
LATERAL PLETINE |
| 25 |
501225 |
SPRING |
| 26 |
501226 |
PIN |
| 27 |
501227 |
FIX PLETINE |
| 28 |
501228 |
SPRING |
| 29 |
501229 |
PLETINE |
| 30 |
501230 |
SCREW |
| 31 |
501231 |
DOWN PLETINE |
| 32 |
501232 |
UP PLETINE |
| 33 |
501233 |
THREAD |
| 34 |
501234 |
PLETINE |
| 35 |
501235 |
COVER |
| 36 |
501236 |
RATCHER |
| 37 |
501237 |
SPRING |
| 38 |
501238 |
SCREW |
| 39 |
501239 |
SCREW |
| 40 |
501240 |
SUPPORT SCREW |
| 41 |
501241 |
SPRING |
| 42 |
501242 |
SPACER |
| 43 |
501243 |
WASHER |
| 44 |
501244 |
NUT |
| 45 |
501245 |
SCREW |
| 46 |
501246 |
WASHER |
| 47 |
501247 |
WASHER |
| 48 |
501248 |
DOWN PROTECTOR |
| 49 |
501249 |
O-RING |
| 50 |
501250 |
LATERAL PROTECTION |
| 51 |
501251 |
WASHER |
| 52 |
501252 |
SCREW |
| 53 |
501253 |
SCREW |
| 54 |
501254 |
PIN |
| 55 |
501255 |
PLASTIC PROTECTOR |
| 56 |
501256 |
SCREW |
| 57 |
501257 |
SCREW |
| 58 |
501258 |
HALF HANDLE |
| 59 |
501259 |
SCREW |
| 60 |
501262 |
PUSH |
| 61 |
501261 |
ELECTRONIC BOARD new code 48102339 |
| 62 |
501263 |
HALF HANDLE |
| 63 |
501264 |
SWITCH |
| 64 |
501265 |
SCREW |
| 65 |
501268 |
PUSH |
| 66 |
501266 |
PIN |
| 67 |
501267 |
PUSH BUTTON |
| 68 |
501269 |
SCREW |
| 69 |
501270 |
VIEWER |
| 70 |
501271 |
SCREW |
| 71 |
501272 |
WASHER |
| 72 |
501273 |
PIN |
| 73 |
501274 |
SCREW |
| 74 |
501275 |
O-RING |
| 75 |
501276 |
DISC GUARD |
| 76 |
501277 |
LEVER |
| 77 |
501278 |
O-RING |
| 78 |
501279 |
INNER FLANGE |
| 79 |
- |
BLADE |
| 80 |
501280 |
PLETINE |
| 81 |
501281 |
PIN |
| 82 |
501282 |
UPPER BLADE FLANGE |
| 83 |
501283 |
SCREW |
| 84 |
501284 |
PUSH |
| 85 |
501285 |
LATERAL COVER |
| 86 |
501286 |
SCREW LEVER |
| 87 |
501287 |
WASHER |
| 88 |
501288 |
SPRING LEVER |
| 89 |
501289 |
SPRING |
| 90 |
501290 |
CARTER LEVER |
| 91 |
501291 |
SCREW |
| 92 |
501292 |
WASHER |
| 93 |
501293 |
UP GUIDE |
| 94 |
501294 |
SCREW |
| 95 |
501295 |
TABLE SUPPORT |
| 96 |
501296 |
UP TABLE |
| 97 |
501297 |
PLASTIC TABLE INSERT 481022.41 |
| 98 |
501298 |
SCREW |
| 99-106 |
501299 |
SET UP CARTER |
| 107 |
5012100 |
WASHER |
| 108 |
5012101 |
LOCK TABLE |
| 109 |
5012102 |
SPRING |
| 110 |
5012103 |
PLETINE LOCK TABLE |
| 111 |
5012146 |
GEAR HOUSING |
| 112 |
5012106 |
CORD LOCKING PLATE |
| 113 |
5012107 |
CABLE ARMOR |
| 114-122 |
5012108 |
UP GUIDE |
| 114B |
5012208 |
UPPER LONG GUIDE |
| 123 |
5012109 |
SPRING |
| 124 |
5012147 |
GEAR COVER |
| 125 |
5012111 |
RATCHER |
| 126 |
5012112 |
O-RING |
| 128 |
5012148 |
SECOND GEAR |
| 129 |
5012115 |
SPINDLE |
| 130 |
5012149 |
PLETINE |
| 131 |
5012150 |
SCREW |
| 132 |
5012151 |
GEAR BOX |
| 133 |
5012152 |
MOTOR |
| 134 |
5012153 |
SPINDLE + GEAR |
| 135 |
5012154 |
PIN |
| 136 |
5012155 |
BALL BEARING 6004 SC 2RS |
| 137 |
5012156 |
BEARING 6905 |
| 138 |
5012153 |
SPINDLE + GEAR |
| 139 |
5012157 |
BELT |
| 140 |
5012158 |
O-RING |
| 141 |
5012159 |
PINION |
| 142 |
5012160 |
BEARING 608 2RS |
| 143 |
5012161 |
WASHER |
| 144 |
5012162 |
SCREW |
| 145 |
5012117 |
SUPPORTING ASSEMBLY |
| 146 |
5012118 |
POINTER |
| 147 |
5012119 |
WASHER |
| 148 |
5012120 |
SCREW |
| 149 |
5012121 |
NUT |
| 150 |
5012122 |
SCREW |
| 151 |
5012123 |
RIGHT LATERAL PROTECTION |
| 152 |
5012124 |
NUT |
| 153 |
5012125 |
SPRING |
| 154 |
5012126 |
WASHER |
| 155 |
5012127 |
SCREW |
| 156 |
5012128 |
NUT |
| 157 |
5012129 |
WASHER |
| 158-161 |
5012130 |
RATCHER |
| 162 |
5012131 |
NUT |
| 163 |
5012132 |
SPRING |
| 164 |
5012133 |
LATERAL PROTECTION |
| 165 |
5012134 |
SCREW |
| 166 |
5012135 |
FENCE |
| 167 |
5012136 |
SCREW |
| 168 |
5012137 |
SUPPORT |
| 169 |
5012138 |
KNOB |
| 170 |
5012139 |
PLETINE |
| 171 |
5012140 |
WASHER |
| 172-176 |
5012141 |
DEEPTH GAUGE |
| 178 |
5012174 |
ARMATURE |
| 179 |
5012175 |
RUBBER BEARING SLEEVE |
| 180 |
5012176 |
AIR FAN |
| 181 |
5012177 |
STATOR |
| 182 |
5012178 |
CARBON BRUSH |
| 183 |
5012179 |
BRUSH HOLDER |
| 184 |
5012180 |
ROLL SPRING |
| 185 |
5012181 |
BRUSH COVER |
