Stayer Spare Parts for Mitre Saw SC2500W
Fix Your Mitre Saw SC2500W. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

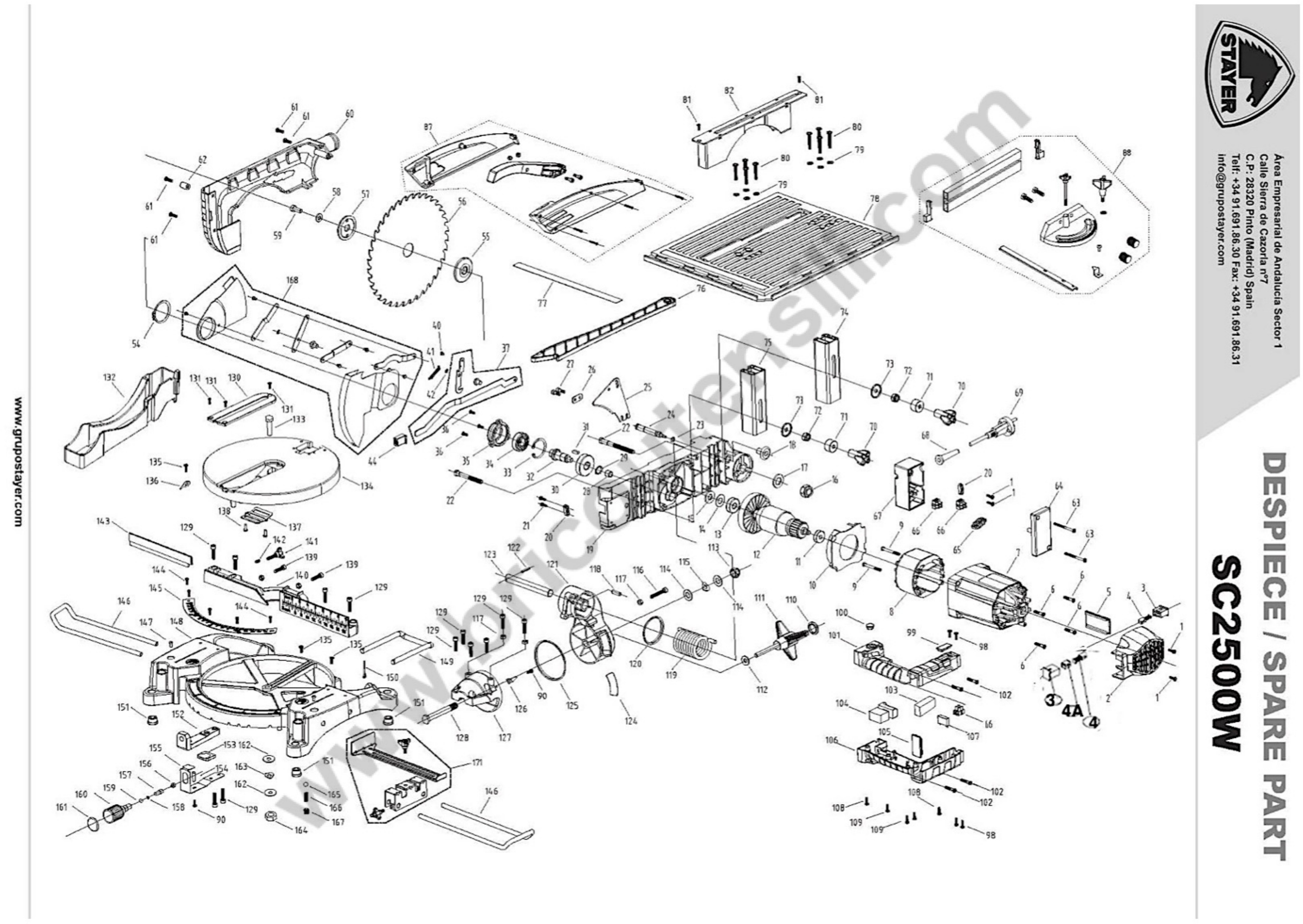

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
| MITRE SAW SC 2500 W |
| # |
Part Num. |
Description |
| 1 |
5009734 |
SCREW |
| 2 |
5009735 |
HOUSING COVER |
| 3 |
5009736 |
BRUSH HOLDER |
| 4 |
5009737 |
CARBON BRUSH |
| 4A |
5009528 |
Carbon Brushes Holder Protection |
| 5 |
5009738 |
DECORATIVE SHEET |
| 6 |
5009739 |
SCREW |
| 7 |
5009740 |
HOUSING |
| 8 |
5009741 |
STATOR |
| 9 |
5009742 |
SCREW |
| 10 |
5009743 |
BREAK WIND RING |
| 11 |
5009744 |
BEARING 629 |
| 12 |
5009745 |
ROTOR |
| 13 |
5009746 |
BEARING 6201 |
| 14 |
5009747 |
WASHER |
| 15 |
5009748 |
WASHER |
| 16 |
5009749 |
SCREW |
| 17 |
5009750 |
WASHER |
| 18 |
5009751 |
PUSHER HANDLE |
| 19 |
5009752 |
FRAME |
| 20 |
5009753 |
TENSION DISC |
| 21 |
5009754 |
SCREW |
| 22 |
5009755 |
SCREW |
| 23 |
5009756 |
O RUBBER RING |
| 24 |
5009757 |
PUSHER |
| 25 |
5009758 |
BLADE FELLOW |
| 26 |
5009759 |
BLADE FELLOW WASHER |
| 27 |
5009760 |
SCREW |
| 28 |
5009761 |
BEARING HK0910 |
| 29 |
5009762 |
ELASTIC COLLAR |
| 30 |
5009763 |
GEAR |
| 31 |
5009764 |
WASHER |
| 32 |
5009765 |
PRINCIPLE AXIS |
| 33 |
5009766 |
WASHER |
| 34 |
5009767 |
BEARING |
| 35 |
5009768 |
BEARING HOUSE |
| 36 |
5009769 |
SCREW |
| 37 |
5009770 |
PUSH HANDLE |
| 38 |
5009771 |
SCREW |
| 39 |
5009772 |
HOOK |
| 40 |
5009773 |
CONNECTING ROD SCREW |
| 41 |
5009774 |
HOOK SPRING |
| 42 |
5009775 |
SPLIT WASHER |
| 43 |
5009776 |
PROTECTIVE COVER SCREW |
| 44 |
5009777 |
PUSH HANDLE BUTTON |
| 45 |
5009778 |
BACK PROTECTOR |
| 46 |
5009779 |
BACK PROTECTOR CONNECT BAR |
| 47 |
5009780 |
BAFFLE SCREW |
| 48 |
5009781 |
BOTTOM CONNECT BAR |
| 49 |
5009782 |
SCRWE |
| 50 |
5009783 |
MIDDLE CONNECT BAR |
| 51 |
5009784 |
FRONT PROTECTOR CONNECT BAR |
| 52 |
5009785 |
SCRW |
| 53 |
5009786 |
MIDDLE PROTECTOR CONNECT BAR |
| 54 |
5009787 |
ELASTIC COLLAR |
| 55 |
5009788 |
LOWER CLAMPING PLATE |
| 56 |
- |
BLADE |
| 57 |
5009789 |
UPPER CLAMPING PLATE |
| 58 |
5009790 |
CLAMPING BOARD WASHER |
| 59 |
5009791 |
SCREW |
| 60 |
5009792 |
FRAME COVER |
| 61 |
5009793 |
SCREW |
| 62 |
5009794 |
SAFETY POST |
| 63 |
5009795 |
SCREW |
| 64 |
5009796 |
JUNCTION BOX COVER |
| 65 |
5009797 |
SQUARE INDUCTANCE |
| 66 |
5009798 |
BINDING POST |
| 67 |
5009799 |
LOWER CONNECT BOX |
| 68 |
5009800 |
CABLE SHEATH |
| 69 |
- |
POWER LINE & PLUG |
| 70 |
5009801 |
CLAMPING HANDWHEEL |
| 71 |
5009802 |
CLAMPING WASHER |
| 72 |
5009803 |
LOCKNUT |
| 73 |
5009804 |
CLAMPING WAHSER |
| 74 |
5009805 |
LEADING COLUMN |
| 75 |
5009806 |
BACK PILLAR |
| 76 |
5009809 |
PUSH ROD |
| 77 |
5009810 |
TABLE LABEL |
| 78 |
5009811 |
COUNTERTOP |
| 79 |
5009812 |
WASHER |
| 80 |
5009813 |
SCREW |
| 81 |
5009814 |
SCREW |
| 82 |
5009815 |
TABLE SCALEBOARD |
| 83 |
5009816 |
SCREW |
| 84-87 |
5009817 |
UPPER CARTER |
| 90-99 |
5009818 |
GONIOMETER |
| 100 |
5009820 |
HANDLE DECORATIVE COVERS |
| 101 |
5009822 |
UPPER HANDLE |
| 102 |
5009823 |
SCREW |
| 103 |
5009824 |
ELECTRICITY PROTECTIVE CIRCUIT BOARD |
| 104 |
5009825 |
SWITCH |
| 105 |
5009826 |
ELECTROMAGNETIC SWITCH DECORATIVE SHEET |
| 106 |
5009827 |
LOWER HANDLE |
| 107 |
5009828 |
CAPACITANCE |
| 108 |
5009829 |
SCREW |
| 109 |
5009830 |
SCREW |
| 110 |
5009831 |
CLAMPING HANDWHEEL COVER |
| 111 |
5009832 |
CLAMPING HANDWHEEL |
| 112 |
5009833 |
GASKET |
| 113 |
5009834 |
LOCKNUT |
| 114 |
5009835 |
WASHER |
| 115 |
5009836 |
CORRUGATION PAD |
| 116 |
5009837 |
SOCKET HEAD CAP SCREW |
| 117 |
5009838 |
HEXNUT |
| 118 |
5009839 |
PUSHER SHAFT |
| 119 |
5009840 |
BIG TORSIONAL SPRING |
| 120 |
5009841 |
REDUCES FRITCION SLICE |
| 121 |
5009842 |
ROCKER |
| 122 |
5009843 |
ELASTIC ROUND PIN |
| 123 |
5009844 |
LONG AXIS |
| 124 |
5009845 |
LABEL |
| 125 |
5009846 |
REDUCES FRICTION SLICE |
| 126 |
5009847 |
ROCKER POINTER |
| 127 |
5009848 |
SUPPORT |
| 128 |
5009849 |
CONNECTING SHAFT |
| 129 |
5009850 |
SOCKET HEAD CAP SCREW |
| 130 |
5009851 |
ROUND BASE LINING PLATE |
| 131 |
5009885 |
SCREW |
| 132 |
5009852 |
BLADE PROTECTER |
| 133 |
5009853 |
SCREW |
| 134 |
5009854 |
ROUND PLATE |
| 135 |
5009855 |
SCREW |
| 136 |
5009856 |
ROUND PLATE POINTER |
| 137 |
5009857 |
ROUND PLATE SHROUDING |
| 138 |
5009858 |
SCREW |
| 139 |
5009859 |
SOCKET HEAD CAP SCREW |
| 140 |
5009860 |
SET RULER |
| 141 |
5009861 |
WING NUT |
| 142 |
5009886 |
SCREW |
| 143 |
5009887 |
SLIDE FENCE |
| 144 |
5009888 |
SCREW |
| 145 |
5009862 |
ROUND PLATE LABEL |
| 146 |
5009863 |
EXTENDED BAR |
| 147 |
5009864 |
SCREW |
| 148 |
5009865 |
BASE |
| 149 |
5009866 |
BACK EXTENDED BAR |
| 150 |
5009867 |
COTTER |
| 151 |
5009868 |
FOOT PAD |
| 152 |
5009869 |
VANGLE IRON |
| 153 |
5009870 |
BOARD |
| 154 |
5009871 |
LOCATING PIN |
| 155 |
5009872 |
LOCATION BOARD |
| 156 |
5009873 |
WASHER |
| 157 |
5009874 |
LOCK HANDLE CONNECT |
| 158 |
5009875 |
O-RING |
| 159 |
5009876 |
STEEL BALL |
| 160 |
5009877 |
LOCK HANDLE |
| 161 |
5009878 |
LOCK HANDLE COVER |
| 162 |
5009879 |
FLAT GASKET |
| 163 |
5009880 |
WAVE WASHER |
| 164 |
5009881 |
LOCKNUT |
| 165 |
5009882 |
STEEL BALL |
| 166 |
5009883 |
ORIENTATION SPRING |
| 167 |
5009884 |
SCREW |
