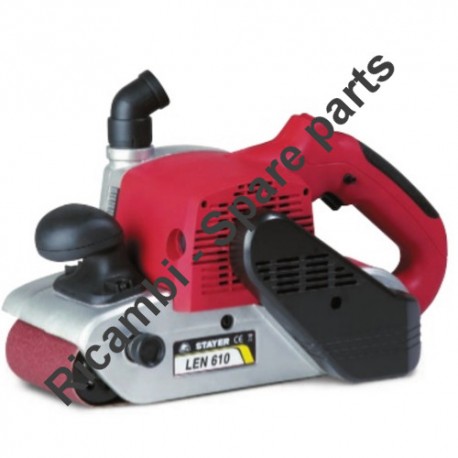

Stayer Spare Parts for Belt Sander LEN610

SKU: Stayer LEN610
€0.60
VAT included

Stayer Spare Parts for Belt Sander LEN610

We supply original STAYER spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander LEN610.
Stayer Spare Parts for Belt Sander LEN610
  • Stayer Spare Parts for Belt Sander LEN610
  • Stayer Spare Parts for Belt Sander LEN610

Stayer Spare Parts for Belt Sander LEN610

SKU: Stayer LEN610 Condition: New
€0.60
VAT included

Stayer Spare Parts for Belt Sander LEN610

We supply original STAYER spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander LEN610.
settings 50 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 5010131 HANDLE COVER €2.37
3
photo_cameraImage coming soon 5010132 HANDLE €8.00
4
photo_cameraImage coming soon 5010133 CAPACITANCE €3.98
5
photo_cameraImage coming soon 5010134 INDUCTANCE €3.18
6
photo_cameraImage coming soon 5010135 SWITCH €20.87
9
Power Cord Armor for Belt Sander Stayer LEN610 5010138 Power Cord Armor for Belt Sander Stayer LEN610 €2.48
11
photo_cameraImage coming soon 5010140 MOTOR HOUSING €31.98
12
photo_cameraImage coming soon 5010141 PULLEY €7.20
13
photo_cameraImage coming soon 5010142 COVER €11.22
15
photo_cameraImage coming soon 5010144 CARBON BRUSH €11.22
16
photo_cameraImage coming soon 5010145 CARBON BRUSH HOLDER €6.39
17
photo_cameraImage coming soon 5010146 BRUSH CAP €1.41
18
photo_cameraImage coming soon 5010147 STATOR 120/230 V €48.07
20
photo_cameraImage coming soon 5010149 BEARING 6000 €6.39
22
photo_cameraImage coming soon 5010151 AIR FAN €8.00
23
photo_cameraImage coming soon 5010152 ARMATURE €75.58
24
photo_cameraImage coming soon 5010153 BEARING 6000 €6.39
25
photo_cameraImage coming soon 5010154 COVER €6.39
27
photo_cameraImage coming soon 5010156 FAN €7.20
28
photo_cameraImage coming soon 5010157 PINION €11.22
29
photo_cameraImage coming soon 5010158 BUSH €9.61
30
photo_cameraImage coming soon 5010159 ASPIRATION GUIDE €5.59
32
photo_cameraImage coming soon 5010161 LATERAL COVER €12.83
37
photo_cameraImage coming soon 5010164 FRONTAL COVER €16.05
38
photo_cameraImage coming soon 5010202 RULLER ROD €4.78
39
photo_cameraImage coming soon 5010165 SPRING €5.59
40
photo_cameraImage coming soon 5010166 ROLLER SUPPORT €14.44
42
photo_cameraImage coming soon 5010168 ROLLER €20.87
43
photo_cameraImage coming soon 5010169 BEARING 6200 €9.61
44
photo_cameraImage coming soon 5010170 ANTIVIBRATION Ø40X30 MF M8X25 65SH €40.02
46
photo_cameraImage coming soon 5010172 NEEDLE BEARING €8.00
47
photo_cameraImage coming soon 5010173 SPINDLE GEAR €20.87
48
photo_cameraImage coming soon 5010174 CROWN €20.87
49
photo_cameraImage coming soon 5010175 CROWN CAP €16.05
51
photo_cameraImage coming soon 5010177 GEAR €23.93
53
Belt for Belt Sander Stayer LEN610 5010179 Belt for Belt Sander Stayer LEN610 €23.44
54
photo_cameraImage coming soon 5010180 BEARING 6001 €6.39
55
photo_cameraImage coming soon 5010181 GEAR SPINDLE €23.93
56
photo_cameraImage coming soon 5010182 NEEDLE BEARING €4.78
59
photo_cameraImage coming soon 5010184 SPINDLE €8.81
60
photo_cameraImage coming soon 5010185 WASHER €2.37
61
photo_cameraImage coming soon 5010186 CAP €3.18
62
photo_cameraImage coming soon 5010187 LATERAL HANDLE €8.00
64
photo_cameraImage coming soon 5010189 SPRING €3.98
67
photo_cameraImage coming soon 5010192 SUPPORT €19.27
69
photo_cameraImage coming soon 5010194 PIN €3.98
71
photo_cameraImage coming soon 5010196 PLETINE €6.39
73
photo_cameraImage coming soon 5010198 FRONT ROLLER €19.80
74
photo_cameraImage coming soon 5010199 NEEDLE BEARING €3.98
500
photo_cameraImage coming soon 5010201 BAG €8.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Spare Parts for Belt Sander LEN610

We supply original STAYER spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander LEN610.

In the following table, look for the model of the Belt Sander and the respective parts.
Stayer LEN610
BELT SANDER LEN 610
# Part NUm. Description
1 5010130 SCREW
2 5010131 HANDLE COVER
3 5010132 HANDLE
4 5010133 CAPACITANCE
5 5010134 INDUCTANCE
6 5010135 SWITCH
7 5010136 PLETINE
8 5010137 SCREW
9 5010138 CABLE ARMOR
10 - CABLE AND PLUG
11 5010140 MOTOR HOUSING
12 5010141 PULLEY
13 5010142 COVER
14 5010143 SCREW
15 5010144 CARBON BRUSH
16 5010145 CARBON BRUSH HOLDER
17 5010146 BRUSH CAP
18 5010147 STATOR 120/230 V
19 5010148 SCREW
20 5010149 BEARING 6000
21 5010150 WASHER
22 5010151 AIR FAN
23 5010152 ARMATURE
24 5010153 BEARING 6000
25 5010154 COVER
26 5010155 SCREW
27 5010156 FAN
28 5010157 PINION
29 5010158 CAP
30 5010159 ASPIRATION GUIDE
31 5010160 RING
32 5010161 LATERAL COVER
33 5010162 SCREW
36 5010163 SCREW
37 5010164 FRONTAL COVER
38 5010202 RULLER ROD
39 5010165 SPRING
40 5010166 ROLLER SUPPORT
41 5010167 NUT
42 5010168 ROLLER
43 5010169 BEARING 6200
44 5010170 BASE
45 5010171 SCREW
46 5010172 NEEDLE BEARING
47 5010173 SPINDLE GEAR
48 5010174 CROWN
49 5010175 CROWN CAP
50 5010176 SCREW
51 5010177 GEAR
52 5010178 NUT
53 5010179 BELT
54 5010180 BEARING 6001
55 5010181 GEAR SPINDLE
56 5010182 NEEDLE BEARING
58 5010183 SCREW
59 5010184 SPINDLE
60 5010185 WASHER
61 5010186 CAP
62 5010187 LATERAL HANDLE
63 5010188 SCREW
64 5010189 SPRING
65 5010190 SCREW
66 5010191 SCREW
67 5010192 SUPPORT
68 5010193 RUBBER BASE
69 5010194 PIN
70 5010195 SCREW
71 5010196 PLETINE
72 5010197 O.RING
73 5010198 FRONT ROLLER
74 5010199 NEEDLE BEARING
500 5010201 BAG
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer LEN610
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Stayer LEN610

Diagram Stayer LEN610

Download (247.9KB)
