Stayer Spare Parts for Wall sander LP600E/LP600BE

SKU: Stayer LP600E - LP600BE
€2.10
VAT included

Stayer Spare Parts for Wall Sander LP600E/LP600BE

We have the original Spares STAYER for Wall Sander LP600E - LP600BE the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Wall Sander LP600E - LP600BE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Stayer Spare Parts for Wall sander LP600BE
  • Stayer Spare Parts for Wall sander LP600BE
  • Stayer Spare Parts for Wall sander LP600E/LP600BE

Stayer Spare Parts for Wall sander LP600E/LP600BE

SKU: Stayer LP600E - LP600BE Condition: New
€2.10
VAT included

Stayer Spare Parts for Wall Sander LP600E/LP600BE

We have the original Spares STAYER for Wall Sander LP600E - LP600BE the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Wall Sander LP600E - LP600BE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 74 spare parts

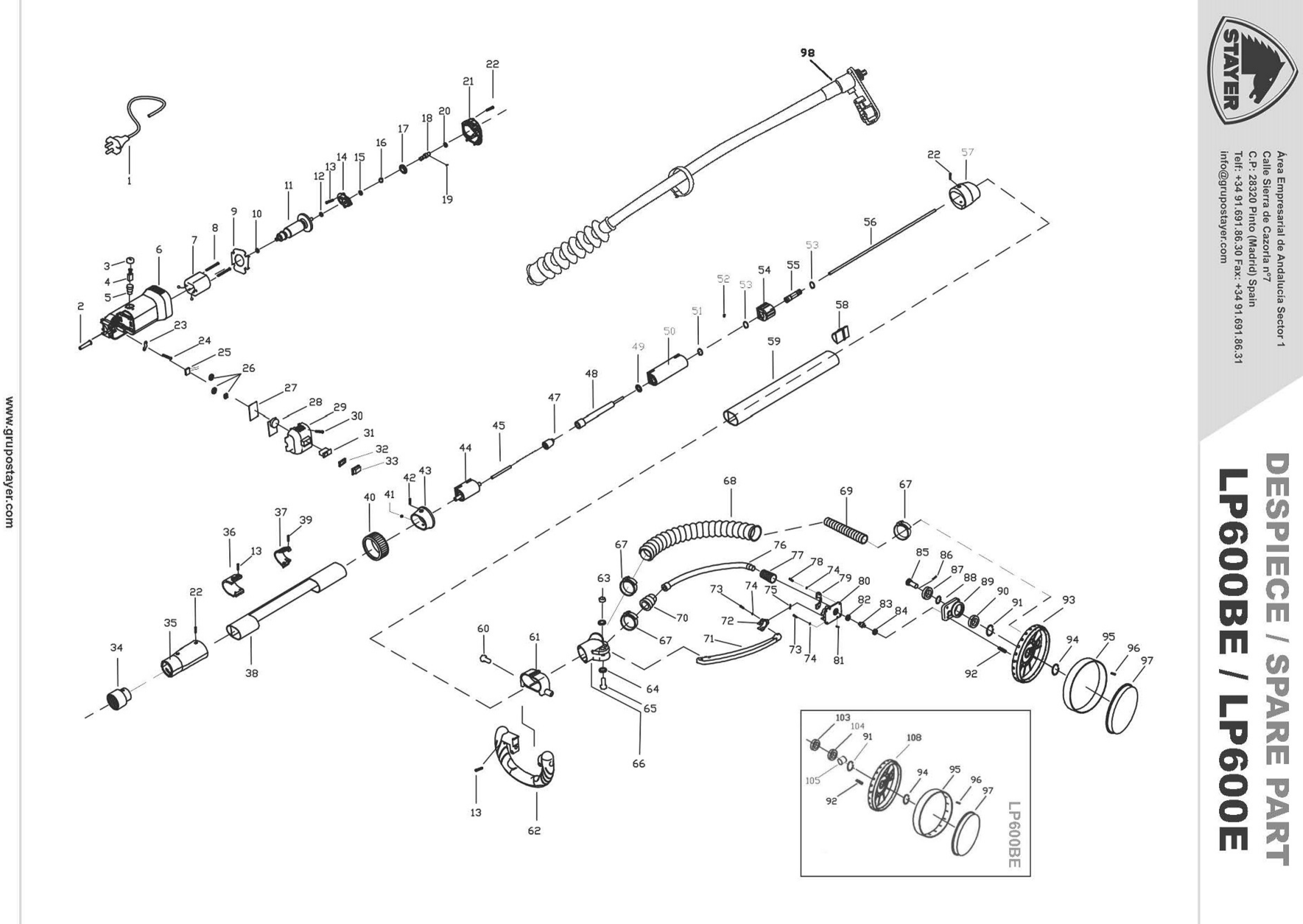

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 220165 CORD SLEEVE €1.99
4
photo_cameraImage coming soon 220167 CARBON BRUSH €6.33
5
photo_cameraImage coming soon 220168 BRUSH HOLDER €3.61
6
photo_cameraImage coming soon 220169 HOUSING €16.10
7
photo_cameraImage coming soon 220170 STATOR €33.77
8
photo_cameraImage coming soon 220171 SCREW ST4.0 * 70 €1.25
9
photo_cameraImage coming soon 220172 AIRGUIDE SHIM €3.27
10
photo_cameraImage coming soon 220173 BEARING 608 €4.20
11
photo_cameraImage coming soon 220174 ARMATURE ASS'Y €49.92
12
photo_cameraImage coming soon 220175 BEARING 608(2RS) €4.37
14
photo_cameraImage coming soon 220177 INTERMEDIATE CAP €6.40
15
photo_cameraImage coming soon 220178 NEEDLE BEARING HK0810 €3.27
17
photo_cameraImage coming soon 220180 THE FIRST DRIVEN GEAR €9.32
18
photo_cameraImage coming soon 220181 THE SECOND DRIVING SHAFT €9.48
20
photo_cameraImage coming soon 220183 NEEDLE BEARING HK1210 €5.90
21
photo_cameraImage coming soon 220184 HEAD CAPSULE €10.47
22
photo_cameraImage coming soon 220185 SCREW ST3.9* 20 €1.25
24
photo_cameraImage coming soon 220187 SCREW ST3.5 * 16 €1.65
25
photo_cameraImage coming soon 220188 CAPACITOR €5.02
26
photo_cameraImage coming soon 220189 INDUCTANCE €5.04
27
photo_cameraImage coming soon 220190 CLAPBOARD €3.35
28
photo_cameraImage coming soon 220191 SOFT-START BOARD €34.31
29
photo_cameraImage coming soon 220192 REAR COVER €3.19
30
photo_cameraImage coming soon 220193 SCREW ST4 *18 €1.65
31
photo_cameraImage coming soon 220194 SWITCH €16.23
32
photo_cameraImage coming soon 220195 SWITCH COVER( BLACK ) €1.49
33
photo_cameraImage coming soon 220196 SWITCH COVER ( TRANSPARENT ) €1.91
34
photo_cameraImage coming soon 220197 DUST TUBE GRIPPER TUBE €3.09
35
photo_cameraImage coming soon 220198 DUST TUBE JOINT €10.21
36
photo_cameraImage coming soon 220199 HOUSING HOOP €3.01
37
photo_cameraImage coming soon 220200 HEAD CAPSULE HOOP €3.01
38
photo_cameraImage coming soon 220201 ALUMINIUM PIPE 555 €21.31
40
photo_cameraImage coming soon 220203 THREADED SLEEVE €5.38
43
photo_cameraImage coming soon 220206 INNER RING €6.58
44
Fastener Device for Wall Sanders Stayer LP600E-LP600BE 220207 Fastener Device for Wall Sanders Stayer LP600E-LP600BE €48.76
45+47
photo_cameraImage coming soon 220263 METALLIC CONECTION+SPINDLE €27.07
47
photo_cameraImage coming soon 220210 SOFT-SHAFT SLIPCOVER €8.03
48
Slide Bar for Wall Sander Stayer LP600E-LP600BE 220211 Slide Bar for Wall Sander Stayer LP600E-LP600BE €45.86
50
photo_cameraImage coming soon 220213 LONG FIXING DEVICE SET €11.66
54
photo_cameraImage coming soon 220217 SLIPPER SET €31.99
55
photo_cameraImage coming soon 220218 SLIDING ROD 60*?14 €12.06
57
photo_cameraImage coming soon 220220 FIXED SET €10.98
58
photo_cameraImage coming soon 220221 DUSTPROOF LINING €38.26
59
photo_cameraImage coming soon 220222 ALUMINIUM PIPE 445 €38.26
61
photo_cameraImage coming soon 220224 HANDLE EMBRACE HOOP €5.61
62
photo_cameraImage coming soon 220225 U-HANDLE €12.06
63
photo_cameraImage coming soon 220226 HEXAGONAL NUT M8 €1.25
65
photo_cameraImage coming soon 220228 OUTER HEXAGONAL SCREW M8 * 40 €1.25
66
photo_cameraImage coming soon 220229 THREE-JOINT €6.01
67
photo_cameraImage coming soon 220230 TWISTLOCK €3.35
69
photo_cameraImage coming soon 220232 CYLINDRICAL SPRING €4.37
70
photo_cameraImage coming soon 220233 HOSE SLEEVE €5.38
71
photo_cameraImage coming soon 220234 ROCKERARM €12.06
72
photo_cameraImage coming soon 220235 ROCKER COVER €3.53
73
photo_cameraImage coming soon 220236 SCREW M4*10 €1.25
74
photo_cameraImage coming soon 220237 SPRING WASHER €1.25
76
photo_cameraImage coming soon 220239 HOSE SET €27.39
77
photo_cameraImage coming soon 220240 TOWER SPRING?3*?13*80 €1.49
80
photo_cameraImage coming soon 220243 GEARBOX COVER €6.01
82
photo_cameraImage coming soon 220245 NEEDLE BEARING HK1010 €3.01
83
photo_cameraImage coming soon 220246 GEAR €8.84
84
photo_cameraImage coming soon 220247 NEEDLE BEARING HK0708 €3.01
85
photo_cameraImage coming soon 220248 OUTPUT SHAFT €9.16
87
photo_cameraImage coming soon 220250 TERMINAL GEAR €8.03
89
photo_cameraImage coming soon 220252 GEARBOX €23.36
90
photo_cameraImage coming soon 220253 BEARING 6001(2RS) €6.42
93
photo_cameraImage coming soon 220256 DUST COVER €22.55
95
photo_cameraImage coming soon 220258 ROUND BRUSH €5.12
97
Sanding Pad for Wall Sander Stayer LP600E-LP600BE 220260 Sanding Pad for Wall Sander Stayer LP600E-LP600BE €45.86
98
Gear Conection Set for Wall Sander Stayer LP600E-LP600BE 220267 Gear Conection Set for Wall Sander Stayer LP600E-LP600BE €132.36 Not available for order
103
photo_cameraImage coming soon 220268 BEARING 6001(2RS) DDU €17.31
104
photo_cameraImage coming soon 220269 SKELETON OIL SEAL €4.37
105
photo_cameraImage coming soon 220270 SET OF 16*12*7 €3.55
108
photo_cameraImage coming soon 220271 DUST COVER €21.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Spare Parts for Wall Sander LP600E/LP600BE

Fix Your Wall Sander LP600E - LP600BE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Wall Sander and the respective parts of the code.
WALL SANDER LP600BE
WALL SANDER LP600BE
# Part Num. Description
2 220165 CORD SLEEVE
3 220166 BRUSH CAP
4 220167 CARBON BRUSH
5 220168 BRUSH HOLDER
6 220169 HOUSING
7 220170 STATOR
8 220171 SCREW ST4.0 * 70
9 220172 AIRGUIDE SHIM
10 220173 BEARING 608
11 220174 ARMATURE ASS'Y
12 220175 BEARING 608(2RS)
13 220176 SCREW ST3.9 * 16
14 220177 INTERMEDIATE CAP
15 220178 NEEDLE BEARING HK0810
16 220179 SHAFT CIRCLIP ?10
17 220180 THE FIRST DRIVEN GEAR
18 220181 THE SECOND DRIVING SHAFT
19 220182 HEMICYCLE KEY2.5 * 3.7 * 10
20 220183 NEEDLE BEARING HK1210
21 220184 HEAD CAPSULE
22 220185 SCREW ST3.9* 20
23 220186 CLAMP
24 220187 SCREW ST3.5 * 16
25 220188 CAPACITOR
26 220189 INDUCTANCE
27 220190 CLAPBOARD
28 220191 SOFT-START BOARD
29 220192 REAR COVER
30 220193 SCREW ST4 *18
31 220194 SWITCH
32 220195 SWITCH COVER( BLACK )
33 220196 SWITCH COVER ( TRANSPARENT )
34 220197 DUST TUBE GRIPPER TUBE
35 220198 DUST TUBE JOINT
36 220199 HOUSING HOOP
37 220200 HEAD CAPSULE HOOP
38 220201 ALUMINIUM PIPE 555
39 220202 SCREW ST3.9*12
40 220203 THREADED SLEEVE
41 220204 M5 NUT
42 220205 SCREW M5 *10
43 220206 INNER RING
44 220207 SHORT FIXING DEVICE SET
45 220208 SHORT SHAFT ?6*170
47 220210 SOFT-SHAFT SLIPCOVER
48 220211 SLIDE BAR SET
49 220212 FLAT WASHER?16
50 220213 LONG FIXING DEVICE SET
51 220214 SHAFT CIRCLIP ?16
52 220215 SCREW M5 *6
53 220216 SHAFT CIRCLIP ?6
54 220217 SLIPPER SET
55 220218 SLIDING ROD 60*?14
56 220219 LONG FLEXIBLE SHAFT
57 220220 FIXED SET
58 220221 DUSTPROOF LINING
59 220222 ALUMINIUM PIPE 445
60 220223 HEXAGONAL SCREW M8 * 25
61 220224 HANDLE EMBRACE HOOP
62 220225 U-HANDLE
63 220226 HEXAGONAL NUT M8
64 220227 FLAT WASHER?6
65 220228 OUTER HEXAGONAL SCREW M8 * 40
66 220229 THREE-JOINT
67 220230 TWISTLOCK
68 220231 RUBBER-HOSE
69 220232 CYLINDRICAL SPRING
70 220233 HOSE SLEEVE
71 220234 ROCKERARM
72 220235 ROCKER COVER
73 220236 SCREW M4*10
74 220237 SPRING WASHER
75 220238 CYLINDRICAL PIN ?5*22
76 220239 HOSE SET
77 220240 TOWER SPRING?3*?13*80
78 220241 SCREW M4*16
79 220242 SPRING PRESSURE PLATE
80 220243 GEARBOX COVER
81 220244 LOCATING PIN ?4
82 220245 NEEDLE BEARING HK1010
83 220246 GEAR
84 220247 NEEDLE BEARING HK0708
85 220248 OUTPUT SHAFT
86 220249 CYLINDRICAL PIN ?4 * 20
87 220250 TERMINAL GEAR
88 220251 SHAFT CIRCLIP ?15
89 220252 GEARBOX
90 220253 BEARING 6001(2RS)
91 220254 HOLE WITH CIRCLIP ?28
92 220255 SHOCK ABSORPTION OF SPRING
93 220256 DUST COVER
94 220257 SHAFT CIRCLIP ?35
95 220258 ROUND BRUSH
96 220259 SCREW ST3.0* 16
97 220260 SPONGE PAD
83+55+56 220265 GEAR SET
45+47 220263 METALLIC CONECTION+SPINDLE
103 220268 BEARING 6001(2RS) DDU
104 220269 SKELETON OIL SEAL
105 220270 SET OF 16*12*7
108 220271 DUST COVER
98 220266 GEAR CONECTION SET (OLD)
98 220267 GEAR CONECTION SET (NEW)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer LP600E - LP600BE
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Stayer LP600BE

Diagram Stayer LP600BE

Download (328.37KB)
