Stayer Spare Parts for Random Orbital Sander RO150E
Stayer original spare parts for replacing damaged parts or fix broken parts of the Random Orbital
Sander RO150E.

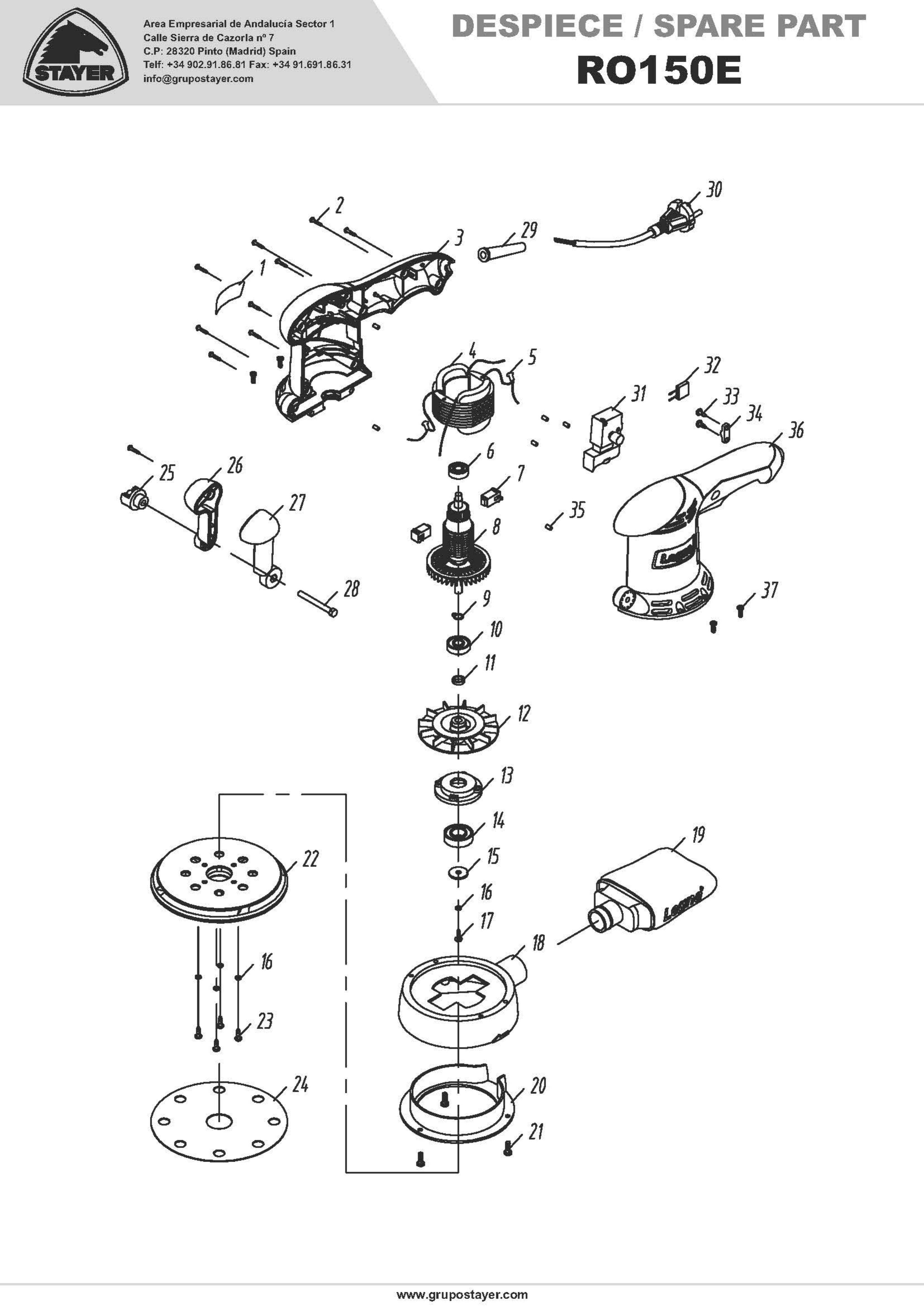

In the following table, look for the model of the
Rotoorbital Sander and the respective parts of the code.
| Random Orbital SANDER · RO 150 E |
| # |
Part Num. |
Description |
| 2 |
81101 |
SCREW |
| 3 |
81102 |
RIGHT HOUSING |
| 4 |
81103 |
STATOR |
| 5 |
81104 |
CONECTOR |
| 6 |
81105 |
BEARING |
| 7 |
81106 |
CARBON BRUSHES |
| 8 |
81107 |
ARMATURE |
| 9 |
81108 |
CIR CLIP |
| 10 |
81109 |
BEARING |
| 11 |
81101 |
RETAINER RING |
| 12 |
811011 |
ALUMINUM FAN |
| 13 |
811012 |
BEARING BASE |
| 14 |
811013 |
BEARING |
| 15 |
811014 |
WASHER |
| 16 |
811015 |
SPRING WASHER |
| 17 |
811016 |
SCREW |
| 18 |
811017 |
ALUMINUM BASE |
| 19 |
811018 |
DUST COLLECT BAG |
| 20 |
811019 |
DUST COLLECT GUIDE |
| 21 |
81102 |
SCREW |
| 22 |
811021 |
150 MM SANDING PAD |
| 23 |
811022 |
SCREW |
| 25 |
811023 |
KNOB |
| 26 |
811024 |
ASSISTANT HANDLE COVER |
| 27 |
811025 |
ASSITANT HANDLE SUPPORT |
| 28 |
811026 |
BOLT |
| 29 |
811027 |
CABLE ARMOR |
| 30 |
- |
CABLE AND PLUG |
| 31 |
811029 |
SWITCH |
| 32 |
81103 |
CAPACITOR |
| 33 |
811031 |
SCREW |
| 34 |
811032 |
CABLE CLAMP |
| 35 |
811033 |
PIN |
| 36 |
811034 |
LEFT HOUSING |
| 37 |
811035 |
SCREW |
