| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 50081 BEARING SLEEVE | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 50082 BEARING | €4.41 | |
|
3
|
photo_cameraImage coming soon | 5008185 ARMATURE 120 V | €21.39 | |
|
3
|
|
50083 Armature for Angle Grinder Stayer SAB 730 | €31.88 | |
|
4
|
photo_cameraImage coming soon | 50084 0-RING | €0.00 | Not available for order |
|
5
|
photo_cameraImage coming soon | 50085 PLETINE | €1.89 | |
|
6
|
photo_cameraImage coming soon | 50086 BEARING | €4.41 | |
|
7-9
|
|
50087 Set Lock Button for Angel Grinder Stayer SAB 730 | €5.05 | |
|
10
|
photo_cameraImage coming soon | 50088 SCREW | €0.00 | Not available for order |
|
11
|
|
50089 Gear Box for Angle Grinder Stayer SAB 730 | €14.99 | |
|
12
|
photo_cameraImage coming soon | 500810 NEEDLE BEARING HK0810 | €2.64 | |
|
13
|
photo_cameraImage coming soon | 500811 RING | €0.00 | Not available for order |
|
14
|
|
500812 Crown Gear for Angle Grinder Stayer SAB 730 | €11.63 | |
|
15
|
photo_cameraImage coming soon | 500813 RING | €1.89 | |
|
16
|
photo_cameraImage coming soon | 500814 BEARING | €3.78 | |
|
17
|
photo_cameraImage coming soon | 500815 FRONT COVER | €9.05 | |
|
18
|
photo_cameraImage coming soon | 500816 WASHER | €0.00 | Not available for order |
|
19
|
photo_cameraImage coming soon | 500817 WASHER | €0.00 | Not available for order |
|
20
|
photo_cameraImage coming soon | 500818 SCREW | €0.00 | Not available for order |
|
21
|
|
500819 Disc Guard for Angle Grinder Stayer SAB730 | €12.40 | |
|
22
|
photo_cameraImage coming soon | 500820 WASHER | €1.89 | |
|
23
|
photo_cameraImage coming soon | 500821 SCREW | €0.00 | Not available for order |
|
24
|
photo_cameraImage coming soon | 500822 ARMOR | €0.00 | Not available for order |
|
25
|
photo_cameraImage coming soon | 500823 SCREW | €0.00 | Not available for order |
|
27
|
photo_cameraImage coming soon | 500825 BOTTON COVER | €8.81 | |
|
28
|
photo_cameraImage coming soon | 500826 SCREW | €0.00 | Not available for order |
|
29
|
|
500827 Carbon Brushes for Angle Grinder Stayer SAB 730 | €11.63 | |
|
30
|
photo_cameraImage coming soon | 500828 ROLL SPRING | €1.26 | |
|
31
|
photo_cameraImage coming soon | 500829 CARBON BRUSH HOLDER | €4.41 | |
|
32
|
photo_cameraImage coming soon | 500830 HOUSING | €12.45 | |
|
32
|
photo_cameraImage coming soon | 5008320 MOTOR HOUSING 2010 | €14.98 | |
|
33
|
photo_cameraImage coming soon | 500831 PIN | €0.00 | Not available for order |
|
34
|
photo_cameraImage coming soon | 500832 SCREW | €0.00 | Not available for order |
|
35
|
photo_cameraImage coming soon | 500833 WASHER | €0.00 | Not available for order |
|
36
|
photo_cameraImage coming soon | 5008184 STATOR 120 V | €17.61 | |
|
36
|
photo_cameraImage coming soon | 500834 STATOR | €16.36 | |
|
37
|
|
500835 Side Handlegrip for Angle Grinder Stayer SAB730 | €9.61 | |
|
38
|
|
500836 Pinion for Angle Grinder Stayer SAB 730 | €0.00 | Not available for order |
|
39
|
photo_cameraImage coming soon | 500837 WASHER | €0.00 | Not available for order |
|
40
|
photo_cameraImage coming soon | 500838 NUT | €0.00 | Not available for order |
|
41
|
photo_cameraImage coming soon | 500839 SCREW | €0.00 | Not available for order |
|
42
|
photo_cameraImage coming soon | 500840 AIR FUN | €2.39 | |
|
44
|
photo_cameraImage coming soon | 500841 CLAMP | €1.26 | |
|
46
|
|
500842 Switch for Angle Grinder Stayer SAB 730 | €16.69 | |
|
47
|
photo_cameraImage coming soon | 500843 CAPACITOR | €1.89 | |
|
48
|
photo_cameraImage coming soon | 5008321 SWITCH DRAW LEVE 2010 | €0.12 | Not available for order |
|
48
|
photo_cameraImage coming soon | 500844 SWITCH DRAW LEVER | €1.89 | |
|
49
|
|
5008323 Switch Button for Angle Grinder Stayer SAB730 | €3.32 | |
|
49
|
photo_cameraImage coming soon | 500845 SWITCH BUTTON | €1.26 | |
|
50
|
photo_cameraImage coming soon | 500846 SCREW | €0.00 | Not available for order |
|
51
|
photo_cameraImage coming soon | 500847 HALF ROUND PIN | €0.00 | Not available for order |
|
52
|
photo_cameraImage coming soon | 500848 OUTPUT SPINDLE | €4.41 | |
|
53
|
photo_cameraImage coming soon | 500849 INNER FLANGE | €2.52 | |
|
54
|
photo_cameraImage coming soon | 500850 OUTER FLANGE | €2.52 |
Shipping and delivery information will be available shortly.

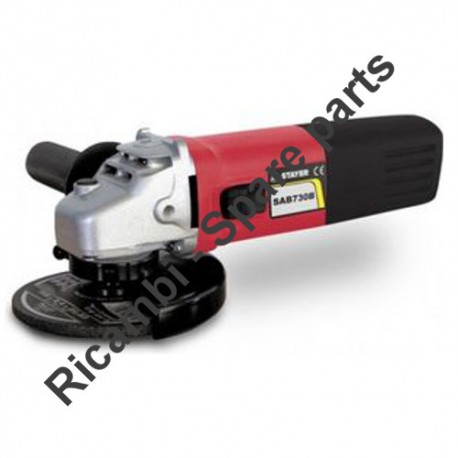

authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder SAB730.

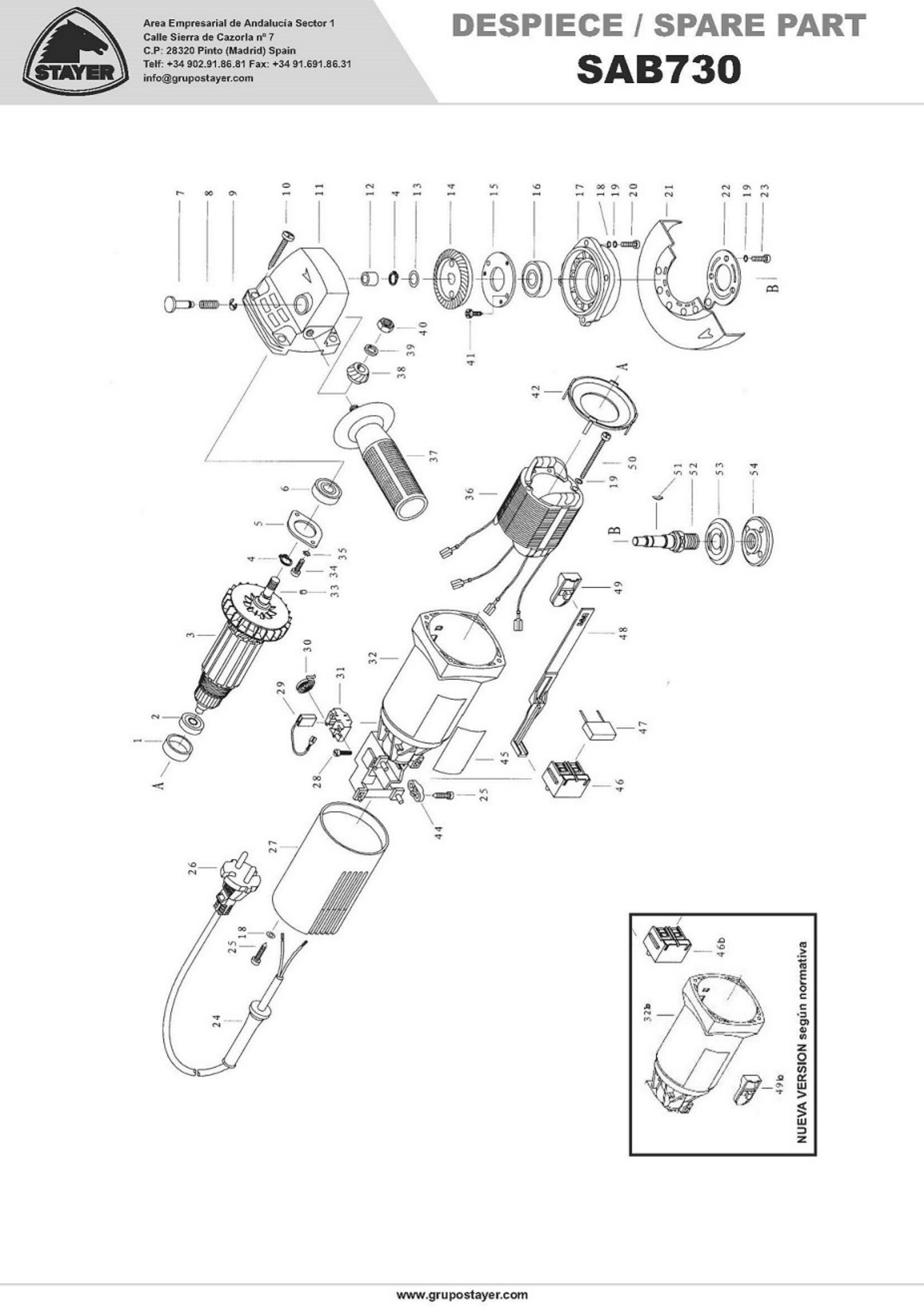

In the following table, look for the model of the hammerr and the respective parts of the code.
| ANGLE GRINDER SAB 730 | ||
| # | Part Num. | Description |
| 1 | 50081 | BEARING SLEEVE |
| 2 | 50082 | BEARING |
| 3 | 50083 | ARMATURE 220V |
| 4 | 50084 | O-RING |
| 5 | 50085 | PLETINE |
| 6 | 50086 | BEARING |
| 7-9 | 50087 | SET LOCK BUTTON |
| 10 | 50088 | SCREW |
| 11 | 50089 | HEAD |
| 12 | 500810 | NEEDLE BEARING HK0810 |
| 13 | 500811 | RING |
| 14 | 500812 | CROWN |
| 15 | 500813 | RING |
| 16 | 500814 | BEARING |
| 17 | 500815 | FRONT COVER |
| 18 | 500816 | WASHER |
| 19 | 500817 | WASHER |
| 20 | 500818 | SCREW |
| 21 | 500819 | CARTER |
| 22 | 500820 | WASHER |
| 23 | 500821 | SCREW |
| 24 | 500822 | ARMOR |
| 25 | 500823 | SCREW |
| 27 | 500825 | BOTTON COVER |
| 28 | 500826 | SCREW |
| 29 | 500827 | CARBON BRUSH SET |
| 30 | 500828 | ROLL SPRING |
| 31 | 500829 | CARBON BRUSH HOLDER |
| 32 | 5008320 | MOTOR HOUSING 2010 |
| 32 | 500830 | HOUSING |
| 33 | 500831 | PIN |
| 34 | 500832 | SCREW |
| 35 | 500833 | WASHER |
| 36 | 500834 | STATOR |
| 37 | 500835 | HANDLE |
| 38 | 500836 | PINION |
| 39 | 500837 | WASHER |
| 40 | 500838 | NUT |
| 41 | 500839 | SCREW |
| 42 | 500840 | AIR FUN |
| 44 | 500841 | CLAMP |
| 46 | 500842 | SWITCH |
| 47 | 500843 | CAPACITOR |
| 48 | 5008321 | SWITCH DRAW LEVE 2010 |
| 48 | 500844 | SWITCH DRAW LEVER |
| 49 | 5008323 | SWITCH BUTTON 2010 |
| 49 | 500845 | SWITCH BUTTON |
| 50 | 500846 | SCREW |
| 51 | 500847 | HALF ROUND PIN |
| 52 | 500848 | OUTPUT SPINDLE |
| 53 | 500849 | INNER FLANGE |
| 54 | 500850 | OUTER FLANGE |
| 3 | 5008185 | ARMATURE 120 V |
| 36 | 5008184 | STATOR 120 V |
