Stayer Miter Saw SC2600W Spare Parts

SKU: Stayer SC2600W
€0.74
VAT included

Stayer Miter Saw SC2600W Spare Parts

Stayer original spare parts at best price, repairing your Miter Saw SC2600W is easy, fast and convenient. Choose and purchase every spare part you need in just a few minutes.
Stayer Miter Saw SC2600W Spare Parts
  • Stayer Miter Saw SC2600W Spare Parts
  • Stayer Miter Saw for wood SC2600W Spare Parts

Stayer Miter Saw SC2600W Spare Parts

SKU: Stayer SC2600W Condition: New
€0.74
VAT included

Stayer Miter Saw SC2600W Spare Parts

Stayer original spare parts at best price, repairing your Miter Saw SC2600W is easy, fast and convenient. Choose and purchase every spare part you need in just a few minutes.
settings 75 spare parts

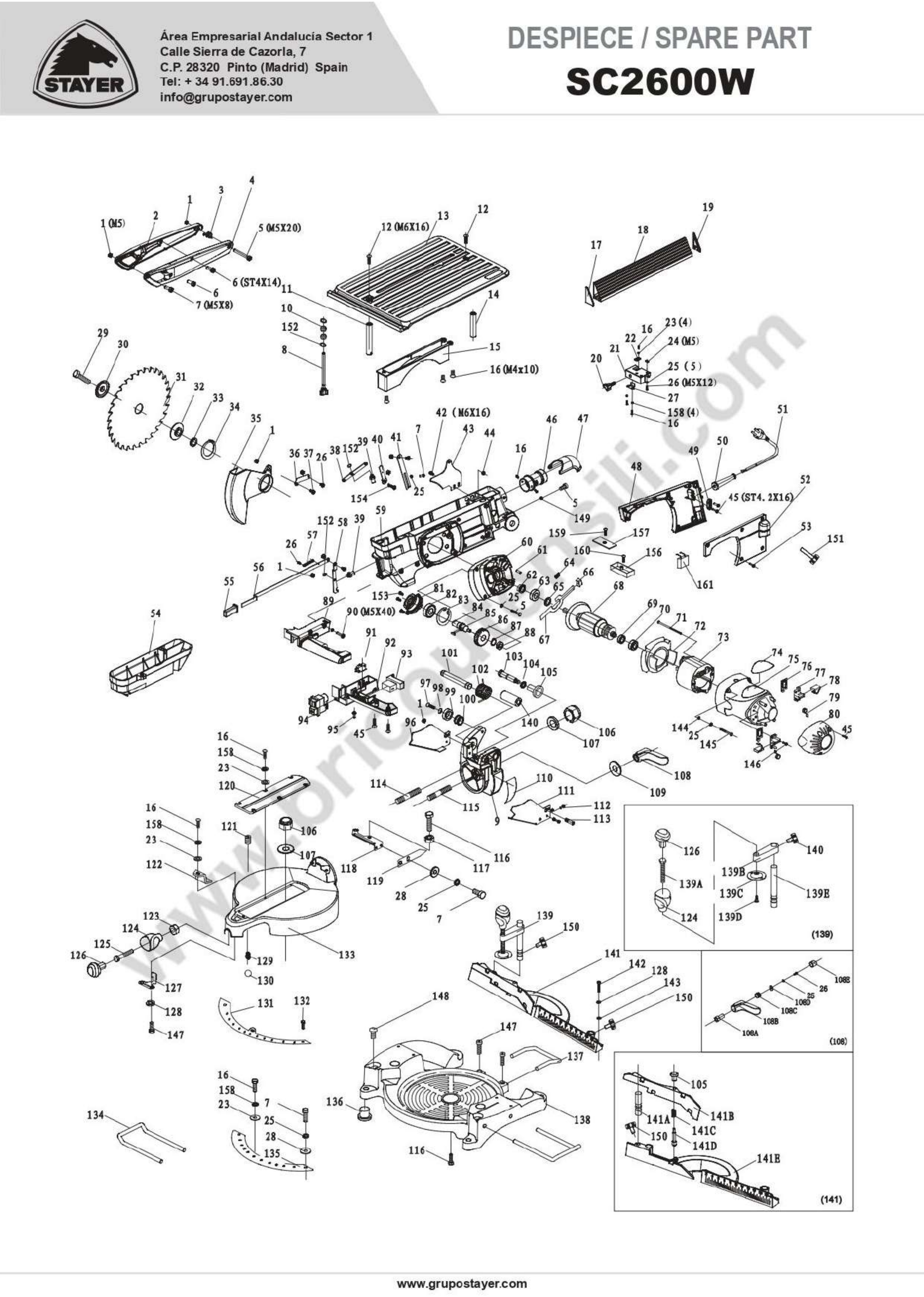

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

75 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1-2-3-4-5-6-7
photo_cameraImage coming soon 4205.1783 SET ASSEMBLY CARTER €12.24
2
photo_cameraImage coming soon 4205.1611 LEFT PROTECTING COVER €4.36
4
photo_cameraImage coming soon 4205.1613 RIGHT PROTECTING COVER €6.81
8
photo_cameraImage coming soon 4205.1617 ADJUSTABLE DEPTH KNOB €5.47
9
photo_cameraImage coming soon 4205.1618 ROTATIONAL HOLDER €32.04
11
photo_cameraImage coming soon 4205.1620 ADJUSTABLE DEPTH ROD I €4.13
13
photo_cameraImage coming soon 4205.1622 TABLE €63.98
14
photo_cameraImage coming soon 4205.1623 ADJUSTABLE DEPTH ROD II €4.13
15
photo_cameraImage coming soon 4205.1624 PROTECTING COVER €5.47
18
photo_cameraImage coming soon 4205.1627 FENCE €14.57
21
photo_cameraImage coming soon 4205.1630 FENCE SLIDING BLOCK €4.13
27
photo_cameraImage coming soon 4205.1636 LOCKING PIECE €4.96
30
photo_cameraImage coming soon 4205.1639 OUTER FLANGE €4.96
32
photo_cameraImage coming soon 4205.1640 INNER FLANGE €4.96
33
photo_cameraImage coming soon 4205.1641 FLANGE WASHER €1.45
34
photo_cameraImage coming soon 4205.1642 CIRCLIP 45 €1.45
35-36-37-38-39-40-41
photo_cameraImage coming soon 4205.1643 SET CARTER €10.33
43
photo_cameraImage coming soon 4205.1645 BLADE PAD €4.96
46
photo_cameraImage coming soon 4205.1648 DUST OUTLET COVER I €1.80
47
photo_cameraImage coming soon 4205.1649 DUST OUTLET COVER €1.80
48
photo_cameraImage coming soon 4205.1650 INNER SLEEVE €6.07
52
photo_cameraImage coming soon 4205.1654 INNER SLEEVE COVER €4.36
54
photo_cameraImage coming soon 4205.1656 PROTECTING BOX €10.33
56-58
photo_cameraImage coming soon 4205.1658 PUSHING AND HOLDING ROD €5.47
59
photo_cameraImage coming soon 4205.1660 BLADE COVER €58.24
60
photo_cameraImage coming soon 4205.1661 INTERMEDIATE PLATE €12.88
62
photo_cameraImage coming soon 4205.1663 OIL SEALING RING €2.65
67
photo_cameraImage coming soon 4205.1668 SPINDLE LOCKING €2.79
68
photo_cameraImage coming soon 4205.1669 ARMATURE €85.60
69
photo_cameraImage coming soon 4205.1670 BEARING 609-2Z/VV €4.96
72
photo_cameraImage coming soon 4205.1673 FAN GUIDE €2.79
73
photo_cameraImage coming soon 4205.1674 STATOR €62.07
75
photo_cameraImage coming soon 4205.1676 HOUSING €17.99
77
photo_cameraImage coming soon 4205.1678 BRUSH HOLDER( 2PCS) €21.82
78
photo_cameraImage coming soon 4205.1679 CARBON BRUSH ( 2PCS) €24.38
80
photo_cameraImage coming soon 4205.1681 BACK COVER €5.47
81
photo_cameraImage coming soon 4205.1682 BEARING HOLDER €5.47
82
photo_cameraImage coming soon 4205.1683 BEARING 6203-2RZ €4.96
84
photo_cameraImage coming soon 4205.1685 OUTPUT SPINDLE €7.51
86
photo_cameraImage coming soon 4205.1687 DRIVEN GEAR €10.33
88
photo_cameraImage coming soon 4205.1689 BEARING 608-2Z €4.70
89-92
photo_cameraImage coming soon 4205.1690 UP +DOWN HANDLE €16.45
91
photo_cameraImage coming soon 4205.1692 SWITCH €16.88
93
photo_cameraImage coming soon 4205.1693 ON-OFF SWITCH €15.00
94
photo_cameraImage coming soon 4205.1694 ELECTROMAGNETIC SWITCH €16.90
95
photo_cameraImage coming soon 4205.1695 SWITCH BUTTON €1.50
96
photo_cameraImage coming soon 4205.1696 LEFT GUARD BOARD €5.47
100
photo_cameraImage coming soon 4205.1700 LOCALIZED PULLEY €3.68
101
photo_cameraImage coming soon 4205.1701 ROTATING SPINDLE €6.81
102
photo_cameraImage coming soon 4205.1702 ROTATING TORSIONAL SPRING €8.41
103
photo_cameraImage coming soon 4205.1703 LOCKING PIN €1.45
108
photo_cameraImage coming soon 4205.1708 LOCKING WRENCH ASS. €6.81
110
photo_cameraImage coming soon 4205.1710 SCALED PLATE €1.45
111
photo_cameraImage coming soon 4205.1711 RIGHT GUARD BOARD €5.47
113
photo_cameraImage coming soon 4205.1713 PIN €1.45
115
photo_cameraImage coming soon 4205.1715 BOLT AM 10-M10X90 €1.45
118
photo_cameraImage coming soon 4205.1718 BEVEL RULER I €2.79
120
photo_cameraImage coming soon 4205.1720 ROTATING TABLE SCLAE BOARD €3.52
124
photo_cameraImage coming soon 4205.1724 ANGLE ROTATION BUTTON II €2.79
126
photo_cameraImage coming soon 4205.1726 ANGLE ROTATION BUTTON I €2.79
127
photo_cameraImage coming soon 4205.1727 NUT PLATE €1.45
131
photo_cameraImage coming soon 4205.1731 ANGLE LOCALIZED PLATE €3.68
133
photo_cameraImage coming soon 4205.1733 ROTATING TABLE €71.13
134
photo_cameraImage coming soon 4205.1734 ROD €6.24
135
photo_cameraImage coming soon 4205.1735 SCALED PLATE €16.29
136
photo_cameraImage coming soon 4205.1736 RUBBER FOOT PAD €1.45
137
photo_cameraImage coming soon 4205.1737 ROD €5.47
138
photo_cameraImage coming soon 4205.1738 ANTIVIBRATION Ø40X30 MF M8X25 65SH €96.95
139
photo_cameraImage coming soon 4205.1739 ROD CLAMP ASS. €9.05
140
photo_cameraImage coming soon 4205.1740 SLEEVE PIPE €2.79
141
photo_cameraImage coming soon 4205.1741 GUIDE BOARD ASS. €38.44
141A
photo_cameraImage coming soon 4205.1742 ROTATING SPINDLE €3.50
141B
photo_cameraImage coming soon 4205.1743 SLIDING GUIDE BOARD €7.77
141D
photo_cameraImage coming soon 4205.1745 LOCKING PIN €1.45
161
photo_cameraImage coming soon 4205.1765 CAPACITOR €5.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Miter Saw SC2600W Spare Parts

Stayer original spare parts at best price, repairing your Miter Saw SC2600W is easy, fast and convenient. Choose and purchase every spare part you need in just a few minutes.

In the following table, look for the spare part and its respectvive code.
Stayer Miter Saw SC2600W Spare Parts
Mitre Saw Stayer SC2600W
# Code Description
1 4205.1610 NUT M5
2 4205.1611 LEFT PROTECTING COVER
3 4205.1612 TORSINAL SPRING I
4 4205.1613 RIGHT PROTECTING COVER
5 4205.1614 SCREW M5X20
1-2-3-4
-5-6-7
4205.1783 SET ASSEMBLY CARTER
6 4205.1615 TAPPING SCREW ST4.2X13
7 4205.1616 SCREW M5X8
8 4205.1617 ADJUSTABLE DEPTH KNOB
9 4205.1618 ROTATIONAL HOLDER
10 4205.1619 WASHER 8
11 4205.1620 ADJUSTABLE DEPTH ROD I
12 4205.1621 SCREW M6X16
13 4205.1622 TABLE
14 4205.1623 ADJUSTABLE DEPTH ROD II
15 4205.1624 PROTECTING COVER
16 4205.1625 SCREW M4X10
17 4205.1626 FENCE FRONT BOARD
18 4205.1627 FENCE
19 4205.1628 FENCE BACK BOARD
20 4205.1629 LOCKING SCREW
21 4205.1630 FENCE SLIDING BLOCK
22 4205.1631 FINGER
23 4205.1632 WASHER 4
24 4205.1633 NUT M5
25 4205.1634 WASHER 5
26 4205.1635 SCREW M5X10
27 4205.1636 LOCKING PIECE
28 4205.1637 WASHER 5
29 4205.1638 BOLT M8X16
30 4205.1639 OUTER FLANGE
31 - BLADE
32 4205.1640 INNER FLANGE
33 4205.1641 FLANGE WASHER
34 4205.1642 CIRCLIP 45
35-36-37-38
-39-40-41
4205.1643 SET CARTER
42 4205.1644 SCREW M6X16
43 4205.1645 BLADE PAD
44 4205.1646 NUT M6
45 4205.1647 TAPPING SCREW ST4,2X16
46 4205.1648 DUST OUTLET COVER I
47 4205.1649 DUST OUTLET COVER
48 4205.1650 INNER SLEEVE
49 4205.1651 CABLE CLAMP
50 4205.1652 CABLE ARMOR
51 - CABLE & PLUG
52 4205.1654 INNER SLEEVE COVER
53 4205.1655 SCREW M4X30
54 4205.1656 PROTECTING BOX
55 4205.1657 PUSHING BUTTON
56-58 4205.1658 PUSHING AND HOLDING ROD
57 4205.1659 SPRING
59 4205.1660 BLADE COVER
60 4205.1661 INTERMEDIATE PLATE
61 4205.1662 SCREW
62 4205.1663 OIL SEALING RING
63 4205.1664 BEARING 6002-2RS/VV
64 4205.1665 SPRING (I)
65 4205.1666 WASHER (I)
66 4205.1667 SPINDLE LOCKING BUTTON
67 4205.1668 SPINDLE LOCKING
68 4205.1669 ARMATURE
69 4205.1670 BEARING 609-2Z/VV
70 4205.1671 BEARING RUBBE RING
71 4205.1672 TAPPING SCREW ST4.8X80
72 4205.1673 FAN GUIDE
73 4205.1674 STATOR
74 - RATING PLATE
75 4205.1676 HOUSING
76 4205.1677 BRUSH HOLDER PLATE
77 4205.1678 BRUSH HOLDER( 2PCS)
78 4205.1679 CARBON BRUSH ( 2PCS)
79 4205.1680 ROLL SPRING
80 4205.1681 BACK COVER
81 4205.1682 BEARING HOLDER
82 4205.1683 BEARING 6203-2RZ
83 4205.1684 CIRCLIP 4
84 4205.1685 OUTPUT SPINDLE
85 4205.1686 HALF ROUND PIN 4X13
86 4205.1687 DRIVEN GEAR
87 4205.1688 RETAINING RING 18
88 4205.1689 BEARING 608-2Z
89-92 4205.1690 UP +DOWN HANDLE
90 4205.1691 SCREW 5X40
91 4205.1692 SWITCH
93 4205.1693 ON-OFF SWITCH
94 4205.1694 ELECTROMAGNETIC SWITCH
95 4205.1695 SWITCH BUTTON
96 4205.1696 LEFT GUARD BOARD
97 4205.1697 SCREW 8X16
98 4205.1698 WASHER 8
99 4205.1699 RUBBER RING
100 4205.1700 LOCALIZED PULLEY
101 4205.1701 ROTATING SPINDLE
102 4205.1702 ROTATING TORSIONAL SPRING
103 4205.1703 LOCKING PIN
104 4205.1704 O RING 6X1.8
105 4205.1705 LOCKING NUT
106 4205.1706 NUT
107 4205.1707 WASHER 8
108 4205.1708 LOCKING WRENCH ASS.
109 4205.1709 WASHER 10
110 4205.1710 SCALED PLATE
111 4205.1711 RIGHT GUARD BOARD
112 4205.1712 SCREW M5X25
113 4205.1713 PIN
114 4205.1714 BOLT AM 8- M8X45
115 4205.1715 BOLT AM 10-M10X90
116 4205.1716 HEX BOLT M8X25
117 4205.1717 HEX NUT M8
118 4205.1718 BEVEL RULER I
119 4205.1719 BEVEL RULER II
120 4205.1720 ROTATING TABLE SCLAE BOARD
121 4205.1721 SCREW M10X8
122 4205.1722 SCALE INDICATE PLATE
123 4205.1723 NUT M10
124 4205.1724 ANGLE ROTATION BUTTON II
125 4205.1725 BOLT M10X50
126 4205.1726 ANGLE ROTATION BUTTON I
127 4205.1727 NUT PLATE
128 4205.1728 WASHER 6
129 4205.1729 STEEL BALL SPRING
130 4205.1730 STEEL BALL 7
131 4205.1731 ANGLE LOCALIZED PLATE
132 4205.1732 SCREW M4X10
133 4205.1733 ROTATING TABLE
134 4205.1734 ROD
135 4205.1735 SCALED PLATE
136 4205.1736 RUBBER FOOT PAD
137 4205.1737 ROD
138 4205.1738 BASE
139 4205.1739 ROD CLAMP ASS.
140 4205.1740 SLEEVE PIPE
141 4205.1741 GUIDE BOARD ASS.
141A 4205.1742 ROTATING SPINDLE
141B 4205.1743 SLIDING GUIDE BOARD
141C 4205.1744 COMPRESSED SPRING II
141D 4205.1745 LOCKING PIN
142 4205.1746 SCREW M6X25
143 4205.1747 WASHER 6
144 4205.1748 WASHER 5
145 4205.1749 SCREW M5X50
146 4205.1750 TAPPING SCREW ST3.5X13
147 4205.1751 SCREW M6X16
148 4205.1752 SCREW M6X10
149 4205.1753 NUT M6
150 4205.1754 COMPRESSED SCREW
151 4205.1755 COMPRESSED SCREW
152 4205.1756 RETAINING RING 7
153 4205.1757 SCREW M5X10
154 4205.1758 WASHER 6
155 4205.1759 SCREW M5X25
156 4205.1760 BOX
157 4205.1761 BOX CAP
158 4205.1762 WASHER 4
159 4205.1763 TAPPING SCREW ST4.2X9.5
160 4205.1764 SCREW M3X8
161 4205.1765 CAPACITOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer SC2600W
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Stayer SC2600W Diagram

Stayer SC2600W Diagram

Download (203.23KB)

You might also like

Level 3 Bubbles Ferritalia Maurer Sale
Ferritalia SKU: N/D
Level 3 Bubbles Maurer Ferritalia Level three bubbles. Aluminium body pressofuso. Precision in all positions and measurement conditions. Features:  - 1 mm thick aluminum  - length 30 - 40 -50 -60 cm  - electronically controlled
Product available with different options €9.21
Poket Tape 5 Mt Jedi Maurer Plus 25 mm Sale
HIT Professional Tools SKU: 96149
Poket Tape 5 Mt Jedi Maurer Plus 25 mm - Non-slip rubber case - With magnet - Self-locking Tape - Rewind tape automatically - Steel tape coated nylon - Code: 96149
AVAILABLE €8.63
Capaldo s.p.a SKU: Tappi 3M
Ear Wax Polymer 3M DISPOSABLE EAR PLUGS: - In soft polyurethane foam, hypoallergenic and dirt repellent. - Conical shape to accommodate different ear ducts.
AVAILABLE €0.75
NT Safety SRL SKU: DES97687
Heavy Nitril Gloves sz 9 Cotton lining - Resistant to cuts, acids and abrasion - EN 388 - With hose - Class 1 - Protection against detrimental actions of minor Glove jersey fabric impregnated with NBR - Back and fully coated knit...
AVAILABLE €3.52
Stanley Hand Tools SKU: DES40983
Stanley Carpenter Pencil Red Pencils Mina Tender For carpenters and joiners - Length: 300 mm. - Color: Red - Code: DES40983
AVAILABLE €2.38
Axel Group SKU: DES53737
Paper Tape Body Repairer 30x50 Paper masking tape in general, with lightly crepe paper backing and natural rubber adhesive. The yellow color makes an immediate contrast in masking Used in the Construction / Do it yourself. - Rolls...
AVAILABLE €2.95
Imperial S.r.l. SKU: Carta Vetro Velcro
Sandpaper with Velcro Sandpaper roll 12 cm x 25 m used to eliminate the signs and giving a fine linear. Equipped with Velcro on the inside in order to adhere more easily to the pad. - Available grits:  60 - 80 - 100 - 120 - 150 - 180...
AVAILABLE €3.22
Comments (0)
