Stayer SC250CW Spare Parts

SKU: Stayer SC250CW
€1.99
VAT included

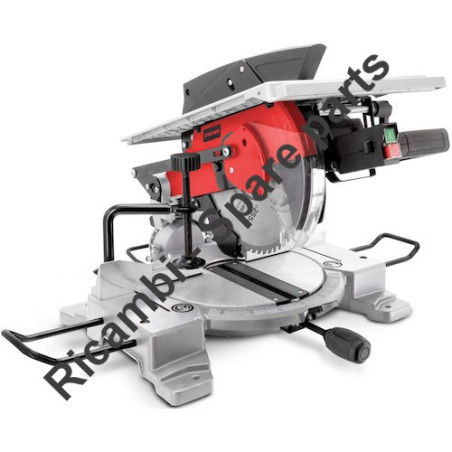

Stayer Miter Saw SC250CW Spare Parts

Stayer original spare parts at best price, repairing your Miter Saw SC250CW is easy, fast and convenient. Choose and purchase every spare part you need in just a few minutes.
Stayer SC250CW Spare Parts
  • Stayer SC250CW Spare Parts
  • Stayer Drawing SC250CW Spare Parts

Stayer SC250CW Spare Parts

SKU: Stayer SC250CW Condition: New
€1.99
VAT included

Stayer Miter Saw SC250CW Spare Parts

Stayer original spare parts at best price, repairing your Miter Saw SC250CW is easy, fast and convenient. Choose and purchase every spare part you need in just a few minutes.
settings 64 spare parts

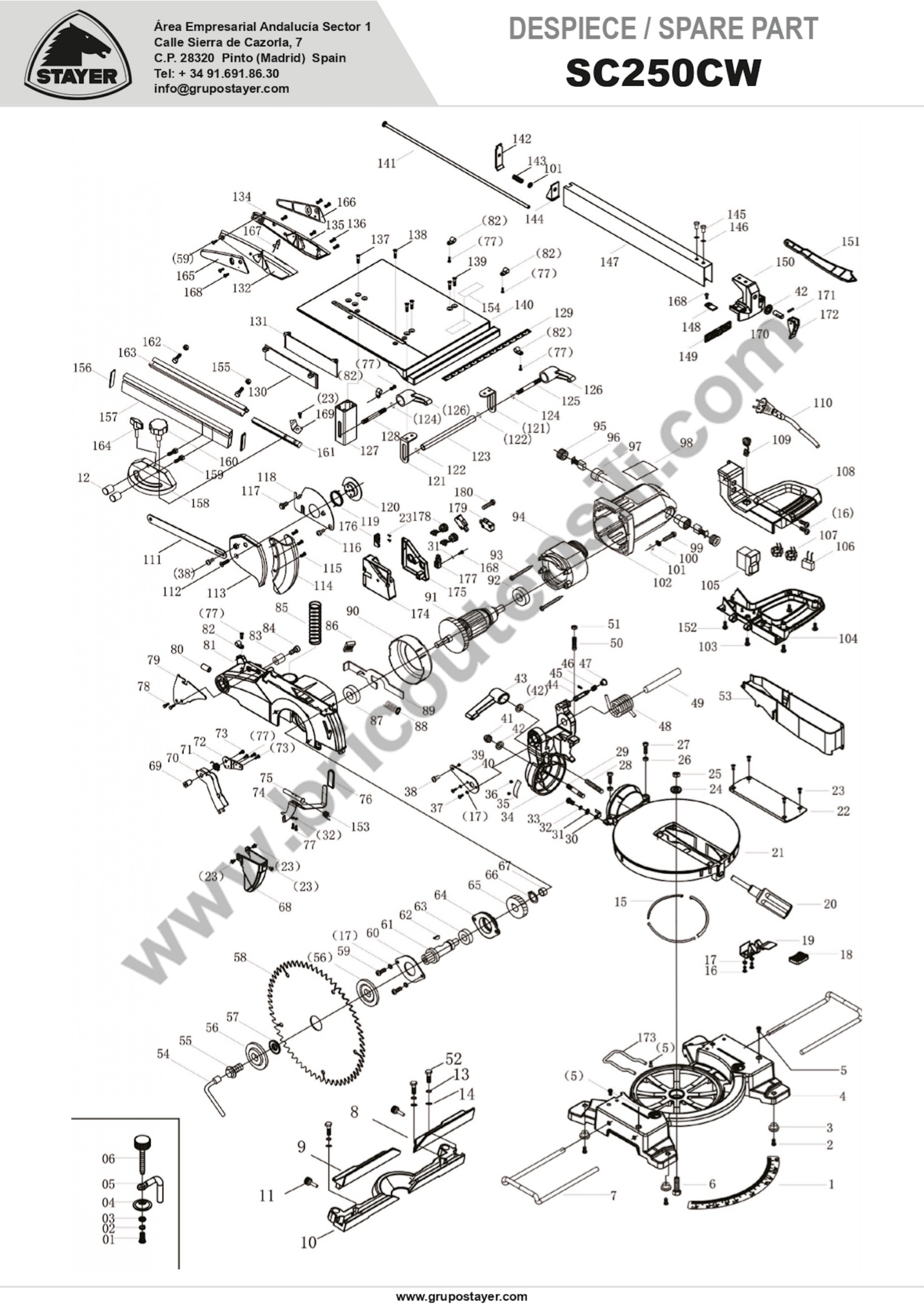

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 8110.3896 BASE SCALE €1.88
1-6
photo_cameraImage coming soon 8110.4046 VERTICAL CLAMPING SET €8.70
3
photo_cameraImage coming soon 8110.3898 FOOT-PAD €2.08
4
photo_cameraImage coming soon 8110.3899 ANTIVIBRATION Ø40X30 MF M8X25 65SH €51.17
7
photo_cameraImage coming soon 8110.3902 CONNECTING ROD €3.37
8
photo_cameraImage coming soon 8110.3903 ACTIVITY BACKER (RIGHT) €6.00
9
photo_cameraImage coming soon 8110.3904 ACTIVITY BACKER (LEFT) €6.00
10
photo_cameraImage coming soon 8110.3905 CROSS-BAR €24.90
12+156+164+169
photo_cameraImage coming soon 8110.4037 GONIOMETER ASSY' €19.24
19
photo_cameraImage coming soon 8110.3913 SPRING STEEL €2.34
20
photo_cameraImage coming soon 8110.3914 TURNTABLE HANDLE €4.11
21
photo_cameraImage coming soon 8110.3915 TURNTABLE €41.83
22
photo_cameraImage coming soon 8110.3916 AUXILIARY INCISION €1.74
34
photo_cameraImage coming soon 8110.3928 HOLDER €15.84
43
photo_cameraImage coming soon 8110.3937 TIGHTEN HANDLE €2.03
48
photo_cameraImage coming soon 8110.3942 BIG TORSIONAL SPRING €14.41
49
photo_cameraImage coming soon 8110.3943 HEAD PIN €2.63
53
photo_cameraImage coming soon 8110.3947 TABLE SAW SHIELD €3.67
54
photo_cameraImage coming soon 8110.3948 SOCKET SPANNER €2.63
56
photo_cameraImage coming soon 8110.3950 FLANGE €3.23
61
photo_cameraImage coming soon 8110.3955 OUTPUT SHAFT €5.01
63
photo_cameraImage coming soon 8110.3957 6023 BEARING €3.37
64
photo_cameraImage coming soon 8110.3958 BEARING HOUSING €1.88
65
photo_cameraImage coming soon 8110.3959 BIG GEAR €11.83
68
photo_cameraImage coming soon 8110.3962 HEAD COVER €1.88
70
photo_cameraImage coming soon 8110.3964 DUST BLOCK €1.88
74
photo_cameraImage coming soon 8110.3968 SELF-LOCK LEVER €1.30
79
photo_cameraImage coming soon 8110.3973 SLAN KNIFE €2.03
81
photo_cameraImage coming soon 8110.3975 HEAR COVER €38.19
85
photo_cameraImage coming soon 8110.3979 LIFT SPRING €2.63
87
photo_cameraImage coming soon 8110.3981 6202 BEARING €3.23
89
photo_cameraImage coming soon 8110.3983 SELF-LOCKING PULL ROD €2.63
90
photo_cameraImage coming soon 8110.3984 DEFLECTOR €1.30
91
photo_cameraImage coming soon 8110.3985 ARMATURE €49.90
92
photo_cameraImage coming soon 8110.3986 6000 BEARING €3.81
94
photo_cameraImage coming soon 8110.3988 STATOR €43.39
95
photo_cameraImage coming soon 8110.3989 BRUSH HOLDER CAP ( 1 PAIR ) €5.00
96
photo_cameraImage coming soon 8110.3990 CARBON BRUSH ( 1 PAIR ) €19.85
97
photo_cameraImage coming soon 8110.3991 BRUSH HOLDER ( 1 PAIR ) €12.50
102
photo_cameraImage coming soon 8110.3996 HOUSING €16.40
104
photo_cameraImage coming soon 8110.3998 HANDLE(LOWER) €8.00
105
photo_cameraImage coming soon 8110.3999 SWITCH DKLD,D2-6-4 €14.58
106
photo_cameraImage coming soon 8110.4000 CAPACITANCE(0.33ΜF) €6.90
108
photo_cameraImage coming soon 8110.4002 HANDLE(UPPER) €8.00
109
photo_cameraImage coming soon 8110.4003 CABLE CLIP €2.03
111
photo_cameraImage coming soon 8110.4005 CONNECTING ROD €2.63
113
photo_cameraImage coming soon 8110.4007 TRANSPARENT COVER REINFORCEMENT PLATE €3.59
114
Stayer Transparent Cover for SC250CW 8110.4008 Stayer Transparent Cover for SC250CW €5.61
118
photo_cameraImage coming soon 8110.4012 TRANSPARENT HOOD SPRING PLATE €2.03
123
photo_cameraImage coming soon 8110.4017 FIXED ROD CASING €1.74
126
photo_cameraImage coming soon 8110.4020 TIGHTEN HANDLE €2.03
127
photo_cameraImage coming soon 8110.4021 BENCH LIFTING BLOCK €3.52
128
photo_cameraImage coming soon 8110.4022 M8X65 DOUBLE END STUD €2.03
129
photo_cameraImage coming soon 8110.4023 RULER €1.30
130
photo_cameraImage coming soon 8110.4024 SAW BLADE GUARD (LEFT) €1.43
131
photo_cameraImage coming soon 8110.4025 SAW BLADE GUARD (RIGHT) €1.30
132+136+165+168
photo_cameraImage coming soon 8110.4026 CARTER DISC PROTECTOR SET €13.59
141+150+170+172
photo_cameraImage coming soon 8110.4031 UPPER TABLE CUTTING GUIDE SET €20.64
151
photo_cameraImage coming soon 8110.4032 CHARGING RAM €3.81
173
photo_cameraImage coming soon 8110.4038 FALL PREVENTION SUPPORT €2.63
174
photo_cameraImage coming soon 8110.4039 TOP COVER OF JUNCTION BOX €2.03
175
photo_cameraImage coming soon 8110.4040 LOWER COVER OF JUNCTION BOX €1.59
178
photo_cameraImage coming soon 8110.4043 CABLE CLIP €1.30
179
photo_cameraImage coming soon 8110.4044 SWITCH MX11 €5.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Miter Saw SC250CW Spare Parts

Stayer original spare parts at best price, repairing your Miter Saw SC250CW is easy, fast and convenient. Choose and purchase every spare part you need in just a few minutes.

In the following table, look for the spare part and its respectvive code.
Stayer Miter Saw SC250CW Spare Parts

Stayer Mitre Saw SC250CW
Pos. Code Description
1 8110.3896 BASE SCALE
2 8110.3897 SCREWS M4X12
3 8110.3898 FOOT-PAD
4 8110.3899 BASE
5 8110.3900 M6X18 CROSS COUNTERSUNK HEAD SCREWS
6 8110.3901 M8X30 OUTER HEXAGON SCREW
7 8110.3902 CONNECTING ROD
8 8110.3903 ACTIVITY BACKER (RIGHT)
9 8110.3904 ACTIVITY BACKER (LEFT)
10 8110.3905 CROSS-BAR
11 8110.3906 M6X32 SMALL HANDWHEEL
13 8110.3907 Φ8SPRING WASHER
14 8110.3908 Φ8 FLAT WASHER
15 8110.3909 TURNTABLE SHEET STEEL
16 8110.3910 M5X12 CROSS PAN HEAD SCREWS
17 8110.3911 Φ5SPRING WASHER
18 8110.3912 SPRING STEEL SHEATHING
19 8110.3913 SPRING STEEL
20 8110.3914 TURNTABLE HANDLE
21 8110.3915 TURNTABLE
22 8110.3916 AUXILIARY INCISION
23 8110.3917 M4X8 CROSS COUNTERSUNK HEAD SCREWS
24 8110.3918 Φ8 BIG FLAT WASHER
25 8110.3919 M8 LOCK NUT
26 8110.3920 M8 HEX NUT
27 8110.3921 M8X20 OUTER HEXAGON SCREW
28 8110.3922 M10X55 DOUBLE END BOLT
29 8110.3923 M10X55 DOUBLE END BOLT
30 8110.3924 OBLIQUE POINTER
31 8110.3925 Φ4 FLAT WASHER
32 8110.3926 Φ4SPRING WASHER
33 8110.3927 M4X10 CROSS PAN HEAD SCREWS
34 8110.3928 HOLDER
35 8110.3929 OBLIQUE RULER
36 8110.3930 Φ2X4 RIVET
37 8110.3931 M5X14 CROSS PAN HEAD SCREWS
38 8110.3932 M6X12 NON-STANDARD STEP SCREWS
39 8110.3933 M6 LOCK NUT
40 8110.3934 CONNECTING ROD SUPPORT PLATE
41 8110.3935 M10 LOCK NUT
42 8110.3936 Φ10 FLAT WASHER
43 8110.3937 TIGHTEN HANDLE
44 8110.3938 HEAD SELF-LOCK PIN
45 8110.3939 Φ3X16 ELASTIC CYLINDRICAL PIN
46 8110.3940 SELF-LOCKING SPRING
47 8110.3941 SELF-LOCKING NUT
48 8110.3942 BIG TORSIONAL SPRING
49 8110.3943 HEAD PIN
50 8110.3944 M6X25 SOKET HEAD CAP SCREW
51 8110.3945 M6 HEX NUT
52 8110.3946 M8X16 OUTER HEXAGON SCREW
53 8110.3947 TABLE SAW SHIELD
54 8110.3948 SOCKET SPANNER
55 8110.3949 M8X18 HEXAGON BOLT WITH LEFT FLANGE
56 8110.3950 FLANGE
57 8110.3951 SAW BLADE POSITIONING RING
58 8110.3952 SAW BLADE
59 8110.3953 M5X16 CROSS PAN HEAD SCREWS
60 8110.3954 BEARING GLAND
61 8110.3955 OUTPUT SHAFT
62 8110.3956 WOODRUFF KEY 4
63 8110.3957 6023 BEARING
64 8110.3958 BEARING HOUSING
65 8110.3959 BIG GEAR
66 8110.3960 CLAMP SPRING FOR Φ17 AXIS
67 8110.3961 HK121610 NEEDLE BEARING
68 8110.3962 HEAD COVER
69 8110.3963 DUST BLOCK CONNECTION PIN
70 8110.3964 DUST BLOCK
71 8110.3965 DUST BLOCK TORSION SPRING
72 8110.3966 DUST BLOCK CONNECTION BLOCK
73 8110.3967 M5X10 CROSS PAN HEAD SCREWS
74 8110.3968 SELF-LOCK LEVER
75 8110.3969 TORSION SHAFT
76 8110.3970 LEVER SLEEVE
77 8110.3971 M4X6 CROSS PAN HEAD SCREWS
78 8110.3972 M6X12 OUTER HEXAGON SCREW
79 8110.3973 SLAN KNIFE
80 8110.3974 M6X8 HEXAGON SOCKET SET SCREWS
81 8110.3975 HEAR COVER
82 8110.3976 CABLE CLIP(SMALL)
83 8110.3977 LIMITED POST
84 8110.3978 LIMITED SCREW
85 8110.3979 LIFT SPRING
86 8110.3980 PULL ROD SLEEVE
87 8110.3981 6202 BEARING
88 8110.3982 SELF-LOCKING PRESS SPRING
89 8110.3983 SELF-LOCKING PULL ROD
90 8110.3984 DEFLECTOR
91 8110.3985 ARMATURE
92 8110.3986 6000 BEARING
93 8110.3987 ST4.8X65 CROSS PAN HEAD TAPPING SCREWS
94 8110.3988 STATOR
95 8110.3989 BRUSH HOLDER CAP ( 1 PAIR )
96 8110.3990 CARBON BRUSH ( 1 PAIR )
97 8110.3991 BRUSH HOLDER ( 1 PAIR )
98 8110.3992 HOUSING LABEL
99 8110.3993 M6X35 CROSS PAN HEAD SCREWS
100 8110.3994 Φ6SPRING WASHER
101 8110.3995 Φ6 FLAT WASHER
102 8110.3996 HOUSING
103 8110.3997 ST3.9X14 CROSS PAN HEAD TAPPING SCREWS
104 8110.3998 HANDLE(LOWER)
105 8110.3999 SWITCH DKLD,D2-6-4
106 8110.4000 CAPACITANCE(0.33ΜF)
107 8110.4001 INDUCTANCE
108 8110.4002 HANDLE(UPPER)
109 8110.4003 CABLE CLIP
110 8110.4004 CABLE PLUG
111 8110.4005 CONNECTING ROD
112 8110.4006 M5X8 CROSS PAN HEAD SCREWS
113 8110.4007 TRANSPARENT COVER REINFORCEMENT PLATE
114 8110.4008 TRANSPARENT COVER
115 8110.4009 LOCKING SCREWS M5X8
116 8110.4010 M6X7 FLAT HEAD CROSS NON-STANDARD SCREWS
117 8110.4011 M8X8 FLANGE HEXAGON HEAD BOLTS
118 8110.4012 TRANSPARENT HOOD SPRING PLATE
119 8110.4013 TRANSPARENT HOOD TORSION SPRING
120 8110.4014 TRANSPARENT COVER POSITIONING PLATE
121 8110.4015 TABLE LIFTING BASE
122 8110.4016 Φ8X16X1 FLAT WASHER
123 8110.4017 FIXED ROD CASING
124 8110.4018 Φ8X20X1.5 FLAT WASHER
125 8110.4019 TABLE FIXING ROD
126 8110.4020 TIGHTEN HANDLE
127 8110.4021 BENCH LIFTING BLOCK
128 8110.4022 M8X65 DOUBLE END STUD
129 8110.4023 RULER
130 8110.4024 SAW BLADE GUARD (LEFT)
131 8110.4025 SAW BLADE GUARD (RIGHT)
132+136
+165+168
8110.4026 CARTER DISC PROTECTOR SET
137 8110.4027 M6X12 CROSS COUNTERSUNK HEAD SCREWS
138 8110.4028 SELF-TAPPING SCREWS ST4.8X10
139 8110.4029 M6X8 CROSS COUNTERSUNK HEAD SCREWS
140 8110.4030 WORKING TABLE
141+150
+170+172
8110.4031 UPPER TABLE CUTTING GUIDE SET
151 8110.4032 CHARGING RAM
152 8110.4033 M4X14 CROSS PAN HEAD SCREWS
153 8110.4034 LEVER TORSIONAL SPRING
154 8110.4035 PANEL LABEL
155 8110.4036 M5 NUT
12+156
+164+169
8110.4037 GONIOMETER ASSY'
173 8110.4038 FALL PREVENTION SUPPORT
174 8110.4039 TOP COVER OF JUNCTION BOX
175 8110.4040 LOWER COVER OF JUNCTION BOX
176 8110.4041 LIFTING BLOCK ACCESSORY
177 8110.4042 ADJUSTING BLOCK
178 8110.4043 CABLE CLIP
179 8110.4044 SWITCH MX11
180 8110.4045 M5X30 CROSS PAN HEAD SCREWS
1-6 8110.4046 VERTICAL CLAMPING SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer SC250CW
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Stayer SC250CW Parts Drawing

Stayer SC250CW Parts Drawing

Download (1.19MB)

You might also like

Level 3 Bubbles Ferritalia Maurer Sale
Ferritalia SKU: N/D
Level 3 Bubbles Maurer Ferritalia Level three bubbles. Aluminium body pressofuso. Precision in all positions and measurement conditions. Features:  - 1 mm thick aluminum  - length 30 - 40 -50 -60 cm  - electronically controlled
Product available with different options €9.21
Poket Tape 5 Mt Jedi Maurer Plus 25 mm Sale
HIT Professional Tools SKU: 96149
Poket Tape 5 Mt Jedi Maurer Plus 25 mm - Non-slip rubber case - With magnet - Self-locking Tape - Rewind tape automatically - Steel tape coated nylon - Code: 96149
AVAILABLE €8.63
Capaldo s.p.a SKU: Tappi 3M
Ear Wax Polymer 3M DISPOSABLE EAR PLUGS: - In soft polyurethane foam, hypoallergenic and dirt repellent. - Conical shape to accommodate different ear ducts.
AVAILABLE €0.75
NT Safety SRL SKU: DES97687
Heavy Nitril Gloves sz 9 Cotton lining - Resistant to cuts, acids and abrasion - EN 388 - With hose - Class 1 - Protection against detrimental actions of minor Glove jersey fabric impregnated with NBR - Back and fully coated knit...
AVAILABLE €3.52
Stanley Hand Tools SKU: DES40983
Stanley Carpenter Pencil Red Pencils Mina Tender For carpenters and joiners - Length: 300 mm. - Color: Red - Code: DES40983
AVAILABLE €2.38
Axel Group SKU: DES53737
Paper Tape Body Repairer 30x50 Paper masking tape in general, with lightly crepe paper backing and natural rubber adhesive. The yellow color makes an immediate contrast in masking Used in the Construction / Do it yourself. - Rolls...
AVAILABLE €2.95
Imperial S.r.l. SKU: Carta Vetro Velcro
Sandpaper with Velcro Sandpaper roll 12 cm x 25 m used to eliminate the signs and giving a fine linear. Equipped with Velcro on the inside in order to adhere more easily to the pad. - Available grits:  60 - 80 - 100 - 120 - 150 - 180...
AVAILABLE €3.22
Stayer SKU: 8110.4008
Stayer Transparent Cover for SC250CW Genuine spare part Stayer, Transparent Cover for Portable Mitre Saw SC250CW. Part for the following products: -  Portable Mitre Saw Stayer SC250CW - Code : 8110.4008
AVAILABLE €5.61
Comments (0)
