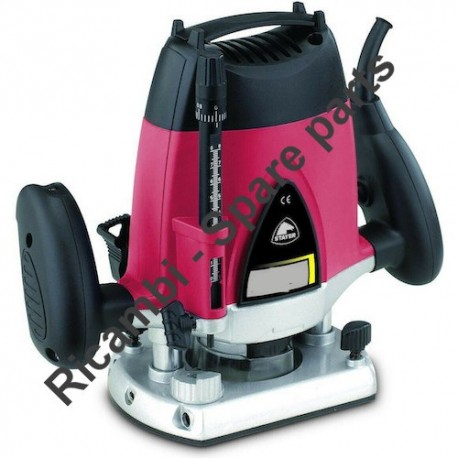

Stayer PR 10 EK Spare Parts

SKU: Stayer PR10EK
€0.76
VAT included

Stayer PR 10 EK Spare Parts

Stayer original spare parts at best price, everything you need to repair your Router PR 10 EK can only be found with us. The perfect solution for those who want to keep their power tool always at the top.
Stayer PR 10 EK Spare Parts
  • Stayer PR 10 EK Spare Parts
  • Stayer Drawing PR 10 EK Spare Parts

Stayer PR 10 EK Spare Parts

SKU: Stayer PR10EK Condition: New
€0.76
VAT included

Stayer PR 10 EK Spare Parts

Stayer original spare parts at best price, everything you need to repair your Router PR 10 EK can only be found with us. The perfect solution for those who want to keep their power tool always at the top.
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 8147.197 COVER €4.37
11
photo_cameraImage coming soon 8147.205 BRUSH HOLDER (PAIR) €10.00
13
photo_cameraImage coming soon 8147.207 CARBON BRUSH (PAIR) €12.45
16
photo_cameraImage coming soon 8147.210 HOUSING €14.91
17
photo_cameraImage coming soon 8147.211 SCALE NUT €3.03
19
photo_cameraImage coming soon 8147.213 SCALE KNOB €1.75
20
photo_cameraImage coming soon 8147.214 SCALE REAL €1.23
22
photo_cameraImage coming soon 8147.216 STATOR €47.18
25
photo_cameraImage coming soon 8147.219 BEARING608Z €3.09
26
photo_cameraImage coming soon 8147.220 ARMATURE €60.08
30
photo_cameraImage coming soon 8147.224 BEARING 6004RS €5.83
33
photo_cameraImage coming soon 8147.227 COPPER-SCREW €2.42
37
photo_cameraImage coming soon 8147.231 HANDLE-LEFT1 €4.85
40
photo_cameraImage coming soon 8147.234 ACTIYATOR €18.61
41
photo_cameraImage coming soon 8147.235 RADIATOR €23.25
42
photo_cameraImage coming soon 8147.236 HANDLE-LEFT2 €4.85
45
photo_cameraImage coming soon 8147.239 HOLDER €12.08
49
photo_cameraImage coming soon 8147.243 FORE COVER €2.85
51
photo_cameraImage coming soon 8147.245 BEARFIX €1.53
52
photo_cameraImage coming soon 12.491 CLIP SET 6MM €14.24
52
photo_cameraImage coming soon 12.492 CLIP SET 6,3MM €14.24
52
photo_cameraImage coming soon 12.493 CLIP SET 8MM €14.24
52
photo_cameraImage coming soon 12.494 CLIP SET 10 MM €14.24
52
photo_cameraImage coming soon 12.495 CLIP SET 12 MM €14.24
52
photo_cameraImage coming soon 12.496 CLIP SET 12.7MM €14.24
55
photo_cameraImage coming soon 8147.249 HANDLE RIGHT 2 €4.89
56
photo_cameraImage coming soon 8147.250 CAPACITOR0.22 €1.29
57
photo_cameraImage coming soon 8147.251 HANDLE RIGHT 1 €4.89
58
photo_cameraImage coming soon 8147.252 SWITCH €13.75
65
photo_cameraImage coming soon 8147.259 PILLAR €3.58
66
photo_cameraImage coming soon 8147.260 DUST TRANS €2.10
67
photo_cameraImage coming soon 8147.261 DUST TOLLE €1.26
68
photo_cameraImage coming soon 8147.262 BOTTOM €10.80
72
photo_cameraImage coming soon 8147.266 BOTTOM PLASTIC €3.25
73
photo_cameraImage coming soon 8147.267 GAUGE €1.34
79
photo_cameraImage coming soon 8147.273 LONGLOD €6.79
80
photo_cameraImage coming soon 8147.274 SIDEFACE €18.43
81
photo_cameraImage coming soon 8147.275 POSITION CORVER €2.12
82
photo_cameraImage coming soon CHIAVE SPANNER €3.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer PR 10 EK Spare Parts

Stayer original spare parts at best price, everything you need to repair your Router PR 10 EK can only be found with us. The perfect solution for those who want to keep their power tool always at the top.

In the following table, look for the spare part and its respectvive code.
Stayer PR 10 EK Spare Parts
Stayer Router PR 10 EK
Pos. Code Description
1 8147.195 HANDLE
2 8147.196 TAPPING SCREW 16
3 8147.197 COVER
4 8147.198 HANDLE SPRING
5 8147.199 WASHER
6 8147.200 TAPPING SCREW 14
7 8147.201 ISOLATION POLE
8 8147.202 SCREW M4X85
9 8147.203 PLANE WASHER 4
10 8147.204 TAPPING SCREW 10
11 8147.205 BRUSH HOLDER (PAIR)
12 8147.206 CARBON CONNECTION-PEG 2.8
13 8147.207 CARBON BRUSH (PAIR)
14 8147.208 INDUCTOR
15 8147.209 NAMEPLATE
16 8147.210 HOUSING
17 8147.211 SCALE NUT
18 8147.212 DEPTH SPRING
19 8147.213 SCALE KNOB
20 8147.214 SCALE REAL
21 8147.215 CARBON CONNECTION-PEG 4.8
22 8147.216 STATOR
23 8147.217 TAPPING SCREW 75
24 8147.218 FAN GUIDE
25 8147.219 BEARING608Z
26 8147.220 ARMATURE
27 8147.221 SCREW M4X10
28 8147.222 WASHER 4
29 8147.223 BEARINGCOVER
30 8147.224 BEARING 6004RS
31 8147.225 SCREW M4X10
32 8147.226 SPRING COPPER-SCREW
33 8147.227 COPPER-SCREW
34 8147.228 DCPTH-LEVER
35 8147.229 PLANE WASHER 5
36 8147.230 SCREW M5X12
37 8147.231 HANDLE-LEFT1
38 8147.232 SCREW CLIP
39 8147.233 SCREW M6X12
40 8147.234 ACTIYATOR
41 8147.235 RADIATOR
42 8147.236 HANDLE-LEFT2
43 8147.237 KNOB1
44 8147.238 KNOB SPRING
45 8147.239 HOLDER
46 8147.240 SPRING AXIS BLACK
47 8147.241 AXIS BLACK
48 8147.242 BUTTOM
49 8147.243 FORE COVER
50 8147.244 SCREWM4X20
51 8147.245 BEARFIX
52 12.491 CLIP SET 6MM
52 12.492 CLIP SET 6,3MM
52 12.493 CLIP SET 8MM
52 12.494 CLIP SET 10 MM
52 12.495 CLIP SET 12 MM
52 12.496 CLIP SET 12.7MM
55 8147.249 HANDLE RIGHT 2
56 8147.250 CAPACITOR0.22
57 8147.251 HANDLE RIGHT 1
58 8147.252 SWITCH
59 8147.253 CABLE CLIP
60 8147.254 CABLE ARBOR
62 8147.256 SPRING INSERTER
63 8147.257 SRING PILLAR
64 8147.258 SHAFT RETAINING RING 17
65 8147.259 PILLAR
66 8147.260 DUST TRANS
67 8147.261 DUST TOLLE
68 8147.262 BOTTOM
69 8147.263 KNOB2
70 8147.264 KNOB SPRING
71 8147.265 SCREW M6X16
72 8147.266 BOTTOM PLASTIC
73 8147.267 GAUGE
74 8147.268 BALL SPRING
75 8147.269 BALL5
76 8147.270 POSITION BLOCK
77 8147.271 WASHER 6
78 8147.272 POSITION SCREW
79 8147.273 LONGLOD
80 8147.274 SIDEFACE
81 8147.275 POSITION CORVER
82 CHIAVE SPANNER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer PR10EK
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

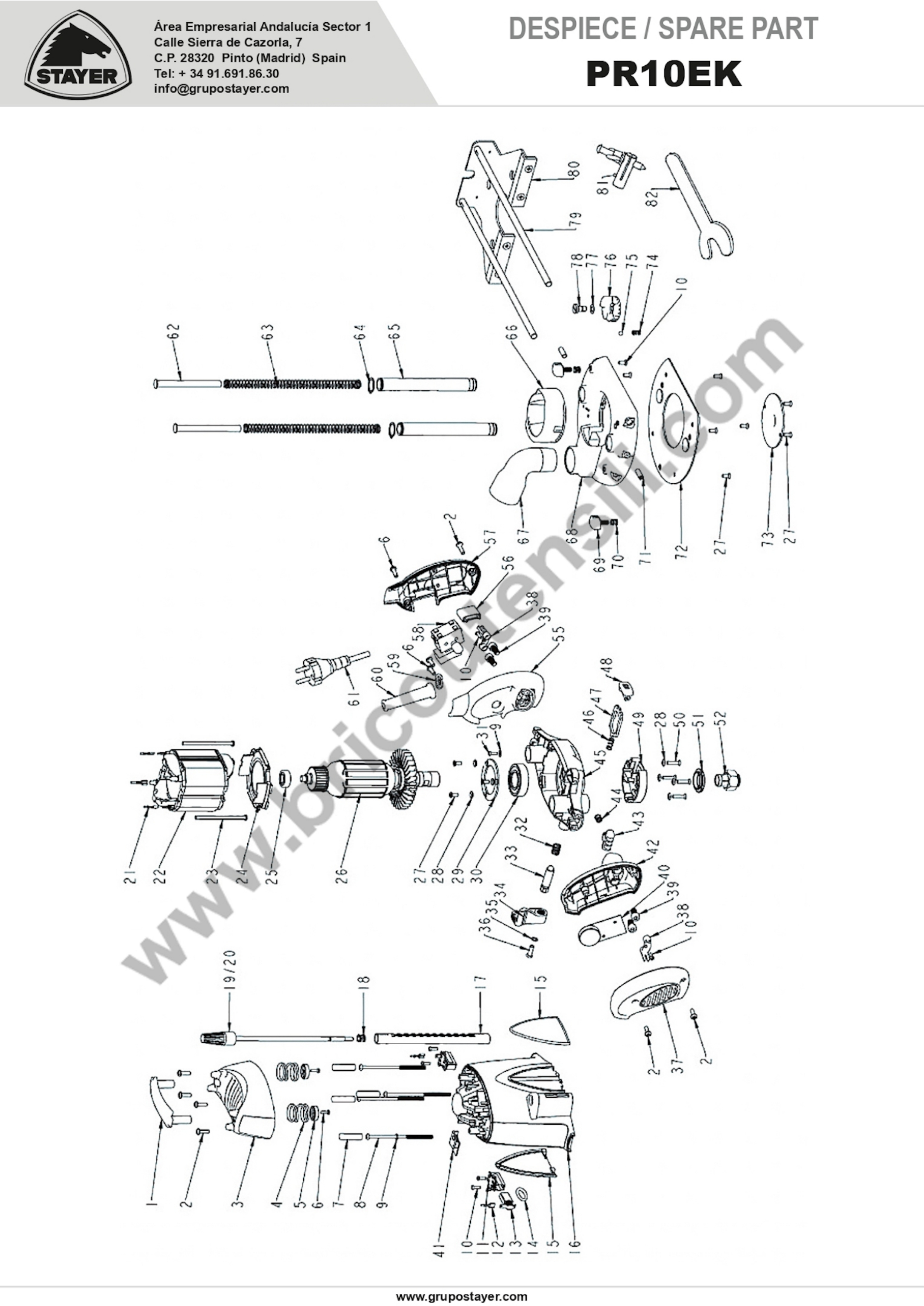

Stayer PR 10 EK Parts Drawing

Stayer PR 10 EK Parts Drawing

Download (857.85KB)
