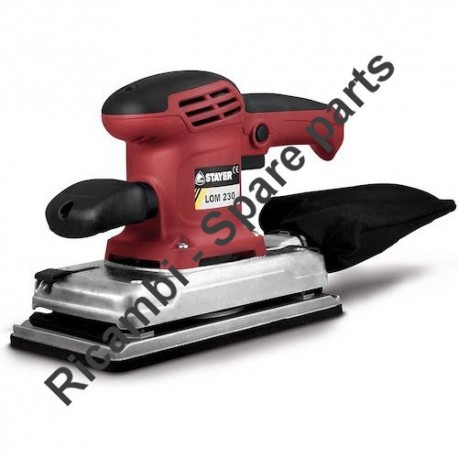

Stayer LOM 230 Spare Parts

SKU: Stayer LOM230
€0.76
VAT included

Stayer LOM 230 Spare Parts

Stayer original spare parts at best price, repair and maintain your Orbital Sander LOM 230 in optimal conditions. Choose and purchase everything you need.
Stayer LOM 230 Spare Parts
  • Stayer LOM 230 Spare Parts
  • Stayer Sander LOM 230 Spare Parts

Stayer LOM 230 Spare Parts

SKU: Stayer LOM230 Condition: New
€0.76
VAT included

Stayer LOM 230 Spare Parts

Stayer original spare parts at best price, repair and maintain your Orbital Sander LOM 230 in optimal conditions. Choose and purchase everything you need.
settings 28 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

28 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 4205.1789 CAPACITOR (0.22UF) €3.50
7
photo_cameraImage coming soon 4205.1793 BACK COVER €4.03
11
photo_cameraImage coming soon 4205.1797 BRUSH HOLDERS (PAIR) €9.50
13
photo_cameraImage coming soon 4205.1799 CARBON BRUSH (PAIR) €11.50
14
photo_cameraImage coming soon 4205.1800 INDUCTANCE €1.34
15
photo_cameraImage coming soon 4205.1801 HOUSING €8.74
17
photo_cameraImage coming soon 4205.1803 AUXULIARY HANDLE €4.03
20
photo_cameraImage coming soon 4205.1806 ON-OFF SWITCH €9.90
21
photo_cameraImage coming soon 4205.1807 STATOR €17.90
23
photo_cameraImage coming soon 4205.1809 FAN GUIDE €1.34
24
photo_cameraImage coming soon 4205.1810 BEARING 627-2RS €3.82
26
photo_cameraImage coming soon 4205.1812 ARMATURE €32.90
29
photo_cameraImage coming soon 4205.1815 TRIGGER €1.34
31
photo_cameraImage coming soon 4205.1817 BEARING 6200-2RS €3.64
32
photo_cameraImage coming soon 4205.1818 ANTIVIBRATION Ø40X30 MF M8X25 65SH €14.24
34
photo_cameraImage coming soon 4205.1820 DUST COVER €2.58
35
photo_cameraImage coming soon 4205.1821 RUBBER POLE €5.85
37
photo_cameraImage coming soon 4205.1823 VACUUM FAN €2.58
38
photo_cameraImage coming soon 4205.1824 ECCENTRIC SPINDLE €4.03
39
photo_cameraImage coming soon 4205.1825 SEALING RING €1.34
40
photo_cameraImage coming soon 4205.1826 DUST GUIDE COVER €1.34
43
photo_cameraImage coming soon 4205.1829 SANDING PAPER CLAMP €3.82
44
photo_cameraImage coming soon 4205.1830 BASE PLATE €12.68
46
photo_cameraImage coming soon 4205.1832 BEARING 6003-NSK €11.10
47
photo_cameraImage coming soon 4205.1833 BEARING PLATE €1.34
49
photo_cameraImage coming soon 4205.1835 ECCENTRIC BLOCK €7.17
53
photo_cameraImage coming soon 4205.1839 BASE PLATE MAT ASS €15.00
54
photo_cameraImage coming soon 4205.1840 DUST COLLECTION ASS. €10.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer LOM 230 Spare Parts

Stayer original spare parts at best price, repair and maintain your Orbital Sander LOM 230 in optimal conditions. Choose and purchase everything you need.

In the following table, look for the spare part and its respectvive code.
Stayer LOM 230 Spare Parts
Stayer Sander LOM 230
Pos. Code Description
2 4205.1788 CABLE ARMOR
3 4205.1789 CAPACITOR (0.22UF)
4 4205.1790 CABLE CLAMP
5 4205.1791 TAPPING SCREW ST4.2X13
6 4205.1792 TAPPING SCREW ST4.2X16
7 4205.1793 BACK COVER
8 4205.1794 RIGHT AIR GUIDE
9 4205.1795 LEFT AIR GUIDE
10 4205.1796 TAPPING SCREW ST3.5X9.5
11 4205.1797 BRUSH HOLDERS (PAIR)
12 4205.1798 ROLL SPRING
13 4205.1799 CARBON BRUSH (PAIR)
14 4205.1800 INDUCTANCE
15 4205.1801 HOUSING
16 4205.1802 NUT M5(S=10)
17 4205.1803 AUXULIARY HANDLE
18 4205.1804 SCREW M5X45
19 4205.1805 TAPPING SCREW M4X25
20 4205.1806 ON-OFF SWITCH
21 4205.1807 STATOR
22 4205.1808 TAPPING SCREW ST4.2X55
23 4205.1809 FAN GUIDE
24 4205.1810 BEARING 627-2RS
25 4205.1811 DUSTPROOF RING
26 4205.1812 ARMATURE
27 4205.1813 PIN Φ5X25
28 4205.1814 TRIGGER TORSIONAL SPRING
29 4205.1815 TRIGGER
30 4205.1816 SCREW M4X8
31 4205.1817 BEARING 6200-2RS
32 4205.1818 BASE
33 4205.1819 PLATE
34 4205.1820 DUST COVER
35 4205.1821 RUBBER POLE
36 4205.1822 OIL SEALING PLATE
37 4205.1823 VACUUM FAN
38 4205.1824 ECCENTRIC SPINDLE
39 4205.1825 SEALING RING
40 4205.1826 DUST GUIDE COVER
41 4205.1827 PINΦ4X45
42 4205.1828 TORSIONAL SPRING
43 4205.1829 SANDING PAPER CLAMP
44 4205.1830 BASE PLATE
45 4205.1831 WASHER
46 4205.1832 BEARING 6003-NSK
47 4205.1833 BEARING PLATE
48 4205.1834 SCREW M3X6
49 4205.1835 ECCENTRIC BLOCK
50 4205.1836 WASHER 5
51 4205.1837 SCREW M5X16
52 4205.1838 O RING 68X1.8
53 4205.1839 BASE PLATE MAT ASS
54 4205.1840 DUST COLLECTION ASS.
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer LOM230
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Stayer LOM 230 Parts Drawing

Stayer LOM 230 Parts Drawing

Download (713.82KB)
