Stayer RO 125 Spare Parts

SKU: Stayer RO125
€0.24
VAT included

Stayer RO 125 Spare Parts

Stayer original spare parts for replacing engine parts or parts of the frame or repairing damaged and worn components of Sander RO 125.
Stayer RO 125 Spare Parts
  • Stayer RO 125 Spare Parts
  • Stayer RO 125 Spare Parts

Stayer RO 125 Spare Parts

SKU: Stayer RO125 Condition: New
€0.24
VAT included

Stayer RO 125 Spare Parts

Stayer original spare parts for replacing engine parts or parts of the frame or repairing damaged and worn components of Sander RO 125.
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 8142.1250 SAND DISC 123MM €18.99
6
photo_cameraImage coming soon 8142.1254 BEARING 6202RS €2.48
7
photo_cameraImage coming soon 8142.1255 STOP RING €1.81
8
photo_cameraImage coming soon 8142.1256 BEARING SEAT €4.04
10
photo_cameraImage coming soon 8142.1258 ALUMINUM FAN €7.98
12
photo_cameraImage coming soon 8142.1260 ALUMINUM SUPPORT €5.35
13
photo_cameraImage coming soon 8142.1261 BEARING 629RS €2.48
17
photo_cameraImage coming soon 8142.1265 ARMATURE €26.41
18
photo_cameraImage coming soon 8142.1266 DUST RING €1.81
19
photo_cameraImage coming soon 8142.1267 BEARING 607RS €2.48
21
photo_cameraImage coming soon 8142.1269 STATOR €21.21
22
photo_cameraImage coming soon 8142.1270 TENSION SPRING €2.20
23
photo_cameraImage coming soon 8142.1271 HOUSING €11.77
24
photo_cameraImage coming soon 8142.1272 DEPTH ADJUSTING KNOB €2.73
25
photo_cameraImage coming soon 8142.1273 KNOB €2.73
26
photo_cameraImage coming soon 8142.1274 LEFT EMBRACE HOOP €2.73
27
photo_cameraImage coming soon 8142.1275 RIGHT EMBRACE HOOP €6.01
31
photo_cameraImage coming soon 8142.1278 RIGHT COVER €4.70
32
photo_cameraImage coming soon 8142.1279 CARBON BRUSH HOLDER COVER ( 2 PCS ) €2.12
33
photo_cameraImage coming soon 8142.1280 CARBON BRUSH HOLDER ( 2 PCS ) €13.68
34
photo_cameraImage coming soon 8142.1281 CARBON BRUSHES ( 2 PCS ) €14.74
35
photo_cameraImage coming soon 8142.1282 SPEED CONTROLLER €18.17
36
photo_cameraImage coming soon 8142.1283 SWITCH €10.50
37
photo_cameraImage coming soon 8142.1284 CAPACITOR €3.71
40
photo_cameraImage coming soon 8142.1287 TOP COVER €5.10
42
photo_cameraImage coming soon 8142.1289 CABLE SLEEVE €1.68
45
photo_cameraImage coming soon 8142.1290 DUST COVER ( 44+45+46 ) €16.65
48
photo_cameraImage coming soon 8142.1292 LEFT COVER €6.66
50
photo_cameraImage coming soon 12.677 SAND PAPER DISC GR.40 ( 5 PCS ) €4.50
50
photo_cameraImage coming soon 12.678 SAND PAPER DISC GR.60 ( 5 PCS ) €4.50
50
photo_cameraImage coming soon 12.679 SAND PAPER DISC GR.80 ( 5 PCS ) €4.70
50
photo_cameraImage coming soon 12.680 SAND PAPER DISC GR.120 ( 5 PCS ) €4.70
50
photo_cameraImage coming soon 12.827 SAND PAPER DISC GR.180 ( 5 PCS ) €4.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer RO 125 Spare Parts

Stayer original spare parts for replacing engine parts or parts of the frame or repairing damaged and worn components of Sander RO 125.

In the following table, look for the spare part and its respectvive code.
Stayer RO 125 Spare Parts
Stayer Sander RO 125
Pos. Code Description
1 8142.1249 SCREW M4×14
2 8142.1250 SAND DISC 123MM
3 8142.1251 SCREW M4×14
4 8142.1252 WASHER Φ4×Φ20×1.5
5 8142.1253 BEARING PRESSING COVER
6 8142.1254 BEARING 6202RS
7 8142.1255 STOP RING
8 8142.1256 BEARING SEAT
9 8142.1257 WASHER Φ15×Φ25×0.5
10 8142.1258 ALUMINUM FAN
11 8142.1259 SCREW ST4.2×16
12 8142.1260 ALUMINUM SUPPORT
13 8142.1261 BEARING 629RS
14 8142.1262 BEARING PRESSING PLATE
15 8142.1263 SCREW M4×10
16 8142.1264 DUST PROOF WASHER
17 8142.1265 ARMATURE
18 8142.1266 DUST RING
19 8142.1267 BEARING 607RS
20 8142.1268 SCREW ST4.2×55
21 8142.1269 STATOR
22 8142.1270 TENSION SPRING
23 8142.1271 HOUSING
24 8142.1272 DEPTH ADJUSTING KNOB
25 8142.1273 KNOB
26 8142.1274 LEFT EMBRACE HOOP
27 8142.1275 RIGHT EMBRACE HOOP
28 8142.1276 PIN Φ3×20
30 8142.1277 SCREW ST4.2×16
31 8142.1278 RIGHT COVER
32 8142.1279 CARBON BRUSH HOLDER COVER ( 2 PCS )
33 8142.1280 CARBON BRUSH HOLDER ( 2 PCS )
34 8142.1281 CARBON BRUSHES ( 2 PCS )
35 8142.1282 SPEED CONTROLLER
36 8142.1283 SWITCH
37 8142.1284 CAPACITOR
38 8142.1285 SCREW ST4.2×14
39 8142.1286 TENSION DISC
40 8142.1287 TOP COVER
41 8142.1288 SCREW ST4.2×16
42 8142.1289 CABLE SLEEVE
44 DUST BAG
45 8142.1290 DUST COVER ( 44+45+46 )
46 DUST CONNECTOR
47 8142.1291 RUBBER RING Φ15×Φ1.9
48 8142.1292 LEFT COVER
50 12.677 SAND PAPER DISC GR.40 ( 5 PCS )
50 12.678 SAND PAPER DISC GR.60 ( 5 PCS )
50 12.679 SAND PAPER DISC GR.80 ( 5 PCS )
50 12.680 SAND PAPER DISC GR.120 ( 5 PCS )
50 12.827 SAND PAPER DISC GR.180 ( 5 PCS )
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer RO125
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

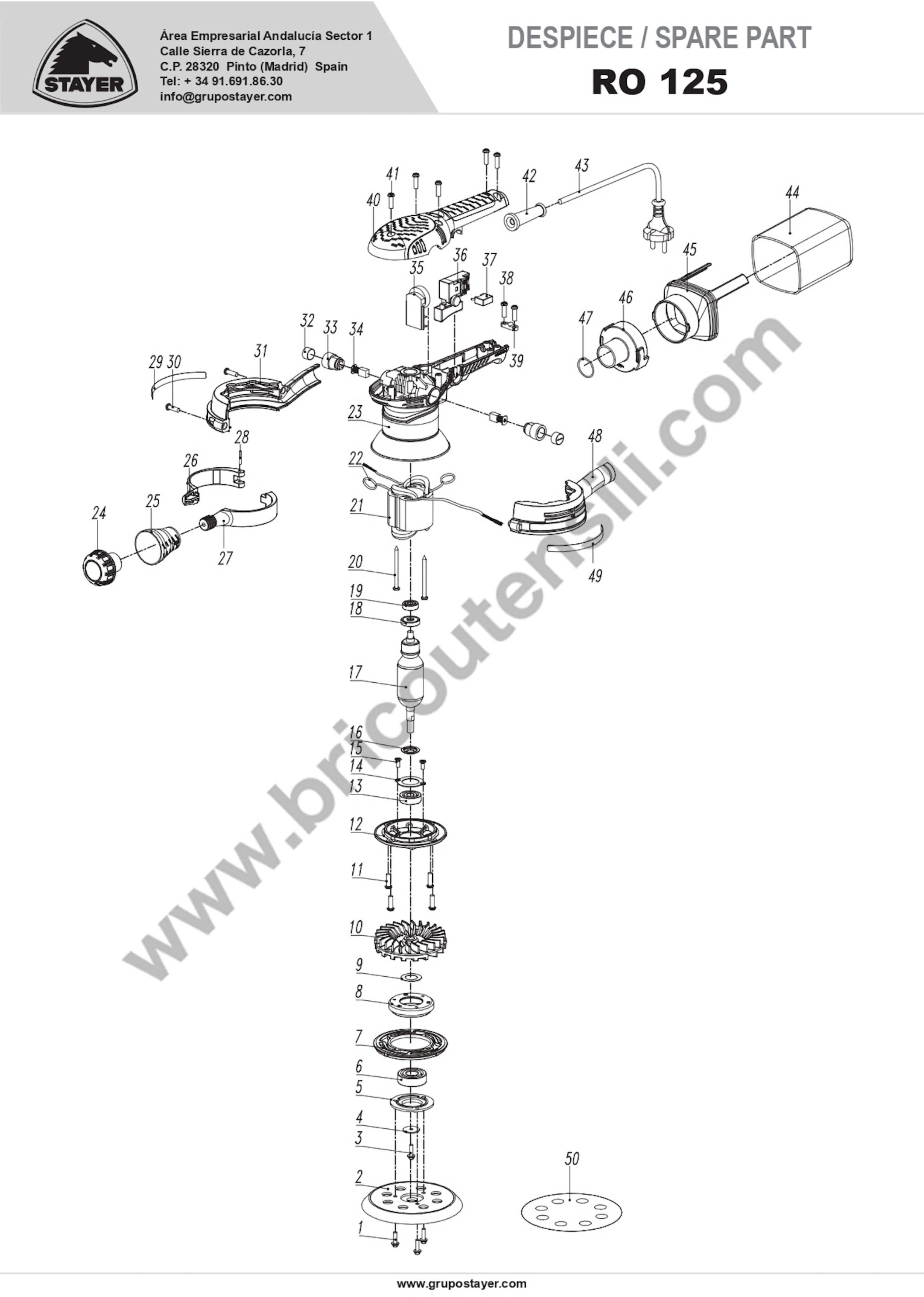

Stayer RO 125 Drawing

Stayer RO 125 Drawing

Download (524.7KB)
