Stayer Spare Parts for Pressure Washer HL160

SKU: Stayer HL160
€65.01
VAT included

Stayer Spare Parts for Pressure Washer HL160

STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and fix issues for Pressure Washer HL160.
Stayer Spare Parts for Pressure Washer HL160
  • Stayer Spare Parts for Pressure Washer HL160
  • Stayer Spare Parts for Pressure Washer HL160
  • Stayer Spare Parts for Pressure Washer HL160
Stayer

Stayer Spare Parts for Pressure Washer HL160

SKU: Stayer HL160 Condition: New
€65.01
VAT included

Stayer Spare Parts for Pressure Washer HL160

STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and fix issues for Pressure Washer HL160.
settings 64 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Last items in stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

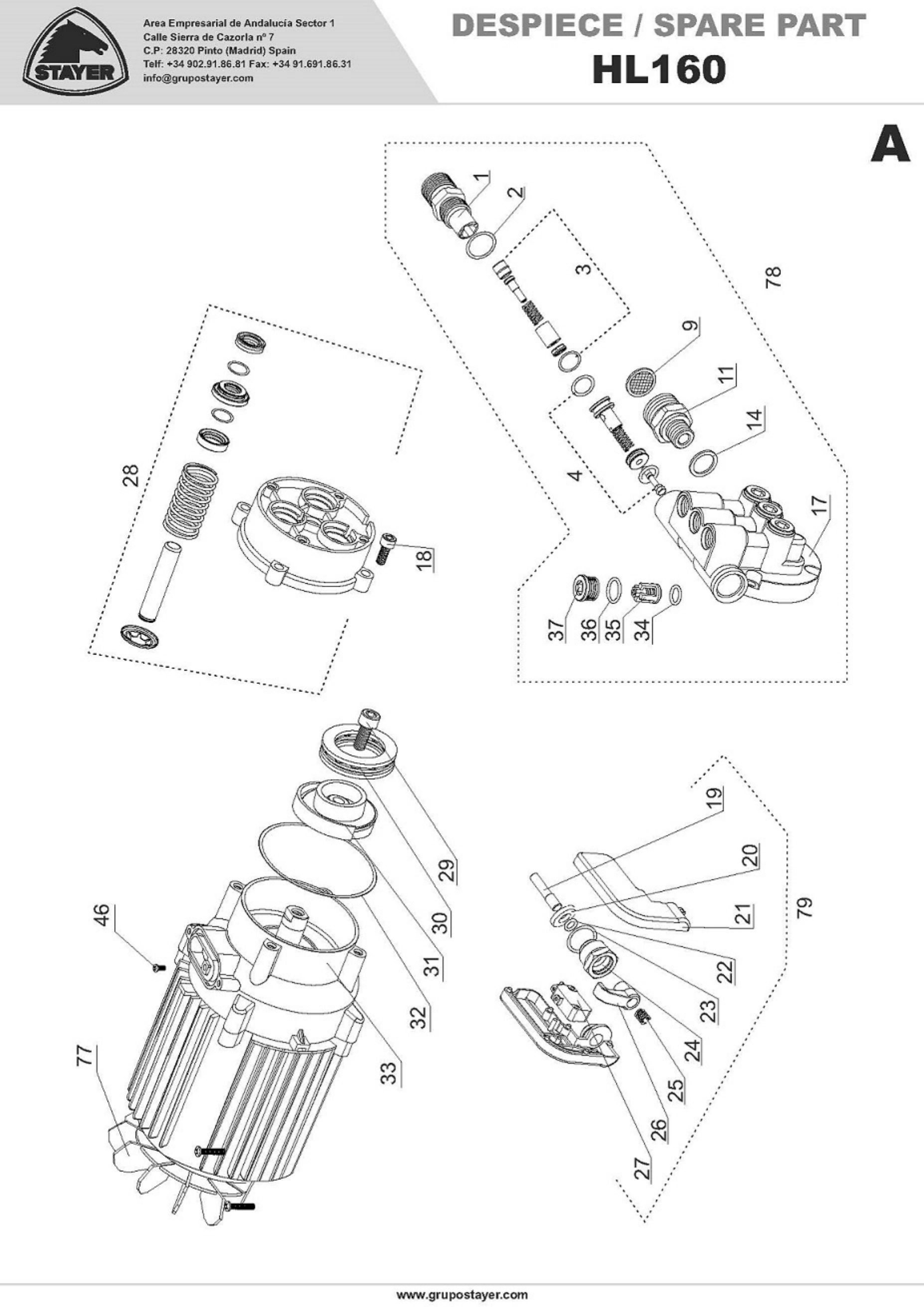

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
-
 photo_cameraImage coming soon 8137153 MOTOR ASSY €149.45
1
 photo_cameraImage coming soon 813781 WATER OUTLET JOINT €5.14
2
 photo_cameraImage coming soon 813782 0-RING €0.00 Not available for order
3
 photo_cameraImage coming soon 813783 COVER VALVE SET €3.51
4
 photo_cameraImage coming soon 813789 PRESOSTATE VALVE SET €5.14
9
 photo_cameraImage coming soon 813790 FILTER €2.21
11
 photo_cameraImage coming soon 813792 WATER INLET €3.21
14
 photo_cameraImage coming soon 813795 SEAL €11.09
17
 photo_cameraImage coming soon 813798 VALVE COVER €19.15
18
 photo_cameraImage coming soon 813799 SCREW €0.00 Not available for order
19
 photo_cameraImage coming soon 8137100 PUSH ROD FOR PRESSURE SWITCH €0.00 Not available for order
20
 photo_cameraImage coming soon 8137101 RING OF CONNECTING SCREW CAP €0.00 Not available for order
21
 photo_cameraImage coming soon 8137102 DOWN COVER €0.00 Not available for order
22
 photo_cameraImage coming soon 8137103 V-RING €0.00 Not available for order
23
 photo_cameraImage coming soon 8137104 0-RING €0.00 Not available for order
24
 photo_cameraImage coming soon 8137105 CONNECTING SCREW CAP €0.00 Not available for order
25
 photo_cameraImage coming soon 8137106 SPRING €0.00 Not available for order
26
 photo_cameraImage coming soon 8137107 ELBOW €0.00 Not available for order
27
 photo_cameraImage coming soon 8137108 MICROSWITCH €3.21
28
 photo_cameraImage coming soon 8137109 PUMP BODY €48.92
29
 photo_cameraImage coming soon 8137110 SCREW INTERNAL HEX €0.00 Not available for order
30
 photo_cameraImage coming soon 8137111 BEARING 8107 €8.55
31
 photo_cameraImage coming soon 8137112 BEARING HOUSING €1.99
32
 photo_cameraImage coming soon 8137113 O-RING €0.00 Not available for order
33
 photo_cameraImage coming soon 8137114 MOTOR €131.13
34
 photo_cameraImage coming soon 8137115 0-RING €0.00 Not available for order
35
 photo_cameraImage coming soon 8137116 VALVE, WATER INLET/OUTLET €0.00 Not available for order
36
 photo_cameraImage coming soon 8137117 0-RING €0.00 Not available for order
37
 photo_cameraImage coming soon 8137118 WASHER IN/OUT VALVE CAP, COPPER €1.52
46
 photo_cameraImage coming soon 8137127 BOLT €0.00 Not available for order
47
 photo_cameraImage coming soon 8137128 COMPLETE HANDLE SET €13.00
50
 photo_cameraImage coming soon 8137131 THE HANDLE OF UNDERSIDE €6.08
51
 photo_cameraImage coming soon 8137132 THE HANDLE OF ABOVE €6.08
52
 photo_cameraImage coming soon 8137133 PLUM SCREWS €0.00 Not available for order
53
 photo_cameraImage coming soon 8137134 OVER COVER €23.94
54
 photo_cameraImage coming soon 8137135 MOTOR COVER €23.17
55
 photo_cameraImage coming soon 8137136 POWERCORD JACKET €0.00 Not available for order
56
 photo_cameraImage coming soon 8137137 WHEEL €6.43
58
 photo_cameraImage coming soon 8137139 COVER ROUND €0.00 Not available for order
59
 photo_cameraImage coming soon 8137140 RIGHT COVER €1.92
60
 photo_cameraImage coming soon 8137141 CAP €0.00 Not available for order
61
 photo_cameraImage coming soon 8137142 BLOW POT €5.47
62
 photo_cameraImage coming soon 8137143 RIGHT MOTOR SHELL €5.66
63
 photo_cameraImage coming soon 8137144 CONNECTION BOX €2.95
64
 photo_cameraImage coming soon 8137145 CONNECTION BOX COVER €2.95
65
 photo_cameraImage coming soon 8137146 LEFT MOTOR COVER €5.66
66
 photo_cameraImage coming soon 8137147 LEFT COVER €1.67
67
 photo_cameraImage coming soon 8137148 MOTOR COVER €22.72
68
 photo_cameraImage coming soon 8137149 BEFORE DECORATIVE PLATES €4.05
69
 photo_cameraImage coming soon 8137150 INSERT SCREWS €0.00 Not available for order
70
 photo_cameraImage coming soon 8137151 HOLE REEL €53.42
72
 photo_cameraImage coming soon 8137152 CAPACITANCE €11.97
73
 photo_cameraImage coming soon 8137248 HANDLE LANCE €21.90
75
 photo_cameraImage coming soon 8137250 SPRAY LANCE €20.59
77
 photo_cameraImage coming soon 8137154 FAN FOR MOTOR €4.73
78
 photo_cameraImage coming soon 8137259 SET COVER €65.90
79
 photo_cameraImage coming soon 8137260 PRESOSTATE SET €10.74
80
 Turbo Lance for Pressure Washers Stayer 81373 Turbo Lance for Pressure Washers Stayer €30.52 Not available for order
81
 photo_cameraImage coming soon 81371 CIRCULAR BRUSH €21.88
82
 photo_cameraImage coming soon 81372 BRUSH €9.65
83
 photo_cameraImage coming soon 81377 BRUSH 200 MM €44.09
84
 photo_cameraImage coming soon 81375 RACOR €4.50
85
 photo_cameraImage coming soon 81374 RACOR €7.07
86
 photo_cameraImage coming soon 8137261 SHORT HOSE €12.87
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

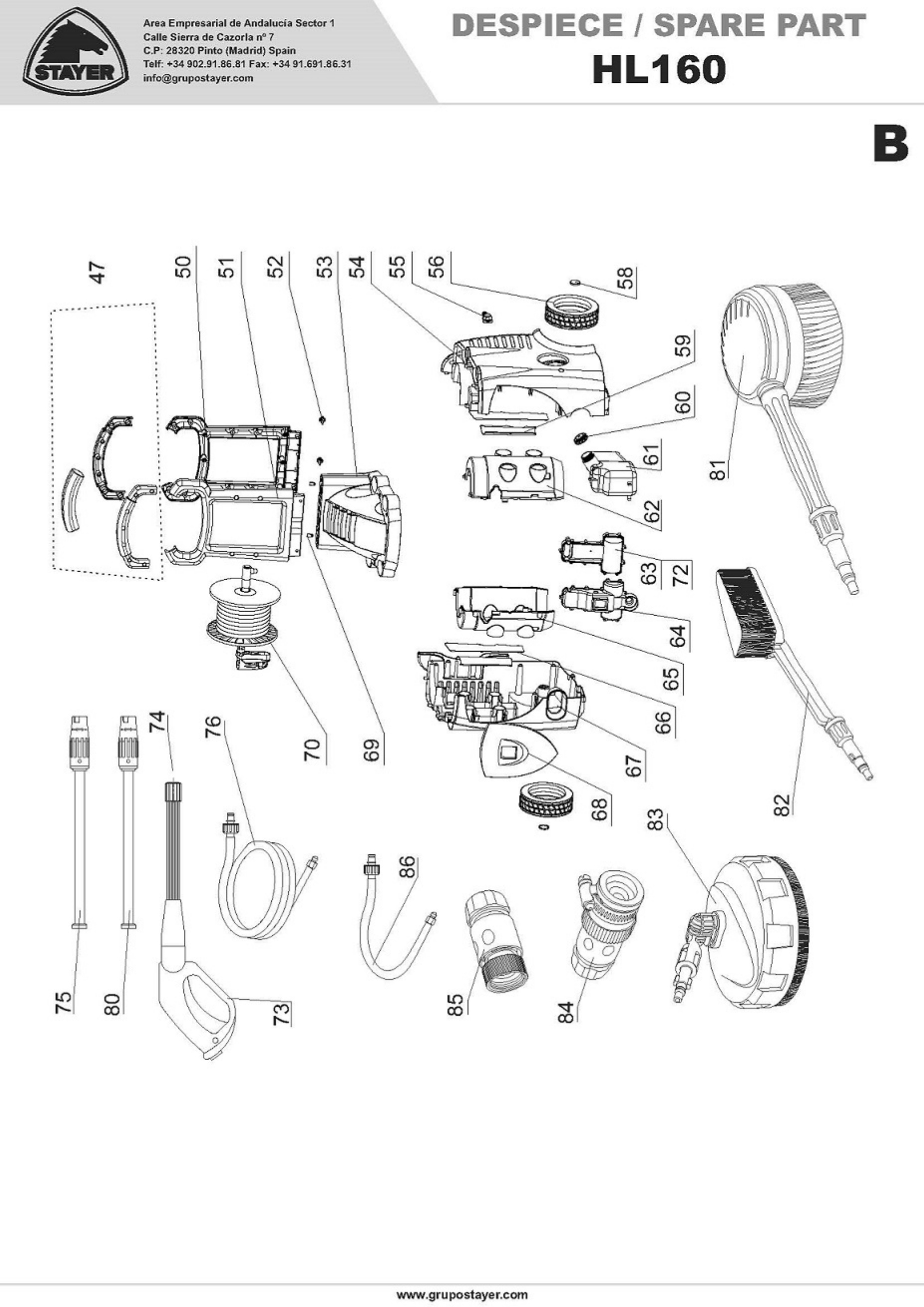

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
47
 photo_cameraImage coming soon 8137128 COMPLETE HANDLE SET €13.00
50
 photo_cameraImage coming soon 8137131 THE HANDLE OF UNDERSIDE €6.08
51
 photo_cameraImage coming soon 8137132 THE HANDLE OF ABOVE €6.08
52
 photo_cameraImage coming soon 8137133 PLUM SCREWS €0.00 Not available for order
53
 photo_cameraImage coming soon 8137134 OVER COVER €23.94
54
 photo_cameraImage coming soon 8137135 MOTOR COVER €23.17
55
 photo_cameraImage coming soon 8137136 POWERCORD JACKET €0.00 Not available for order
56
 photo_cameraImage coming soon 8137137 WHEEL €6.43
58
 photo_cameraImage coming soon 8137139 COVER ROUND €0.00 Not available for order
59
 photo_cameraImage coming soon 8137140 RIGHT COVER €1.92
60
 photo_cameraImage coming soon 8137141 CAP €0.00 Not available for order
61
 photo_cameraImage coming soon 8137142 BLOW POT €5.47
62
 photo_cameraImage coming soon 8137143 RIGHT MOTOR SHELL €5.66
63
 photo_cameraImage coming soon 8137144 CONNECTION BOX €2.95
64
 photo_cameraImage coming soon 8137145 CONNECTION BOX COVER €2.95
65
 photo_cameraImage coming soon 8137146 LEFT MOTOR COVER €5.66
66
 photo_cameraImage coming soon 8137147 LEFT COVER €1.67
67
 photo_cameraImage coming soon 8137148 MOTOR COVER €22.72
68
 photo_cameraImage coming soon 8137149 BEFORE DECORATIVE PLATES €4.05
69
 photo_cameraImage coming soon 8137150 INSERT SCREWS €0.00 Not available for order
70
 photo_cameraImage coming soon 8137151 HOLE REEL €53.42
72
 photo_cameraImage coming soon 8137152 CAPACITANCE €11.97
73
 photo_cameraImage coming soon 8137248 HANDLE LANCE €21.90
75
 photo_cameraImage coming soon 8137250 SPRAY LANCE €20.59
80
 Turbo Lance for Pressure Washers Stayer 81373 Turbo Lance for Pressure Washers Stayer €30.52 Not available for order
81
 photo_cameraImage coming soon 81371 CIRCULAR BRUSH €21.88
82
 photo_cameraImage coming soon 81372 BRUSH €9.65
83
 photo_cameraImage coming soon 81377 BRUSH 200 MM €44.09
84
 photo_cameraImage coming soon 81375 RACOR €4.50
85
 photo_cameraImage coming soon 81374 RACOR €7.07
86
 photo_cameraImage coming soon 8137261 SHORT HOSE €12.87

Shipping and delivery information will be available shortly.

Stayer Spare Parts for Pressure Washer HL160

STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and fix issues for Pressure Washer HL160.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Stayer HL160

Pressure Washer Stayer HL160
# Part NUm. Description
1 813781 WATER OUTLET JOINT
2 813782 O-RING
3 813783 COVER VALVE SET
4 813789 PRESOSTATE VALVE SET
9 813790 FILTER
11 813792 WATER INLET
14 813795 SEAL
17 813798 VALVE COVER
18 813799 SCREW
19 8137100 PUSH ROD FOR PRESSURE SWITCH
20 8137101 RING OF CONNECTING SCREW CAP
21 8137102 DOWN COVER
22 8137103 V-RING
23 8137104 O-RING
24 8137105 CONNECTING SCREW CAP
25 8137106 SPRING
26 8137107 ELBOW
27 8137108 MICROSWITCH
28 8137109 PUMP BODY
29 8137110 SCREW INTERNAL HEX
30 8137111 BEARING 8107
31 8137112 BEARING HOUSING
32 8137113 O-RING
33 8137114 MOTOR
34 8137115 O-RING
35 8137116 VALVE, WATER INLET/OUTLET
36 8137117 O-RING
37 8137118 WASHER IN/OUT VALVE CAP, COPPER
46 8137127 BOLT
47 8137128 COMPLETE HANDLE SET
50 8137131 THE HANDLE OF UNDERSIDE
51 8137132 THE HANDLE OF ABOVE
52 8137133 PLUM SCREWS
53 8137134 OVER COVER
54 8137135 MOTOR COVER
55 8137136 POWERCORD JACKET
56 8137137 WHEEL
58 8137139 COVER ROUND
59 8137140 RIGHT COVER
60 8137141 CAP
61 8137142 BLOW POT
62 8137143 RIGHT MOTOR SHELL
63 8137144 CONNECTION BOX
64 8137145 CONNECTION BOX COVER
65 8137146 LEFT MOTOR COVER
66 8137147 LEFT COVER
67 8137148 MOTOR COVER
68 8137149 BEFORE DECORATIVE PLATES
69 8137150 INSERT SCREWS
70 8137151 HOLE REEL
72 8137152 CAPACITANCE
73 8137248 HANDLE LANCE
75 8137250 LANCE SPRAY
77 8137154 FAN FOR MOTOR
78 8137259 SET COVER
79 8137260 PRESOSTATE SET
80 81373 TURBO LANCE
81 81371 CIRCULAR BRUSH
82 81372 BRUSH
83 81377 BRUSH 200 MM
84 81375 RACOR
85 81374 RACOR
86 8137261 SHORT HOSE
- 8137153 MOTOR ASSY
