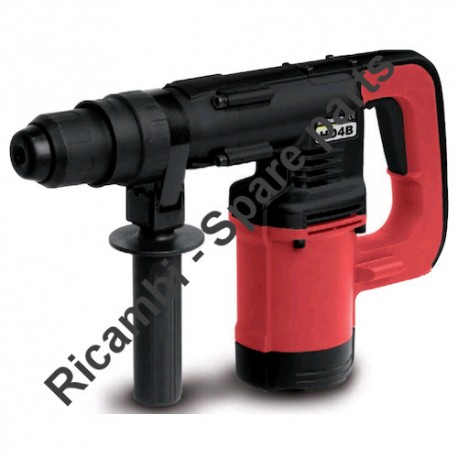

Stayer Spare Parts for Rotary Hammer HD4BK
Stayer original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for
Rotary Hammer HD4BK.
In the following table, look for the model of the hammerr and the respective parts of the code.
| ROTARY HAMMER SDS PLUS HD4BK |
| # |
Part NUm. |
Description |
| 1 |
5002435 |
FRONT CAP |
| 2 |
5002436 |
CIRCLIP |
| 3 |
5002437 |
WAHSER |
| 4 |
5002438 |
SLIDER |
| 5 |
5002439 |
SPRING |
| 6 |
5002440 |
STOP PLATE |
| 7 |
5002441 |
LOCKING RING |
| 8 |
5002442 |
CYLINDER CASE |
| 9 |
5002443 |
BOLT |
| 10 |
5002444 |
SPRING WAHSER |
| 11 |
5002445 |
SMALL WASHER |
| 12 |
5002446 |
O RING |
| 13 |
5002447 |
SEAL |
| 14 |
5002448 |
CIRCLIP |
| 15 |
5002449 |
STEEL BALL LOCKING RING |
| 16 |
5002450 |
STEEL BALL |
| 17 |
5002451 |
CYLINDER |
| 18 |
5002452 |
ANTI-VIBRATION SPRING |
| 19 |
5002453 |
ANTI-VIBRATION PIECE |
| 20 |
5002454 |
CIRCLIP |
| 21 |
5002455 |
SPRING SEAT |
| 22 |
5002456 |
O RING |
| 23 |
5002457 |
GUARD RING SLEEVE |
| 24 |
5002458 |
O RING |
| 25 |
5002459 |
STEEL BALL |
| 26 |
5002460 |
SECOND STRIKER |
| 27 |
5002461 |
RAM |
| 28 |
5002462 |
O RING |
| 29 |
5002463 |
PISTON PIN |
| 30 |
5002464 |
PISTON |
| 31 |
5002465 |
CONNECTING ROD |
| 32 |
5002466 |
NEEDLE BEARING HK0810 |
| 33 |
5002467 |
SCREW |
| 34 |
5002468 |
GRASE WINDOW COVER |
| 35 |
5002469 |
O RING |
| 36 |
5002470 |
CRANK SHAFT CASE |
| 37 |
5002471 |
SEAL WASHER |
| 38 |
5002472 |
CRANK SHAFT |
| 39 |
5002473 |
FLAT PIN |
| 40 |
5002474 |
BEARING 6202 |
| 41 |
5002475 |
ISOLATION COLLAR |
| 42 |
5002476 |
SPRING WASHER |
| 43 |
5002477 |
SCREW |
| 44 |
5002478 |
BEARING COVER |
| 45 |
5002479 |
FIRST GEAR |
| 46 |
5002480 |
CIRCLIP |
| 47 |
5002481 |
GEAR BOX |
| 48 |
5002482 |
SCRWE |
| 49 |
5002483 |
BALL BEARING 6001RS |
| 50 |
5002484 |
ROTOR |
| 51 |
5002485 |
BALL BEARING 608RS |
| 52 |
5002486 |
AIR GUIDER |
| 53 |
5002487 |
STATOR |
| 54 |
5002488 |
HANDLE |
| 55 |
5002489 |
SELF-TAPPING SCREW |
| 56 |
5002490 |
MOTOR HOUSING |
| 57 |
5002491 |
SWITCH |
| 58 |
5002492 |
HANDLE CAP |
| 59 |
5002493 |
CAPACITANCE |
| 60 |
5002494 |
CORD CLAMP |
| 61 |
5002495 |
SCREW |
| 62 |
5002496 |
SCREW |
| 63 |
5002497 |
SCREW |
| 64 |
5002498 |
INDUCTANCE |
| 65 |
5002499 |
CORD SHEATH |
| 66 |
5002500 |
CARBON BRUSHE SET |
| 67 |
5002501 |
BRUSH BOX |
| 68 |
- |
PLUG + CORD |
| 69 |
5002502 |
RUBBER WASHER |
| 70 |
5002503 |
BOTTOM COVER |
| 71 |
5002504 |
BIG WASHER |
| 72 |
5002505 |
|
| 73 |
5002506 |
|
| 74 |
5002507 |
AUXILIAR HANDLE |
| 75 |
5002508 |
|
| 76 |
5002509 |
|
