Stayer Spare Parts for Rotary Hammer HD4K

SKU: Stayer HD4K
€3.49
VAT included

Stayer Spare Parts for Rotary Hammer HD4K

We have the original Spares STAYER for Demolition Hammer HD4K the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Demolition Hammer HD4K. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Stayer Spare Parts for Rotary Hammer HD4K
  • Stayer Spare Parts for Rotary Hammer HD4K
  • Stayer Spare Parts for Rotary Hammer HD4K

Stayer Spare Parts for Rotary Hammer HD4K

SKU: Stayer HD4K Condition: New
€3.49
VAT included

Stayer Spare Parts for Rotary Hammer HD4K

We have the original Spares STAYER for Demolition Hammer HD4K the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Demolition Hammer HD4K. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 1 spare part
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

1 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 50072 PROTECTING COVER €2.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Spare Parts for Rotary Hammer HD4K

We have the original Spares STAYER for Demolition Hammer HD4K the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Demolition Hammer HD4K. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

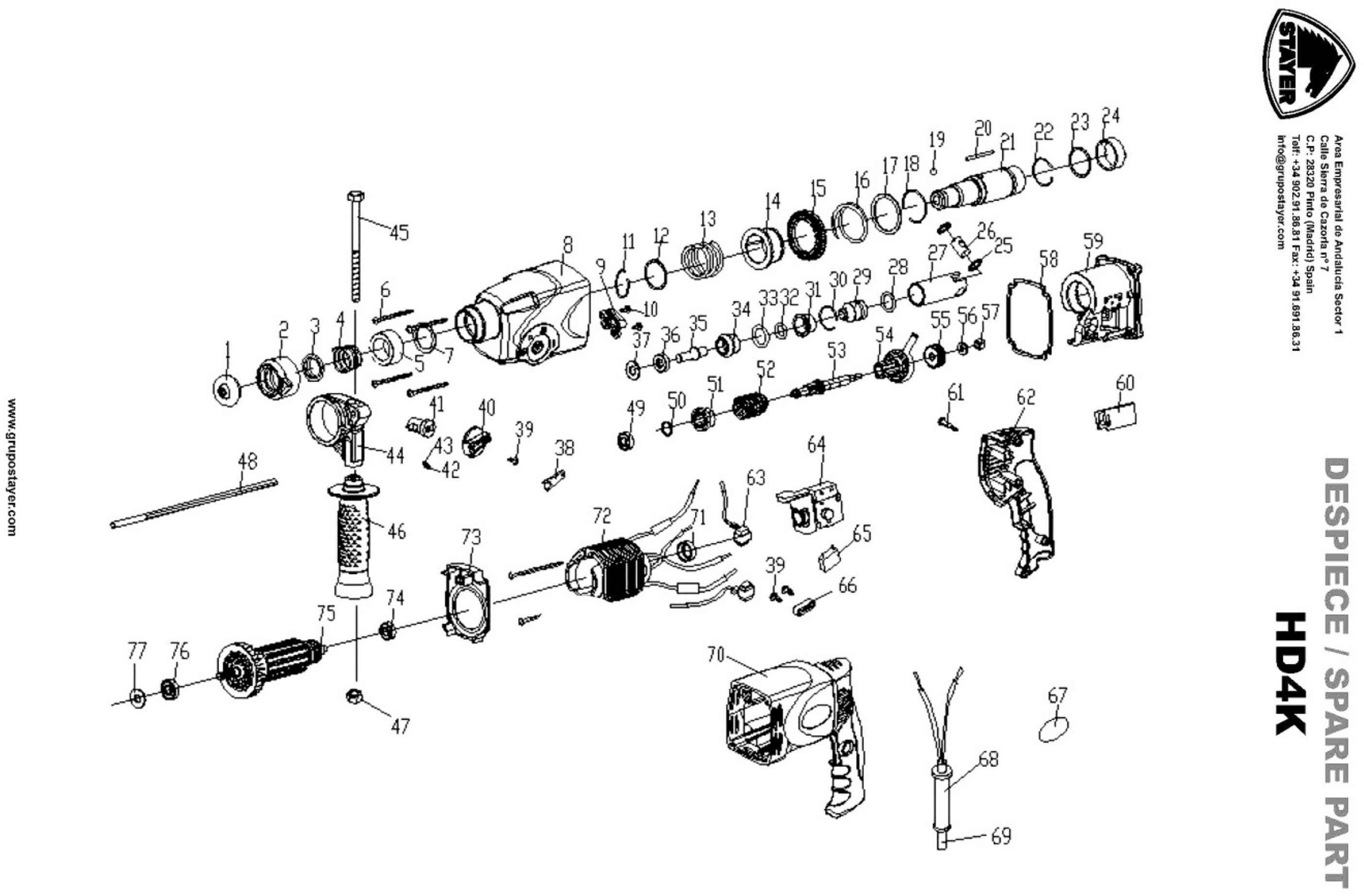

In the following table, look for the model of the hammerr and the respective parts of the code.


ROTARY HAMMER SDS PLUS HD4K
1 50071 SEAL RING
2 50072 PROTECTING COVER
3 50073 DRILL BLOCK CLIP
4 50074 CHUCK SPRING
5 50075 WASHER
6 50076 SCREW
7 50077 WASHER
8 50078 GEAR HOUSING
9 50079 FIX
10 50071 SCREW
11 500711 OIL SEAL WASHER
12 500712 WASHER
13 500713 OVER LOADING SPRING
14 500714 OVER LOADING GEAR
15 500715 GEAR
16 500716 OVER LOADING SPRING
17 500717 SPRING CLIP
18 500718 STEEL WIRE WASHER
19 500719 STEEL BALL
20 500720 PIN
21 500721 SPINDLE
22 500722 CIRCLIP
23 500723 WASHER
24 500724 IMPACT HAMMER WASHER
25 500725 WASHER
26 500726 PIN
27 500727 PISTON
28 500728 O-RING
29 500729 PISTON
30 500730 STEEL WIRE WASHER
31 500731 RING
32 500732 RING
33 500733 RING
34 500734 RIGN
35 500735 HAMMER
36 500736 HAMMER WASHER
37 500737 SEAL WASHER
38 500738 SELECTOR CAP
39 500739 SCREW
40 500740 SELECTOR
41 500741 PIN
42 500742 COVER
43 500743 SPRING
44 500744 HANDLE RING
45 500745 SCREW
46 500746 HANDLE
47 500747 NUT
48 500748 DEEPTH REGULATION
49 500749 BEARING 606
50 500750 WASHER
51 500751 CROWN
52 500752 SPRING
53 500753 SPINDLE
54 500754 SHAFT SHING BEARING
55 500755 CROWN
56 500756 RING
57 500757 BEARING HK0608
58 500758 SEAL WASHER
59 500759 INTERMEDIATE COVER
60 500760 PLETINE
61 500761 SCREW
62 500762 HANDLE COVER
63 500763 CARBON BRUSH
64 500764 SWITCH
65 500765 CAPACITOR
66 500766 CLAMP
68 500767 ARMOR
69 - CABLE
70 500769 HOUSING
71 500770 RUBBER BEARING SLEEVE
72 500771 STATOR
73 500772 FAN GUIDE
74 500773 BEARING 607
75 500774 ARMATURE
76 500775 BEARING 608
77 500776 WASHER
78 5007166 AUXILIAR HANDLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stayer HD4K
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Stayer HD4K

Diagram Stayer HD4K

Download (216.29KB)
