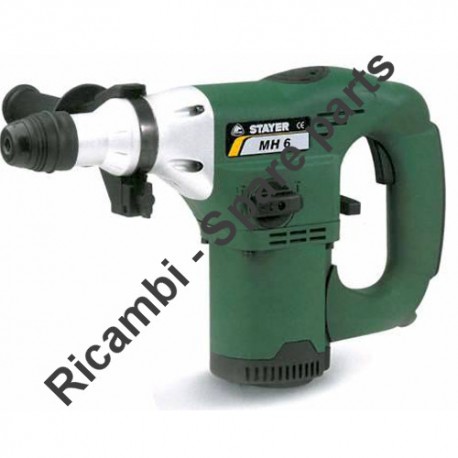

Stayer Spare Parts for Rotary Hammer MH6K
We supply original STAYER spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer MH6K.
In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
| Hammer Stayer MH6K |
| # |
Part Num. |
Description |
| 1 |
50021 |
FRONT CAP |
| 2 |
50022 |
AXILE CLIP 19 |
| 3 |
50023 |
WASHER |
| 4 |
50024 |
SLIDER |
| 5 |
50025 |
SPRING |
| 6 |
50026 |
CYLINDER CASE |
| 7 |
50027 |
STEEL BALL 7.94 |
| 8 |
50028 |
FLAT PIN3*18 |
| 9 |
50029 |
BOLT M4*16 |
| 10 |
500210 |
SPRING WASHER |
| 11 |
500211 |
FLAT WASHER |
| 12 |
500212 |
STEEL BALL MM 7,14 |
| 13 |
500213 |
CYLINDER COVER |
| 14 |
500214 |
OIL SEAL |
| 15 |
500215 |
BIG WASHER |
| 16 |
500216 |
STEEL BALL MM 7 |
| 17 |
500217 |
BEARING 61907 |
| 18 |
500218 |
CYLINDER FIG.18 |
| 19 |
500219 |
PISTON PIN |
| 20 |
500220 |
RUBBER RING |
| 21 |
500221 |
NEEDLE BEARING HK081 |
| 22 |
500222 |
BUSHING |
| 23 |
500223 |
O-RING |
| 24 |
500224 |
O-RING |
| 25 |
500225 |
GUARD RING SLEEVE |
| 26 |
500226 |
O-RING |
| 27 |
500227 |
SECOND STRIKE |
| 28 |
500228 |
CONE GEAR |
| 29 |
500229 |
RAM |
| 30 |
500230 |
9-RING |
| 31 |
500231 |
O-RING |
| 32 |
500232 |
PISTON |
| 33 |
500233 |
CONNECTING ROD |
| 34 |
500234 |
OILY BEARING |
| 35 |
500235 |
DISHING SPRING |
| 36 |
500236 |
OIL CAP |
| 37 |
500237 |
O-RING |
| 38 |
500238 |
CRANK CASE |
| 39 |
500239 |
SMALL CONE GEAR |
| 40 |
500240 |
BEARING 6002 |
| 41 |
500241 |
WASHER |
| 42 |
500242 |
AXILE CIRCLIP |
| 43 |
500243 |
BEARING 627 |
| 44 |
500244 |
WHEEL CORE |
| 45 |
500245 |
NEEDLE BEARING HK1210 |
| 46 |
500246 |
SECOND GEAR |
| 47 |
500247 |
AXILE CIRCLIP |
| 48 |
500248 |
CLUTCH FIG.48 |
| 49 |
500249 |
DISHING SPRING |
| 49-1 |
500250 |
FLAT PIN 4*12 |
| 50 |
500251 |
WASHER |
| 51 |
500252 |
CRANK SHAFT |
| 52 |
500253 |
LIFTING POLE |
| 53 |
500254 |
BEARING 6202 |
| 54 |
500255 |
SPRING |
| 55 |
500256 |
BOLT M4*16 |
| 56 |
500257 |
STEEL BALL |
| 57 |
500258 |
AXIL RETAINE |
| 58 |
500259 |
ANTI-FRICTION RING |
| 59 |
500245 |
NEEDLE BEARING HK1210 |
| 60 |
500261 |
STEEL BALL FIG 60 |
| 61 |
500262 |
SPRING |
| 62 |
500263 |
BEARING CAP |
| 63 |
500264 |
FIRST GEAR - DISCONTINUED |
| 64 |
500265 |
FLAT WASHER |
| 65 |
500266 |
SPRING WASHER |
| 66 |
500267 |
BOLT M5*20 |
| 67 |
500268 |
AXILE CIRCLIP |
| 68 |
500269 |
KNOB HANDLE |
| 69 |
500270 |
KNOB |
| 70 |
500271 |
CROSS BOLT M3*20 |
| 71 |
500272 |
KNOB SPRING |
| 72 |
500273 |
LOCKING BUTT |
| 73 |
500274 |
PIN 4*40 |
| 73-1 |
500275 |
SPRING |
| 74 |
500276 |
PLECTRUM |
| 75 |
500277 |
SUNK BOLT M4*8 |
| 76 |
500278 |
THRUST PLATE |
| 77 |
500279 |
GEAR CASE |
| 78 |
500280 |
BEARING 6001 |
| 79 |
500281 |
ARMATURE |
| 80 |
500282 |
/BEARING 608 |
| 81 |
500283 |
STATOR |
| 82 |
500284 |
CROSS BOLT M4*8 |
| 83 |
500285 |
SPRING WASHER |
| 84 |
500286 |
LOCK PLATE |
| 85 |
500287 |
O-RING |
| 86 |
500288 |
SWITCH GRIP |
| 87 |
500289 |
TAP BOLT ST4.8*60 |
| 88 |
500290 |
DUST CAP |
| 89 |
500291 |
INSPECT.CO |
| 91 |
500293 |
TAP BOLT ST4.2*52 |
| 92 |
500294 |
INSPECT.COVER SOCKE |
| 94 |
500296 |
RIGHT SHEL COVER |
| 95 |
500297 |
TAP BOLT ST4.2*20 |
| 96 |
500298 |
VARIAB SPEED SELEC |
| 97 |
500299 |
HANDLE COVER |
| 98 |
5002100 |
SWITCH |
| 99 |
5002101 |
INDUCTANCE |
| 100 |
5002102 |
CAPACITANCE |
| 102 |
5002104 |
LEFT SHELL COVER |
| 103 |
5002105 |
GRIP BUFF |
| 104 |
5002106 |
TAP BOLT |
| 106 |
5002107 |
CABLE SHEATH |
| 108 |
5002109 |
MOTOR CASING |
| 109 |
5002110 |
BOTTOM COVER |
| 110 |
5002111 |
TAP BOLT |
| 111 |
5002112 |
BRUSH HOLDER |
| 112 |
5002113 |
TAP BOL |
| 113 |
5002114 |
WHORL SPRING |
| 114 |
5002115 |
CARBON BRUSH |
| 115 |
5002116 |
DEPTH GAUGE |
| 116 |
5002117 |
CHUCK RING |
| 117 |
5002118 |
ELASTIC COLUMN PIN |
| 118 |
5002119 |
SLIPKNOT BOLT |
| 119 |
5002120 |
PLASTIC CARRING CASE |
| 120 |
5002121 |
HANDLE CLIP |
| 121 |
5002122 |
DEPTH GAUGE LOCK |
| 122 |
5002123 |
NUT |
| 123 |
5002124 |
SIDE HANDLE |
39
50
54
56 |
5002428 |
CLUTH SET |
