Stayer Spare Parts for Angle Grinder SAB24-230AL

SKU: Stayer SAB24-230AL
€15.88
VAT included

Stayer Spare Parts for Angle Grinder SAB24-230AL

We have the original Spares STAYER for Angle Grinder SAB24-230AL the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB24-230AL. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Stayer Spare Parts for Angle Grinder SAB24-230AL
  • On sale!
  • Stayer Spare Parts for Angle Grinder SAB24-230AL
  • Stayer Spare Parts for Angle Grinder SAB24-230AL

Stayer Spare Parts for Angle Grinder SAB24-230AL

SKU: Stayer SAB24-230AL Condition: New
€15.88
VAT included

Stayer Spare Parts for Angle Grinder SAB24-230AL

We have the original Spares STAYER for Angle Grinder SAB24-230AL the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB24-230AL. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 36 spare parts

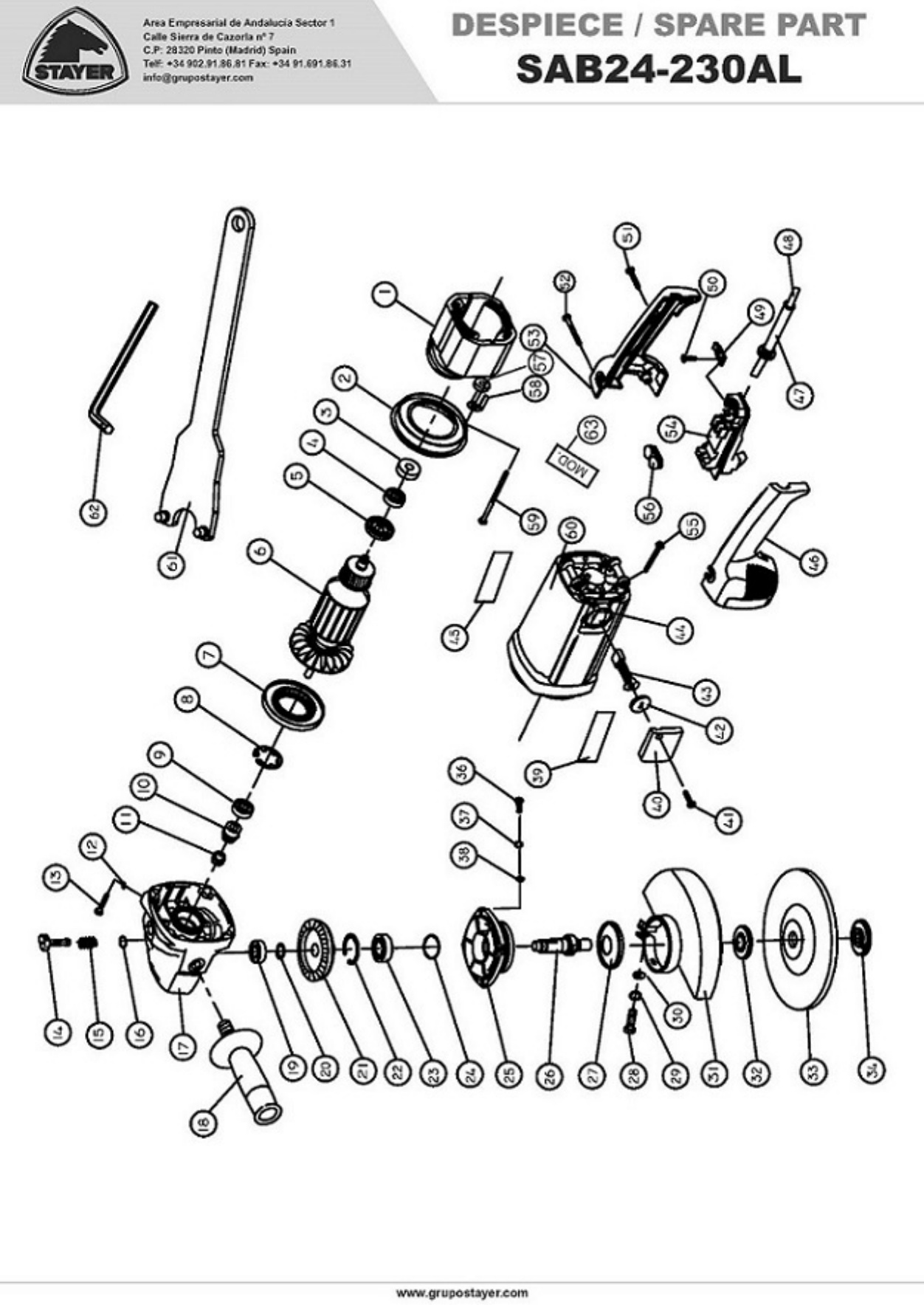

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5000557 STATOR €54.90
2
photo_cameraImage coming soon 5000558 AIR FAN €10.90
3
photo_cameraImage coming soon 5000559 RUBBER BEARING €7.72
4
photo_cameraImage coming soon 5000560 BEARING 609 €7.72
5
photo_cameraImage coming soon 5000561 BEARING COVER €2.21
6
photo_cameraImage coming soon 5000562 ARMATURE €82.51
7
photo_cameraImage coming soon 5000563 AIR FAN €3.87
9
photo_cameraImage coming soon 5000565 BEARING 6202 €7.72
10
photo_cameraImage coming soon 5000566 PINION €10.90
14
photo_cameraImage coming soon 5000570 HEAD BUTTON €3.00
15
photo_cameraImage coming soon 5000571 SPRING €1.66
17
photo_cameraImage coming soon 5000573 HEAD €26.30
18
photo_cameraImage coming soon 5000574 HANDLE €9.80
19
photo_cameraImage coming soon 5000575 BEARING 6003 €7.72
21
photo_cameraImage coming soon 5000577 CABLE PLATE €29.71
23
photo_cameraImage coming soon 5000579 BEARING 6001 €7.72
25
photo_cameraImage coming soon 5000581 HEAD COVER €16.40
26
photo_cameraImage coming soon 5000582 SPINDLE €15.41
27
photo_cameraImage coming soon 5000583 COVER €2.21
31
photo_cameraImage coming soon 5000587 BEARING FLANGE ASS'Y €15.41
32
photo_cameraImage coming soon 5000588 INNER FLANGE €9.80
34
photo_cameraImage coming soon 5000589 OUTER FLANGE €9.80
40
photo_cameraImage coming soon 5000593 CARBON BRUSH COVER €3.87
42
photo_cameraImage coming soon 5000595 CARBON BRUSH CAP €2.21
43
photo_cameraImage coming soon 5000596 CARBON BRUSH €15.41
44
photo_cameraImage coming soon 5000597 CARBON BRUSH HOLDER €10.90
46
photo_cameraImage coming soon 5000598 LEFT HANDLE €10.90
47
photo_cameraImage coming soon 5000599 CABLE ARMOR €1.66
48
photo_cameraImage coming soon 5000600 CABLE €15.41
53
photo_cameraImage coming soon 5000605 RIGHT HANDLE €10.90
54
photo_cameraImage coming soon 5000606 SWITCH €26.30
57
photo_cameraImage coming soon 5000609 CAPACITOR €3.32
60
photo_cameraImage coming soon 5000612 HOUSING €25.20
61
photo_cameraImage coming soon 5000613 SERVICE KEY €7.72
62
photo_cameraImage coming soon 5000614 ALLEN KEY €7.72
63
photo_cameraImage coming soon 5000615 MODULE €36.21

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stayer Spare Parts for Angle Grinder SAB24-230AL

We have the original Spares STAYER for Angle Grinder SAB24-230AL the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB24-230AL. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the hammerr and the respective parts of the code.
Stayer SAB24-230AL

ANGLE GRINDER SAB24-230AL
# Part Num. Description
1 5000557 STATOR
2 5000558 AIR FAN
3 5000559 RUBBER BEARING
4 5000560 BEARING 609
5 5000561 BEARING COVER
6 5000562 ARMATURE
7 5000563 AIR FAN
8 5000564 CIRCLIP
9 5000565 BEARING 6202
10 5000566 PINION
11 5000567 SPACER
12 5000568 WASHER
13 5000569 SCREW
14 5000570 HEAD BUTTON
15 5000571 SPRING
16 5000572 WASHER
17 5000573 HEAD
18 5000574 HANDLE
19 5000575 BEARING 6003
20 5000576 WASHER
21 5000577 CROWN
22 5000578 CIRCLIP
23 5000579 BEARING 6001
24 5000580 RING
25 5000581 HEAD COVER
26 5000582 SPINDLE
27 5000583 COVER
28 5000584 CARTER SCREW
29 5000585 WASHER
30 5000586 WASHER
31 5000587 CARTER
32 5000588 INNER FLANGE
34 5000589 OUTER FLANGE
36 5000590 COVER SCREW
37 5000591 WASHER
38 5000592 WASHER
40 5000593 CARBON BRUSH COVER
41 5000594 SCREW
42 5000595 CARBON BRUSH CAP
43 5000596 CARBON BRUSH
44 5000597 CARBON BRUSH HOLDER
46 5000598 LEFT HANDLE
47 5000599 CABLE ARMOR
48 5000600 CABLE
49 5000601 COVER
50 5000602 SCREW
51 5000603 SCREW
52 5000604 SCREW
53 5000605 RIGHT HANDLE
54 5000606 SWITCH
55 5000607 SCREW
56 5000608 COVER
57 5000609 CAPACITOR
58 5000610 FIX
59 5000611 SCREW
60 5000612 HOUSING
61 5000613 SERVICE KEY
62 5000614 ALLEN KEY
63 5000615 MODULE
