Stayer Spare Parts for Angle Grinder SAB22-23

We have the original Spares STAYER for Angle Grinder SAB22-23 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB22-23. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Stayer Spare Parts for Angle Grinder SAB22-23
  • On sale!
  • Stayer Spare Parts for Angle Grinder SAB22-23
  • Stayer Spare Parts for Angle Grinder SAB22-23
Stayer

Stayer Spare Parts for Angle Grinder SAB22-23

SKU: Stayer SAB22-23 Condition: New
€9.13
VAT included

Stayer Spare Parts for Angle Grinder SAB22-23

We have the original Spares STAYER for Angle Grinder SAB22-23 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB22-23. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 57 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

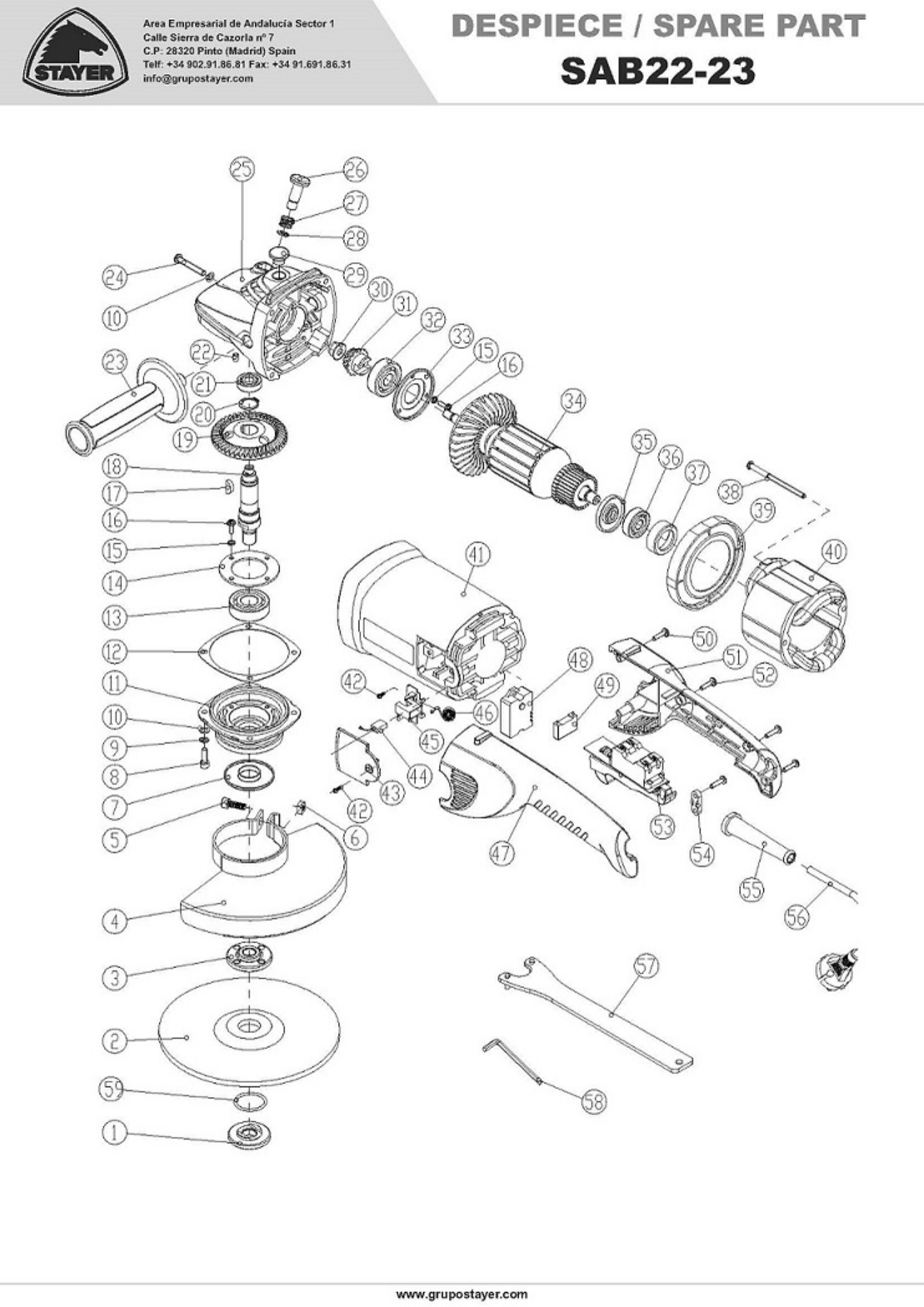

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5019310 OUTER FLANGE €7.17
3
 photo_cameraImage coming soon 5019311 INNER FLANGE €7.17
4
 photo_cameraImage coming soon 5019312 PROTECT GUARD 180MM €12.45
5
 photo_cameraImage coming soon 5019313 PROTECT GUARD 230MM €12.45
5
 photo_cameraImage coming soon 5019314 SCREW €0.00 Not available for order
6
 photo_cameraImage coming soon 5019315 NUT €1.26
7
 photo_cameraImage coming soon 5019316 DUST COVER €1.26
8
 photo_cameraImage coming soon 5019317 SCREW €0.00 Not available for order
9
 photo_cameraImage coming soon 5019318 SPRING WASHER €0.00 Not available for order
10
 photo_cameraImage coming soon 5019319 WASHER €0.00 Not available for order
11
 photo_cameraImage coming soon 5019320 FRONT COVER €8.81
12
 photo_cameraImage coming soon 5019321 RING €0.00 Not available for order
13
 photo_cameraImage coming soon 5019322 BEARING 6203-2Z €8.81
14
 photo_cameraImage coming soon 5019323 FRONT BEARING COVER €0.00 Not available for order
15
 photo_cameraImage coming soon 5019324 SPRING WASHER €0.00 Not available for order
16
 photo_cameraImage coming soon 5019325 SCREW €0.00 Not available for order
17
 photo_cameraImage coming soon 5019326 KEY €1.89
18
 photo_cameraImage coming soon 5019327 SPINDLE €8.81
19
 photo_cameraImage coming soon 5019328 WHEEL GEAR €18.75
20
 photo_cameraImage coming soon 5019329 CIRLIP €0.00 Not available for order
21
 photo_cameraImage coming soon 5019330 BEARING 609-2Z €4.41
22
 photo_cameraImage coming soon 5019331 TOP PIN €0.00 Not available for order
23
 photo_cameraImage coming soon 5019332 SIDE HANDLE €7.17
24
 photo_cameraImage coming soon 5019333 SCREW €0.00 Not available for order
25
 photo_cameraImage coming soon 5019334 GEAR BOX €25.05
26
 photo_cameraImage coming soon 5019335 SPINDLE LOCK €2.39
27
 photo_cameraImage coming soon 5019336 LOCK SPRING €1.26
28
 photo_cameraImage coming soon 5019337 CIRCLIP €0.00 Not available for order
29
 photo_cameraImage coming soon 5019338 ANTI-DUST CAP €0.00 Not available for order
30
 photo_cameraImage coming soon 5019339 NUT €0.00 Not available for order
31
 photo_cameraImage coming soon 5019340 PINION GEAR €8.81
32
 photo_cameraImage coming soon 5019341 BEARING 6301-2Z €8.81
33
 photo_cameraImage coming soon 5019342 BEARING COVER €1.89
34
 photo_cameraImage coming soon 5019343 ARMATURE €81.69
35
 photo_cameraImage coming soon 5019344 ANTI-DUST RING €1.89
36
 photo_cameraImage coming soon 5019345 BEARING 6200-2Z €4.41
37
 photo_cameraImage coming soon 5019346 BEARING SLEEVE €2.39
38
 photo_cameraImage coming soon 5019347 SCREW €0.00 Not available for order
39
 photo_cameraImage coming soon 5019348 WIND GUARD €4.41
40
 photo_cameraImage coming soon 5019349 STATOR €62.81
41
 photo_cameraImage coming soon 5019350 HOUSING €17.61
42
 photo_cameraImage coming soon 5019351 SCREW €0.00 Not available for order
43
 photo_cameraImage coming soon 5019352 CARBON BRUSH COVER €2.52
44
 photo_cameraImage coming soon 5019353 CARBON BRUSH €11.19
45
 photo_cameraImage coming soon 5019354 CARBON BRUSH HOLDER €4.41
46
 photo_cameraImage coming soon 5019355 SPRING BRUSH €3.39
47
 photo_cameraImage coming soon 5019356 LEFT HANDLE €8.81
49
 photo_cameraImage coming soon 5019358 CAPACITOR €2.52
50
 photo_cameraImage coming soon 5019359 SCREW €0.00 Not available for order
51
 photo_cameraImage coming soon 5019360 RIGHT HANDLE €8.81
52
 photo_cameraImage coming soon 5019361 SCREW €0.00 Not available for order
53
 Switch for Angle Grinder Stayer SAB 22/18-24/18 5019362 Switch for Angle Grinder Stayer SAB 22/18-24/18 €25.65
54
 photo_cameraImage coming soon 5019363 CABLE CLAMP €0.00 Not available for order
55
 photo_cameraImage coming soon 5019364 CABLE PROTECTOR €2.52
57
 photo_cameraImage coming soon 5019366 SPANNER €8.81
58
 photo_cameraImage coming soon 5019367 HEX WRENCH €1.89
59
 photo_cameraImage coming soon 5019650 WASHER €0.00 Not available for order

Shipping and delivery information will be available shortly.

Stayer Spare Parts for Angle Grinder SAB22-23

We have the original Spares STAYER for Angle Grinder SAB22-23 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder SAB22-23. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the hammerr and the respective parts of the code.
Stayer SAB22-23

ANGLE GRINDER SAB22-23
# Part Num. Description
1 5019310 OUTER FLANGE
3 5019311 INNER FLANGE
4 5019312 PROTECT GUARD 180MM
5 5019313 PROTECT GUARD 230MM
5 5019314 SCREW
6 5019315 NUT
7 5019316 DUST COVER
8 5019317 SCREW
9 5019318 SPRING WASHER
10 5019319 WASHER
11 5019320 FRONT COVER
12 5019321 RING
13 5019322 BEARING 6203-2Z
14 5019323 FRONT BEARING COVER
15 5019324 SPRING WASHER
16 5019325 SCREW
17 5019326 KEY
18 5019327 SPINDLE
19 5019328 WHEEL GEAR
20 5019329 CIRLIP
21 5019330 BEARING 609-2Z
22 5019331 TOP PIN
23 5019332 SIDE HANDLE
24 5019333 SCREW
25 5019334 GEAR BOX
26 5019335 SPINDLE LOCK
27 5019336 LOCK SPRING
28 5019337 CIRCLIP
29 5019338 ANTI-DUST CAP
30 5019339 NUT
31 5019340 PINION GEAR
32 5019341 BEARING 6301-2Z
33 5019342 BEARING COVER
34 5019343 ARMATURE
35 5019344 ANTI-DUST RING
36 5019345 BEARING 6200-2Z
37 5019346 BEARING SLEEVE
38 5019347 SCREW
39 5019348 WIND GUARD
40 5019349 STATOR
41 5019350 HOUSING
42 5019351 SCREW
43 5019352 CARBON BRUSH COVER
44 5019353 CARBON BRUSH
45 5019354 CARBON BRUSH HOLDER
46 5019355 SPRING BRUSH
47 5019356 LEFT HANDLE
48 SOFT START
49 5019358 CAPACITOR
50 5019359 SCREW
51 5019360 RIGHT HANDLE
52 5019361 SCREW
53 5019362 SWITCH
54 5019363 CABLE CLAMP
55 5019364 CABLE PROTECTOR
57 5019366 SPANNER
58 5019367 HEX WRENCH
59 5019650 WASHER
