Stanley Fatmax SXFPW21MPE Parts

SKU: Stanley SXFPW21MPE - 15328
€17.72
VAT included

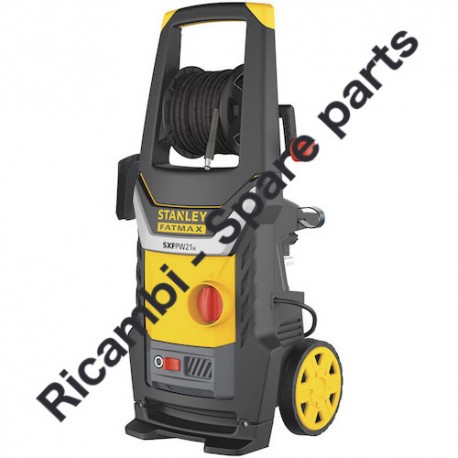

Stanley Fatmax Pressure Washer SXFPW21MPE

Stanley genuine spare parts or replacement parts for to repair Stanley Fatmax SXFPW21MPE - 15328.

Fix Your Pressure Washer Stanley Fatmax SXFPW21MPE - 15328. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Stanley Fatmax SXFPW21MPE Parts
  • Stanley Fatmax SXFPW21MPE Parts
  • Stanley Fatmax SXFPW21MPE Parts Drawing
  • Stanley Fatmax SXFPW21MPE Parts Drawing - 1
  • Stanley Fatmax SXFPW21MPE Parts Drawing - 2
  • Stanley Fatmax SXFPW21MPE Parts Drawing - 3
  • Stanley Fatmax SXFPW21MPE Parts Drawing - 4
  • Stanley Fatmax SXFPW21MPE Parts Drawing - 5
  • Stanley Fatmax SXFPW21MPE Parts Drawing - 6

Stanley Fatmax SXFPW21MPE Parts

SKU: Stanley SXFPW21MPE - 15328 Condition: New
€17.72
VAT included

Stanley Fatmax Pressure Washer SXFPW21MPE

Stanley genuine spare parts or replacement parts for to repair Stanley Fatmax SXFPW21MPE - 15328.

Fix Your Pressure Washer Stanley Fatmax SXFPW21MPE - 15328. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 76 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4380640 HANDLE SA €21.58
2
photo_cameraImage coming soon 4380690 HANDLE €9.47
3
photo_cameraImage coming soon 4381860 GUARD €7.75
4
photo_cameraImage coming soon 4381870 GUARD €7.75
5
photo_cameraImage coming soon 4381330 GUARD €17.82
6
photo_cameraImage coming soon 4381361 KNOB €6.06
7
photo_cameraImage coming soon 4381340 GUARD €11.07
8
photo_cameraImage coming soon 4380391 LEVER €5.57
9
photo_cameraImage coming soon 4381320 COVER €26.94
10
photo_cameraImage coming soon 4380680 FOOT €14.41
11
photo_cameraImage coming soon 3080580 cable clamp €2.88
12
photo_cameraImage coming soon 4381880 GUARD €9.95
13
photo_cameraImage coming soon 4380800 GUARD €8.77
14
photo_cameraImage coming soon 4380491 base €27.51
15
photo_cameraImage coming soon 4380540 Accessories carrier €10.46
16
photo_cameraImage coming soon 2180330 Rubber €4.96
17
Annovi Accessory Holder for AR589 4580590 Annovi Accessory Holder for AR589 €7.72
18
photo_cameraImage coming soon 4383400 Support €4.26
19
photo_cameraImage coming soon 4380810 HOOK SA €6.20
20
photo_cameraImage coming soon 4380610 WHEEL €14.98
21
photo_cameraImage coming soon 4380630 GUARD €8.84
22
photo_cameraImage coming soon 4382180 SCREW KIT €12.74
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4380470 BRACKET €8.48
2
photo_cameraImage coming soon 50943 Screw €3.06
3
photo_cameraImage coming soon 3080200 Plate €9.92
4
photo_cameraImage coming soon 4380550 SHIM €8.54
6
photo_cameraImage coming soon 4380460 BRACKET €7.45
7
photo_cameraImage coming soon 4380560 LEVER €8.00
8
photo_cameraImage coming soon 4380451 KNOB €5.92
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4383010 Electric pump assembly €279.43
2
photo_cameraImage coming soon 4382480 CONNECTOR €16.52
3
Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B 3500090 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B €1.35
4
photo_cameraImage coming soon 4381890 FOOT €9.05
5
photo_cameraImage coming soon 3440130 Fan Cover €12.32
6
photo_cameraImage coming soon 3082090 Cable €23.72
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
A
Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
B
photo_cameraImage coming soon 4383020 Piston + seals kit €19.94
F
photo_cameraImage coming soon 4384310 TSS valve kit €15.67
C
photo_cameraImage coming soon 4384430 TSS kit €11.78
1
photo_cameraImage coming soon 3083210 Cork €7.45
2
photo_cameraImage coming soon 3081730 Vine €4.88
3
photo_cameraImage coming soon 3083220 Head €31.25
5
photo_cameraImage coming soon 3081750 washer €4.22
6
photo_cameraImage coming soon 3081740 Vine €1.99
7
photo_cameraImage coming soon 3083232 Pump body €17.21
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4382130 MOTOR 220/240 €226.86
3
photo_cameraImage coming soon 3441000 ring €2.09
4
photo_cameraImage coming soon 3081950 screw €1.89
6
photo_cameraImage coming soon 4382090 Wobble plate €8.87
7
photo_cameraImage coming soon 43056 Bearing kits €18.90
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 3081450 Switch €13.09
5
photo_cameraImage coming soon 4381740 SWITCHBOX €17.40
8
photo_cameraImage coming soon 4101070 Bracket €5.15
9
Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €22.86
10
photo_cameraImage coming soon 4101080 Connector €5.92
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Trigger Gun for Pressure Washer Stanley 4381480 Trigger Gun for Pressure Washer Stanley €22.66
2
O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
Gun Extension for Pressure Washer Stanley XPW14E 4381490 Gun Extension for Pressure Washer Stanley XPW14E €19.23
4
O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
5
photo_cameraImage coming soon 4101170 NOZZLE €13.25
6
Extension Head for Pressure Washers Black&Decker PW 1400-1500 S 4100790 Extension Head for Pressure Washers Black&Decker PW 1400-1500 S €13.81
7
Patio Deluxe Chem for Pressure Washer Stanley SXPW18PE 3084342 Patio Deluxe Chem for Pressure Washer Stanley SXPW18PE €46.69
8
photo_cameraImage coming soon 4381500 Tank €9.46
9
Adaptor for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS 40788 Adaptor for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS €4.04
10
photo_cameraImage coming soon 40787 Fixed Brush €15.99
11
O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53
12
High Pressure Hose for Pressure Washer Stanley SXPW19E - PE 4381510 High Pressure Hose for Pressure Washer Stanley SXPW19E - PE €44.90
12
photo_cameraImage coming soon 4581030 High pressure hose €31.01
13
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stanley Fatmax Pressure Washer SXFPW21MPE

Fix Your Stanley Fatmax SXFPW21MPE - 15328. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Stanley Fatmax SXFPW21MPE - 15328
SXFPW21MPE - 15328
Chassis Pag.1
# Part Num Description
1 4380640 Handle
2 4380690 Knob
3 4381860 Guard
4 4381870 Guard
5 4381330 Guard
6 4381361 Knob
7 4381340 Guard
8 4380391 Push-button
9 4381320 Casing
10 4380680 Base
11 3080580 Cable gland
12 4381880 Guard
13 4380800 Guard
14 4380491 Base
15 4380540 Accessories carrier
16 2180330 Rubber foot
17 4580590 Accessories carrier
18 4383400 Support
19 4380810 Accessories carrier
20 4380610 Wheel
21 4380630 Guard
22 4382180 Screw kit

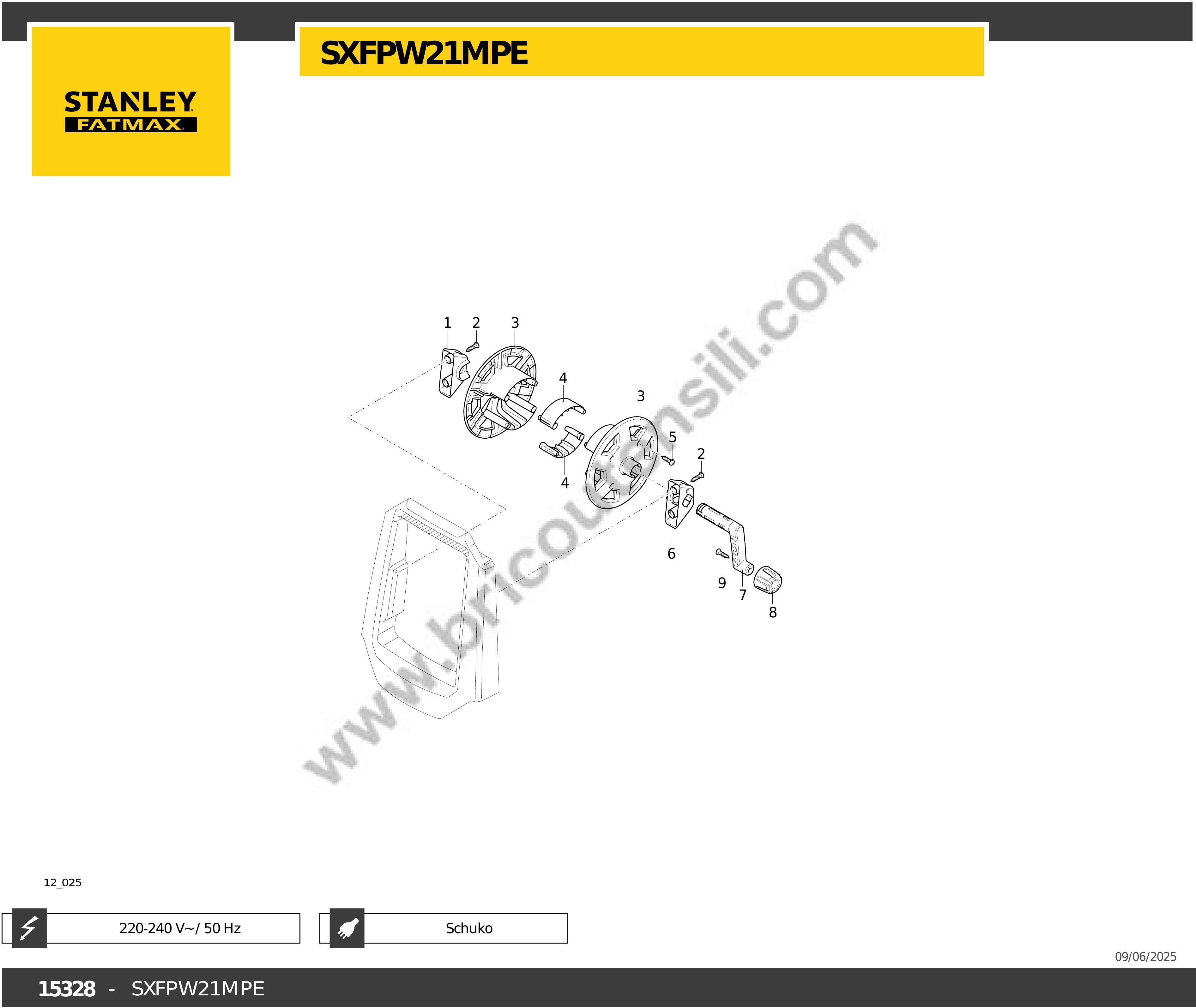

Hose Reel Pag.2
1 4380470 Bracket
2 50943 Screw
3 3080200 Plate
4 4380550 Shim
5 50943 Screw
6 4380460 Bracket
7 4380560 Lever
8 4380451 Knob
9 5460700 Screw

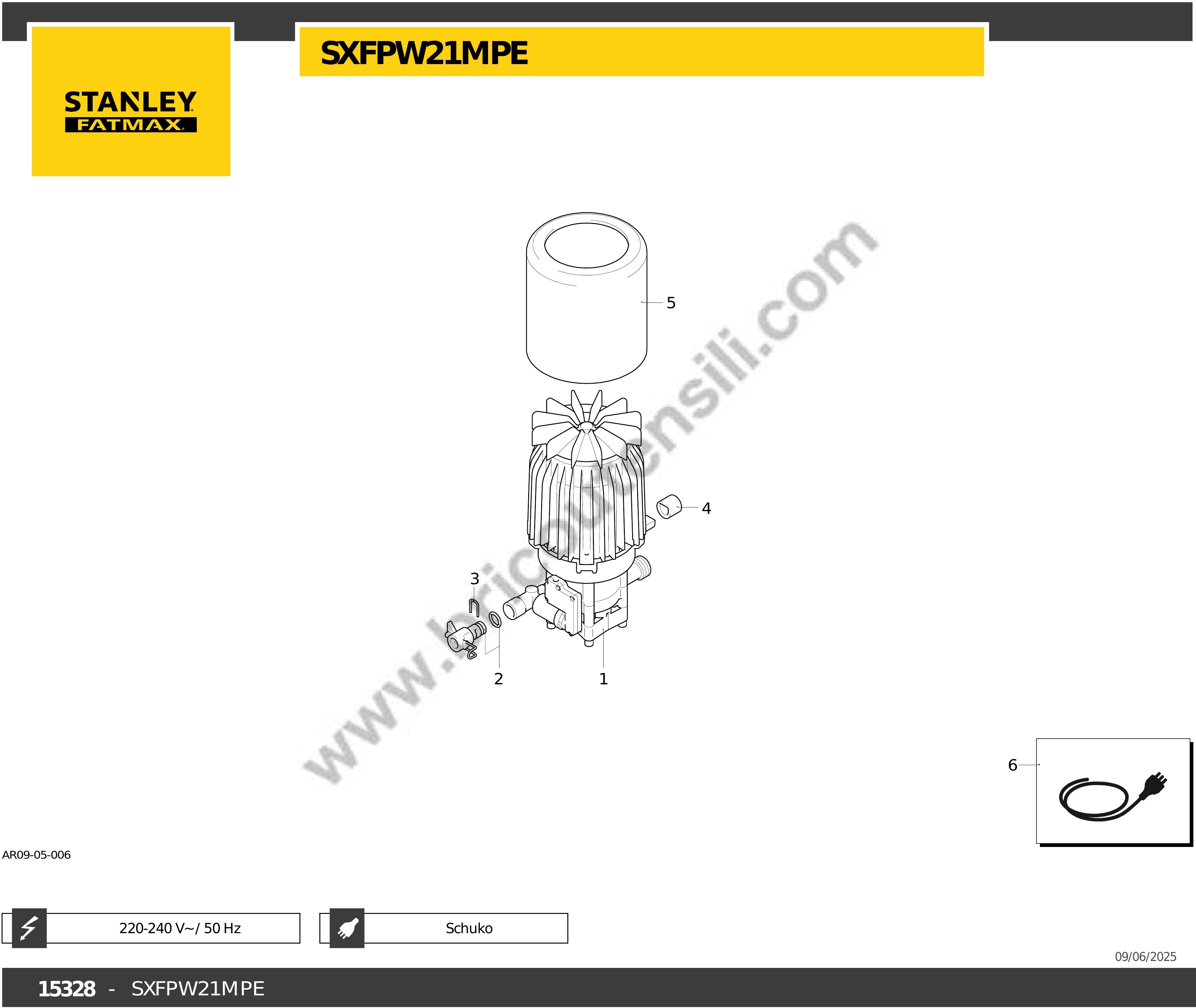

Electric pump Pag.3
1 4383010 Electric pump assembly
2 4382480 Fitting
3 3500090 Fork
4 4381890 Rubber foot
5 3440130 Fan cowling
6 3082090 Cable

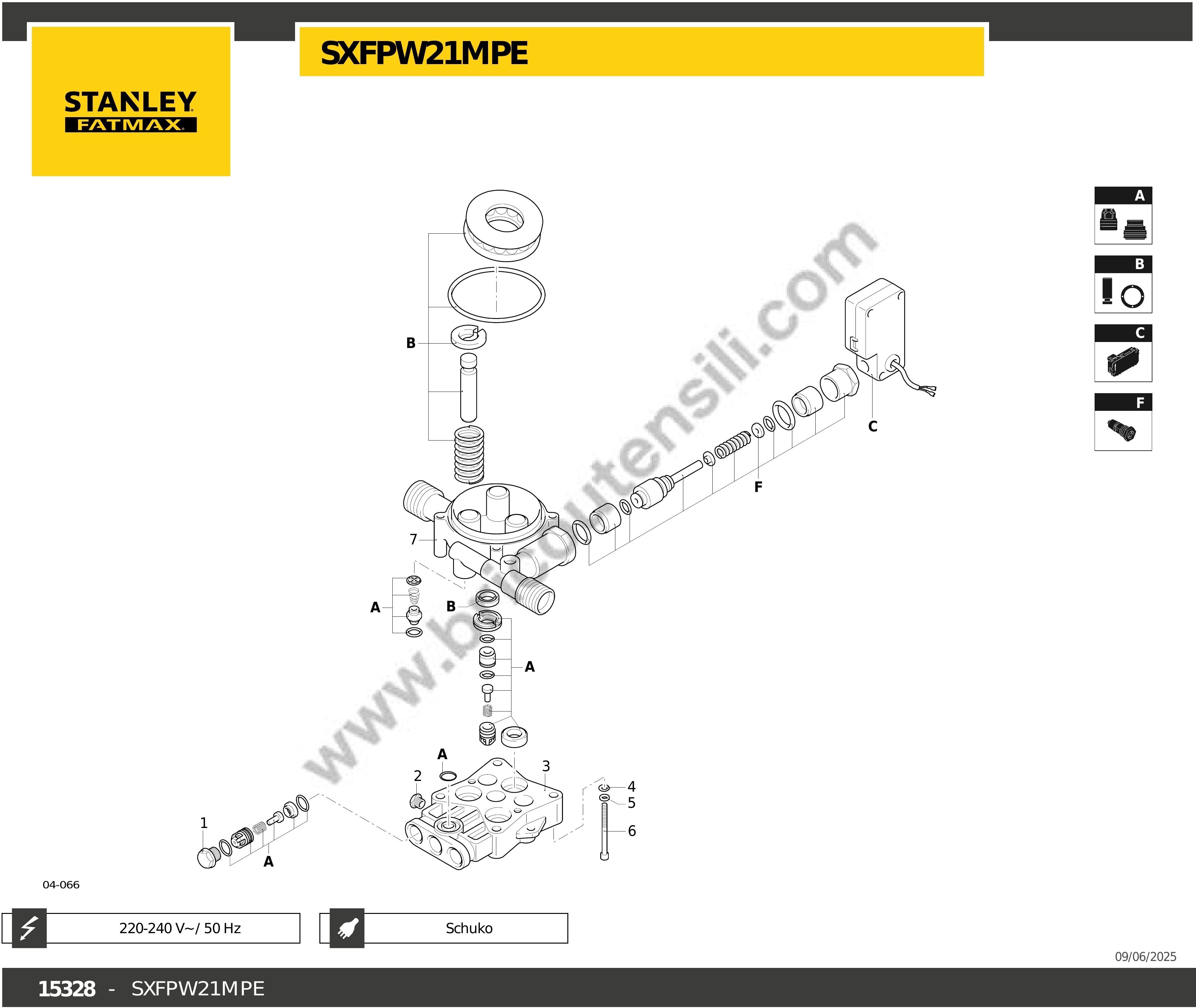

Pump Pag.4
1 3083210 Plug
2 3081730 Screw
3 3083220 Head
4 3081760 Washer
5 3081750 Washer
6 3081740 Screw
7 3083232 Pump body
A 3081290 Valves + seals kit
B 4383020 Piston + seals kit
C 4384430 TSS kit
F 4384310 Valve kit TSS

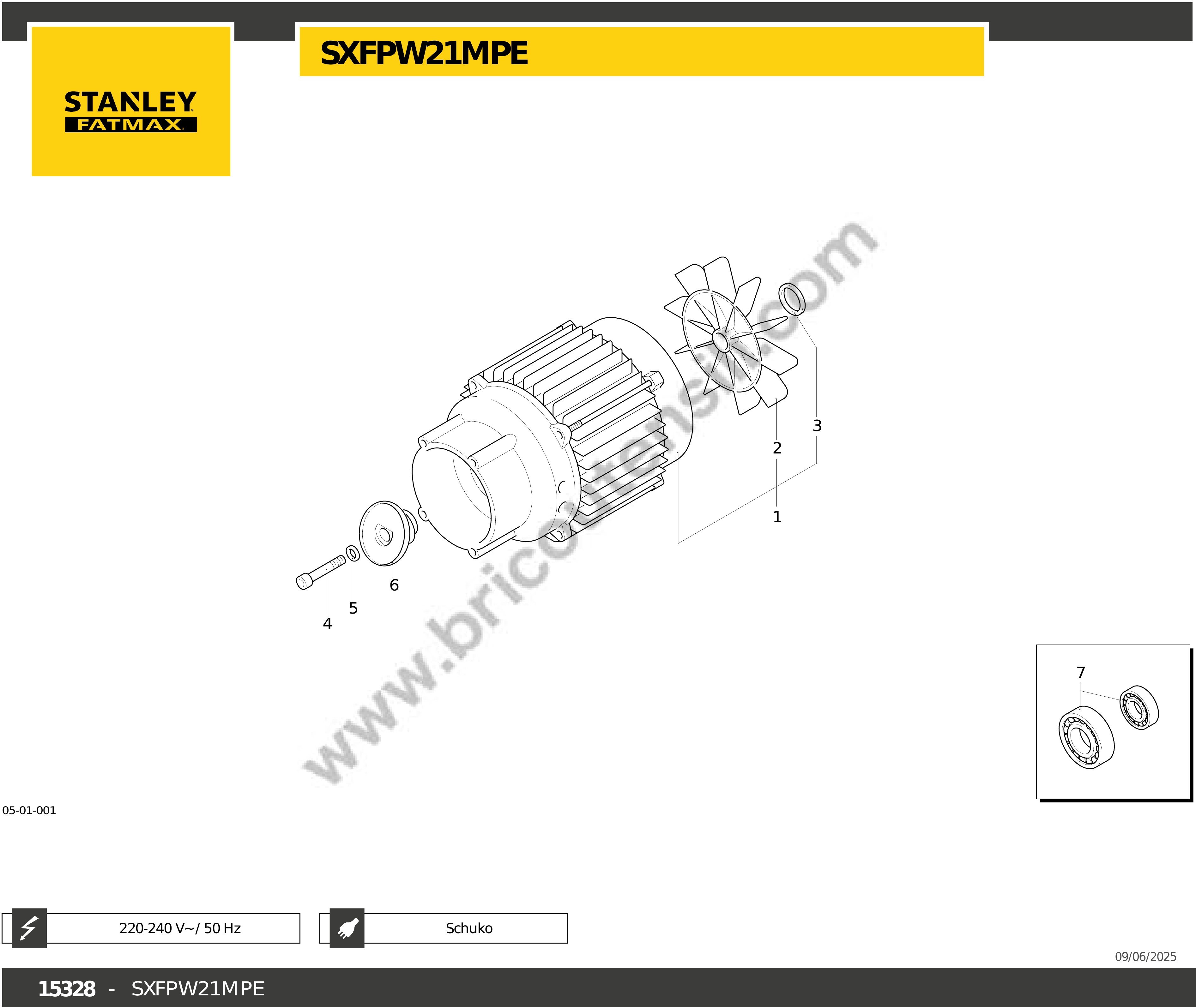

Motor Pag.5
1 4382130 Motor
2 5460680 Fan
3 3441000 Ring
4 3081950 Screw
5 3081750 Washer
6 4382090 Wobble plate
7 43056 Bearings kit

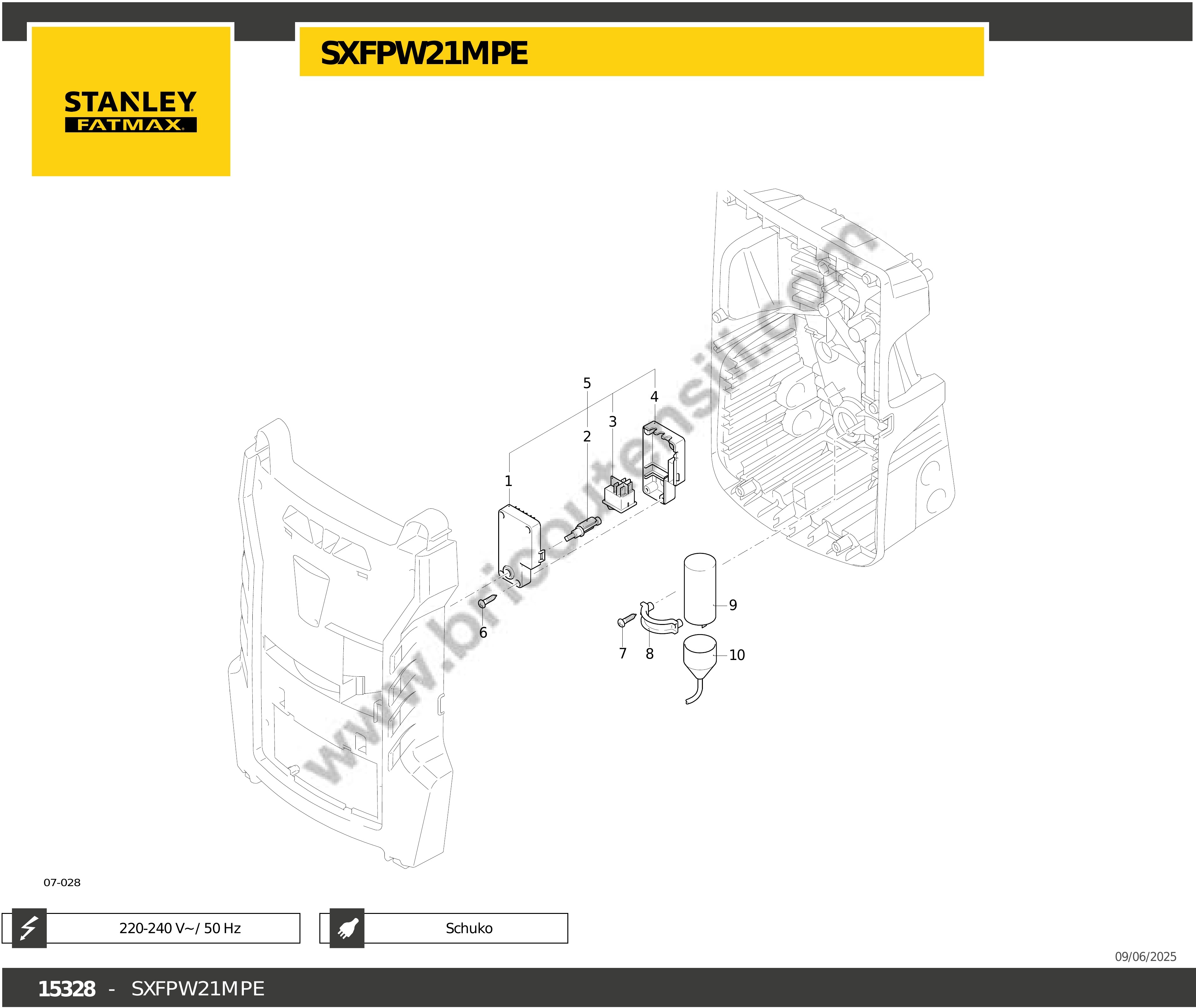

Electric circuit Pag.6
1 3086150 Cover
2 3086330 Pin
3 3081450 Switch
4 3086140 Box
5 4381740 Box
6 5480500 Screw
7 5480500 Screw
8 4101070 Bracket
9 3081620 Capacitor
10 4101080 Connector

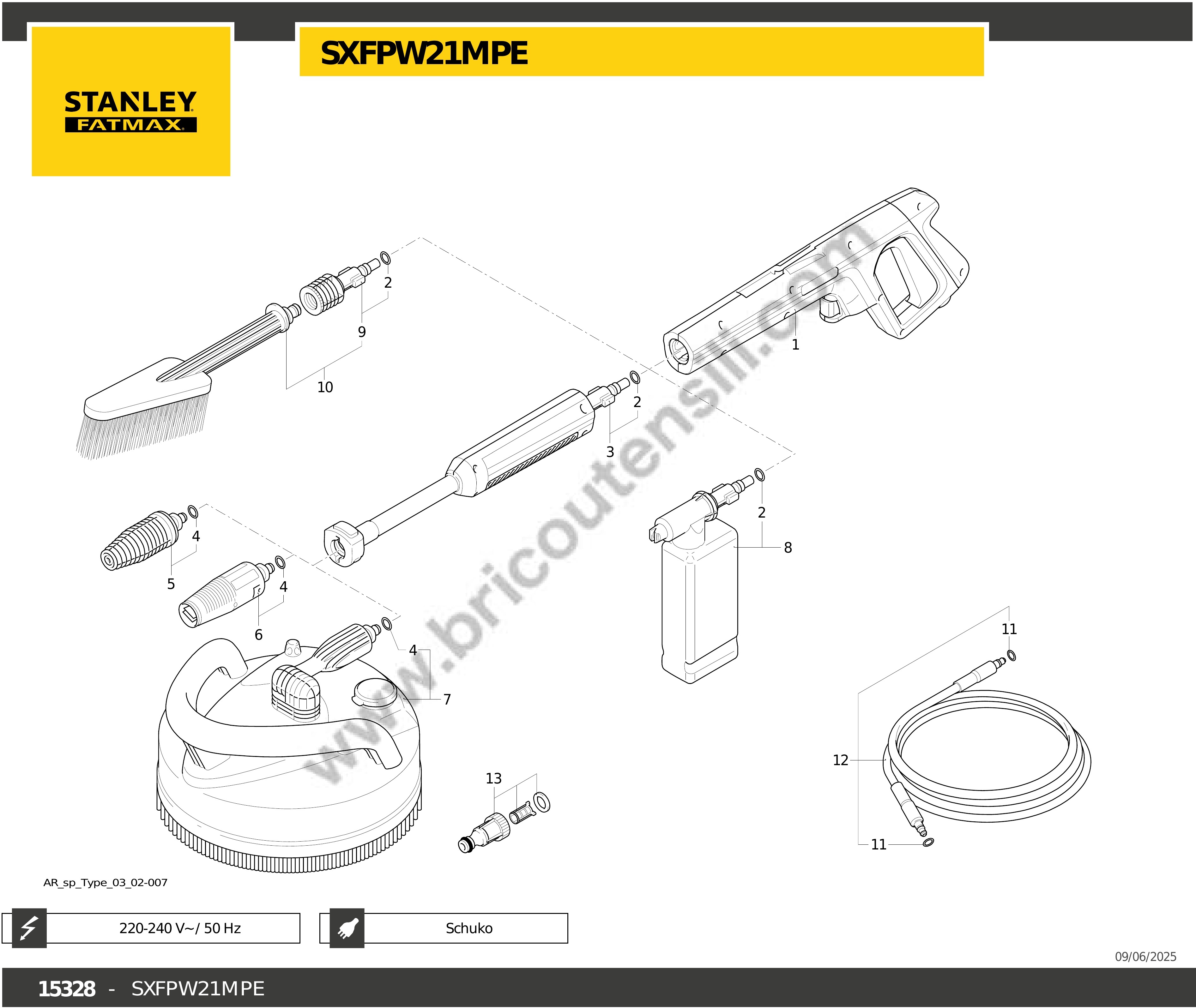

Standard accessories Pag.7
1 4381480 Gun
2 3083700 O-Ring
3 4381490 Extension (Lance)
4 3083370 O-ring
5 4101170 Lance head (Rotopower)
6 4100790 Lance head (Adjustable jet)
7 3084342 Patio Chem
8 4381500 Foam lance
9 40788 Adapter
10 40787 Fixed brush
11 3083400 O-Ring
12 4381510 High pressure hose     >I XXXXX-5221999912
12 4581030 High pressure hose I> XXXXX-0122000113
13 3082130 Water Connection Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stanley websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stanley brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stanley SXFPW21MPE - 15328
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Stanley SXFPW21MPE Parts Drawing

Stanley SXFPW21MPE Parts Drawing

Download (483.67KB)

You might also like

Annovi Reverberi S.p.A. SKU: 3082130
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 Kit for water inlet with impurities filter, original spare Annovi Reverberi for repair or replacement of damaged parts, for models Blue Clean AR395 - AR490 - AR588 -...
Last items in stock €4.95
Annovi Reverberi S.p.A. SKU: 3440370
Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 Cooling fan for electric pump, spare original Annovi & Reverberi for repair or replacement of damaged parts, for models Blue Clean AR395 - AR490 - AR588 - AR590 ....
Last items in stock €7.03
Annovi Reverberi S.p.A. SKU: 3081620
Capacitor for Pressure Washers Blue Clean AR395-490-588 Genuine replacement part  Annovi & Reverberi, Capacitor  for A&R Pressure Washers models  Blue Clean  AR395 - AR490 - AR588 . Part for the following Items: - Pressure...
Last items in stock €22.86
Annovi Reverberi S.p.A. SKU: 40788
Adaptor for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS Genuine part Annovi & Reverberi, Adaptor for pressure washers : Black & Decker BXPW 1300-1400-1500-1600-1700-1800-2000-2200 PE - PW 1400 K PLUS - PW 1500 S PLUS....
AVAILABLE €4.04
Annovi Reverberi S.p.A. SKU: 3083700
O-Ring for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring For the Following Products: - Black & Decker - BXPW 1300 E - 14107 - Black & Decker - BXPW 1300 PE - 14117 - Black & Decker - BXPW 1400 E -...
AVAILABLE €0.53
Annovi Reverberi S.p.A. SKU: 600180
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 7,66x1,78 For the Following Products: - Black & Decker - PW 1700 WB - 12344 - Black & Decker - PW 1700 WB - 2007...
AVAILABLE €0.38
Annovi Reverberi S.p.A. SKU: 3083380
O-Ring mm 10x2,5 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 10x2,5 Shor For the Following Products: - Black & Decker - BXPW 2100 E - 14116 - Black & Decker - BXPW 2100 PE...
AVAILABLE €0.46
Annovi Reverberi S.p.A. SKU: 4381480
Trigger Gun for Pressure Washer Stanley Genuine spare part Stanley, Trigger Gun for Pressure Washers SXPW14E - SXPW16E - SXPW18E - SXPW18PE - SXPW19E - SXPW19PE...
Usually Ships in: 7/10 Business Days Approx. €22.66
Annovi Reverberi S.p.A. SKU: 4101550
Lance Head for Pressure Washer Stanley SXPW22E Genuine spare part Stanley, Lance Head for Pressure Washers Stanley SXPW22E - SXPW22PE. Part for the following products: - Pressure...
Last items in stock €10.50
Annovi Reverberi S.p.A. SKU: 4381490
Gun Extension for Pressure Washer Stanley XPW14E Genuine parts Stanley, Gun Extension for Pressure Washers XPW14E - SXPW16E - SXPW18E - SXPW18PE - SXPW19E - SXPW19PE - SXPW20E Parts...
AVAILABLE €19.23
Annovi Reverberi S.p.A. SKU: 4580900
Suction Kit for Pressure Washer ARBC 4.0 Twin Flow Original Part Annovi Reverberi, Suction Kit for Pressure Washers Twin-Flow > 4.0 ARBC - 14792 - Stanley > SXPW25DTS-E - 14796 . Replacement for the...
Usually Ships in: 7/10 Business Days Approx. €14.05
Annovi Reverberi S.p.A. SKU: 3084342
Patio Deluxe Chem for Pressure Washer Stanley SXPW18PE Genuine spare part Stanley, Patio Deluxe Chem Yellow for Pressure Washers SXPW18PE - SXPW19PE - SXPW22PE. Part for the following products: -  Pressure Washer SXPW18PE - 14142 -...
Last items in stock €46.69
Annovi Reverberi S.p.A. SKU: 42580
TSS Retrofit kit for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, TSS Retrofit kit for Pressure Washers Annovi  Reverberi AR 4590 - Michelin MPX 150 HL. Parts For the Following Products: - ...
Last items in stock €24.00
Annovi Reverberi S.p.A. SKU: 4580050
AR Blue Clean 4.0 Twin Flow Switch Genuine part Annovi Reverberi, 3-Way Square Rotary Switch for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley SXPW25DTS-E 14796 -...
Last items in stock €23.19
Annovi Reverberi S.p.A. SKU: 4580970
AR Blue Clean 4.0 Twin Flow Electric Pump Ass'y Genuine part Annovi Reverberi, Electric Pump Assembly for Twin Flow Pressure Washers. Parts For the Following Products: - Annovi Reverberi 4.0 Twin Flow 14792 - Stanley...
Last items in stock €152.47
DeWalt Power Tools SKU: 3780450
DeWALT Spring Compression for Pressure Washer DXPW002E, Genuine replacement part DeWALT, Spring Compression De.6,5x12x0,5 for Pressure Washer DXPW002E- MPX 160 RG - DXPW001E - DXPW003E. Part for the following items: - DeWalt...
Last items in stock €2.64
Annovi Reverberi S.p.A. SKU: 4580590
Annovi Accessory Holder for Pressure Washer AR589 Genuine part Annovi Reverberi, Accessory Holder for Pressure Washer AR589 - AR 4.0 Twin Flow. Part for the Following Products: -  Pressure Washer Pressure Washer Annovi Reverberi...
Usually Ships in: 7/10 Business Days Approx. €7.72
Comments (0)
