Stanley Spare Parts for Pressure Washer SXPW20E

SKU: Stanley SXPW20E - 14131
€4.73
VAT included

Stanley Spare Parts for Pressure Washer SXPW20E

We supply original Stanley spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer SXPW20E - 14131.
Stanley Spare Parts for Pressure Washer SXPW20E
  • Stanley Spare Parts for Pressure Washer SXPW20E
  • Stanley Spare Parts for Pressure Washer SXPW20E
  • Stanley Spare Parts for Pressure Washer SXPW20E
Annovi Reverberi S.p.A.

Stanley Spare Parts for Pressure Washer SXPW20E

SKU: Stanley SXPW20E - 14131 Condition: New
€4.73
VAT included

Stanley Spare Parts for Pressure Washer SXPW20E

We supply original Stanley spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer SXPW20E - 14131.
settings 50 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts

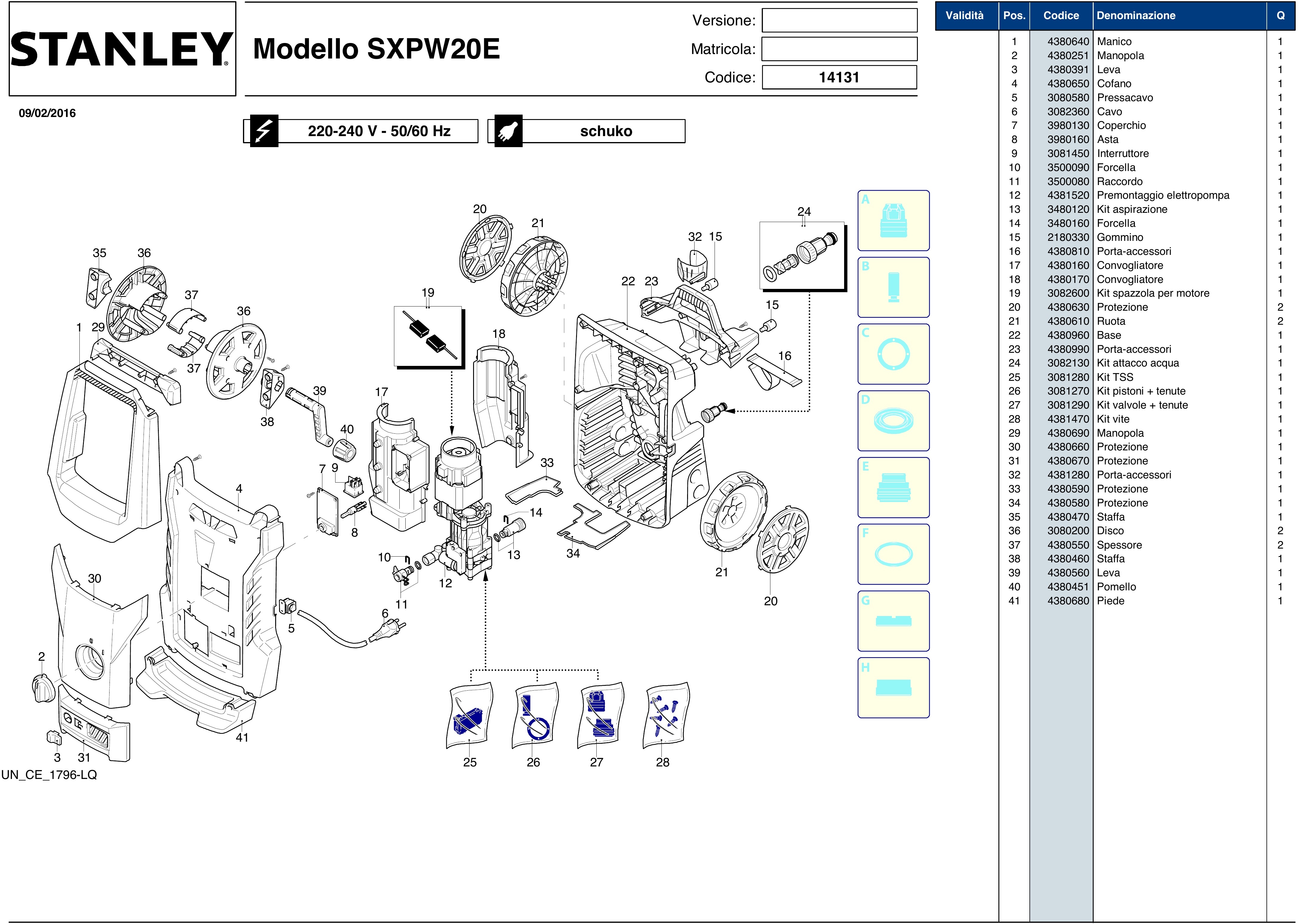

Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380640 HANDLE SA €17.80
2
 photo_cameraImage coming soon 4380251 KNOB €5.92
3
 photo_cameraImage coming soon 4380391 LEVER €5.57
4
 photo_cameraImage coming soon 4380650 CASING SA €23.34
5
 photo_cameraImage coming soon 3080580 cable clamp €1.37
6
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €20.62
7
 photo_cameraImage coming soon 3980130 Cover €1.85
8
 photo_cameraImage coming soon 3980160 Rod €0.83
9
 photo_cameraImage coming soon 3081450 Switch €9.11
10
 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B 3500090 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B €1.35
11
 photo_cameraImage coming soon 3500080 Junction €9.05
12
 photo_cameraImage coming soon 4381520 PRE ASSEMBLY PUMP €159.70
13
 Suction Kit for Pressure Washers Black&Decker PW 1400 3480120 Suction Kit for Pressure Washers Black&Decker PW 1400 €8.23
14
 Fork Lock High Pressure Hose for B&D PW 1500 3480160 Fork Lock High Pressure Hose for B&D PW 1500 €1.35
15
 photo_cameraImage coming soon 2180330 Rubber €3.86
16
 photo_cameraImage coming soon 4380810 HOOK SA €6.20
17
 photo_cameraImage coming soon 4380160 Conveyor €10.80
18
 photo_cameraImage coming soon 4380170 Conveyor €9.16
19
 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL 3082600 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL €8.95
20
 photo_cameraImage coming soon 4380630 GUARD €8.84
21
 photo_cameraImage coming soon 4380610 WHEEL €14.98
22
 photo_cameraImage coming soon 4380960 BASE SA €37.21
23
 photo_cameraImage coming soon 4380990 CARRIER SA €15.75
24
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
25
 Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS 3081280 Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS €11.50
26
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €17.80
27
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.08
28
 photo_cameraImage coming soon 4381470 Screw Kit €4.23
29
 photo_cameraImage coming soon 4380690 HANDLE €9.47
30
 photo_cameraImage coming soon 4380660 COVER €17.19
31
 photo_cameraImage coming soon 4380670 COVER €10.65
32
 photo_cameraImage coming soon 4381280 Accessory Cases €6.91
33
 photo_cameraImage coming soon 4380590 COVER €2.12
34
 photo_cameraImage coming soon 4380580 COVER €1.44
35
 photo_cameraImage coming soon 4380470 BRACKET €3.07
36
 photo_cameraImage coming soon 3080200 Plate €9.22
37
 photo_cameraImage coming soon 4380550 SHIM €2.12
38
 photo_cameraImage coming soon 4380460 BRACKET €3.07
39
 photo_cameraImage coming soon 4380560 LEVER €3.64
40
 photo_cameraImage coming soon 4380451 KNOB €5.92
41
 photo_cameraImage coming soon 4380680 FOOT €10.42

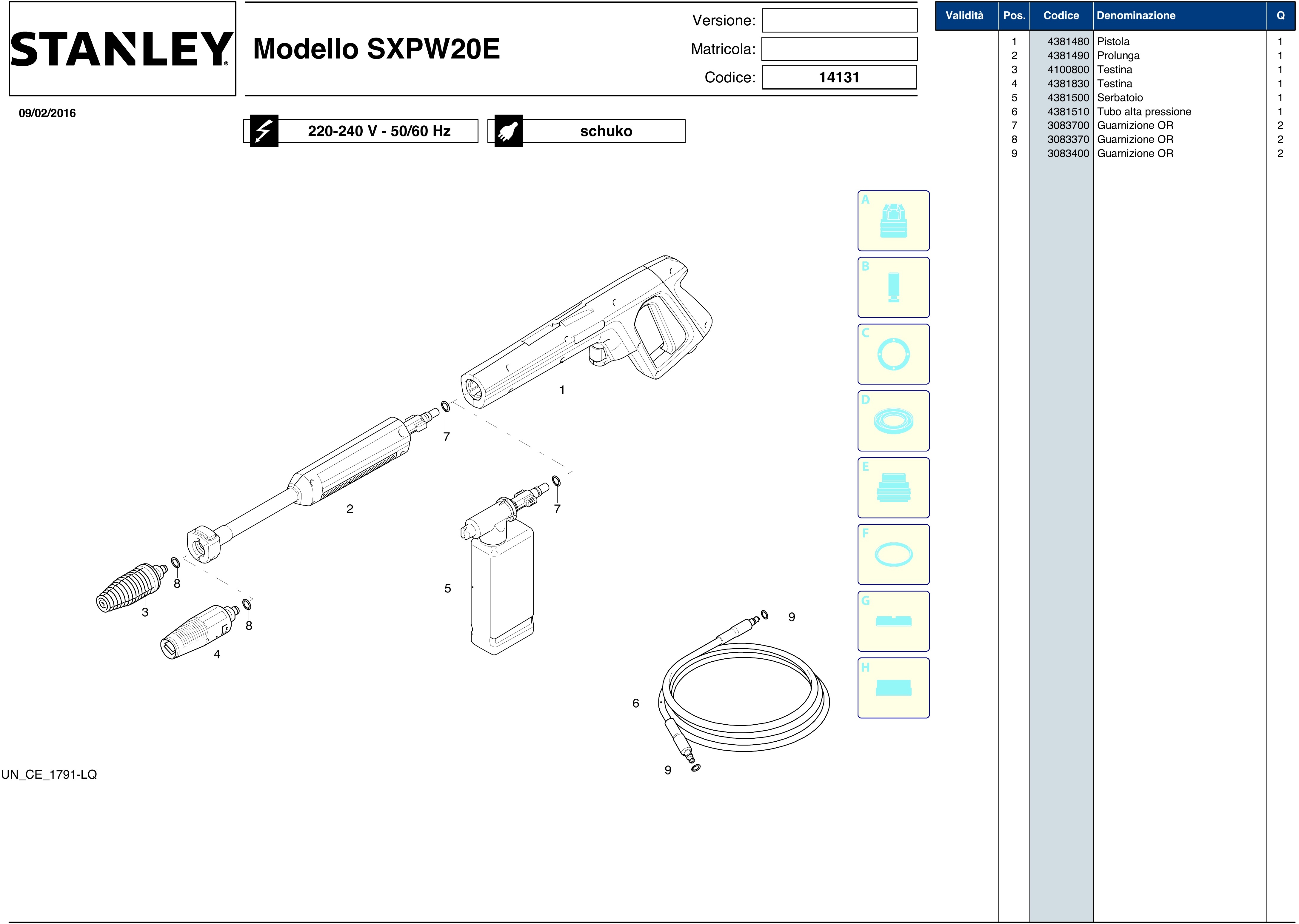

Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer Stanley 4381480 Trigger Gun for Pressure Washer Stanley €23.70
2
 Gun Extension for Pressure Washer Stanley XPW14E 4381490 Gun Extension for Pressure Washer Stanley XPW14E €19.23
3
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €12.53
4
 HEAD SA 4381830 HEAD SA €11.39
5
 Tank 4381500 Tank €5.26
6
 High Pressure Hose for Pressure Washer Stanley SXPW19E - PE 4381510 High Pressure Hose for Pressure Washer Stanley SXPW19E - PE €44.90
7
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.40
8
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.40
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.40

Shipping and delivery information will be available shortly.

Stanley Spare Parts for Pressure Washer SXPW20E

We supply original Stanley spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer SXPW20E - 14131.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Stanley SXPW20E - 14131

Casing SXPW20E - 14131 Pag.1
# Part Num. Description
1 4380640 HANDLE
2 4380251 KNOB
3 4380391 LEVER
4 4380650 CASING
5 3080580 GLAND
6 3082360 POWER CABLE
7 3980130 COVER
8 3980160 ROD
9 3081450 SWITCH
10 3500090 FORK
11 3500080 CONNENCTOR
12 4381520 PRE ASSEMBLY PUMP
13 3480120 SUCTION KIT
14 3480160 FORK
15 2180330 GROMMET
16 4380810 HOOK SA
17 4380160 CONVOYER
18 4380170 CONVOYER
19 3082600 KIT CARBON BRUSHES
20 4380630 PROTECTION
21 4380610 WHEEL
22 4380960 BASIS
23 4380990 HOOK SA
24 3082130 WATER CONNECTION KIT
25 3081280 KIT TSS
26 3081270 PISTON KIT + SEALS
27 3081290 PISTON KIT + SEALS
28 4381470 KIT SCREW
29 4380690 KNOB
30 4380660 PROTECTION
31 4380670 PROTECTION
32 4381280 HOOK SA
33 4380590 PROTECTION
34 4380580 PROTECTION
35 4380470 BRACKET
36 3080200 PLATE
37 4380550 SHIM
38 4380460 BRACKET
39 4380560 LEVER
40 4380451 KNOB
41 4380680 FOOT
Accessories SXPW20E - 14131 Pag.2
1 4381480 GUN
2 4381490 EXTENSION
3 4100800 HEAD SA
4 4381830 HEAD SA
5 4381500 TANK
6 4381510 HP HOSE
7 3083700 O-RING
8 3083370 O-RING
9 3083400 O-RING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stanley websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stanley brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stanley SXPW20E - 14131
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type
Pressure Washer

Specific References

New

Download

Diagram Stanley SXPW20E

Diagram Stanley SXPW20E

Download (334.53KB)
