Annovi Reverberi S.p.A.

Stanley Spare Parts for Pressure Washer SXPW19PE

SKU: Stanley SXPW19PE - 14145
€14.66
VAT included

Stanley Spare Parts for Pressure Washer SXPW19PE

We are STANLEY original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer SXPW19PE - 14145.
Stanley Spare Parts for Pressure Washer SXPW19PE
  • Stanley Spare Parts for Pressure Washer SXPW19PE
  • Stanley Spare Parts for Pressure Washer SXPW19PE
  • Stanley Spare Parts for Pressure Washer SXPW19PE
  • Stanley Spare Parts for Pressure Washer SXPW19PE
  • Stanley Spare Parts for Pressure Washer SXPW19PE
Annovi Reverberi S.p.A.

Stanley Spare Parts for Pressure Washer SXPW19PE

SKU: Stanley SXPW19PE - 14145 Condition: New
€14.66
VAT included

Stanley Spare Parts for Pressure Washer SXPW19PE

We are STANLEY original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer SXPW19PE - 14145.
settings 63 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4380640 HANDLE SA €21.58
2
 photo_cameraImage coming soon 4381361 KNOB €6.06
3
 photo_cameraImage coming soon 4380391 LEVER €5.57
4
 photo_cameraImage coming soon 4381320 COVER €26.94
5
 photo_cameraImage coming soon 3080580 cable clamp €2.88
6
 photo_cameraImage coming soon 3082090 Cable €23.72
7
 photo_cameraImage coming soon 4381740 SWITCHBOX €17.40
8
 photo_cameraImage coming soon 4381890 FOOT €9.05
9
 photo_cameraImage coming soon 4380800 GUARD €8.77
10
 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B 3500090 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B €1.35
11
 photo_cameraImage coming soon 4382200 KIT €22.07
12
 photo_cameraImage coming soon 4381550 PRE ASSEMBLY PUMP €240.36
13
 photo_cameraImage coming soon 3080200 Plate €9.92
14
 photo_cameraImage coming soon 4380470 BRACKET €8.48
15
 photo_cameraImage coming soon 2180330 Rubber €4.96
16
 photo_cameraImage coming soon 4380810 HOOK SA €6.20
17
 photo_cameraImage coming soon 3440130 Fan Cover €12.32
18
 Capacitor for Pressure Washers Blue Clean AR395-490-588 3081620 Capacitor for Pressure Washers Blue Clean AR395-490-588 €22.86
19
 photo_cameraImage coming soon 4101080 Connector €5.92
20
 photo_cameraImage coming soon 4380630 GUARD €8.84
21
 photo_cameraImage coming soon 4380610 WHEEL €14.98
22
 photo_cameraImage coming soon 4380960 BASE SA €37.21
23
 photo_cameraImage coming soon 4380990 CARRIER SA €15.75
24
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
25
 photo_cameraImage coming soon 4101070 Bracket €5.15
26
 photo_cameraImage coming soon 4380680 FOOT €14.41
27
 photo_cameraImage coming soon 4380451 KNOB €5.92
28
 photo_cameraImage coming soon 4382180 SCREW KIT €12.74
29
 photo_cameraImage coming soon 4380690 HANDLE €9.47
30
 photo_cameraImage coming soon 4381330 GUARD €17.82
31
 photo_cameraImage coming soon 4381340 GUARD €11.07
32
 photo_cameraImage coming soon 4381280 Accessory Cases €6.91
33
 photo_cameraImage coming soon 4380560 LEVER €8.00
34
 photo_cameraImage coming soon 4380460 BRACKET €7.45
35
 photo_cameraImage coming soon 4380550 SHIM €8.54
36
 photo_cameraImage coming soon 4381880 GUARD €9.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3083210 Cork €7.45
2
 photo_cameraImage coming soon 3081730 Vine €4.88
3
 photo_cameraImage coming soon 3083220 Head €31.25
5
 photo_cameraImage coming soon 3081750 washer €4.22
6
 photo_cameraImage coming soon 3081740 Vine €1.99
7
 Pump Body for Pressure Washers AR BC 395 - 490 - 491 3083230 Pump Body for Pressure Washers AR BC 395 - 490 - 491 €17.94
8
 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 3440560 Kit Total-Stop PyStop Automatic for Pressure Washers AR490 €21.53
9
 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 3440570 Kit Pistons for Pressure Washers Annovi & Reverberi AR395-AR490 €17.00
10
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
2
 photo_cameraImage coming soon 3081950 screw €1.89
3
 photo_cameraImage coming soon 4382080 PLATE €12.18
4
 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 3440370 Fan Motor for Pressure Washers Blue Clean AR395-490-588-590 €7.03
5
 photo_cameraImage coming soon 3441000 ring €2.09
6
 photo_cameraImage coming soon 4382120 MOTOR 220/240 €193.72
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer Stanley 4381480 Trigger Gun for Pressure Washer Stanley €22.66
2
 Gun Extension for Pressure Washer Stanley XPW14E 4381490 Gun Extension for Pressure Washer Stanley XPW14E €19.23
3
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.57
4
 photo_cameraImage coming soon 4381810 HEAD SA €16.08
5
 photo_cameraImage coming soon 4381500 Tank €9.46
6
 High Pressure Hose for Pressure Washer Stanley SXPW19E - PE 4381510 High Pressure Hose for Pressure Washer Stanley SXPW19E - PE €44.90
7
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
8
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53
10
 Adaptor for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS 40788 Adaptor for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS €4.04
11
 photo_cameraImage coming soon 40787 Fixed Brush €15.99
12
 Patio Deluxe Chem for Pressure Washer Stanley SXPW18PE 3084342 Patio Deluxe Chem for Pressure Washer Stanley SXPW18PE €46.69

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Stanley Spare Parts for Pressure Washer SXPW19PE

We are STANLEY original spare parts and Accessories Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer SXPW19PE - 14145.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Stanley SXPW19PE - 14145

Pressure Washer SXPW19PE - 14145

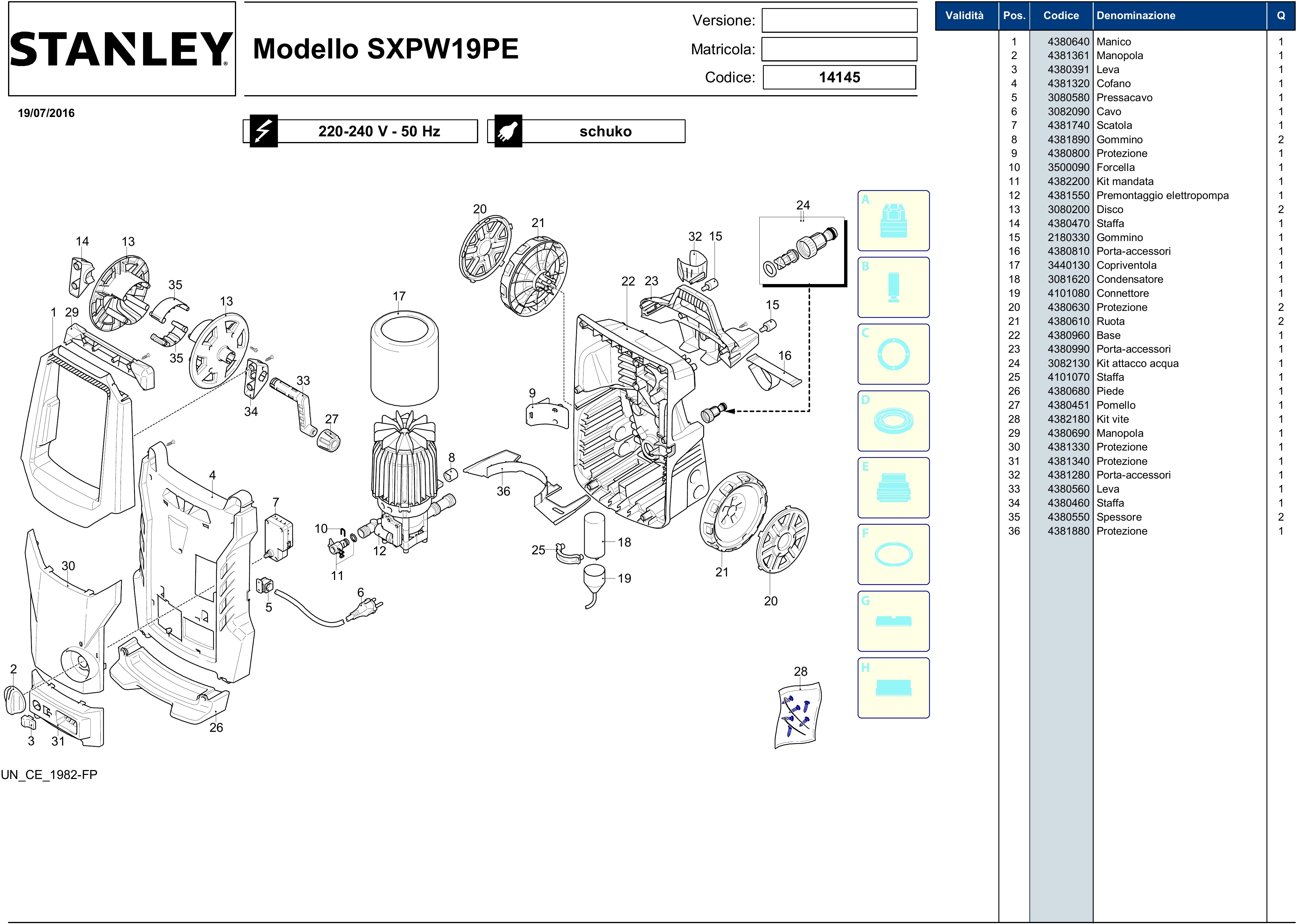

Casing SXPW19PE - 14145 Pag.1
# Part Num. Description
1 4380640 HANDLE SA
2 4381361 KNOB
3 4380391 LEVER
4 4381320 COVER
5 3080580 GLAND
6 3082090 POWER CABLE
7 4381740 SWITCHBOX
8 4381890 FOOT
9 4380800 GUARD
10 3500090 FORK
11 4382200 DELIVERY KIT
12 4381550 PRE ASSEMBLY PUMP
13 3080200 PLATE
14 4380470 BRACKET
15 2180330 FOOT
16 4380810 HOOK SA
17 3440130 FAN COVER
18 3081620 CAPACITOR
19 4101080 CONNECTOR
20 4380630 GUARD
21 4380610 WHEEL
22 4380960 BASE SA
23 4380990 CARRIER SA
24 3082130 COUPLING SA
25 4101070 BRACKET
26 4380680 FOOT
27 4380451 KNOB
28 4382180 SCREW KIT
29 4380690 HANDLE
30 4381330 GUARD
31 4381340 GUARD
32 4381280 CLIP SA
33 4380560 LEVER
34 4380460 BRACKET
35 4380550 SHIM
36 4381880 GUARD

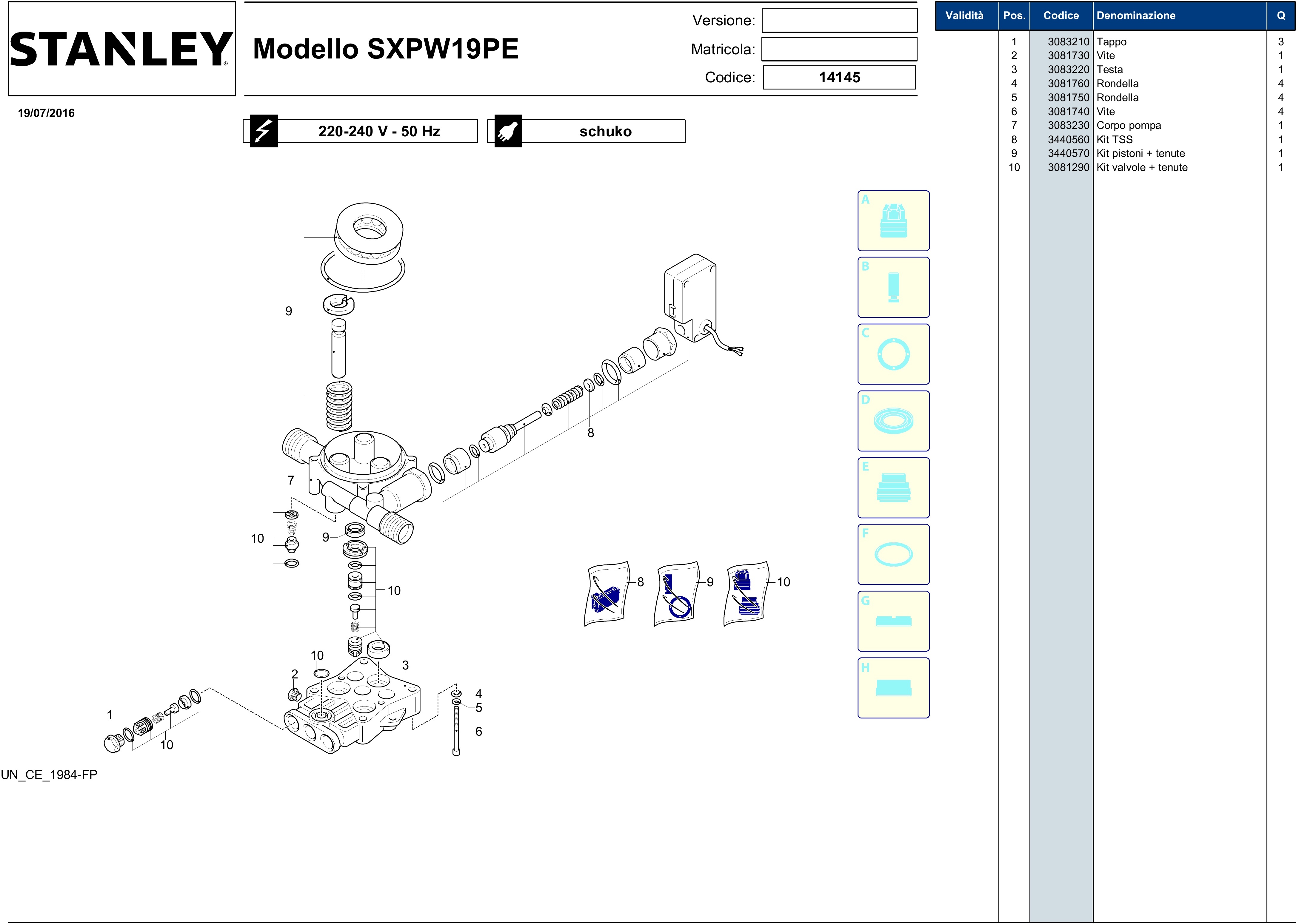

Pump SXPW19PE - 14145 Pag.2
1 3083210 PLUG
2 3081730 SCREW
3 3083220 HEAD SA
4 3081760 WASHER
5 3081750 WASHER
6 3081740 SCREW
7 3083230 PUMP BODY
8 3440560 KIT TSS
9 3440570 PISTONS & SEALS KIT
10 3081290 VALVES & SEALS KIT

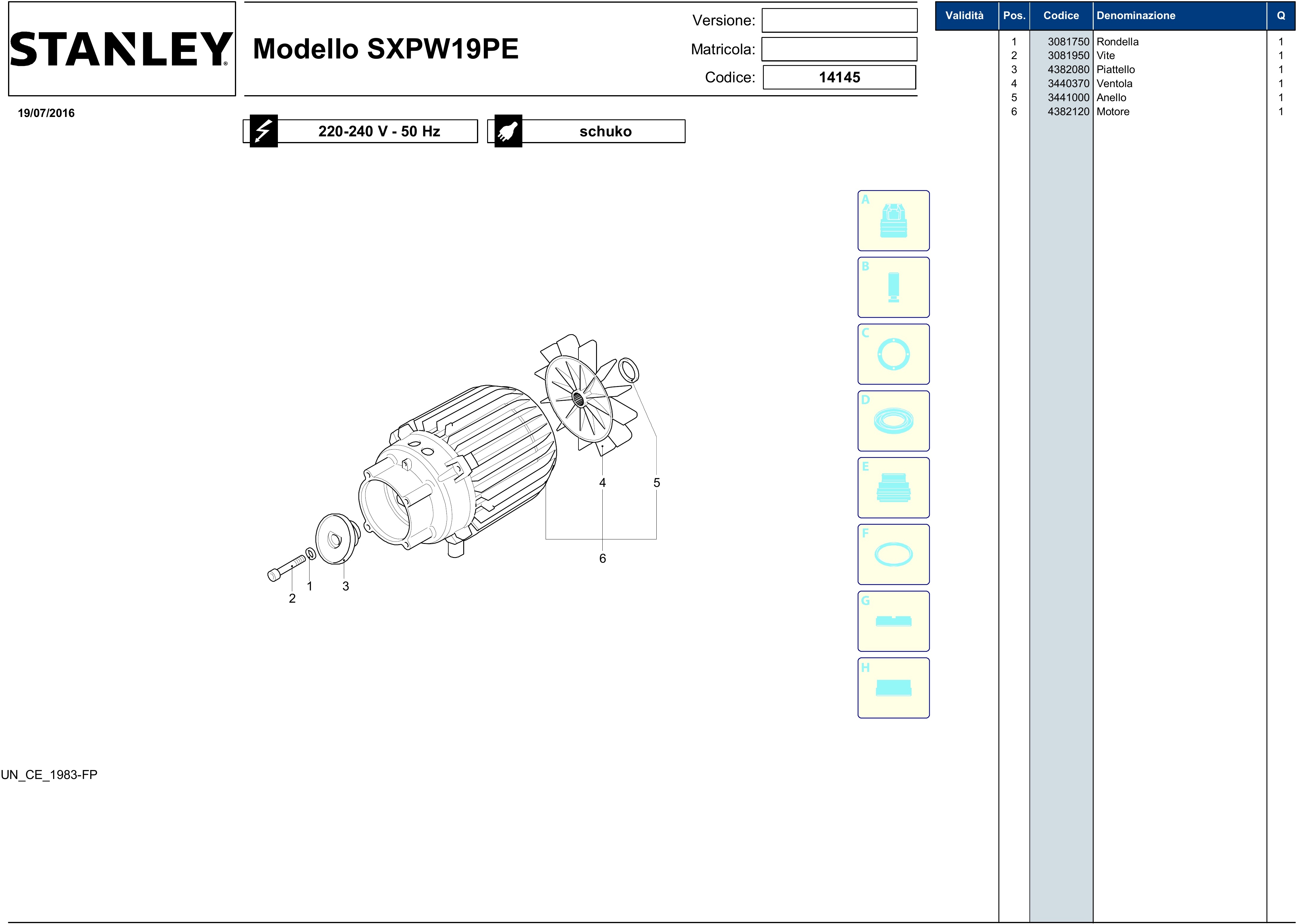

Motor SXPW19PE - 14145 Pag.3
1 3081750 WASHER
2 3081950 SCREW
3 4382080 PLATE
4 3440370 FAN
5 3441000 RING
6 4382120 MOTOR 220/240

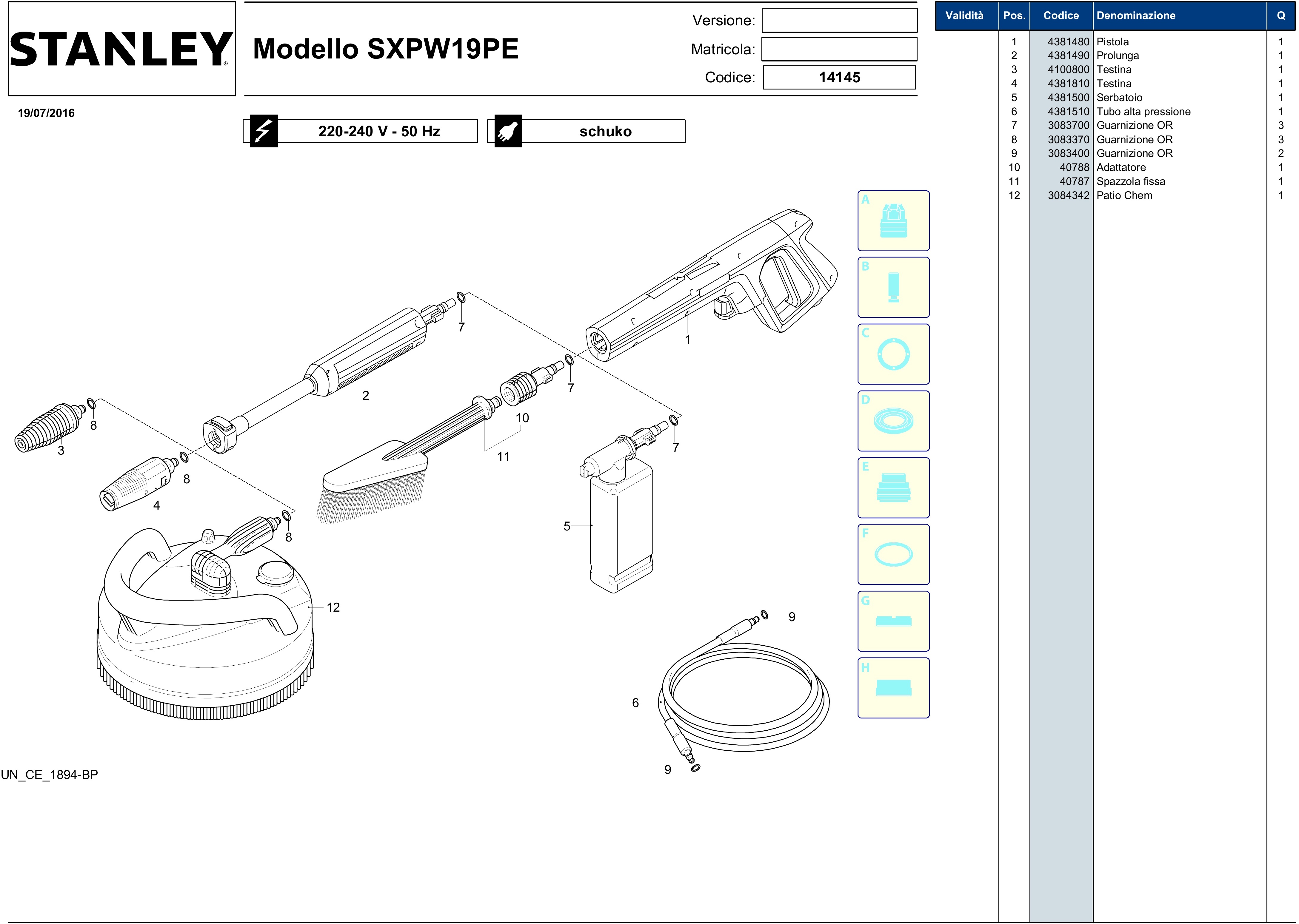

Accessories SXPW19PE - 14145 Pag.4
1 4381480 HANDLE SA
2 4381490 EXTENSION
3 4100800 HEAD SA
4 4381810 HEAD SA
5 4381500 TANK
6 4381510 HOSE SA
7 3083700 O RING
8 3083370 O RING
9 3083400 O RING
10 40788 ADAPTOR
11 40787 BRUSH SA
12 3084342 PATIO CHEM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stanley websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stanley brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
