SKIL B.V

Skil Spare Parts for Rotary Hammer 1766

SKU: Skil 1766 - F015176601
€31.07
VAT included

Skil Spare Parts for Rotary Hammer 1766

Skil original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Rotary Hammer 1766 - F015176601.

Rotary Hammer 1766 - F015176601
Skil Spare Parts for Rotary Hammer 1766
  • Skil Spare Parts for Rotary Hammer 1766
  • Skil Spare Parts for Rotary Hammer 1766 - Drawing
  • Skil Spare Parts for Rotary Hammer 1766 - Drawing 1
SKIL B.V

Skil Spare Parts for Rotary Hammer 1766

SKU: Skil 1766 - F015176601 Condition: New
€31.07
VAT included

Skil Spare Parts for Rotary Hammer 1766

Skil original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Rotary Hammer 1766 - F015176601.

Rotary Hammer 1766 - F015176601
settings 32 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
32 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

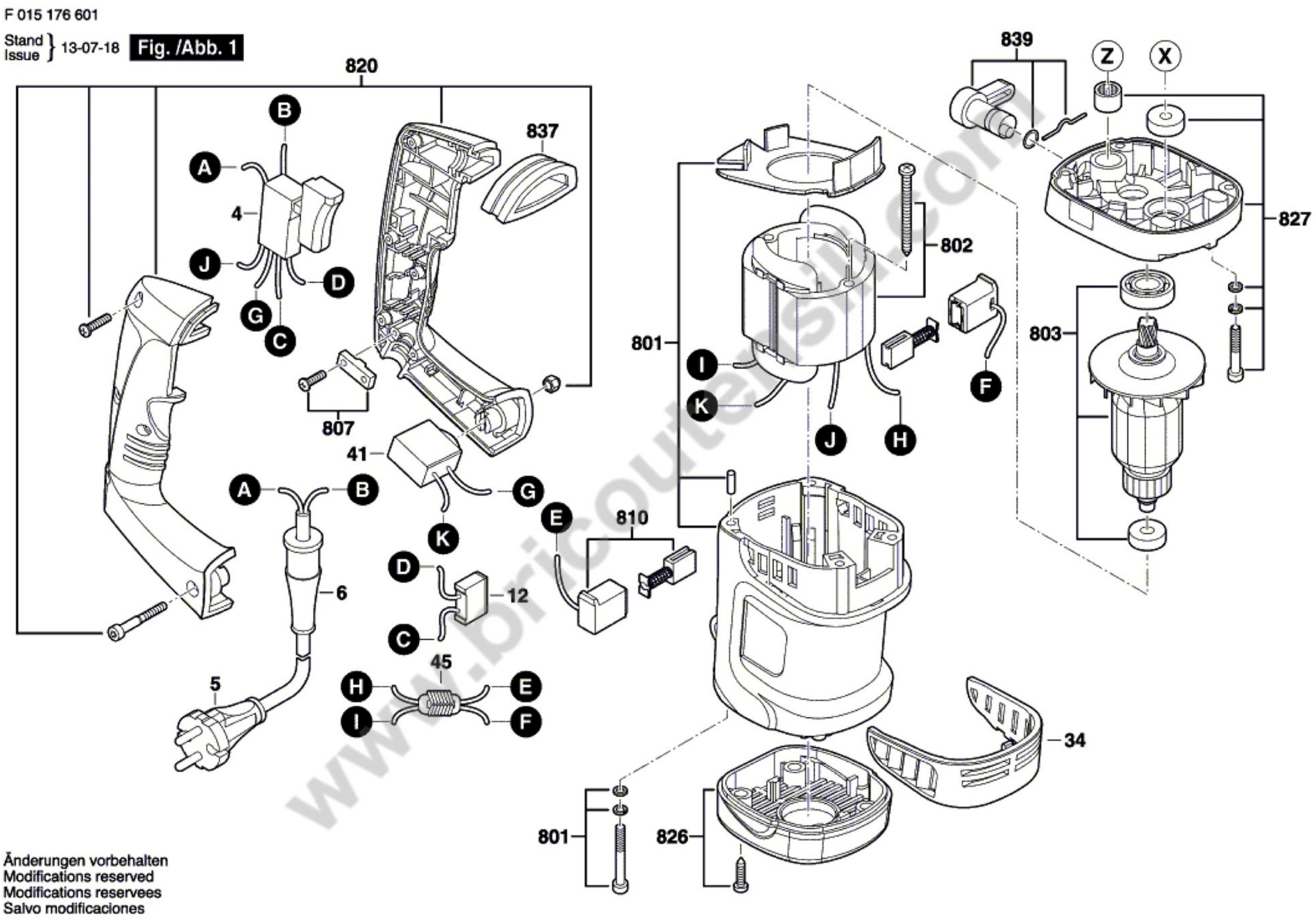

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 Skil 1766 Rotary Hammer ON-OFF Switch 2610Z05785 Skil 1766 Rotary Hammer ON-OFF Switch €15.46
5
 photo_cameraImage coming soon 1604460403 Power supply cord CH 230V 4,15m 2 x 1,0mm H05 RN-F €16.53
5
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
5
 photo_cameraImage coming soon 2604460222 Power supply cord GB 230V 4,15m 2 x 1,0mm H05 RN-F €18.56
12
 photo_cameraImage coming soon 2610Z05784 Suppression Capacitor €1.66
35
 photo_cameraImage coming soon 2610Z05698 Bushing €2.30
41
 photo_cameraImage coming soon 2610Z05701 Electronic Speed Switch €21.53
44
 photo_cameraImage coming soon 2610Z05689 Gear Housing €27.75
45
 photo_cameraImage coming soon 2610Z05809 Inductor €2.77
801
 photo_cameraImage coming soon 2610Z05696 Motor Housing €31.89
802
 photo_cameraImage coming soon 2610Z05700 Field €72.88
803
 photo_cameraImage coming soon 2610Z05688 Armature €98.21
810
 Carbon Brushe Set for Rotary Hammer Skil 1766 2610Z05687 Carbon Brushe Set for Rotary Hammer Skil 1766 €10.92
820
 photo_cameraImage coming soon 2610Z05679 Handle €18.77
821
 photo_cameraImage coming soon 2610Z05681 Piston Assembly €11.63
822
 photo_cameraImage coming soon 2610Z05682 Striker €7.49
823
 photo_cameraImage coming soon 2610Z05683 Striker €7.49
824
 Skil 1766 Rotary Knob 2610Z05684 Skil 1766 Rotary Knob €6.07
825
 photo_cameraImage coming soon 2610Z05685 Gear Unit €18.77
826
 photo_cameraImage coming soon 2610Z05686 Housing Cover €4.15
827
 photo_cameraImage coming soon 2610Z05807 Bearing Plate €16.58
828
 Skil 1766 Rotary Hammer Bit Holder 2610Z05690 Skil 1766 Rotary Hammer Bit Holder €14.74
829
 photo_cameraImage coming soon 2610Z05691 Bevel Gear - on request - €13.24
830
 photo_cameraImage coming soon 2610Z05692 Crank Assembly €21.53
831
 Skil Rotary Hammer 1766 Gear Knob 2610Z05693 Skil Rotary Hammer 1766 Gear Knob €6.07
832
 photo_cameraImage coming soon 2610Z05694 Vibration Damper €3.34
833
 photo_cameraImage coming soon 2610Z05695 Bearing set €9.67
837
 photo_cameraImage coming soon 2610Z05702 Rubber damper €2.30
839
 photo_cameraImage coming soon 2610Z05704 Knob €3.34
840
 photo_cameraImage coming soon 2610Z05705 Drive Shaft €35.58
843
 photo_cameraImage coming soon 2610Z05808 Cylinder housing €16.58
850
 photo_cameraImage coming soon 2610Z05680 Auxiliary Handle €16.58
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

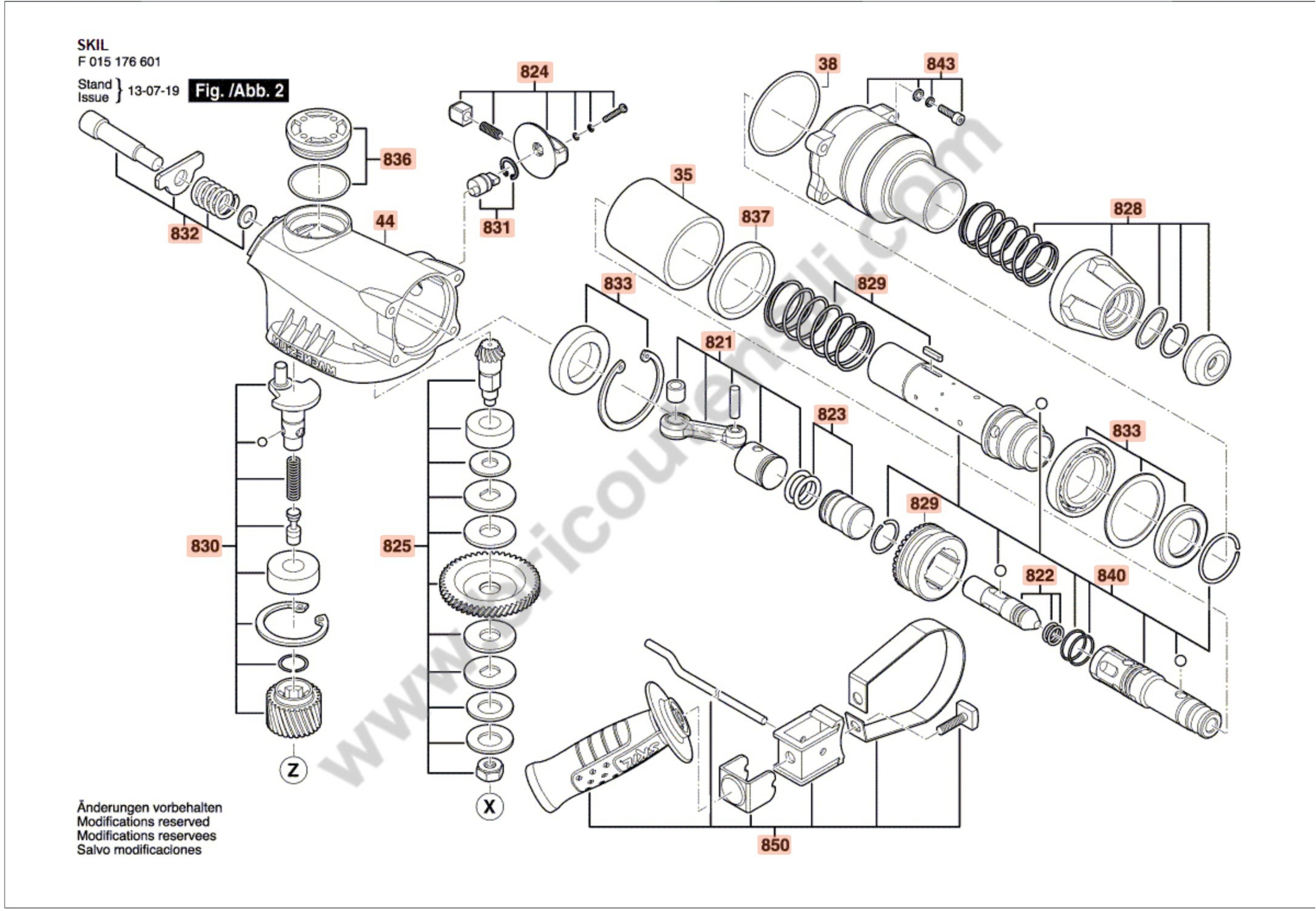

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
35
 photo_cameraImage coming soon 2610Z05698 Bushing €2.30
44
 photo_cameraImage coming soon 2610Z05689 Gear Housing €27.75
821
 photo_cameraImage coming soon 2610Z05681 Piston Assembly €11.63
822
 photo_cameraImage coming soon 2610Z05682 Striker €7.49
823
 photo_cameraImage coming soon 2610Z05683 Striker €7.49
824
 Skil 1766 Rotary Knob 2610Z05684 Skil 1766 Rotary Knob €6.07
825
 photo_cameraImage coming soon 2610Z05685 Gear Unit €18.77
828
 Skil 1766 Rotary Hammer Bit Holder 2610Z05690 Skil 1766 Rotary Hammer Bit Holder €14.74
829
 photo_cameraImage coming soon 2610Z05691 Bevel Gear - on request - €13.24
830
 photo_cameraImage coming soon 2610Z05692 Crank Assembly €21.53
831
 Skil Rotary Hammer 1766 Gear Knob 2610Z05693 Skil Rotary Hammer 1766 Gear Knob €6.07
832
 photo_cameraImage coming soon 2610Z05694 Vibration Damper €3.34
833
 photo_cameraImage coming soon 2610Z05695 Bearing set €9.67
840
 photo_cameraImage coming soon 2610Z05705 Drive Shaft €35.58
843
 photo_cameraImage coming soon 2610Z05808 Cylinder housing €16.58
850
 photo_cameraImage coming soon 2610Z05680 Auxiliary Handle €16.58

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Spare Parts for Rotary Hammer 1766

Skil original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Rotary Hammer 1766 - F015176601.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Skil 1766 - F015176601
Rotary Hammer 1766/F 015 176 601
# Part Num. Description
4 2610Z05785 On-Off Switch
5 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
5 1604460403 Power supply cord CH 230V 4,15m 2 x 1,0mm H05 RN-F
5 2604460222 Power supply cord GB 230V 4,15m 2 x 1,0mm H05 RN-F
6 2610Z05703 Grommet
12 2610Z05784 Suppression Capacitor
34 2610Z05697 Cover
35 2610Z05698 Bushing
38 2610Z05706 O-Ring
41 2610Z05701 Electronic Speed Switch
44 2610Z05689 Gear Housing
45 2610Z05809 Inductor
801 2610Z05696 Motor Housing
802 2610Z05700 Field
803 2610Z05688 Armature
807 2610Z05708 Cable Clip
810 2610Z05687 Carbon-Brush Set
820 2610Z05679 Handle
821 2610Z05681 Piston Assembly
822 2610Z05682 Striker
823 2610Z05683 Striker
824 2610Z05684 Rotary Knob
825 2610Z05685 Gear Unit
826 2610Z05686 Housing Cover
827 2610Z05807 Bearing Plate
828 2610Z05690 Bit holder
829 2610Z05691 Bevel Gear - on request -
830 2610Z05692 Crank Assembly
831 2610Z05693 Gear Knob
832 2610Z05694 Vibration Damper
833 2610Z05695 Bearing set
836 2610Z05699 Cover
837 2610Z05702 Rubber damper
839 2610Z05704 Knob
840 2610Z05705 Drive Shaft
843 2610Z05808 Cylinder housing
850 2610Z05680 Auxiliary Handle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Skil 1766 - F015176601
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Skil Rotary Hammer 1766 Drawing

Skil Rotary Hammer 1766 Drawing

Download (869.6KB)
