SKIL B.V

Skil Spare Parts for Rotary Hammer 1760

SKU: Skil 1760 - F015176001
€8.51
VAT included

Skil Spare Parts for Rotary Hammer 1760

SKIL Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer 1760 - F015176001.
Rotary Hammer 1760 - F015176001
Skil Spare Parts for Rotary Hammer 1760
  • Online only
  • Skil Spare Parts for Rotary Hammer 1760
  • Skil Spare Parts for Rotary Hammer 1760
SKIL B.V

Skil Spare Parts for Rotary Hammer 1760

SKU: Skil 1760 - F015176001 Condition: New
€8.51
VAT included

Skil Spare Parts for Rotary Hammer 1760

SKIL Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer 1760 - F015176001.
Rotary Hammer 1760 - F015176001
settings 9 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
9 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

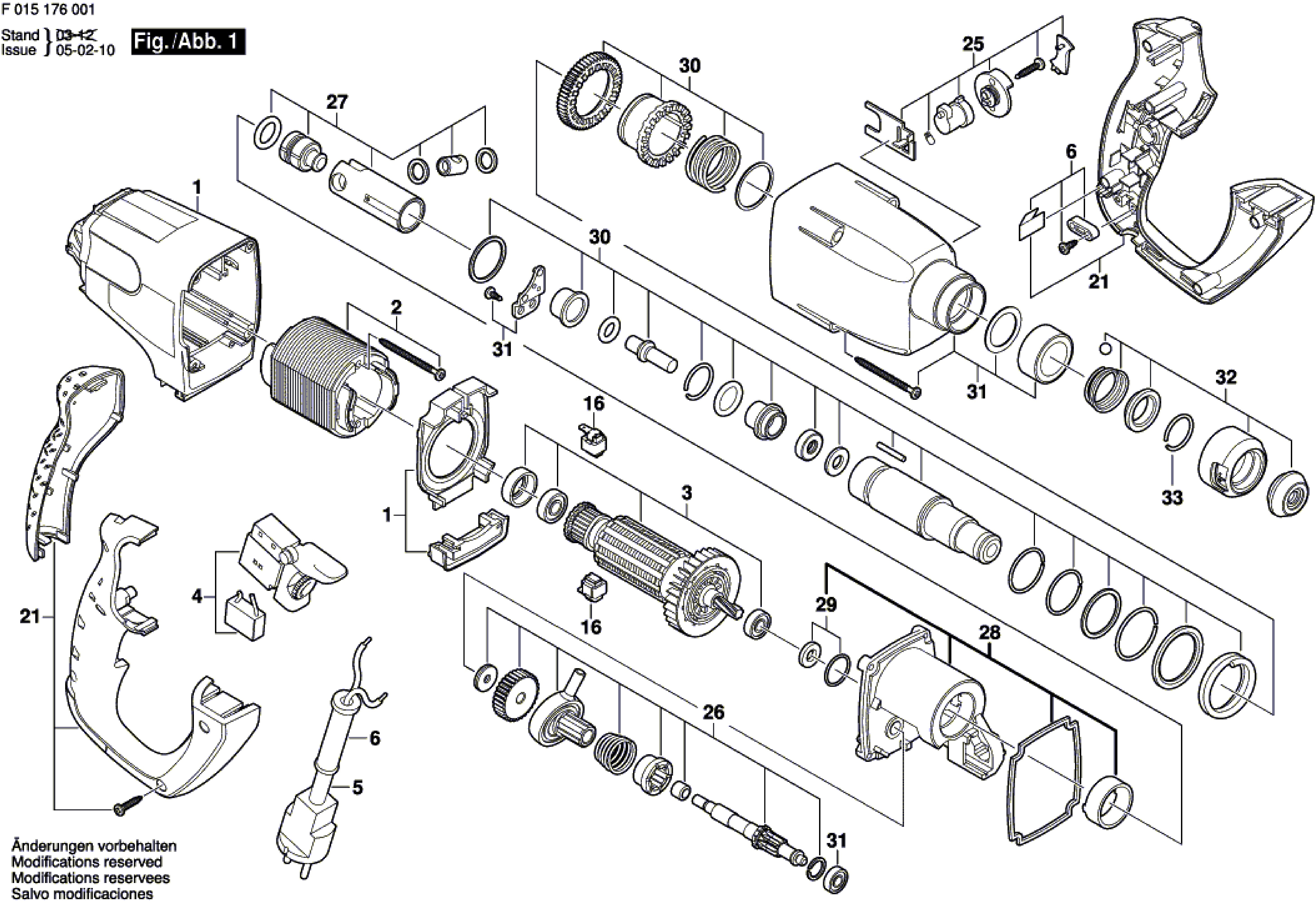

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2610393215 Pole Shoe 230-240V €31.95
5
 photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
6
 photo_cameraImage coming soon 2610393213 Parts Set €1.66
16
 Carbon Brushe Set for Rotary Hammers Skil 1760 - 1765 2610393209 Carbon Brushe Set for Rotary Hammers Skil 1760 - 1765 €11.23
27
 photo_cameraImage coming soon 2610393203 Parts Set €21.57
29
 photo_cameraImage coming soon 2610393212 Sealing Unit €1.27
31
 photo_cameraImage coming soon 2610393211 Front Housing €20.68
32
 Sleeve Set for Rotary Hammers Skil 1760 - 1765 2610393201 Sleeve Set for Rotary Hammers Skil 1760 - 1765 €8.28
33
 photo_cameraImage coming soon 2610394803 Spring retaining ring €2.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Spare Parts for Rotary Hammer 1760

SKIL Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer 1760 - F015176001
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.

Rotary Hammer 1760/F 015 176 001
# Part Num. Description
1 2610393214 Housing
2 2610393215 Pole Shoe 230-240V
3 2610393207 Armature 230-240V
4 2610393210 Switch
5 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
6 2610393213 Parts Set
16 2610393209 Brushe Set
21 2610393208 Set Of Handles
25 2610393204 Button Set
26 2610393205 Parts Set
27 2610393203 Parts Set
28 2610393206 Intermediate housing
29 2610393212 Sealing Unit
30 2610393202 Parts Set
31 2610393211 Front Housing
32 2610393201 Sleeve
33 2610394803 Spring retaining ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Skil 1760 - F015176001
4 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Skil 1760

Diagram Skil 1760

Download (86.21KB)
