Skil Spare Parts for Rotary Hammer 1743

SKU: Skil 1743 - F015174301
€38.93
VAT included

Skil Spare Parts for Rotary Hammer 1743

Skil original spare parts for to replace broken parts for to fix Rotary Hammer 1743 - F015174301.

Fix Your Rotary Hammer. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Rotary Hammer 1743 - F015174301
Skil Spare Parts for Rotary Hammer 1743
  • Online only
  • Skil Spare Parts for Rotary Hammer 1743
  • Skil Spare Parts for Rotary Hammer 1743
SKIL B.V

Skil Spare Parts for Rotary Hammer 1743

SKU: Skil 1743 - F015174301 Condition: New
€38.93
VAT included

Skil Spare Parts for Rotary Hammer 1743

Skil original spare parts for to replace broken parts for to fix Rotary Hammer 1743 - F015174301.

Fix Your Rotary Hammer. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Rotary Hammer 1743 - F015174301
settings 22 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN: ON DEMAND ONLY
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
22 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

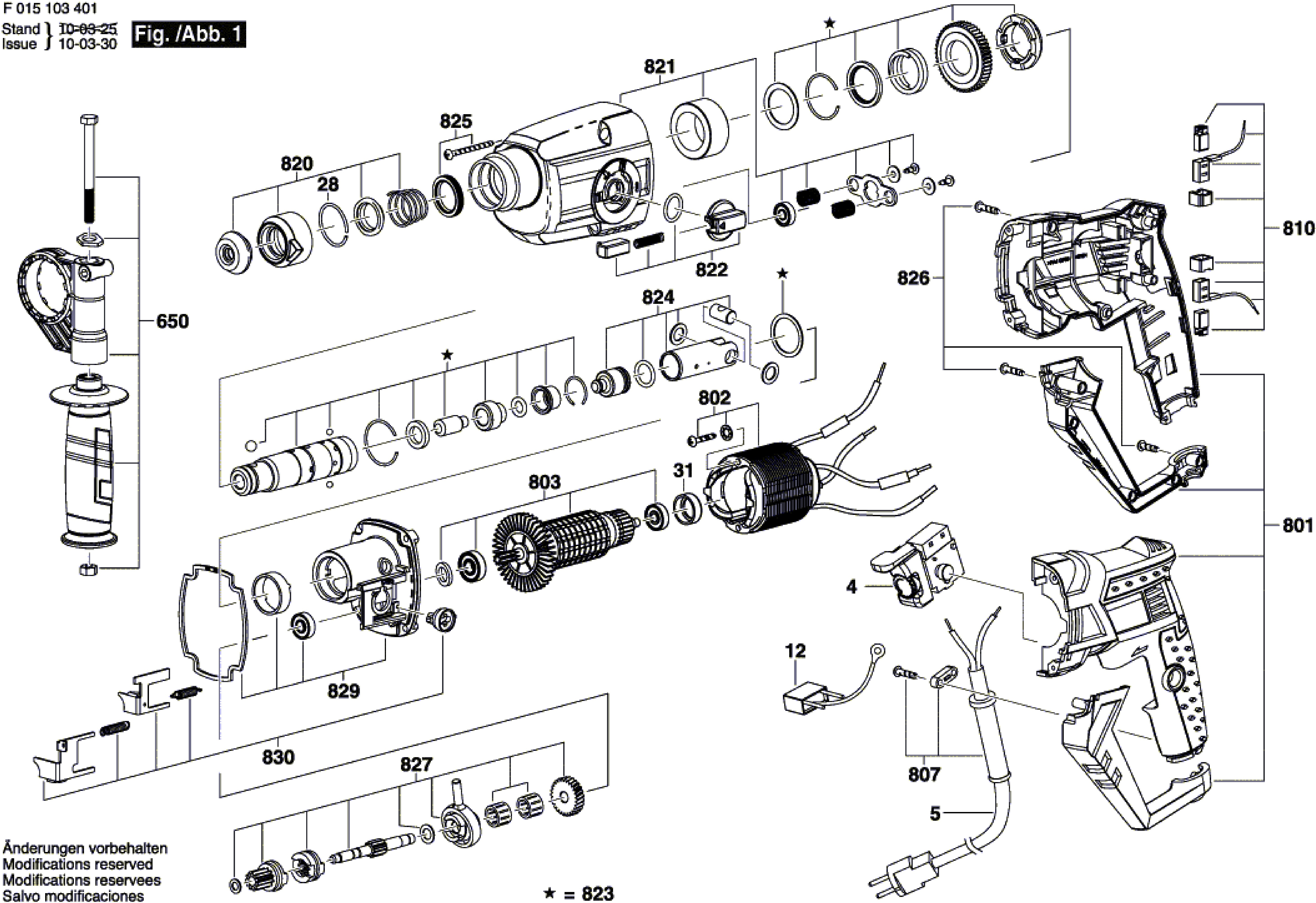

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 Skil 1743 Switch 2610Z04075 Skil 1743 Switch €25.65
5
 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €32.55
5
 Image coming soon 2610383569 Power supply cord CH 4,15m 2 x 1,0mm HO7 RN-F €0.12 Not available for order
12
 Suppression Capacitor for Hammer Skil 1743 2610Z01067 Suppression Capacitor for Hammer Skil 1743 €6.43
28
 Image coming soon 2610Z01083 Spring Washer €0.00 Not available for order
31
 Image coming soon 2610Z01081 Bearing Holder €0.00 Not available for order
650
 Image coming soon 2610Z00439 Auxiliary Handle €8.69
801
 Image coming soon 2610Z01069 Handle €20.68
802
 Image coming soon 2610Z01077 Field 230V €23.77
803
 Image coming soon 2610Z01070 Armature 230V €38.93
807
 Image coming soon 2610Z01078 Grommet €1.27
810
 Carbon Brushes for Hammer Skil 1743 2610Z01068 Carbon Brushes for Hammer Skil 1743 €13.98
820
 Image coming soon 2610Z01082 Bit holder €4.92
821
 Image coming soon 2610Z02152 Gear Housing €20.68
822
 Image coming soon 2610Z01076 Rotary Knob €4.06
823
 Image coming soon 2610Z01073 Drive Shaft €38.93
824
 Image coming soon 2610Z01074 Piston Assembly €12.37
825
 Image coming soon 2610Z01075 Parts Set €2.09
826
 Image coming soon 2610Z01079 Set of screws €1.75
827
 Image coming soon 2610Z01071 Wobble Plate €26.51
829
 Image coming soon 2610Z01072 Base Frame €11.09
830
 Image coming soon 2610Z01084 Shift-Lever Knob €4.75

Shipping and delivery information will be available shortly.

Skil Spare Parts for Rotary Hammer 1743

Skil original spare parts for to replace broken parts for to fix Rotary Hammer 1743 - F015174301.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Rotary Hammer 1743 - F015174301
Rotary Hammer 1743/F 015 174 301
# Part Num. Description
4 2610Z04075 Switch
5 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
5 2610383569 Power supply cord CH 4,15m 2 x 1,0mm HO7 RN-F
12 2610Z01067 Suppression Capacitor
28 2610Z01083 Spring Washer
31 2610Z01081 Bearing Holder
650 2610Z00439 Auxiliary Handle
801 2610Z01069 Handle
802 2610Z01077 Field 230V
803 2610Z01070 Armature 230V
807 2610Z01078 Grommet
810 2610Z01068 Carbon-Brush Set
820 2610Z01082 Bit holder
821 2610Z02152 Gear Housing
822 2610Z01076 Rotary Knob
823 2610Z01073 Drive Shaft
824 2610Z01074 Piston Assembly
825 2610Z01075 Parts Set
826 2610Z01079 Set of screws
827 2610Z01071 Wobble Plate
829 2610Z01072 Base Frame
830 2610Z01084 Shift-Lever Knob
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Skil 1743 - F015174301
6 Items

Data sheet

Machine Type
Rotary Hammer
SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Skil 1743

Diagram Skil 1743

Download (80.38KB)
