| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
4
|
|
2610Z02565 Switch Unit | €47.87 | |
|
10
|
|
2610Z02561 Carbon-Brush Set | €8.55 | |
|
20
|
|
2610Z02549 Hex Screw | €0.12 | Not available for order |
|
21
|
|
2610Z02550 Toothed lock washer | €1.71 | |
|
22
|
|
2610Z02551 Flange clamp | €5.58 | |
|
23
|
|
2610Z02552 Hex Screw Flat Head M 10x12 for Chopper Skil 0770 | €4.42 | |
|
24
|
|
2610Z02553 Cutter Blade | €0.12 | Not available for order |
|
25
|
|
2610Z02554 Blade Holder | €32.90 | |
|
26
|
|
2610Z02555 Driving Flange | €8.55 | |
|
27
|
|
2610Z02556 Aluminium Plate for Chopper Skil 0770/F 015 077 001 | €15.68 | Not available for order |
|
28
|
|
2610Z02557 Gear Box | €47.87 | |
|
29
|
|
2610Z02558 Drive Belt 10PJ375 for Chopper Skil 0770 | €28.28 | Not available for order |
|
32
|
|
2610Z02562 Nut Block | €6.53 | |
|
33
|
|
2610Z02564 Module Pcb | €0.12 | Not available for order |
|
35
|
|
2610Z02566 Circuit breaker | €15.32 | |
|
36
|
|
2610Z02567 Pin | €1.71 | |
|
37
|
|
2610Z02568 Protective Cover | €2.85 | |
|
38
|
|
2610Z02569 Holder | €6.53 | |
|
42
|
|
2610Z02573 Main base plate | €53.92 | |
|
651
|
|
2610Z01578 Pusher Plate | €15.32 | |
|
830
|
|
2610Z02559 Belt Drive Gear | €60.22 | |
|
831
|
|
2610Z02560 Motor-gearbox assembly | €109.99 | |
|
834
|
|
2610Z02563 Switch Set | €36.70 | |
|
839
|
|
2610Z02570 Upper Housing | €146.69 | |
|
840
|
|
2610Z02571 Wheel Set | €36.70 | |
|
841
|
|
2610Z02572 Motor Housing | €65.92 |
Shipping and delivery information will be available shortly.
Skil original spare parts for to replace broken parts for to fix Chopper 0770 - F015077001.

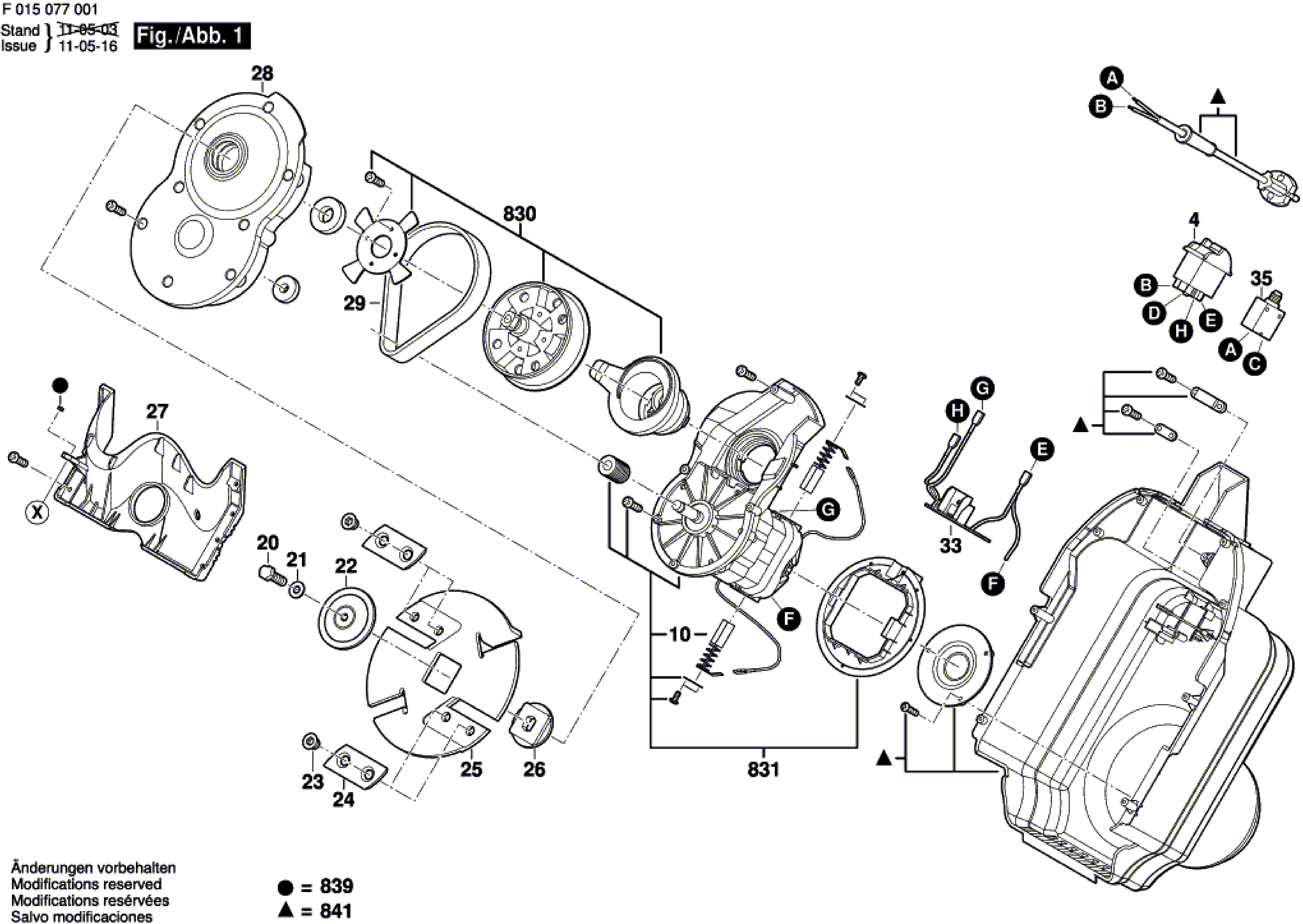

In the following table, look for the model of the Chopper the respective parts of the code.![]()
| Chopper 0770/F 015 077 001 | ||
| # | Part Num. | Description |
| 4 | 2610Z02565 | Switch Unit |
| 10 | 2610Z02561 | Carbon-Brush Set |
| 20 | 2610Z02549 | Hex Screw |
| 21 | 2610Z02550 | Toothed lock washer |
| 22 | 2610Z02551 | Flange clamp |
| 23 | 2610Z02552 | Screw |
| 24 | 2610Z02553 | Cutter Blade |
| 25 | 2610Z02554 | Blade Holder |
| 26 | 2610Z02555 | Driving Flange |
| 27 | 2610Z02556 | Plate DISCONTINUED |
| 28 | 2610Z02557 | Gear Box |
| 29 | 2610Z02558 | Drive Belt |
| 32 | 2610Z02562 | Nut Block |
| 33 | 2610Z02564 | Module Pcb |
| 35 | 2610Z02566 | Circuit breaker |
| 36 | 2610Z02567 | Pin |
| 37 | 2610Z02568 | Protective Cover |
| 38 | 2610Z02569 | Holder |
| 42 | 2610Z02573 | Main base plate |
| 651 | 2610Z01578 | Pusher Plate |
| 830 | 2610Z02559 | Belt Drive Gear |
| 831 | 2610Z02560 | Motor-gearbox assembly |
| 834 | 2610Z02563 | Switch Set |
| 839 | 2610Z02570 | Upper Housing |
| 840 | 2610Z02571 | Wheel Set |
| 841 | 2610Z02572 | Motor Housing |
