SKIL B.V

Skil Spare Parts for Rotary Hammer 1734

SKU: Skil 1734 - F015173401
€17.58
VAT included

Skil Spare Parts for Rotary Hammer 1734

Skil genuine spare parts for replacing or to fix Rotary Hammer 1734 - F015173401.

Rotary Hammer 1734 - F015173401
Skil Spare Parts for Rotary Hammer 1734
  • Online only
  • Skil Spare Parts for Rotary Hammer 1734
  • Skil Spare Parts for Rotary Hammer 1734
SKIL B.V

Skil Spare Parts for Rotary Hammer 1734

SKU: Skil 1734 - F015173401 Condition: New
€17.58
VAT included

Skil Spare Parts for Rotary Hammer 1734

Skil genuine spare parts for replacing or to fix Rotary Hammer 1734 - F015173401.

Rotary Hammer 1734 - F015173401
settings 15 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
15 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

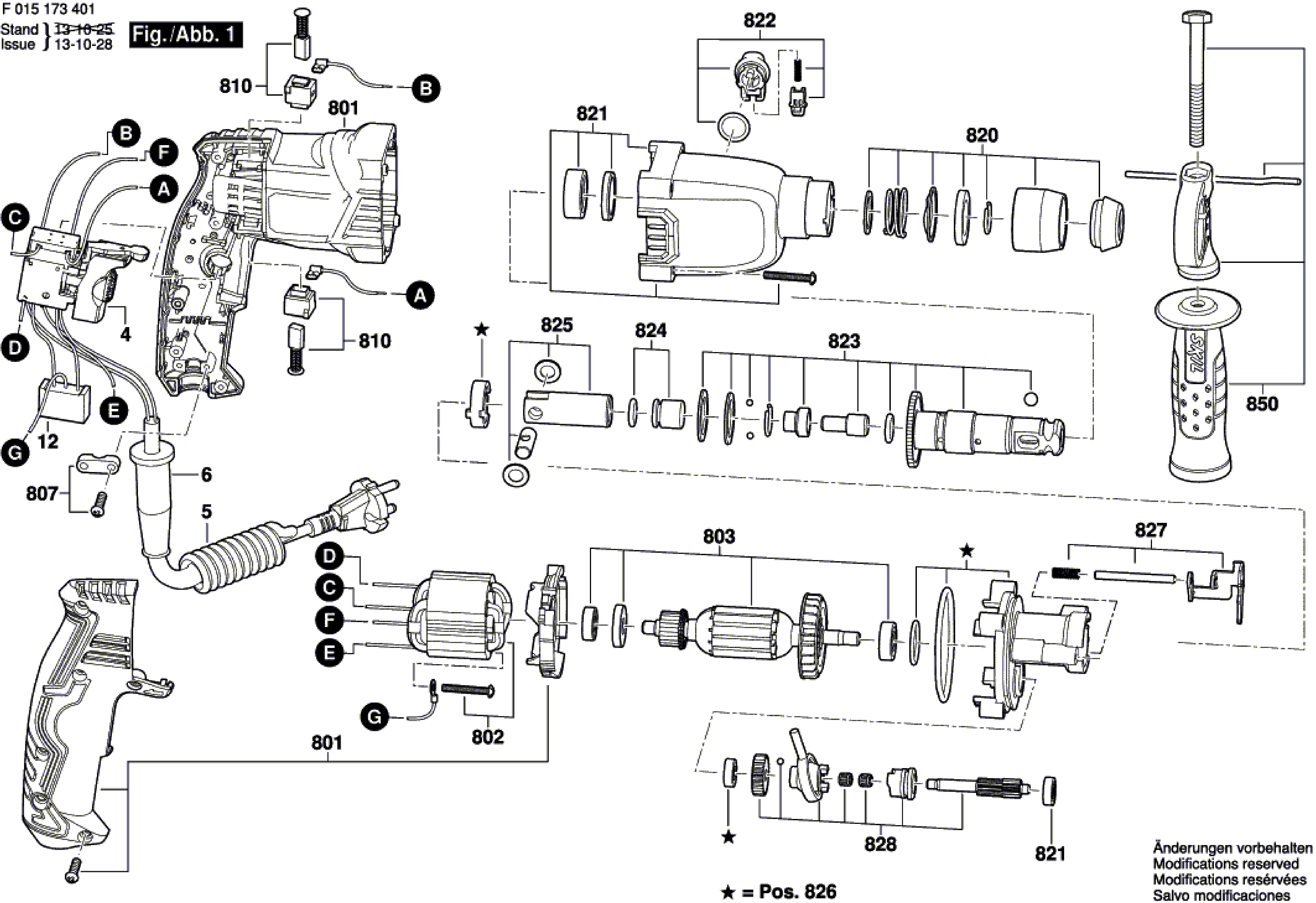

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 2610Z05913 Switch €14.85
12
 photo_cameraImage coming soon 2610Z05914 Suppression Capacitor €2.34
801
 photo_cameraImage coming soon 2610Z05911 Motor Housing €11.45
802
 photo_cameraImage coming soon 2610Z05910 Fields €21.99
803
 photo_cameraImage coming soon 2610Z05909 Armature - Rotor - only on request - €31.97
820
 photo_cameraImage coming soon 2610Z05900 Bit Holder €11.45
821
 photo_cameraImage coming soon 2610Z05901 Gear Housing €9.15
822
 photo_cameraImage coming soon 2610Z05902 Knob €2.34
823
 photo_cameraImage coming soon 2610Z05903 Drive Shaft €19.13
824
 photo_cameraImage coming soon 2610Z05904 Hammer €2.89
825
 photo_cameraImage coming soon 2610Z05905 Piston Assembly €8.04
826
 photo_cameraImage coming soon 2610Z05906 Base Frame €10.26
827
 photo_cameraImage coming soon 2610Z05907 Switching Element €2.34
828
 photo_cameraImage coming soon 2610Z05908 Oblique Disc €28.24
850
 photo_cameraImage coming soon 2610Z05918 Auxiliary Handle  €5.19

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Spare Parts for Rotary Hammer 1734

Skil genuine spare parts for replacing or to fix Rotary Hammer 1734 - F015173401.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Rotary Hammer 1734 - F015173401
Rotary Hammer 1734/F 015 173 401
# Part Num. Description
4 2610Z05913 Switch
5 2610Z05916 Connection Line Green
6 2610Z05915 Cord Armor
12 2610Z05914 Suppression Capacitor
801 2610Z05911 Motor Housing
802 2610Z05910 Fields
803 2610Z05909 Armature - Rotor - only on request -
807 2610Z05917 Grommet
810 2610Z05912 Carbon Brush Set
820 2610Z05900 Bit Holder
821 2610Z05901 Gear Housing
822 2610Z05902 Knob
823 2610Z05903 Drive Shaft
824 2610Z05904 Hammer
825 2610Z05905 Piston Assembly
826 2610Z05906 Base Frame
827 2610Z05907 ELEMENTO DI COMANDO
828 2610Z05908 Disco Obliquo
850 2610Z05918 Auxiliary Handle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Skil 1734 - F015173401
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Skil 1734

Diagram Skil 1734

Download (70.88KB)
