SKIL B.V

Skil Parts for Rotary Hammer 1765 - F015176504

SKU: Skil 1765 - F015176504
€23.56
VAT included

Skil Masters Spare Parts for Rotary Hammer 1765 - F015176504

Skil genuine spare parts for replacing or to fix Rotary Hammer 1765 - F015176504.

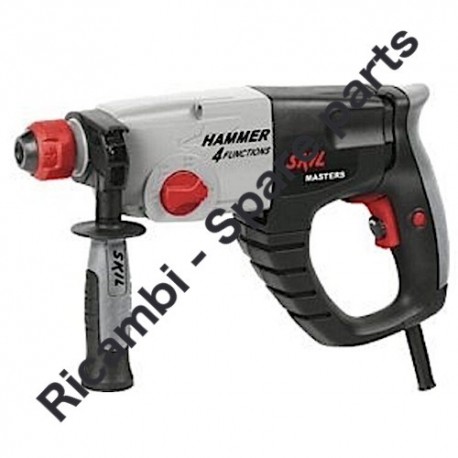

Rotary Hammer 1765 - F015176504
Skil Parts for Rotary Hammer 1765 - F015176504
  • Skil Parts for Rotary Hammer 1765 - F015176504
  • Skil Parts for Rotary Hammer 1765 - F015176504 - Drawing
SKIL B.V

Skil Parts for Rotary Hammer 1765 - F015176504

SKU: Skil 1765 - F015176504 Condition: New
€23.56
VAT included

Skil Masters Spare Parts for Rotary Hammer 1765 - F015176504

Skil genuine spare parts for replacing or to fix Rotary Hammer 1765 - F015176504.

Rotary Hammer 1765 - F015176504
settings 22 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
22 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

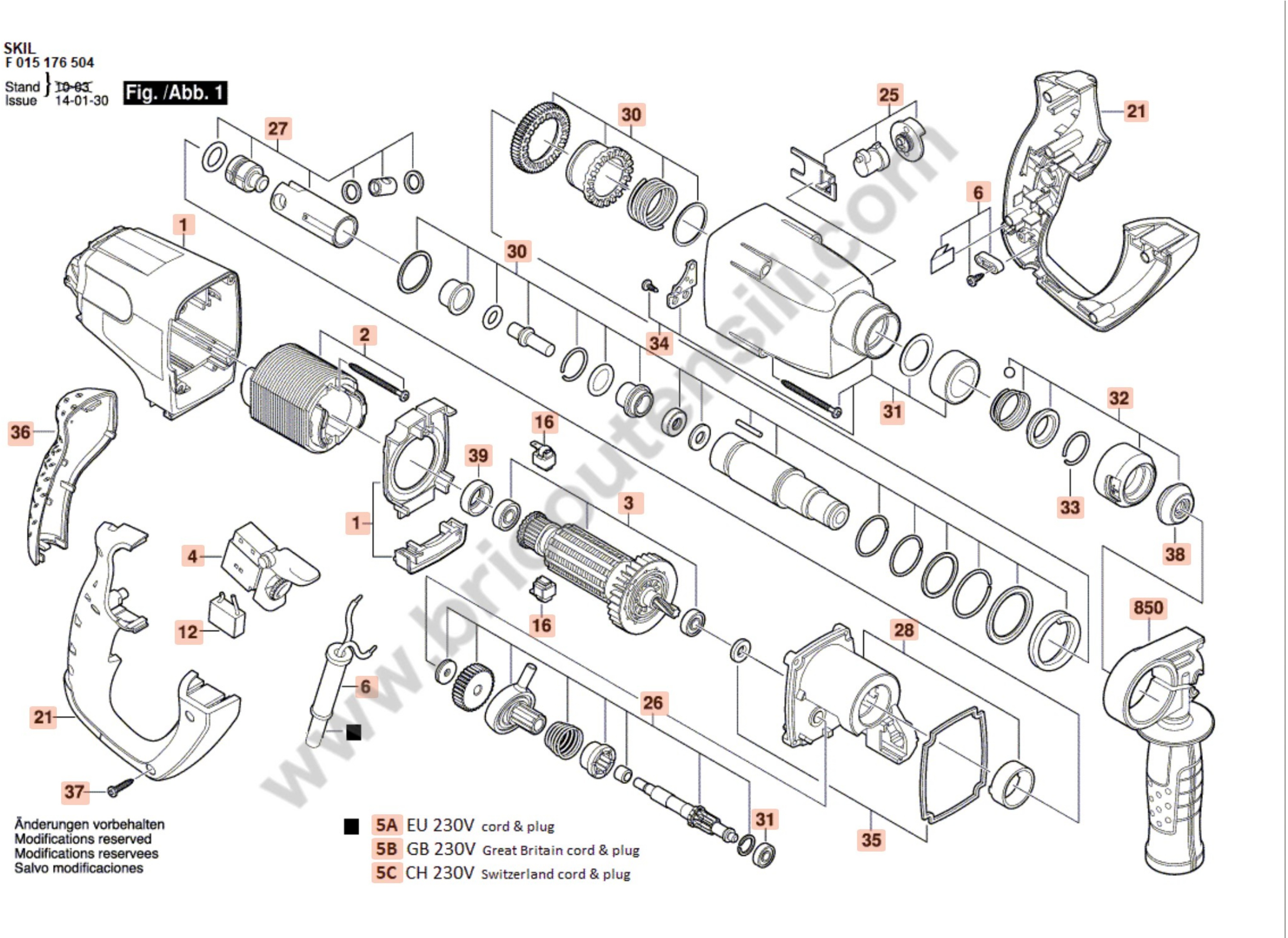

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2610395459 Housing €21.57
2
 photo_cameraImage coming soon 2610393215 Pole Shoe 230-240V €31.95
3
 photo_cameraImage coming soon 2610396918 Armature 230V €54.14
4
 Switch for Rotary Hammer Skil Masters 1765 2610Z01066 Switch for Rotary Hammer Skil Masters 1765 €14.81
5A
 photo_cameraImage coming soon 4810003111 Power supply cord EU 230V H07RN-F 4,1 m 2 x 1,0 mm €29.06
5B
 photo_cameraImage coming soon 4810003148 Power supply cord GB 230V H07RN-F 4,1 m 2 x 1,0 mm €29.06
5C
 photo_cameraImage coming soon 4810003294 Power supply cord CH 230V €29.06
6
 photo_cameraImage coming soon 2610393213 Parts Set €1.66
12
 Suppression Capacitor for Hammer Skil 1743 2610Z01067 Suppression Capacitor for Hammer Skil 1743 €6.43
16
 Carbon Brushe Set for Rotary Hammers Skil 1760 - 1765 2610393209 Carbon Brushe Set for Rotary Hammers Skil 1760 - 1765 €11.23
21
 photo_cameraImage coming soon 2610395461 Set Of Handles €27.80
26
 photo_cameraImage coming soon 2610396919 Parts Set €74.16
27
 photo_cameraImage coming soon 2610393203 Parts Set €21.57
28
 photo_cameraImage coming soon 2610395463 Intermediate housing €31.95
30
 photo_cameraImage coming soon 2610395464 Parts Set €89.84
31
 photo_cameraImage coming soon 2610395465 Front Housing €27.80
32
 Sleeve Set for Rotary Hammers Skil 1760 - 1765 2610393201 Sleeve Set for Rotary Hammers Skil 1760 - 1765 €8.28
33
 photo_cameraImage coming soon 2610394803 Spring retaining ring €2.31
34
 photo_cameraImage coming soon 2610395466 Parts Set €1.66
35
 photo_cameraImage coming soon 2610395467 Sealing Unit €1.66
38
 photo_cameraImage coming soon 2610395497 Protective Cap €1.66
850
 photo_cameraImage coming soon 2610395238 Auxiliary Handle €8.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Masters Spare Parts for Rotary Hammer 1765 - F015176504

Skill genuine spare parts for replacing or to fix Rotary Hammer 1765 - F015176504.

In the following table, look for the model of the Rotary Hammer the respective parts of the code.
Rotary Hammer 1765 - F015176504
SKIL 1765 EU / 230 V Rotary Hammer - F015176504
# Part Num Description
1 2610395459 Housing
2 2610393215 Pole Shoe 230-240V
3 2610396918 Armature 230V
4 2610Z01066 Switch
5A 4810003111 Power supply cord EU 230V H07RN-F 4,1 m 2 x 1,0 mm
5B 4810003148 Power supply cord GB 230V H07RN-F 4,1 m 2 x 1,0 mm
5C 4810003294 Power supply cord CH 230V
6 2610393213 Parts Set
12 2610Z01067 Suppression Capacitor
16 2610393209 Brush Set
21 2610395461 Set Of Handles
25 2610396676 Button Set
26 2610396919 Parts Set
27 2610393203 Parts Set
28 2610395463 Intermediate housing
30 2610395464 Parts Set
31 2610395465 Front Housing
32 2610393201 Sleeve
33 2610394803 Spring retaining ring
34 2610395466 Parts Set
35 2610395467 Sealing Unit
36 2610395468 Handle Cover
37 2610395496 Tapping Screw
38 2610395497 Protective Cap
39 2610395498 Rubber Ring
850 2610395238 Auxiliary Handle
