SKIL B.V

Skil Spare Parts for Multipurpose Tool 1470 - F015147001

SKU: Skil 1470 - F015147001
€29.45
VAT included

Skil Spare Parts for Multipurpose Tool 1470 - F015147001

Skil original replacement parts for to replace broken parts for Multipurpose Tool 1470 /230V/EU - F015147001.

Multipurpose Tool 1470 /230V/EU - F015147001
Skil Spare Parts for Multipurpose Tool 1470 - F015147001
  • Online only
  • Skil Spare Parts for Multipurpose Tool 1470 - F015147001
  • Skil Spare Parts for Multipurpose Tool 1470 - F015147001
SKIL B.V

Skil Spare Parts for Multipurpose Tool 1470 - F015147001

SKU: Skil 1470 - F015147001 Condition: New
€29.45
VAT included

Skil Spare Parts for Multipurpose Tool 1470 - F015147001

Skil original replacement parts for to replace broken parts for Multipurpose Tool 1470 /230V/EU - F015147001.

Multipurpose Tool 1470 /230V/EU - F015147001
settings 14 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
14 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

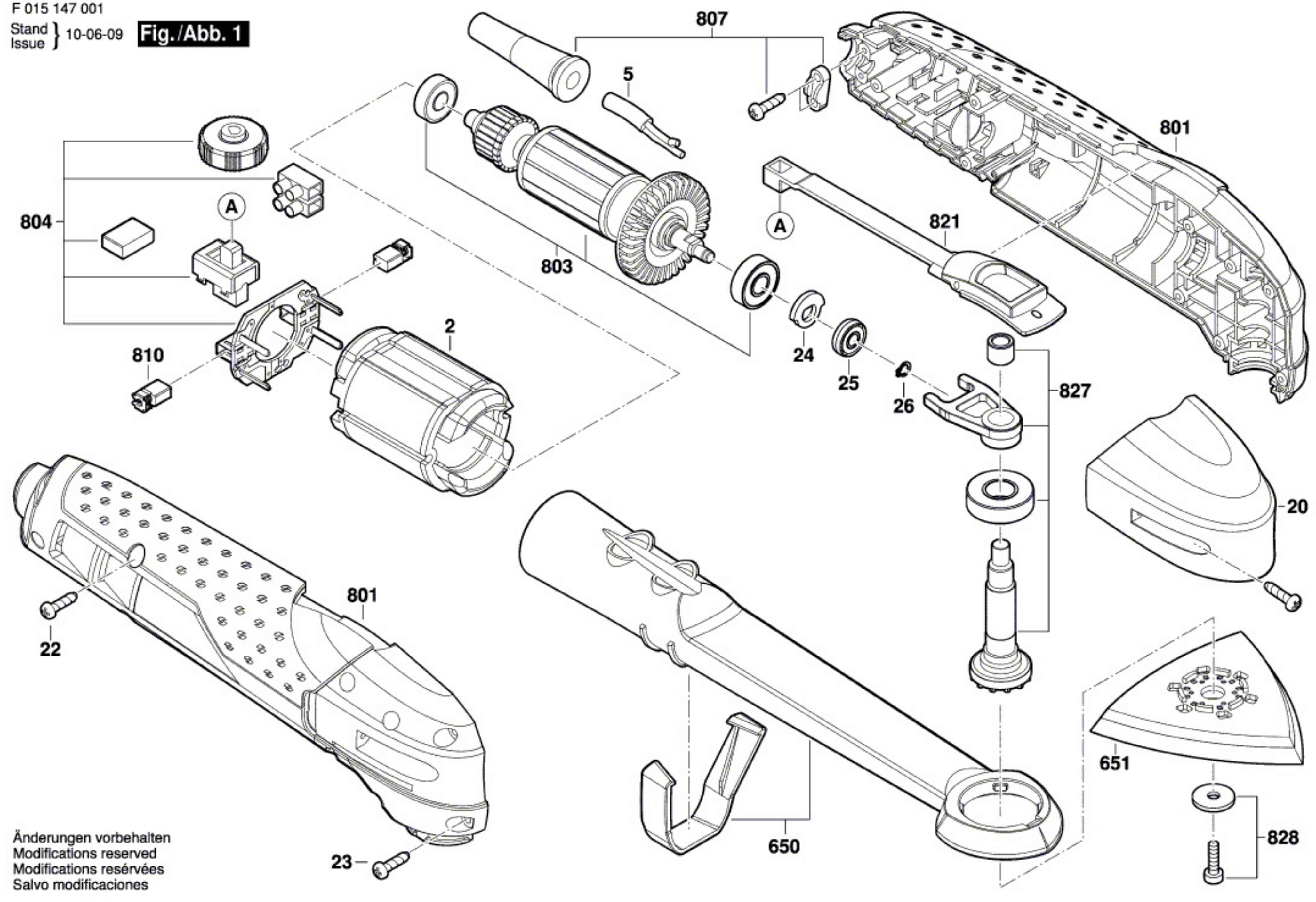

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2610Z01024 Field 230V €20.70
5
 photo_cameraImage coming soon 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F  €14.61
20
 photo_cameraImage coming soon 2610Z01014 Housing Cover €3.69
25
 Skil 1470 Micro Ball Bearing 2610Z01020 Skil 1470 Micro Ball Bearing €6.30
650
 photo_cameraImage coming soon 2610Z00409 Adapter €4.46
651
 Skil 1470 Base Plate 2610Z00408 Skil 1470 Base Plate €6.30
801
 photo_cameraImage coming soon 2610Z01016 Housing Set €14.05
803
 photo_cameraImage coming soon 2610Z01023 Armature 230V €30.01
804
 photo_cameraImage coming soon 2610Z01022 Module Pcb  €15.72
807
 photo_cameraImage coming soon 2610Z01026 Grommet €1.31
810
 photo_cameraImage coming soon 2610398520 Carbon-Brush Set €5.51
821
 photo_cameraImage coming soon 2610Z01015 Lever €1.73
827
 photo_cameraImage coming soon 2610Z01025 Linkage part €23.08
828
 photo_cameraImage coming soon 2610Z01027 Screw €1.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Spare Parts for Multipurpose Tool 1470 - F015147001

Skil original replacement parts for to replace broken parts for Multipurpose Tool 1470 /230V/EU - F015147001.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Multipurpose Tool 1470 /230V/EU - F015147001

Multipurpose Tool 1470 /230V/EU - F015147001
# Part Num. Description
2 2610Z01024 Field 230V
5 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F
20 2610Z01014 Housing Cover
22 2610Z01017 Self-Cutting Screw
23 2610Z01018 Self-Cutting Screw
24 2610Z01019 Shim
25 2610Z01020 groove ball bearing
26 2610Z01021 Spring Clip
650 2610Z00409 Adapter
651 2610Z00408 Base Plate
801 2610Z01016 Housing Set
803 2610Z01023 Armature 230V
804 2610Z01022 Module Pcb
807 2610Z01026 Grommet
810 2610398520 Carbon-Brush Set
821 2610Z01015 Lever
827 2610Z01025 Linkage part
828 2610Z01027 Screw
