SKIL B.V

Skil Masters Spare Parts for Percussion Drill 6504

SKU: Skil 6504 - F015650411
€31.07
VAT included

Skil Masters Spare Parts for Percussion Drill 6504

Skil genuine spare parts or replacemtents parts for to repair Percussion Drill 650 - F015650411.

Percussion Drill 650 - F015650411

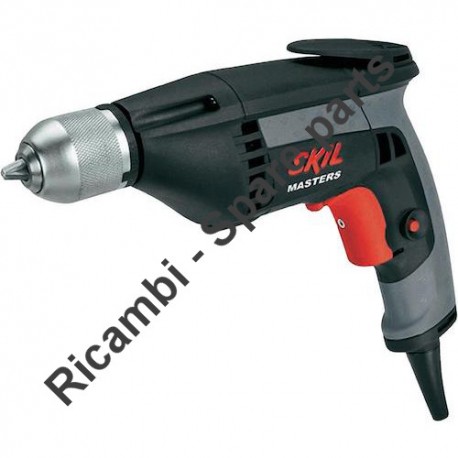

Skil Masters Spare Parts for Percussion Drill 6504
  • Skil Masters Spare Parts for Percussion Drill 6504
  • Skil Masters Spare Parts for Percussion Drill 6504
SKIL B.V

Skil Masters Spare Parts for Percussion Drill 6504

SKU: Skil 6504 - F015650411 Condition: New
€31.07
VAT included

Skil Masters Spare Parts for Percussion Drill 6504

Skil genuine spare parts or replacemtents parts for to repair Percussion Drill 650 - F015650411.

Percussion Drill 650 - F015650411
settings 14 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 15/20 Business Days Approx.

SHIPPING IN:: Usually Ships in:: 15/20 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
14 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in:: 15/20 BUSINESS DAYS

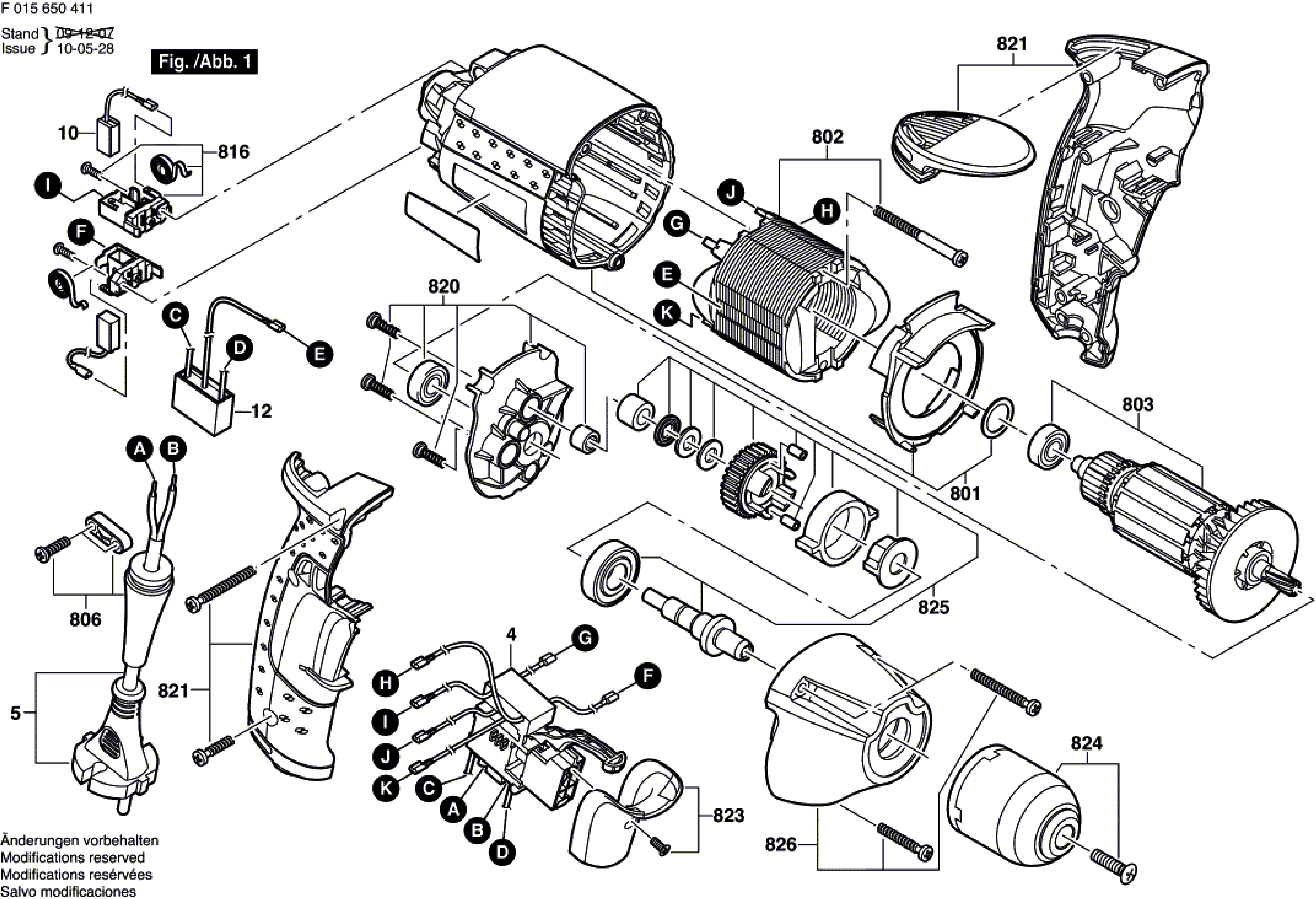

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
10
 photo_cameraImage coming soon 2610Z00687 Carbon-Brush Set €5.44
12
 photo_cameraImage coming soon 2610Z00689 Suppression Capacitor €4.61
801
 photo_cameraImage coming soon 2610Z00693 Motor Housing €13.60
802
 photo_cameraImage coming soon 2610Z00710 Field 230V €25.74
803
 photo_cameraImage coming soon 2610Z00703 Armature 230V €37.80
806
 photo_cameraImage coming soon 2610Z00690 Grommet €2.03
816
 photo_cameraImage coming soon 2610Z00688 Brush Holder €3.94
820
 photo_cameraImage coming soon 2610Z00704 Bearing Plate €12.02
821
 photo_cameraImage coming soon 2610Z00692 Set Of Handles €7.02
823
 photo_cameraImage coming soon 2610Z00696 Trigger €1.70
824
 photo_cameraImage coming soon 2610Z00705 Keyless Chuck €37.80
825
 photo_cameraImage coming soon 2610Z00707 Gear Unit €23.08
826
 photo_cameraImage coming soon 2610Z00700 Front Housing €4.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Masters Spare Parts for Percussion Drill 6504

Skil genuine spare parts or replacemtents parts for to repair Percussion Drill 650 - F015650411.

In the following table, look for the model of the Percussion Drill the respective parts of the code.
Percussion Drill 6504/F 015 650 411
# Part Num. Description
4 2610Z00695 On-Off Switch
5 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
10 2610Z00687 Carbon-Brush Set
12 2610Z00689 Suppression Capacitor
801 2610Z00693 Motor Housing
802 2610Z00710 Field 230V
803 2610Z00703 Armature 230V
806 2610Z00690 Grommet
816 2610Z00688 Brush Holder
820 2610Z00704 Bearing Plate
821 2610Z00692 Set Of Handles
823 2610Z00696 Trigger
824 2610Z00705 Keyless Chuck
825 2610Z00707 Gear Unit
826 2610Z00700 Front Housing

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Skil 6504 - F015650411
6 Items

Data sheet

SHIPPING IN:
Usually Ships in:: 15/20 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Skil Masters 6504

Diagram Skil Masters 6504

Download (92.26KB)
