SKIL B.V

Skil Spare Parts for Planer 1565

SKU: Skil 1565 - F015156501
€15.65
VAT included

Skil Spare Parts for Planer 1565

Skil Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Planer 1565 - F015156501.

Planer 1565 - F015156501
Skil Spare Parts for Planer 1565
  • Online only
  • Skil Spare Parts for Planer 1565
  • Skil Spare Parts for Planer 1565
SKIL B.V

Skil Spare Parts for Planer 1565

SKU: Skil 1565 - F015156501 Condition: New
€15.65
VAT included

Skil Spare Parts for Planer 1565

Skil Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Planer 1565 - F015156501.

Planer 1565 - F015156501
settings 30 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
On 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

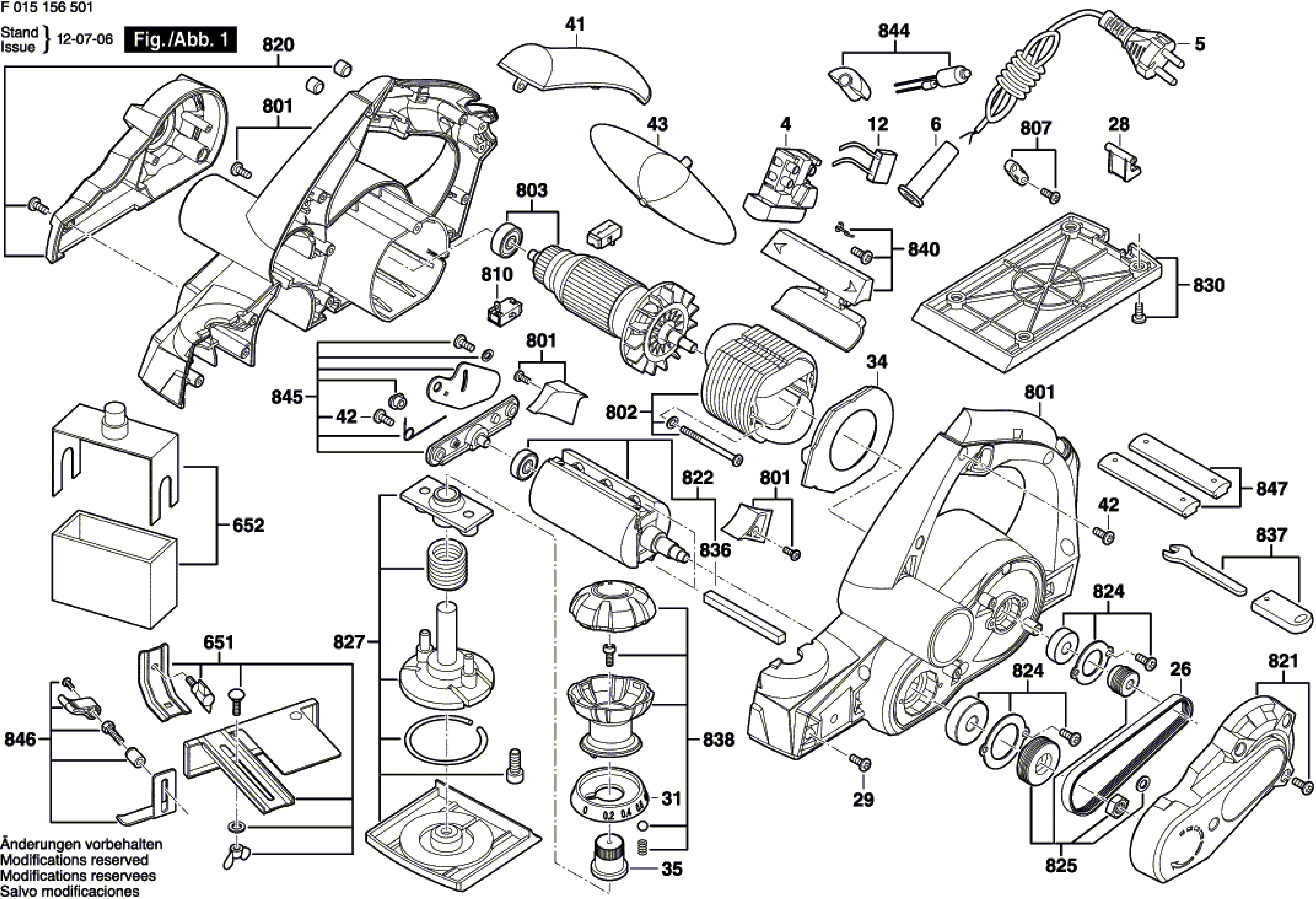

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 2610Z04133 On-Off Switch €6.34
5
 photo_cameraImage coming soon 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F  €14.61
12
 photo_cameraImage coming soon 2610Z04158 Suppression Capacitor €1.66
26
 Toothed Belt for Planer Skil 1565 2610Z04165 Toothed Belt for Planer Skil 1565 €7.52
31
 photo_cameraImage coming soon 2610Z04170 Dial €2.30
34
 photo_cameraImage coming soon 2610Z04171 Air-Deflector Ring €2.30
35
 photo_cameraImage coming soon 2610Z04172 Bushing €2.30
41
 photo_cameraImage coming soon 2610Z04163 Handle Cover €2.77
43
 photo_cameraImage coming soon 2610Z04173 Deflection Plate €4.15
651
 photo_cameraImage coming soon 2610Z03838 Parallel-Guide €11.63
652
 photo_cameraImage coming soon 2610394052 Dust Bag €13.24
801
 photo_cameraImage coming soon 2610Z04154 Motor Housing €52.27
802
 photo_cameraImage coming soon 2610Z04156 Field 230V €35.58
803
 photo_cameraImage coming soon 2610Z04157 Armature 230V €31.89
810
 Skil 1550 Carbon-Brush Set 2610Z04137 Skil 1550 Carbon-Brush Set €10.04
820
 photo_cameraImage coming soon 2610Z04159 Housing Cover €5.41
821
 photo_cameraImage coming soon 2610Z04160 Belt Cover €5.41
822
 photo_cameraImage coming soon 2610Z04162 Wheel Shaft €52.27
824
 photo_cameraImage coming soon 2610Z04155 Bearing set €11.63
825
 photo_cameraImage coming soon 2610Z04164 Set Of Pulleys €6.34
827
 photo_cameraImage coming soon 2610Z04166 adjusting plate set €35.58
830
 photo_cameraImage coming soon 2610Z04169 Base Plate €11.63
836
 Planing Knife for Planer Skil 1565 2610Z04178 Planing Knife for Planer Skil 1565 €15.64
837
 photo_cameraImage coming soon 2610Z03834 Socket Wrench €11.63
838
 photo_cameraImage coming soon 2610Z04218 Adjusting Part €4.15
840
 photo_cameraImage coming soon 2610Z04161 push button set €2.30
844
 photo_cameraImage coming soon 2610Z04174 Led Board €2.30
845
 photo_cameraImage coming soon 2610Z04175 Support Element €5.41
846
 photo_cameraImage coming soon 2610Z04176 Depth-Gauge €3.34
847
 photo_cameraImage coming soon 2610Z04177 Guide Rail €1.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Spare Parts for Planer 1565

Skil Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Planer 1565 - F015156501.

In the following table, look for the model of the Planer and the respective parts of the code.
Planer 1565 - F015156501

Planer 1565/F 015 156 501
# Part Num. Description
4 2610Z04133 On-Off Switch
5 2604 460 259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F
6 2610Z04134 Grommet
12 2610Z04158 Suppression Capacitor
26 2610Z04165 Toothed Belt
28 2610Z04146 Support Element
29 2610Z04167 Plastic-Cutting Screw
31 2610Z04170 Dial
34 2610Z04171 Air-Deflector Ring
35 2610Z04172 Bushing
41 2610Z04163 Handle Cover
42 2610Z04168 Plastic-Cutting Screw
43 2610Z04173 Deflection Plate
651 2610Z03 838 Parallel-Guide
652 2610394052 Dust Bag
801 2610Z04154 Motor Housing
802 2610Z04156 Field 230V
803 2610Z04157 Armature 230V
807 2610Z04136 Cable Clip
810 2610Z04137 Carbon-Brush Set
820 2610Z04159 Housing Cover
821 2610Z04160 Belt Cover
822 2610Z04162 Wheel Shaft
824 2610Z04155 Bearing set
825 2610Z04164 Set Of Pulleys
827 2610Z04166 adjusting plate set
830 2610Z04169 Base Plate
836 2610Z04178 Planing Knife
837 2610Z03834 Socket Wrench
838 2610Z04218 Adjusting Part
840 2610Z04161 push button set
844 2610Z04174 Led Board
845 2610Z04175 Support Element
846 2610Z04176 Depth-Gauge
847 2610Z04177 Guide Rail
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Skil 1565 - F015156501
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Skil 1565

Diagram Skil 1565

Download (94.77KB)
