Skil Spare Parts for Cirular Saw 5740

SKU: Skil 5740 - F015574001
€1.75
VAT included

Skil Spare Parts for Cirular Saw 5740

Skil genuine spare parts for replacing or repairing Circular Saw 5740 - F015574001.

Circular Saw 5740 - F015574001
Skil Spare Parts for Cirular Saw
  • Skil Spare Parts for Cirular Saw
  • Skil Spare Parts for Cirular Saw 5740

Skil Spare Parts for Cirular Saw 5740

SKU: Skil 5740 - F015574001 Condition: New
€1.75
VAT included

Skil Spare Parts for Cirular Saw 5740

Skil genuine spare parts for replacing or repairing Circular Saw 5740 - F015574001.

Circular Saw 5740 - F015574001
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts
Pos. Item Price Buy
2
photo_cameraImage coming soon 2610387123 Field 230V €14.00 Not available for order
3
photo_cameraImage coming soon 2610386657 Armature 230V €34.56 Not available for order
4
photo_cameraImage coming soon 2610389737 Switch RED €7.23 Not available for order
5
photo_cameraImage coming soon 2610362954 Power supply cord EU 2,65m 2 x 1,0mm H05 VV-F  €7.49
6
photo_cameraImage coming soon 2610360176 Grommet €1.31
12
photo_cameraImage coming soon 2609004538 Suppression Capacitor €3.12 Not available for order
23
photo_cameraImage coming soon 2610386555 Washer €2.52
24
photo_cameraImage coming soon 2610392351 Protective Cover €11.09 Not available for order
25
photo_cameraImage coming soon 2610386569 Bearing €2.09
26
photo_cameraImage coming soon 2610366402 Ball Bearing €6.20
27
photo_cameraImage coming soon 2610391430 Washer €9.89
28
photo_cameraImage coming soon 2610386609 Extension Spring €2.09 Not available for order
29
Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 1603414007 Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 €1.68
30
photo_cameraImage coming soon 2610386556 Washer €1.75
31
photo_cameraImage coming soon 2610374913 Torx Oval-Head Screw 8x13 €1.27
32
photo_cameraImage coming soon 2610386558 Set Of Handles €8.69 Not available for order
33
photo_cameraImage coming soon 2610061550 Nut M6 €1.27
34
photo_cameraImage coming soon 2610386554 Riving Knife €2.52 Not available for order
35
photo_cameraImage coming soon 2610391291 Protective Guard €8.69 Not available for order
36
photo_cameraImage coming soon 2610386712 Washer DIN 9021-6,4x18x1,6 €1.75 Not available for order
37
photo_cameraImage coming soon 2610386933 Screw M6x22 MM €1.27 Not available for order
38
photo_cameraImage coming soon 2610392268 Base €16.06 Not available for order
39
photo_cameraImage coming soon 2610386841 Support €1.75 Not available for order
40
photo_cameraImage coming soon 2610386842 Hinge €2.09 Not available for order
41
photo_cameraImage coming soon 2610386847 Carrying Bolt M6x20 MM €1.27 Not available for order
42
photo_cameraImage coming soon 2610387875 Hex Nut €2.01
43
photo_cameraImage coming soon 2609003647 Carrying Bolt €1.27
44
photo_cameraImage coming soon 2610387876 Wing Screw €1.27
45
Torx Oval-Head Screw T20-8x19 mm for Circular Saw Skil 5750 2610374919 Torx Oval-Head Screw T20-8x19 mm for Circular Saw Skil 5750 €1.05
46
photo_cameraImage coming soon 2610364015 Hexagon Socket Screw Key 5 MM €4.08
51
Torx Oval-Head Screw T20-8x19 mm for Circular Saw Skil 5750 2610374919 Torx Oval-Head Screw T20-8x19 mm for Circular Saw Skil 5750 €1.05
660
photo_cameraImage coming soon 2608005036 Parallel-Guide  €7.12
813
photo_cameraImage coming soon 2600905052 Deep-Groove Ball Bearing 8x22x7 €7.36
816
Carbon-Brush Set for Circular Saw Skil 5740 2610386546 Carbon-Brush Set for Circular Saw Skil 5740 €10.32
848
photo_cameraImage coming soon 2610387048 Gear Shaft €23.77 Not available for order
859
photo_cameraImage coming soon 2610392261 Base €7.23 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Skil Spare Parts for Cirular Saw 5740

Skill genuine spare parts for replacing or repairing Circular Saw 5740 - F015574001.

In the following table, look for the model of the Circular Saw and the respective parts of the code.
Circular Saw 5740 - F015574001

Circular Saw 5740/F 015 574 001
# Part Num. Description
1 2610386557 Housing Set
2 2610387123 Field 230V
3 2610386657 Armature 230V
4 2610389737 Switch RED
5 2610362954 Power supply cord EU 2,65m 2 x 1,0mm H05 VV-F
6 2610360176 Grommet
12 2609004538 Suppression Capacitor
16 2610391898 Brush Plate
22 2610391908 Connecting Cable
23 2610386555 Washer
24 2610392351 Protective Cover
25 2610386569 Bearing
26 2610366402 Ball Bearing
27 2610391430 Washer
28 2610386609 Extension Spring
29 1603414007 Hex Socket Head Cap Screw M6x14 MM
30 2610386556 Washer
31 2610374913 Torx Oval-Head Screw 8x13
32 2610386558 Set Of Handles
33 2610061550 Nut M6
34 2610386554 Riving Knife
35 2610391291 Protective Guard
36 2610386712 Washer DIN 9021-6,4x18x1,6
37 2610386933 Screw M6x22 MM
38 2610392268 Base
39 2610386841 Support
40 2610386842 Hinge
41 2610386847 Carrying Bolt M6x20 MM
42 2610387875 Hex Nut
43 2609003647 Carrying Bolt
44 2610387876 Wing Screw
45 2610374919 Torx Oval-Head Screw T20-8x19 MM
46 2610364015 Hexagon Socket Screw Key 5 MM
51 2610374919 Torx Oval-Head Screw T20-8x19 MM
660 2608005036 Parallel-Guide
813 2600905052 Deep-Groove Ball Bearing 8x22x7
816 2610386546 Carbon-Brush Set
848 2610387048 Gear Shaft
859 2610392261 Base

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Skil 5740 - F015574001

Specific References

New

Download

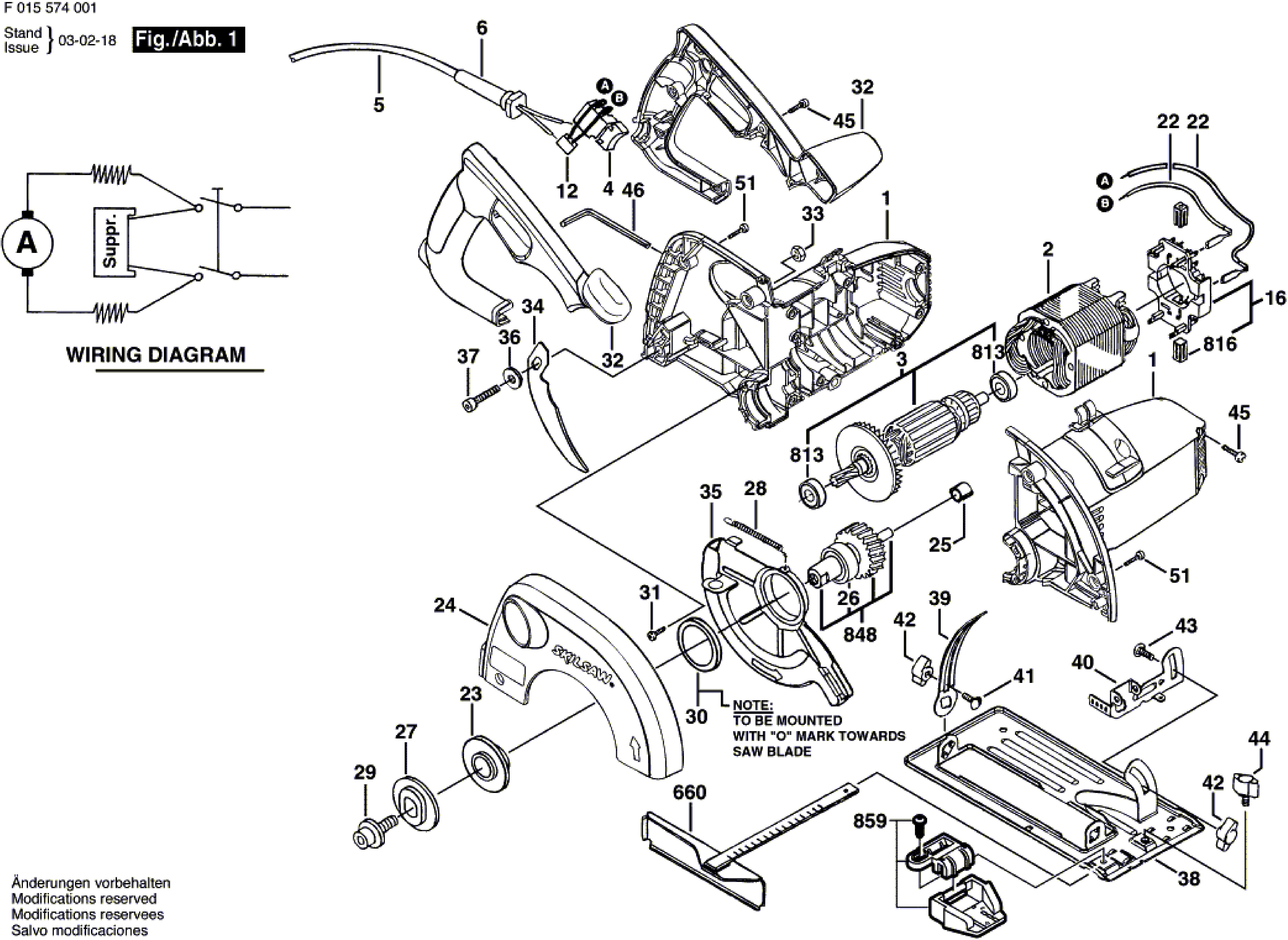

Diagram Skil 5740

Diagram Skil 5740

Download (80.8KB)
