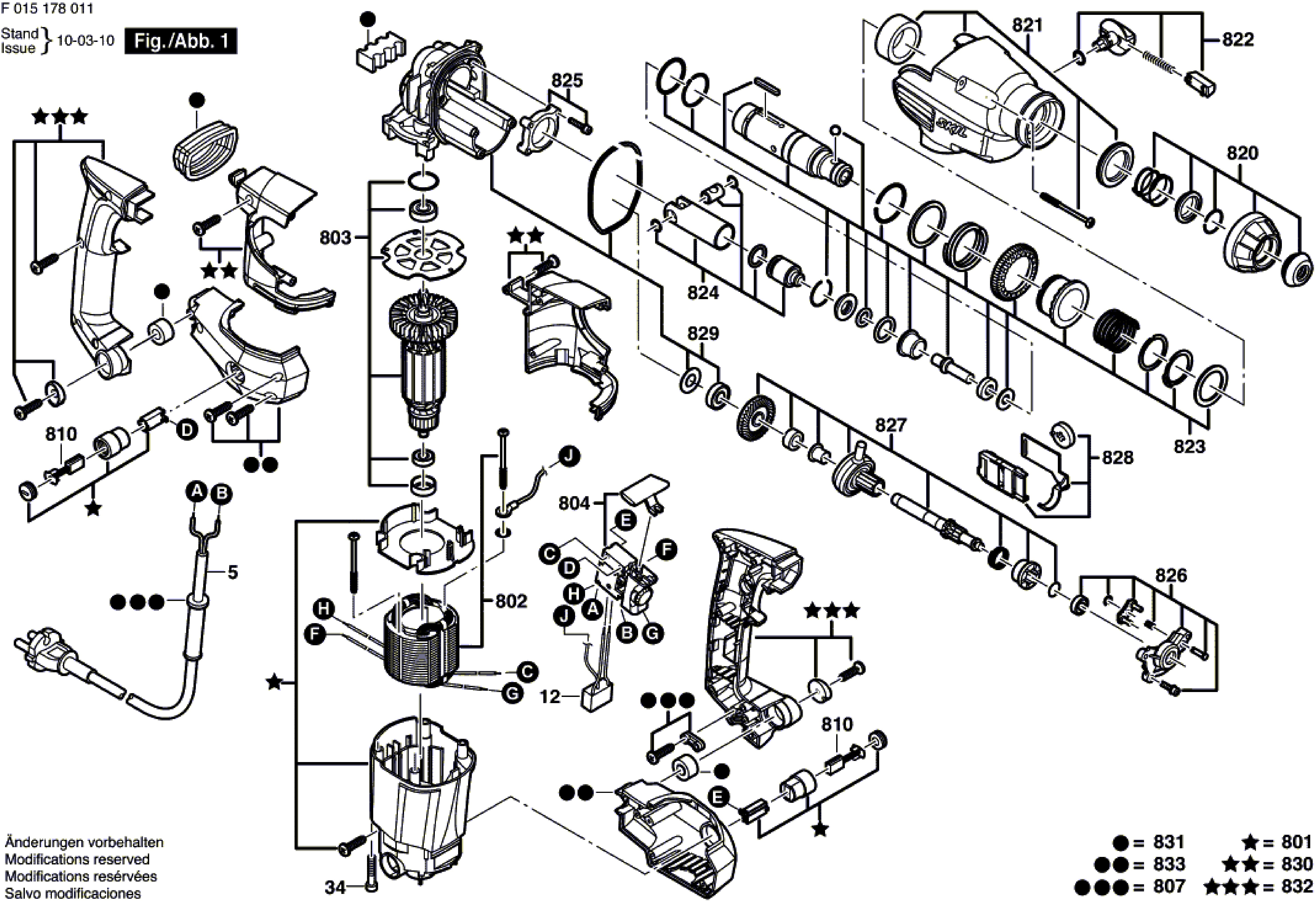

1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
23 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.

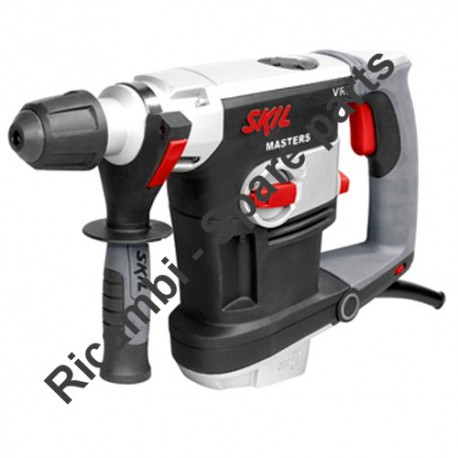

Skil Masters Spare Parts for Rotary Hammer 1780
Skill genuine spare parts for replacing or to fix Rotary Hammer 1780 - F015178011.In the following table, look for the model of the Rotary Hammer the respective parts of the code.
| Rotary Hammer 1780/F 015 178 011 | ||
| # | Part Num. | Description |
| 5 | 1607000227 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 12 | 2610Z00959 | Suppression Capacitor |
| 34 | 2610Z00963 | Screw |
| 801 | 2610Z00955 | Motor Housing |
| 802 | 2610Z00953 | Field 220V |
| 803 | 2610Z00952 | Armature 220V |
| 804 | 2610Z00958 | Switch Kit |
| 807 | 2610Z00962 | Grommet |
| 810 | 2610Z00954 | Carbon Brush |
| 820 | 2610Z00942 | Bit holder |
| 821 | 2610Z00943 | Gear Housing |
| 822 | 2610Z00944 | Rotary Knob |
| 823 | 2610Z00945 | Drive Shaft |
| 824 | 2610Z00946 | Piston Assembly |
| 825 | 2610Z00947 | Stand |
| 826 | 2610Z00948 | Positioning Unit |
| 827 | 2610Z00949 | Wobble Plate |
| 828 | 2610Z00950 | Shift-Lever Knob |
| 829 | 2610Z00951 | Base Frame |
| 830 | 2610Z00956 | Upper Housing |
| 831 | 2610Z00957 | Vibration Damper |
| 832 | 2610Z00960 | Handle |
| 833 | 2610Z00961 | Housing Base |
| 850 | 2610Z00941 | Auxiliary Handle |
