| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
4
|
|
2610398045 Switch for Percussion Drills Skil 6565 | €34.30 | |
|
5
|
photo_cameraImage coming soon | 2610362954 Power supply cord EU 2,65m 2 x 1,0mm H05 VV-F | €7.49 | |
|
650
|
photo_cameraImage coming soon | 2610397394 Auxiliary Handle | €7.23 | |
|
651
|
photo_cameraImage coming soon | 2610397395 Depth-Gauge | €2.09 | |
|
803
|
photo_cameraImage coming soon | 2610398056 Armature 230V | €40.21 | |
|
816
|
photo_cameraImage coming soon | 2610398041 Carbon-Brush Set | €6.69 | |
|
827
|
photo_cameraImage coming soon | 2610398063 Locking element | €2.34 | |
|
829
|
photo_cameraImage coming soon | 2610398065 Keyless Chuck | €31.97 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Skil genuine spare parts for replacing or to fix Percussion Drill 6565 - F015656501

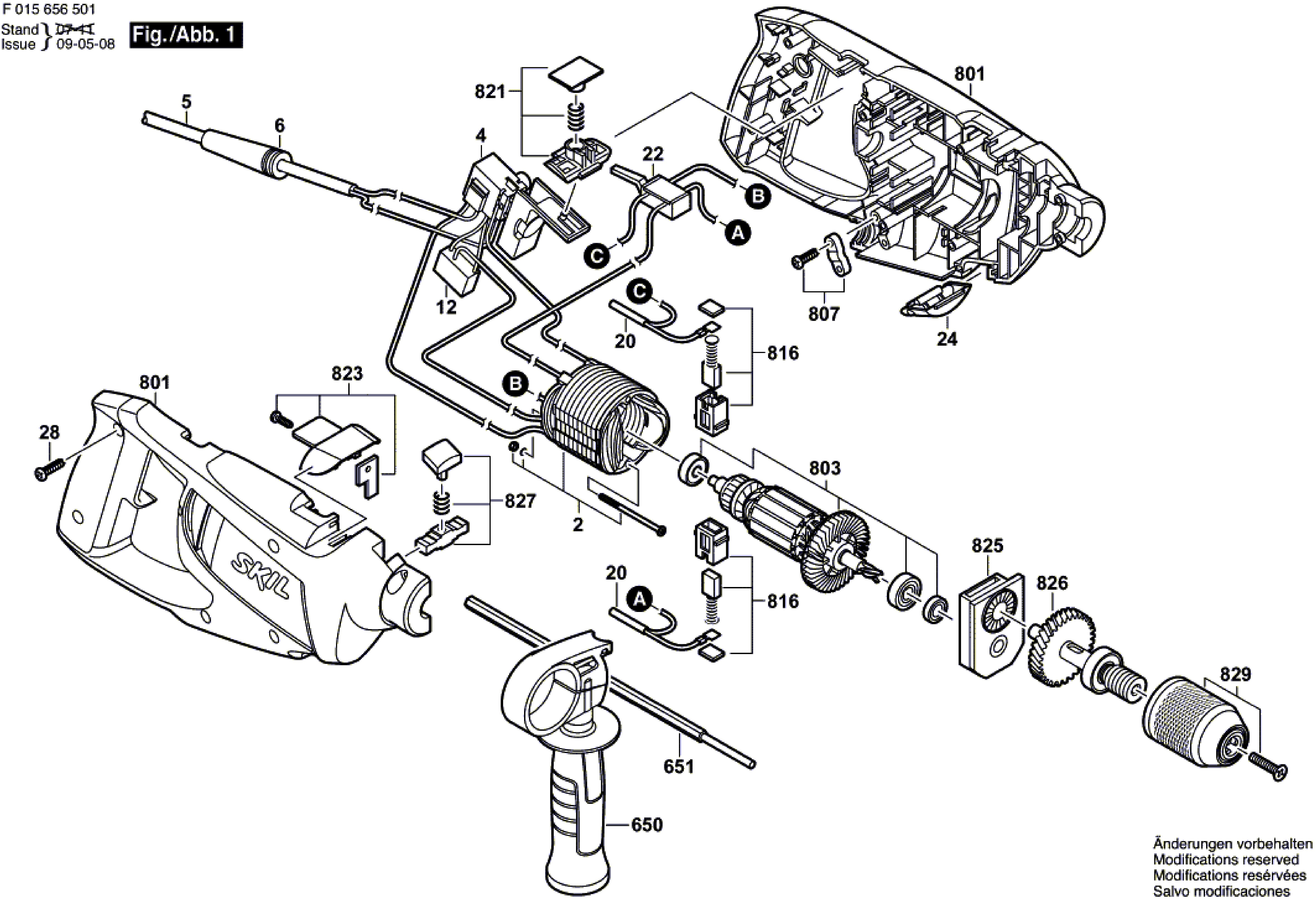

In the following table, look for the model of the Percussion Drill and the respective parts of the code.![]()
| Percussion Drill 6565/F 015 656 501 | ||
| # | Part Num. | Description |
| 2 | 2610398055 | Field 230V |
| 4 | 2610398045 | On-Off Switch ELECTRONIC |
| 5 | 2610362954 | Power supply cord EU 2,65m 2 x 1,0mm H05 VV-F |
| 6 | 2610398053 | Grommet |
| 12 | 2610398568 | Suppression Capacitor |
| 20 | 2610398567 | Induction Coil |
| 22 | 2610398044 | Change-Over Switch L/R |
| 24 | 2610398061 | Cable Holder |
| 28 | 2610398058 | Set of screws |
| 650 | 2610397394 | Auxiliary Handle |
| 651 | 2610397395 | Depth-Gauge |
| 801 | 2610398064 | Housing Set |
| 803 | 2610398056 | Armature 230V |
| 807 | 2610395561 | Cable Clip |
| 816 | 2610398041 | Carbon-Brush Set |
| 821 | 2610398057 | Button Set |
| 823 | 2610398060 | Button Set L/R |
| 825 | 2610398048 | Bearing Plate |
| 826 | 2610398062 | Drilling Spindle |
| 827 | 2610398063 | Locking element |
| 829 | 2610398065 | Keyless Chuck |
